Levo Gen 3 Specialized Gen 3 2022 Levo Megathread!

beutelfuchs

Active member
Aug 11, 2019
191
110
Barcelona
Had anyone the problem that the battery connection doesn't work realiably?
I now often need to remove the connector and press it in again with a lot of force to assure that the battery gets detected at motor start.
Maybe any advice on what to look for in terms of maintenance?


Christox

Member
Aug 12, 2020
85
76
Freiburg/ Germany
Hi !

Had the same problems. Also 1sec cut-offs during riding.

Same problems as with gen1/2 cables.

Could solve the problems good with flushing all contacts with Contact spray, but finally got a new motorcable after claiming this.
Best regards,

Chris


Chicane

Active member
Nov 11, 2020
363
316
SoCal

You can upgrade to the 54t 👍
It's not the same hub as the 240/350, so it's not quite as simple as popping is a 36/54T ratchet. You need to buy a retrofit/upgrade kit.


Stoneilove

Active member
Jan 27, 2023
144
245
England
It's not the same hub as the 240/350, so it's not quite as simple as popping is a 36/54T ratchet. You need to buy a retrofit/upgrade kit.
I never said it was simple, I said it was possible.


maramouse

Active member
Mar 24, 2018
185
126
Genoa Italy
Hello everyone, a friend, with expert carbon 2022, like mine, cracked the carbon swingarm on the top left side, he immediately took the bike to the shop, where they disassembled the swingarm and sent it to Specialized Italia, where they subjected to an x-ray type machine, to check if the carbon was cracked or just the layer of paint and in the end it was the carbon and they didn't pass it as a guarantee but as a crash replacement for 350 eu and they mounted a black painted swingarm available as a spare parti.


Chicane

Active member
Nov 11, 2020
363
316
SoCal
Hello everyone, a friend, with expert carbon 2022, like mine, cracked the carbon swingarm on the top left side, he immediately took the bike to the shop, where they disassembled the swingarm and sent it to Specialized Italia, where they subjected to an x-ray type machine, to check if the carbon was cracked or just the layer of paint and in the end it was the carbon and they didn't pass it as a guarantee but as a crash replacement for 350 eu and they mounted a black painted swingarm available as a spare parti.
That’s disappointing x2 and POOR customer service!


BruceJR

Member
Jun 16, 2022
132
72
USA West
It's not the same hub as the 240/350, so it's not quite as simple as popping is a 36/54T ratchet. You need to buy a retrofit/upgrade kit.
Looks like you guys are correct about being able to upgrade to the 54T. Thanks for correcting my mistake.

However, my Expert came with the Ratchet-LN internals so I do not think the above kit would be required. Just the 54T ratchets. That said, I have had terrible luck with the spokes on my rear and do not plan to dump any money into upgrading them.
54T Upgrade kit:


BruceJR

Member
Jun 16, 2022
132
72
USA West

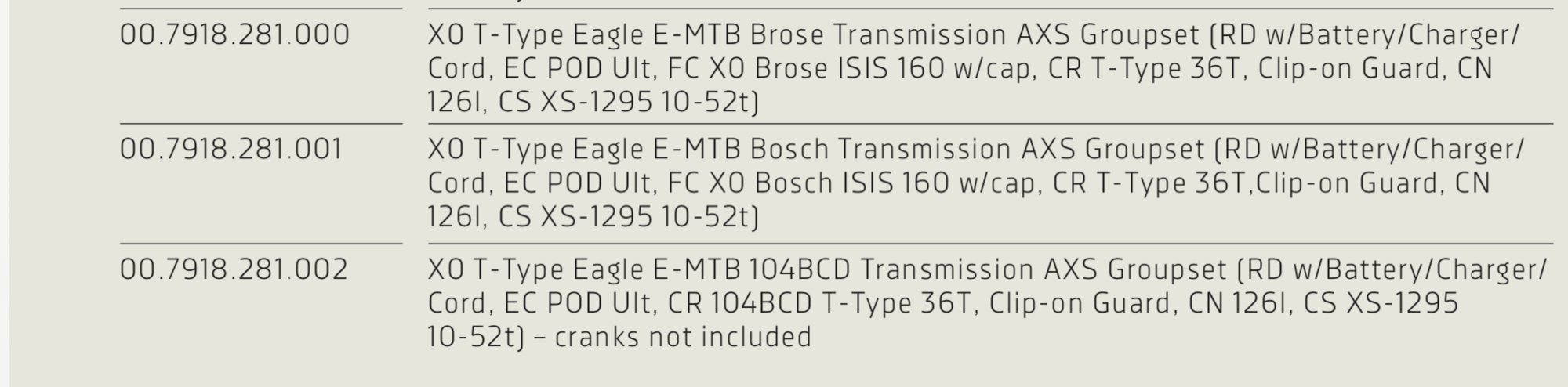

I’m still on the fence about picking the new AXS stuff up. According to SRAM I’ll need 2 chains in different lengths since I swap the high/low position depending on terrain. The tech I spoke with also said I’d have to go back through the set up anytime I changed the head angle. It’s not a deal breaker if you never change any of that stuff but I do a good bit.
I love the current GX AXS combined with an Shimano XT Cassette, HG+ Chainring, and HG+ chain. You can absolutely shift smoothly under load and now that the AXS GX kits are on sale it seems like a good way to go.

After watching a couple videos about the new stuff by Peak Torque I'm a bit skeptical. Certainly would like to see some more long field reports before I'd consider jumping from the Sram/Shimano hybrid setup. Upgrading from a mechanical system to AXS then maybe it would be worth considering.


Chicane

Active member
Nov 11, 2020
363
316
SoCal
Looks like you guys are correct about being able to upgrade to the 54T. Thanks for correcting my mistake.

However, my Expert came with the Ratchet-LN internals so I do not think the above kit would be required. Just the 54T ratchets. That said, I have had terrible luck with the spokes on my rear and do not plan to dump any money into upgrading them.
54T Upgrade kit:
I also have an Expert and if that were the case, I would have already installed the 54T ratchets that are sitting in my other bikes wheel set and not being used.


timo_

Active member
Mar 21, 2021
62
204
Germany

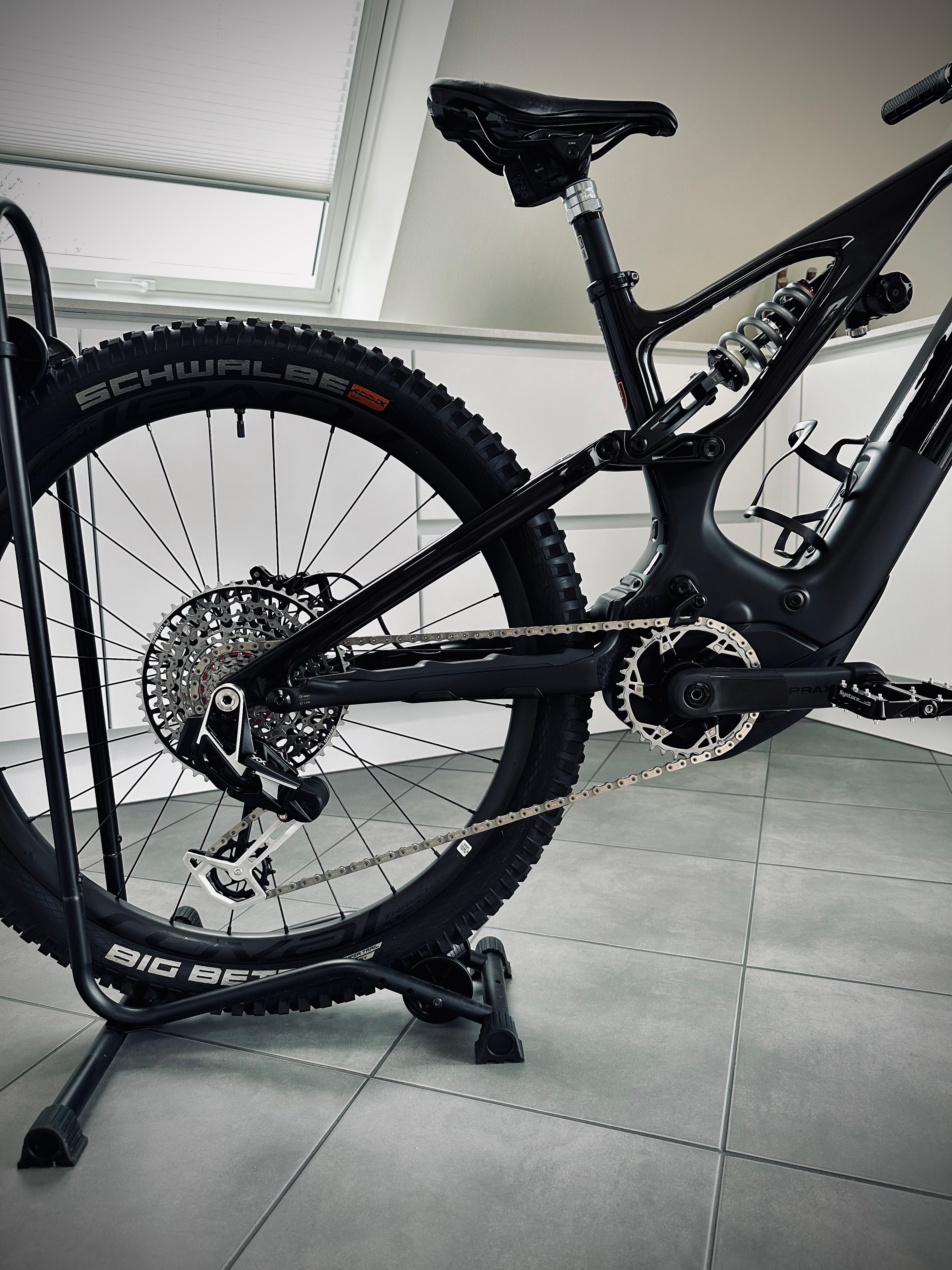

Bike Porn! The new season can start 😍



downduro

Member
Mar 7, 2023
11
2
Oslo, Norway
Hi, thinking about swapping the shock to Float X2. Does anyone know if it comes stock with RX Trail tune on Levo? And if it does, will the regular X2 feel worse than RX Trail-tuned one?


Hurre

Member
Jan 21, 2022
19
8
Norway
Hello everyone, a friend, with expert carbon 2022, like mine, cracked the carbon swingarm on the top left side, he immediately took the bike to the shop, where they disassembled the swingarm and sent it to Specialized Italia, where they subjected to an x-ray type machine, to check if the carbon was cracked or just the layer of paint and in the end it was the carbon and they didn't pass it as a guarantee but as a crash replacement for 350 eu and they mounted a black painted swingarm available as a spare parti.
I was told in a shop in Norway that all parts about guarantee would be black, so if you buy a bike you should think if that will be a nice replacement or not to your bike. Pick you bike color carefully...


Hurre

Member
Jan 21, 2022
19
8
Norway

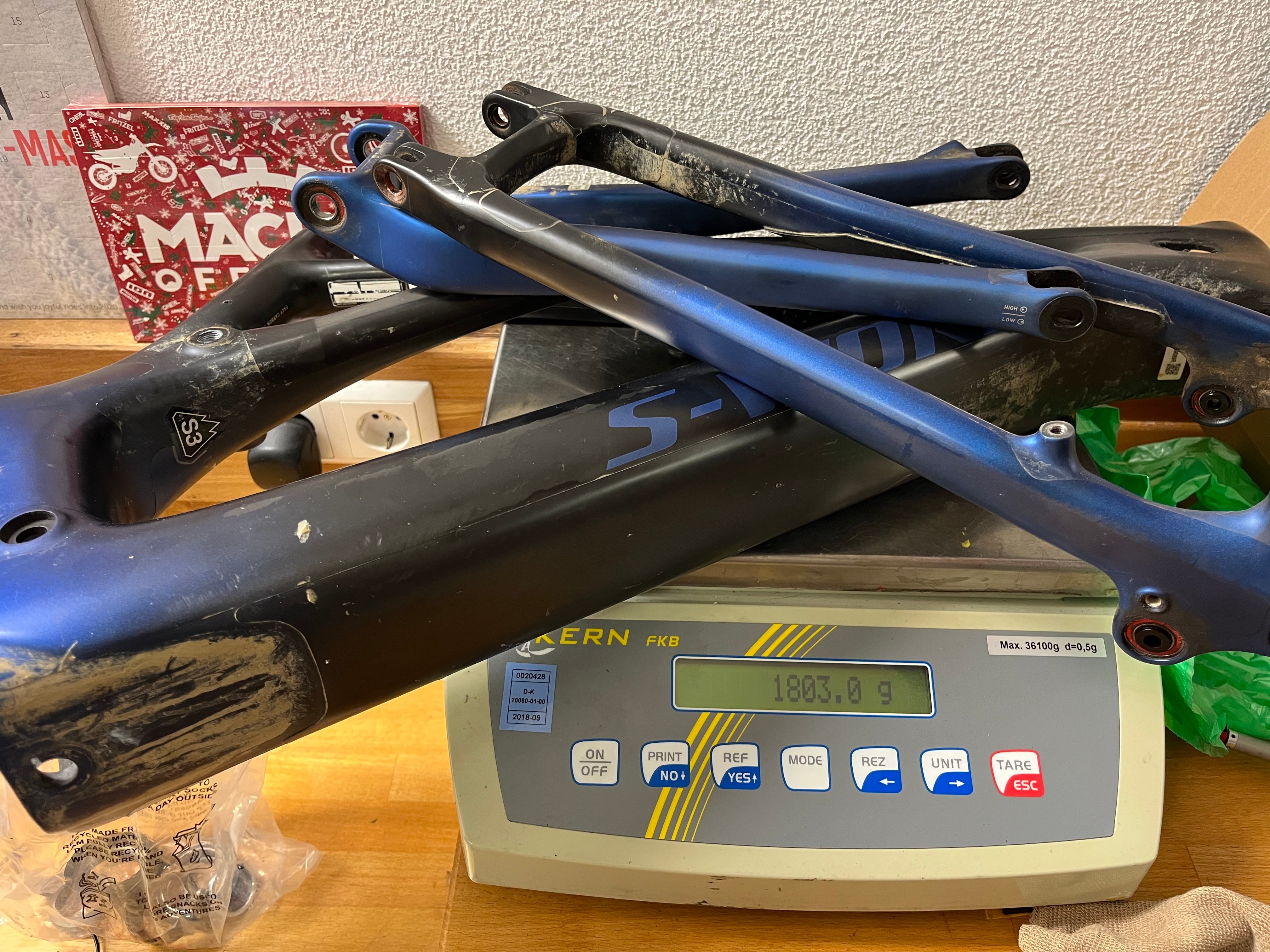

Do anyone knows if s-works frame are lighter than other carbon frames?
I bought the cheapest komplet bike, dark silver(2023mod), and are going to changes almost everything.
The seller is a nice guy, so i think i can change it, its almost the same price.
He gave me a very nice price on this bike, 700 battery, and old mcu, so i have to put some money in
for the s-work frame, but i do it if it is some weight different. This is the S2. I want to get as lightweight as possible.
But not at ALL COST!


SL76

Member
Feb 7, 2021
24
2
Turin
Put the Kashima goodies on it.

200mm transfer dropper on an S4.

That's as far as it'll go but needed a slight twist at the end and it dropped another 20mm or so. Pretty sure it operates correctly. Will see how I get on with it when I next ride it.

Why does my X2 knock as it breaks away? My performance and factory X2s do this. Pretty sure there's no play in the mounting hardware. Makes a slight bump/knock as it breaks away wherever it is in the travel.

Edit to add. After a ride the X2 doesn't make any odd noises

View attachment 78320

View attachment 78321

View attachment 78322
Hi @mike172 ...got an S4 too...it z easy to swap the dropper post?(do we need to drop the battery?)...i also buy a 210 mm One-up,usually my saddle high it z around 75/76 cm from the B.b...
Should everythings work fine?...i m little bit worries!!!Thank s in advance for your attenzione.Cheers


Sep 19, 2020
99
94
Squamish, BC, Canada
Do anyone knows if s-works frame are lighter than other carbon frames?
I bought the cheapest komplet bike, dark silver(2023mod), and are going to changes almost everything.
The seller is a nice guy, so i think i can change it, its almost the same price.
He gave me a very nice price on this bike, 700 battery, and old mcu, so i have to put some money in
for the s-work frame, but i do it if it is some weight different. This is the S2. I want to get as lightweight as possible.
But not at ALL COST!
Gen 3 carbon frames are all the same, gen 2 had different versions, fact 9 and 11 I think they were, with different weights.


BikingBad

Member
Sep 6, 2022
81
35
USA
I also have an Expert and if that were the case, I would have already installed the 54T ratchets that are sitting in my other bikes wheel set and not being used.
Just took delivery of a new Expert, swapped the 18T with 54T ratchets, quick, easy and cheap (relatively) upgrade, Done!


Chicane

Active member
Nov 11, 2020
363
316
SoCal
Just took delivery of a new Expert, swapped the 18T with 54T ratchets, quick, easy and cheap (relatively) upgrade, Done!
Are you saying no tools required and a 2 minute swap? If so, it’s different than what I’ve searched and read.


SL76

Member
Feb 7, 2021
24
2
Turin
I think we can get one thing said, ITS A LOT OF MONEY!! There, I said it for everyone!

But the bike is sick.

Moderator Edit, please read this post before just jumping to the end and asking a question :

2022 Levo Gen 3 User Manual (41.5mb PDF direct Specialized link with multi languages, English only 9mb edited version available to download at bottom of post under "Attachments" dated 13th April 2021, so will not have future edits/updates in)

Bike relevant information.

Size Guide :

View attachment 56900

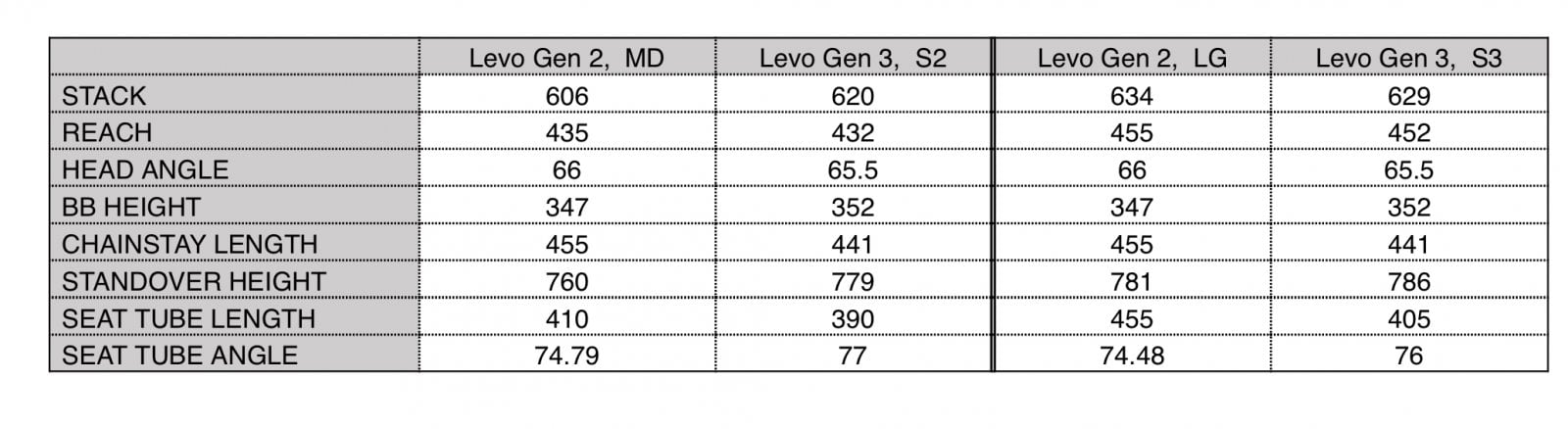

Geometry comparisons to gen 2 bike in nearest match sizing, set with headset cup to +1 (steep)

View attachment 57206

Specs :

View attachment 56901

22 Pro (£10,750) and 22 S-Works (£13,000) models. 22 Expert (£8750) model expected (unconfirmed) June/July 2021.

Reference pricing :

21 S-Works (£12,500). 21 Expert Carbon (£8500). 21 Comp (£6300). 21 Base (£4800)
20 S-Works (£9,999). 20 Expert Carbon (£7249). 20 Comp (£5499). 20 Base (£4249)

BB Height Low , Chainstay 447, BB Height 342-348 (size dependant/headset cup dependant)
BB Height High , Chainstay 441, BB Height 349-354 (size dependant/headset cup dependant)

Max Seat post insertion S1-210, S2-220, S3-240, S4-255, S5-275, S6-295mm

Seat Tube : 34.9mm shimmed to 30.9mm on S-Works and Pro.

Rear shock : Custom Float X2
Part number: 979-63-010
Short ID: D9MP
Description: 2021, FLOAT X2, F-S, K, 2pos-Adj, Specialized, Levo F1, 210, 55, CL002, JCR010, Rezi CM, SBC S08 Dream Silver Satin/SBC W03 Metallic White, Neutral Logo, N/M

Battery : M2 700wh battery with new Gen3 "bash guard" housing the aqua (© Zim) door. Different "Packing Bung" at the top of the battery to accommodate the different frame shape - sold complete as the M3.

Rosenberger plug seals are treated with "Nyogel" Synthetic silicone lubricating grease - DO NOT get this on the plug connections if you re-treat as it's none conductive.

Mastermind TCU V1. - Backwards compatible Levo/Kenevo/SL (Upgrade Video in the Mastermind TCU thread).
Not available for purchase at launch due to supply issues.

Mastermind TCU Configuration and problem solving :


Motor : Specialized/Brose 2.2 - Backwards compatible. 2.1 motor with all the incremental upgrades to firmware, sprag, bearings and the addition of a new belt for the 2.2

Frameset Only : £6500. The frameset supplied with:
  • 2.2 Brose Motor
  • 700wh Battery
  • Handlebar Controller
  • Mastermind TCU
  • Float X2 shock and
  • CRANK SET, PRAXIX,
  • 160MM CARBON ARMS ,
  • BCD 104MM SPIDER,
  • SRAM CR EAGLE 34T CHAINRING
Pretty much anything else you might need to know in the Workbook :

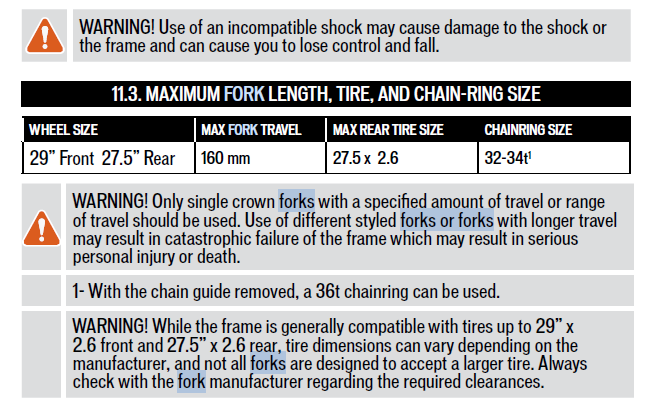

FORK UPGRADE LIMITS and Chainring Sizes :

View attachment 59433

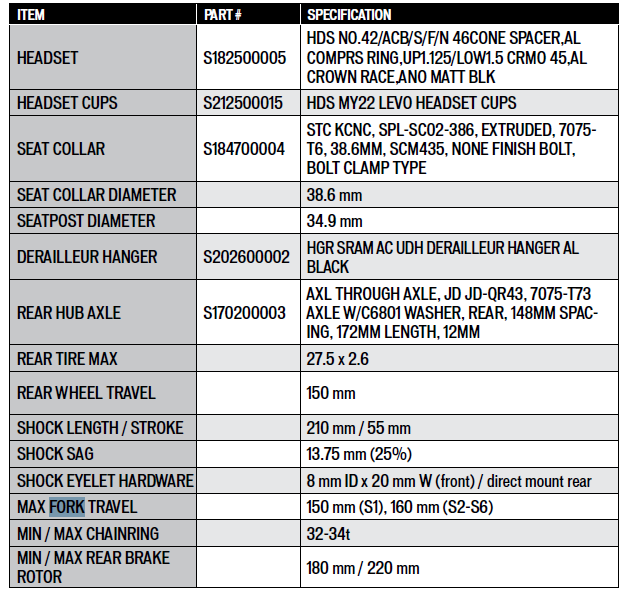

General Specification, quick find part numbers :

View attachment 59436


More info taken from @knut7 Youtube : EMTB Videos & Gen3 Review :

View attachment 56899

This thread has been "cleaned" to keep it more meaningful and easier to read for future readers searching for information on the Gen3 and wanting to discuss the Gen3. In the short term, duplicate questions and answers where people have not read the thread will also be moved. All the cleaned posts have been moved to a parallel thread here :


31st March 2021 - Cleaning the "price related" and "I'd rather rather buy a watch" posts, based on the number of late arrivals reporting Zimmers sarcastic Watch posts we seem to be over the price thing. If you wish to read all the early views and questions you can find them all in the link above.
12th May - General clutter clean to make the thread more readable and moved into the other thread.

Just took delivery of a new Expert, swapped the 18T with 54T ratchets, quick, easy and cheap (relatively) upgrade, Done!
@BikingBad Please can u post a link where i can order the 54 T ratchets for the rear Roval Traverse Wheel...
It is the alluminium version your wheel too? Is it better and louder?thank you


Jase

Active member
Subscriber
Apr 22, 2022
100
163
UK
This 54T looks like a good mod, how well is it lasting for people? See that DT are doing hubs of 24T for e-bikes because of the increased torque so just wondering if these aren’t going to be strong enough?


Polo1602

Member
Jan 19, 2023
42
15
Cologne
I was told in a shop in Norway that all parts about guarantee would be black, so if you buy a bike you should think if that will be a nice replacement or not to your bike. Pick you bike color carefully...
That´s right. The alloy parts (seat- and chainstay) are black-matt and the carbon parts (seat- and chainstay) are black-glossy. I know it, because i had a crack in a weld of my chainstay.


MISTER HYDE

Member
Oct 9, 2019
16
36
ITALY
This 54T looks like a good mod, how well is it lasting for people? See that DT are doing hubs of 24T for e-bikes because of the increased torque so just wondering if these aren’t going to be strong enough?
TRUE ! On Ebike a 54T Ratchet is not recommended due to the greater engine torque, in fact a friend who wanted to try burned it. Furthermore, more "free movement" of the freewheell may help to not have Pedal Kickback and let the rear suspension work better. Like if it were from an Ochain-spider principle. :)




BikingBad

Member
Sep 6, 2022
81
35
USA
Quick 1st ride impression around my neighborhood after initial bike setup…WOW! Compared to my Kenevo SL, this motor is silent, like riding a Tesla.
