Looks like Kiara. I wanted to try the m820 and i have the m560. Lemme know your riding time?
SZZS specific CEF50-main thread (initial builds and troubleshooting related only)
- Thread starter TCFlowClyde
- Start date

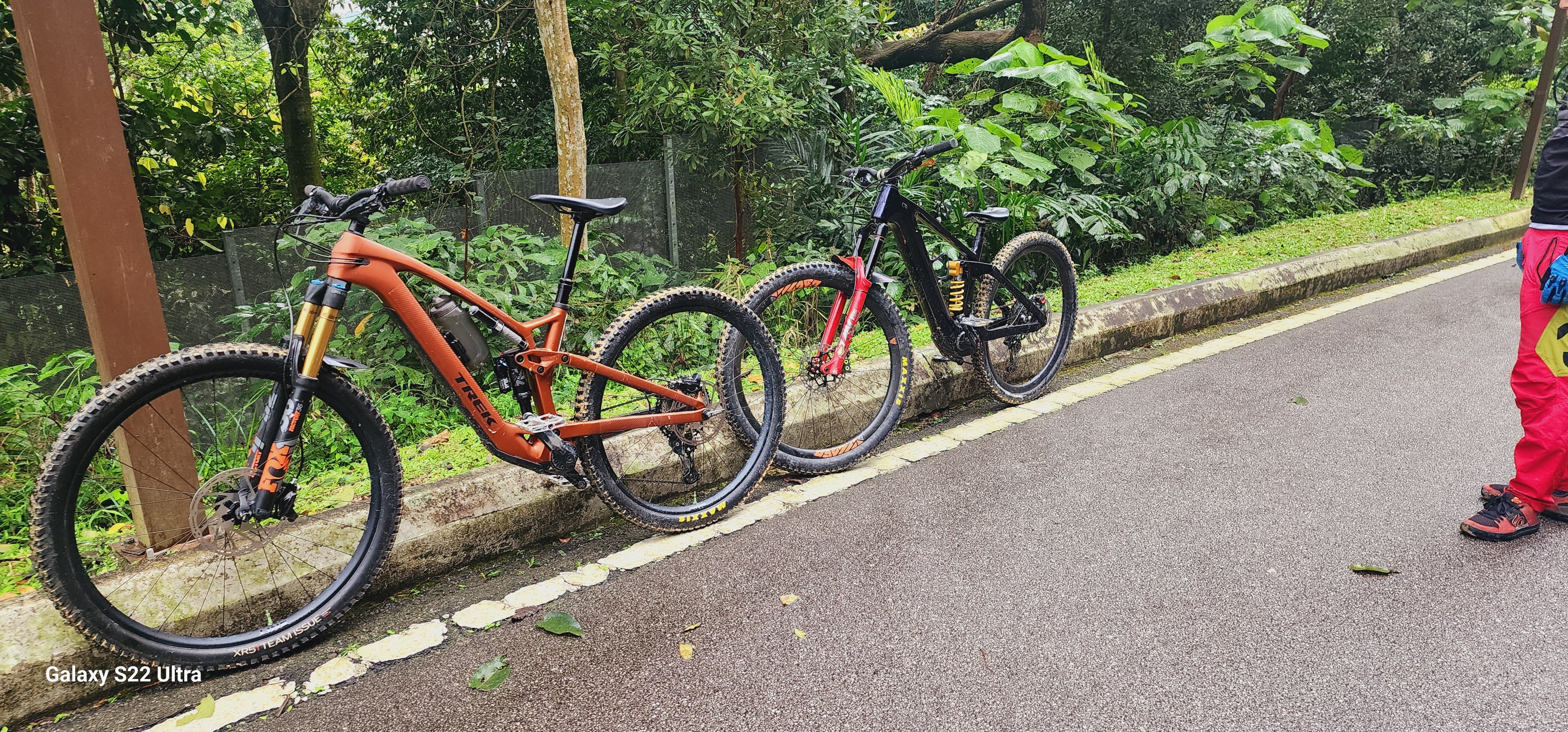

Yes its kiara, my was like grab alot if my friend tested it on 2k loop... They where impressed with the bike only my fork has a problem require service
I want to test the motor, let me know when is your next riding time?
Myalteregohamish
Active member
So you’re saying you have 78% left after doing 4k ft of climbing. I haven’t heard anyone getting that kind of consumption. But if you are I would like to by your motor and battery. Do you think the fact that you weigh under 40kg has anything to do with it?I don't understand these values in comparaisson with mine ? 2 days ago 1200D+ , mostly in max power mode (with power variations) and i have consummed only 22% ? I will mount the DPC245 HMI to compare if my use with DPC263 in 3 mode explain those difference

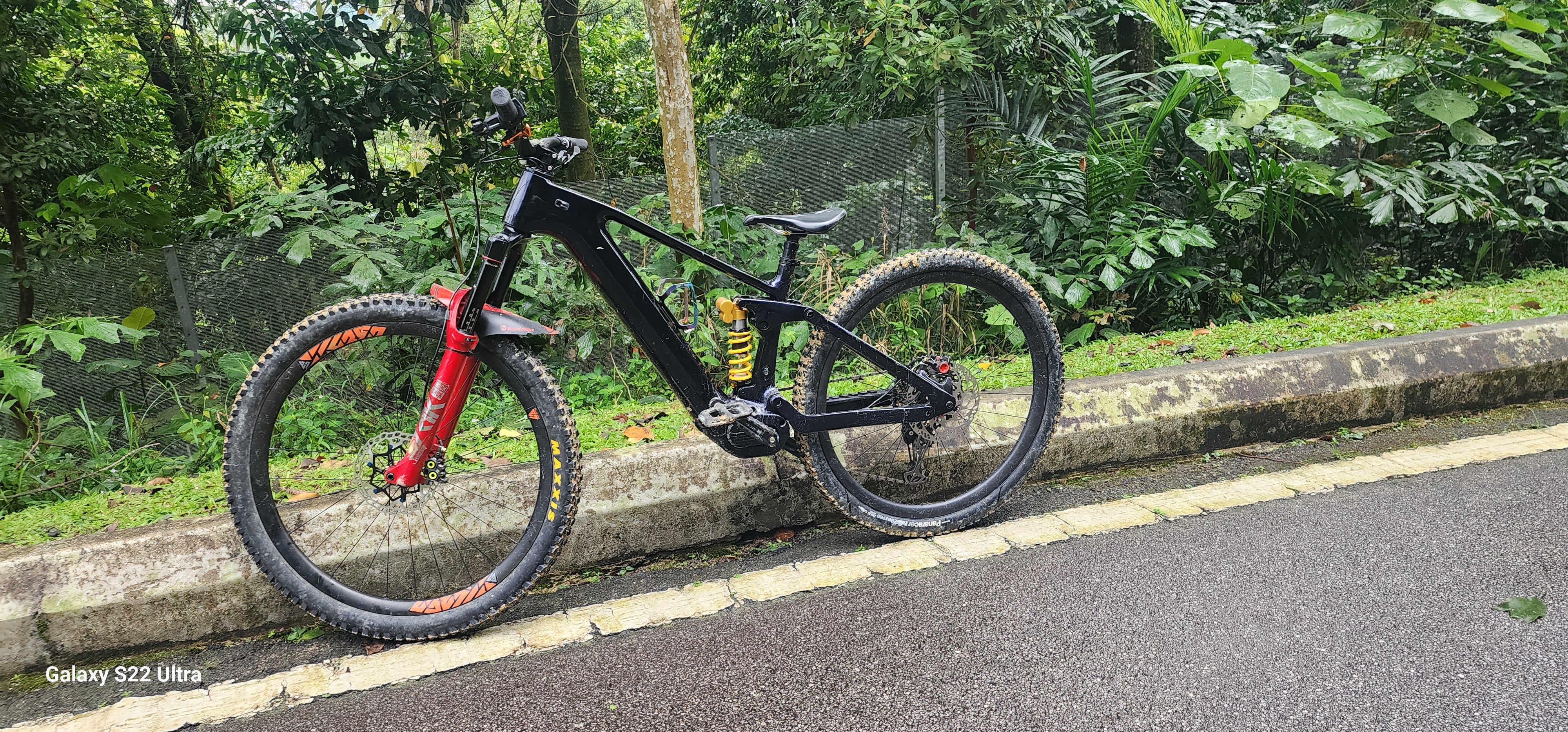

sure no problem i am happy to do so, i cycle kiara every sunday if u are regular rider on sunday u should seen me before. Yellow NukeProof Giga. I am having problem now, do you know anyone has Bafang Besst programing machine in KL? i need to update my firmware, now having error code 07. my M820 can not ride now.
I
i have the BEEST
Need your help. PM u bro
Yeah I think offset bushings will be the solution !
thanks guys
40 kg, l whould loved thatSo you’re saying you have 78% left after doing 4k ft of climbing. I haven’t heard anyone getting that kind of consumption. But if you are I would like to by your motor and battery. Do you think the fact that you weigh under 40kg has anything to do with it?
. but in reallity i'm +- 92 kg naked
.Really i don't understand my motor functioning. i will try asap (too weet today) with original HMI with 5 modes to have same components than everybody. But currently mine provide at max near 3/4 of the max power of the M510, with power variations when hard climb (harder but enough to climb) and it displaying consumation +- 1/2 less of the M510. i will also trying to emptying the battery to check if level displayed is correct or not.
Myalteregohamish
Active member
Yes, that would be helpful. I’m 84kg so we should similar in consumption given an average cadence of around 90 rpm.40 kg, l whould loved that
Really i don't understand my motor functioning. i will try asap (too weet today) with original HMI with 5 modes to have same components than everybody. But currently mine provide at max near 3/4 of the max power of the M510, with power variations when hard climb (harder but enough to climb) and it displaying consumation +- 1/2 less of the M510. i will also trying to emptying the battery to check if level displayed is correct or not.
Myalteregohamish
Active member
Range Extender documentation for the CEF50. I've documented my experience as a true beginner. I've documented what I did, but I am in no way a subject matter expert on this sort of thing. So, Please do not take this as a step by step instruction manual.
TCFlowClyde
Active member
- Thread starter
- #3,282
Myalteregohamish
Active member
Hope it's helpful and like I said there's way smarter people than me on this thread (@mike_kelly ). So thanks should really go to them.You're the resident expert now!
Thanks for posting.
TCFlowClyde
Active member
- Thread starter
- #3,284
You're the technical EE whisperer and translator for those of us not so smart in the "magic" of electronics!
Here's the extent of my knowledge.
That and I guess batteries fade over their lifespan due to dendrite build up between the anode (-) and cathode (+) disrupting e-flow?
That's not much. So, I appreciate your efforts and good graphics.
Last edited:
So you basically built this yourself?!
a.aliexpress.com

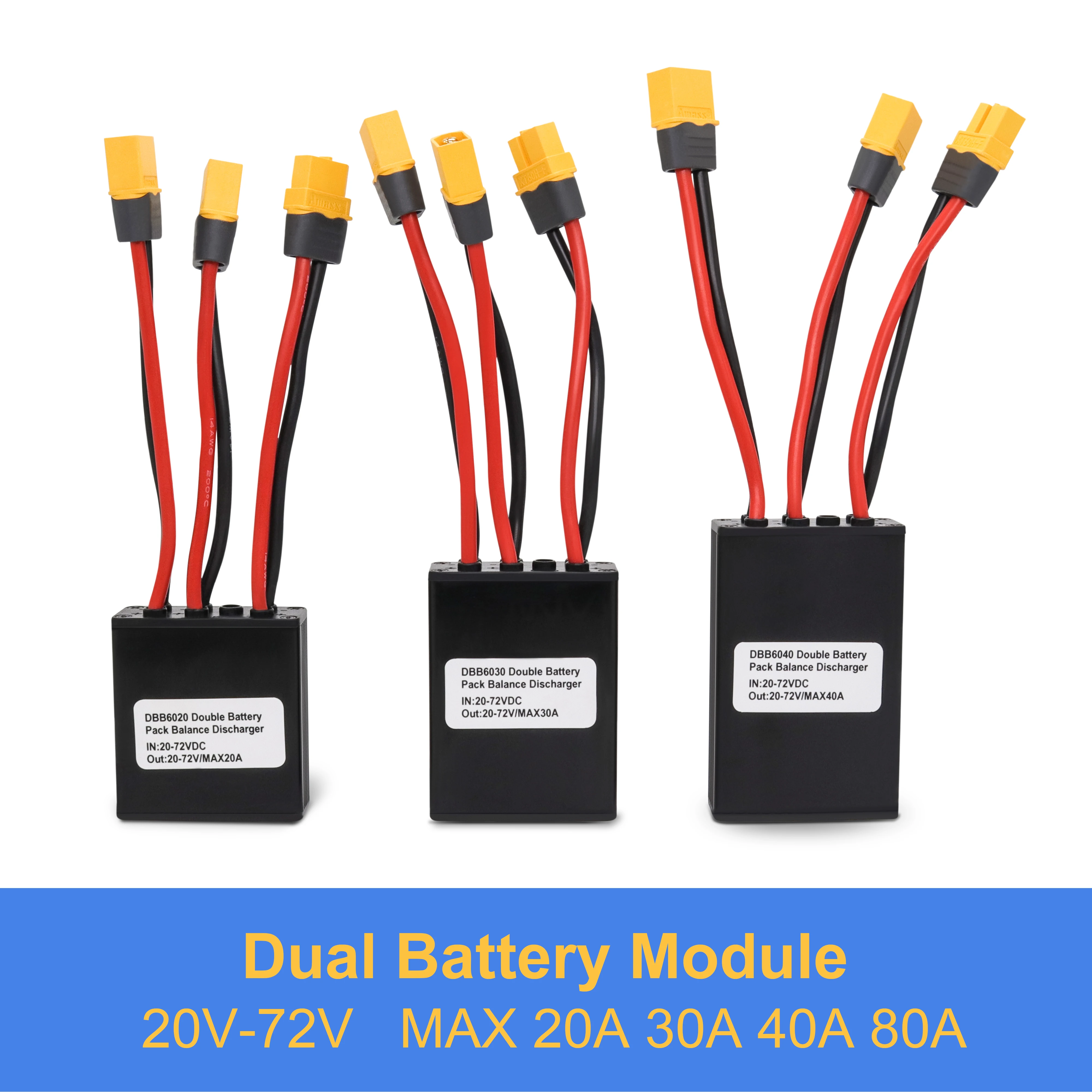

Ebike Dual Battery Balanced Discharge Module for 24V 36V 48V 52V 68V 72V Battery Max Current 20A 30A 40A 80A Ebike Accessories - AliExpress 18
Smarter Shopping, Better Living! Aliexpress.com
a.aliexpress.com
Myalteregohamish
Active member
Son-of-a-b!*%hSo you basically built this yourself?!
Ebike Dual Battery Balanced Discharge Module for 24V 36V 48V 52V 68V 72V Battery Max Current 20A 30A 40A 80A Ebike Accessories - AliExpress 18
Smarter Shopping, Better Living! Aliexpress.com
Well, where have you been my whole life. So.....Yes! apparently I did. LOL
I guess I'm buying that one then. It's way smaller than mineUpdate just bought one off of amazon, it'll be here tomorrow.
Last edited:
Those switches are not the same and have advantages and disadvantages that have to do with how the batteries are charged. The also can take up a lot more space. I wrote up a description on this forum on multiple battery switches, around here somewhere....
Myalteregohamish
Active member
Are those ideal diodes inside this types of devices that allow you to use dissimilar batteries/charge levels?
They work by sensing the voltage on the two batteries. It disconnects the lower voltage battery and lets the bike run off the higher voltage battery until it drops to the level of the lower. Then it turns both batteries on until one/both drift away from each other and are just too different to safely charge. It charges in a similar way.but both batteries have to charge and discharge from the same port. So if you have batteries that have two different ports for charge and discharge the switches won't work.
The ideal diodes are simpler. They just prevent the two batteries from discharging into each other, especially at a dangerously high current.
After wasting money on switches I came to realize that I did not have batteries with common charge and discharge ports so I needed a simpler solution, plus not enough room, and hence the ideal diodes.
The ideal diodes are simpler. They just prevent the two batteries from discharging into each other, especially at a dangerously high current.
After wasting money on switches I came to realize that I did not have batteries with common charge and discharge ports so I needed a simpler solution, plus not enough room, and hence the ideal diodes.
TCFlowClyde
Active member
- Thread starter
- #3,290
Here's the main thread for the CEF50 battery extender. Maybe direct convo over there so we don't get too redundant?
It will also cover the basic extender dilemma...
www.emtbforums.com
It will also cover the basic extender dilemma...
CEF50 Battery Range Extender: that juicebox strapped to your rig to decrease anxiety and extend your range aka fun?
Just doing a CEF50 battery extender solo thread now that frame kits are shipping out. We've got a few CEF50 owners who not only dabble in E-mtb enthusiasm but have got some real pro background into programming and/electronics and possibly some battery pack builders. That's not me but I did...
www.emtbforums.com
Myalteregohamish
Active member
Thank you sir.
thaeber
Well-known member
With 8mm bolt maximum offset is 2 mm per shock eyelet, so 4 mm overall. Your 210 mm shock will have an intstalled length of 206 mm. Compressed lenght with 50 mm stroke will be 156 mm. TC is running 210 x 55 shock with no issues, compressed length is 155 mm. Should work from math perspective
good luck mate!Ahah thanks! I need to order this, my frame is still in productionWith 8mm bolt maximum offset is 2 mm per shock eyelet, so 4 mm overall. Your 210 mm shock will have an intstalled length of 206 mm. Compressed lenght with 50 mm stroke will be 156 mm. TC is running 210 x 55 shock with no issues, compressed length is 155 mm. Should work from math perspective
Myalteregohamish
Active member

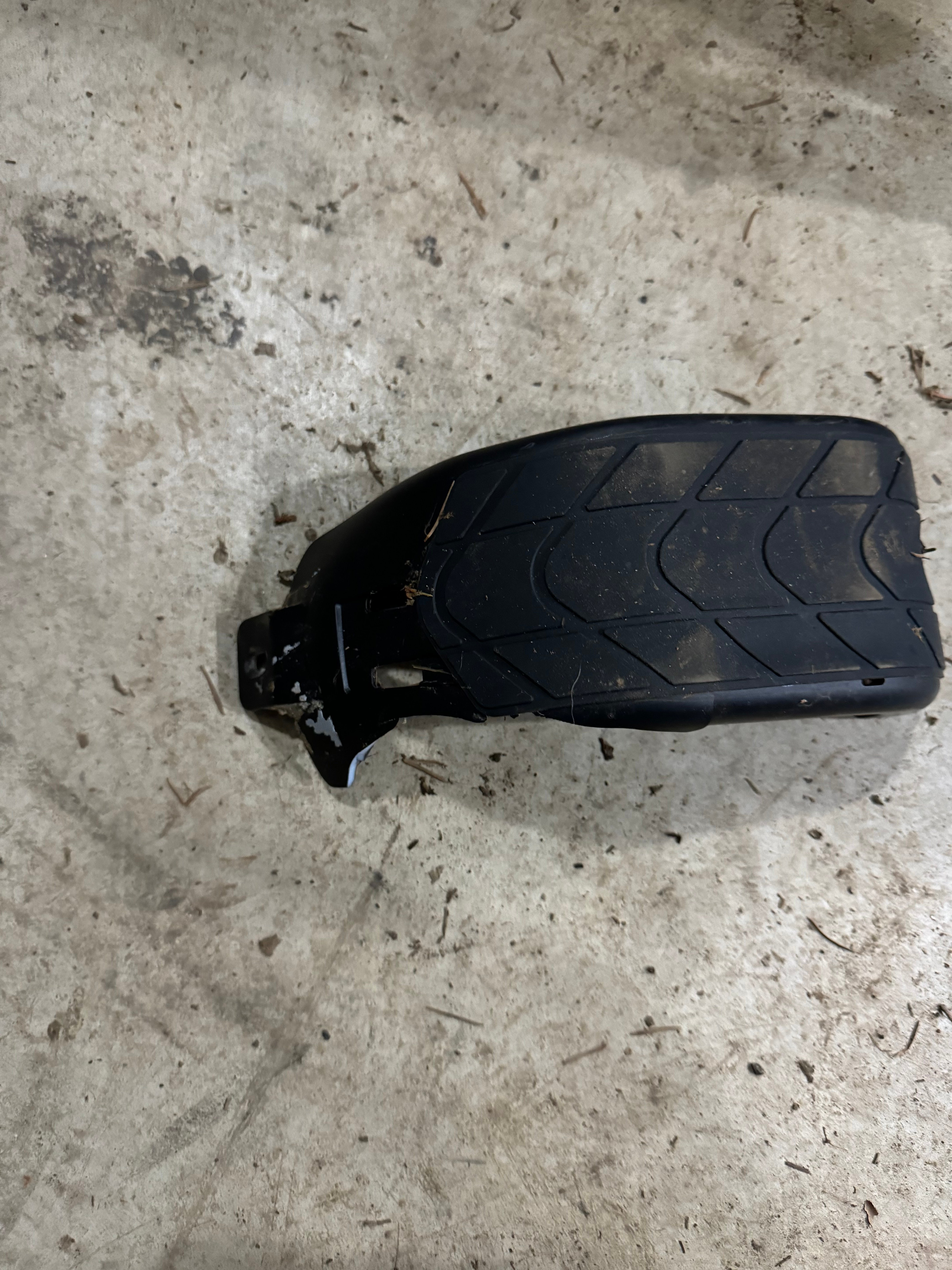

Did anyone get the new and improved motor cover? I just received mine and they look identical to old ones. I guess I’ll just start riding with it and let you know how it goes. Put a brand new old gen motor cover on last night. I looked today and there’s a big chunk out the side of it. Hopefully the new ones can last more than half a ride.
TCFlowClyde
Active member
- Thread starter
- #3,295
That's a bummer!
I got almost 3 rides out of mine. Pic of the damaged Gen 2?
Myalteregohamish
Active member
The damaged one was the gen 1. Jury still out on the gen 2.That's a bummer!
TCFlowClyde
Active member
- Thread starter
- #3,297
Gen 3 is the newest one. Still pics of damaged one? Just curious...
Myalteregohamish
Active member

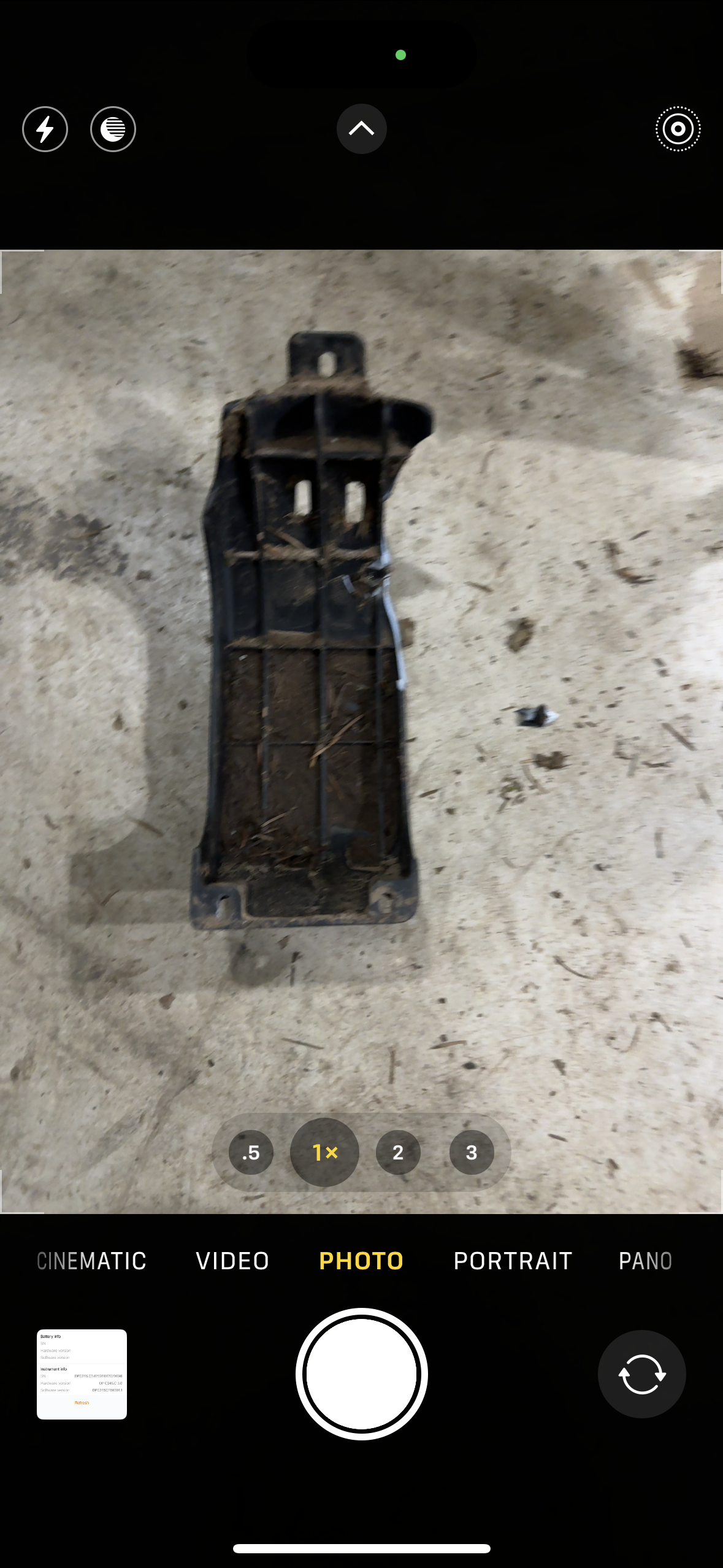

The photo upload is weird on this site. Sometimes converts to PNG other times it doesn’t.
View attachment IMG_0371.jpeg
Myalteregohamish
Active member
I noticed there was a firmware upgrade when I opened go+ yesterday CRX30PC3615E102002.2. Does anybody have any idea what improvements were made in this version of the controller software?
TCFlowClyde
Active member
- Thread starter
- #3,300
Yep....mine broke the same spot, almost exactly.
