SZZS specific CEF50-main thread (initial builds and troubleshooting related only)

[stuff]

Anybody find chain stay protector included with their frame?

Yep, it comes with chainstay and downtube protector (check my pictures)



[Kenk3589]

Mine did not come with chainstay protector or down tube protector..



[Kenk3589]

Hey guys what is the actual default display you get with this? Cause mine doesn’t come with the central power button or the square display.. it came with I think the dp 180 which jsut goes on the handlebar.



[mike_kelly]

I think that is the default display.
I know TC and I ordered the 245 specially



[spokémon]

Cause mine doesn’t come with the central power button

What is the central power button you talking about?



[mike_kelly]

This is the top tube button

SZZS specific CEF50-main thread (initial builds and troubleshooting related only)

Notice in this image Tom posted that the cable is a single multi-wire cable that is clearly canbus. Not the same version of the button?

www.emtbforums.com



[spokémon]

This is the top tube button

SZZS specific CEF50-main thread (initial builds and troubleshooting related only)

Notice in this image Tom posted that the cable is a single multi-wire cable that is clearly canbus. Not the same version of the button?

www.emtbforums.com

@Kenk3589 so if you don't have this button, does that mean there's a big open hole on the top tube?



[Kenk3589]

A little piece of metal with a screw lmao



[spokémon]

A little piece of metal with a screw lmao

You have to post a photo



[mike_kelly]

Button button whos got the button?



[spokémon]

Anybody try Bafang Go+ app yet? Does it work? Any good?



[Lehr]



[stuff]

Button button whos got the button?
View attachment 115502

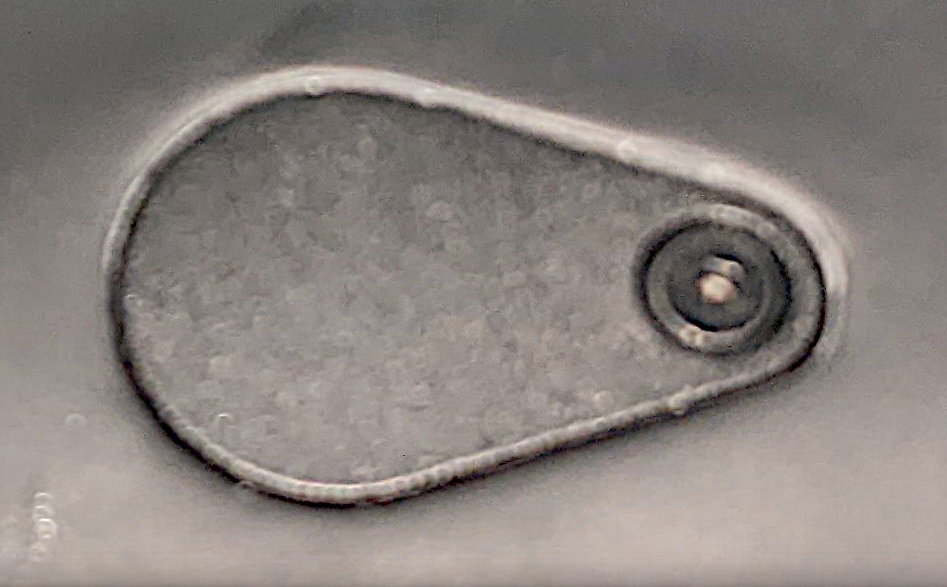

Same metal cap. Im designing a garmin mount for it although Id really like to remove the DP e181 from the handlebar and only have the dp e171 button but cant find it anywhere



[stuff]

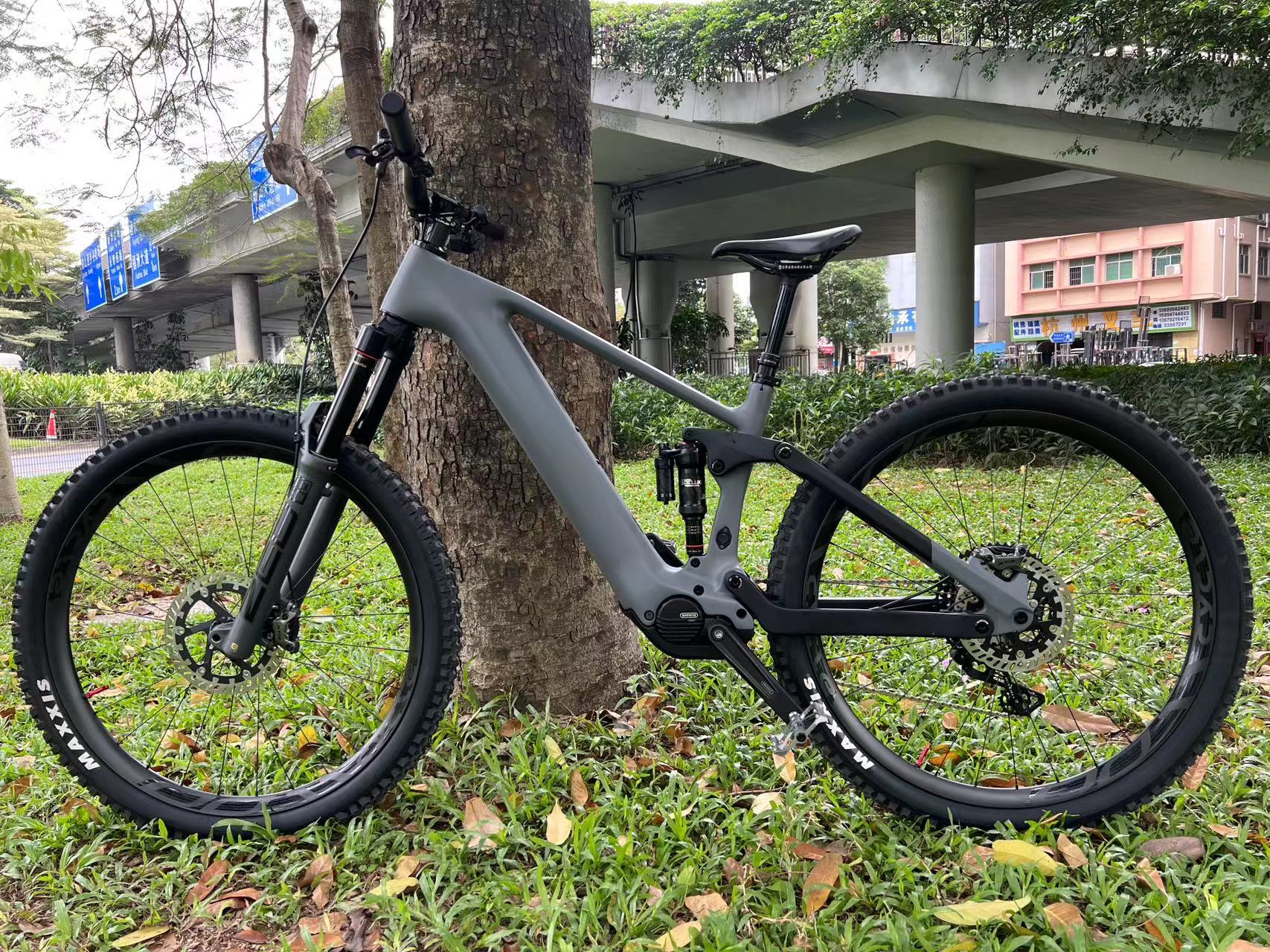

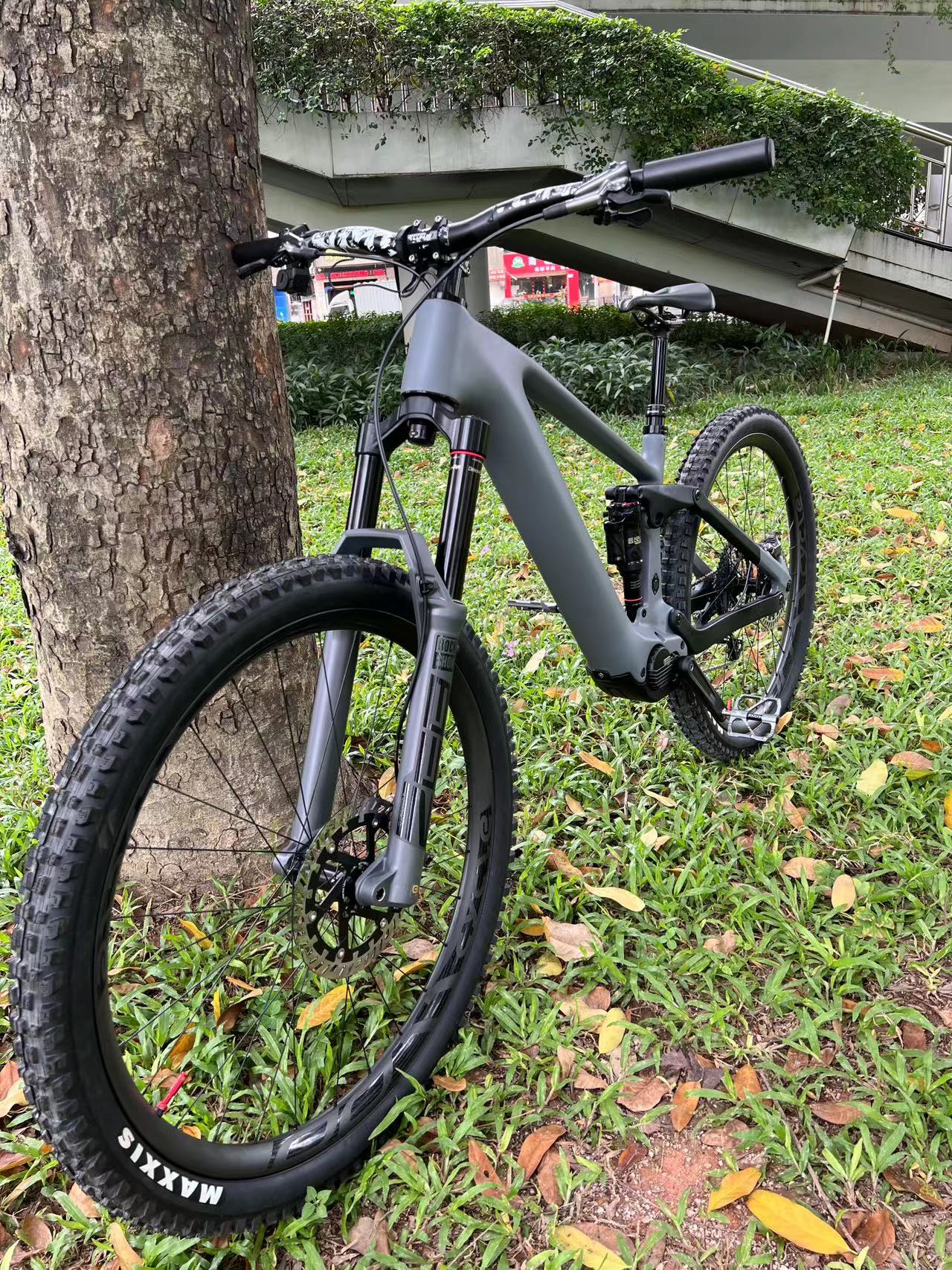

View attachment 115506 View attachment 115507

Beautiful build! Should be around 18k if its with the bt f014 battery?
Axs, carbon rims, zebb, xtr brakes. Looks really good



[stuff]

Mine did not come with chainstay protector or down tube protector..

Dont worry, mine came with the bafang battery with broken tabs and the magnet for the speed sensor was missing. Guess i’d have preferred no chainstay protector or downtube.

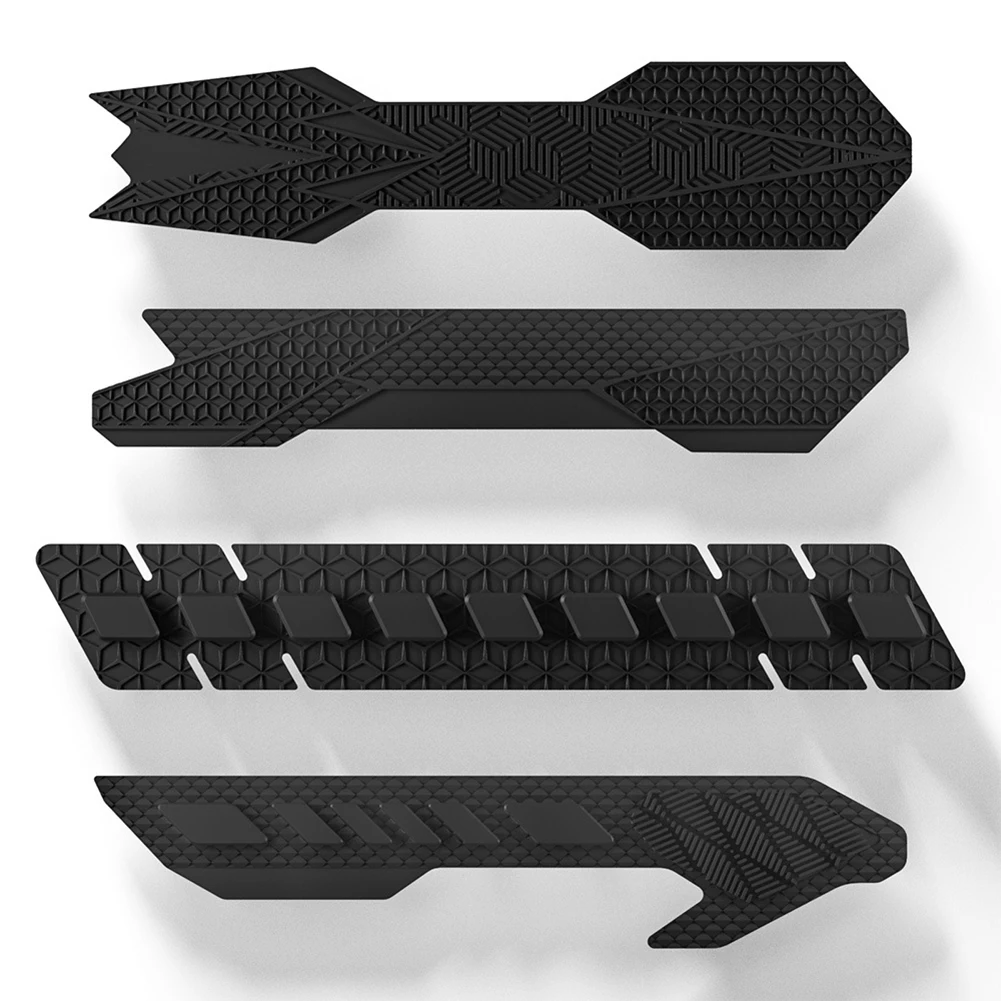

Both of them are on aliexpress tho:

€ 2,63 42％ Off | Bicycle Chain Protector MTB Chain Guard Cycling Frame Chainstay Protector Scratch-Resistant Cover Bicycle Accessories

1.93￡ 42% OFF|Protection Chain Bicycle | Cycling Chain Guard Protective - Bicycle Protector Mtb - Aliexpress

Smarter Shopping, Better Living! Aliexpress.com

a.aliexpress.com

€ 1,71 50％ Off | Bicycle Chain Protector Black Cycling Care Chain Posted Guards MTB Bicycle Frame Chain Cover sticker Cycling Bike Accessories

1.25￡ 50% OFF|Bicycle Chain Protector Black Cycling Care Chain Posted Guards Mtb Bicycle Frame Chain Cover Sticker Cycling Bike Accessories - Bicycle Stickers - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

a.aliexpress.com



[temon10]

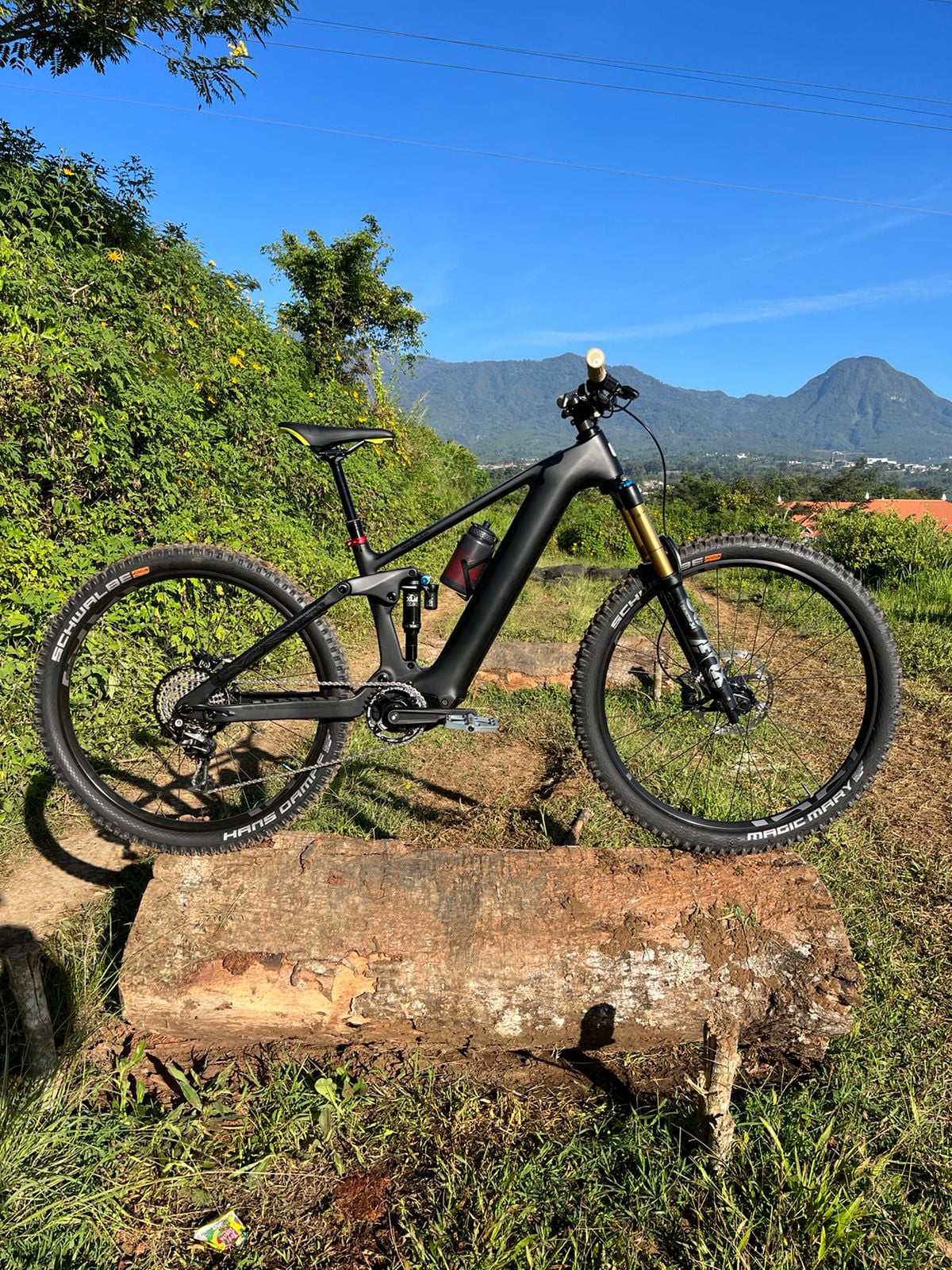

Finish my build and have short test ride. Feel comfort with the frame, size S as I just 160cm height. Motor feel not as smooth as my M510 FC 2.0 but just a little, maybe need firmware update (will find it).

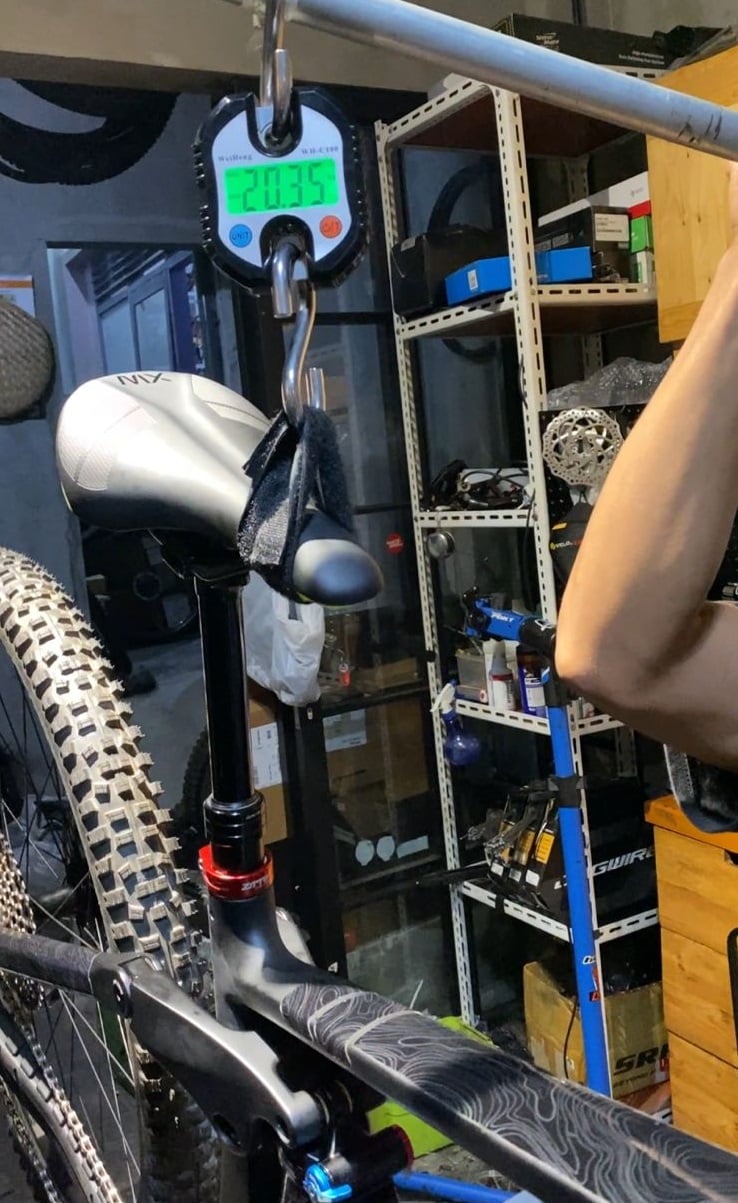

Total weight 20.35kg with 720Wh battery, Fox 36 Kashima, DPX2 210x50, Mullet E13 LG1 Alloy wheelset with Spank hub, Sram X01 11 speed groupset, Magura MT5 Brakeset, Renthal 35 Carbon Handlebar n Stem, Syncross dropper seatpost and cheap pedal and saddle.



[patdam]

View attachment 115506 View attachment 115507

What is installed inside the fork pivot ?



[stuff]

Finish my build and have short test ride. Feel comfort with the frame, size S as I just 160cm height. Motor feel not as smooth as my M510 FC 2.0 but just a little, maybe need firmware update (will find it).

Total weight 20.35kg with 720Wh battery, Fox 36 Kashima, DPX2 210x50, Mullet E13 LG1 Alloy wheelset with Spank hub, Sram X01 11 speed groupset, Magura MT5 Brakeset, Renthal 35 Carbon Handlebar n Stem, Syncross dropper seatpost and cheap pedal and saddle.
View attachment 115511 View attachment 115512

Nice!
How does it feel with the mullet setup?

Fox at 160mm or 170mm?



[temon10]

Nice!
How does it feel with the mullet setup?

Fox at 160mm or 170mm?

Fox 160mm. Feels good, but not yet try offroad decent.



[Myalteregohamish]

View attachment 115506 View attachment 115507

Brother they looks so good. What’s the travel?



[forsa355]

for those that have received their frames, I have a few questions that would be appreciated if you could verify:

1. Did you use a 8mm x 22mm or a 8mm x 22.2mm bushing on your rear shock?
2. Did you receive a power button for your top tube or just a metal plate covering the hole? If you did get a button, please describe it or post a picture. Did anyone get the Bafang power button?
3. Have you been able to use any of the Bafang phone apps using bluetooth (e.g. Bafang Go+ app)? If so, how did you connect to the app (e.g. using display BT) and what kind of parameters do you have access to setting in the app

thank you!



[mike_kelly]

The button

零部件

Bafang description

bafang-e.com



[stuff]

for those that have received their frames, I have a few questions that would be appreciated if you could verify:

1. Did you use a 8mm x 20mm or a 8mm x 22.2mm bushing on your rear shock?
2. Did you receive a power button for your top tube or just a metal plate covering the hole? If you did get a button, please describe it or post a picture. Did anyone get the Bafang power button?
3. Have you been able to use any of the Bafang phone apps using bluetooth (e.g. Bafang Go+ app)? If so, how did you connect to the app (e.g. using display BT) and what kind of parameters do you have access to setting in the app

thank you!

Hey!

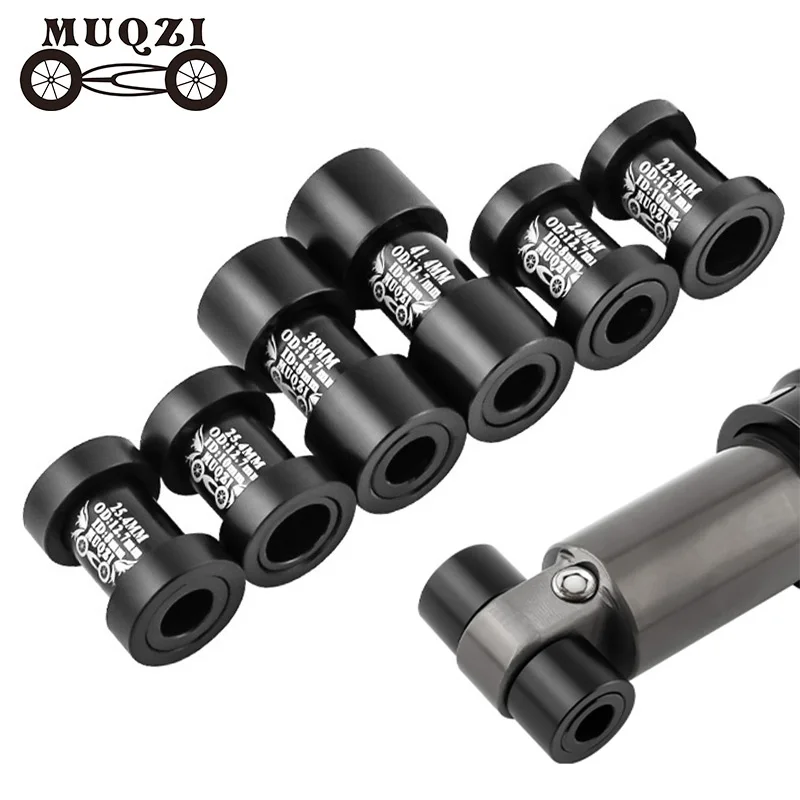

1. 8x22.2, exactly this ones:

Mountain Bike Soft Tail Rear Shock Absorption Bushing Inflection Point Outer Diameter 12.7 Inner Diameter 8/10mm Shock Absorbers - AliExpress 18

Smarter Shopping, Better Living! Aliexpress.com

a.aliexpress.com

2. Just a metal plate. I want to get the DP E171 and just use that instead of the DP E180 that came, like the cockpit as clean as it can, dont care of only having 3 power modes instead of 5
3. Im waiting for the DP E181 to arrive, should be this week. With that i’ll have bluetooth so will update on what can it do with BAFANG go+



[forsa355]

https://aliexpress.ru/item/1005004956955319.html?spm=a2g2w.productlist.0.0.692a4aa6WMh0UG&sku_id=12000031150612432

A very necessary detail.

Lanton, can you explain why this is necessary? Does the frame not come with a suitable derailleur hanger?



[thaeber]

View attachment 115506 View attachment 115507

Great! The matching color of the frame and the ZEB is awesome! What’s the color code please?



[Kenk3589]

Hey guys are any of you guys running rockshox and using a m8 x 22.2 eyelet?

I think if I ordered from Ali baba, it would take a couple weeks… anyone got a U.S. source?



[LAnton]

Lanton, can you explain why this is necessary? Does the frame not come with a suitable derailleur hanger?

I had a poor quality axle. And one day I couldn't unscrew it. I reported this to the factory. You need to buy a new axle. Or you can make a new thread on the old axis. A spare part is always needed



[LAnton]

Hey!
1. 8x22.2, exactly this ones:

Mountain Bike Soft Tail Rear Shock Absorption Bushing Inflection Point Outer Diameter 12.7 Inner Diameter 8/10mm Shock Absorbers - AliExpress 18

Smarter Shopping, Better Living! Aliexpress.com

a.aliexpress.com

2. Just a metal plate. I want to get the DP E171 and just use that instead of the DP E180 that came, like the cockpit as clean as it can, dont care of only having 3 power modes instead of 5
3. Im waiting for the DP E181 to arrive, should be this week. With that i’ll have bluetooth so will update on what can it do with BAFANG go+

https://aliexpress.ru/item/4000595983486.html?spm=a2g2w.orderdetail.0.0.550a4aa67sxlLl&sku_id=10000003720654245



[mike_kelly]

Hey guys are any of you guys running rockshox and using a m8 x 22.2 eyelet?

I think if I ordered from Ali baba, it would take a couple weeks… anyone got a U.S. source?

All the usual suspects carry them.

RockShox Rear Shock Mounting Hardware - 3-Piece, 1/2", 8 x 22.2

Rear shock mounting hardware - Rear Shock Mounting Hardware Designed to fit RockShox rear shocks, except the BAR (contact SRAM for 12mm BAR hardware) Compatible with most 1/2"x1/2" rear shock eyelets. Consult manufacturer for compatibility 1 kit required per eyelet (2 kits required per rear...

www.worldwidecyclery.com



[Kenk3589]

All the usual suspects carry them.

RockShox Rear Shock Mounting Hardware - 3-Piece, 1/2", 8 x 22.2

Rear shock mounting hardware - Rear Shock Mounting Hardware Designed to fit RockShox rear shocks, except the BAR (contact SRAM for 12mm BAR hardware) Compatible with most 1/2"x1/2" rear shock eyelets. Consult manufacturer for compatibility 1 kit required per eyelet (2 kits required per rear...

www.worldwidecyclery.com

Haha I only saw 8x22 and didn’t think anyone else had 22.2. Thank you! Did you get your frame yet?
