SZZS specific CEF50-main thread (initial builds and troubleshooting related only)

stuff

Active member
Nov 3, 2022
166
281
Spain
Initial measures:
Frame max shock extension: 214mm
Frame min shock extension: 157mm
What this means?
With a 210mm eye/eye shock, the maximum stroke can be 52.5mm, anything after that will contact/break the frame as @LAnton said before.

Now to install shocks and take some pictures for clearance. I wont be doing the coil one today since it's installed in my other bike but will go with the Rockshox SD Ultimate and Suntour TriAir, both with piggyback

This.


mike_kelly

Well-known member
Subscriber
Aug 11, 2022
939
772
US
For the power adapter I had a an extra US cable that I just plugged in in its place, no cutting required. The magnet you can get one from specialized or anyone that lines up with speed sensor. I just bought some little round magnets from the hardware store and some gorilla glue. Stuck it on the rotor in the spot that aligns with the sensor.
or use a Jagwire rotor with the magnet built in.


TCFlowClyde

Active member
Feb 26, 2022
1,341
866
Mesa, AZ
I still dont get how a 55mm stroke wont break the linkage.
52.5 was the max that it can go when I measured
Shoot you might be right!😝 Had a bigger drop (for me anyway 2.5-3ft) on technical terrain over last weekend. First, real bigger stress test. So, I thought it smart to just double-check the pivots this morning. A small black paint flek or two flaked off when I rubbed the pivot joint aggressively on NDS this morning. Nothing on the DS. I could not get a focused cell pic of it.

So, could be some microfriction and binding going on. I might have to shave down the area a 1-2 mm out of caution (if possible) when I re-essemble the build with my new warranty front triangle in a few weeks. I'm headed out soon to a weeklong E-mtb trip.

Also, out of caution, I'll add in my 2.5 mm orange travel spacer and reduce the MegNeg to a 52.5 mm stroke. Again, when I disassemble the linkage to paint the rear triangle, I can give it a proper inspection. It might be wise to just shave it down regardless while I have it apart.🔪

I'll update in a few weeks when/if successfully completed. 🤛

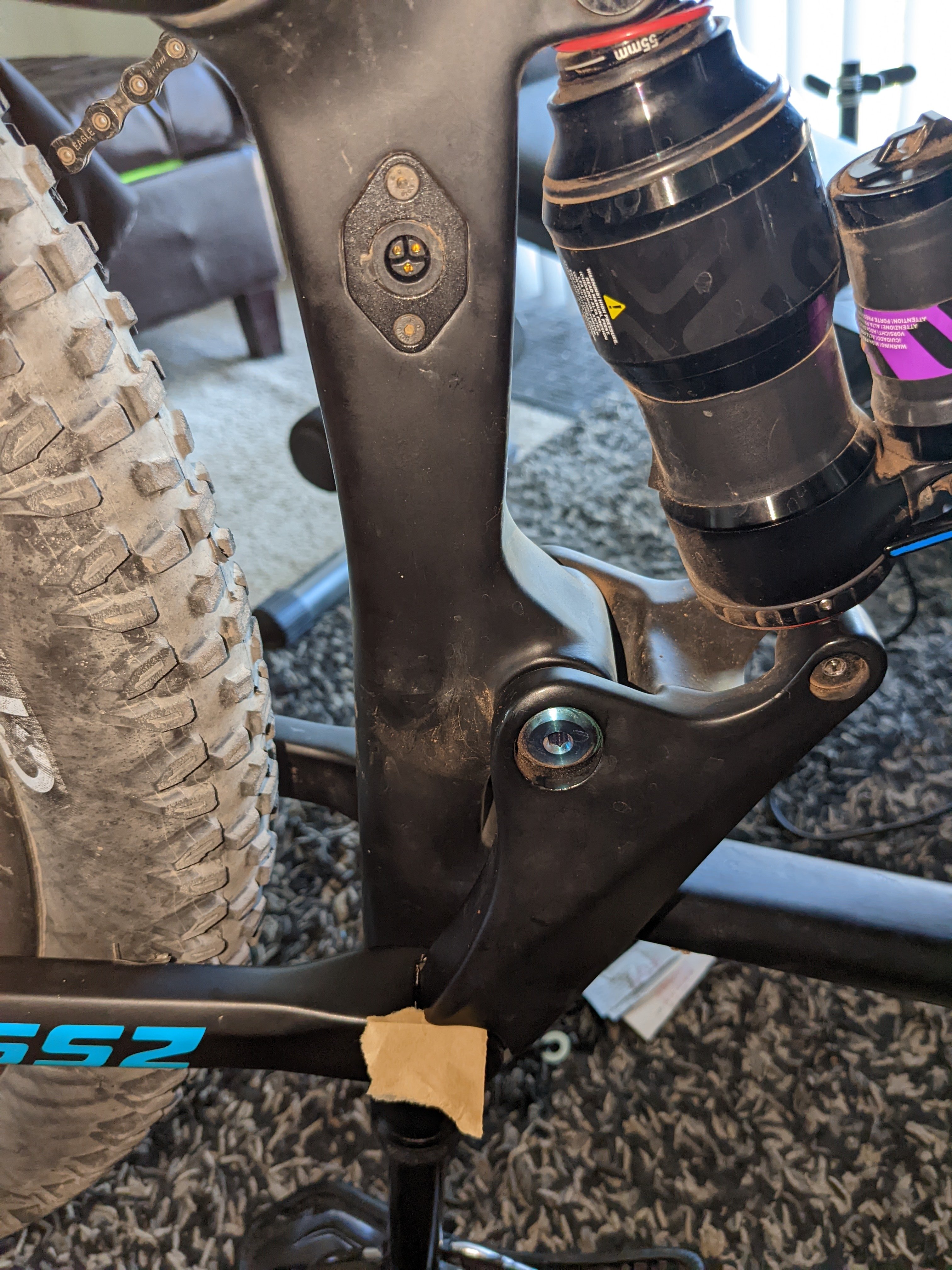

Update #1 (same day). I flipped over my bike and got some better light on the seatstay pivots. I scratched my fingernail on the flaking areas and exposed some more pitting. So, it looks like a little binding is occurring. Close enough to
start to loosen a coat of thin primer off a bit. Looks like I'll put in travel spacer and try to shave down the rocker arm a little when I paint it in a few weeks.

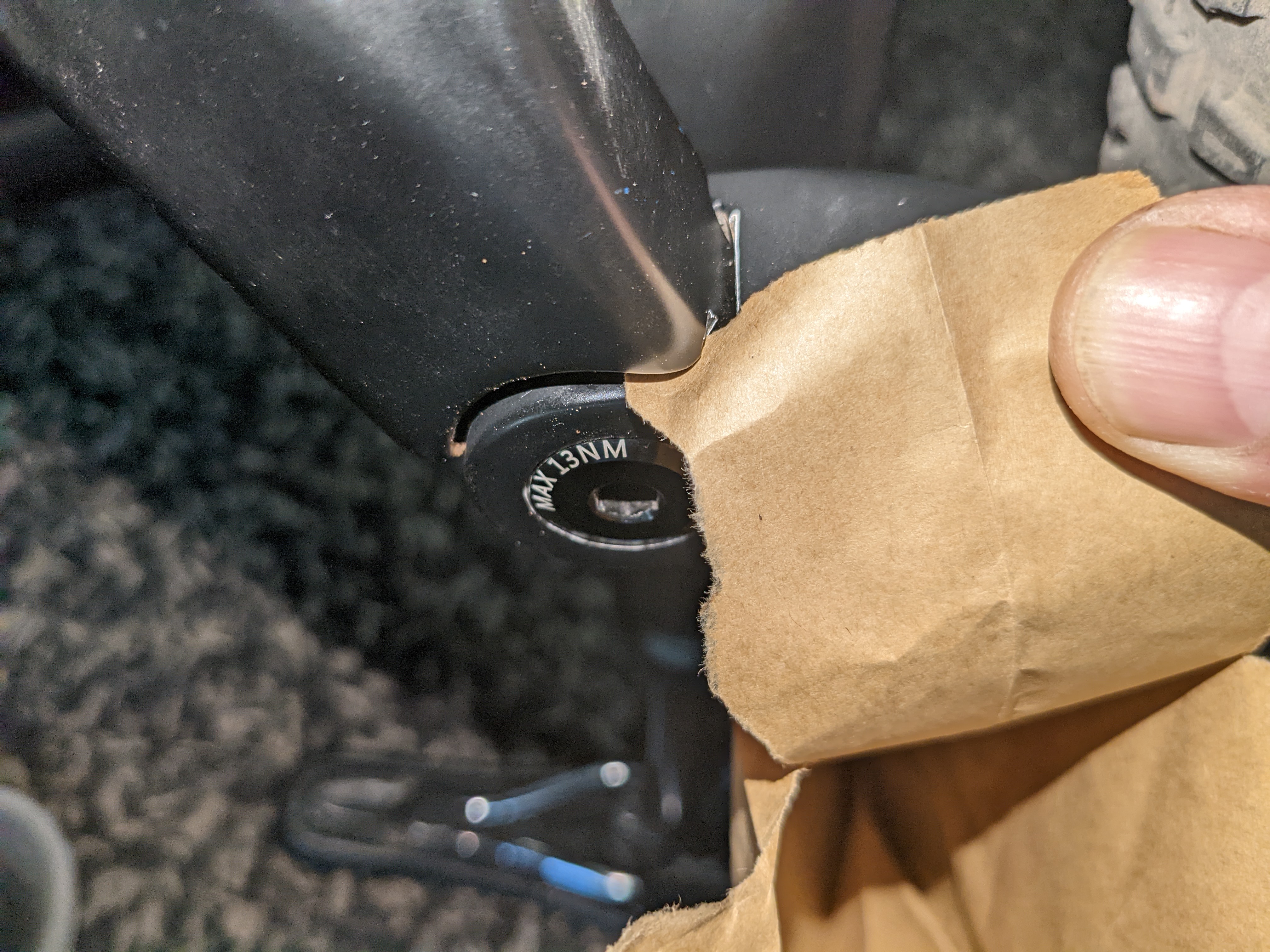

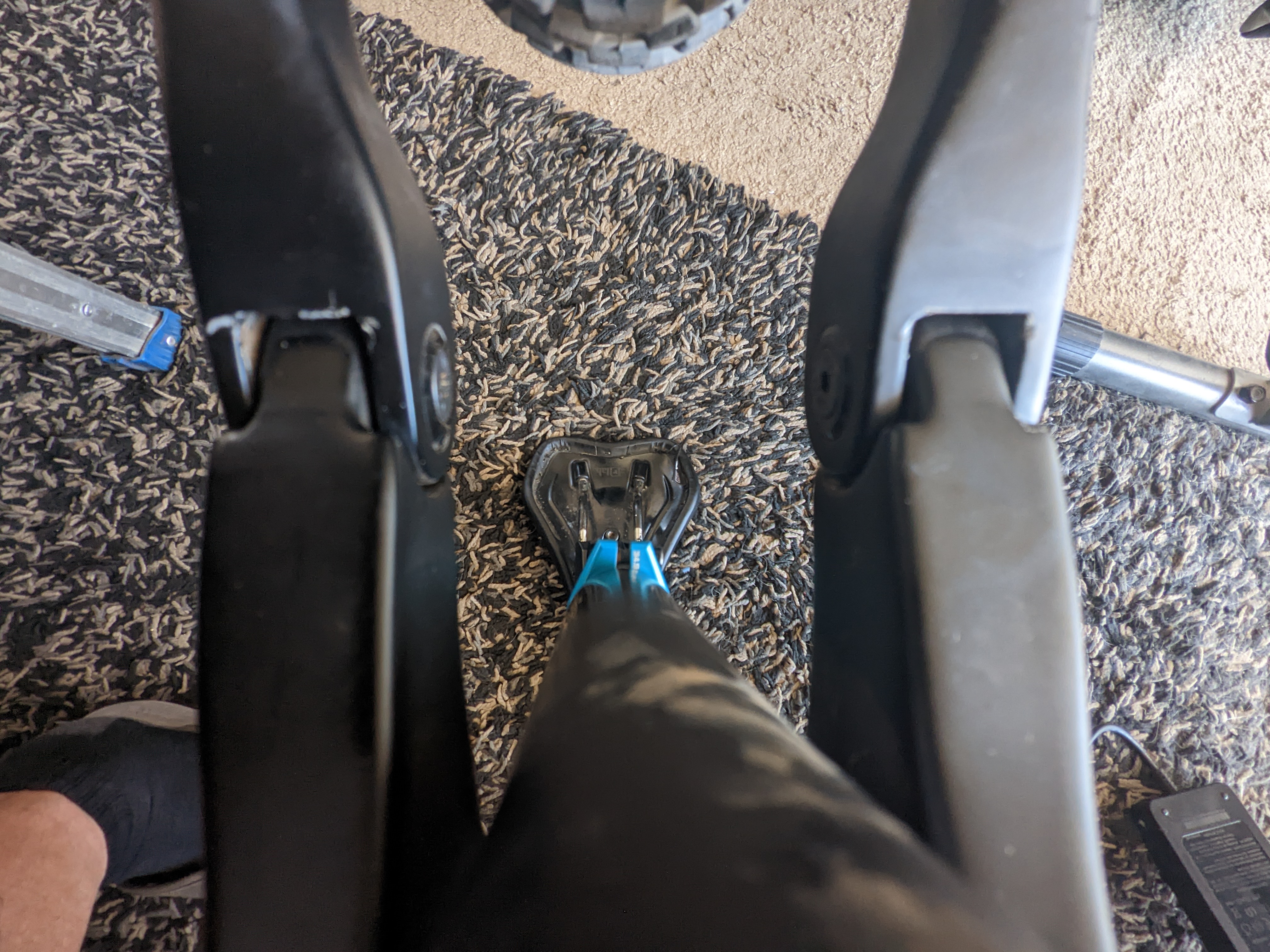

Update #2. (Same day later) Or not?🤯 I deflated the shock to absolute bottom out, flipped bike over, pushed forcibly on rear triangle with one arm to pin the max compression. Slipped in a piece of paper and it moved freely on both pivot joints.

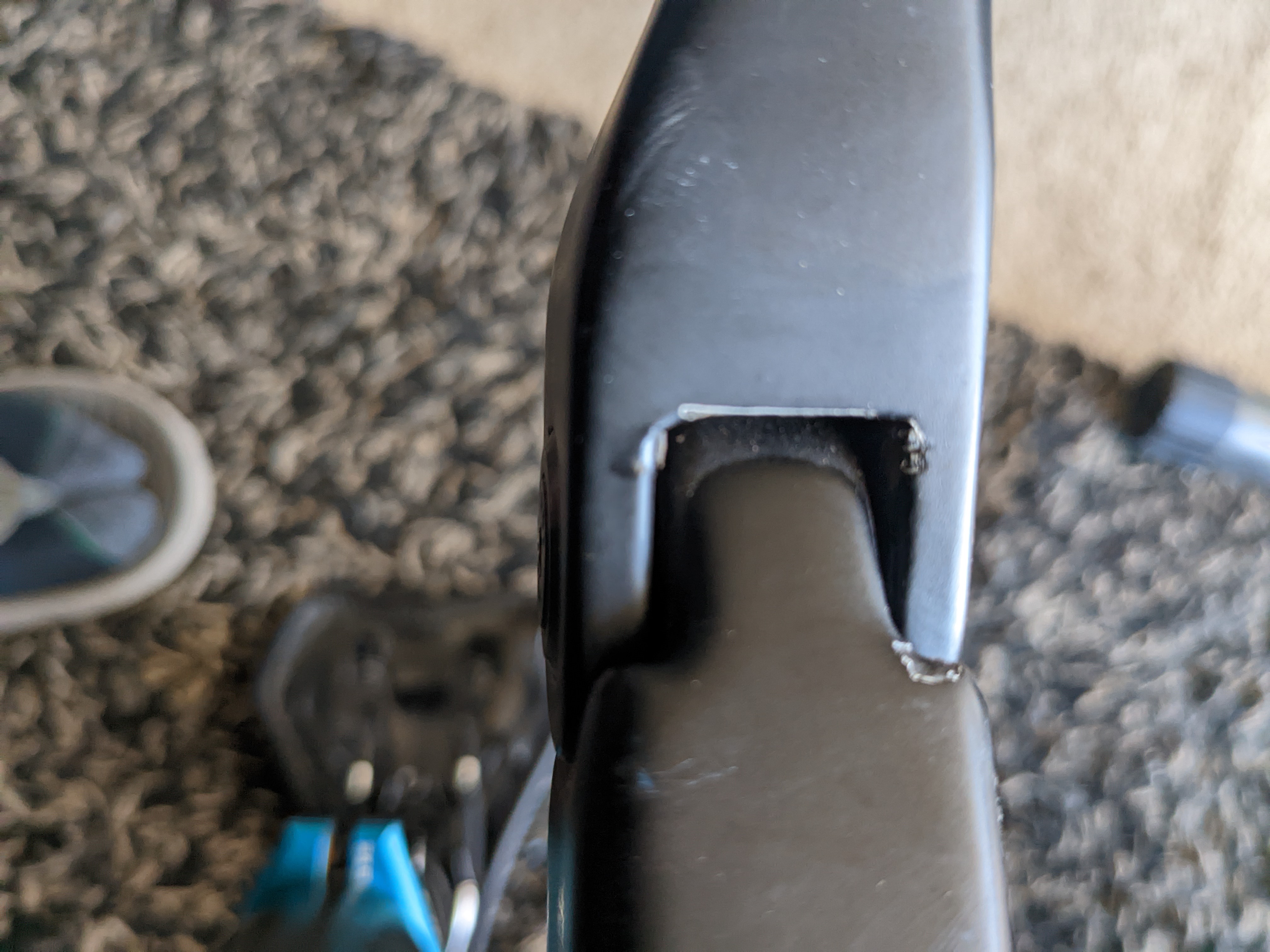

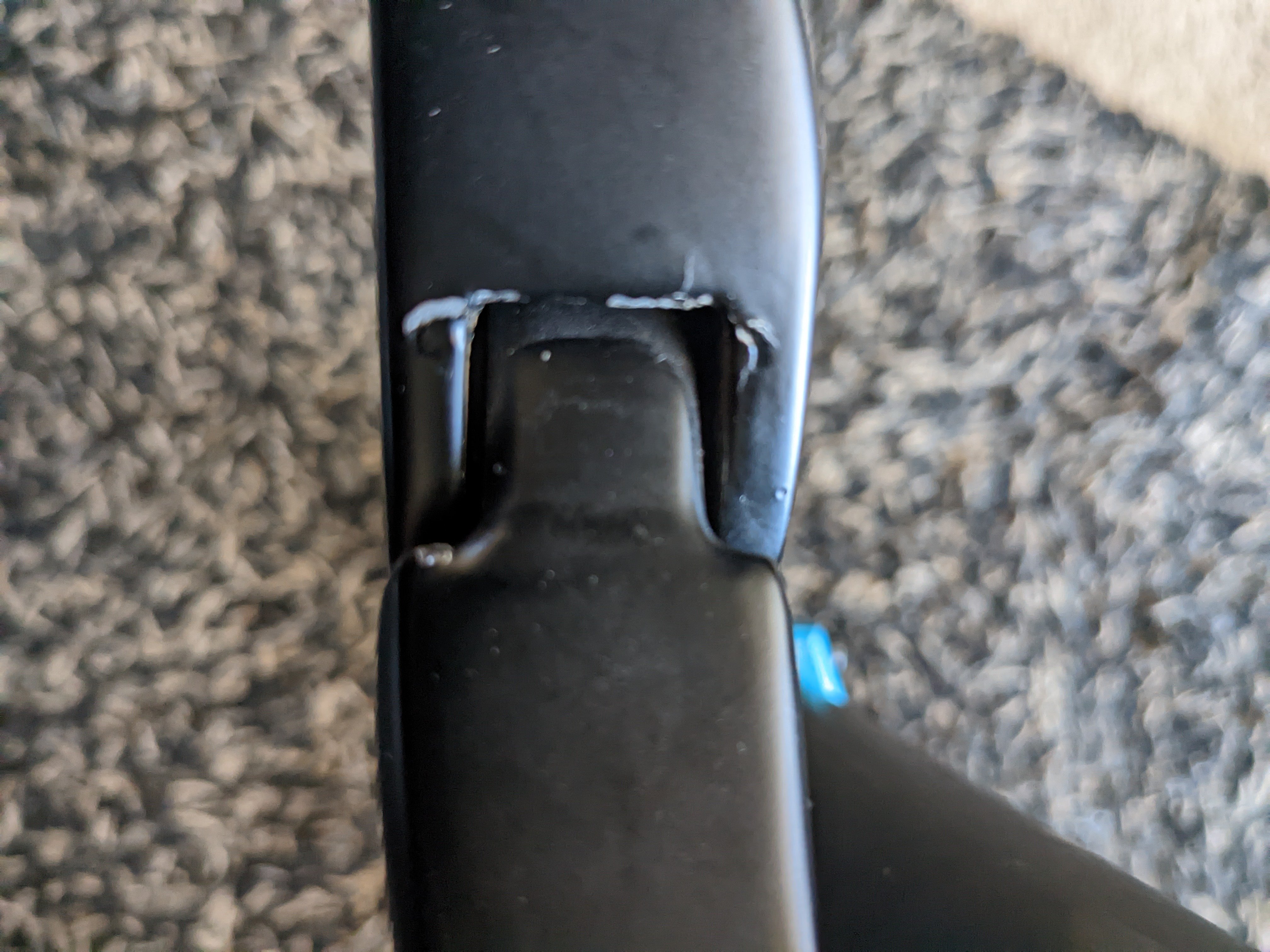

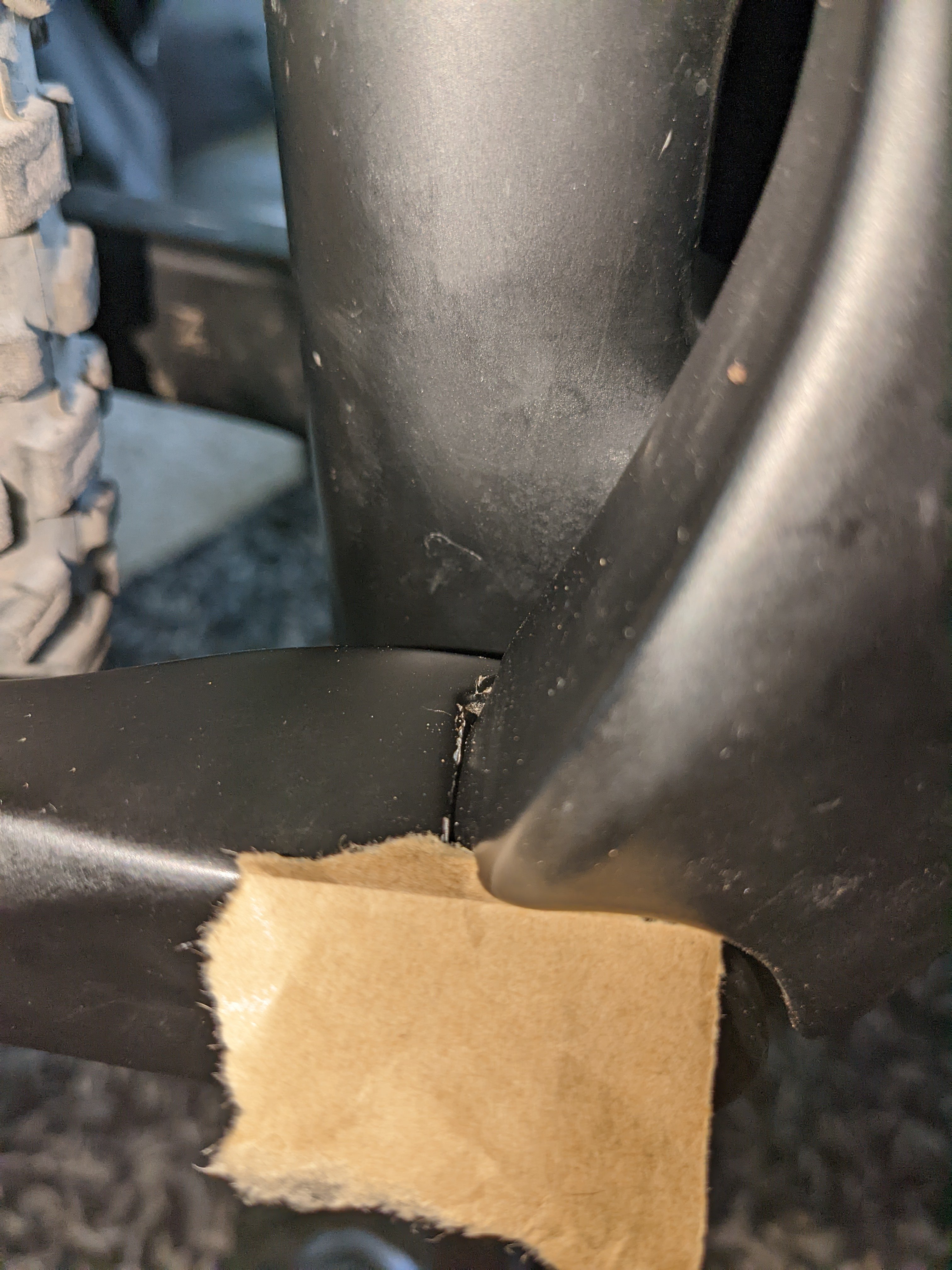

No pinch marks. Then, I tried thin cardboard, and it DID leave a pinch mark it. So, there's some room.

Since my OEM pivot bolt was too short and the mating screw sheared off a few weeks ago, I might have chipped paint in that rocker joint area. And the NDS shows more "wear" friction where the pivot bolt sheered off. I had to ride 8 miles back to my truck, so maybe 55 stroke does actually work as intially hoped.🤞

I honestly haven't felt any hard carbon-carbon contact points or twitching sounds yet. Maybe adrelanine was running high when I did the recent drop,.but it felt smooth and don't remember any stress noises (and I've cracked two carbon analogue frames/stays' so I know the noise/feel unfortunately 🫨).

Updated Remedy: I'll re-paint those areas black with a fresh coat and test it out. And I'll keep a close eye on it for new paint chipping to see if it's really binding. 🤔

Last edited:

Myalteregohamish

Active member
Jan 4, 2023
294
240
Vancouver, WA
I know we’re all trying to experiment here, and I have my own version of that. I was curious how much of a difference a 150 rear travel and 160 front travel would feel like compared to my recent purchase of my CanyonTorque.

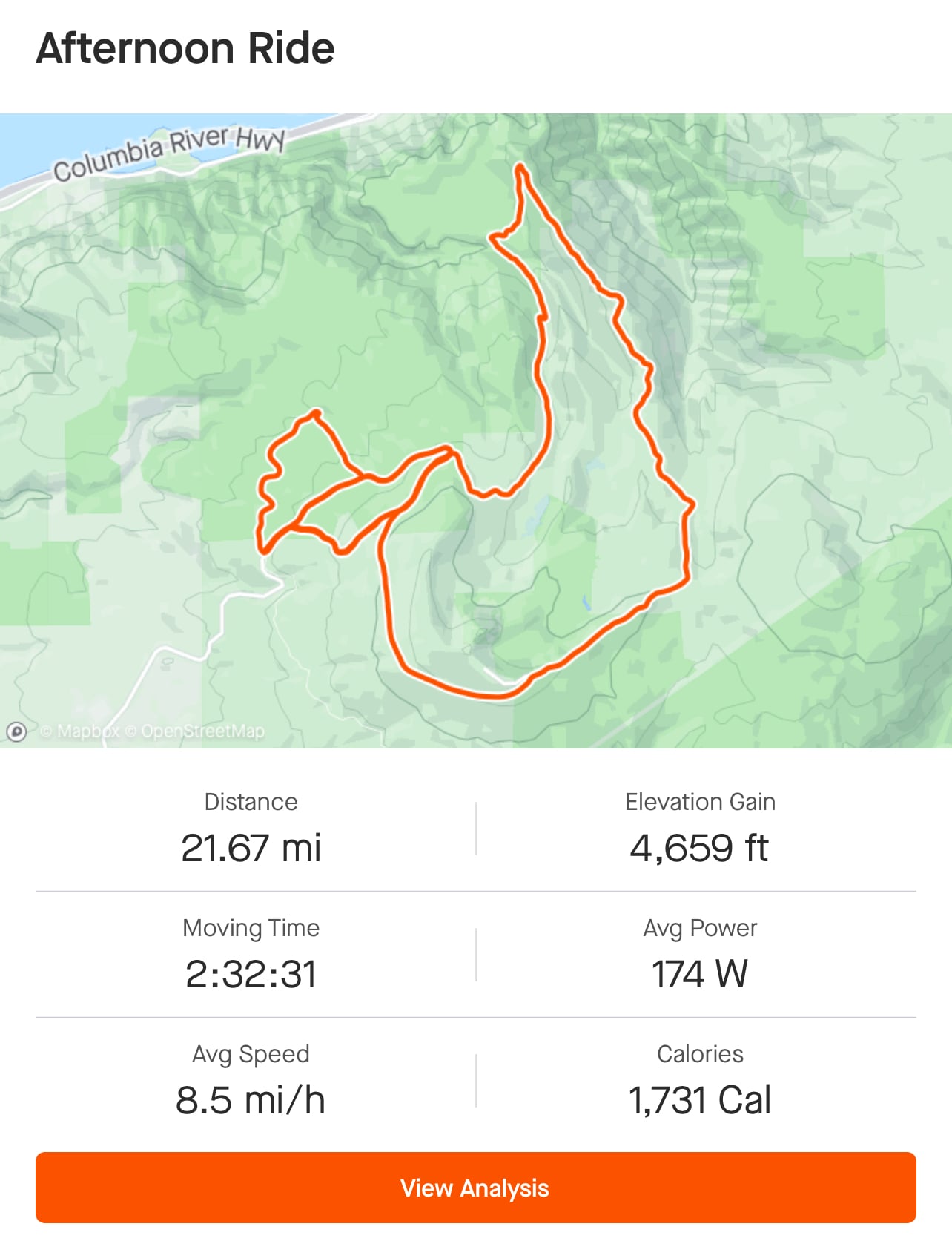

I’ve ridden our bike, on the same trails, taking it off the same jump lines and off the same drops. Just to give you an idea the air/drop I’m getting. There’s a large drop that’s got to be 6-8 feet vertical to almost flat. The 150 rear end handles it stellar. I have no concerns over the bike feeling unstable at 150.

On jump lines, keep in mind these are 6 foot 15 foot gaps, so that should give you an idea of the amount of air required to land those. I took it down that jump line last night, and I don’t get quite as much pop or air as my 180 does on my torque on, but I think that’s just me getting used to the amount of speed required. That said, I did case the rear, slightly on the landing onto the jumps, but as I said, I think that’s an issue of speed more than anything else .

I tell you all this mainly to illustrate to myself as much as anybody else listening that 150 goes a long way and if it’s a difference between 50 and 52.5 and the increased travel by 5 mm I got to be honest, I don’t think it’s worth it if it means there’s a possibility about the frames taking some of the impact . Maybe I’m off here. What are you guys think?


stuff

Active member
Nov 3, 2022
166
281
Spain
There’s only one way to measure it and its not with the shock installed (since even without air is hard to top it out).

1) take out the shock
2) measure max distance when linkage is fully open with a caliper. This is measure A
3) measure min distance. This is done when fully “compressed” or all the travel used. This is measure B

Now you have measure A (214mm in the case of CEF50), measure B (157mm for CEF59) and you know the shock length (210mm).

210-157 = 53mm. That’s the max stroke for an L frame.

Measure A is if you want to play with a longer shock, which could be 213x56 max (216x63 with two 1.5mm offset bushings + travel reduced from 63 to 56)

And I agree that 150mm on the cef50 feels like more thanks to the suspension design


Herculesridesebikes

New Member
Jun 19, 2023
42
26
Australia
I know we’re all trying to experiment here, and I have my own version of that. I was curious how much of a difference a 150 rear travel and 160 front travel would feel like compared to my recent purchase of my CanyonTorque.

I’ve ridden our bike, on the same trails, taking it off the same jump lines and off the same drops. Just to give you an idea the air/drop I’m getting. There’s a large drop that’s got to be 6-8 feet vertical to almost flat. The 150 rear end handles it stellar. I have no concerns over the bike feeling unstable at 150.

On jump lines, keep in mind these are 6 foot 15 foot gaps, so that should give you an idea of the amount of air required to land those. I took it down that jump line last night, and I don’t get quite as much pop or air as my 180 does on my torque on, but I think that’s just me getting used to the amount of speed required. That said, I did case the rear, slightly on the landing onto the jumps, but as I said, I think that’s an issue of speed more than anything else .

I tell you all this mainly to illustrate to myself as much as anybody else listening that 150 goes a long way and if it’s a difference between 50 and 52.5 and the increased travel by 5 mm I got to be honest, I don’t think it’s worth it if it means there’s a possibility about the frames taking some of the impact . Maybe I’m off here. What are you guys think?
I agree, 150 is plenty enough. It's also super simple to remove a spacer if you want to test out 52.5 stoke. You might as well just start with a 50 and go from there.


un..inc

Active member
Jun 13, 2023
127
109
Germany
I’ve been meaning to tell you for months, but wasn’t sure how to break it to you, Vancouver, WA, about 5 hrs south. Still it looks very similar, it was 89 at the house today, I drove 40 mins to Mt on the Oregon side of the Columbia, I literally had the entire forest to myself.
some initial observations, I find sport Plus to be the most useful. It’s the profile that feels the most like my canyon, torque:eek:n. I was able to get a solid 2 1/2 hours of riding at that level out of the Bike before it started to throttleback below 30%. That seems to be where it cuts the power in half. The one thing I wish the motor would do, and I’m assuming this is configurable somehow, although I have yet to find a way to modify the software. I would like the The assistance to come on a little quicker. It seems to come on noticeably after about two pedal strokes.

also, I had it up on a downhill trail at about 27 mph. Felt super stable. I have no complaints there. Also the grip going through flat high-speed turns is really impressive on this bike. I felt I could lean it over and push into the side logs easily, and if I wanted to move the backend around with my hips, it responded to input really well. As I learned more about the Bike, I’ll update further.

The bike itself works really well with the suspension. I have on there. Which is a fox float Ex performance and a fox 36 factory. You can almost take a rough estimate of what your settings are or if you are pretty accurate with your rider weight and get pretty close.

View attachment 120857
View attachment 120858

Hey!
Loving your build! Congrats! Would you please tell me your height and why you picked Size XL?
What is that lovely colour of your frame and how satisfied are you with the paintjob?
Thank you mate!


Myalteregohamish

Active member
Jan 4, 2023
294
240
Vancouver, WA
Hey!
Loving your build! Congrats! Would you please tell me your height and why you picked Size XL?
What is that lovely colour of your frame and how satisfied are you with the paintjob?
Thank you mate!
Yep, I’m 6’2”, long legs, so reach is important to me. I also like to go fast. All my bikes are XL, I value stability over playful. I’d rather figure out how to play with handlebar angle to get more rider input out of the steering. It’s chalk grey in gloss, Linda offered it up to me as alternative to the matte I was going to do. She showed the pic and I was sold immediate. If you order one just send her one of the frame pics and she’ll know right away.

Good luck!


Myalteregohamish

Active member
Jan 4, 2023
294
240
Vancouver, WA
I agree, 150 is plenty enough. It's also super simple to remove a spacer if you want to test out 52.5 stoke. You might as well just start with a 50 and go from there.
Yea I agree, feel out what the default geo is supposed to feel like, that way you can compare after removing the spacers. If someone gets around to doing that, I’d love to hear ride impressions.


un..inc

Active member
Jun 13, 2023
127
109
Germany
Alrighty, I think I have decided on the CEF50 over the LCE930.

Price, weight, shape and ease of ordering with motor, battery and accessories make the difference. I also like the option of a larger battery.

Sure, a UD hanger would be cool, but not particularly necessary.

I could still use some inspiration with the colour.

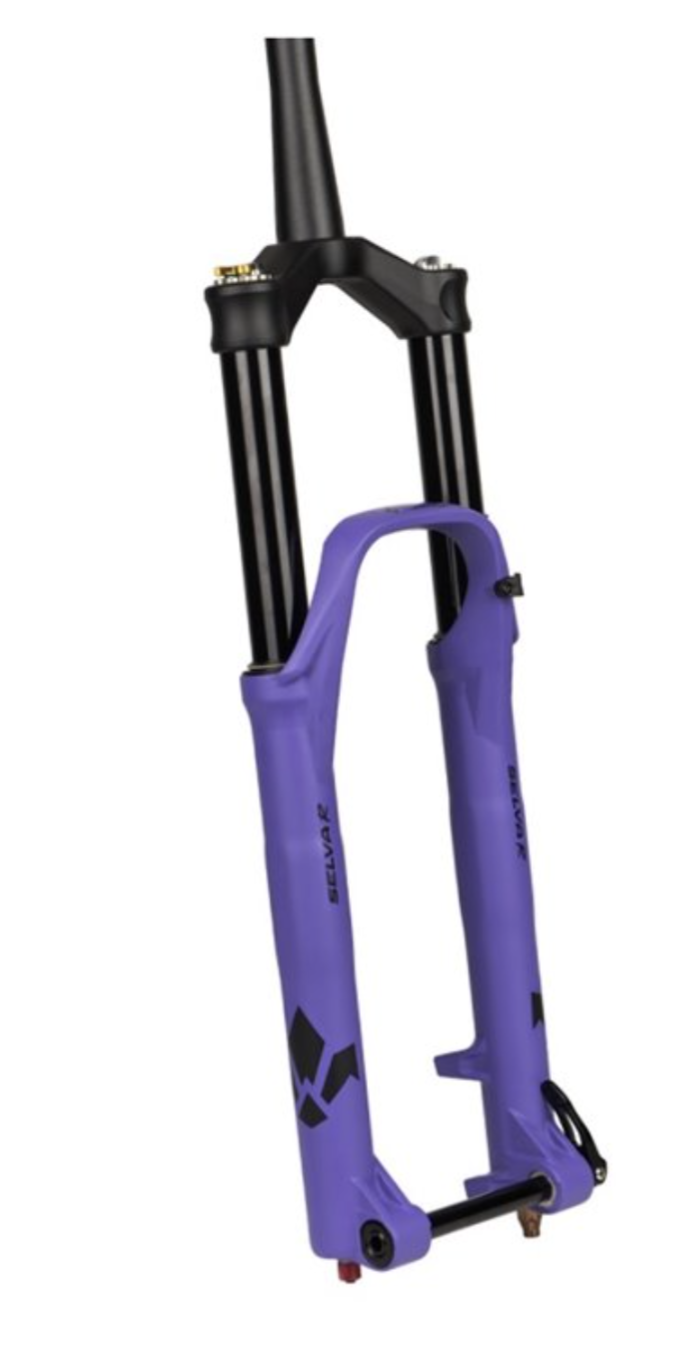

I already have a FORMULA Selva S in purple.



Do you have any good ideas for a suitable frame colour?

I already have some in mind, but would leave the discussion completely open.

Actually, I wanted to take my time with the build until next year, but scarily enough, many components are already on their way. ;)

I got an offer with 48V with 480mAh, but supposedly there is also a 700 or 720mAh battery.

Also:
Somewhere there was a hack where a magnet was glued to a centrelock brake disc. Can anyone find it?



Otherwise, thank you very much!


brbr

Active member
Dec 28, 2022
529
270
France
Alrighty, I think I have decided on the CEF50 over the LCE930.

Price, weight, shape and ease of ordering with motor, battery and accessories make the difference. I also like the option of a larger battery.

Sure, a UD hanger would be cool, but not particularly necessary.

I could still use some inspiration with the colour.

I already have a FORMULA Selva S in purple.

View attachment 121178

Do you have any good ideas for a suitable frame colour?

I already have some in mind, but would leave the discussion completely open.

Actually, I wanted to take my time with the build until next year, but scarily enough, many components are already on their way. ;)

I got an offer with 48V with 480mAh, but supposedly there is also a 700 or 720mAh battery.

Also:
Somewhere there was a hack where a magnet was glued to a centrelock brake disc. Can anyone find it?



Otherwise, thank you very much!
You can find centerlock rotors with integrated magnets


Zimmerframe

MUPPET
Subscriber
Jun 12, 2019
14,028
20,813
Brittany, France
こんにちは、みんな。最近受け取りましたので組み立て中です。お知らせと質問があります。「まずは教えてください。」彼女は、予備の電池を購入するときにカーボンケースの設計を終えたと言いました。近い将来、純正アルミケースバッテリーとカーボンケースバッテリーが選べるようになるそうです。そして質問です。M820にスロットルを取り付けることは可能ですか?M510で使用していたメーター、配線、スロットルを接続してもウォークモードは動作しましたが、M820ではスロットルが動作しませんでした。私のトレイルでは、非常に急な坂道をマシンを押して登らなければなりませんが、ウォークモードでは速すぎるか、弱すぎるかのどちらかで登ることができません。方法を知っている人はいますか?
"Hi guys. I recently received it and am in the process of assembling it. I have an announcement and a question. "Let me know first," she said, finishing designing the carbon case when purchasing her spare batteries. In the near future, it seems that you will be able to choose between a genuine aluminum case battery and a carbon case battery. And a question. Is it possible to install a throttle on the M820? Walk mode worked when I connected the meter, wiring and throttle I was using on the M510, but the throttle did not work on the M820. On my trails, I have to push the machine up some really steep hills, and in walk mode it's either too fast or too weak to climb. Anyone know how?"

一般に、フォーラムでは誰もが英語を使おうとします。 これにより、誰もがコミュニケーションしやすくなります。 日本語のほうがはるかに美しく見えますが!


ymmr32

Member
Jul 13, 2022
32
49
Japan
Hello everyone. I recently received it and am assembling it. I have an announcement and a question. "First let me know." She said she finished designing the carbon case when buying spare batteries. It seems that in the near future you will be able to choose between a genuine aluminum case battery and a carbon case battery. and a question. Is it possible to attach a throttle to the M820? The walk mode worked even when I connected the meter, wiring, and throttle that I used with the M510, but the M820 did not work with the throttle. On my trails I have to push the machine up very steep hills and in walk mode it is either too fast or too weak to climb. Anyone know how?


ymmr32

Member
Jul 13, 2022
32
49
Japan
"Hi guys. I recently received it and am in the process of assembling it. I have an announcement and a question. "Let me know first," she said, finishing designing the carbon case when purchasing her spare batteries. In the near future, it seems that you will be able to choose between a genuine aluminum case battery and a carbon case battery. And a question. Is it possible to install a throttle on the M820? Walk mode worked when I connected the meter, wiring and throttle I was using on the M510, but the throttle did not work on the M820. On my trails, I have to push the machine up some really steep hills, and in walk mode it's either too fast or too weak to climb. Anyone know how?"

一般に、フォーラムでは誰もが英語を使おうとします。 これにより、誰もがコミュニケーションしやすくなります。 日本語のほうがはるかに美しく見えますが!
Thank you! I rewrote it in English


Bengy22

Member
Aug 25, 2022
125
80
USA
こんにちは、みんな。最近受け取りましたので組み立て中です。お知らせと質問があります。「まずは教えてください。」彼女は、予備の電池を購入するときにカーボンケースの設計を終えたと言いました。近い将来、純正アルミケースバッテリーとカーボンケースバッテリーが選べるようになるそうです。そして質問です。M820にスロットルを取り付けることは可能ですか?M510で使用していたメーター、配線、スロットルを接続してもウォークモードは動作しましたが、M820ではスロットルが動作しませんでした。私のトレイルでは、非常に急な坂道をマシンを押して登らなければなりませんが、ウォークモードでは速すぎるか、弱すぎるかのどちらかで登ることができません。方法を知っている人はいますか?
A carbon fiber battery case sounds cool, something that could help reduce the weight is good! I don't think the m820 supports a throttle, bafang's site doesn't list it unlike the m510 and other motors.


LAnton

Active member
May 12, 2022
548
459
Russia
A carbon fiber battery case sounds cool, something that could help reduce the weight is good! I don't think the m820 supports a throttle, bafang's site doesn't list it unlike the m510 and other motors.
I also checked the throttle valve, it doesn't work for me. I'm already used to driving without a throttle.


UnreasonableMuppet

Well-known member
Jan 11, 2022
122
630
THE YOO ESS OF AYE
Alrighty, I think I have decided on the CEF50 over the LCE930.

Price, weight, shape and ease of ordering with motor, battery and accessories make the difference. I also like the option of a larger battery.

Sure, a UD hanger would be cool, but not particularly necessary.

I could still use some inspiration with the colour.

I already have a FORMULA Selva S in purple.

View attachment 121178

Do you have any good ideas for a suitable frame colour?

I already have some in mind, but would leave the discussion completely open.

Actually, I wanted to take my time with the build until next year, but scarily enough, many components are already on their way. ;)

I got an offer with 48V with 480mAh, but supposedly there is also a 700 or 720mAh battery.

Also:
Somewhere there was a hack where a magnet was glued to a centrelock brake disc. Can anyone find it?



Otherwise, thank you very much!

You want something like this:


temon10

Well-known member
Feb 8, 2022
674
562
Malang, Indonesia
Hello everyone. I recently received it and am assembling it. I have an announcement and a question. "First let me know." She said she finished designing the carbon case when buying spare batteries. It seems that in the near future you will be able to choose between a genuine aluminum case battery and a carbon case battery. and a question. Is it possible to attach a throttle to the M820? The walk mode worked even when I connected the meter, wiring, and throttle that I used with the M510, but the M820 did not work with the throttle. On my trails I have to push the machine up very steep hills and in walk mode it is either too fast or too weak to climb. Anyone know how?
walk mode is enough power with the right gear.


spokémon

Member
Apr 4, 2023
191
99
Australia
A carbon fiber battery case sounds cool, something that could help reduce the weight is good!

Yes. If we let them know your interest in the carbon case, they will hopefully prioritise it. Let them know nobody wants a 1kg battery case, that's madness for a bike like this! I already told her, "you make it, I'll buy it" :LOL:


spokémon

Member
Apr 4, 2023
191
99
Australia
Sure, a UD hanger would be cool, but not particularly necessary.

This was my thinking as well. But I'm starting to feel regret with the opportunity missed for this frame.
I think there was recent announcement of lower end SRAM Transmission?
Not that I have any intention of running Transmission. I just like the idea of a standardised hanger.
Although. after routing cables through the headset, I'm coming around to the idea of wireless as well :LOL: My thoughts even include wireless rear brakes! (keeping hydraulic front. because no routing needed and.. you know..in case)


Myalteregohamish

Active member
Jan 4, 2023
294
240
Vancouver, WA
Alrighty, I think I have decided on the CEF50 over the LCE930.

Price, weight, shape and ease of ordering with motor, battery and accessories make the difference. I also like the option of a larger battery.

Sure, a UD hanger would be cool, but not particularly necessary.

I could still use some inspiration with the colour.

I already have a FORMULA Selva S in purple.

View attachment 121178

Do you have any good ideas for a suitable frame colour?

I already have some in mind, but would leave the discussion completely open.

Actually, I wanted to take my time with the build until next year, but scarily enough, many components are already on their way. ;)

I got an offer with 48V with 480mAh, but supposedly there is also a 700 or 720mAh battery.

Also:
Somewhere there was a hack where a magnet was glued to a centrelock brake disc. Can anyone find it?



Otherwise, thank you very much!
Yea the glue hack is my handy work. Buy some small round magnets either from local hardware or Amazon, I bought two kinds for different clearance requirements. Stick the magnet on to the rotor in a spot where you get good detection. Once you’ve settled on a spot put a small amount of super glue. On the battery or spot and that’s it. Don’t over do it on the glue as the magnet tends to pull onto the metal splashing glue onto the outer edges of the rotor.


un..inc

Active member
Jun 13, 2023
127
109
Germany
This was my thinking as well. But I'm starting to feel regret with the opportunity missed for this frame.
I think there was recent announcement of lower end SRAM Transmission?
Not that I have any intention of running Transmission. I just like the idea of a standardised hanger.
Although. after routing cables through the headset, I'm coming around to the idea of wireless as well :LOL: My thoughts even include wireless rear brakes! (keeping hydraulic front. because no routing needed and.. you know..in case)
Yeah, you're right.
A missed opportunity defintately. An UD Hanger you can buy in propably every bikeshop. Here we'll have to carry a spare or two around.
It's not about the SRAM Transmission, it's more about ease of access to spare parts.
I'll use the "old" GX AXS for the first time on this build.

Yea the glue hack is my handy work. Buy some small round magnets either from local hardware or Amazon, I bought two kinds for different clearance requirements. Stick the magnet on to the rotor in a spot where you get good detection. Once you’ve settled on a spot put a small amount of super glue. On the battery or spot and that’s it. Don’t over do it on the glue as the magnet tends to pull onto the metal splashing glue onto the outer edges of the rotor.

Thanks, would you mind sharing a picture or two?


Does noone have colour Ideas?

BTW: The fork is Pantone 18-3838 - Ultra Violet...


un..inc

Active member
Jun 13, 2023
127
109
Germany
Oh and by the way: how long does it take a skilled mechanic to remove the motor and change the battery?
I assume one only has to remove the motor-bolts and the connecting cables in addition to the battery bolts?
Should be done in 5-10 minutes? Or am I completely wrong?


spokémon

Member
Apr 4, 2023
191
99
Australia
Oh and by the way: how long does it take a skilled mechanic to remove the motor and change the battery?
I assume one only has to remove the motor-bolts and the connecting cables in addition to the battery bolts?
Should be done in 5-10 minutes? Or am I completely wrong?

I'm not sure if drive side crank and chainring needs to come off for motor bolt access? That would be worst case I would say. otherwise yeah seems simple enough.


un..inc

Active member
Jun 13, 2023
127
109
Germany

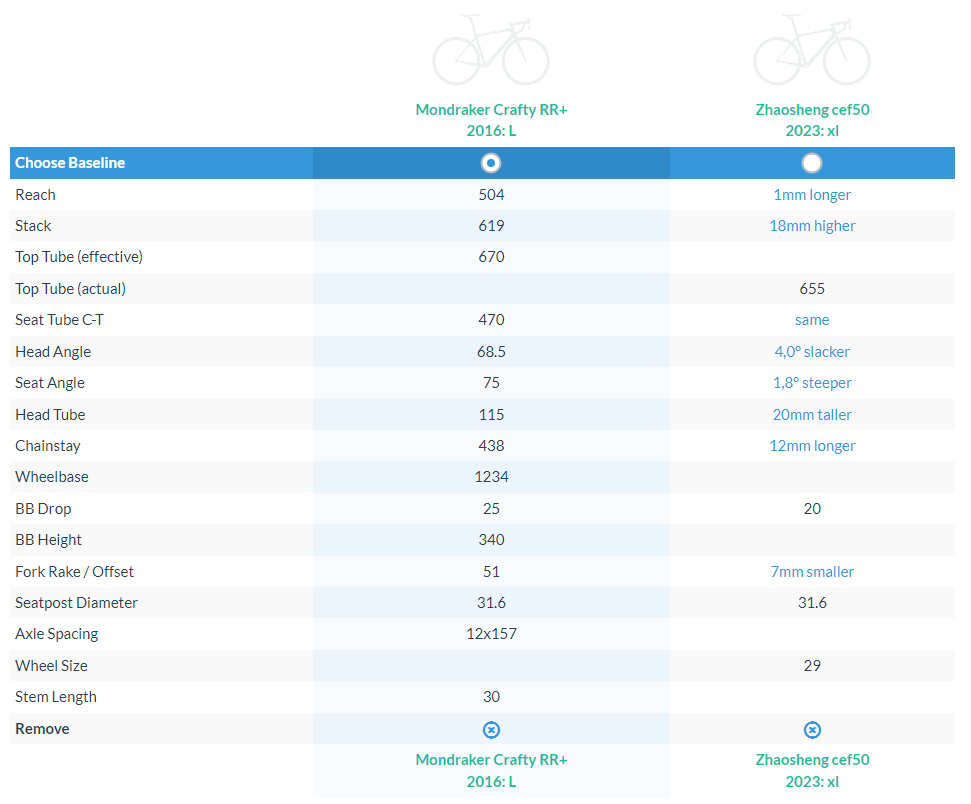

Well, I guess Sizing is almost spot on to my Mondraker Crafty RR built as a 29er.
IMO the effective TopTube is even a bit shorter. I think they switched it up in this chart.
Taller headtube makes a bit higher stack.
Should be good in XL. Unfortunately, there is no data for size L. Maybe I'll import it.
