Swingset
Active member
Writing that July range extender promise down.
Fuel EXe Trek Fuel EXe Megathread!
- Thread starter Rob Rides EMTB
- Start date
socal_rider
Member
I appreciate you posting this. This is good information.
This is why I like forums like this so much. Folks here often know more than the dealers do.
socal_rider
Member
No kidding. July will be 1 year from the bike intro, right? The damn new Levo SL actually beat the EXe extender to market. I was placing bets which would make it first. I lost.
Agreed. The date for mine has been pushed back 4 times now. It was originally supposed to be here in November of 2022. I talked to my LBS last Saturday and they informed me the same, new ship dates will be in July. Ridiculous.
I was actually in the market about to pull the trigger on a 9.8xt thats available locally. I wanted it to be my only bike due to its stealthiness and was gonna sell my Deviate Claymore, Rise H, and Orbea rallon. As a big guy, I need extenders for all my rides...use one on my Rise H every time. The lack of availability of them is why I didn't buy it. Still selling the Enduro bikes and bought a Spur instead to have a fun bike. Down the road I still plan on getting an EXe but not until the batteries are readily available.
pat1032
New Member
Still figuring out the creaking on my bike
. I regressed and torqued to spec all frame bolts including motor bolts. Only bolt I didn’t get to is the main pivot bolt on drive train side cause i don’t want to screw anything up. Not sure how to remove cranks and chain guide, are there any special tools I need? Don’t want to screw anything up. Couldn’t find any videos that showed how to access and remove main pivot bolt on drive train side
. I regressed and torqued to spec all frame bolts including motor bolts. Only bolt I didn’t get to is the main pivot bolt on drive train side cause i don’t want to screw anything up. Not sure how to remove cranks and chain guide, are there any special tools I need? Don’t want to screw anything up. Couldn’t find any videos that showed how to access and remove main pivot bolt on drive train side
I would suggest looking at the service manual for the Fuel EXe, which I attached. Or you can easily find it on Trek’s website. It shows what needs to be greased and the proper torque specs. As for special tools you will need a 20-notch bottom bracket tool to remove the chainring, which is required to remove the main pivot bolt.Still figuring out the creaking on my bike
Note that it’s very important to reinstall the crank in the proper orientation, apply grease to the right places and torque the lockring to 50Nm as stated in the service manual (even though the lockring may show 30Nm on it).
Hope this helps and please respond back if you find the source of the creak.
LuvnmyEXE
Member
I'm in exactly this situation as well. Been hesitant to pull off the chain ring, but not much choice now.Still figuring out the creaking on my bike
Should have got his email address !!
mitea
Member
Where did you get that from. My LBS told something similar.
pat1032
New Member
This is very helpful. Thank you! I’m a little hesitant to start removing the drivetrain components so I might go to a LBS and have them do it. I have a torque wrench that goes to 20nM so nothing close to 50nm. I could go on feel but would rather be safe and have a professional make sure the lock ring is torqued to spec.
mitea
Member
Wonder why it behaves different if the bike is turned on without any support.
Hope they can fix that by a software update that emulates turning off the bike when no support is activated also. I would like to get all the data from the bike while riding without any support such as speed power and rpm. For me it sounds possible to let the sensors on but completely turn off the motor.
For the long term I hope they can fix the clutch issue in the hardware. Lots of bikes in europe seem to be delayed by some months. My LBS told me first that its because TQ wants to fix something and then he told me its because Trek doesnt get the motors from TQ. So maybe its both and they are still fixing the clutch issue and are designing and producing revision 2 of their motor.
BraveSirRobin
New Member
I had an issue with my EXe today…. When I switch it on it reported Error 049C Drive Sensor and then after a restart 049E Drive Sensor… this does not go away after a restart or a reset, so it’s off to my local dealer for some warranty support! I noticed when I last rode it that power from the motor cut out briefly a few times whilst pedalling making it feel draggy and lumpy (I guess because the clutch/motor were still engaged without providing any drive)… there was no indication of an error on the display at the time. Anyway when I spoke to the dealer this morning he mentioned that a bike came in with the same (or similar) issue and that it was fixed with a recent firmware update. My current firmware versions are Motor: 1.4.132; HMI: 1.1.110; Battery: 1.99.5. Has anyone had a similar issue? Or does anyone have details on the most recent firmware release?
Aside from this hopefully minor issue I am loving the EXe and today was the first day back on the NoE-MTB since purchase!
Aside from this hopefully minor issue I am loving the EXe and today was the first day back on the NoE-MTB since purchase!
Emailsucks98
Active member
I just called for an update on my full battery. It's been pushed out many times now, but recently it's been "coming next week" for the last 3-4 weeks. Hopefully it's actually in the next few weeks, snow is melting out!
thomasbran
New Member
Where can you read the actual firmware versions?
BraveSirRobin
New Member
On the printout given to me by the dealer when purchased. I don’t think they can be viewed on the display or in the app but i could be wrong.
You already have the most recent firmware according to the tq support pages
BraveSirRobin
New Member
Ah… thanks. I can see the page you are referring to…. Software updates for e-bikes with TQ-HPR50
Looks like it’s not going to be quite so straightforward then! :-(
Magnacus
Member

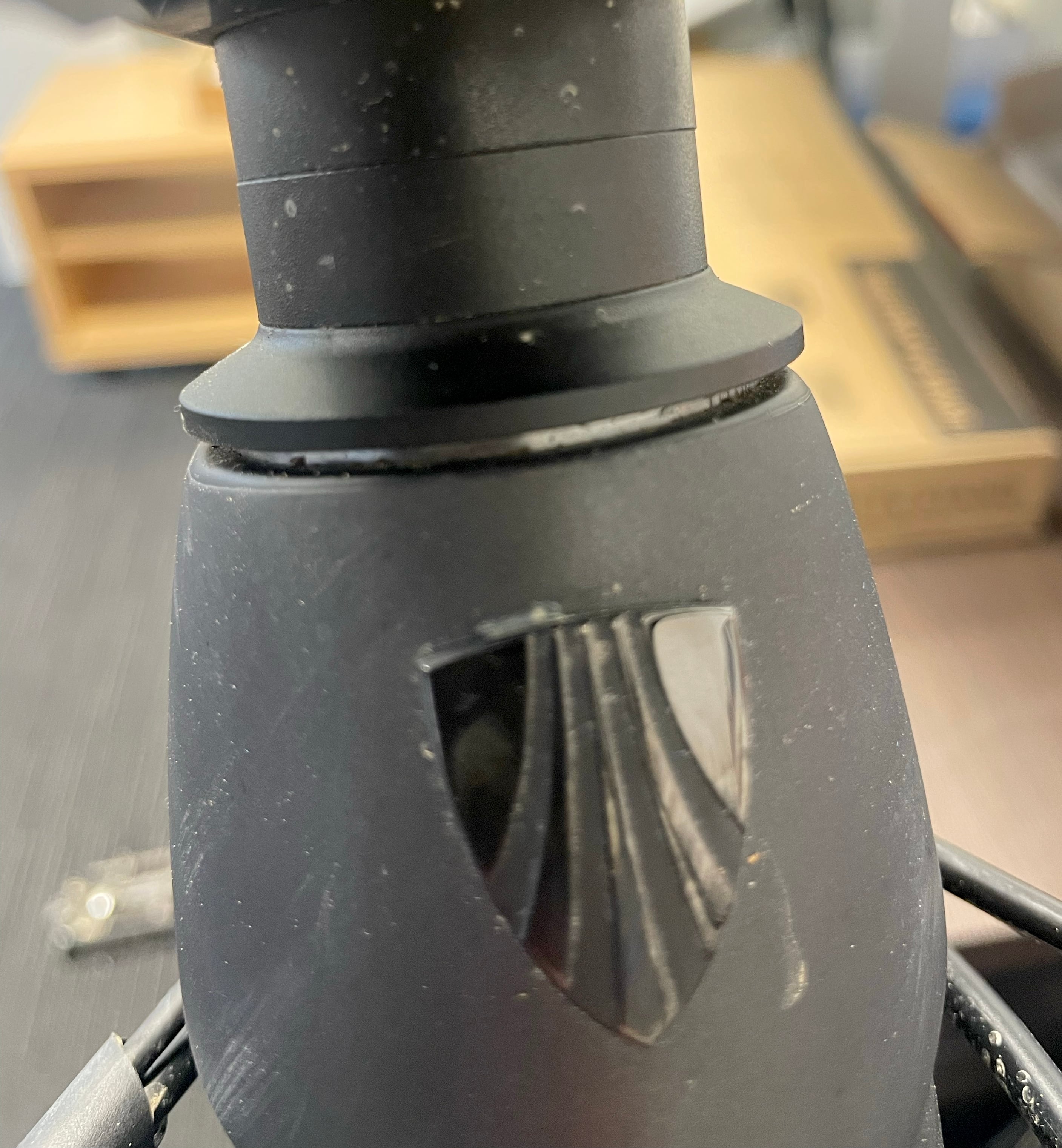

The "problem" with this preinstalled headset is the missing seal.
It's a very cheap version from Bontraeger. I have had the same gap.
So... I used a old headsetcap from a Cane Creek 40:
The seal is now protecting the bearing from water and dirt.
If you want to protect your bearing too, you may buy the cover as a spare part:
40-Series - IS41/28.6/H9 - Short Cover - Top - BAA0081K - Cane Creek Cycling Components
Cane Creek’s 40-Series sets the standard for performance, durability and value. Drawing from the premium 110-Series design, the 40-Series includes all the features necessary for a durable, lightweight, long-lasting headset. We make it easier, by developing consistent graphics, interchangeable...
canecreek.com
Definitely worth it
mitea
Member
Shame for a premium priced bike to have such components.
Pinkmaggit
Member

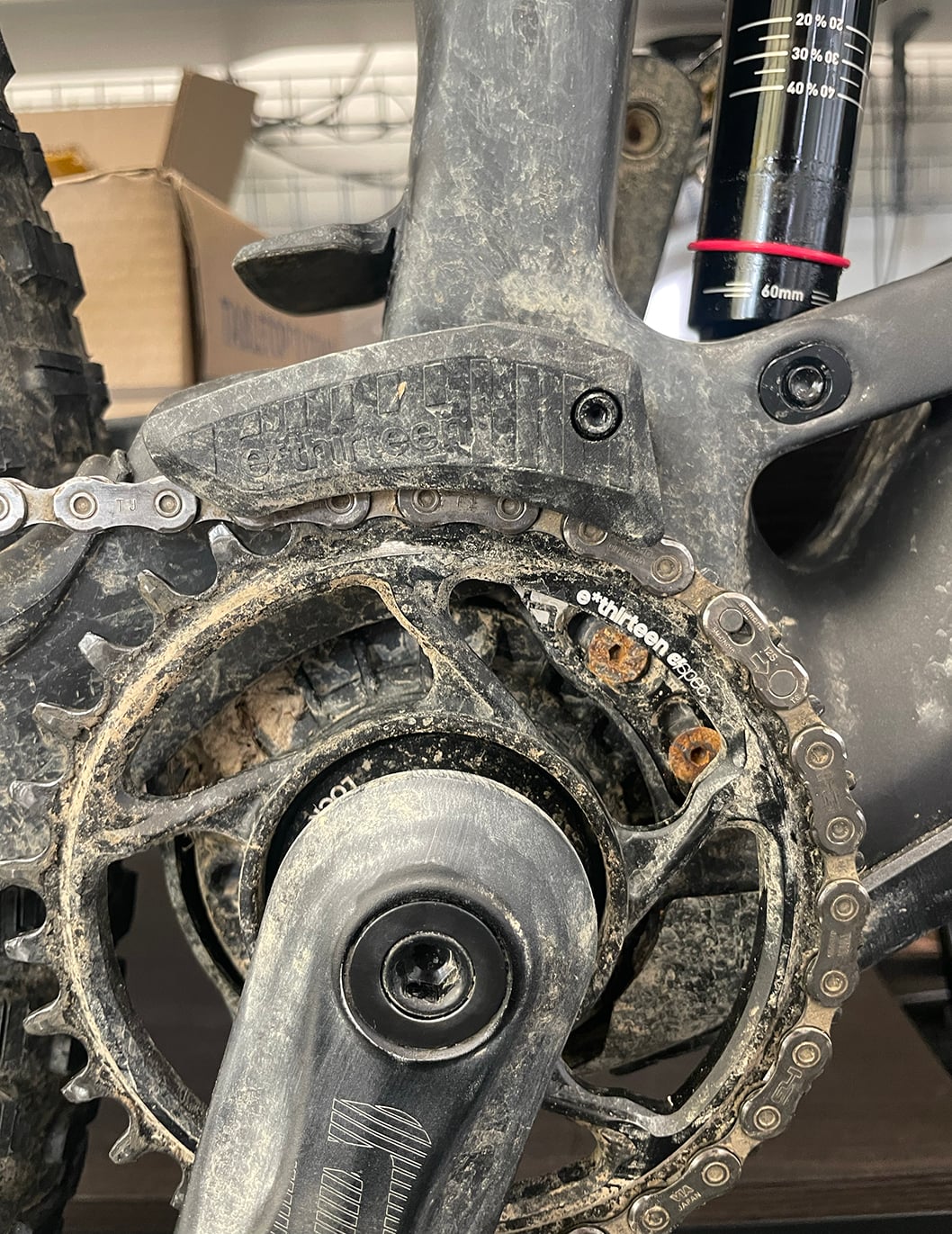

I did get the chainguide on the stock build, yes. The Bolts have already rusted on it though
I had some good news about the wheels this week. Trek replaced them with a Bontrager Line Elite 30 Carbon wheelset and XT cassette under warranty. It took a little over a month for them to be replaced but a good end result I think. While it was away, I asked about the headset and the workshop guy said it was fine.
Will look to swap the top part out for something that seals better, like the one mentioned above (thank you!)
I did get the chainguide on the stock build, yes. The Bolts have already rusted on it though
View attachment 114375
I had some good news about the wheels this week. Trek replaced them with a Bontrager Line Elite 30 Carbon wheelset and XT cassette under warranty. It took a little over a month for them to be replaced but a good end result I think. While it was away, I asked about the headset and the workshop guy said it was fine.
Will look to swap the top part out for something that seals better, like the one mentioned above (thank you!)
Those are great upgrades under warranty, congrats!
The bolts of the chainguide on my 9.7 are also starting to rust, lol. Think I’m going to apply a tiny bit of Fluid Film to them…
Man, I was so close to pulling the trigger and buying the ExE primarily because I liked the idea that it seems of all the emtbs out there, this was the one that would be closest to being able to pedal like a regular mtb. I like the idea of being able to pedal without assist to work on my fitness and strength, and use assist when I get tired/not strong enough for the hills.
Now I'm really confused and uncertain about buying it until we know what this issue is. If it's a hardware issue I'd best be waiting for the next gen but who knows when that will be.
I think I am going to change my order from the range extender to the battery and get the Evoc E-Bike backpack. That would give me 720 wh of battery total. That would get me 40 miles and 5,000' elevation. I could keep one in my truck if I am riding laps. That would be some long rides. Evoc backpack: EVOC FR Trail Hydration Pack with Integrated Back Protection - Evoc Sports USA
Swingset
Active member
Maybe overthinking this a bit.
I think we more often hear about the issues more than the positive. My EXe has just under 1,000 miles and I have not had a single issue with the bike. I purchased it in late September. The motor is still quiet.
I definitely don't disagree with this, but a $7k purchase is a big outlay for me. I don't know if this is a "1 in a 1000" occurrence or very common occurrence. Given my primary criteria is purchasing a emtb that offers easy no-assist pedalling, this unfortunately does become a factor in my decision making process.
Does anyone know if this phenomena occurs from the get-go or develops over time? That is, if I bought the bike today, would I experience the issue during my 30 day return period or could it develop over time post my 30 day window?
thomasbran
New Member
I did 5000 feet (1.800 meters to be correct) with only the actual battery...
Swingset
Active member
Lots of mis-perceptions early in this thread about a motor 'grind' that is not the right term. Under low wattage pedaling there is a slight flutter from the motor that I can replicate easily. I don't much think about it anymore. I don't believe its a mechanical issue but a motor trait. The pedals great with the motor off. If there is a another clutch issue independent of this its been small. Yeah these bikes are too damn expensive.
Emailsucks98
Active member
I agree with Swingset. I've had mine since Oct '22 and have ridden it 2-3x a week since, all through a wet muddy winter. Killed a bunch of drive train and other parts. The frame and motor have been solid, quiet, zero issues.
I don't mean to throw shade at anyone who has had issues with theirs, but I do think light eBikes get a wild range of reviews because expectations are all over the board. I would say- with any eBike- expect more maintenance than you'd put into a meat bike. Grease, locktite and torque wrench (maybe a few beers too...)
