When I contacted the manufacturer about my problem of not being able to output the product, I was able to resolve it by providing an answer and firmware. MTB data does not output 600w with 48v specifications. According to road bike data, it can output close to 600w. I hope this helps someone who is having trouble.
SZZS specific CEF50-main thread (initial builds and troubleshooting related only)
- Thread starter TCFlowClyde
- Start date
This is the latest E-load firmware provided by Bafang. This produced 570w. For those who are having trouble, please refer to it...
have you tested it on MTB ? what is the specificity "road" ?
I tested it on my MTB to see the output. There are two types of firmware: one for MTB and one for road bikes.
TCFlowClyde
Active member
- Thread starter
- #2,857

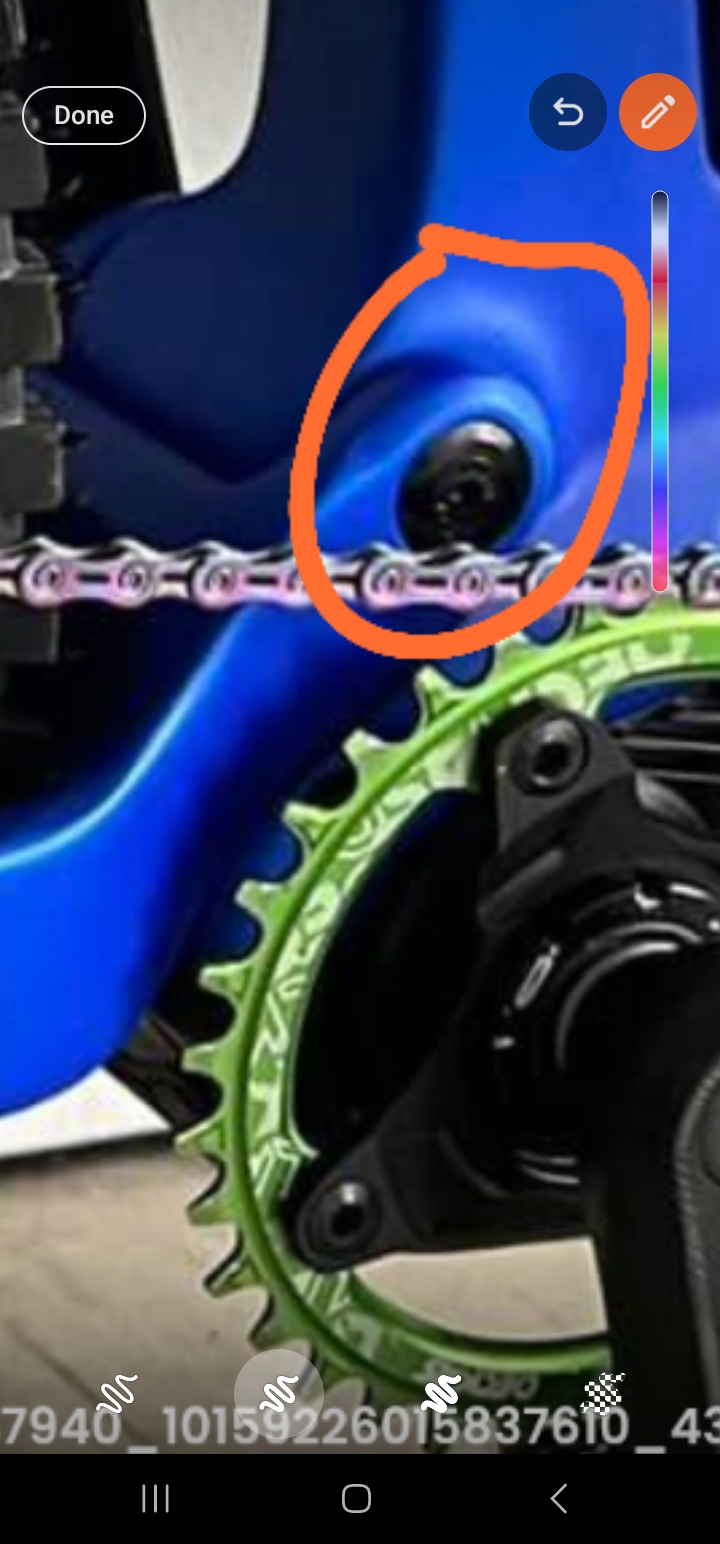

Sooo...just the 3rd ride in mostly flatter conditions. I broke a side piece off the modified motor guard dropping into a steep sandy wash...was a fun feature!
Good news is that carbon reinforced tab mod I made held. Arguably, this was a major weak spot of the Gen 2 motor guard.
Unfortunately, the piece was lost on the trail before I noticed it when hoisting onto my bike rack. Otherwise, it would have been easier to glue it back on and just cover the whole plate in carbon. I still might cut out some spare plastic and graft it in...

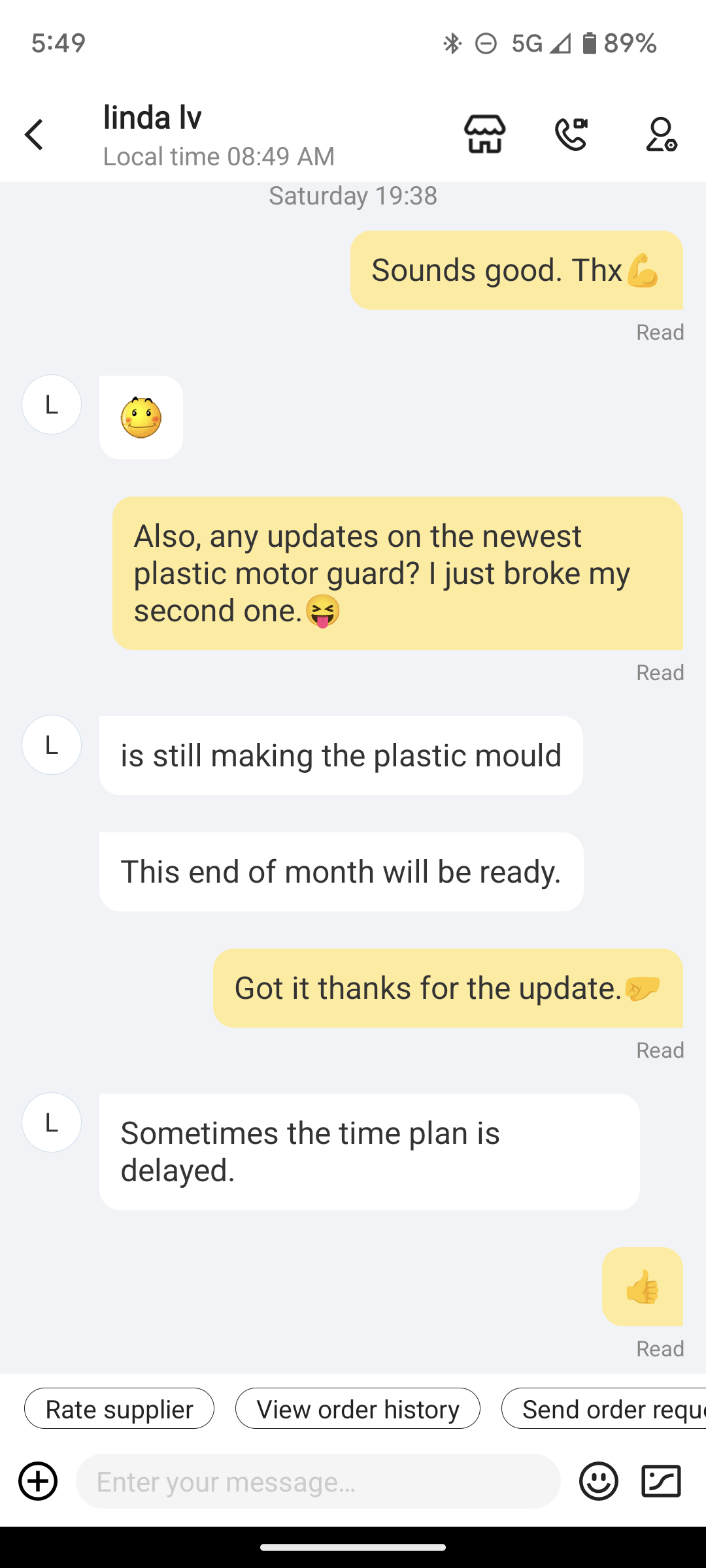

Linda at SZZS says the 3rd Gen motor guard "should" be ready by the end of this month.
Good news is that carbon reinforced tab mod I made held. Arguably, this was a major weak spot of the Gen 2 motor guard.
Unfortunately, the piece was lost on the trail before I noticed it when hoisting onto my bike rack. Otherwise, it would have been easier to glue it back on and just cover the whole plate in carbon. I still might cut out some spare plastic and graft it in...
Linda at SZZS says the 3rd Gen motor guard "should" be ready by the end of this month.
Last edited:
Neeko DeVinchi
E*POWAH Elite World Champion
So apparently, their have been a few complaints about the Acros headset for cable routing. Supposedly, one of the following seems to occur:-
1. Depending on the variant, the plastic parts are prone to snapping when preloading the headset!? Or,
2. Depending on the variant, the physical outer cables which protrude from the headset will crack the headset (even after ensuring that their is plenty of cable slack) through excessive over-steer.
I haven't installed one in either my CEF50 or Dengfu E55. But has anyone else experienced this same issue?
FYI, this is coming from 4 different bike mechanics, from 4 different bike shops, which all 4 bike shops sell mtb/emtb with headset cable routing.
1. Depending on the variant, the plastic parts are prone to snapping when preloading the headset!? Or,
2. Depending on the variant, the physical outer cables which protrude from the headset will crack the headset (even after ensuring that their is plenty of cable slack) through excessive over-steer.
I haven't installed one in either my CEF50 or Dengfu E55. But has anyone else experienced this same issue?
FYI, this is coming from 4 different bike mechanics, from 4 different bike shops, which all 4 bike shops sell mtb/emtb with headset cable routing.
I did not know anyone was using the ACRO cap maybe the bearings. I use the Nukeproof made by Token.
thaeber
Well-known member
…which is 3 out of 4
Yeah, that's right...…which is 3 out of 4
Somehow I thought, using axs ist getting rid of more cables, but we are adding one too...
TCFlowClyde
Active member
- Thread starter
- #2,863
Speaking of AXS, is any one using the new AXS/Transmission/T-type/Direct Mount GX yet (did I cover all the possible names
)?
Figured it's been 6 months since it's release, and 3 months for the GX version so maybe somebody has got some miles accumulated by now....
If so, curious to get your feedback on the pairing of CEF50-M820 specifically, or really any E-mtb. I'm considering the GX T-type upgrade in the future....maybe with X-Mas promotional code.
Hint: Sram like Shimano are notoriously tight with any discounts. But sometimes a LBS will cut you a deal at the end of the month.
)? Figured it's been 6 months since it's release, and 3 months for the GX version so maybe somebody has got some miles accumulated by now....
If so, curious to get your feedback on the pairing of CEF50-M820 specifically, or really any E-mtb. I'm considering the GX T-type upgrade in the future....maybe with X-Mas promotional code.
Hint: Sram like Shimano are notoriously tight with any discounts. But sometimes a LBS will cut you a deal at the end of the month.
DirtyCurty
New Member
Curious to know aswell. Once my frames come in hopefully they have a number stamped on the bearing.
yes 450 on my XL received this morning
Let the build begin!
salvaparraes
Member
Hola, en talla XL, ¿podrías indicar a qué altura mínima tendríamos que cortar la horquilla de suspensión?
Myalteregohamish
Active member
I know it’s been a while since you posted this file, but I just got around to installing it and testing it yesterday evening. My friend, you’ve made a significant improvement of the quality of ride by producing this firmware, thank you.
Some of the highlights:
– smoother power delivery
- punchier power delivery
- Less delay time to start power delivery under-load
- battery lasts longer using more power somehow
- much more noticeable difference between modes, primarily Eco mode you can actually feel the right away, sport plus has everything I need to get me up the steepest sections
- The downhill, application of pedal strokes to keep momentum, the spin up time doing this feels much more natural and less delay
I can’t send enough good things about this firmware. It’s a significant improvement over stock. Did you figure out how to get full power delivery below 25%.? I would love it if you could ride at full power down to about 10% before a reduction in power.

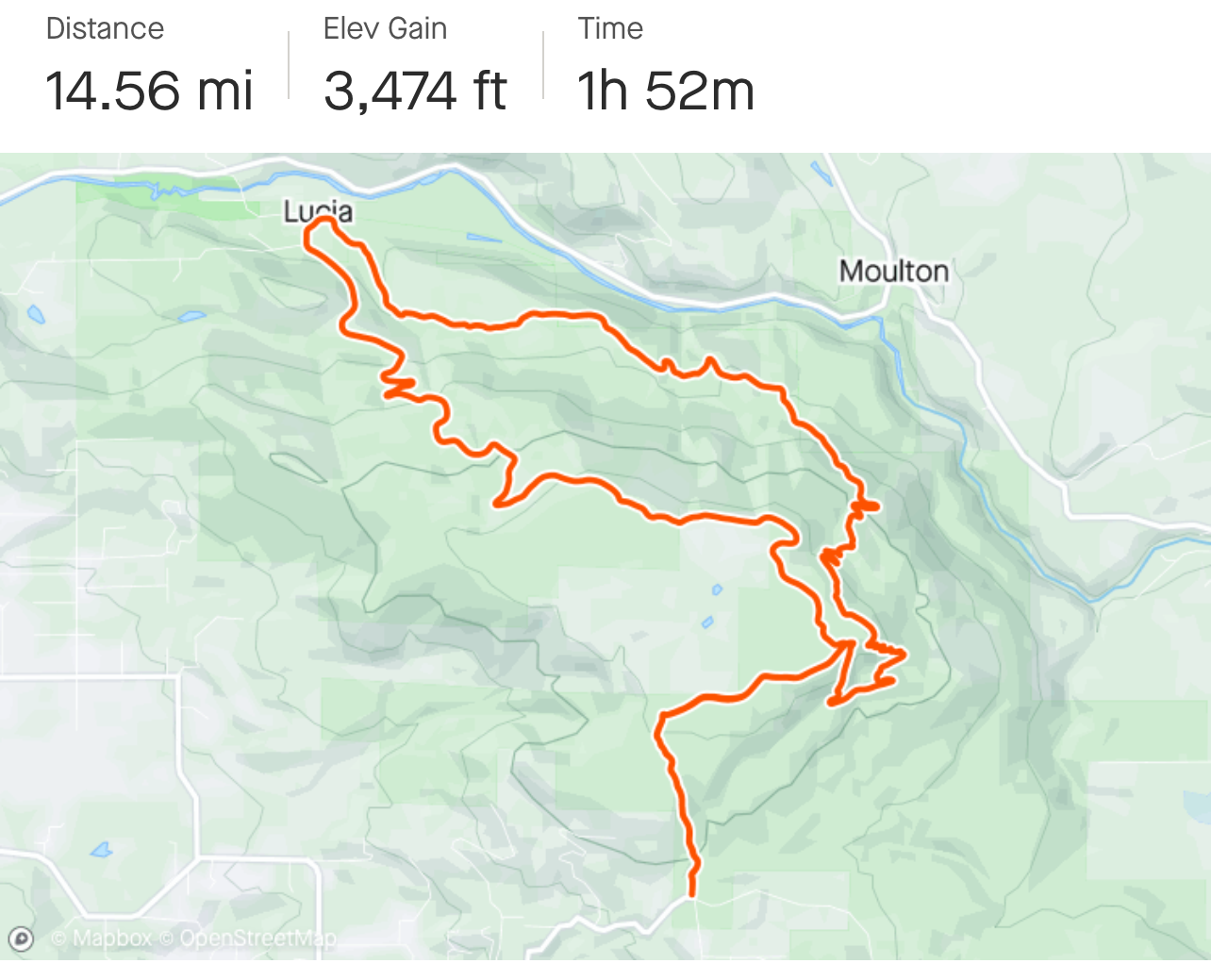

This ride below was going between sport and sport plus and I was still left with about 44% battery at the end of the ride. This would’ve normally been 35%-ish, I only know that because the day before I did a similar ride and I ended up round 30%.
TCFlowClyde
Active member
- Thread starter
- #2,873

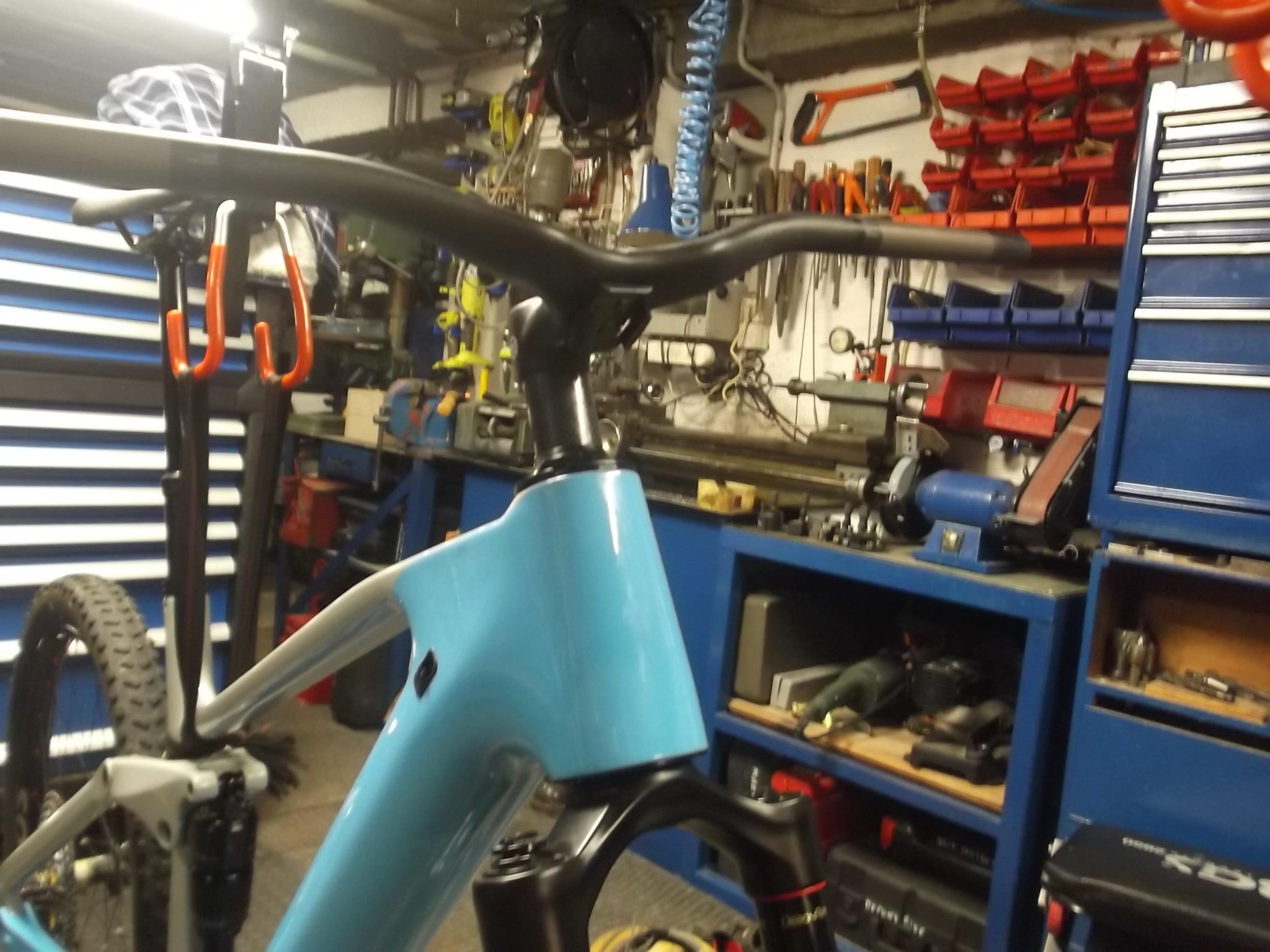

Look'n good! Powder blue and grey is a nice combo. Got side cable routing too.
TCFlowClyde
Active member
- Thread starter
- #2,874
Cool. Test it out for below 20%.
10-12% power down would be nice.
Bafang always super conservative toward saving the battery...My M600 is a 27% threshold.
Did you use the Besst tool to install it or can you install firmware with GO+?
i appreciate a lot that SZZS accept to do holes has i wanted, needs to purchase additional upper ZS56 cover to have clean finish.Look'n good! Powder blue and grey is a nice combo. Got side cable routing too.
Hi everyone, I'm new here. I have a light e-mtb project in the pipeline, I'm undecided between this cef 50 and the lightcarbon lce 930. I would be a person who is quite interested in weight, so I would look for the lightest frame. On an aesthetic level, I like the LCE 930 better but it has some details that I don't like. like the battery but I saw on the forum that a member made a 720wh battery like I would like.
many thanks in advance
many thanks in advance
Sounds like you have done you homework and understand the differences. I think a lot of us like the aesthetics of the LCE930 better. But the CEF50 shipped sooner and I really was more comfortable getting all the parts from one seller with one responsible party. SZZS has been a responsive seller to me and they took the initiative to get a bafang motor provider and get the 720 battery made to order. They have made the new headset and offer non-headset cabling on demand.
Plus, of course, the people in this thread sendit~!
Plus, of course, the people in this thread sendit~!
Myalteregohamish
Active member
I used the Besst tool. It was an easy process to apply the firmware to the controller but the system shut down after the firmware had been applied. I had to remove all the connections from the motor and reconnect after 1 or 2 mins. Then it came back to life where I was able to confirm the firmware had been applied. Even if I didn’t confirm the firmware, it was obvious the character of the motor had changed.
Myalteregohamish
Active member

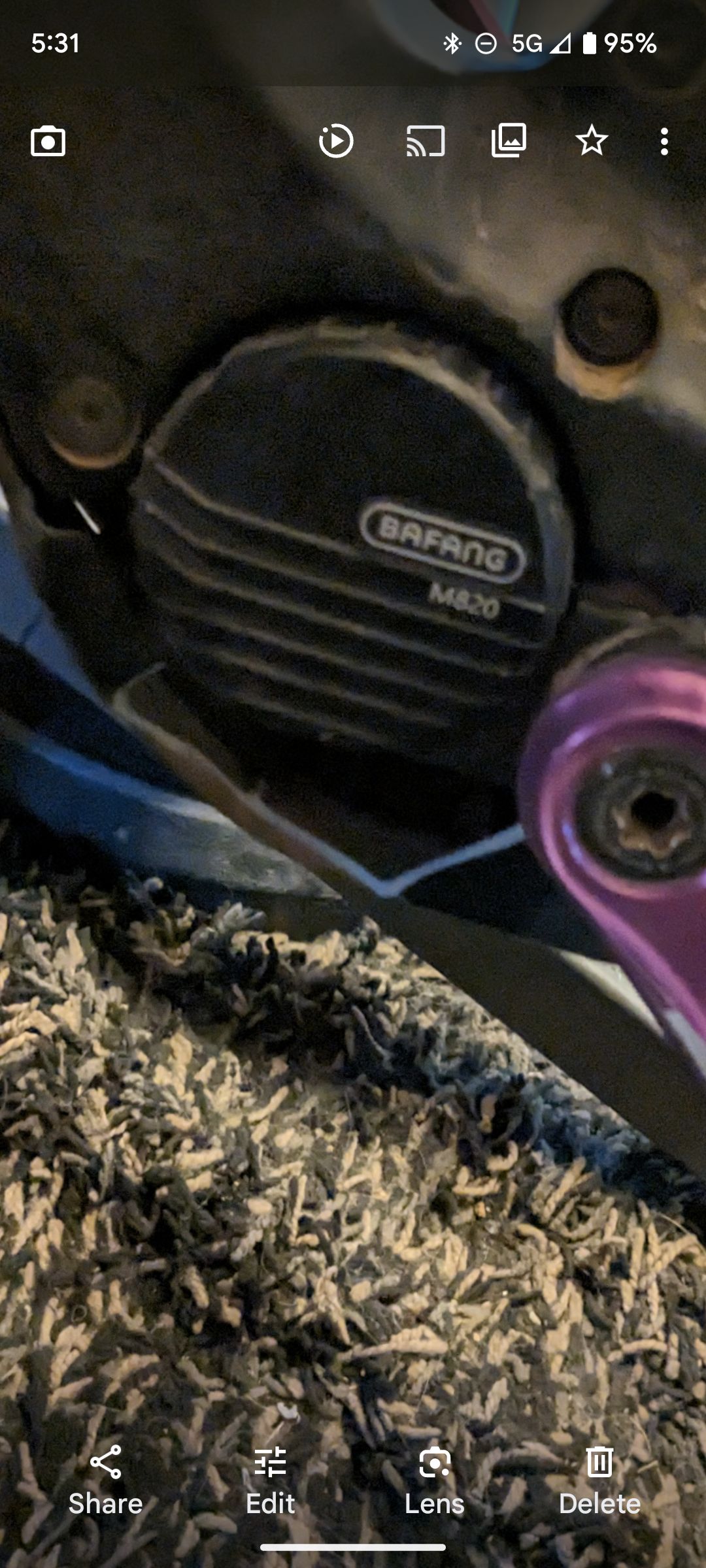

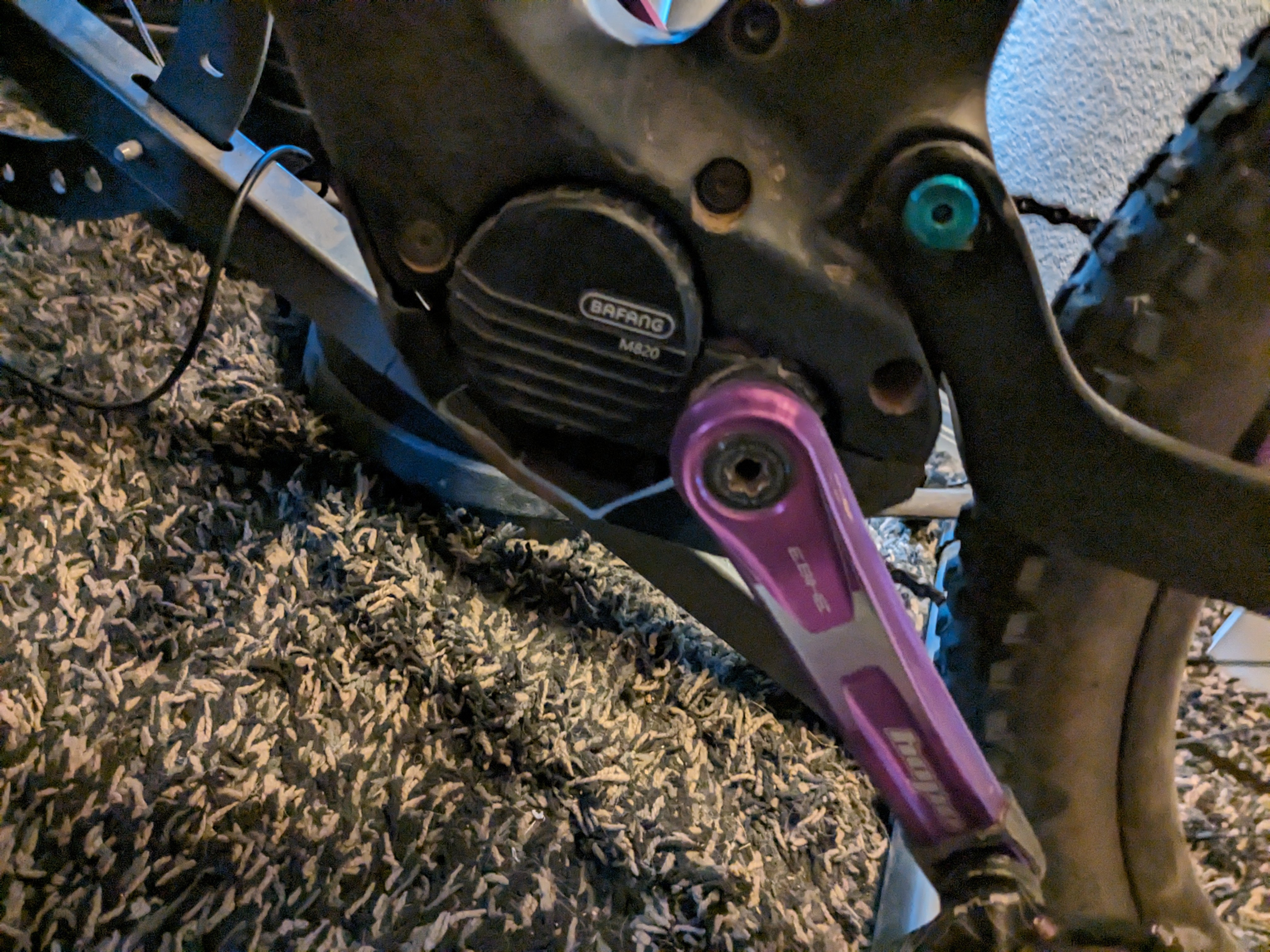

Since it’s winter time now, and I’ve been riding in more wet weather situations I’ve noticed a new squeak that seems to be coming from the motor. It seems to be only when the motors actually engaged regardless of whether I’m peddling or not, like with overrun. Are any of you experiencing any squeaky sounds coming from the motor and no where lube should be applied?
