SZZS specific CEF50-main thread (initial builds and troubleshooting related only)

[Neeko DeVinchi]

You can only amend the speed, governed by the top speed set by the firmware. So if the motor Is set to 15.5mph, the Bafang go+ app won't allow you to increase the top speed. Only besst pro can do that (subject to the firmware).
You can decrease the top speed with Bafang go+.
Similarly, you can't change wheel size or wheel circumstance with go+. Only besst pro.
But maximum power, acceleration, assistance & startup angle are parameters which can be charged with the go+ app



[92se-r]

Damn a little frustrated. 15.5mph is way too low, we had agreed on 45kmh or 28mph.



[masahirov]

My CEF50, which arrived in January 2024, had a speed limit of 32km/h. Settings cannot be changed on bafang GO+.



[92se-r]

Does instrument or controller control top speed?



[masahirov]

I don't know whether the instrument or the controller is limiting the speed.



[mike_kelly]

Computer/Display is controlling.



[calvintys]

Im not understanding, how do i disconnect bluetooth from the motor but then still change the settings?

Sorry for the confused. YES once u disconnect Bluetooth, you basically can not change any settings. What i mean its disconnect Bluetooth to browse what its inside function. once u Bluetooth its connected u can not go in.



[calvintys]

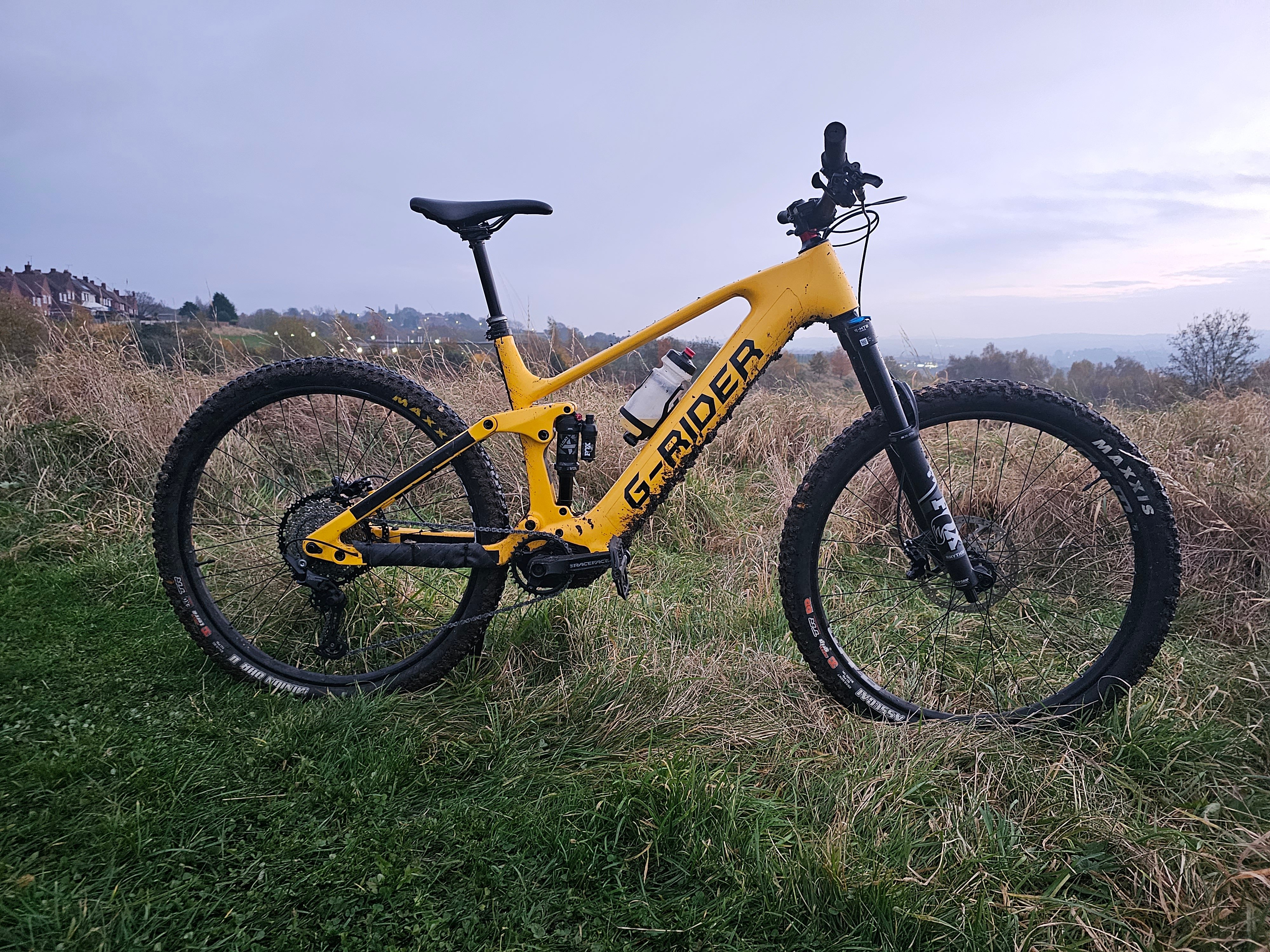

So I'm opting to run a tyre insert in the rear, when running my CEF50 as a 29er.
But I've gone about it in a very unusual way.
View attachment 134944

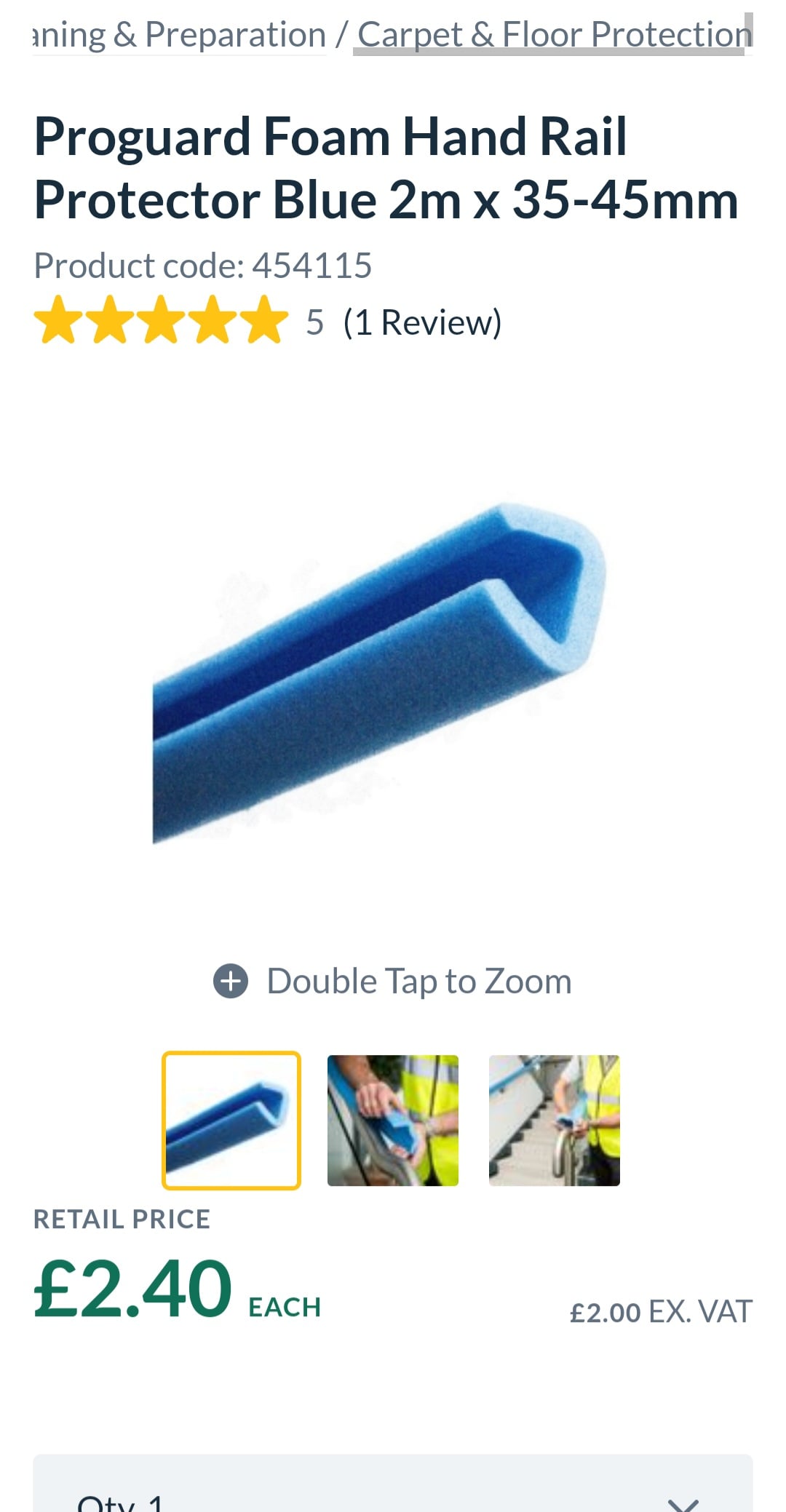

Polyethylene Foam seems to work just fine. The weight increase of the rear wheel is negligible. But it does allow me to continue to use the DHR2 exo 2.4 tyre without sidewall tears and strikes.
View attachment 134945
And for £2.40, I'm not going to complain

Bro only USD18 for this insert
Just found this amazing item on AliExpress. Check it out!

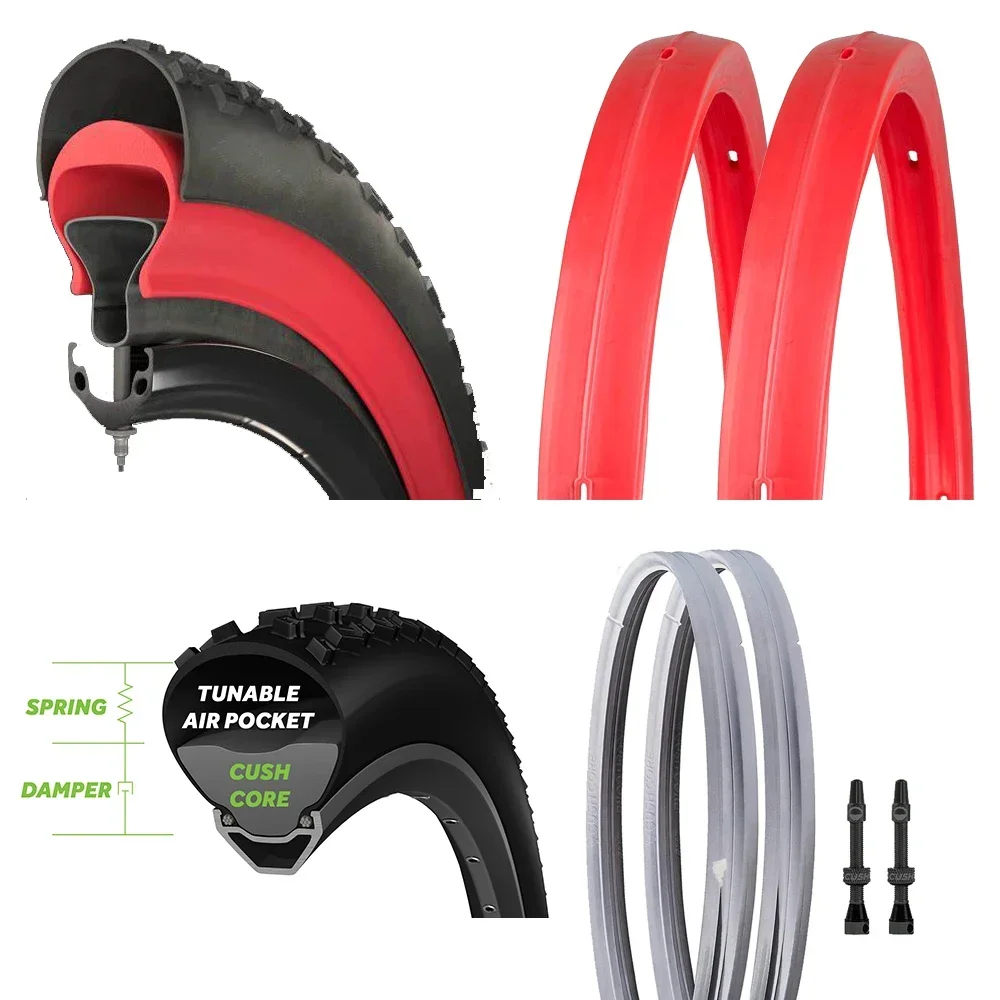

MYR62.86 15%OFF | Tannus Armour CushCore Installing Tire Insert Improves Anti puncture Tube Protector for Bicycle Tires to Prevent Injury

10.8￡ 15% OFF|Tannus Armour CushCore Installing Tire Insert Improves Anti puncture Tube Protector for Bicycle Tires to Prevent Injury| | - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

a.aliexpress.com



[calvintys]

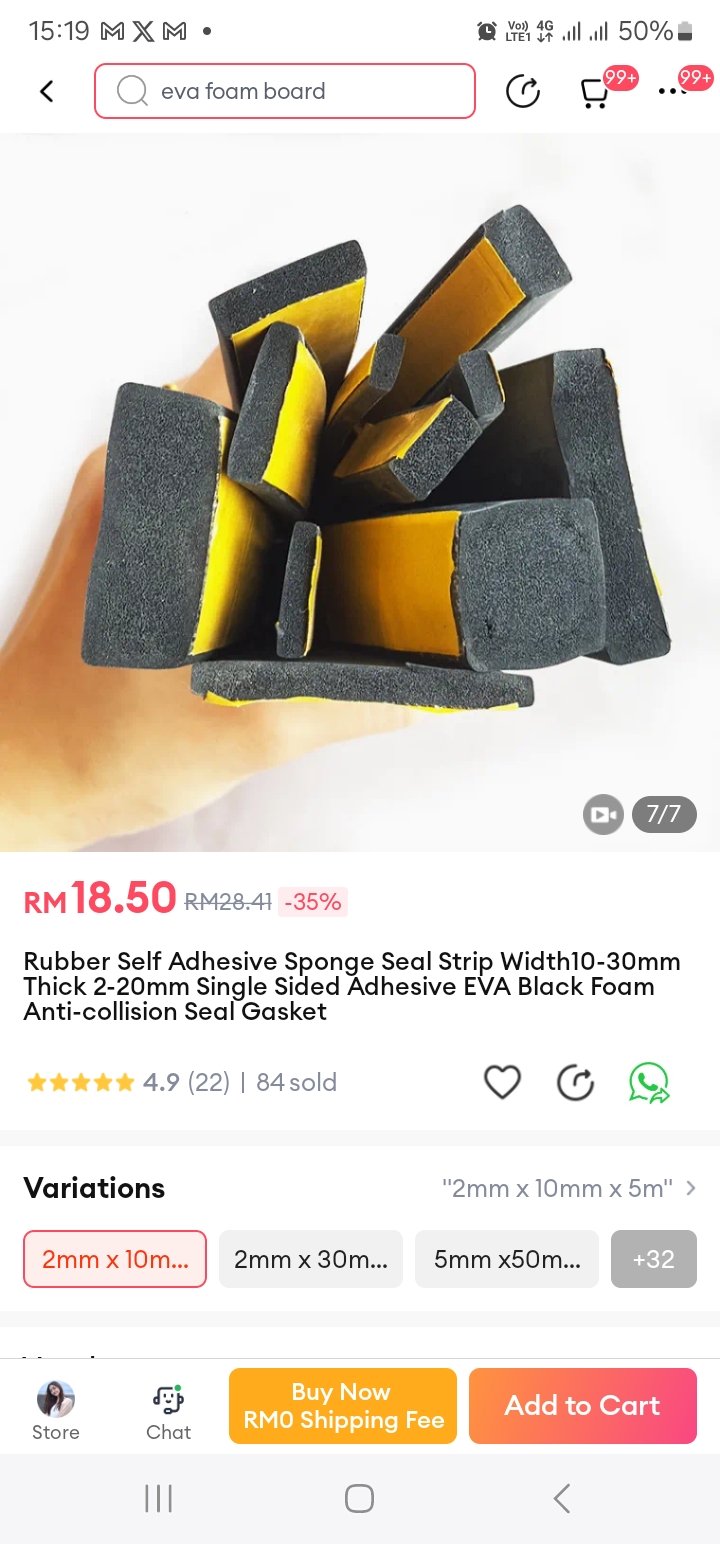

This is a better option for DIY insert as it is high density so that your sealant cant get into the insert.



[calvintys]

Bafang Besst Pro can ONLY set my 48v max speed 25kmh, i need to use bafang Besst V1. 2.20 to set my speed limit back to 45kmh. Can set it to 60kmh if u wish but your chain ring will not get u to that speed.



[calvintys]

View attachment 134966

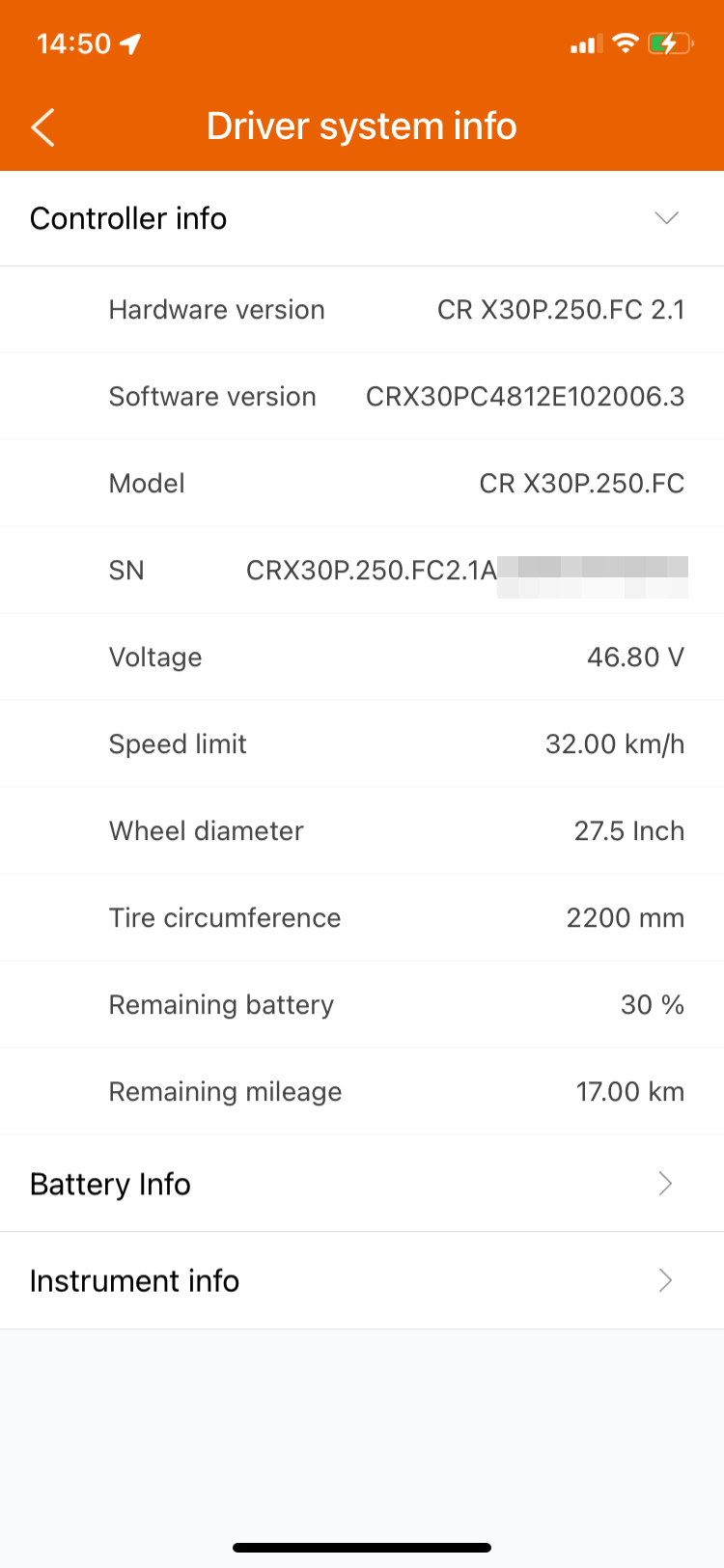

My CEF50, which arrived in January 2024, had a speed limit of 32km/h. Settings cannot be changed on bafang GO+.

Go+ can not change my speed limit. Basically at this moment certain GO+ function are not accessible when Bluetooth its connected. That is according to Linda from Bafang.



[calvintys]

I don't know whether the instrument or the controller is limiting the speed.

The speed limit its store inside the motor NOT controller or display.



[masahirov]

The speed limit its store inside the motor NOT controller or display.

I see, that's right.



[masahirov]

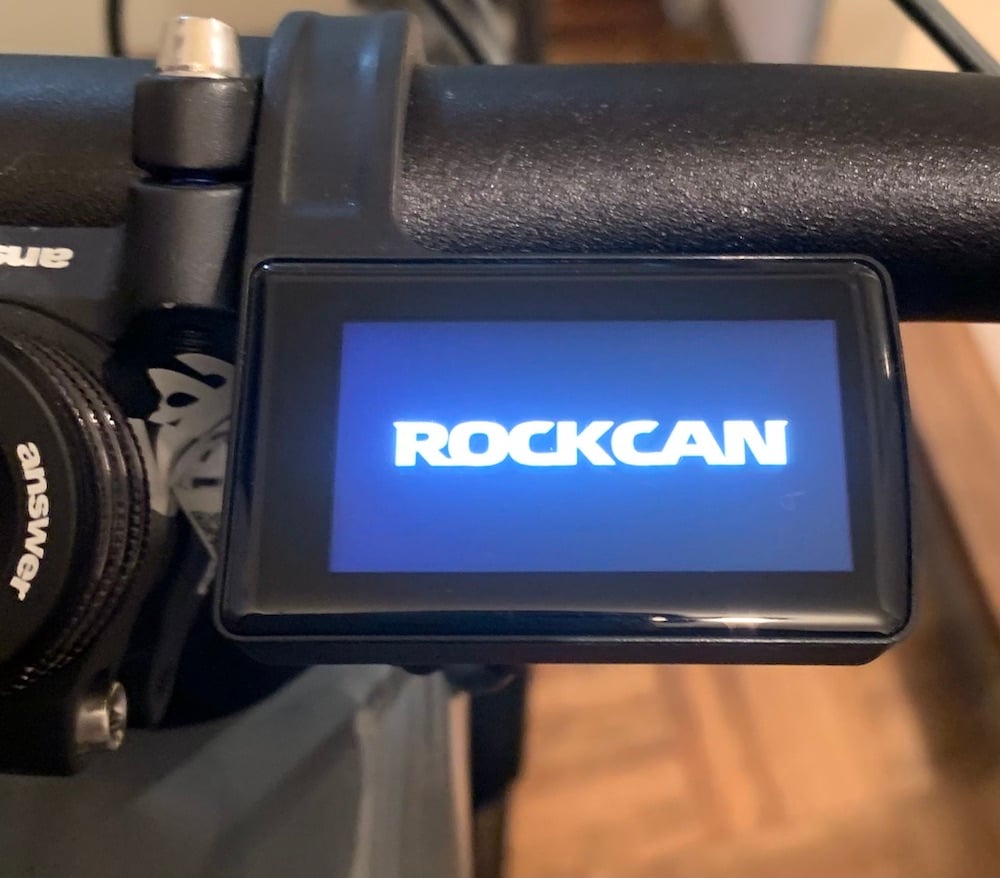

By the way, my startup screen is "ROCKCAN", but is everyone else's too?



[patdam]

View attachment 134974 By the way, my startup screen is "ROCKCAN", but is everyone else's too?

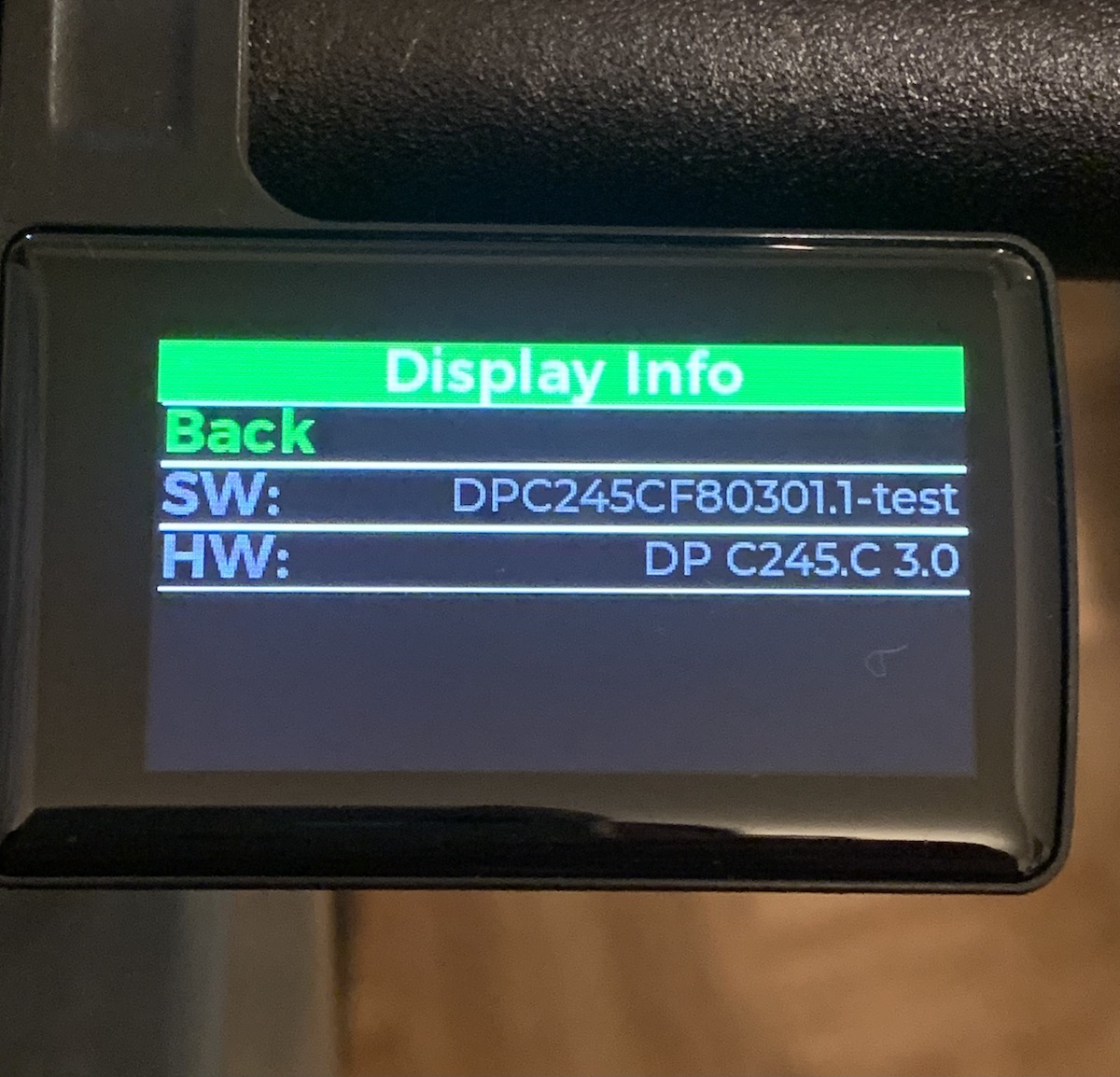

No, neither your software 4812. Can you ask to recovery this controller software (and share) from you supplier ?

If you compare your HMI datas with user book of DPC245, do you see differences ?



[calvintys]

View attachment 134974 By the way, my startup screen is "ROCKCAN", but is everyone else's too?

View attachment 134974 By the way, my startup screen is "ROCKCAN", but is everyone else's too?

Yes my 48v its ROCKCAN too.

ROCKCAN Carbon Full Suspension EMTB Bafang M820

Description: ROCKCAN E11SL is a high-quality Full Carbon electric-assisted mountain bike. The whole bike weighs about 19-21kg. It is one of the lightest FULL POWER EMTBs currently on the market. It uses Bafang's new M820 motor and a fully built-in 720wh48V battery. It has a series of new...

www.rockcanebike.com



[masahirov]

No, neither your software 4812. Can you ask to recovery this controller software (and share) from you supplier ?

If you compare your HMI datas with user book of DPC245, do you see differences ?

We have spoken to the supplier and are awaiting a response. I think the normal "BAFANG" startup screen would be better.



[masahirov]

Yes my 48v its ROCKCAN too.

ROCKCAN Carbon Full Suspension EMTB Bafang M820

Description: ROCKCAN E11SL is a high-quality Full Carbon electric-assisted mountain bike. The whole bike weighs about 19-21kg. It is one of the lightest FULL POWER EMTBs currently on the market. It uses Bafang's new M820 motor and a fully built-in 720wh48V battery. It has a series of new...

www.rockcanebike.com

This may be the case with 48v specifications.



[92se-r]

Any of you have issues with the top cap bottoming out on the cup? As i tighten down the top cap, it barely touches the cup and it creates rough spots as I turn. If i loosen a hair, it clunks from not preloading the bearings properly. Ill probably have to mill the outer lip of the top cap to provide clearance.



[masahirov]

0.24￡ 68% OFF|Hub Spacer|stainless Steel Bike Headset Spacer 0.3mm-3mm - 29mm Bore, 5x112 Compatible


This can be resolved by changing the shim under the top cap to a thicker one (in my case, a 2mm head spacer).



[92se-r]

0.24￡ 68% OFF|Hub Spacer|stainless Steel Bike Headset Spacer 0.3mm-3mm - 29mm Bore, 5x112 Compatible


This can be resolved by changing the shim under the top cap to a thicker one (in my case, a 2mm head spacer).

Yah i thought i had some lying around from an old headset but cant find it.



[Phatty]

Bafang Besst Pro can ONLY set my 48v max speed 25kmh, i need to use bafang Besst V1. 2.20 to set my speed limit back to 45kmh. Can set it to 60kmh if u wish but your chain ring will not get u to that speed.

Does the 1.2.20 require a username/password? I have the besst tool lying around, debating on updating firmware on my m820 36v....



[Phatty]

Also, if I have the 36v battery, and my sons bike thats coming has the 48v battery, can I use the same 54v charger on them both presuming its a 2ah charger, the BMS should stop on the 36v right?



[mike_kelly]

There is a wide variety of things called a BMS. If it was a good BMS it would have over voltage shutoff and not work with the 52v charger.



[Phatty]

There is a wide variety of things called a BMS. If it was a good BMS it would have over voltage shutoff and not work with the 52v charger.

Don’t most chargers have built in over voltage protection as well? I bought a 36v charger and it doesn’t work at all. But the 54v one for my m600 battery seems to work great
I just sold the m600 so need a new charger



[92se-r]

Sorry for the confused. YES once u disconnect Bluetooth, you basically can not change any settings. What i mean its disconnect Bluetooth to browse what its inside function. once u Bluetooth its connected u can not go in.

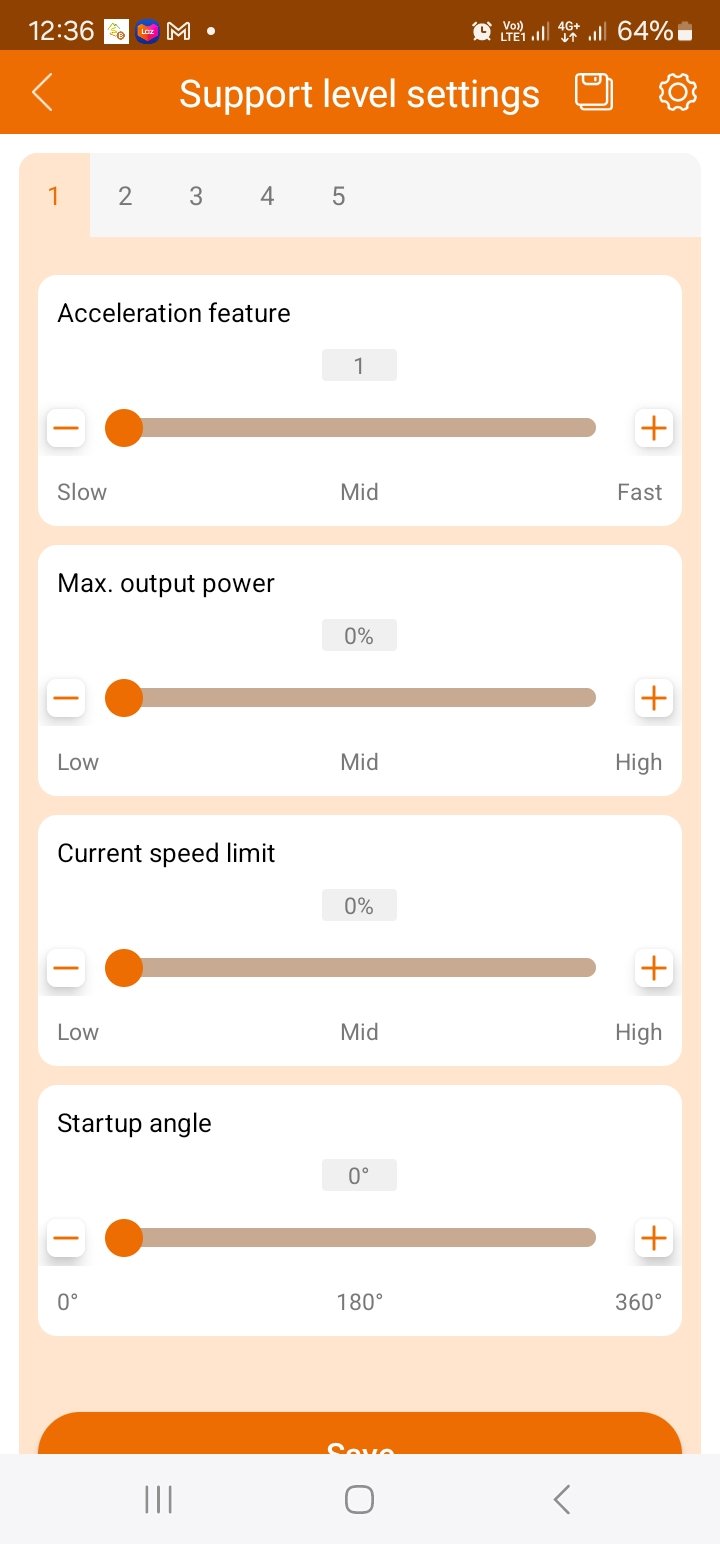

So i cant change these settings? When im not connected over BT, it says i need to connect to device. When i am connected, it says operation failed and i cant even see that window.



[mike_kelly]

@Phatty In general you can't mix and match chargers. That is what typically leads to a headline about a fire. Chargers are all different. Some are simply a pair of wires for voltage. Some have temperature sensing, some are canbus and monitor everything about the battery. You must have a charger designed for your battery. The charge voltage needs to be a few volts above the battery voltage or current will not flow from the charger to the battery. But if the voltage is too high it will damage the battery unless a smart BMS steps in and cuts off the voltage source. Most BMS are not smart enough to change the incoming voltage, they can be very simple devices. Some can be smart enough to balance the voltage of the cells inside the battery. So you really need to be careful when changing chargers on an ebike.

@92se-r The Go+ app is limited in what it can change. It can change the assist levels and the acceleration but it can't change the country settings for max speed allowed etc. It's can't change the wheel size, because it affects the max speed.
You need the Besst Pro tool to do those thing and it is designed as a dealer tool. You can easily buy the hardware but you need a password and ID to use it. You can't get one of those unless you are a dealer, or use a work-around.



[92se-r]

@Phatty In general you can't mix and match chargers. That is what typically leads to a headline about a fire. Chargers are all different. Some are simply a pair of wires for voltage. Some have temperature sensing, some are canbus and monitor everything about the battery. You must have a charger designed for your battery. The charge voltage needs to be a few volts above the battery voltage or current will not flow from the charger to the battery. But if the voltage is too high it will damage the battery unless a smart BMS steps in and cuts off the voltage source. Most BMS are not smart enough to change the incoming voltage, they can be very simple devices. Some can be smart enough to balance the voltage of the cells inside the battery. So you really need to be careful when changing chargers on an ebike.

@92se-r The Go+ app is limited in what it can change. It can change the assist levels and the acceleration but it can't change the country settings for max speed allowed etc. It's can't change the wheel size, because it affects the max speed.
You need the Besst Pro tool to do those thing and it is designed as a dealer tool. You can easily buy the hardware but you need a password and ID to use it. You can't get one of those unless you are a dealer, or use a work-around.

Yup understood, sorry i have 2 issues. I have the speed issue which I am working with Jean on. However i cannot go into the setting to adjust motor peak power, acceleration, etc when connected over bluetooth, it keeps saying operation failed. If i am disconnected every once in a while it lets me go into the screen. Otherwise it just tells me to connect to device.



[calvintys]

So i cant change these settings? When im not connected over BT, it says i need to connect to device. When i am connected, it says operation failed and i cant even see that window.

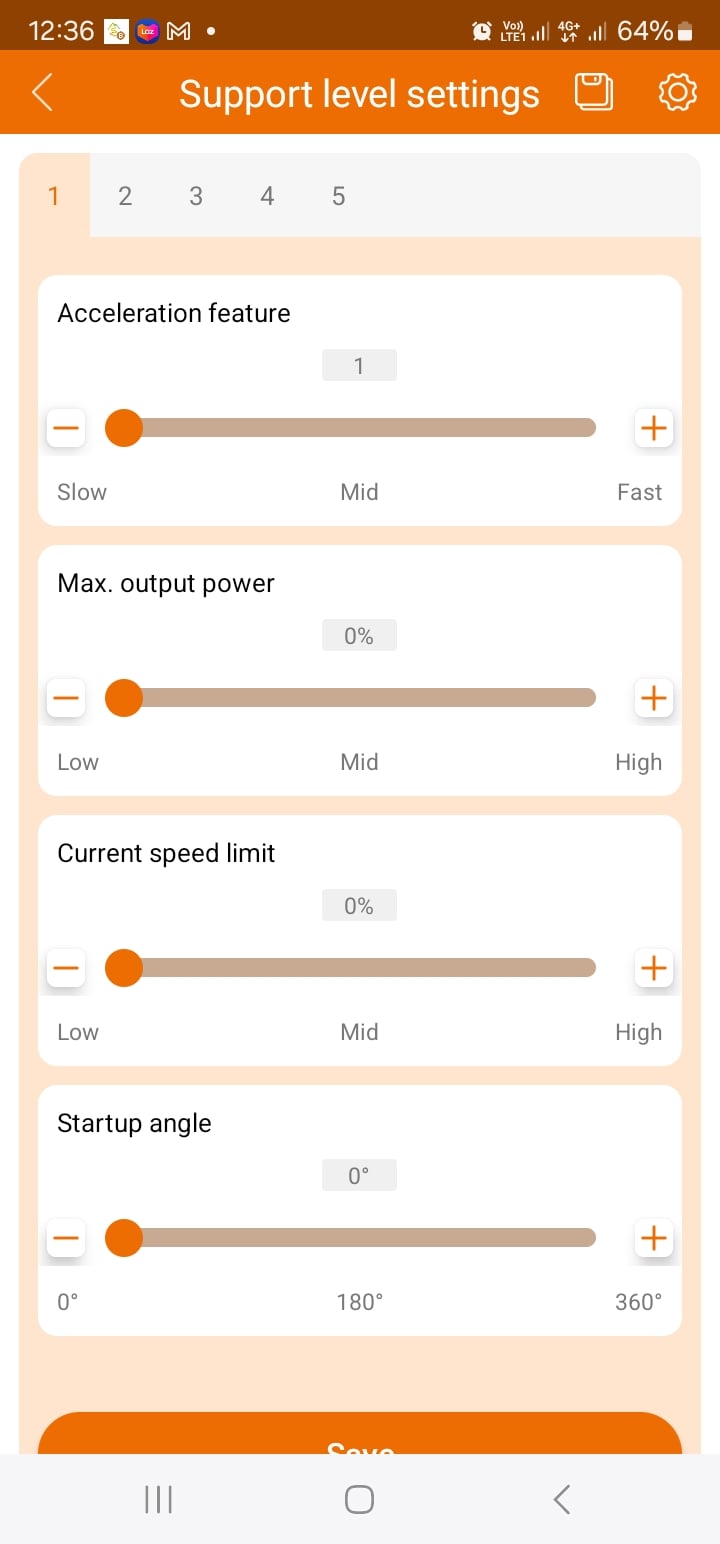

Once you open GO+ the windows connecting will pop up just click cancel and you can browse to this windows.



[calvintys]

Does the 1.2.20 require a username/password? I have the besst tool lying around, debating on updating firmware on my m820 36v....

I am using this method below, by pass the bafang password server. Link back to my computer act as password server.
