Dengfu E10 - The CHEEB V1.0 - Discussion

[SchadowMaster]

What size clamp do I need for a 31.6 seatpost?



[thaeber]

What size clamp do I need for a 31.6 seatpost?

34.9 - 35 mm



[SchadowMaster]

34.9 - 35 mm

Thank you @thaeber , I think you are using Magura brakes. I would also like to install Magura MT5e brakes with MDR-P 203mm disc on both wheels. What adapters do I need in this case?
My fork will be rockshox lyrik ultimate 27.5" 160mm.



[thaeber]

Thank you @thaeber , I think you are using Magura brakes. I would also like to install Magura MT5e brakes with MDR-P 203mm disc on both wheels. What adapters do I need in this case?
My fork will be rockshox lyrik ultimate 27.5" 160mm.

I only run the Magura rotors, but Shimano Saint brakes. Front 220, Rear 203. Front adapter will be PM 160 - PM 203, rear You need PM 180 - PM 203 mm. There are many options to buy those adapters from, they are quite common. Take the cheepest ones, no need to spend loads of money on fancy milled adapters, they all do the same



[SchadowMaster]

I only run the Magura rotors, but Shimano Saint brakes. Front 220, Rear 203. Front adapter will be PM 160 - PM 203, rear You need PM 180 - PM 203 mm. There are many options to buy those adapters from, they are quite common. Take the cheepest ones, no need to spend loads of money on fancy milled adapters, they all do the same

I can't find a Magura MDR-P 203mm disc brake they are sold out so I will probably have to buy a 220mm for both wheels.
What are the compatible adapters in this case?
PM 180-220mm?

Magura Quick-Mount-Adapter

☑️️ Postmount-Adapter zur Befestigung des Bremssattels ➤ Online-Shop

www.hibike.de



[thaeber]

I can't find a Magura MDR-P 203mm disc brake they are sold out so I will probably have to buy a 220mm for both wheels.
What are the compatible adapters in this case?
PM 180-220mm?

Magura Quick-Mount-Adapter

☑️️ Postmount-Adapter zur Befestigung des Bremssattels ➤ Online-Shop

www.hibike.de

Yes, but check if Your fork is released for 220mm!



[SchadowMaster]

Yes, but check if Your fork is released for 220mm!

Yes, my fork is compatible with a 220mm disc size.
Is it the same Adapter for the rear wheel?



[Sixdays]

Guys, just building my 2nd Chinese bike. Last one lasted just over 6 years of hard bashing so delighted with the quality.
Im in the process if assembling the E10 and just stumbled upon fork issue . Going with Fox38 and they offer various rake sizes. 37,44 &51mm?? Which one should I go with?
Also they E bike option but I think I’ll give that a pass. More expensive and probably just a marketing ploy. Thanks



[SchadowMaster]

My frame has arrived today, but without a battery.
Dose it usually arrive separately or with the frame?



[Sixdays]

My frame has arrived today, but without a battery.
Dose it usually arrive separately or with the frame?

its standard. They seem to ship everything separately. I got the frame first, then 3 weeks later the motor and still waiting for the battery.The reply I got from dengfu was that battery is delayed as customs are all over packages from China. Should be too long



[SchadowMaster]

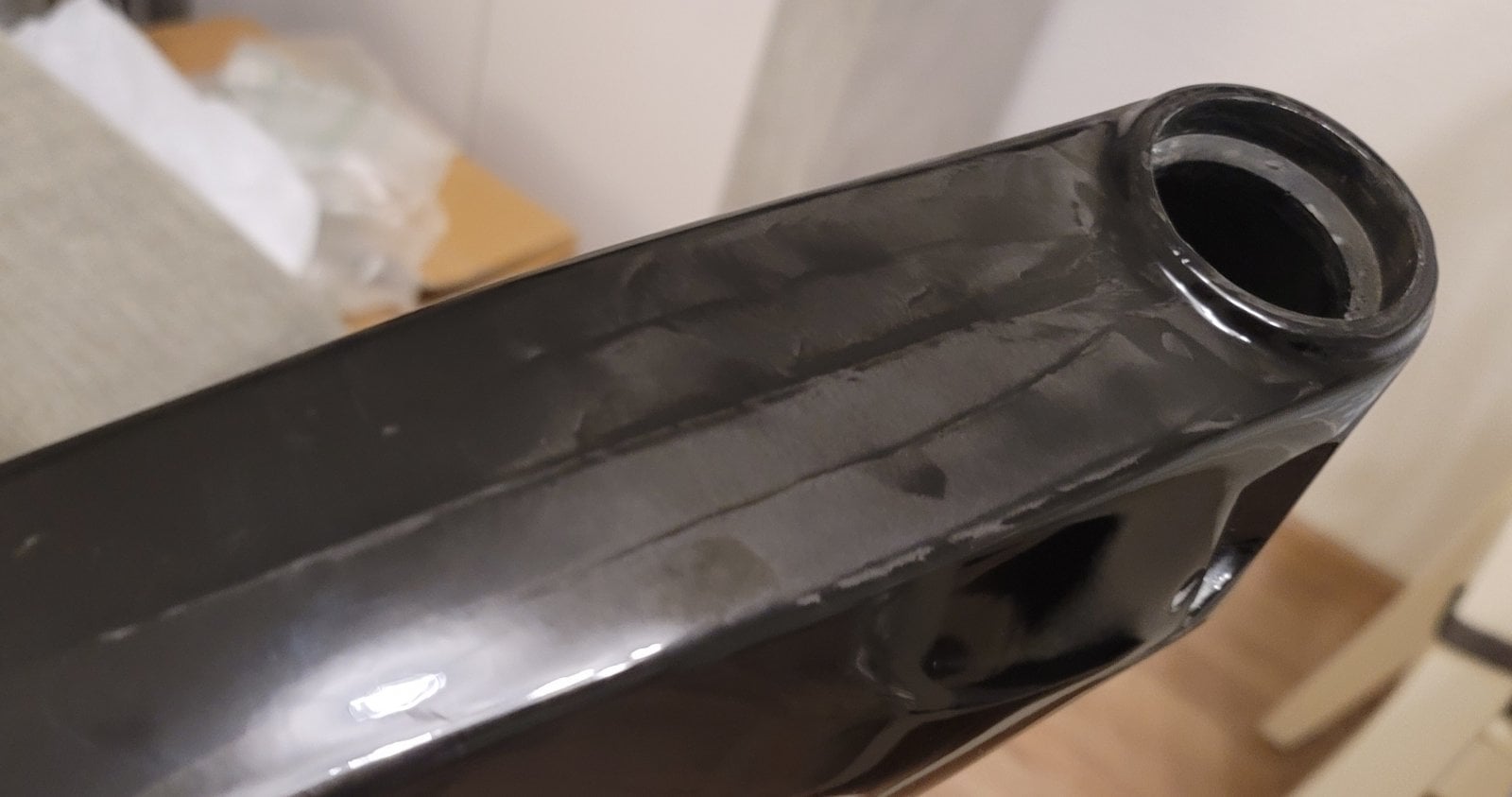

The frame is painted very badly, is this normal or just the frame they sent me?



[Sixdays]

The frame is painted very badly, is this normal or just the frame they sent me?
View attachment 87423
View attachment 87424

Should be matt colour? Have you requested to have it lacquered? Anyway from the pics what you’re seeing is just a raw Ud carbon which looks like that. Even top spec Trek Rail 9 looks identical



[Sixdays]

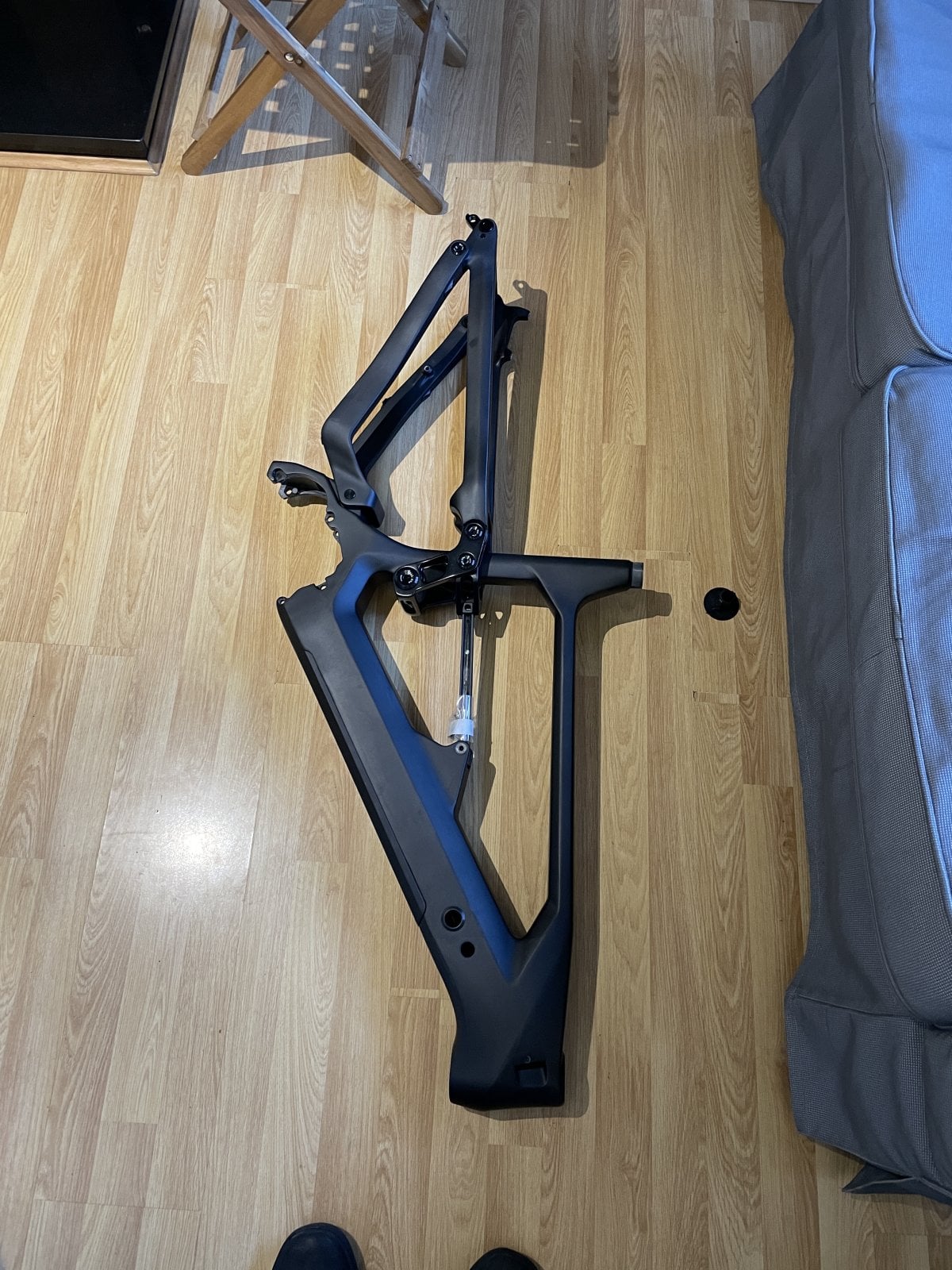

This is what mine looked like. Just raw carbon non painted



[SchadowMaster]

Should be matt colour? Have you requested to have it lacquered? Anyway from the pics what you’re seeing is just a raw Ud carbon which looks like that. Even top spec Trek Rail 9 looks identical

When ordering there were two options glossy or matte I choosed glossy.



[Sixdays]

When ordering there were two options glossy or matte I choosed glossy.

That’s what it is so. Gloss laquer just makes raw carbon stand out even more. Have a look at the top tube on rail 9’S. they look similar



[SchadowMaster]

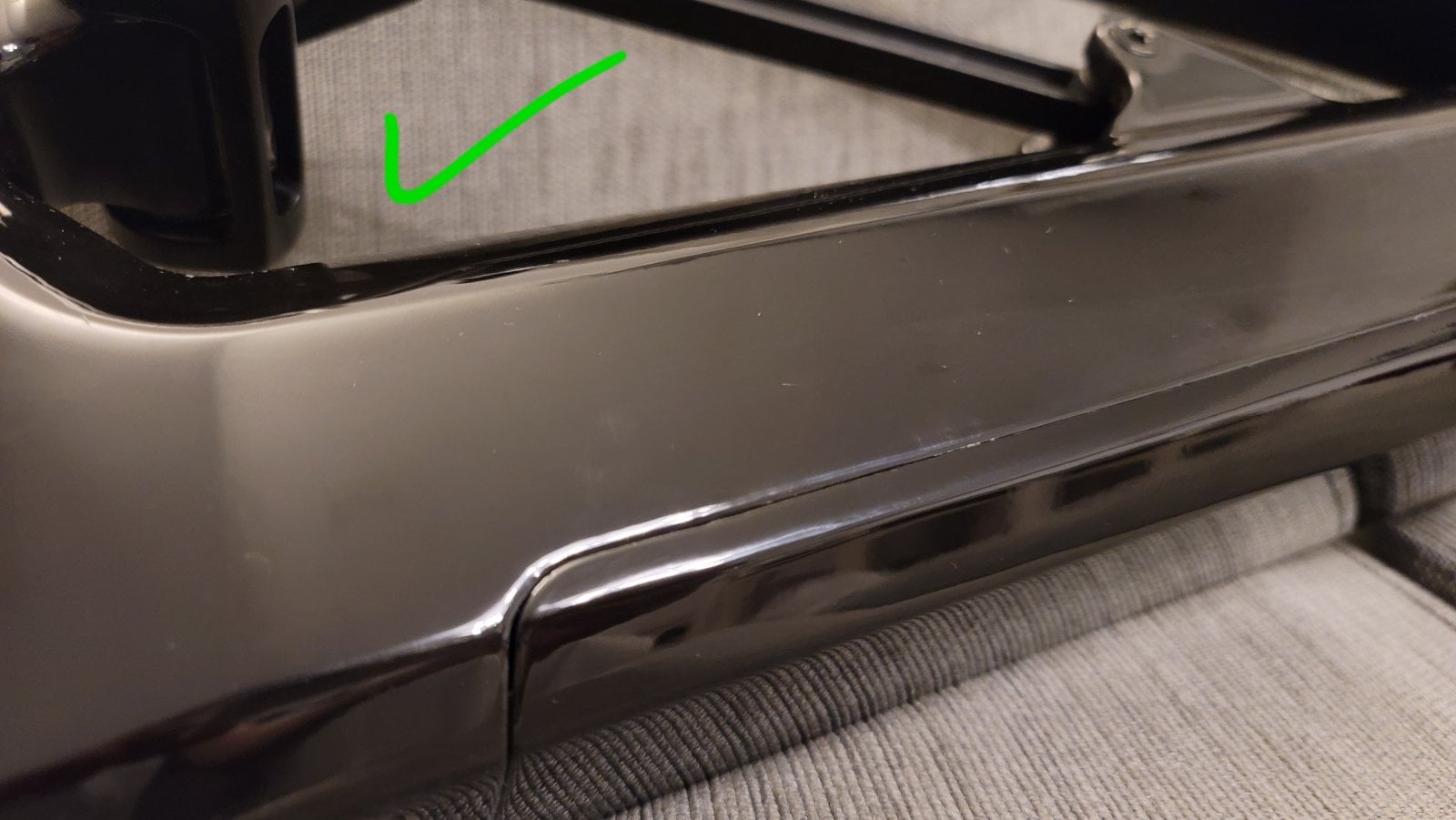

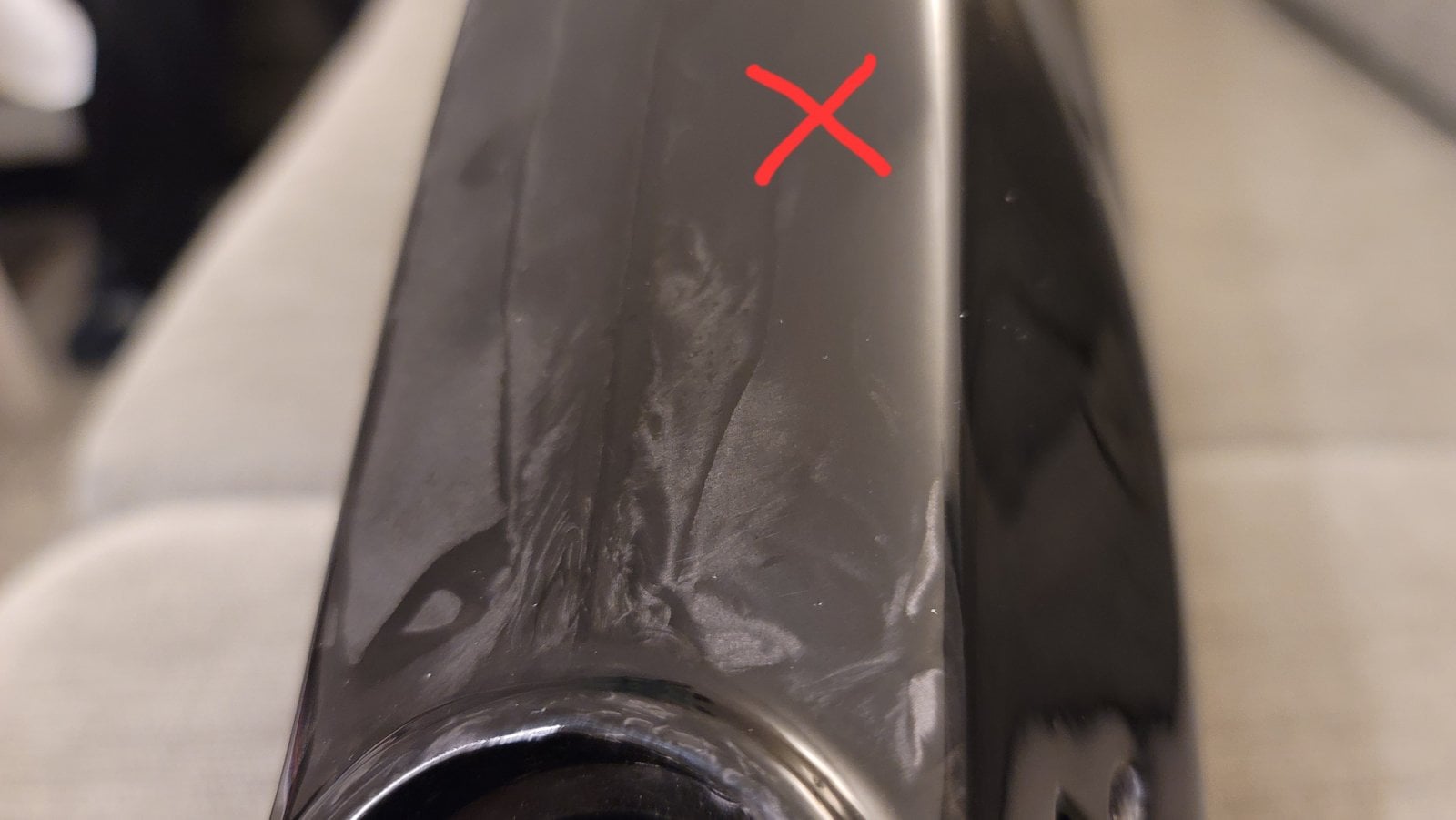

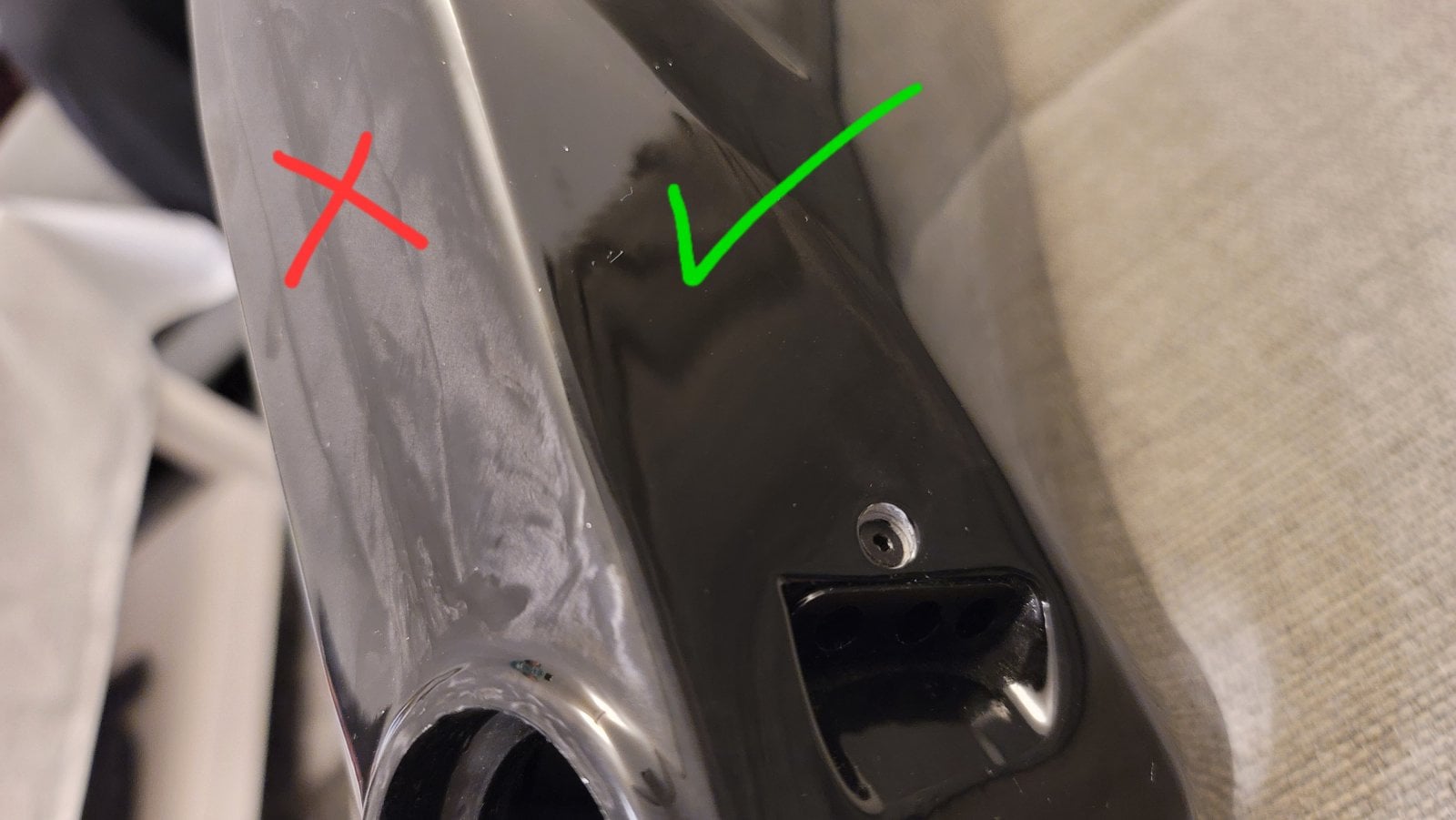

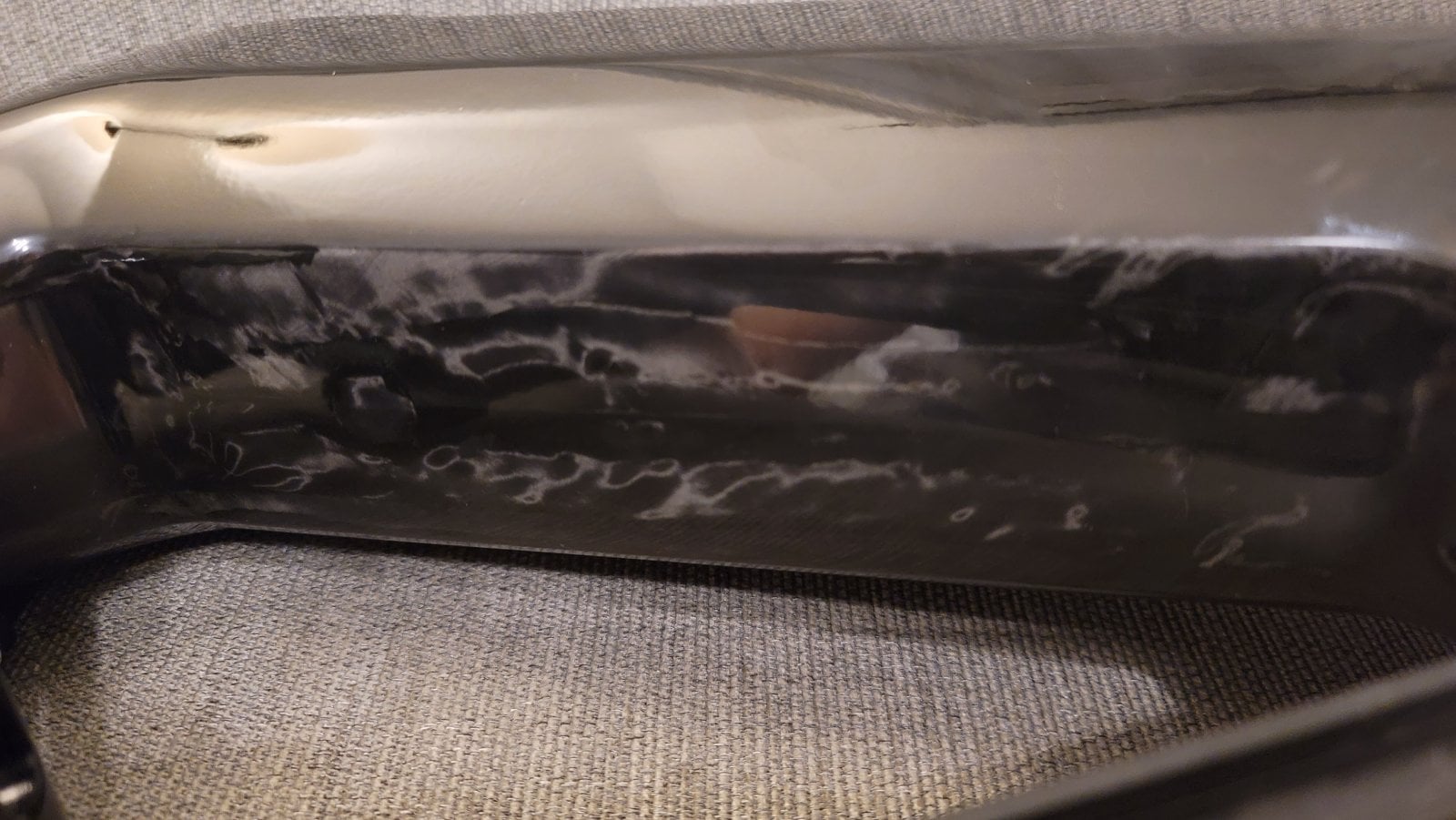

In some sides the lacquer is perfect, in others it is inhomogeneous.



[Sandur-Rx]

In some sides the lacquer is perfect, in others it is inhomogeneous.
View attachment 87432
View attachment 87433
View attachment 87434

Looks like glossy carbon to me



[Waynemarlow]

In some sides the lacquer is perfect, in others it is inhomogeneous.
View attachment 87432
View attachment 87433
View attachment 87434

Is it not the lacquer that’s Ok, it’s just highlighting the frame joint ?



[SchadowMaster]

Is it not the lacquer that’s Ok, it’s just highlighting the frame joint ?

This is Dengfu's response:
It is not bad painting, but UD carbon weave. UD glossy is just like this.

I find this frame so unacceptable, it looks distorted.



[Sixdays]

This is Dengfu's response:
It is not bad painting, but UD carbon weave. UD glossy is just like this.

I find this frame so unacceptable, it looks distorted.

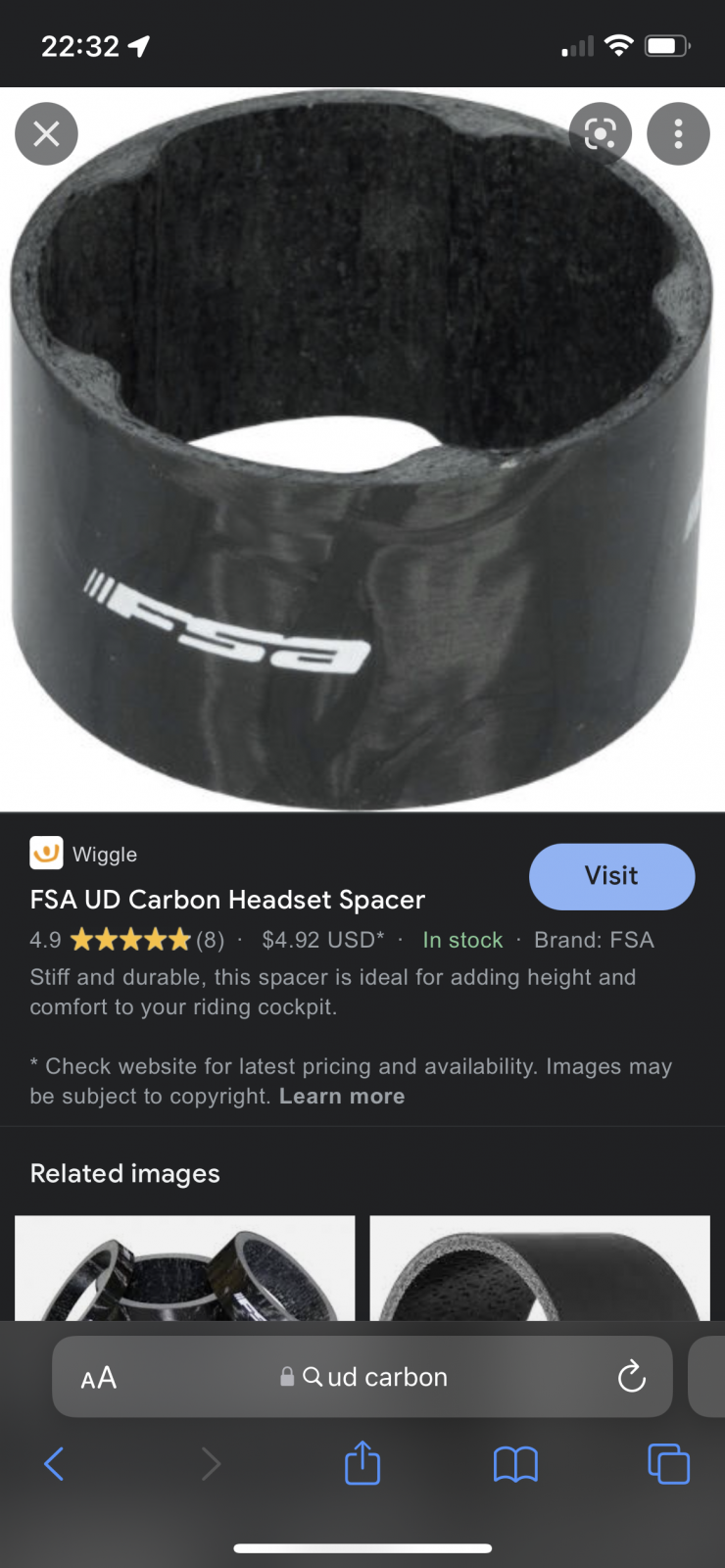

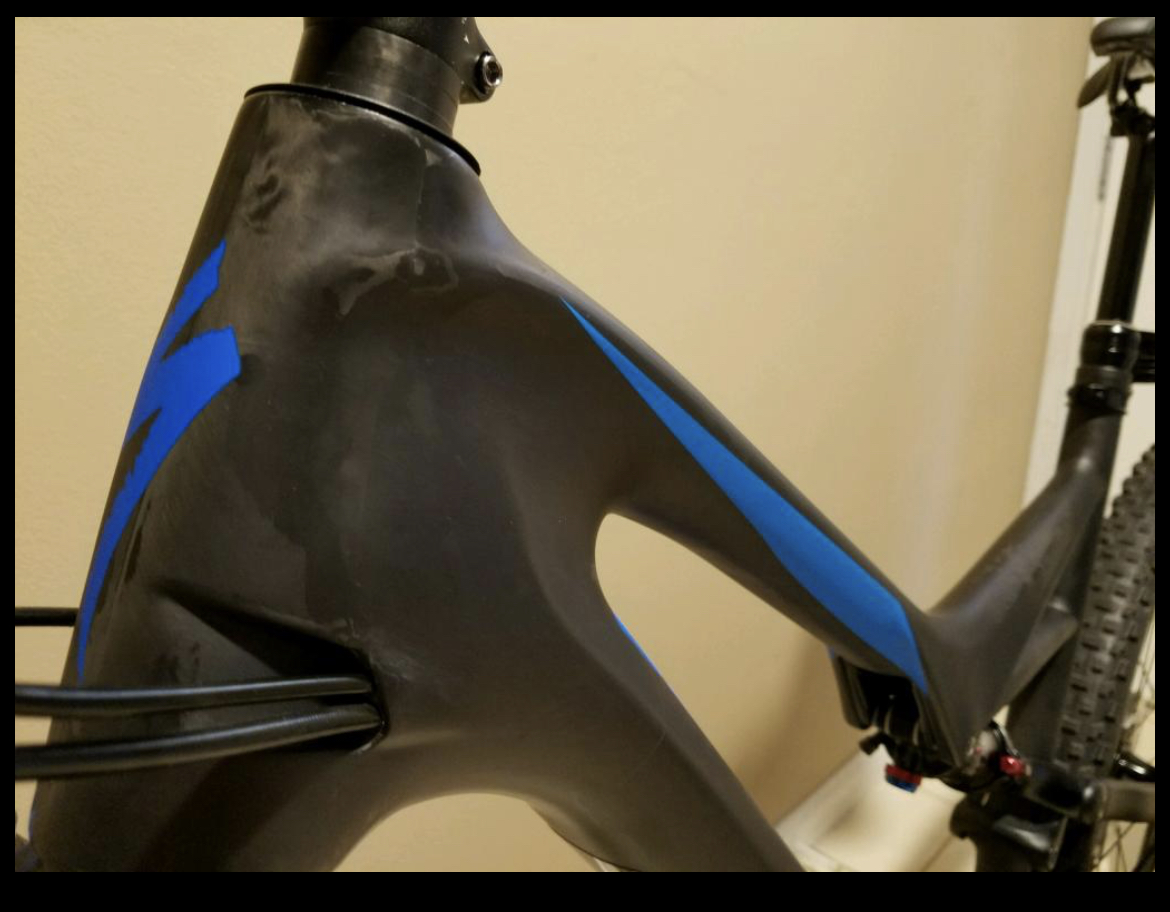

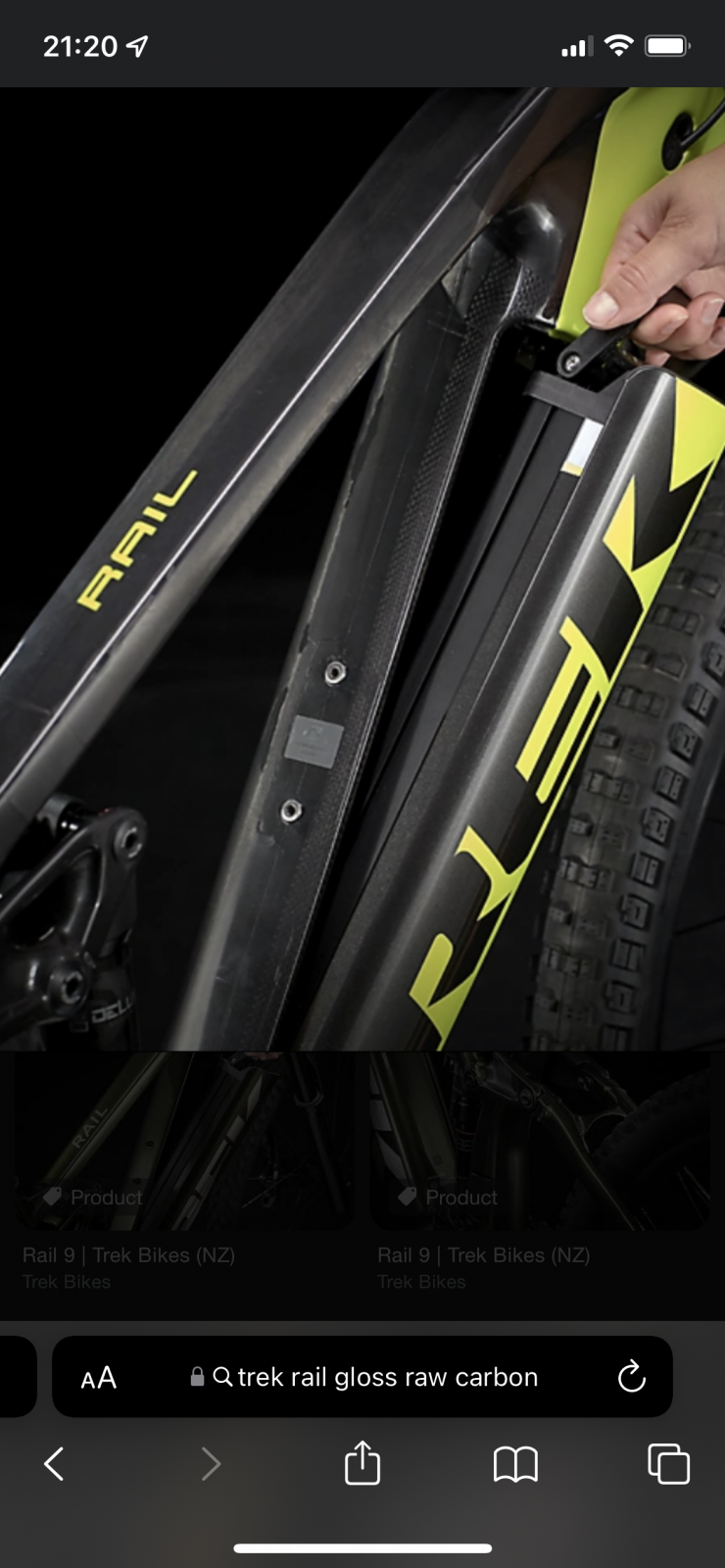

I personally think you might have chosen the wrong finish or you might be confusing Uni directional carbon for a conventional weave carbon. Im not defending Dengfu here, but this is the standard glossy finish on this type of carbon. As I said to you previously OE manufacturers make the bikes in the identical finish. I have personally seen Specialized in UD carbon finish. Something like the photo below.



[SchadowMaster]

I personally think you might have chosen the wrong finish or you might be confusing Uni directional carbon for a conventional weave carbon. Im not defending Dengfu here, but this is the standard glossy finish on this type of carbon. As I said to you previously OE manufacturers make the bikes in the identical finish. I have personally seen Specialized in UD carbon finish. Something like the photo below.

View attachment 87497

View attachment 87498

Yes, you are absolutely right.
Maybe it's my fault, I had a different perception I didn't know glossy carbon would look like this.
But this is a half-truth.

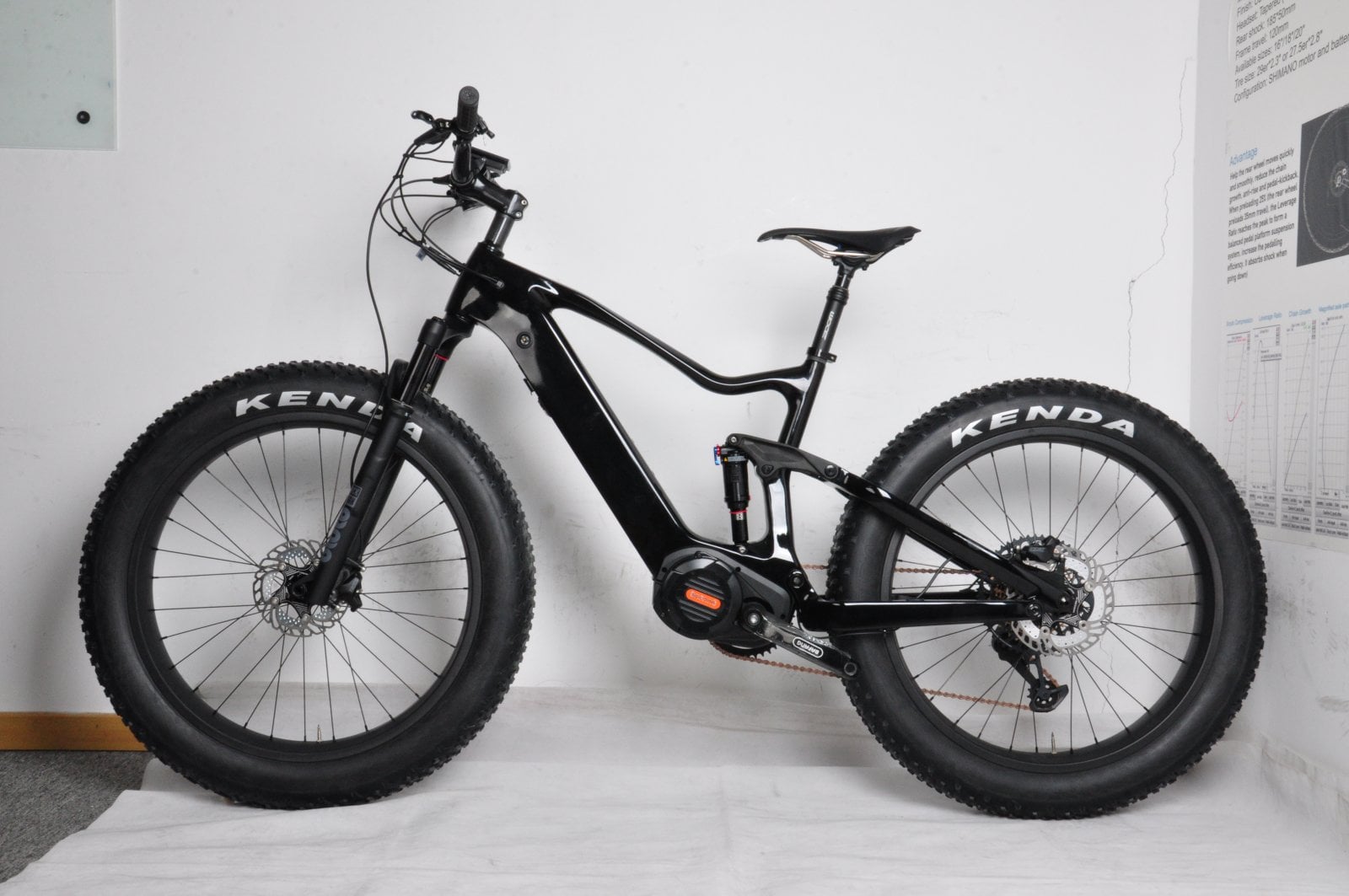

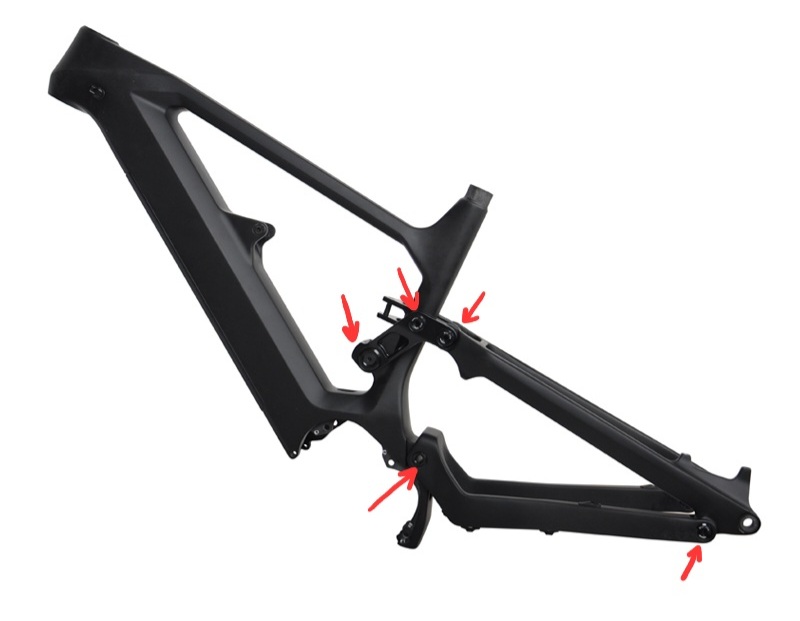

When I asked Dengfu what the glossy carbon frame looked like, they sent me this photo, which does not match the frame that was sent to me:



[Sixdays]

Yes, you are absolutely right.
Maybe it's my fault, I had a different perception I didn't know glossy carbon would look like this.
But this is a half-truth.
When I asked Dingfu what the glossy carbon frame looked like, they sent me this photo, which does not match the frame that was sent to me:
View attachment 87499



[Sixdays]

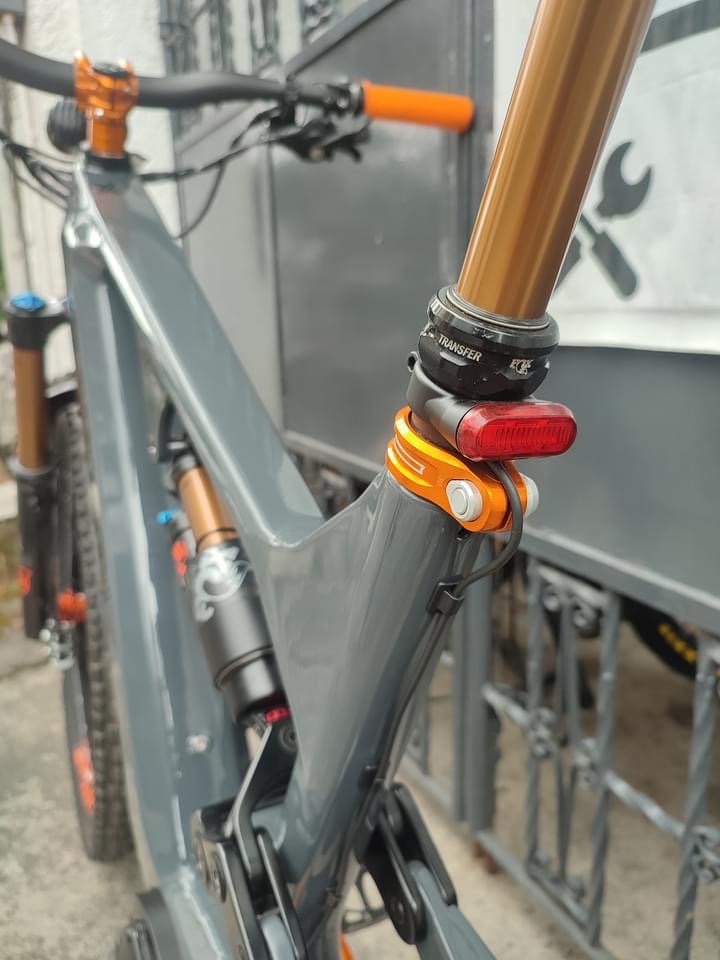

Sorry to hear that anyways. If it makes you feel better, I have the matt version and I will still be painting in a different colour. I just think they look very plain in carbon black. This is the colour I will go with.
ps: not my photo, saw this on FB



[SchadowMaster]

Sorry to hear that anyways. If it makes you feel better, I have the matt version and I will still be painting in a different colour. I just think they look very plain in carbon black. This is the colour I will go with.
ps: not my photo, saw this on FB

View attachment 87500

Nice color
I don't have any experience with painting, I haven't tried that before. So I will try to accept the frame with the unique waves The important thing is that it is flawless.
Thank you for trying to console me I'm much better now.



[djol]

View attachment 87500

@Sixdays, totally unrelated, any idea what type of rear light is shown in that photo you shared? Looking for something similar...

@SchadowMaster my gloss E10 frame just left a shipping warehouse in Hong Kong (?), so once it arrives I will post some photos of it here to compare.



[SchadowMaster]

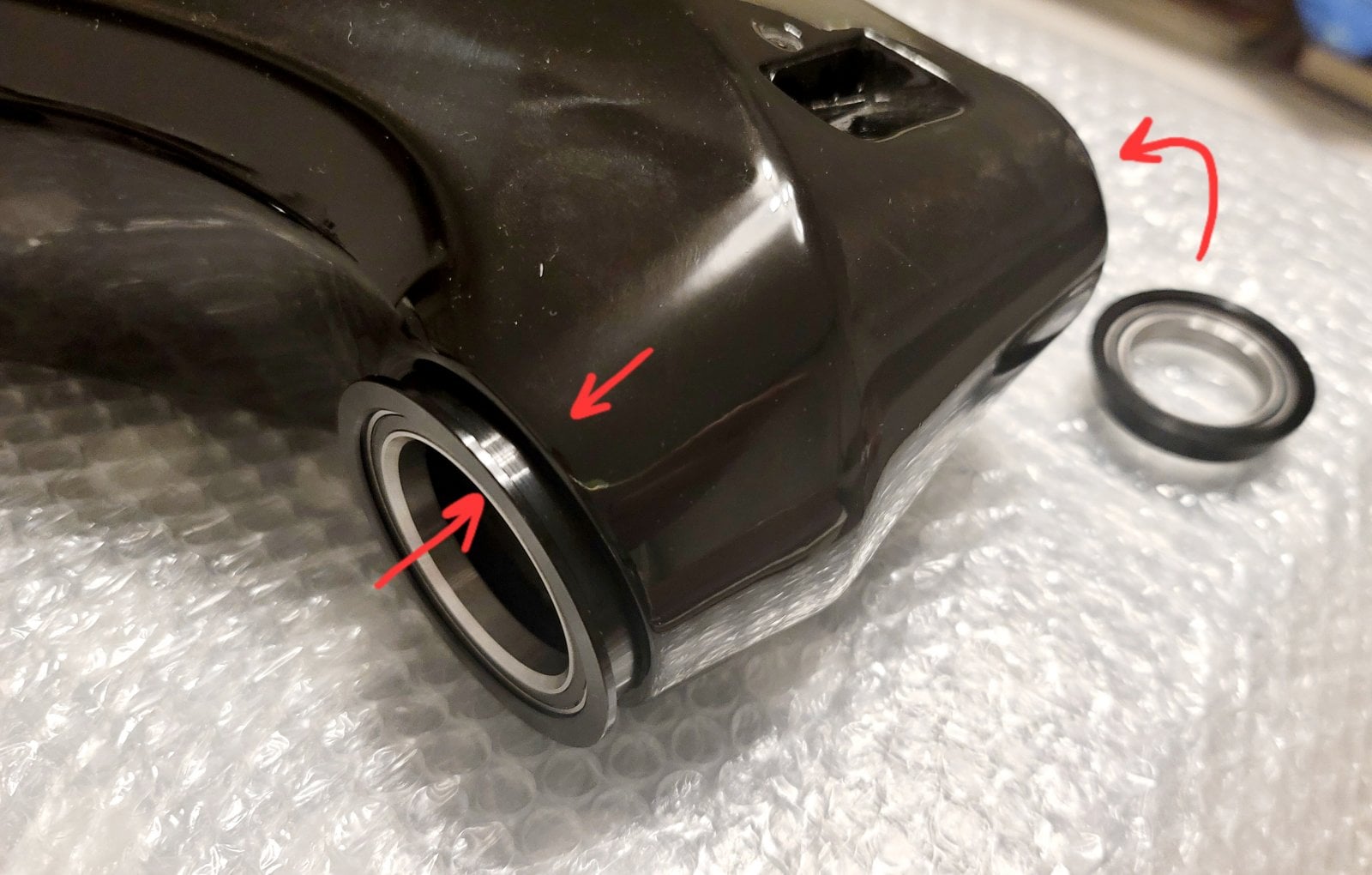

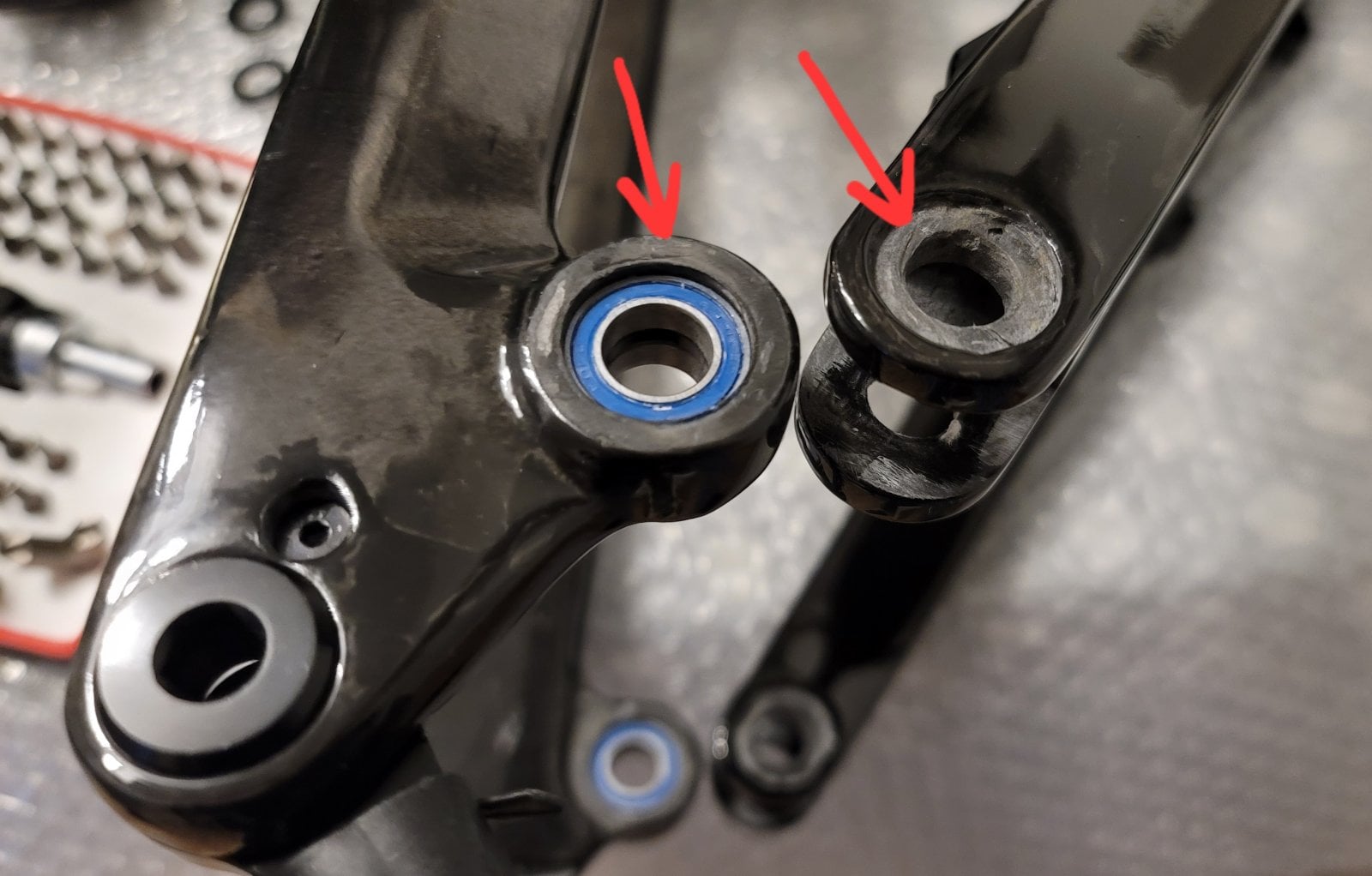

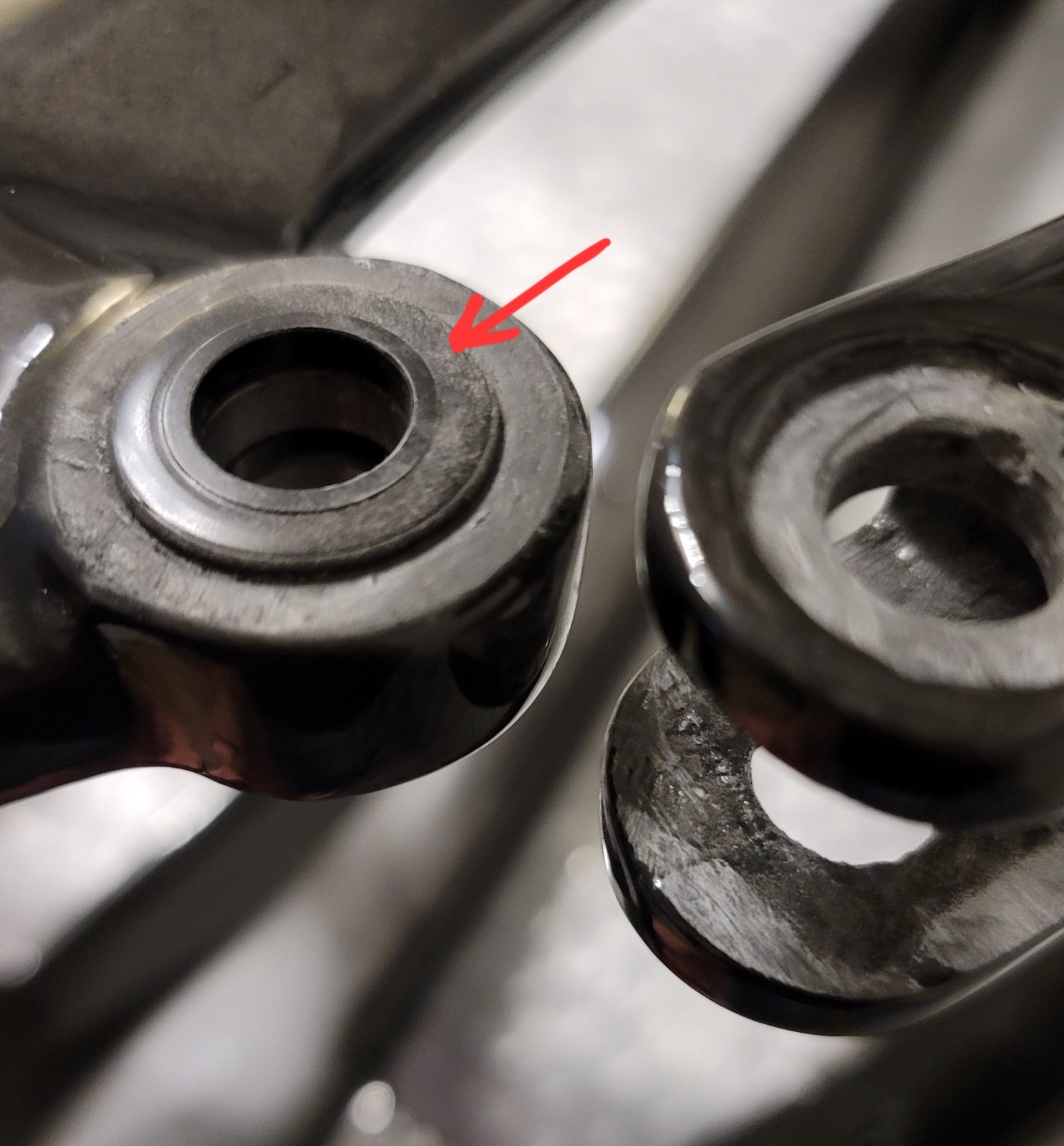

I discovered that there is no grease in the screws areas, should grease be applied to these areas or is this intended because the frame is carbon?



[Puschtrale]

I discovered that there is no grease in the screws areas, should grease be applied to these areas or is this intended because the frame is carbon?
View attachment 87543

You should grease all theese parts. Think Dengfu just doesnt do that becauss all of discovered the same



[SchadowMaster]

Thank you, I also noticed that the screws were not tightened to the maximum torque. For example, a screw with a maximum torque of 8 Nm is tightened at 5 Nm. Should I tighten the screws to the maximum torque or a little lower to preserve the carbon frame?



[Waynemarlow]

I discovered that there is no grease in the screws areas, should grease be applied to these areas or is this intended because the frame is carbon?
View attachment 87543

Why would you put grease on the outside of the bearing seal or am I reading your question incorrectly. All the action takes place within the bearing where only a light smear of grease is needed as its a low speed movement. Technically if you fill the void between the bearings then all you are doing is attracting dirt which eventually will get under the seal and damage the internals.



[patdam]

Why would you put grease on the outside of the bearing seal or am I reading your question incorrectly. All the action takes place within the bearing where only a light smear of grease is needed as its a low speed movement. Technically if you fill the void between the bearings then all you are doing is attracting dirt which eventually will get under the seal and damage the internals.

Personally i prefer to intercal a few silicone grease between the bearing and the washers to prevent moisture insertion and bearing grease washed. I have constated the effiency yesterday when i have dismantle link to check (+-1 year use and low pressure karsher wash). Clean, grease present and no dust sticked (but 1 bearing change needed), but i don't ride in muds. Of course i don't put grease between bearings and contact surfaces.
