Just found this amazing item on AliExpress. Check it out! HRK237.98 41%OFF | PROWHEEL 152MM/160MM/165MM/170MM Bicycle Crank Arm E-Bike BAFANG M600 M510 M500 M420 Electric Bike Motor Mid Mounted Motor

22.24￡ 40% OFF|PROWHEEL 152MM/160MM/165MM/170MM Bicycle Crank Arm E Bike BAFANG M600 M510 M500 M420 Electric Bike Motor Mid Mounted Motor| | - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

a.aliexpress.com



[ficorama]

if anyone needs shorter cranks for the M510. and the price is acceptable.



[streyer]

anyone can share the dimensions of the frame battery cover? i lost mine during a ride.



[Sixdays]

Question pls. Does anyone know what the purple connection is for on the m600? I have a cable running with also purple end but is female and motor is also female so they aren’t compatible?

And last question, on the rear wheel , is there some kind of metal spacer that goes on the other end of the axle where the wheel meets the frame? One side has a metal hanger and the other side is just bare carbon. ? Thanks



[eugene8]

Question pls. Does anyone know what the purple connection is for on the m600? I have a cable running with also purple end but is female and motor is also female so they aren’t compatible?

And last question, on the rear wheel , is there some kind of metal spacer that goes on the other end of the axle where the wheel meets the frame? One side has a metal hanger and the other side is just bare carbon. ? Thanks

Here is wiring diagram.
As for the rear wheel you are correct, one side is a hanger the other side is bare carbon



[Sixdays]

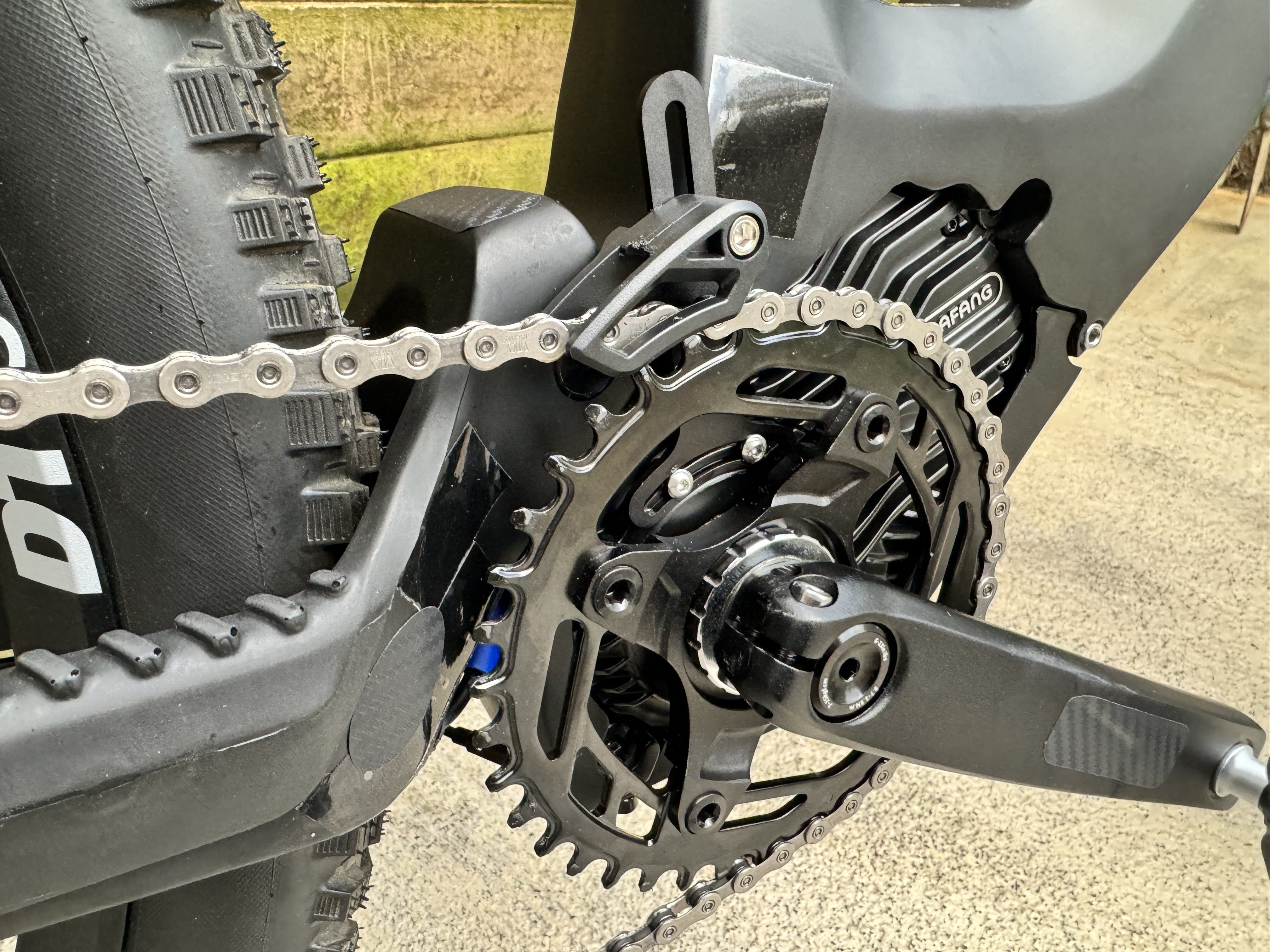

Has anyone had difficulties in installing the Bafang chain guide? It seems like no matter which I try to install it it rubs of the frame or the rear chainstay. ?

Thanks



[Waynemarlow]

Yup throw it in the rubbish bin, you won’t need a guide if you use a narrow wide chainring. Done 2.5k now without the guide and not a single problem.



[Martin (Mallorca Guiding)]

Has anyone had difficulties in installing the Bafang chain guide? It seems like no matter which I try to install it it rubs of the frame or the rear chainstay. ?

Thanks

View attachment 125665

hi there, did you rectify it?? I was going to buy one... as I keep dropping my chain when doing a serious jump.....



[Sixdays]

hi there, did you rectify it?? I was going to buy one... as I keep dropping my chain when doing a serious jump.....

Hi, i bent the original bafang stay just so it doest rub the frame, but since I have ordered an aftermarket chain stay from Aliexpress so still waiting on that



[Martin (Mallorca Guiding)]

ok, let me know how you get on with the Ali Bali Bee one.... and if it's any good.... I might wait and get that one... What frame are you riding?



[Sixdays]

ok, let me know how you get on with the Ali Bali Bee one.... and if it's any good.... I might wait and get that one... What frame are you riding?

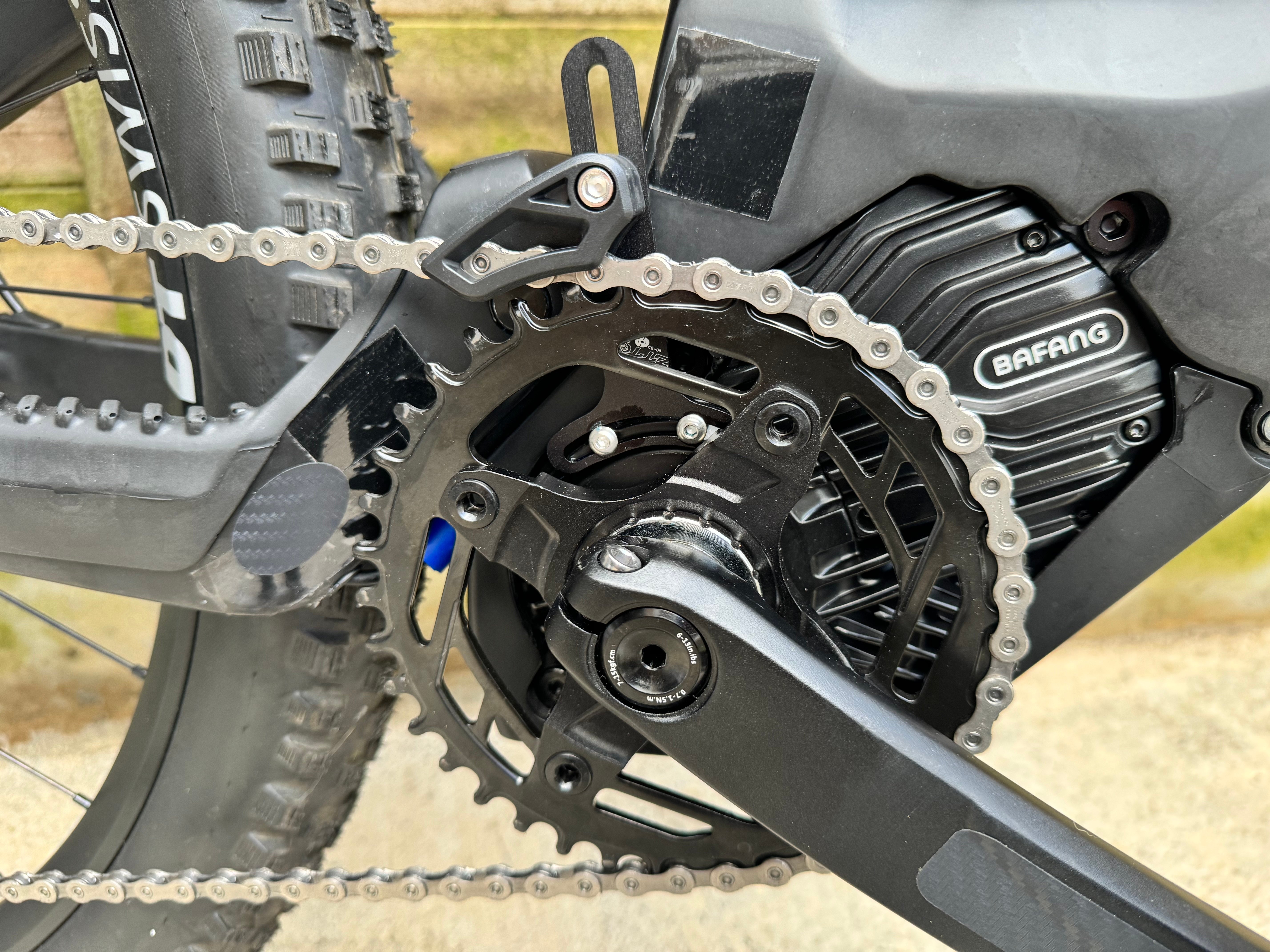

Item arrived. It contains same bracket as Bafang OE but its a guide only. Better fitting for sure. Although I still had to give it a little twist

View attachment IMG_0591.jpeg



[Sixdays]

Also a question, does anyones M600 motor make a clicking noise when being reversed and holding light pressure on the pedal?
Mine is making some kind of internal resistance clicking noise as it the gears as rattling against each other



[El Topo]

My height is 172cm with a 78cm inseam, and I am torn between 15.5" and 17.5" frame size.

Before recommending a size, please read my longer post I linked to, you should then see why I am also considering the 15.5", and not just the 17.5".

I just posted here about my rather specific sizing question regarding the E10 frame, and I would appreciate any input of you guys, TIA!



[vext]

Sorry if this is the wrong place for this post.

I'm looking for someone in the Los Angeles area that can help me debug a problem with my e10 battery.

I literally need to plug in a known working battery into my system and try and turn it on. Should take about 5 minutes.

If anybody in the local area could help me test, I would really really appreciate it. I'll come to you of course.

I've been on the site for a long time. I'm not a tweaker. Send DM if you can help.

Vext



[ficorama]

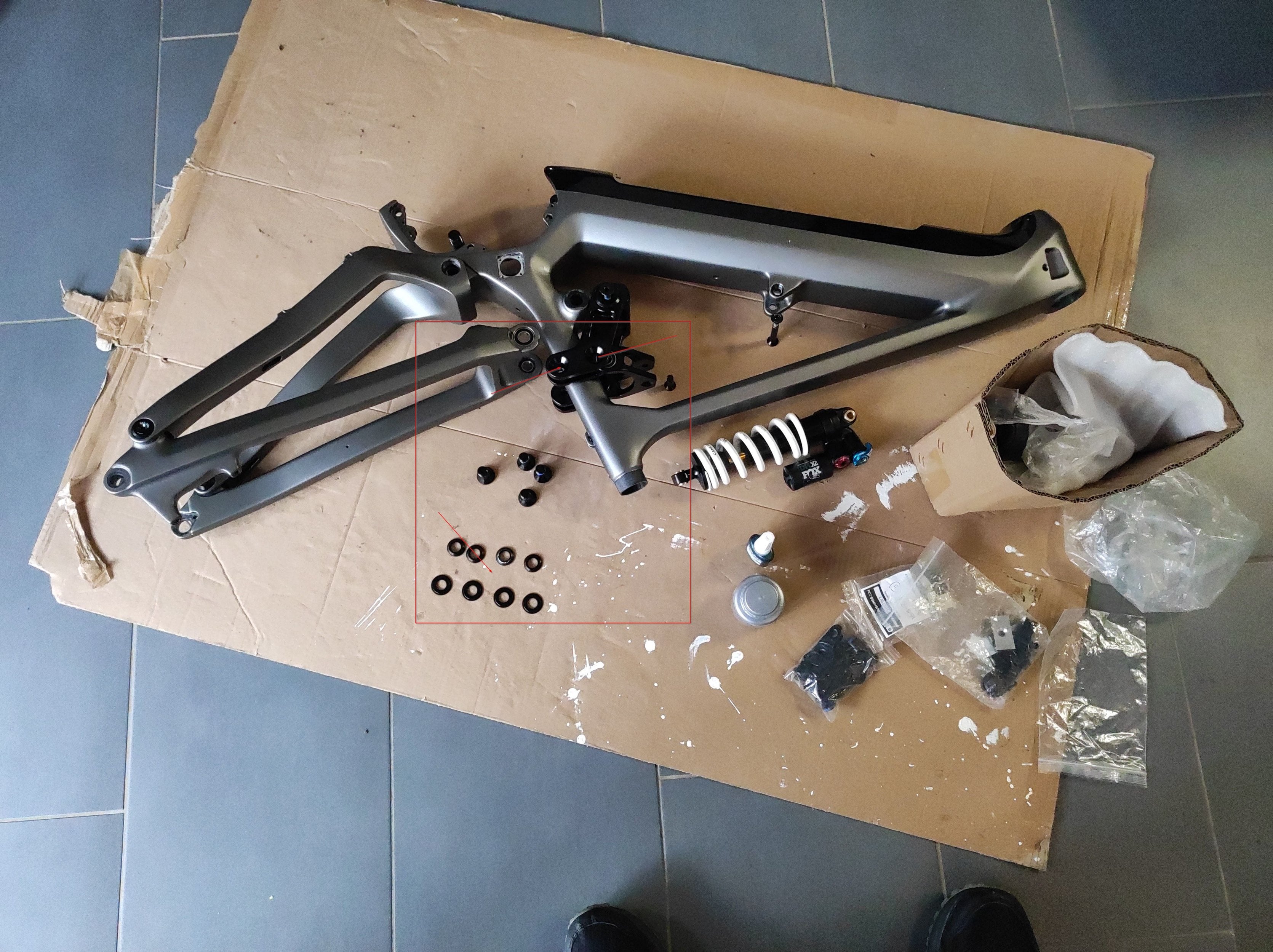

Hello everyone.
I have for sale:
screws for e10 50 eur.
derailleur hanger e10 15 eur,
best tool 175 eur.
Bafang speed sensor rotor mount 20eur/pcs, have 2pcs
everything listed is new. I send by post to the EU. thank you
