Cube Stereo 160 S 750 2022 Specs Modifications

[BeBiker]

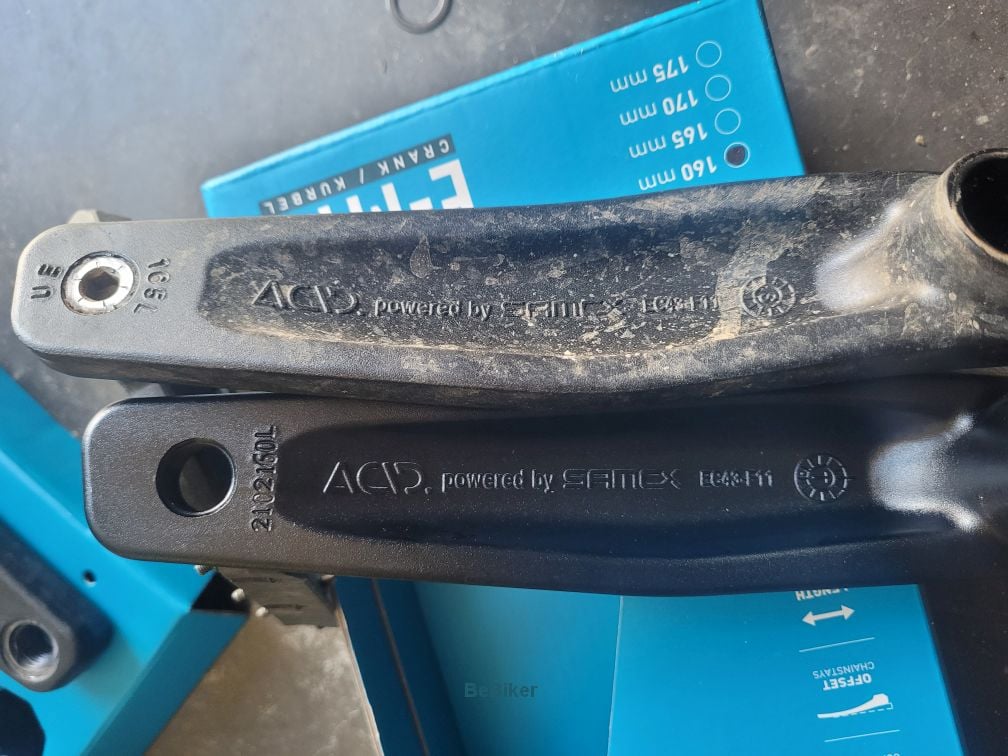

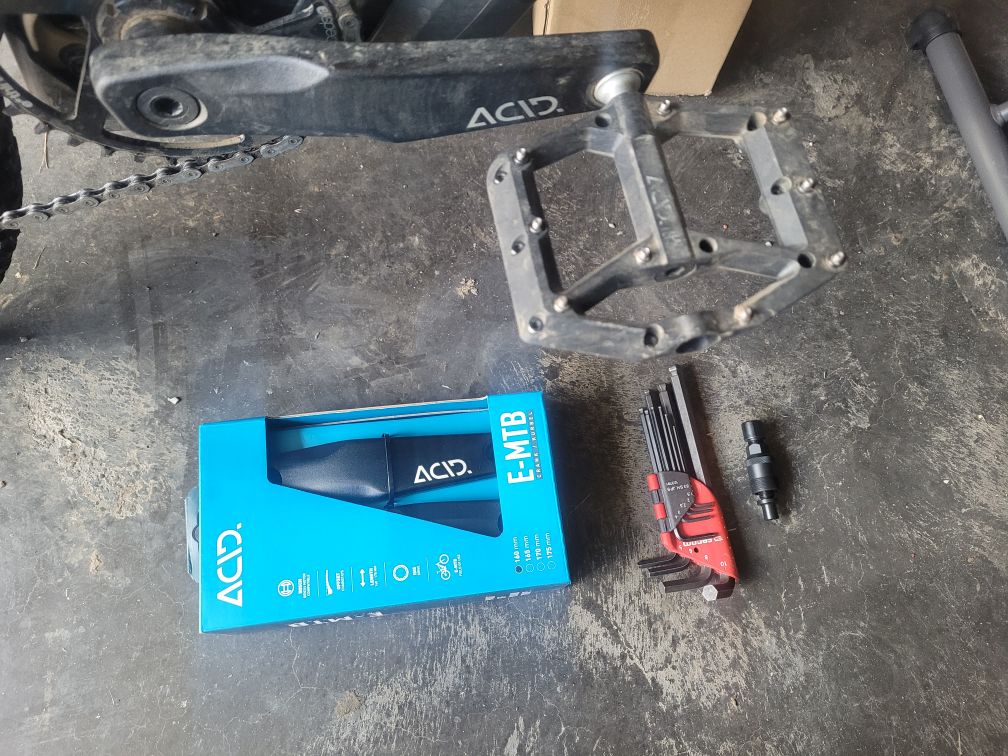

Acid 165mm off:

Acid 160mm on:

I did not go for 155mm or 152mm, to avoid platform stability reduction and increased saddle height.

E-MTB Crank Set

Features - ACID E-MTB Crankset ISIS Drive 13 mm offset Bosch Gen4 drive compatible Crankarm Length (choose variant) 160 mm 165 mm 170 mm 175 mm Material Aluminium Weight 470 g (manufacture...

www.bike-discount.de



[Choppersquad]

Can't find 160mm cranks for my 160tm anywhere at the moment. Everywhere is out of stock and lots of places don't ship to the UK anymore.



[BeBiker]

Can't find 160mm cranks for my 160tm anywhere at the moment. Everywhere is out of stock and lots of places don't ship to the UK anymore.

Don't know if you travel to Belgium a lot.
I can order another pair at bike-discount.de, you can come and pick them up here.



[Choppersquad]

That’s very kind but I won’t be going to Belgium anytime soon. It’s the Brits fault who voted for Brexit. What a great idea that was to leave the EU.



[BeBiker]

I think if my goverments also kicks that EU out of our land, we both can start doing free business again in a normal way



[Another One]

Can't find 160mm cranks for my 160tm anywhere at the moment. Everywhere is out of stock and lots of places don't ship to the UK anymore.

It depends what product you are after try R2 Bike who have E13 & Raceface in stock 160mm and deliver to the UK £7.50 with DHL.



[Choppersquad]

Well thanks for that . Will have a look tonight and hopefully sort something out.



[Gary Davis]

I think if my goverments also kicks that EU out of our land, we both can start doing free business again in a normal way

You can also wait for CUBE to build pedal boats so you can visit each other ...with a lot of updates, of course !



[Clean]

Race Face sell a very nice 160mm Crank Arm Set that is for the Bosch Gen 4 spline

it’s the Aeffect R eMTB Set; in stock at a couple of places in the UK for £109.



[BeBiker]

I think you mean these:

Aeffect R e-bike Bosch BG4 Crank

Features - Race Face Aeffect R E-MTB crankset Dial in your fit with 160, 165 and 170 crank lengths, trimmed to length for improved rock and roots clearance on shorter sizes. Purpose-built for Bosch Gen4 drive system for seamless...

www.bike-discount.de

Same weight, double price.
Am I missing something ?



[Clean]

Branding and availability, I guess….



[BeBiker]

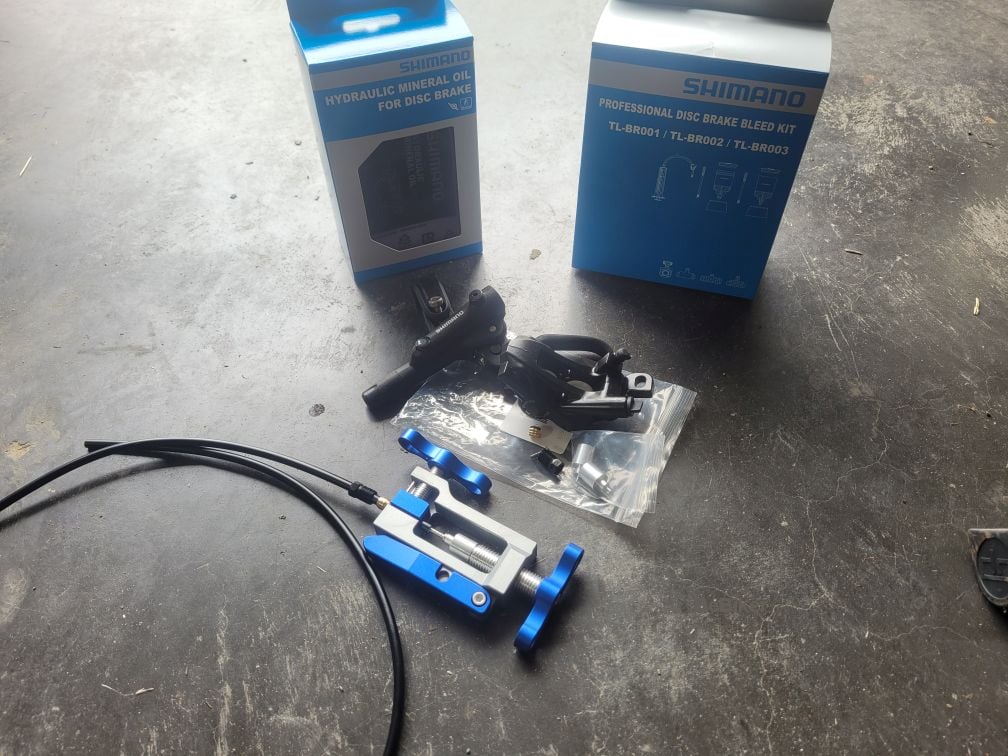

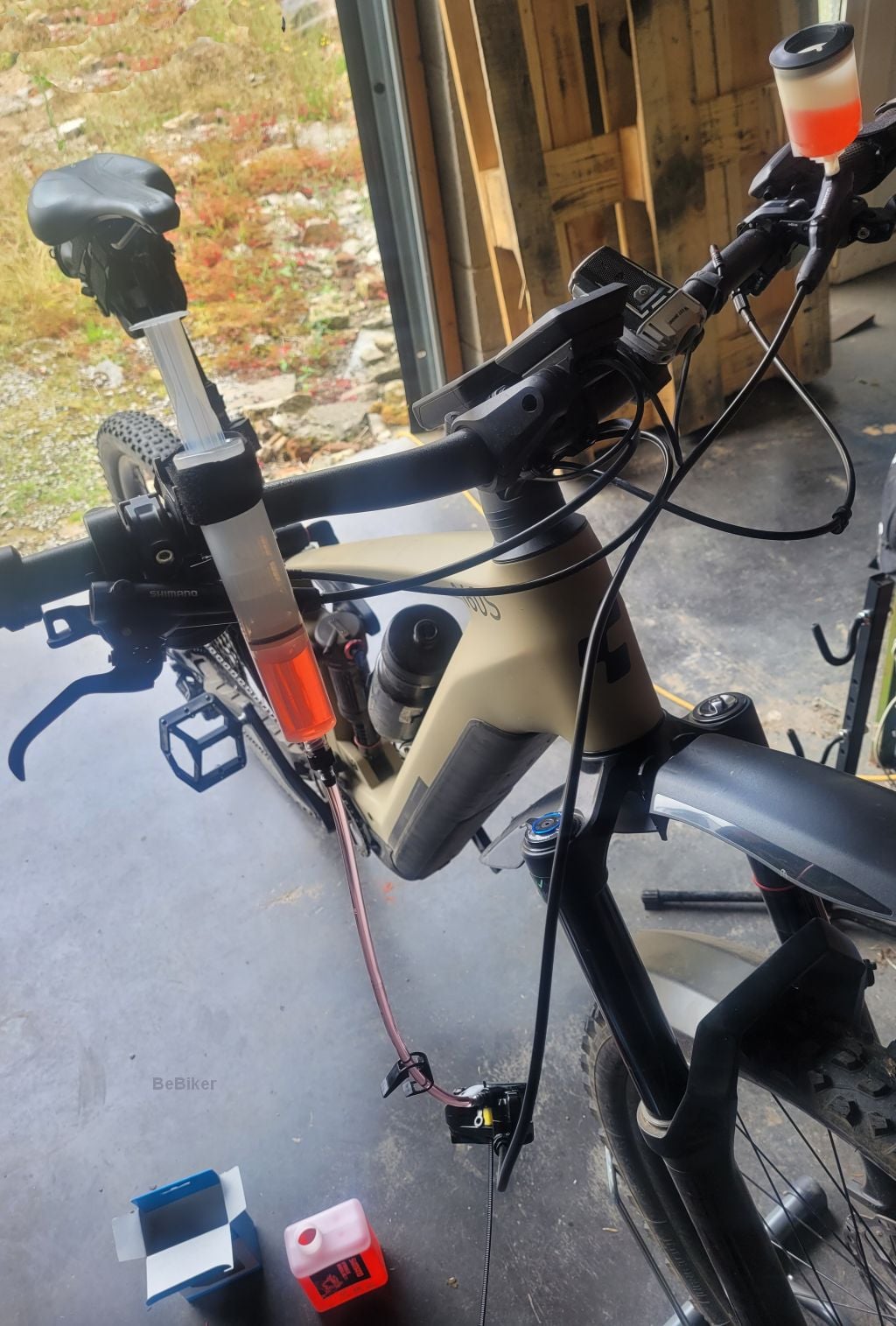

Let's do some Hosing and Bleeding:

After all, it's the same as bleeding a car brake system.
Except on a bike you screw off the brake fluid container



[BeBiker]

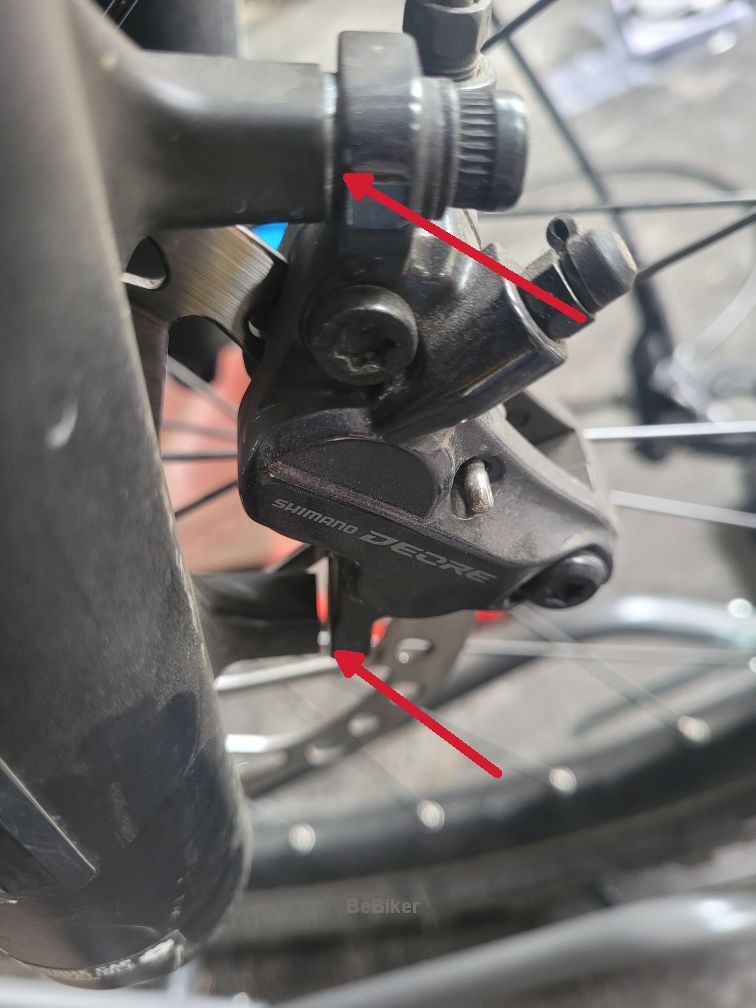

I just noticed these shims while loosing the bolts of the caliper.
The use pattern on the disk is centered and OK, is this also mounted on your bikes too ?

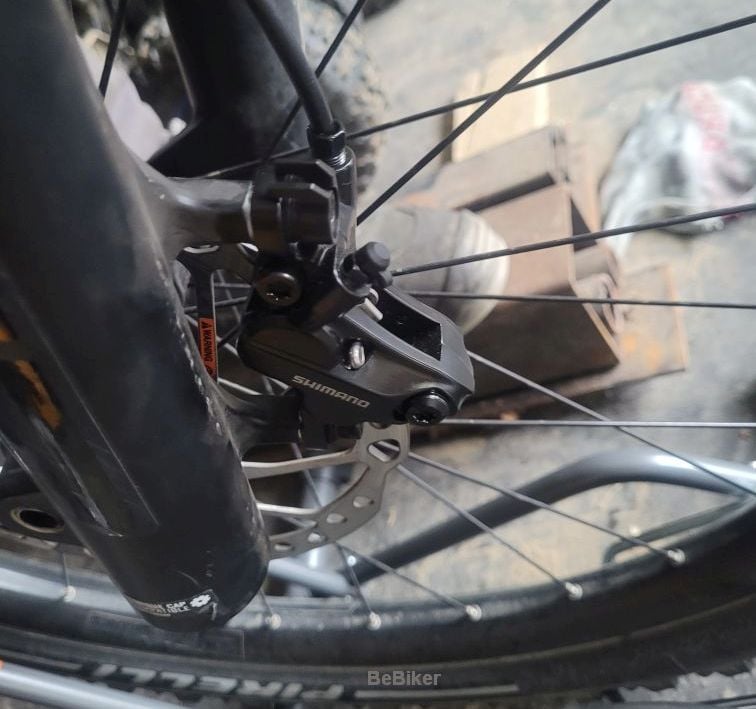

(Dirty) Shiny Deore off, matte Shimano on:

I now have the "old" Deore front 4-pot system to put on the Rockrider one day.



[BeBiker]

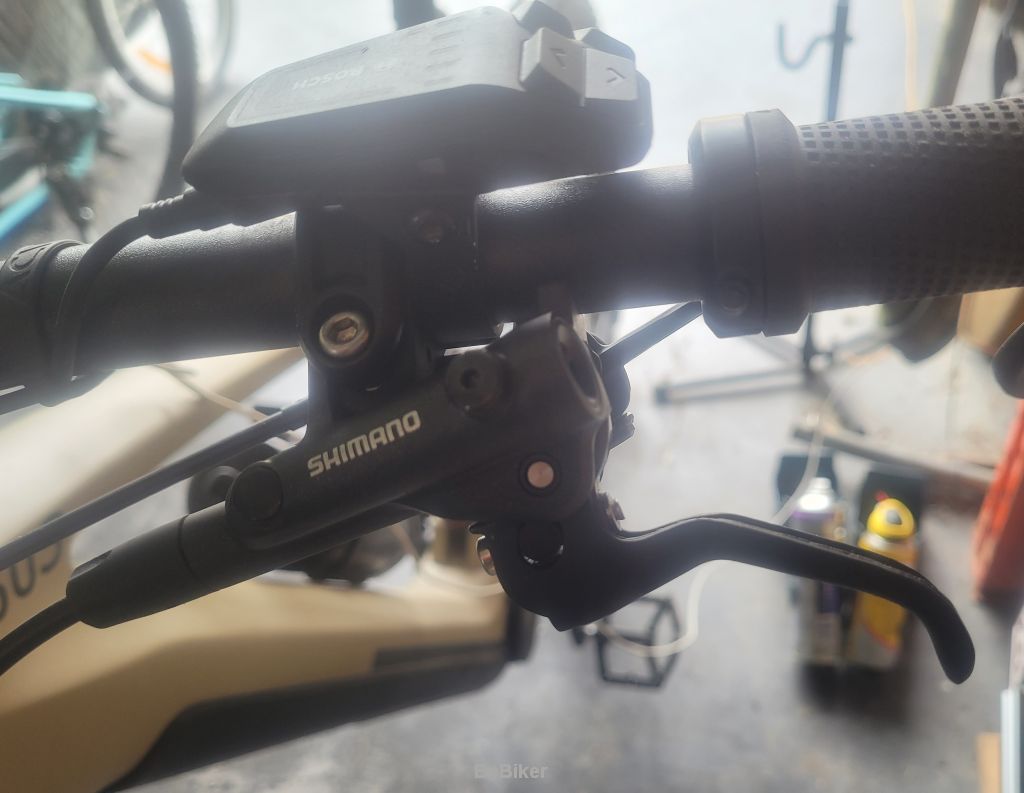

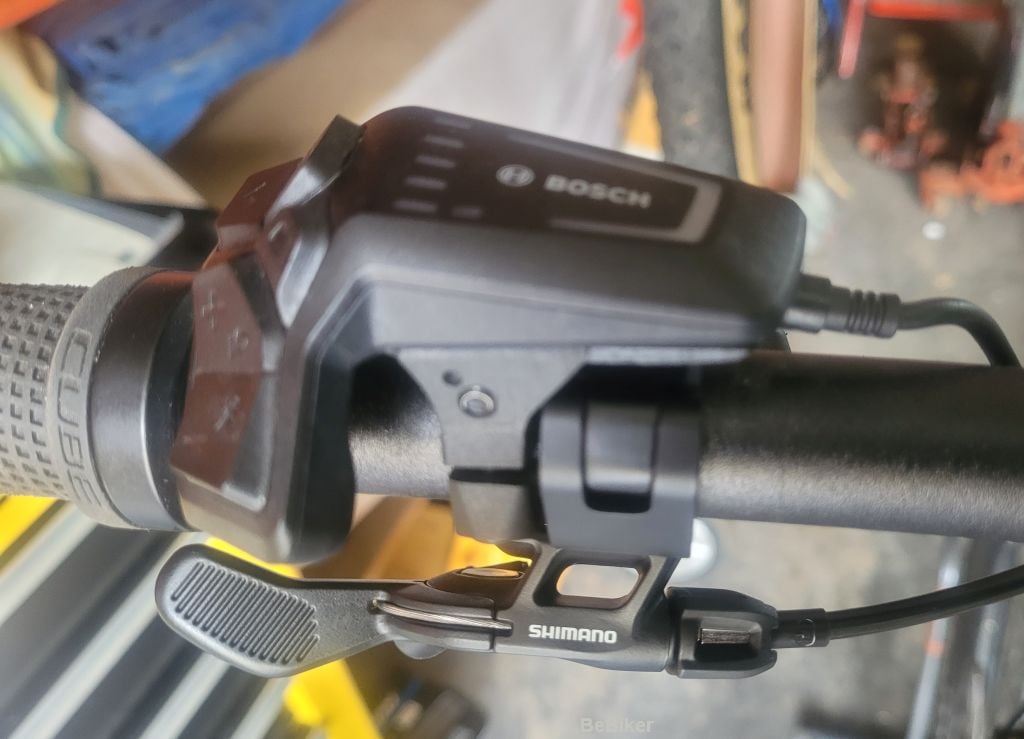

Exactly like I wanted, matching with the other brake lever, and a shortened hose:

SL-MT800-IL I-SPEC EV, on the existing hose and cable, hose somewhat shortened:



[H.E.]

The Zeb has a mount for 200mm (SRAM) Rotors, the shims are
for the 203mm Rotor.



[Gary Davis]

Let's do some Hosing and bleeding:
View attachment 92930
View attachment 92929

Bleeding Shims is done like a charm.



[BeBiker]

The Zeb has a mount for 200mm (SRAM) Rotors, the shims are
for the 203mm Rotor.

I found the 203mm size strange from the beginning, seems to be 8", but their other sizes are 140,160,180 ?
Also did not know Sram is 200mm.



[BeBiker]

I did a first ride with the 160mm cranks.
You don't feel "hey these are shorter cranks", but during the ride I felt the bike behaved different.
A bit like slower reaction to pedal strokes.

I don't know if that's a real thing or just imaginary, we'll see if I get used to it.



[BeBiker]

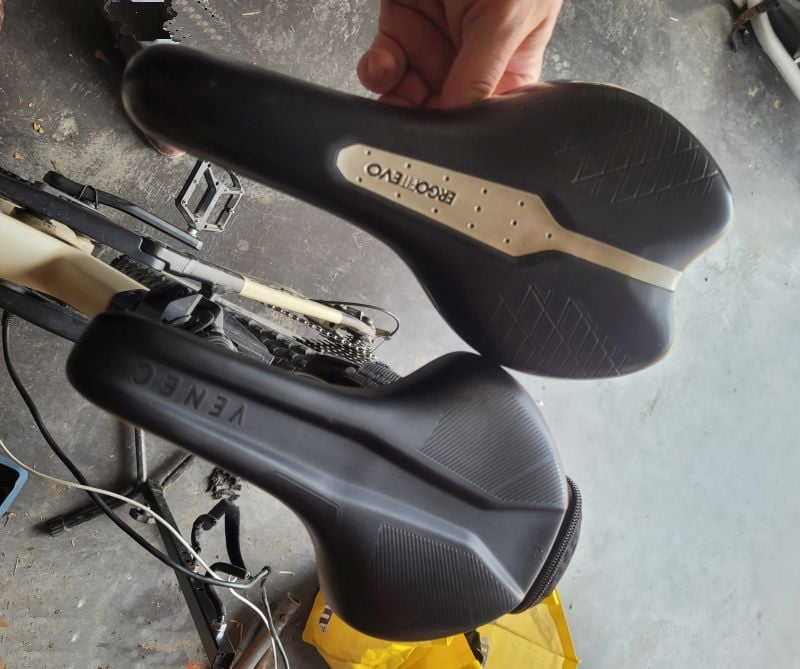

This Ergo Fit Evo saddle comes with the E-st900, and was replaced with a thicker softer one because it's a hardtail.
The color seems to match the Cube, it's a bit longer, and a lot less Spartan than the Venec.

I think it must be one of these two:

Racefiets zadel kopen? | DECATHLON

Welkom bij Decathlon ! Ontdek ons uitgebreid gamma Race.

www.decathlon.be

Zadel voor mountainbike Sport 900

Zadel voor mountainbike Sport 900 aan €24. Vervang je fietszadel voor een positie die beter geschikt is voor je gebruik.

www.decathlon.be



[BeBiker]

I went back to the 165mm cranks, the 160mm cranks kept me giving an underpowered unresponding feeling, and the urge to go to Turbo.



[BeBiker]

The Bosch "Smart System" is not smart enough to output an ANT+ cadence signal to my Garmin.

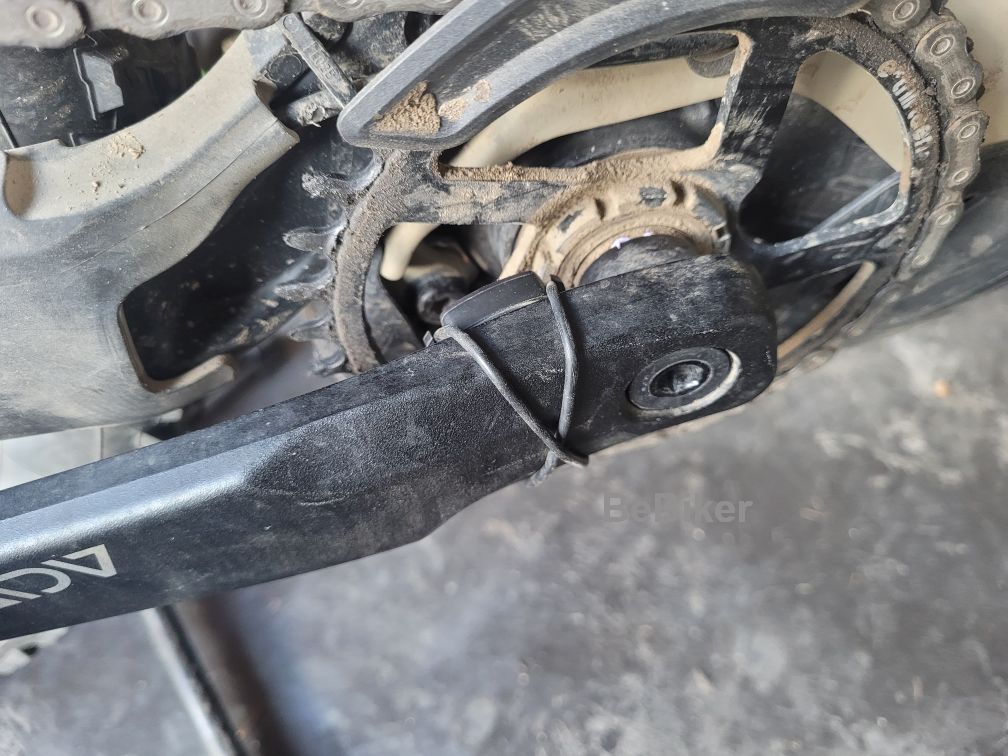

So I found a nice spot for a cadence sensor:

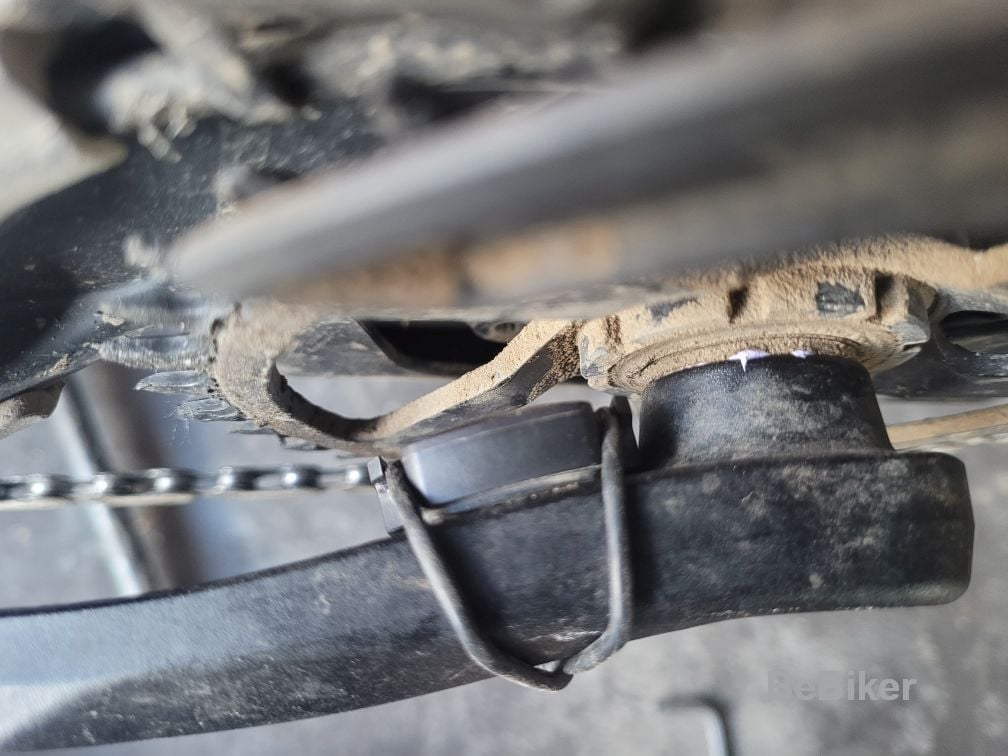

Doesn't touch anything, well hidden. Except I don't trust the rubber string keeping it in place.

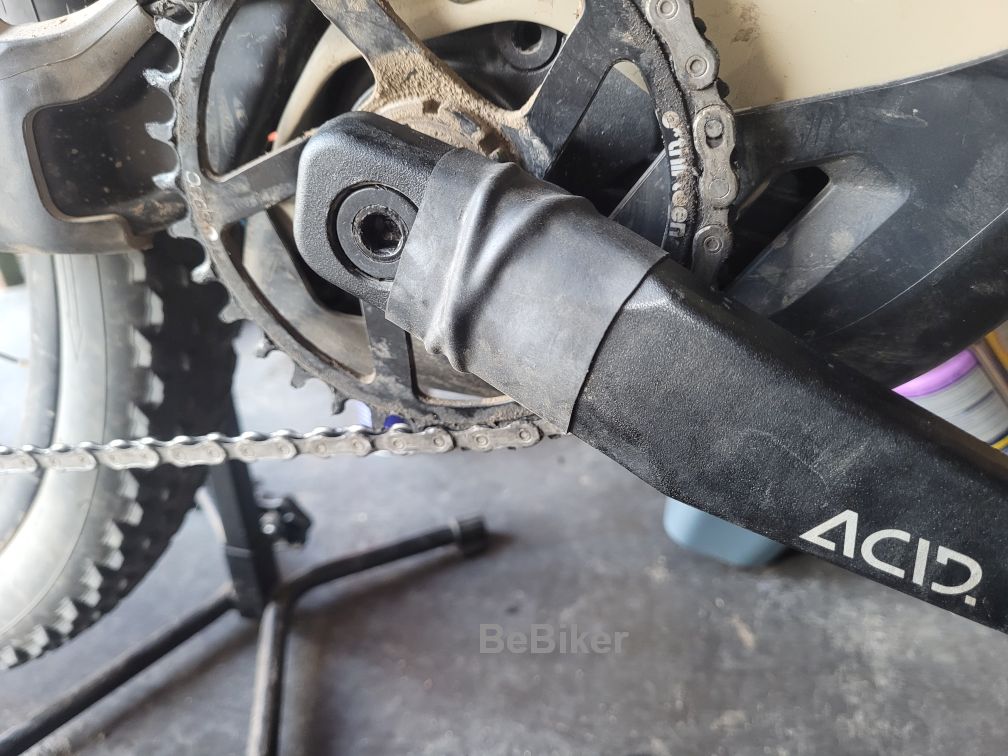

That's better:

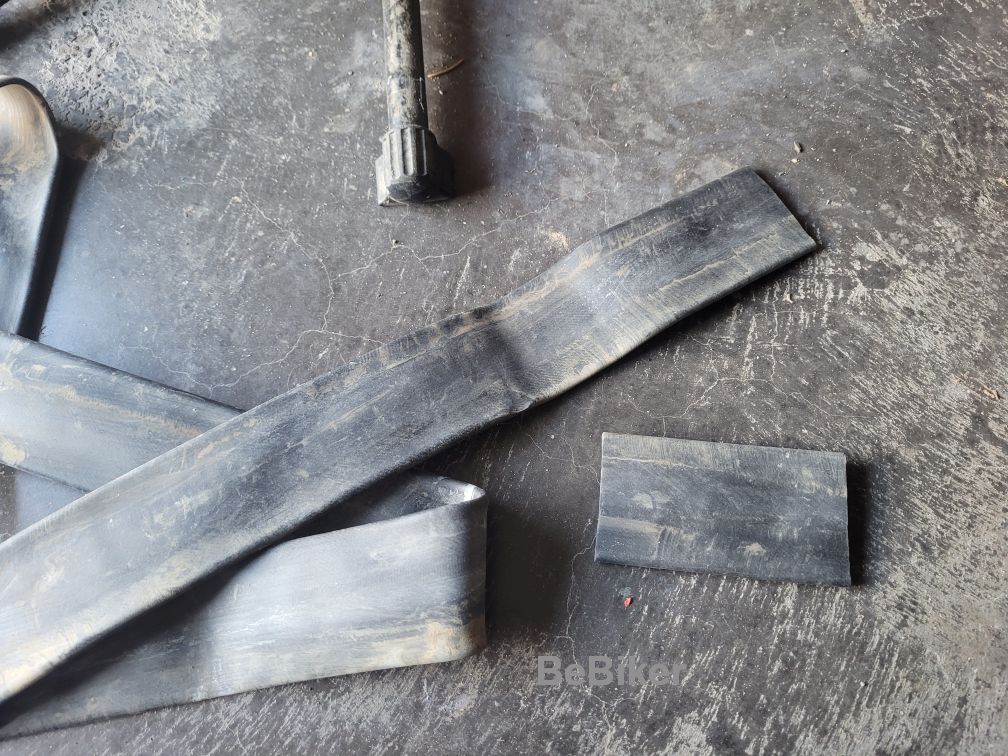

The dead 26" donor:



[Bummers]

I went back to the 165mm cranks, the 160mm cranks kept me giving an underpowered feeling, and the urge to go to Turbo.

Damn, was thinking of 155's to help avoid pedal strikes.



[BeBiker]

Damn, was thinking of 155's to help avoid pedal strikes.

It helps, but doesn't avoid it completely if you are tired/lazy/clumsy/distracted
155 seems a good option to me for people who ride continuously in Emtb/Turbo
I'm an eco/tour rider most of the time.



[Bummers]

It helps, but doesn't avoid it completely if you are tired/lazy/clumsy/distracted
155 seems a good option to me for people who ride continuously in Emtb/Turbo
I'm an eco/tour rider most of the time.

That's me
All about that emtb life



[BeBiker]

What happens when you connect a light that consumes 1,66A (20W) to the 1.5A (18W) rated front-light-port of the motor?
So now and then, the assistance color suddenly switches to orange, and the Kiox displays an error.

Bike Off-On and everything is back to normal again.

Another light that consumes +-0.5A (6W) works fine on the 12V port.

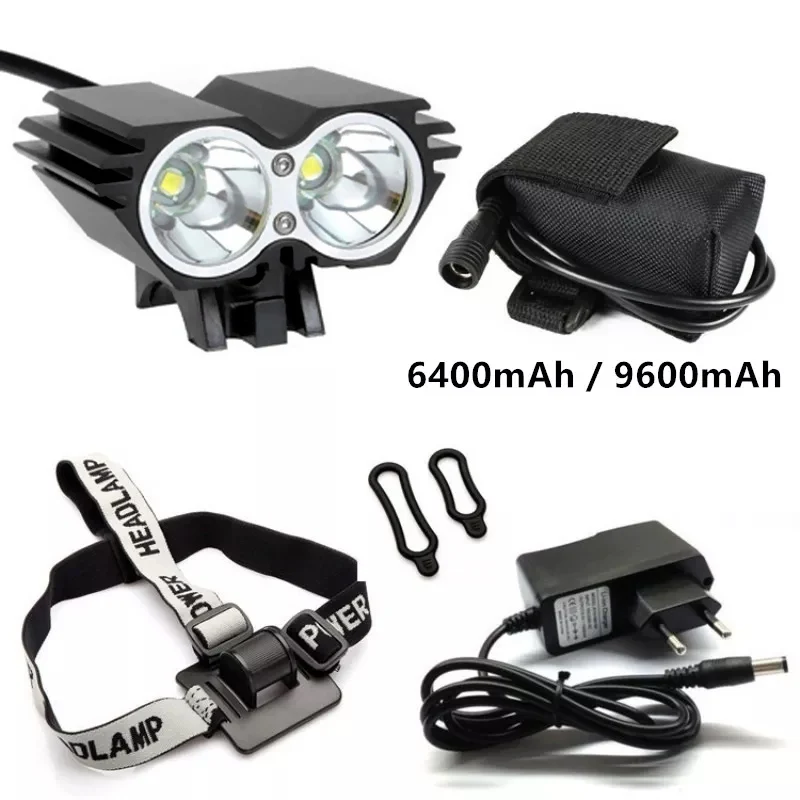

WasaFire 7000lm Bike Light 2x T6 Bicycle Headlight MTB Head Lamp Cycling Front Flash Lights with 18650 Battery Pack + Charger - AliExpress 18

Smarter Shopping, Better Living! Aliexpress.com

www.aliexpress.com



[BeBiker]

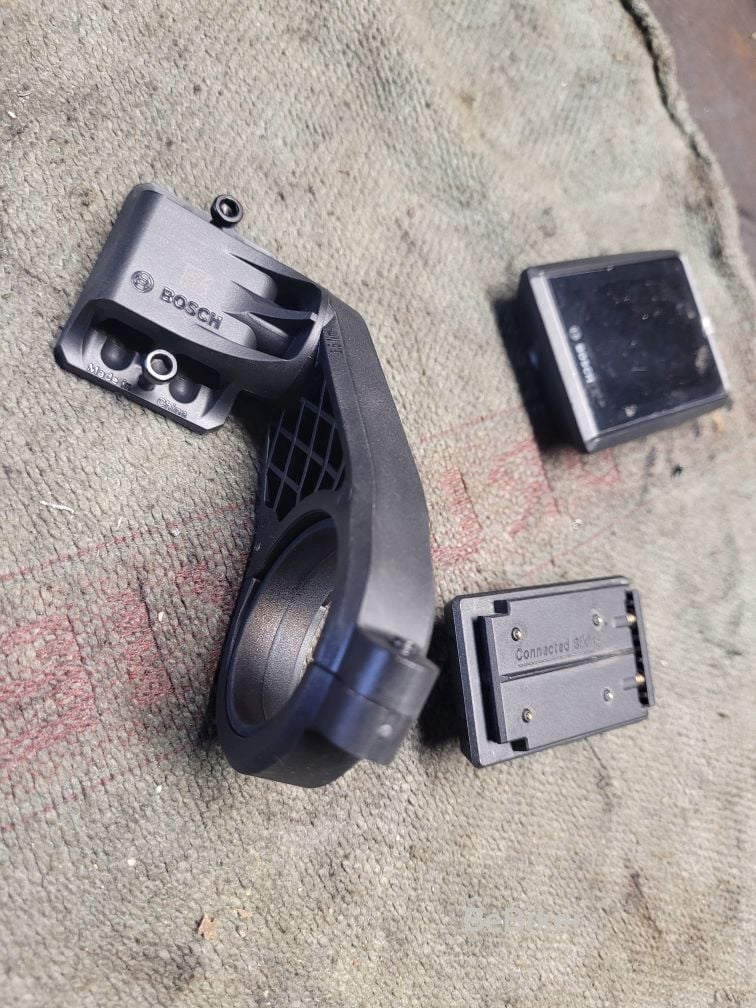

What if you want to put the Bosch Kiox 300 Bracket on the left side of the stem,
for example to mount a Garmin Bracket, or a night light on the right ?

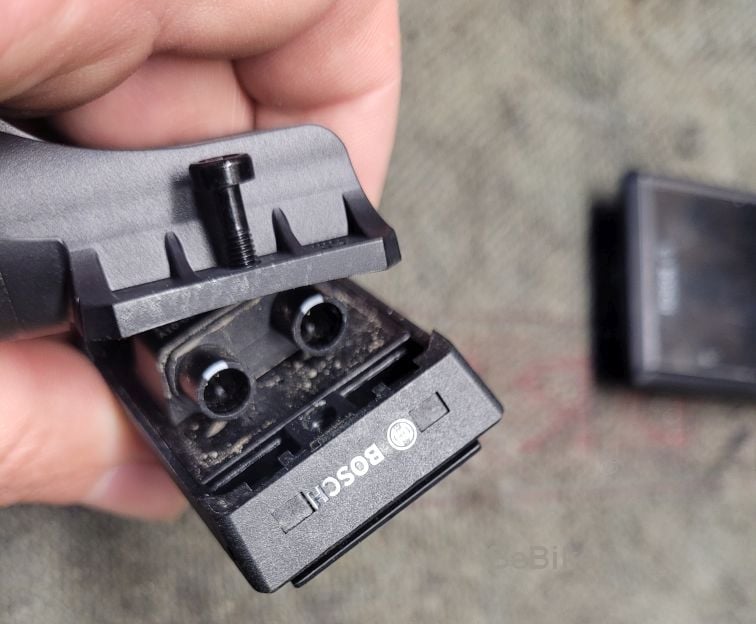

There are holes for the connectors:

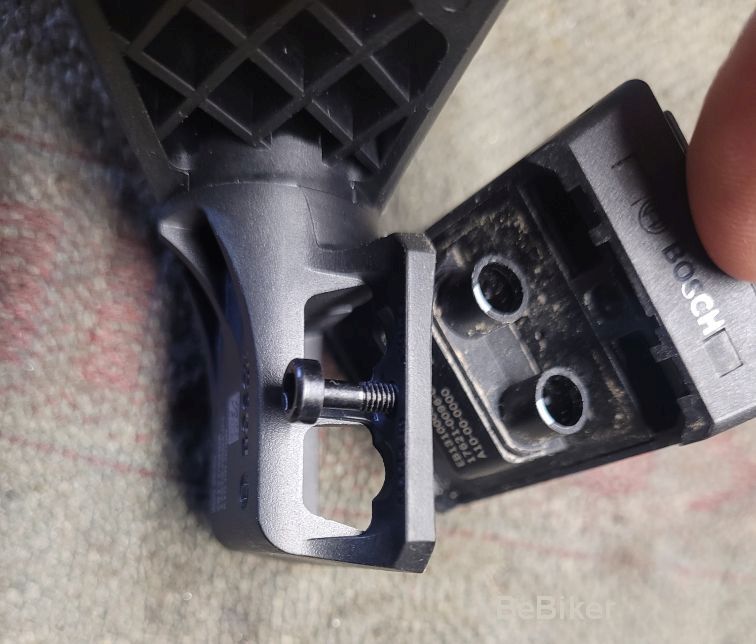

But if you turn the quick release around, no holes on this side:

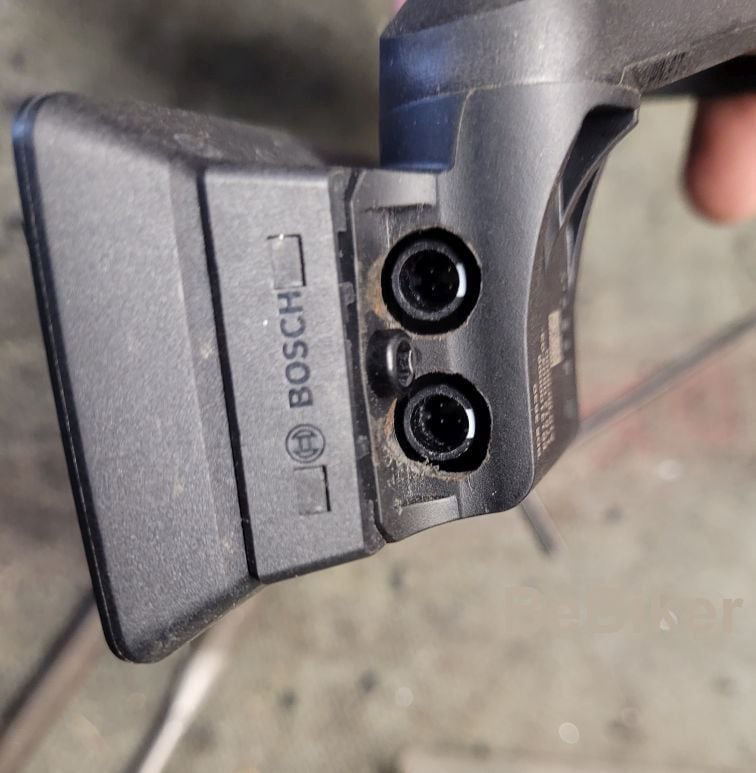

So we make them:



[Eliadn]

What about the holes on the other side now? Did you plug them with something?



[Clean]

What if you want to put the Bosch Kiox 300 Bracket on the left side of the stem,
for example to mount a Garmin Bracket, or a night light on the right ?
View attachment 97385

There are holes for the connectors:
View attachment 97386

But if you turn the quick release around, no holes on this side:
View attachment 97387

So we make them:
View attachment 97388

My bike supplied on the left side of the stem?



[BeBiker]

My bike supplied on the left side of the stem?

Pictures please ?



[BeBiker]

What about the holes on the other side now? Did you plug them with something?

Of couse not. The original ones are also a lot larger than the watertight connectors.
No need to worry about this.

Some would even argue it's better now.
