Bafang M560

Tomblarom

Active member
Feb 3, 2021
139
211
Germany

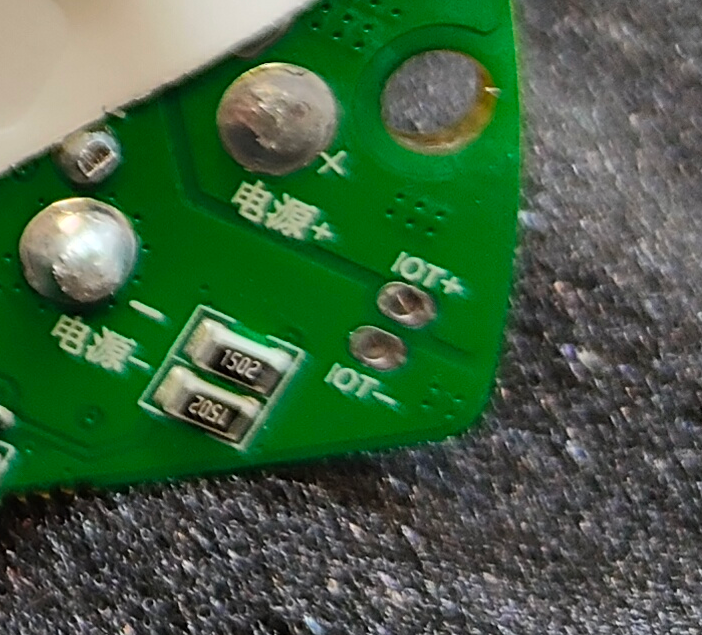

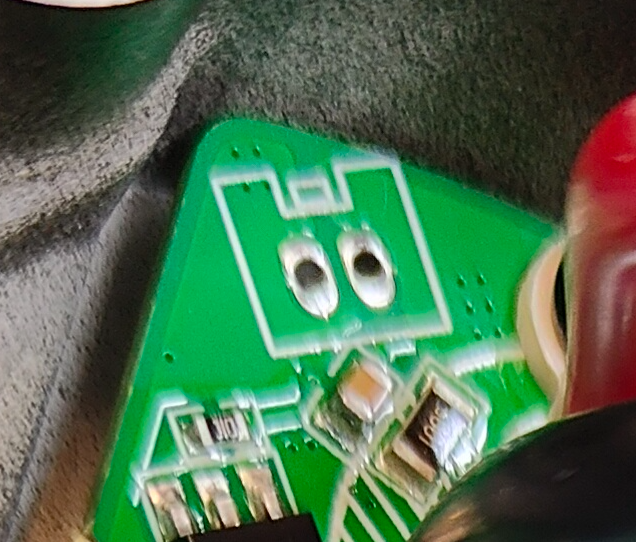

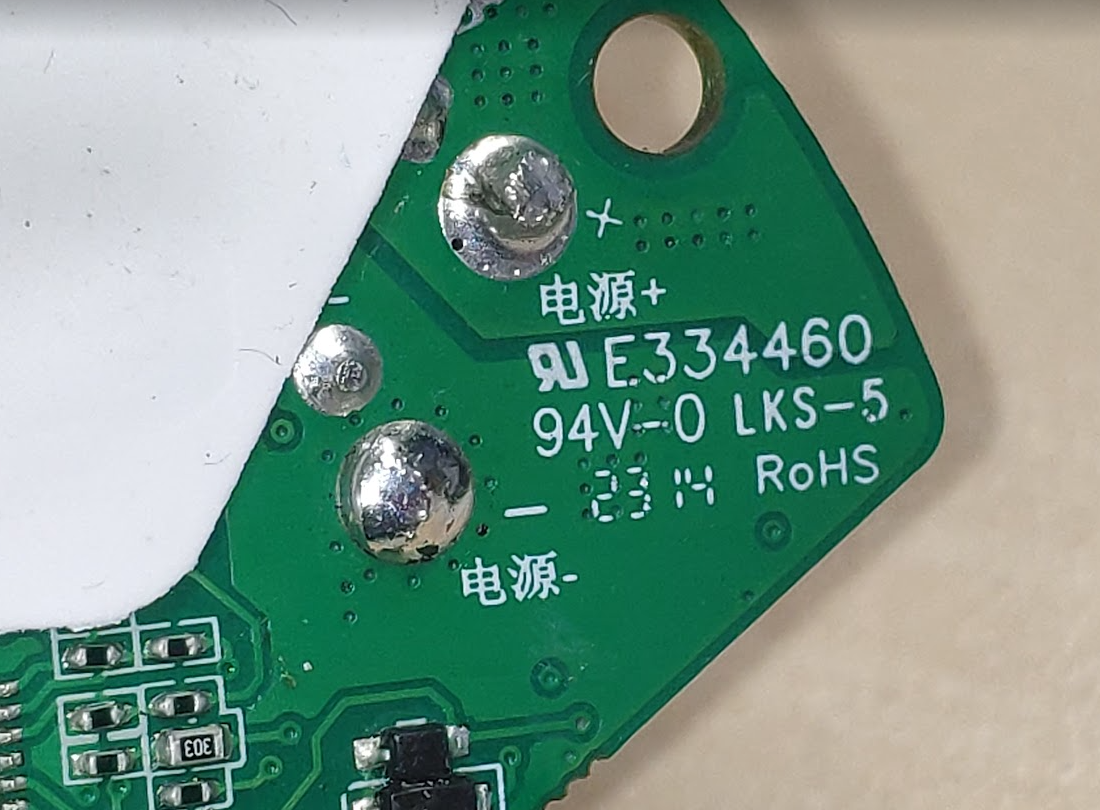

IOT+ / IOT- pins are new.

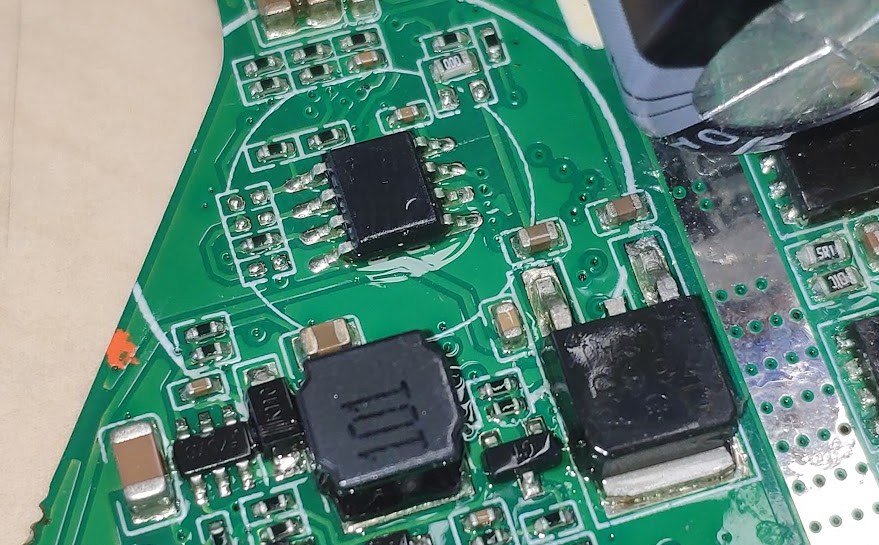

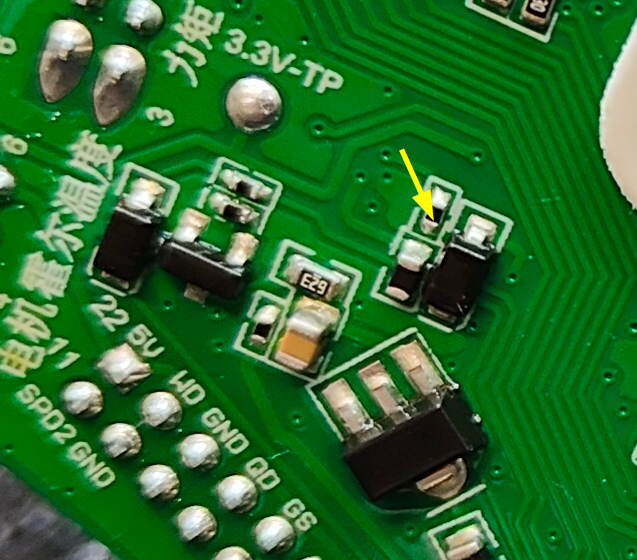

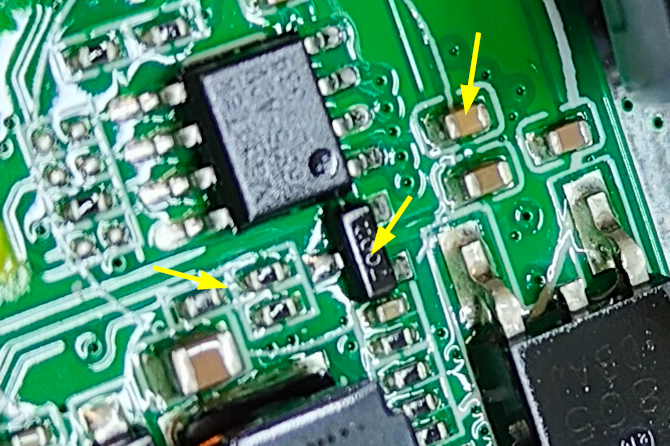

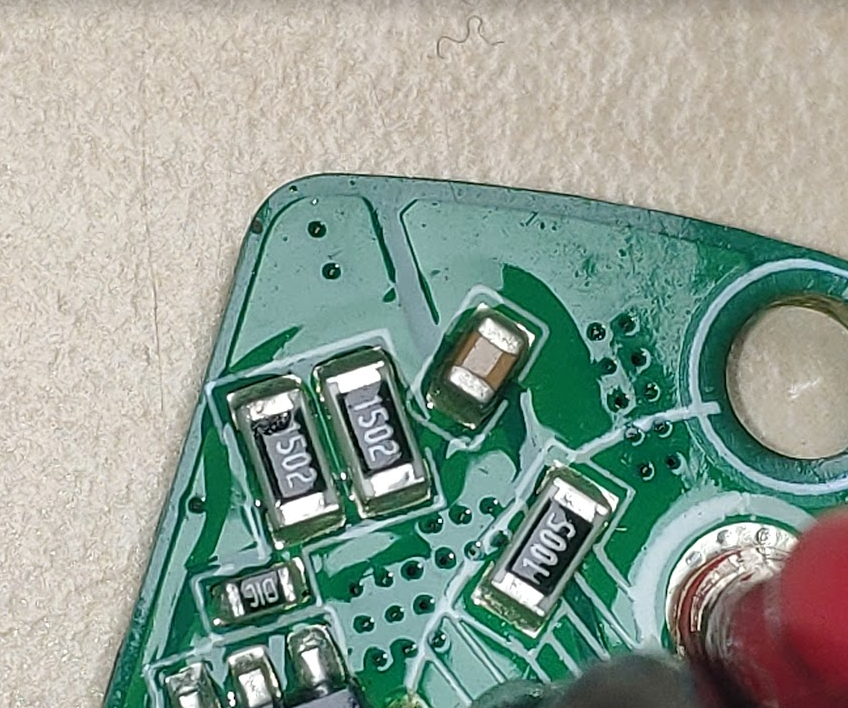

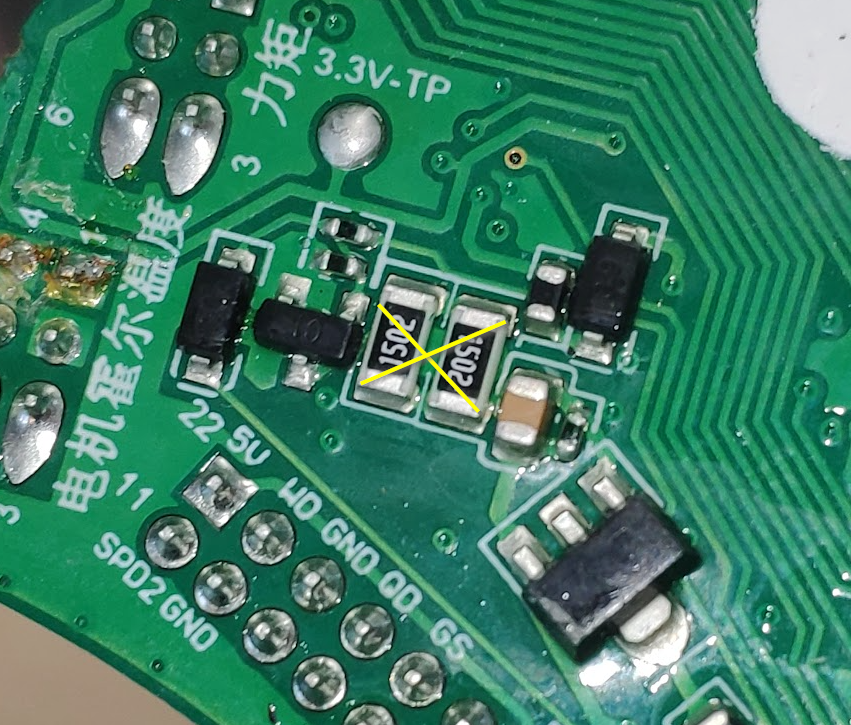

And they certainly changed a few other things, like moving components and adding filtering capacitors for voltage stablization. (left is M560 january, right is M560 before that)

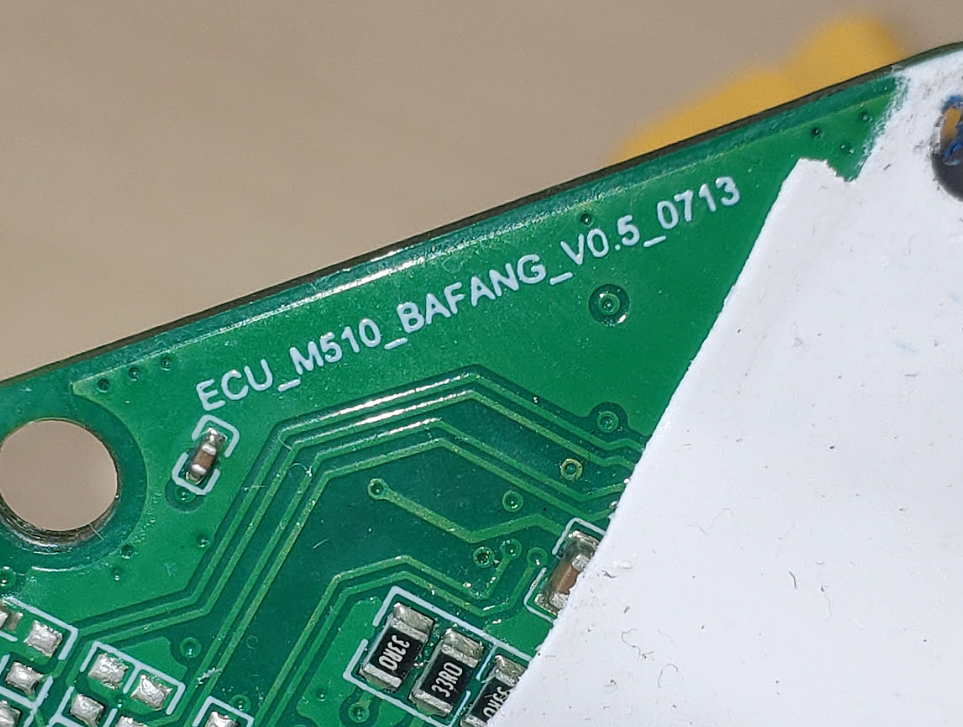

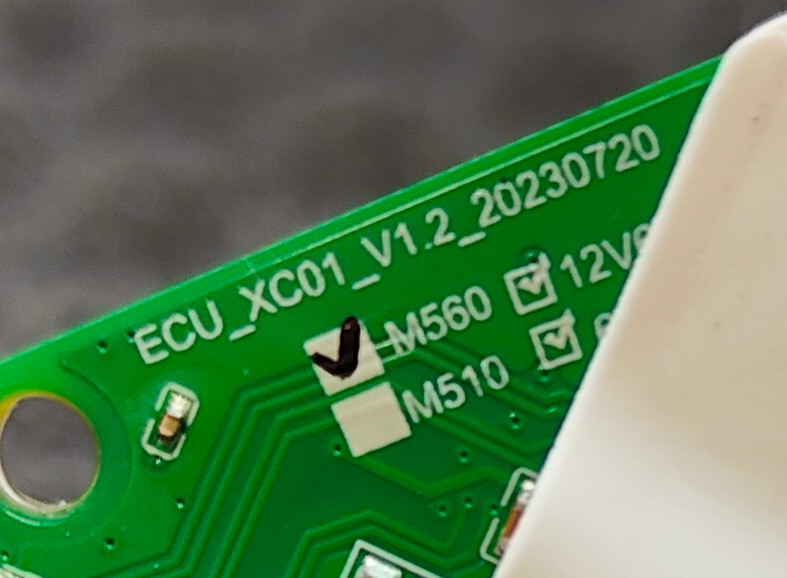

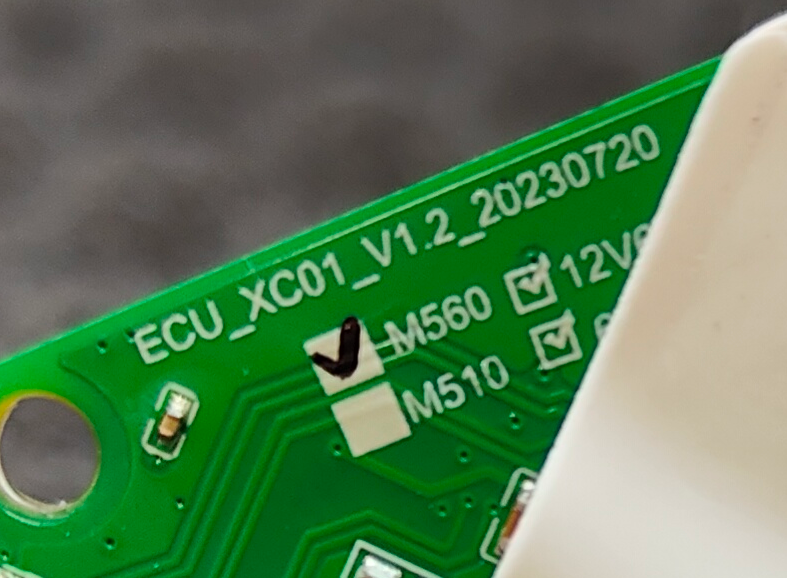

And obviously they corrected the naming:
1713595933447.png 1713595956916.png

Last edited:

Sayonara

New Member
Jan 21, 2024
268
69
Finland
IOT+ / IOT- pins are new.
View attachment 138878 View attachment 138884
View attachment 138883 View attachment 138885

And they certainly changed a few other things, like moving components and adding filtering capacitors for voltage stablization. (left is M560 january, right is M560 before that)
View attachment 138881 View attachment 138886
View attachment 138888 View attachment 138887

And obviously they corrected the naming:
View attachment 138889 View attachment 138890

I have no knowledge about these electronics. What do you think they tried to achieve or have succeeded with these changes?


azure

New Member
Mar 7, 2024
43
10
PL
Greenbikekit is advertising new 2024 silent 750w motor.
There is nothing more than words... silent version, improved version... but noone has confirmed this.
I would like to remind that version from January 2024 was supposed to be quiet.


Dado

Active member
Jun 28, 2022
692
463
Bratislava
I am affraid will be silent only with nylon gear. They can do M600 silent (even more then M510), so where is problem. I would say 22A that nylon could handle.

But is funny how they stating it is silent, and actually is not.


azure

New Member
Mar 7, 2024
43
10
PL
I am affraid will be silent only with nylon gear. They can do M600 silent (even more then M510), so where is problem. I would say 22A that nylon could handle.

But is funny how they stating it is silent, and actually is not.
We agreed here few days ago that it is only marketing for now... and I agree with you that there is no chance to make this engine silent without changing material of the gear.
I think that Bafang sees no other option than to claim that they have done something to improve problem with noise... but this is road to nowhere.


MrKO4

New Member
Mar 5, 2024
9
2
North Carolina
ahhh I gotcha. I have seen videos of the M560 sounding pretty mild and of them really loud. I'm nervous. My first ebike and I dont want to be that guy on the trail everyone can hear.
If mine is loud I will just order a 510 for the time until a new gear is made. I also read it gets quieter over time.


Sayonara

New Member
Jan 21, 2024
268
69
Finland
ahhh I gotcha. I have seen videos of the M560 sounding pretty mild and of them really loud. I'm nervous. My first ebike and I dont want to be that guy on the trail everyone can hear.
If mine is loud I will just order a 510 for the time until a new gear is made. I also read it gets quieter over time.

I think the 500w version is silent because it has nylon gear? 750w is louder (steel gear) but not terrible imo. And yes I have also heard that it get less noisy over time.

The difference between 500w and 750w version is 10Nm only? Not sure if the rpm is the same. 500w has 120Nm and 750w 130Nm.

In the vid I received it's about the same or little but more noise than bbshd.


azure

New Member
Mar 7, 2024
43
10
PL
ahhh I gotcha. I have seen videos of the M560 sounding pretty mild and of them really loud. I'm nervous. My first ebike and I dont want to be that guy on the trail everyone can hear.
If mine is loud I will just order a 510 for the time until a new gear is made. I also read it gets quieter over time.
Where did you find so optimistic way of thinking that bafang will produce silent gears... Wow!
I think that they do not know how to achieve it :)


azure

New Member
Mar 7, 2024
43
10
PL
I think the 500w version is silent because it has nylon gear? 750w is louder (steel gear) but not terrible imo. And yes I have also heard that it get less noisy over time.

The difference between 500w and 750w version is 10Nm only? Not sure if the rpm is the same. 500w has 120Nm and 750w 130Nm.

In the vid I received it's about the same or little but more noise than bbshd.
500W has metal gears, not nylon.


mmcarm

Member
Jun 14, 2022
8
4
California
Rode a new M560 at Sea Otter Classic event this weekend (not sure 500W or 750W) from the Bafang booth and it was just a little louder than an M600 with nylon gear but wasn't too annoying for my ear. Bafang unfortunately doesn't do quieter helical cut gears but the angle cut gears if greased well may be ok.


azure

New Member
Mar 7, 2024
43
10
PL
Rode a new M560 at Sea Otter Classic event this weekend (not sure 500W or 750W) from the Bafang booth and it was just a little louder than an M600 with nylon gear but wasn't too annoying for my ear. Bafang unfortunately doesn't do quieter helical cut gears but the angle cut gears if greased well may be ok.
It is interesting from what batch was this motor.


Sayonara

New Member
Jan 21, 2024
268
69
Finland
Rode a new M560 at Sea Otter Classic event this weekend (not sure 500W or 750W) from the Bafang booth and it was just a little louder than an M600 with nylon gear but wasn't too annoying for my ear. Bafang unfortunately doesn't do quieter helical cut gears but the angle cut gears if greased well may be ok.

How did the motor feel to ride? Where you able to test it on some hills or just flat ground?


mmcarm

Member
Jun 14, 2022
8
4
California
Yes took it up a steep bank and it had some more power than a stock M600. Just a few minutes ride so just got a rough impression. Didn't get a sense of how much more.


Dado

Active member
Jun 28, 2022
692
463
Bratislava
Hello. That left and right bolts does not play a big role. You can ride without. Just hit peddals with a hammer :) and tighten 4 bolts.


rfarsocal

New Member
Apr 24, 2024
11
3
San Diego
Oh well, it didn't go as planned, M560 starts for 30 seconds and then automatically turning off the whole display and motor and everything. Has to be problem with M560 as i haven't seen that with M600. Just to make sure its not batter i connected back M600 and it works perfectly fine. So contacting Bafang as to what's the issue is with M560. Not sure if anyone on forum had similar issue.


azure

New Member
Mar 7, 2024
43
10
PL
This is a side effect of the volume reduction :) it is total silent now !

Bravo Bafang ;-)

No kidding perhaps it is a driver-panel issue? Do you use panel from M560 or some else, older?


rfarsocal

New Member
Apr 24, 2024
11
3
San Diego
Haha :) for those eternal 30 seconds, I was able to ride it and it does seems to be very quite and has good amount of power... Drill is to reach for power button every 30 seconds 😄

I tried different display as well but nothing worked. Going to update firmware today to see if that fixes the issue.


Sayonara

New Member
Jan 21, 2024
268
69
Finland
Haha :) for those eternal 30 seconds, I was able to ride it and it does seems to be very quite and has good amount of power... Drill is to reach for power button every 30 seconds 😄

I tried different display as well but nothing worked. Going to update firmware today to see if that fixes the issue.
Are you sure that the battery is supposed to work with that motor? Maybe they are not compatible with each other.

Bafang (and DengFu, LightCarbon and others) are going to be in the China Cycle 2024 next week. Maybe we will see some new stuff!


rfarsocal

New Member
Apr 24, 2024
11
3
San Diego
Are you sure that the battery is supposed to work with that motor? Maybe they are not compatible with each other.

Bafang (and DengFu, LightCarbon and others) are going to be in the China Cycle 2024 next week. Maybe we will see some new stuff!
Why would it be different? It works fine with M600 motor and ultimately pushing same amps as it requires.
