Canyon Shawn
Active member
Looks.
Fuel EXe Trek Fuel EXe Megathread!
- Thread starter Rob Rides EMTB
- Start date
ragetty
Member
I could use a little more drop than the Bontrager 150mm in my M – anyone know off-hand how much more (than 261mm) can go into the frame?
After a quick-&-dirty measurement on the outside of the seat tube, it does not look like there would be a lot more space available …
Thx …
After a quick-&-dirty measurement on the outside of the seat tube, it does not look like there would be a lot more space available …
Thx …
Swingset
Active member
I used the One up calculator for their post and am running 210mm drop on my large. One key way to get more stroke is to use a low stack saddle. I have an SQ Labs that allowed me the full 210.
socal_rider
Member
From the Fuel EXe FAQ.
Fuel Exe FAQ
How much dropper post insertion does the frame have? (alloy & carbon)
S – 190mm, M – 225mm, L – 250mm, XL – 280mm. The minimum amount of insertion is 80mm.
ragetty
Member
From the Fuel EXe FAQ.
Fuel Exe FAQ
www.trekbikes.com
How much dropper post insertion does the frame have? (alloy & carbon)
S – 190mm, M – 225mm, L – 250mm, XL – 280mm. The minimum amount of insertion is 80mm.
… [edit] thx!
About 255mm of the 261mm insertable length of the 150mm Bonty post fits in the (my) M.
28mm of that is the actuator, and it feels like that is acting as the ‘stop’, so the quoted value is for the body of the post.
Last edited:
Canyon Shawn
Active member
Does anyone happen to know the max seatpost insertion length for a medium carbon 9.7? Thanks!
As per social_rider’s post above, it’s 225mm per Trek’s website.
Canyon Shawn
Active member
Thanks!

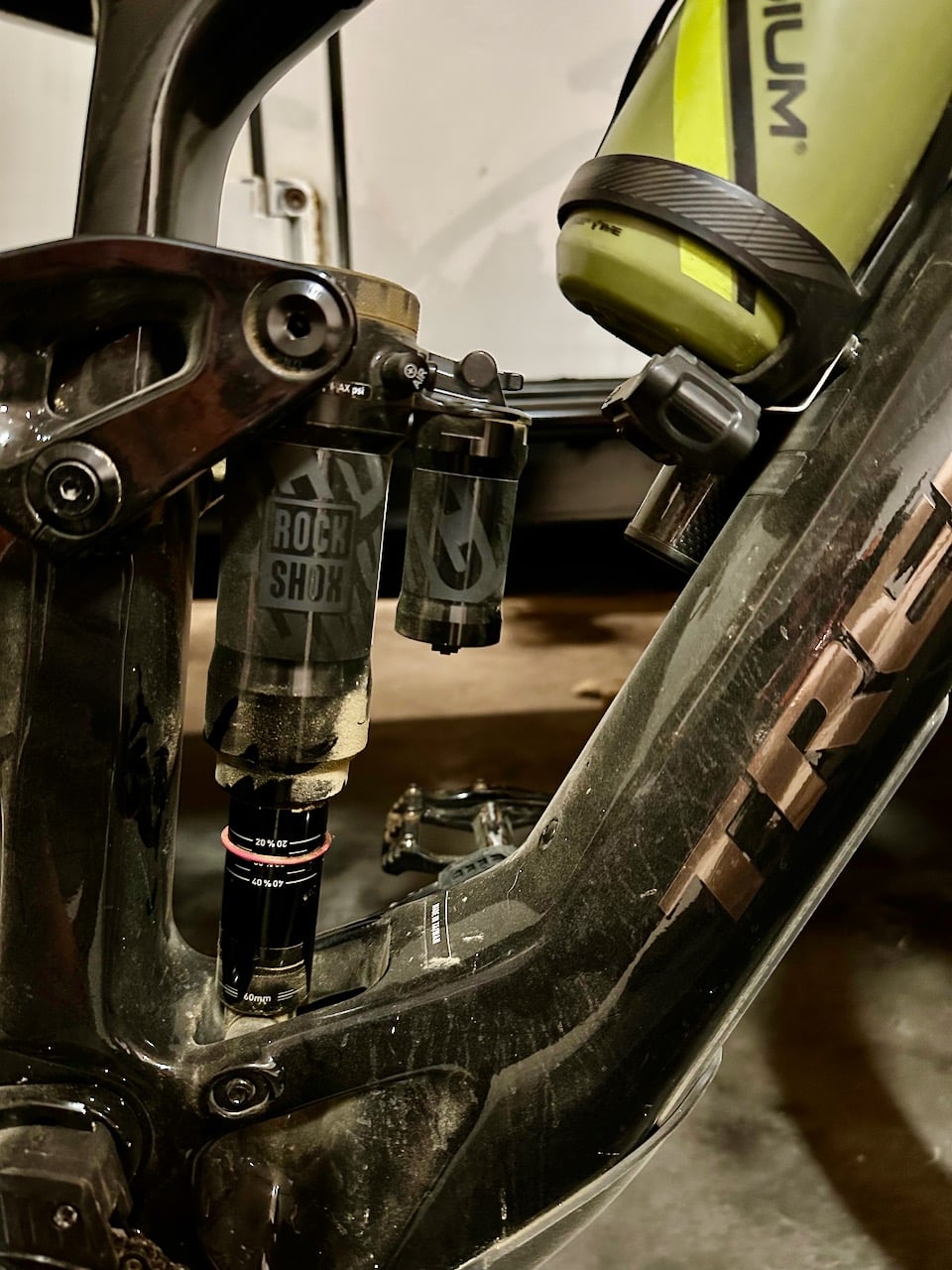

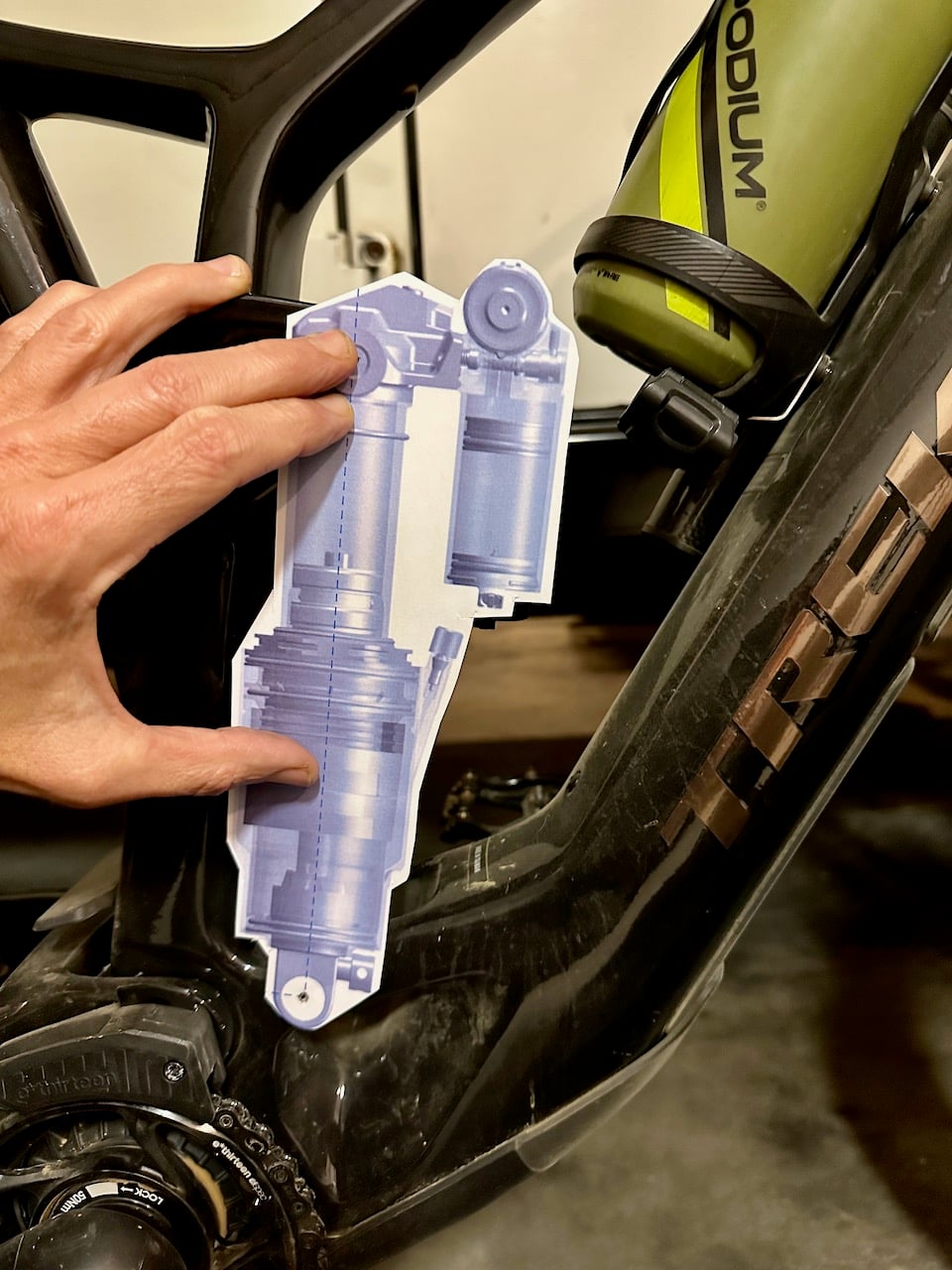

Hi All, Following the release of the new Rock Shox Vivid, this is a pic of a roughly scaled cutout (205mm eye to eye) against my frame. There will be some possible interference with the bottle mount / tool as the remote reservoir rotates forward on the rocker.... but it looks like there will be a clearance problem between the massive inverted air can and the seat tube. The do make the shock in the applicable size and configuration for the bike, and they sell specific tune shocks for the Slash and Rail, any word if it will fit the Fuel EXe? I think the Fuel Ex won't be an issue either, as the lower mount seems further away from the seat tube? Anyone else looking into this or have access to a Vivid for sizing? I've asked the local Trek Importers for feedback too, let's see if they have any feedback. Would be a shame if one can't fit it, looks like a great shock option. Attached pics of cutout Viviid and stock setup...
agree - looks like the air can will foul the frame at the bottom.
Vivid FAQ's has this link to a accurately scaled drawing, will check this against my original cutout....
https://support.rockshox.com/hc/en-us/articles/18039359674395-Will-the-MY24-Vivid-Air-fit-my-frame-
https://support.rockshox.com/hc/en-us/articles/18039359674395-Will-the-MY24-Vivid-Air-fit-my-frame-
Do you perhaps know if the Wolftooth IS41 top fits snugly on the EXe?
Swingset
Active member
The I6 top cap is very close and adjustable
Emailsucks98
Active member
Can't say I do- my other bike has their IS42 and the quality is great- but it's not IS41.
DugT
Active member
Should I get a small chainring? With the stock 34T chainring I need assist level 2 on steep sections and level 3 if the trail is steep and long. That works but I end up going kinda fast if I keep my rpm's up. My manual bike has a 28 tooth chainring and it is perfect. Should I just get used to the 34T or get a Wolf Tooth 30T? I wouldn't miss the lower high gear.
By the way, there is a side benefit of a smaller chainring. There would be less noise from cross chaining on the 51T cassette because I would use higher gears more often.
Yeh or Nay?
By the way, there is a side benefit of a smaller chainring. There would be less noise from cross chaining on the 51T cassette because I would use higher gears more often.
Yeh or Nay?
BBFII
Member
The stock ring is 32T. (unless something get swapped)
30T would keep you out of that maxed out gear.

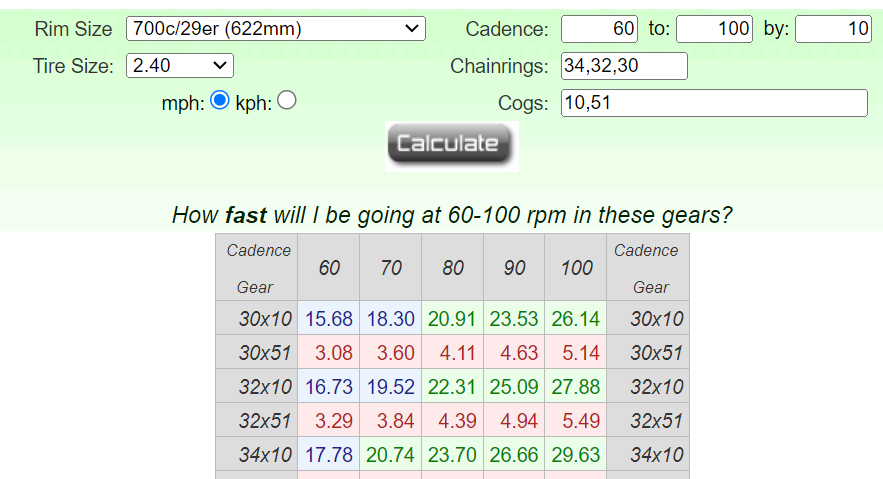

in 30T-10T you'll be over the speed cutoff by 75 rpms. yes, the EXe pedals well over the cutoff, but for overall assisted trail riding it should be fine.
DugT
Active member
Thanks for the info!
I looked at my bike and the chain ring is 32T like you said.
I googled the spec for it and got 34t. Just now I went to Treks website and found this for my exe 9,8XT.
Going from 32t to 30t is only 6.4% improvement. I wish there was a 28T chainring but I would notice the difference and prefer the 30t.
DBSwiss
Member
I put the same tire on my 9.8XT As well and I love it after the first ride. It also took me a while to get it on. Could not do it in the stand so I put it on the floor and stepped on it to keep the tire on the rim While getting the rest in.
DBSwiss
Member
This could also be caused by a software update. My bike was very hesitant in boost and would never give me the expected power based on the settings. It also was cutting out when pedaled at a steady pace (not accelerating). A software update back in April improved that a lot.
Canyon Shawn
Active member
Yeah, that could be. Although, just before they changed motors, the original motor was up to date. I had no complaints with the first motor. But, after putting about 60 miles on the new one, it definitely has more power. Other than that, it feels just like the first motor.
Magnacus
Member
Quick update:
TQ Range Extender Fidlock
Bike24.de has listed the mount adapter, but unfortunately not available:
Treksurfer
Member
I got my fidlock adapter here:
TQ-GROUP Range Extender Fidlock Holder TQ-Group 2023 Bike parts unisex
In stock at 72.00€ Bike parts unisex TQ-GROUP Range Extender Fidlock Holder 2023 of brand Tq-group bike parts
en.worden.fr
Canyon Shawn
Active member
If you go to the Trek app and adjust the lowest power settings to full max, is that essentially the same as adjusting the highest power settings to full max?
wheelsx2
Member
I have a large 9.7. Love the bike but really struggling with the Float X. Even with no tokens, I am only using 70% of travel and that is with 36% dynamic sag on the shock wiz. I have a float X on my Ripley, so I know how these should work. Unless mine is a weird/messed up tune, I should definitely be getting more travel. The other explanation is that the geometry is very progressive and needs a more linear spring.
I tried a Mara Pro. I had a Mara on the Ripley too, and it was very nice. The stupid long piggy back on the pro hits the downtime, so no go.
I was going to try a coil, but when I saw the Vivid, I though, Hmm.

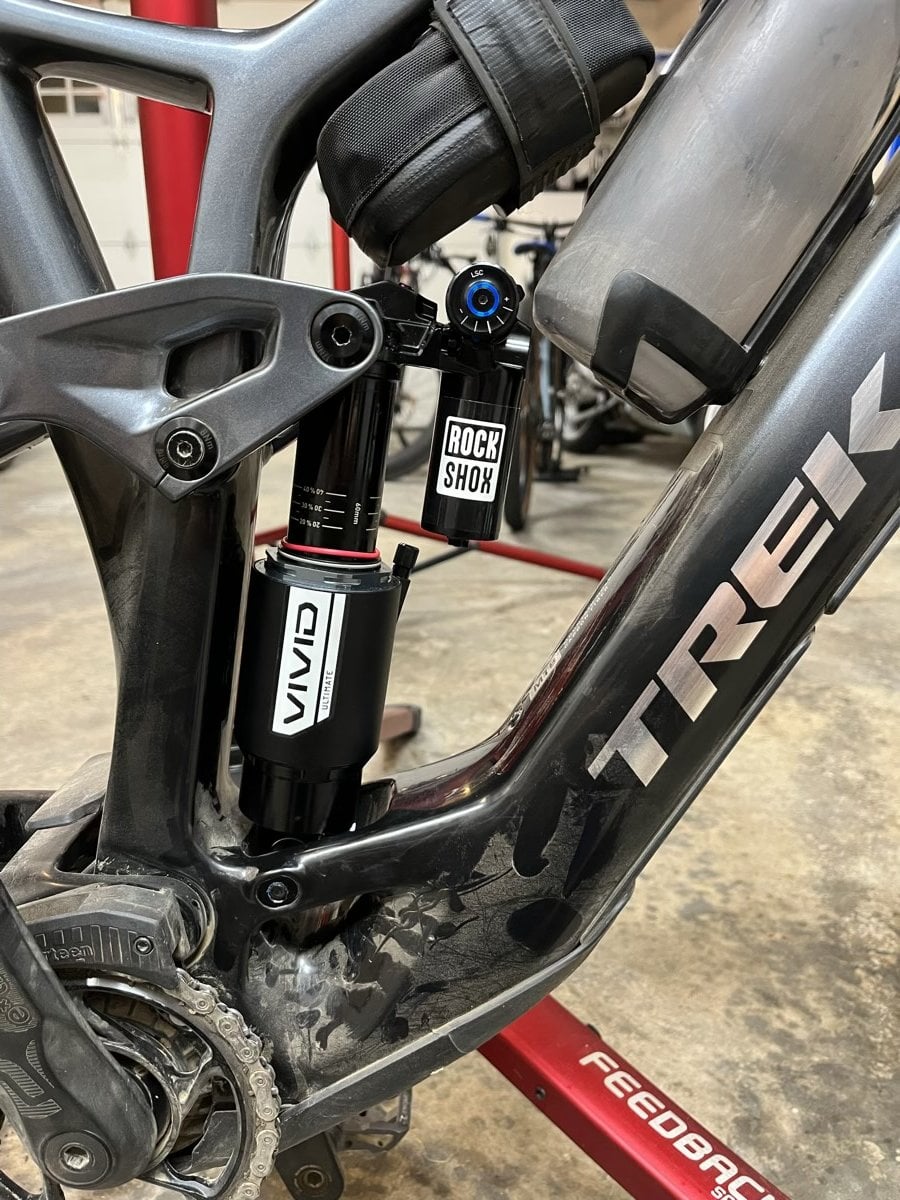

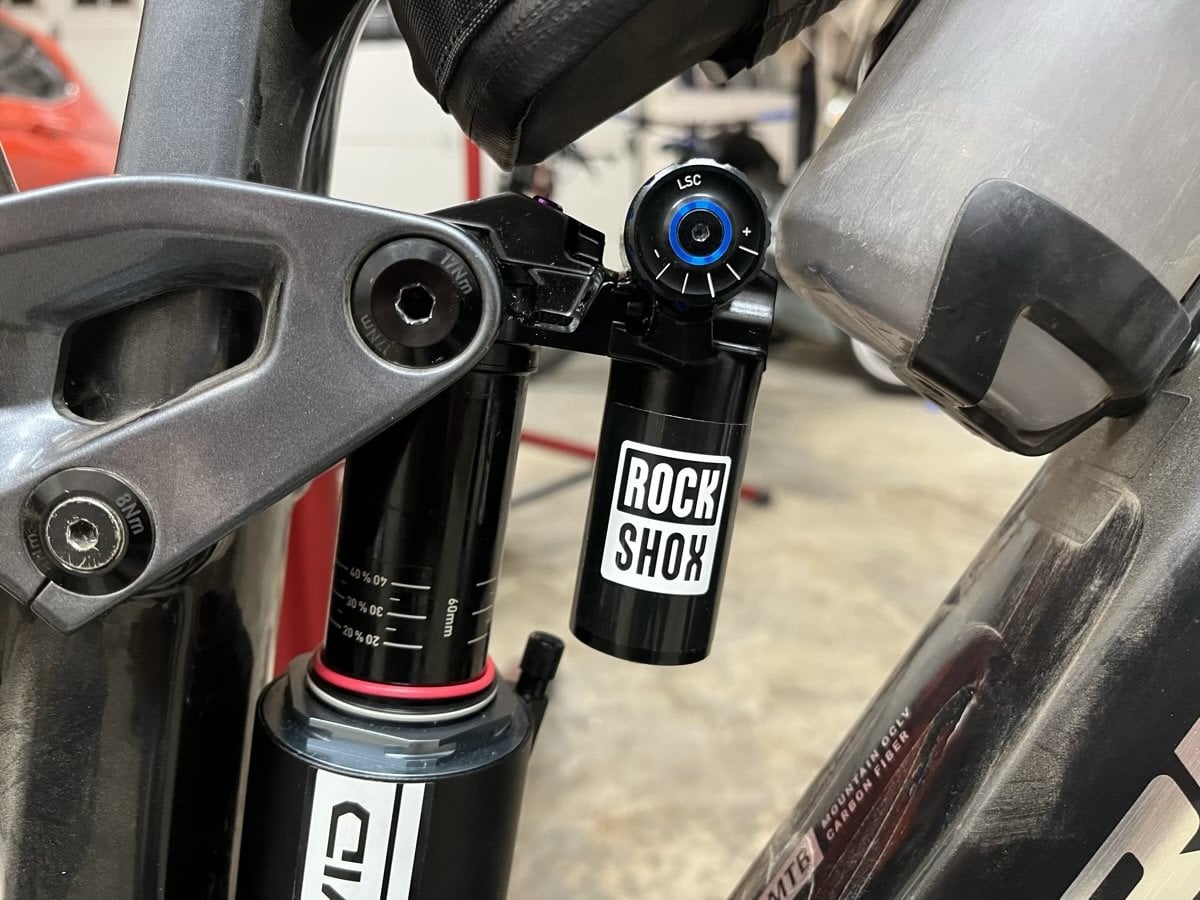

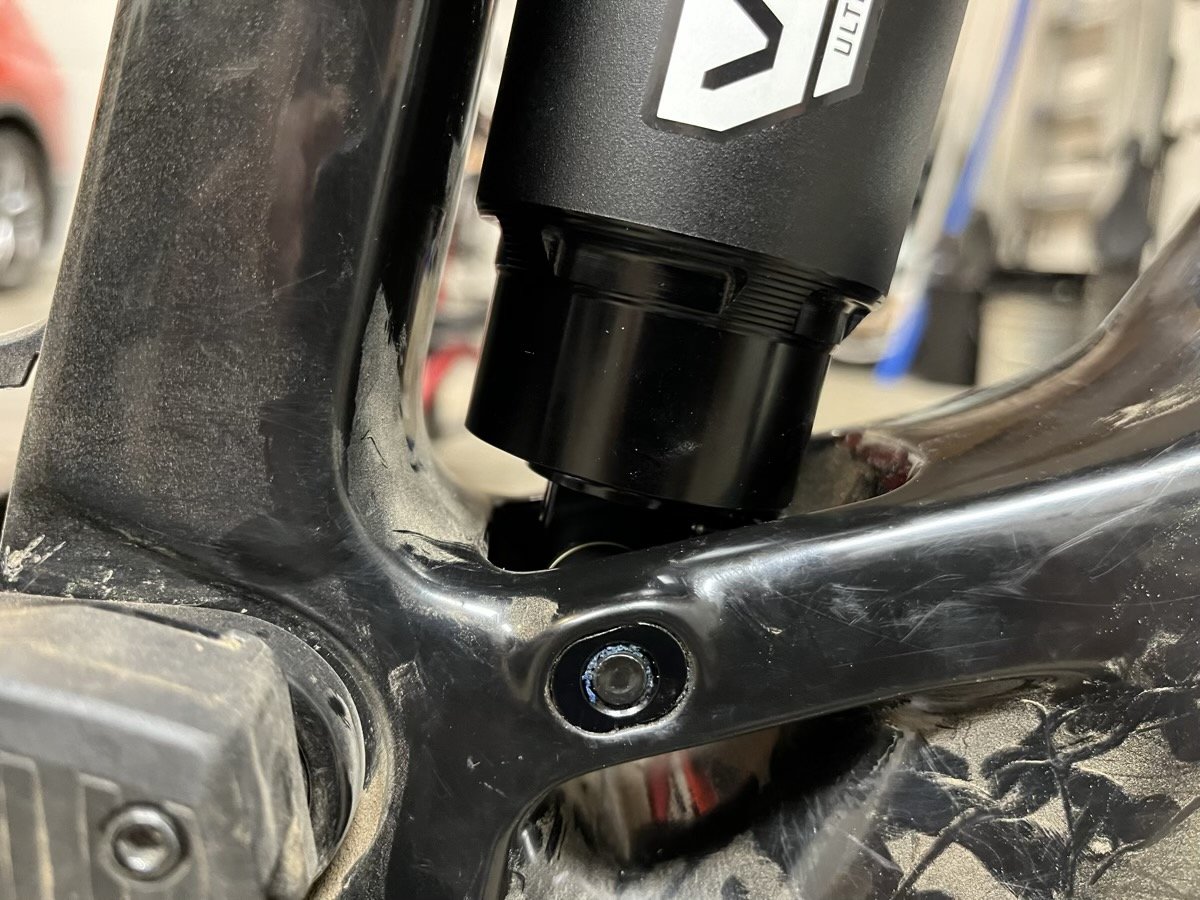

It fits on my Large. Barely. At full compression, the lower air can is within 1mm of contacting the frame. I went to the trouble of making a wood lower spacer to install the shock to see if it fit, before I committed to the install.
First ride will be tomorrow. Fingers crossed I get the tunability that the Float X did not have.
Yep,it is
Bikewrench
New Member
Thank you for sharing this topic with pictures.
100% agree with you. Same issue for me =/ - It's quite fragile, be careful with the UDH.
Canyon Shawn
Active member
What would it be like to go from 165mm cranks to 155mm cranks? Apart from the obvious, less pedal strikes. And, what cranks are available for our bikes? Thanks!
Pinkmaggit
Member
wheelsx2
Member
The Helix race look nice and are reasonably priced.
www.ethirteen.com
Helix Race e*spec Alloy Crank
HIGH PERFORMANCE. CONFIDENCE ON ANY TERRAIN. Helix Race e*spec Alloy Cranks offer a high performance alternative to carbon fiber for riders that prefer alloy or don’t want to pay for carbon to get a premium product. Forged and extensively CNC finished, the Helix Race e*spec Crank is a piece of...
www.ethirteen.com
