Fuel EXe Trek Fuel EXe Megathread!

TopUnit

New Member
Dec 4, 2022
30
81
Australia
OK, Just for fun I've created an animation of the Locknut installation, showing the use of the installation sleeve, and showing the seal that I've been talking about.

Again this is from my CAD model so there could be inaccuracies.
If the seal doesn't look right please post a photo so I can correct it

EDIT: I edited the video to say that the main purpose is to align the seal so that it slides on to the shaft without damage


Last edited:

ciro

New Member
Feb 2, 2023
7
2
Australia
Thanks for the animation. I thought the sleeve was to protect the seal when using the 20spline tightening tool. That makes more sense.

I don't think it's that critical as long as your careful getting it over the splines, still be nice to have though.


TopUnit

New Member
Dec 4, 2022
30
81
Australia
Thanks for the animation. I thought the sleeve was to protect the seal when using the 20spline tightening tool. That makes more sense.

I don't think it's that critical as long as your careful getting it over the splines, still be nice to have though.

Thanks, glad that was helpful

Yeh, the seal shouldn't be damaged by the 20 tooth tool since it only touches the robust back face of the seal.

EDITED:
I don't think the splines on the shaft are the main concern.
The purpose appears to be to get the seal safely over the lip where the shaft transitions to round.
The sleeve ensures that the seal is aligned correctly and expanded slightly so that it will slide unimpeded onto the shaft avoiding possible damage.

The seal is important so if you haven't got the installation sleeve, I'd get one, then it's just a matter of using it rather than having to guess if it is necessary or not (but I'm very conservative)
If the bike didn't come with one then you'd expect Trek would give you one at no cost.

Last edited:

KevinNY

Member
Nov 1, 2022
61
87
NYC

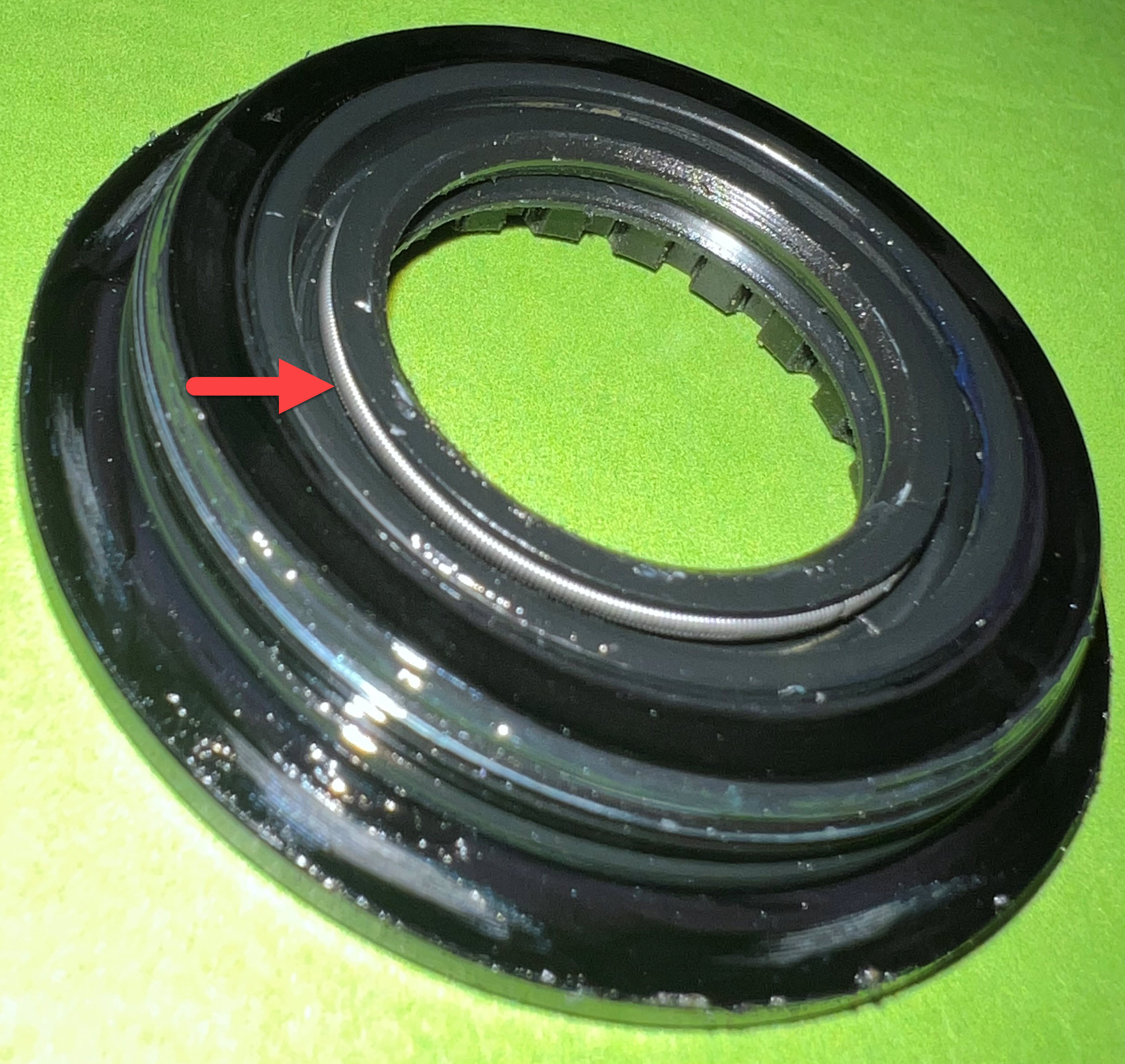

I was curious about what the seal on the lockring looked like, so for those wondering, here's a real picture I took. :)

It looks like there's also a retaining band (spring?) around the seal.


Last edited:

TopUnit

New Member
Dec 4, 2022
30
81
Australia
I was curious about what the seal on the lockring looked like, so for those wondering, here's a real picture I took. :)

It looks like there's also a retaining band around the seal.

View attachment 105999
Excellent Thank-you! First time I have seen the real seal.
This looks like a standard oil seal, which is basically what I have drawn in my CAD model, so I'm happy about that.
I can't make out the retaining band that you pointed out. The ring pointed to is just the outer part of the seal.
The silver ring is a spring band that helps keep the seal pressed against the shaft.

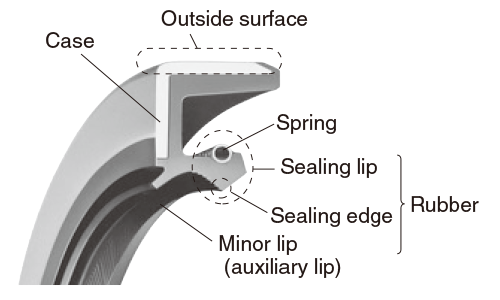

Here's a cross section of a typical oil seal



KevinNY

Member
Nov 1, 2022
61
87
NYC
Excellent Thank-you! First time I have seen the real seal.
This looks like a standard oil seal, which is basically what I have drawn in my CAD model, so I'm happy about that.
I can't make out the retaining band that you pointed out. The ring pointed to is just the outer part of the seal.
The silver ring is a spring band that helps keep the seal pressed against the shaft.
Here's a cross section of a typical oil seal

View attachment 106000

You are right, I had the arrow pointed to the wrong location to show the band (spring). It was early in the morning, and I didn't have my caffeine drink yet. LOL. I edited the post and fixed it.

Nice illustration.


ciro

New Member
Feb 2, 2023
7
2
Australia

Just a video of the display unit being whack. Every day is a different problem...firstly it would just turn itself back on randomly, next day it wouldn't turn back on at all (had to put the charger in to trigger it to turn on), few days of normal operation now it just cycles on and off.

I think my shop has processed a warranty on it, will see how long it takes.

Such a hassle for a bike with only 150km.


DugT

Active member
Sep 4, 2022
136
119
Truckee, CA
Just joined the thread about your creaking. Have you had it sorted. I have a similar noise and found the bearings in the chain stay were binding. Took it in and they replaced them but it seems the chain stay holes are too small and when the bearings are pressed in they bind up. Has to be bad manufacturing and I am waiting for a new chain stay.
Easiest way to tell is remove the rear wheel and stick your finger in the chain stay hole and see if the bearings move freely.
Thanks for the info. I've never heard creaking from this bike. My LBS mech said he heard creaking and that is why he over tightened my shock bolt.


Free_Tibet

Member
Aug 30, 2022
37
21
Australia
Thanks for the info. I've never heard creaking from this bike. My LBS mech said he heard creaking and that is why he over tightened my shock bolt.
Hi all. Does anyone know what increased torque value is ok to go up to for the shock bolts... without stripping, damaging or snapping any bolts etc.? Thanks.


Canyon Shawn

Active member
Feb 4, 2023
294
191
Lake Sherwood, California
I’m picking up a Penny Flake 9.7, from the bike shop that my girlfriend runs. I’m going to buy matching shock and fork graphics from Slick Graphics. For the shock there is a choice between long or short shock length graphics. I was thinking the graphic for the long shock length would probably fit. Does anyone know if the Fox shock on the 9.7 is considered long or short?


playboater15

Member
Jan 11, 2023
20
6
Crickhowell
My bike (9.7 in black/silver) has developed play in the lower shock bushing after approx 100km of riding. Initiated warranty today with BS, and they said straight away that it's now a known fault. The mechanic's response was almost instantaneous when I told him the model, as it seems like it's become a flagged up issue with Trek. Let's hope for a simple and smooth warranty process! 🤞


Swingset

Active member
Sep 9, 2022
276
310
Southern Cal
Highly doubt it. If I was you, I would check the cable routing at the bottom of the dropper. Mine was all goofed up. Not sure if it was the factory or the dealer. Check everything for that matter.


Emailsucks98

Active member
Nov 12, 2020
347
406
Bellingham Wa
Highly doubt it. If I was you, I would check the cable routing at the bottom of the dropper. Mine was all goofed up. Not sure if it was the factory or the dealer. Check everything for that matter.
@Canyon Shawn I'd check closely for that lockring seal brought up previously (post #1603), and make sure you get the protective sleeve mentioned in those same posts. You should be able to see the lockring seal between the lockring and BB spindle. If they're not included, at least get them on order. I found the Trek service manuals wouldn't open on my phone/ipad, but I could save the files, or I could open them in desktop web browsers.

@playboater15 Just my theory, could be wrong. The shock hardware issue seems to be unique to the 9.7 or at least Fox Shocks. My Rockshox hardware has been fine. This is why I suspect the issue is the tolerance between the Igus bushings and the shock hardware, not with the shock bolt. If it was me, I'd take the bike to a good shop and try swapping the Igus bushing out for a bronze DU bushing like Rockshox uses. $5 experiment. On my bike (now with an Ohlins shock) the Igus bushings were sloppy but the standard bronze DU bushings have worked great.


Canyon Shawn

Active member
Feb 4, 2023
294
191
Lake Sherwood, California
One thing I do know, is the two guys that build bikes at the shop are as good as it gets. My girlfriend runs the shop, and I know them personally. So I’m very confident the bike will be built perfectly.


Canyon Shawn

Active member
Feb 4, 2023
294
191
Lake Sherwood, California

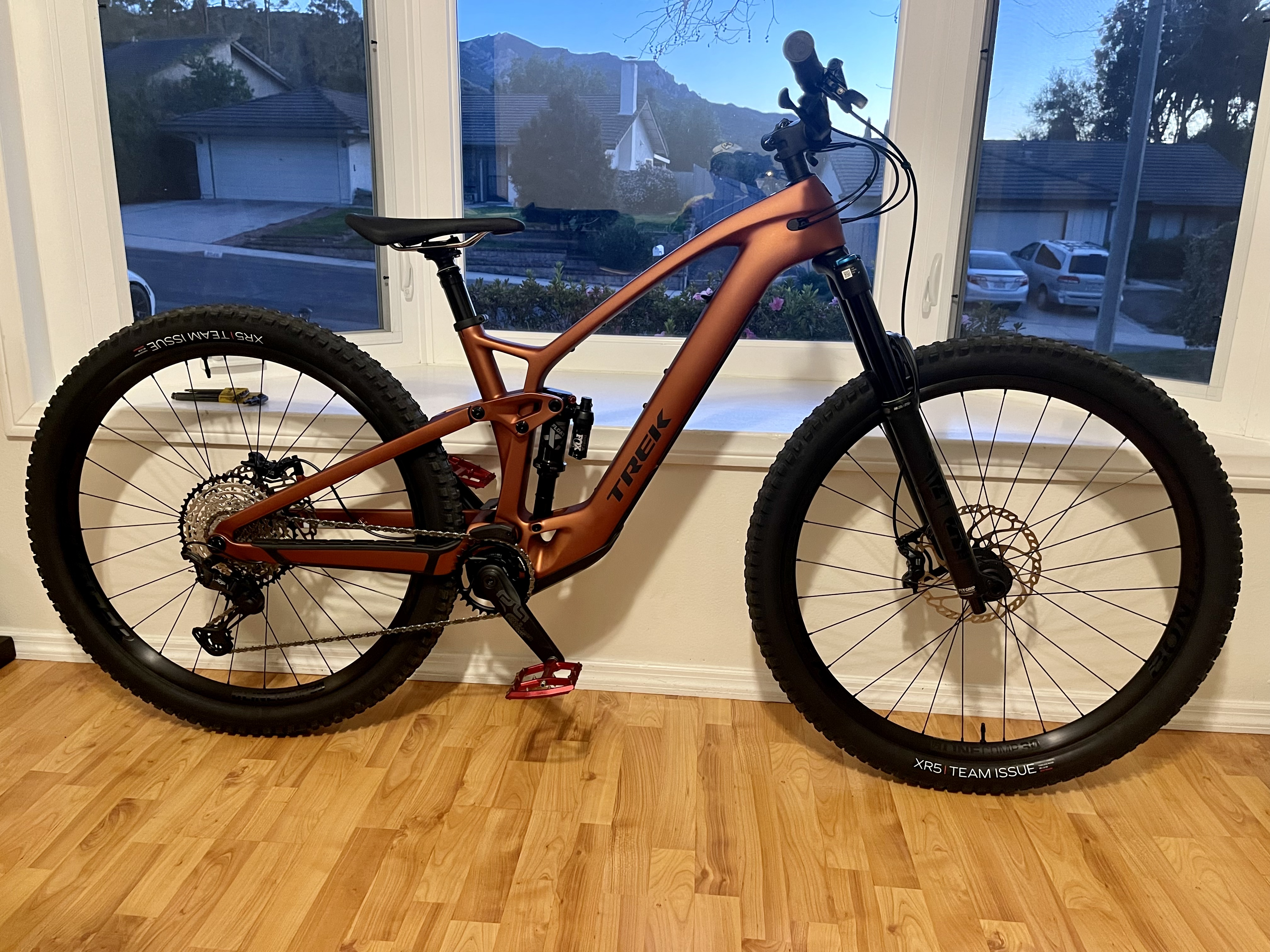

Guys, do you think a Penny flake 9.7 would look good with red ano parts? I have Penny flake graphics coming for the fork and the shock. I think the fork looks terrible with black graphics on a black fork. I’m trying to decide what color parts would look good. I don’t like gold. And black is too boring.


Cell4soul

E*POWAH Master
Jul 11, 2022
518
1,324
Mesa, AZ
Guys, do you think a Penny flake 9.7 would look good with red ano parts? I have Penny flake graphics coming for the fork and the shock. I think the fork looks terrible with black graphics on a black fork. I’m trying to decide what color parts would look good. I don’t like gold. And black is too boring.
purple looks really cool against that color. I did that on my wife’s Juliana Furtado, which was the same color as Penny Flake.


playboater15

Member
Jan 11, 2023
20
6
Crickhowell
Looks like Fox are sending out 39.88mm hardware for a 40x8 mount bike. Warranty seems a quick replacement, BS are sending me a Burgtec bushing to sort the problem as Fox don't have any 40x8... Can't imagine why not 😅Quick fix! Btw mullet medium, 2.6 DHR on the back and offset bushing, got the BB up to 328mm which seems to me to be much more tolerable than 2.4 rear and normal bushing at approx 320mm.


Swingset

Active member
Sep 9, 2022
276
310
Southern Cal
40mm is just a reference number. If Trek is trying to hold 40mm on the inside dimension of the lower shock mount then the shock bushing needs to be some agreed upon width less than 40mm to install consistently with manufacturing tolerances. 39.88mm (1.570") 40mm (1.575") results in a .005" gap to get the shock bushing inside the frame. The bolt should compress the gap out and clamp the bushing, the number seems reasonable to me. The metal fitting molded in the frame seems way too stiff to me and requires more torque to get it to clamp up. Also note that the molding of the carbon and paint in the fitting one the frame are not the cleanest.

We use diamond crusted friction shims in my line of work that would be really hard to install but would completely solve this problem. They are spendy however. May have to see If I can sneak one in and see if its a solution.


senergy

Member
Nov 9, 2022
18
14
Sydney
Looks like Fox are sending out 39.88mm hardware for a 40x8 mount bike. Warranty seems a quick replacement, BS are sending me a Burgtec bushing to sort the problem as Fox don't have any 40x8... Can't imagine why not 😅Quick fix! Btw mullet medium, 2.6 DHR on the back and offset bushing, got the BB up to 328mm which seems to me to be much more tolerable than 2.4 rear and normal bushing at approx 320mm.
I followed up my Trek Service Manager, no eta for replacement fox parts for me, and no offer of any other possible fix.


Emailsucks98

Active member
Nov 12, 2020
347
406
Bellingham Wa
what part would I be looking for?
Per the Trek website, 40mm x 8mm pin mount lower. Suggest replacing the shock bushing with a bronze bushing while you are at it. Have a shop do the labor if you aren't familiar.

These shock hardware threads are making me very thankful my town has such awesome bike shops. There's at least 3 that could diagnose and fix these issues same-day.
