Swingset
Active member
You guys over the equator considered pedaling in the opposite direction? This may be a simple problem.
Fuel EXe Trek Fuel EXe Megathread!
- Thread starter Rob Rides EMTB
- Start date
Northern Hemisphere is still on the line getting the bikes, when those at south have had the bikes since release date.
Seems like most of the bikes to Finland got pushed to March 2023.
- Thread starter
- #453
They've just dropped in the UK in the last week. Be interesting to see how they get on, especially since we are approaching rain season!
DugT
Active member
That is all I do, but I live in the desert, which sees very little mud. I don’t think the wet rag method would work with caked on mud.
DugT
Active member
The parts most vulnerable to water damage are the dash display and the motor, even though the Fuel motor is more water resistant than most emtb motors. Hosing off 90% of the bike should be ok. I plan to hose off my bike but first I will tape over the display and I will not spray near the motor.
Wiping dirt on paint is bad for the paint. It is best to remove as much dirt as possible before wiping.
Wiping dirt on paint is bad for the paint. It is best to remove as much dirt as possible before wiping.
Free_Tibet
Member
Anyone else pondering that water might possibly get in via the cable routing holes at the top of the downtube... then run down to the battery area?
Zed
Active member
Water does get in the downtube after washing. If I remove the battery afterwards there's a bit of water around the battery itself, not heaps but some. Shining a torch up the downtube (lol) the bits around the charge port etc look damp. So it does get in there. It gets in around the display I guess but also through the cable channels. I figured this was acceptable and stuff in there was designed in such a way to deal with it. Looking at the bits I can see it doesn't seem like it would be an issue to me. The battery connector is at the bottom, never gets wet there and even if it did run down the connector design would cope with it.Anyone else pondering that water might possibly get in via the cable routing holes at the top of the downtube... then run down to the battery area?
As far as (in other posts) the idea of not hosing I mean... what lol? I use a gentle hose and rinse off a LOT of red dust and some mud after most rides, like I've done with all my ebikes since 2017... If the bike can't cope with that it needs to be fixed so it does, because it would get the same treatment in a storm. Wet ragging all that off all the time... errr, no thanks. In my case here if the fault was indeed water ingress rather than an electrical fault (don't really know), the way I see it the display wasn't sealed as properly as it should be. Surely it should be able to cope with getting wet.
I know it goes against the instincts water and electricity but hey, never been electrocuted by a power washer
... yet.Bike went fine for the ride this morning. Not sure I even heard that occasional grinding noise today.
Last edited:
stantaur
Member
Has anyone had an EXe motor cut out & click a couple of times (for a half second each)? I test rode a 9.8 up our paved hill that climbs 350 ft in 0.6 mi. Display showed output between 240 - 260 Watts in Mode 2 (middle) averaging 6 MPH. Just after that, I did a short climb (maybe 50 ft rise) in Mode 3 (top power mode). This leg of the test took battery down from 90% to 80% - we did the same loop again later and it took another 10% out of the indicated charge.
Thinking the hiccups might be thermal management / throttling, but figured I should ask the folks here who have more experience with the bike. This and the battery consumption are a little concerning as I'm trying to decide between two 43 lb bikes - EXe 9.7 vs. Orbea Rise M10 demo on sale at roughly the same price ($7600 USD).
Thanks in advance for your thoughts on the reliability of this new platform.
Thinking the hiccups might be thermal management / throttling, but figured I should ask the folks here who have more experience with the bike. This and the battery consumption are a little concerning as I'm trying to decide between two 43 lb bikes - EXe 9.7 vs. Orbea Rise M10 demo on sale at roughly the same price ($7600 USD).
Thanks in advance for your thoughts on the reliability of this new platform.
I owned a Rise for about 1 year and now have the EXe. If you want more power and longer range, but don’t mind a noisy motor and typical EMTB looks, then get the Rise. If you want a little less power and range, but want the quiet motor and stealth EMTB look, get the EXe.
I also watch the battery percentage drop faster than I like, but somehow still manage about 25 miles and 3,000’ elevation. This is more than sufficient for me. The EXe takes more rider effort to reach those numbers than the Rise. With the EXe, you’ll almost forget you are on an EMTB because of the quiet motor and very smooth power delivery.
I will also say this about the Rise, the power delivery is very intuitive to the rider input and does seem to adjust based on your input. I think they call this the Ride Synergy system and it is as good as advertised.
I also watch the battery percentage drop faster than I like, but somehow still manage about 25 miles and 3,000’ elevation. This is more than sufficient for me. The EXe takes more rider effort to reach those numbers than the Rise. With the EXe, you’ll almost forget you are on an EMTB because of the quiet motor and very smooth power delivery.
I will also say this about the Rise, the power delivery is very intuitive to the rider input and does seem to adjust based on your input. I think they call this the Ride Synergy system and it is as good as advertised.
Nice bike! This is more or less the same setup I'm going to do. Was in doubt about a coil, but wanna try this Float X first. Do you like the combination of the Fox 36 with the Float X on the EXE?
Did you have to use any bushings, or was it just plug&play with the damper?
Last edited:
Thanks mate. I’ve only had two rides on it so I’m still dialling in the suspension. The shock feels pretty firm even with the sag set at 25% I’ll keep working on it and hopefully get it up how I like it. If not I have an X2 with a 65mm stroke that I’ll try on it.
I bought a Fox 40mm x 8mm mounting kit for the shock but you would be able to use the original mounting hardware if you have the tools to press out the bushing.
DugT
Active member

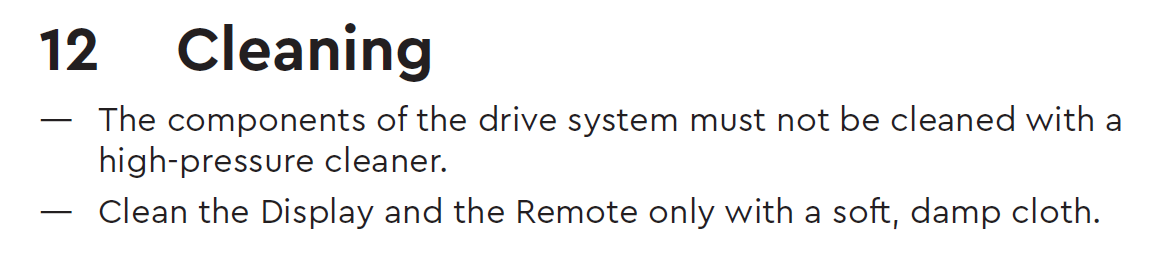

Here is what the manual says about cleaning the EXe.
Last edited:
TheRed
Member
@Cell4soul How is the Float X2 working for you? Have you had the same stroke length shock as was on it?
TheRed
Member
Does anybody know what pattern the E13 chainring is? Shimano, Bosch or Brose?
Has anybody gone up to a 34t?
Has anybody gone up to a 34t?
These are all the same symptoms I had. My LBS had seen it before and in both cases was fixed by replacing the display unit. I thought water was a potential culprit, but the display unit is IP66 rated. More likely it’s a hardware issue. If others encounter this, I found the display unit could be turned on by plugging the charger in, which is a pretty sad hack but at least it’s something.
So far so good, but I am still dialing it in. I only have 3 rides in so far. I can report back.
Not sure about chain ring, but my 160mm EThirteen cranks were Brose compatible If I recall.
BBFII
Member

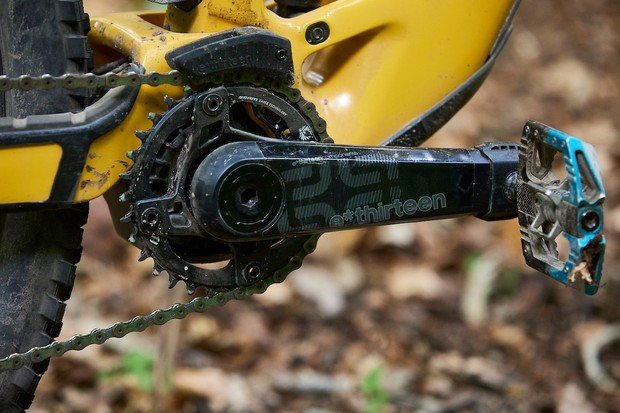

The TQ to Chainring/Spider connector is TQ's own lobe design. Depending on your level, you got a 1pc e13 or 2pc-spider. 2pc spider shown in the pic is 104 BCD that will fit any standard ring. (you may be able to order this as a spare part)
34t: you CAN fit it, but after riding many iterations, the 32t has the best range for me. Larger ring can push the chain outside the main pivot center, creating more pedal bob. The only reason I could see doing this is if you are very fit and/or spinning out your cassette 10t often. What is the main driver for trying a 34t? maybe it is something else.
Swingset
Active member
The bolt circle diameter for E13 cranks according to the internet is 104mm with 4 holes
DugT
Active member

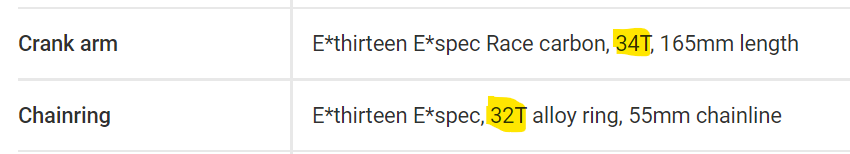

My 9.8XT has two chainrings according to the spec. On the one chainring on my bike, I couldn't see the tooth count and I didn't feel like counting them.

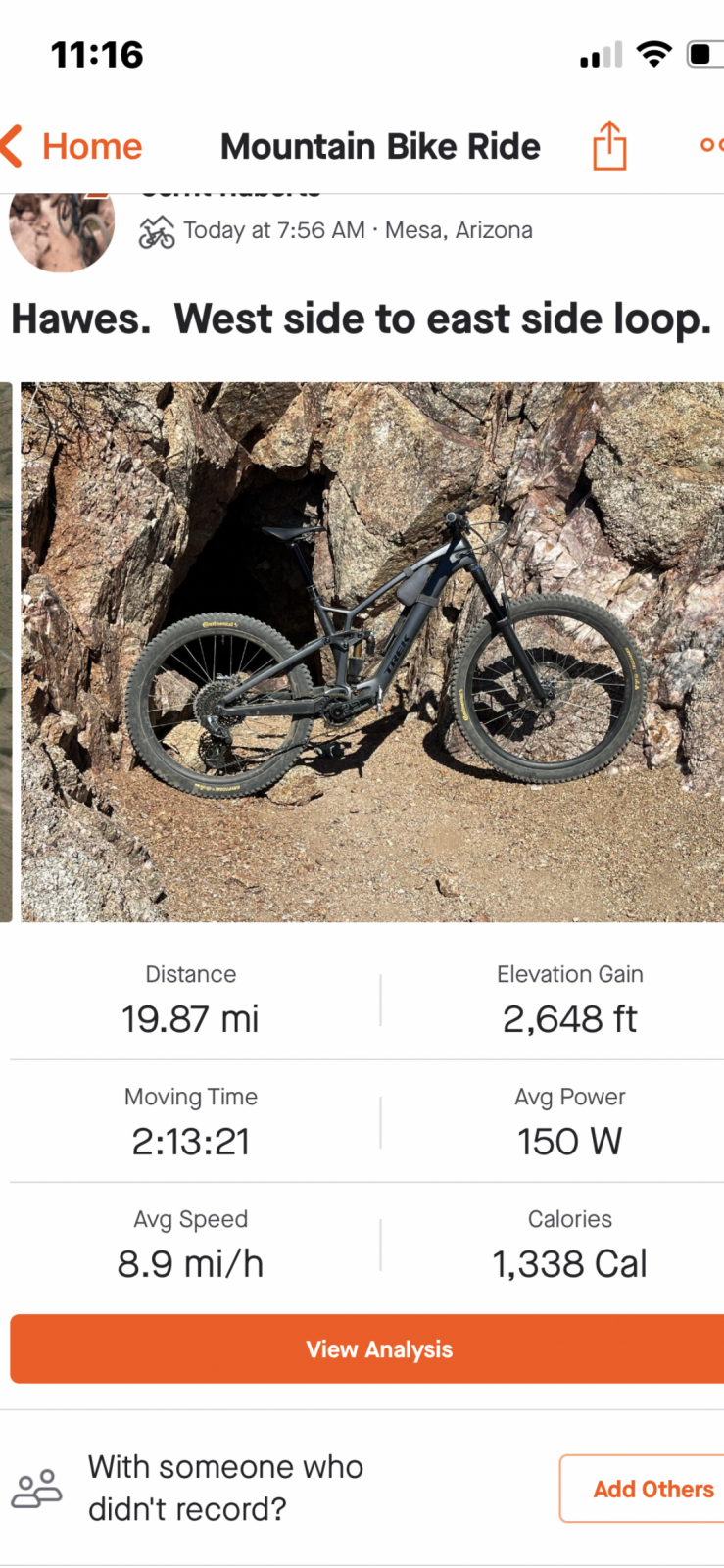

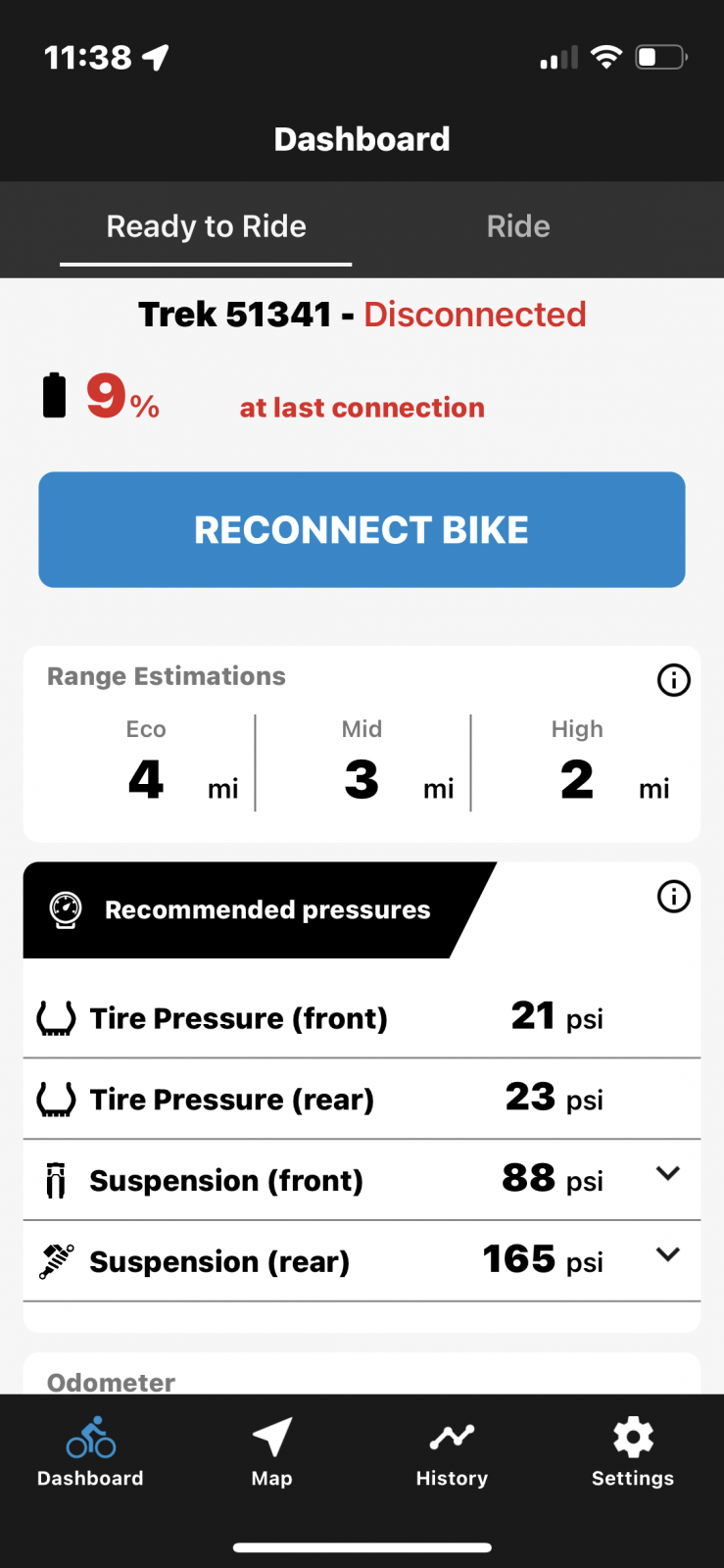

Another ride today. Did about 20 miles with about 2,700’ elevation. There was 9% battery remaining when I finished the ride. Range is ok, but do think TQ could have done better with range. That said, the EXe is an in incredible bike. Other than the extra power you can’t tell the difference between this and a full pedal MTB. Highly recommend this bike. No regrets here.
Curious about where you have your app tune settings. I found that it makes a huge difference in range.
Do you use some kind of protectiontape under the straps of the grey bag mounted in the front? I do have the same bag on another bike and with the standard protectiontape of EVOC I discovered many scratches.
GolfMaster52
Active member
There are 2 different chainrings. One that comes equipped with Sram and one for bikes with Shimano. You can look at the pictures on the Trek website and see the differences. My girlfriend got her 9.7 in July and wanted to put her Sram cassette on, but our Trek LBS said the Shimano cassette wasn't compatible with the Shimano chainring and the individual chainrings wouldn't be available until the 1 quarter of 2023. Not sure If any of that has changed, since then.
@Rob Rides EMTB
Great job with your Slash EXe video. Completely agree that it's nice to tinker and it's a shame that the ebike companies prefer to push out trail builds because that's what people think they want, when really there are few downsides to having more travel (my dad has a Kenevo and he's XC all the way, but has never once thought that it is "too much bike", instead he just finds it comfy).
By the way, instead of raising the flip chip to get front end back again, maybe you could have fitted lower rise bars or removed some stem spacers. Bringing the front down a little would probably have helped weight the front end but still run it super slack.
Still, love what you did getting the balance back to factory, but just with more squish.
Great job with your Slash EXe video. Completely agree that it's nice to tinker and it's a shame that the ebike companies prefer to push out trail builds because that's what people think they want, when really there are few downsides to having more travel (my dad has a Kenevo and he's XC all the way, but has never once thought that it is "too much bike", instead he just finds it comfy).
By the way, instead of raising the flip chip to get front end back again, maybe you could have fitted lower rise bars or removed some stem spacers. Bringing the front down a little would probably have helped weight the front end but still run it super slack.
Still, love what you did getting the balance back to factory, but just with more squish.
socal_rider
Member
My LBS has a ticket open with TQ regarding the 4414 code. It doesn’t store in memory when it occurs. Luckily I had a video of the code flashing across the screen that my LBS sent to TQ.
I took the bike back from my LBS so I could continue riding it while they work with TQ. Hopefully the issue doesn’t lead to a dead motor or battery on the trail. So far turning it off-on or or unplugging-replugging in the battery has reset things back to normal.
My lower shock noise was solved by retorquing the lower shock bolt.
