STUnlocker (ex Shimano STEPS Unlocker) Android & Windows App for derestriction/market change and etc

vadII

E*POWAH Master
Feb 19, 2019
800
576
Earth
I have not been able to get the log data but now for a second time, I have seen this live in the store with the technician logging in remotely, via the PC interface, Runing a software pack, and hay presto.....
And what did you see exactly? Apps names? Date and time of a bike access? Log of changes?

added:
Why didn't you take photos? Why didn't you compare what you saw with your actual actions with the bike?


WogsRus

Member
Sep 13, 2021
43
21
Tasmania, Hobart
And what did you see exactly? Apps names? Date and time of a bike access? Log of changes?

The software showed what interface was connected, ie Bluetooth or PC interface, and then noted dates and times although not correct as it was summer time so out by an hour, and then the words "authorised" and "unothorised"

That all I can tell you and I have asked for the log and noted it will not be provided


vadII

E*POWAH Master
Feb 19, 2019
800
576
Earth
The software showed what interface was connected, ie Bluetooth or PC interface, and then noted dates and times although not correct as it was summer time so out by an hour, and then the words "authorised" and "unothorised"

That all I can tell you and I have asked for the log and noted it will not be provided
Unbelievable story, sorry. Would be nice to see any proofs


vadII

E*POWAH Master
Feb 19, 2019
800
576
Earth
Why is it so hard to believe? And yes I know you wrote to app etc, why would I make this shit up.

Seriously.....
Because I know how Bluetooth works. I told you how they can determine "unauthorized tuning": current settings of your bike do not match factory settings and regulation settings (EP8).


WogsRus

Member
Sep 13, 2021
43
21
Tasmania, Hobart
Because I know how Bluetooth works. I told you how they can determine "unauthorized tuning": current settings of your bike do not match factory settings and regulation settings (EP8).

I never said it was via Bluetooth. The shop uses a PC interface. And the log simply shows if the device connected was bluethooth connection or PC assuming, ip connected.

Either way, my bike, which I believe changed the regulation log after it crashed and now another bike, exhibit the same issues. ETube or what ever, somehow changed the regulation log.


vadII

E*POWAH Master
Feb 19, 2019
800
576
Earth
I never said it was via Bluetooth. The shop uses a PC interface. And the log simply shows if the device connected was bluethooth connection or PC assuming, ip connected.

Either way, my bike, which I believe changed the regulation log after it crashed and now another bike, exhibit the same issues. ETube or what ever, somehow changed the regulation log.
I know that they are use PCE interface (I own it, as do many other Shimano bike owners). I'm telling you about your Bluetooth connections to your bikes. The bike/motor/display can not know, you connect to it through ETube or another App.


WogsRus

Member
Sep 13, 2021
43
21
Tasmania, Hobart
I know that they are use PCE interface (I own it, as do many other Shimano bike owners). I'm telling you about your Bluetooth connections to your bikes. The bike/motor/display can not know, you connect to it through ETube or another App.


Ok so let's say it can't, why, why cant the motor which is where the software for the system sits, log that data. If you connect via the PC interface, which I also have, and Bluetooth, it's done in a very different way from a software perspective.

Bluetooth uses a different means of communication via the controller vs pc interface.


vadII

E*POWAH Master
Feb 19, 2019
800
576
Earth
Ok so let's say it can't, why, why cant the motor which is where the software for the system sits, log that data. If you connect via the PC interface, which I also have, and Bluetooth, it's done in a very different way from a software perspective.

Bluetooth uses a different means of communication via the controller vs pc interface.
Yes, motor/display can determine which interface is used: Bluetooth or PCE. This is why it's not possible to change advanced settings on latest firmware via Bluetooth. But it can't determine is it original ETube App or STUnlocker because all commands which are used for a connection are the same.


DJ57UMP

Active member
Mar 13, 2021
177
157
England
@WogsRus @vadII I'm not sure you guys aren't going round in circles.

@WogsRus, I have the PCE and connect it to my laptop. When I use Etube to see the logs and do diagnosis all I get are a list of errors - there's no mention of any region changes that are made or indeed what apps are used to connect to the system.

@Vadll, are you aware of any additional software features that a Shimano support centre may have? Because if it's just down to Etube then I can't see anything other than errors when I look.


vadII

E*POWAH Master
Feb 19, 2019
800
576
Earth
@Vadll, are you aware of any additional software features that a Shimano support centre may have? Because if it's just down to Etube then I can't see anything other than errors when I look.
I think they use the same "E-Tube Project for Professional" but with additional features which can be activated with the license key or something else.


DJ57UMP

Active member
Mar 13, 2021
177
157
England
I think they use the same "E-Tube Project for Professional" but with additional features which can be activated with the license key or something else.

From what I can see the E-Tube Project Professional is a re-badged version of E-Tube Project for Windows. This is the app that I use with my bike and all I get are logs containing error messages.

That being said ver 5.0.1 does say one of the new features is a warning notice to detect unauthorized drive unit tuning. I'll update my app and connect it to the bike to see what it has to say!


vadII

E*POWAH Master
Feb 19, 2019
800
576
Earth
That being said ver 5.0.1 does say one of the new features is a warning notice to detect unauthorized drive unit tuning. I'll update my app and connect it to the bike to see what it has to say!
Actual version is 5.0.2 and I don't see any "warning notices" on my derestricted EP8 with custom settings


WogsRus

Member
Sep 13, 2021
43
21
Tasmania, Hobart
@WogsRus @vadII I'm not sure you guys aren't going round in circles.

@WogsRus, I have the PCE and connect it to my laptop. When I use Etube to see the logs and do diagnosis all I get are a list of errors - there's no mention of any region changes that are made or indeed what apps are used to connect to the system.

@Vadll, are you aware of any additional software features that a Shimano support centre may have? Because if it's just down to Etube then I can't see anything other than errors when I look.

From what I could see, it wasnt ETube, it didn't appear to have a nice interface, more script based.

So does anyone have a Shimano key and used the full blown version? Of the latest ETube


creole3000

Member
Nov 1, 2021
1
0
australia

Hi vadII,
@Vadll
I am ready to also jump into Stunlocker for my DUE7000 , i only wish to change region from AU to US/32kh/h!
  • I will be performing it via android version of stunlocker
  • Currently my E7000 is 4.6.0 (i have firmware to roll back to 4.5)
  • My question is my android ETUBE app is ver 5.0, do i have to also roll back to version 4.0.2 ?
    • I found instructions from et***ing that instructs to use ETUBE 4.0.2 to rollback E7000 firmware to 4.5
Kindly advise . thanks


KuRi

Active member
May 30, 2019
376
186
Spain
Hi! Today I tried to change power output values on ep8 rs motor (settings activated) but there is no edit button. Is this a premium license option only? Thanks!


vadII

E*POWAH Master
Feb 19, 2019
800
576
Earth
Hi! Today I tried to change power output values on ep8 rs motor (settings activated) but there is no edit button. Is this a premium license option only? Thanks!
Power and Torque settings can be set via Shimano PCE interface only


vadII

E*POWAH Master
Feb 19, 2019
800
576
Earth
Ok, thank you! Why does emax mobile app allow this? Cheers
I do not think that's possible. Power and TQ limits were introduced in 4.1.+ firmware. But on 4.1+ firmwares it is impossible to change anything except an assist level. I tested these commands on my EP8 bike and they didn't work via Bluetooth.


KuRi

Active member
May 30, 2019
376
186
Spain
Mmm, I just tested this on emax on my orbea rise and they were changed, and it did make a difference. After changing these params the new values appeared also on the stunlocker app (250,350,500W).

However when setting to 500W and 85nm the motor were doing some bad vibrations when battery < 30%.

I don't know how they did it but I know you are a very experienced developer with shimano motors so I trust your opinion a lot... Let me know if you need some screenshots. Thanks!


vadII

E*POWAH Master
Feb 19, 2019
800
576
Earth
Mmm, I just tested this on emax on my orbea rise and they were changed, and it did make a difference. After changing these params the new values appeared also on the stunlocker app (250,350,500W).
What is the firmware version on your motor?

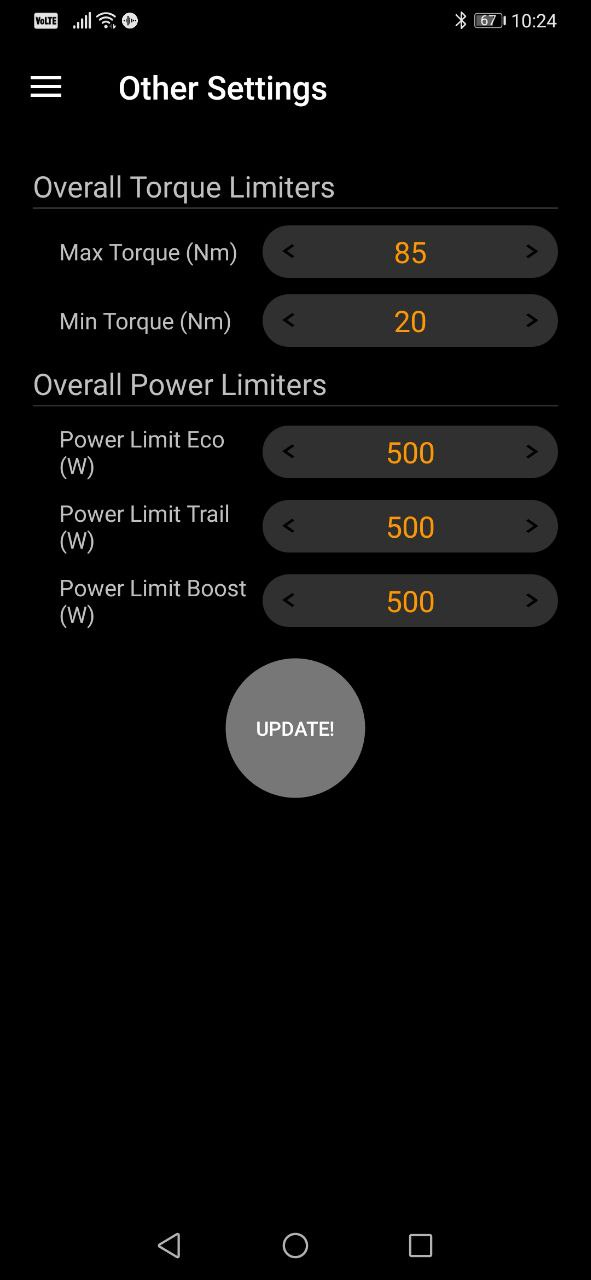

Anyway, you can try to change them in STUnlocker as well:


KuRi

Active member
May 30, 2019
376
186
Spain
My firmware is 4.1.7 and I although it appears the edit button on the torque/power settings it cannot be pressed so I cannot acess the "other settings" screen :(


vadII

E*POWAH Master
Feb 19, 2019
800
576
Earth
My firmware is 4.1.7 and I although it appears the edit button on the torque/power settings it cannot be pressed so I cannot acess the "other settings" screen :(
"Other settings" are available with the Premium licence


KuRi

Active member
May 30, 2019
376
186
Spain
They are available for "free", you only have to pay 1$ to download the app. I have no problem paying for the stunlocker premium license. I do not need to change the region but the ability to change the max torque and power settings is very useful.

One other thing is that stunlocker allowed me to choose a 32T chainring size but emax won't allow me to select anything below 34T.
