Official Merida eOne-Sixty thread
- Thread starter Basy
- Start date
Hi,
Anyone else had their aluminum eone-sixty frame cracked and replaced by Merida ?
After opening service request, How much time does it takes to get a response from Merida service ?
How much time to approve a replacement ?
Local dealer claims Merida is stalling.
#FeelingIgnoredAttach files
Thanks,
S.K.
Anyone else had their aluminum eone-sixty frame cracked and replaced by Merida ?
After opening service request, How much time does it takes to get a response from Merida service ?
How much time to approve a replacement ?
Local dealer claims Merida is stalling.
#FeelingIgnoredAttach files
Thanks,
S.K.
Last edited:
I don't have any specific experience but seeing you can't get a LOT of parts at the moment maybe they just don't have one in the country. A lot of what I needed recently I had to get shipped from Europe to Australia..... Just no stock here anywhere.
Last edited:
Renan Mendes
Member

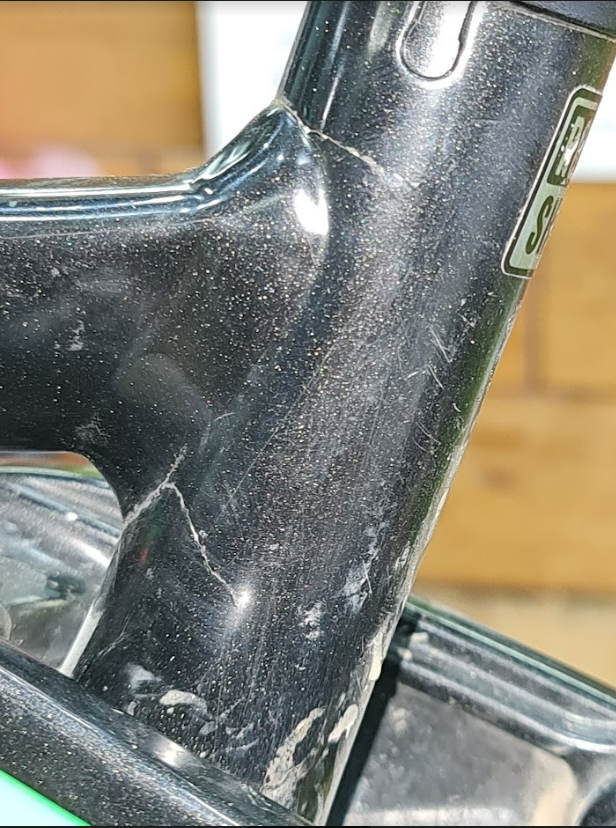

I have a crack in my frame too, I sent it to the factory when I called the warranty and despite being told that the frame was going to be replaced, at the moment they didn't have stock and they gave me a (absurd) delivery deadline for December. I was also told that the frame was analyzed and that I could continue to use it.
ps: I called the warranty in February... So technically 10 months of waiting
Renan Mendes
Member
In process of having a 2021 Carbon e160 front triangle replaced (Uk based) after finding delamination inside the headset during a service. Issue reported start of May. My LBS had to go through Merida UK then Merida Taiwan to get it looked at (via photos). Warranty replacement approved start of June. When it went to Taiwan it took probably 2 weeks for them to respond. Expecting the frame in August at some point (probably towards the end).
Natxoman
Member
Yo sigo a la espera de un cuadro por rotura en esa zona, desde el 29 de marzo.
En Merida España están a la espera de recibir........ no se fechas......
En Merida España están a la espera de recibir........ no se fechas......
Matt_Rider
Member
Anyone with a 2022 E160 fitted a OneUp 210mm dropper post?
No but I do know the frames insertion depth isn't much.
Jun
New Member
Anyone who has experienced ep8 stopped assisting while pedaling on plat ground in eco mode? Speed was under 20 km/h. Pedals were getting heavier and no error code appeared. So I stopped pedaling a second and when I started pedaling again ep8 started assisting too, exceeding the speed just before. This happened on flat ground and in eco mode mostly. It just stops like I'm going downhill without pedal torque.
Last edited:
Not sure if you have resolved your issue, but this sounds like an issue I had and it wasn't just in eco mode. If it cuts in and out, the cable from the control to the battery in the headset may have been frayed or cut which is causing the on/off issue. My LBS helped replace the cable and I was back on the road, no issues to date.
Did you find a solution? How is it working for you? I’m also thinking on buying Hope Fortus, rear wheel, but it’s 6 bolt only. Thanks
Have replaced the wheels on my E160 with I9 hubs and use Sram HS2 rotors with a bolt on magnet, I had to slightly file down the metal casing for the magnet as it was just clipping the sensor on the frame, but now its perfect.
Natxoman
Member
Despues de 7 meses ha llegado el nuevo cuadro .
Changed my wheelset over to Hope Fortus 30 a month or so ago. Switched to Shimano icetech 6 bolt rotors and SRAM AXS at same time and just put a shimano e8000 disc rotor magnet on it (think I got it off Commencal site as was quite difficult to find). Fits fine with no adjustment and no issues since done. I did originally try the bosch rotor magnet that worked but wasn't quite positioned properly and very close to the frame. Also felt some inconsistent power delivery which I suspect down to poor positioning. The Shimano magnet works perfectly. On 2021 e160 8000.
Yes, doesn't seem to be an issue. Just be sensible and don't cover it, unplug when not in use...
steve_sordy
Wedding Crasher
Don't sit it on a flammable surface. Concrete or tiles. Just in case.
I leave my charger unattended on a timer, it would, normally sit on a sisal mat that has a rubber backing. It would burn like crazy if prompted, so I roll it back just for the charging.
What model charger do you have? It looks like it has a standard figure 8 input cable? Mine is hardwired so can't be extended which is a pain as the power socket is just a little bit far from my bike rack, so the charger hangs in the air..
Does anyone know if you can get an angleset for the aluminium E160 Limited?

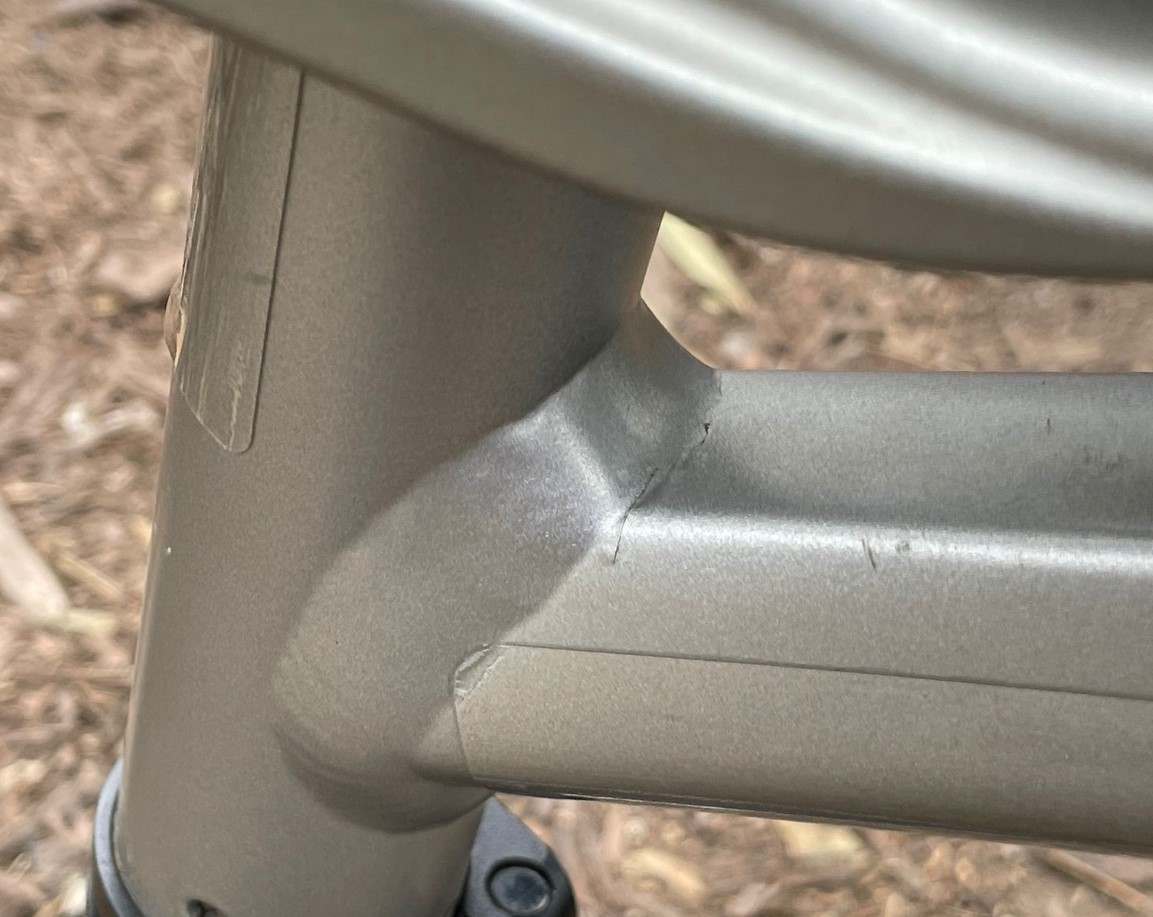

I ran one on my old E160 800, which worked great, but the frame cracked on that bike in the same place as other people have experienced (top tube weld to seat tube).
Just don't know if the later aluminium versions accept an angleset - it looks like people with carbon bikes are having troubles getting them?
I ran one on my old E160 800, which worked great, but the frame cracked on that bike in the same place as other people have experienced (top tube weld to seat tube).
Just don't know if the later aluminium versions accept an angleset - it looks like people with carbon bikes are having troubles getting them?
Last edited:
Answer to my own qu: No, the Merida E160 Al Limited has an integrated headset which the bearings just slot into, no cups that can be replaced unlike the original E160. A slack R kit might work, but I haven't investigated further as I am over forking so have already raised the front significantly.

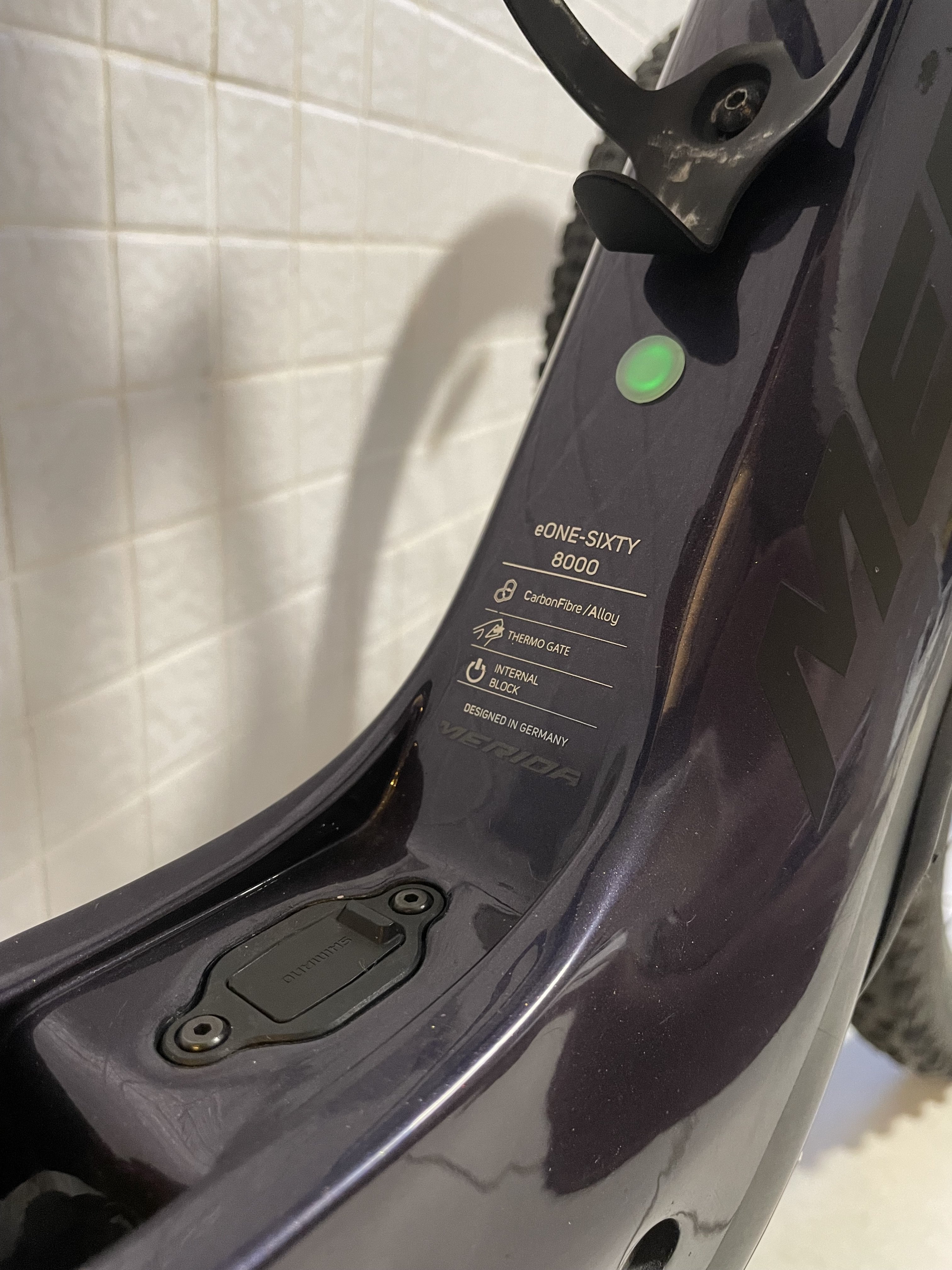

FYI, Charging indicator mod:
I replaced the black plastic cap in the downtube with a transparent silicon 8mm cap.
Now the LED that’s on the battery itself illuminates the cap.
While charging, number of blinks = number of bars.
I used the one from the link below, 8mm, transparent.
www.aliexpress.com
I replaced the black plastic cap in the downtube with a transparent silicon 8mm cap.
Now the LED that’s on the battery itself illuminates the cap.
While charging, number of blinks = number of bars.
I used the one from the link below, 8mm, transparent.

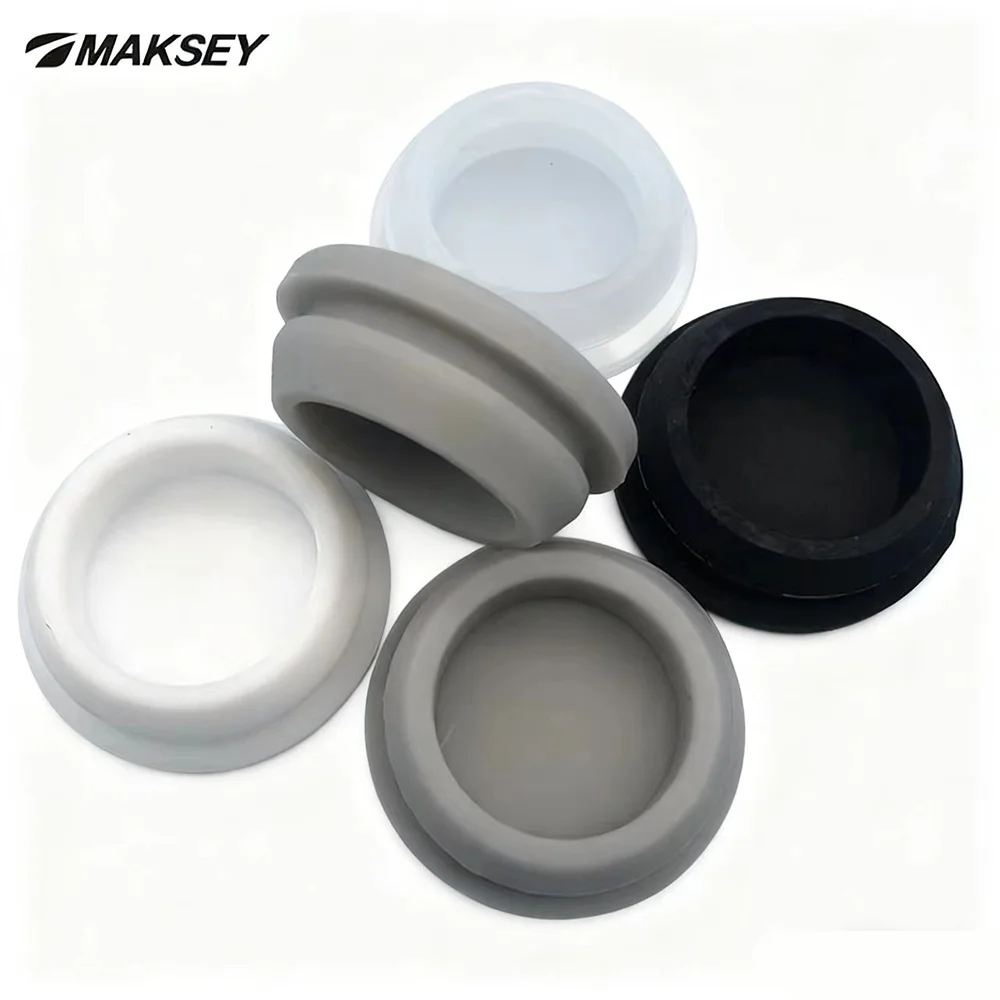

MAKSEY 10PCS 21 22 23 24 25 26mm Silicone Plug Male T Plug Stopper Rubber Gasket Seal Pung Round Hole Masking Pipe Tube End Caps - AliExpress 13
Smarter Shopping, Better Living! Aliexpress.com
www.aliexpress.com
Last edited:
That's genius! All the engineers at merida and they didn't think of that. I'm doing that to mine!
That's awesome man! Have ordered some of them!FYI, Charging indicator mod:
I replaced the black plastic cap in the downtube with a transparent silicon 8mm cap.
Now the LED that’s on the battery itself illuminates the cap.
While charging, number of blinks = number of bars.
View attachment 114130
I used the one from the link below, 8mm, transparent.
MAKSEY 10PCS 21 22 23 24 25 26mm Silicone Plug Male T Plug Stopper Rubber Gasket Seal Pung Round Hole Masking Pipe Tube End Caps - AliExpress 13
Smarter Shopping, Better Living! Aliexpress.com
Absolutely brilliant idea, well done and thank you so much for sharing.FYI, Charging indicator mod:
I replaced the black plastic cap in the downtube with a transparent silicon 8mm cap.
Now the LED that’s on the battery itself illuminates the cap.
While charging, number of blinks = number of bars.
View attachment 114130
I used the one from the link below, 8mm, transparent.
MAKSEY 10PCS 21 22 23 24 25 26mm Silicone Plug Male T Plug Stopper Rubber Gasket Seal Pung Round Hole Masking Pipe Tube End Caps - AliExpress 13
Smarter Shopping, Better Living! Aliexpress.com
Matt_Rider
Member
Excellent idea! Have bought some for the whole crew!
Super, Super find - would you send me a couple of the 10 you received and I will pay your costs - I don't like to order from Aliexpress.FYI, Charging indicator mod:
I replaced the black plastic cap in the downtube with a transparent silicon 8mm cap.
Now the LED that’s on the battery itself illuminates the cap.
While charging, number of blinks = number of bars.
View attachment 114130
I used the one from the link below, 8mm, transparent.
MAKSEY 10PCS 21 22 23 24 25 26mm Silicone Plug Male T Plug Stopper Rubber Gasket Seal Pung Round Hole Masking Pipe Tube End Caps - AliExpress 13
Smarter Shopping, Better Living! Aliexpress.com
Thanks,
I’m from Israel, so mailing it to you is a hassle…
Just FYI for the E160 limited Al, the headset bearings are 2 x P16K same top and bottom)
P16K | Headset Bearing
Same as MH-P16, but has a 36 deg inner chamfer. Used on many BMC Road bikes lower cup. Inner x Outer x Depth (mm): 40 x 52 x 7Inch Dia: 1 - 1 / 2”Angle / Chamfer (Deg): 36 / 45Material: Chromium SteelAlternative Names: PT-R426, MR196
www.kineticbikebearings.com
Merida 1901 headset (integrated)
Outer Diameter 52mm
Inner 40mm
7mm deep
36deg inside/45deg outside chamfer

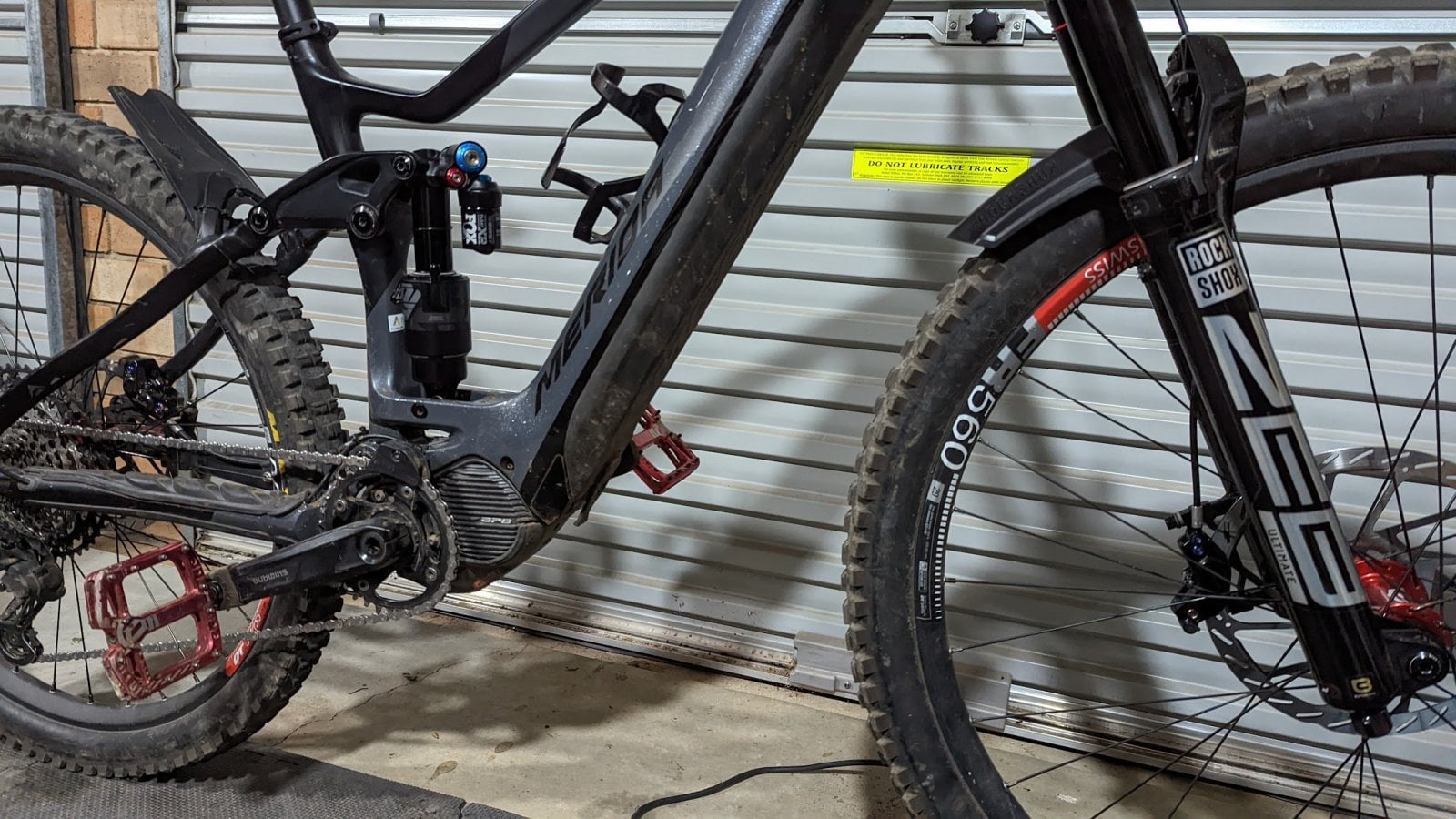

My Merida is riding like an absolute dream now.
180mm Zeb with smashpot coil conversion from TF Tuned (40lbs/in spring for my 60kg weight) 1 shim in the hydraulic bottom out for minimum resistance (endless coil feel).
Fox Van RC coil (same as the Marzocchi Bomber CR) Trunnion 205x65 400lbs/in. Much better than my MegNeg for compliance and endless plushness and you can adjust the compression damping to fine tune the support and bottom out. I was going to get a progressive rate spring but I really don't think it is required as I don't need it to be any more plush at sag. Highly recommended coil at both ends! Still playful as ever but eats up rough terrain with no arm pump.
I was initially concerned that maybe the shock is a bit cheap but it performs as well as I could possibly want.
180mm Zeb with smashpot coil conversion from TF Tuned (40lbs/in spring for my 60kg weight) 1 shim in the hydraulic bottom out for minimum resistance (endless coil feel).
Fox Van RC coil (same as the Marzocchi Bomber CR) Trunnion 205x65 400lbs/in. Much better than my MegNeg for compliance and endless plushness and you can adjust the compression damping to fine tune the support and bottom out. I was going to get a progressive rate spring but I really don't think it is required as I don't need it to be any more plush at sag. Highly recommended coil at both ends! Still playful as ever but eats up rough terrain with no arm pump.
I was initially concerned that maybe the shock is a bit cheap but it performs as well as I could possibly want.
