Are you running guide brakes? Try taking the caliper off and shake it. Just swapped mine out for XT and the rattles have gone.
Levo SL Gen 1 Official Levo SL Thread
- Thread starter Rob Rides EMTB
- Start date
-
- Tags
- levo sl
Reminds me of a sign on a greenway in NC. Obviously someone must have tried it to get the authorities to hastily post this sign.
Mandatory e-bike content: I didn't have an e-bike then but sure wish I did after 30 miles of 90 degrees/90% humidity.
my SWAT tool is making alot of noise in mine, also there is alot of cable slack under the TPU could be that too.
Tommidd
New Member
Bencab
Well-known member
Anyone gonna get one of these?
Levo SL Link
Our link for the Levo SL gives the suspension 70% more progression, as well as a 5mm travel increase. This allows the bike to be run with a stiff enough spring to prevent harsh bottom outs, without having to compromise on small bump sensitivity or ride height. For riders on air shocks, fewer...cascadecomponents.bike

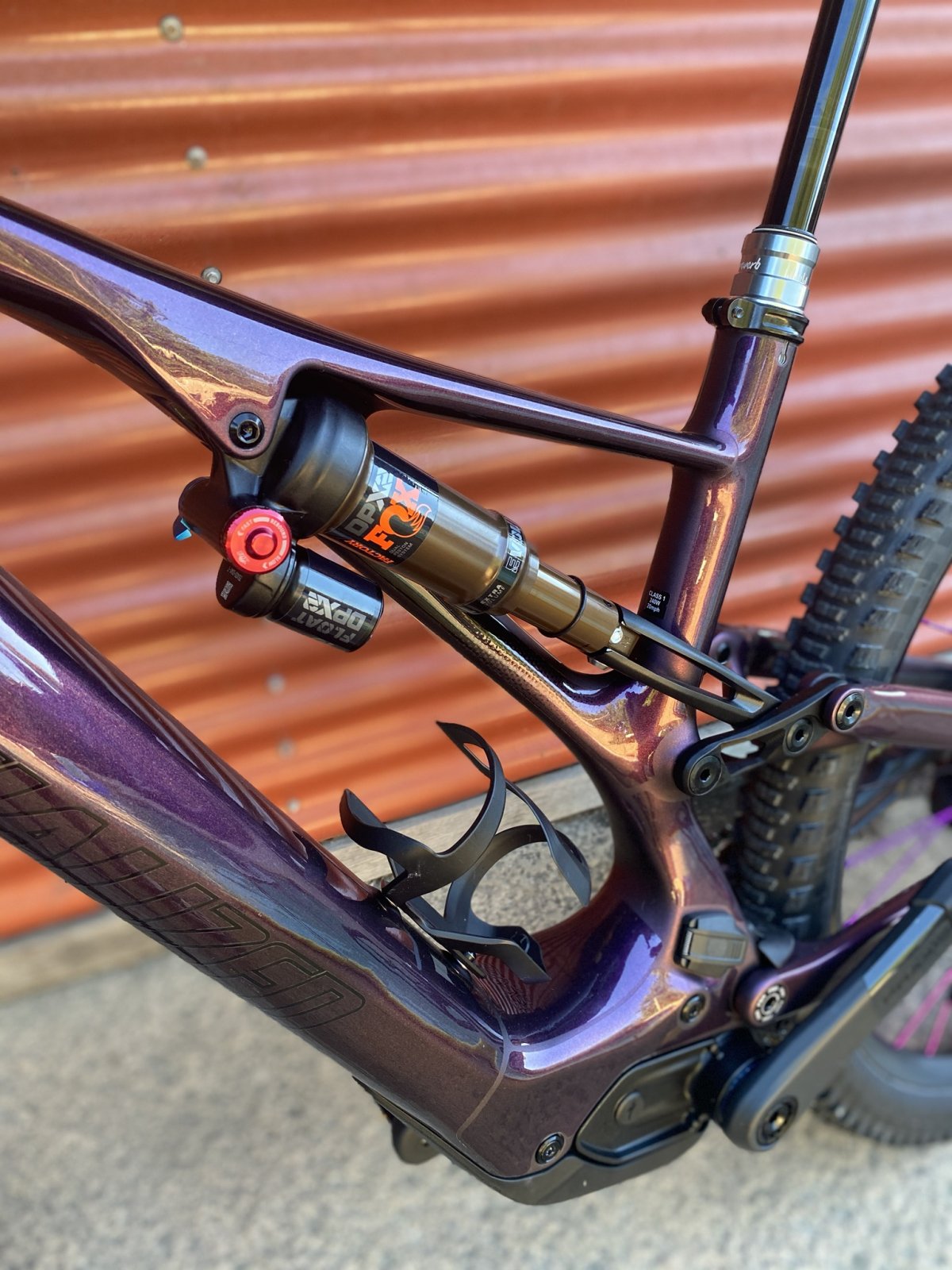

I have it paired with Push ElevenSix coil shock.
Yes, stock travel length for the shock, and I flipped the chip. Altogether it works well for me, I like it. Can't tell much on the progressiveness of the Cascade link since I installed the coil shock at the same time. I'm an intermediate rider at best, haven't bottomed out but I'm not hitting big jumps or drops either.
Kpmnd85
Member
Yes, I installed it ~3 weeks ago. Rode it for a week with the stock Fox DPS Performance shock while I waited for my Cane Creek coil shock to come in. I plan to try flipping the chip to see the difference, but at this point I like the linkage. Like flippn, I'm not hitting big jumps.Anyone gonna get one of these?
Levo SL Link
Our link for the Levo SL gives the suspension 70% more progression, as well as a 5mm travel increase. This allows the bike to be run with a stiff enough spring to prevent harsh bottom outs, without having to compromise on small bump sensitivity or ride height. For riders on air shocks, fewer...
Mine rattles on rough stuff,a metallic sort of sound. On investigation I can only assume that the noise is created by backlash in the internal gears as it doesn't happen when pedalling in really rough stuff. I have gone down the route of 'if it's an issue it'll break and get fixed on warranty'.
Waynetta
E*POWAH Master
yes but the rear cassette had to stay SRAM as did the discs. Shimano discs are centre lock so only the levers and calliper were changed for SLX. The free hub couldnt be changed either to take the 12 speed Shimano cassette. Still all works really well and the brakes are great.
Congratulations! Like my LBS manager said, "try riding it as is for a few weeks to see what you really want to change.". So I did, then after that I started making it the way I wanted it.
To clarify: the drivetrain is meh but good enough that I don't see spending $100's to change it; the brakes are ok (for mostly flat terrain); losing a few grams on the crank is not worth anything to me; I went with 27.5" wheels and dropped a couple pounds right there.As always, YMMV.
Last edited:
They would be my two upgrades to any Levo..
more of a creaking but i was getting ridiculous noise from the seatpost area , i tried greasing the collar thread but what got rid of it was using a different shim , a problem solvers 30.9 to 34.9
fj80psi
Member

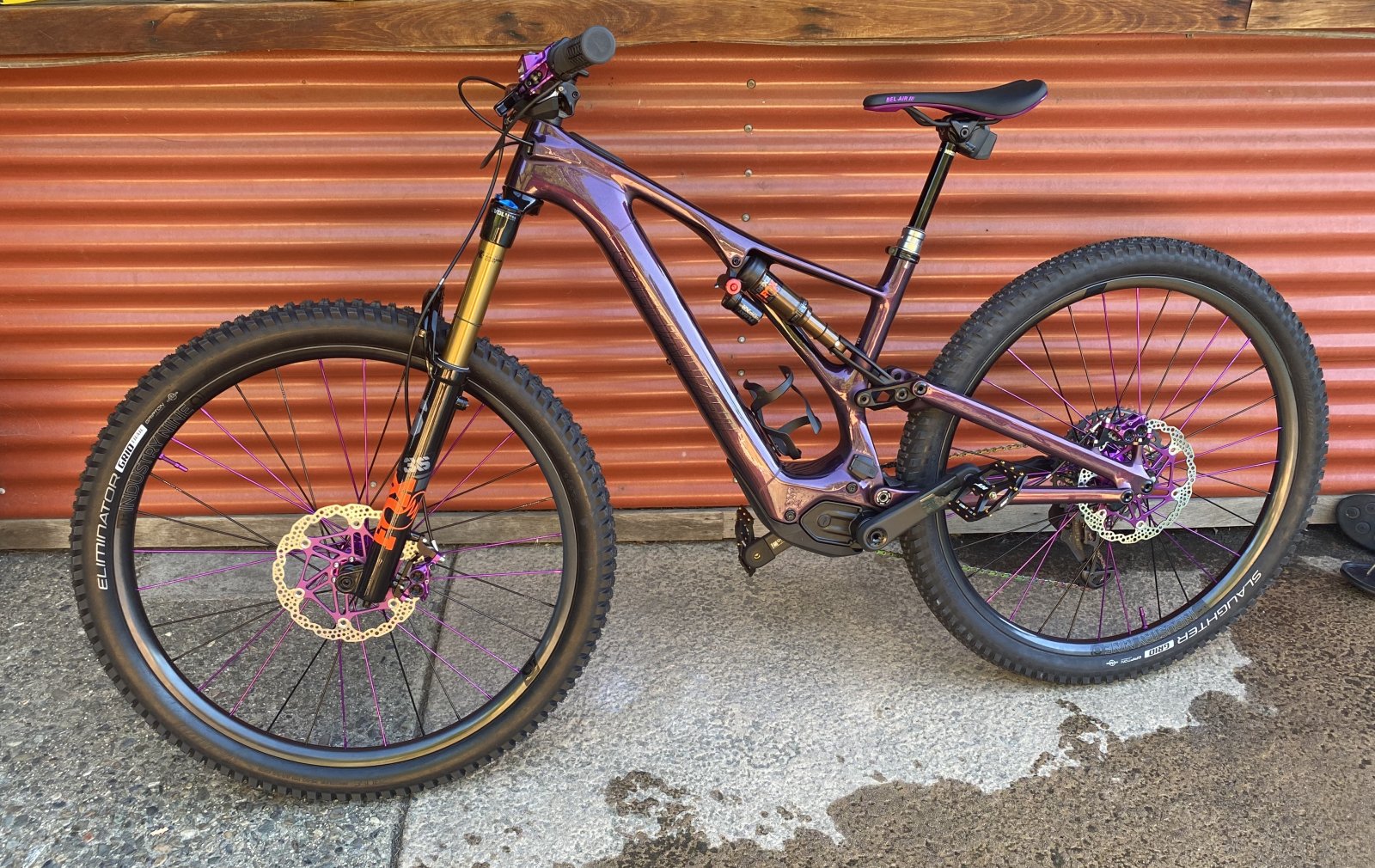

Hello, this forum has been great. Ordered my SL 5 weeks ago and broke my leg 4 1/2 weeks ago on my 18 Levo Comp Carbon FF. Decided to do a serious build on the SL which resulted In me getting another SJ Evo frame and some cranks as I had all the stock SL parts and no use for them. Now I have a sellable analog bike. Anyhow, doc says I can pedal carefully and easy. I’m super excited for this thing and rode it to work this am. Cannot wait to be healed completely! It built up 36.5 lbs with a Fox 36, DPX2 and bigger rotor in the rear. I just can’t wait to ride. Thanks for all the posts. -Andy
MrBrownstone
Well-known member
shim? Why is a shim required?
If you have an S-works, they fitted a 30.9mm AXS dropper instead of the 34.9mm and put a shim in.
Moe Ped
Well-known member

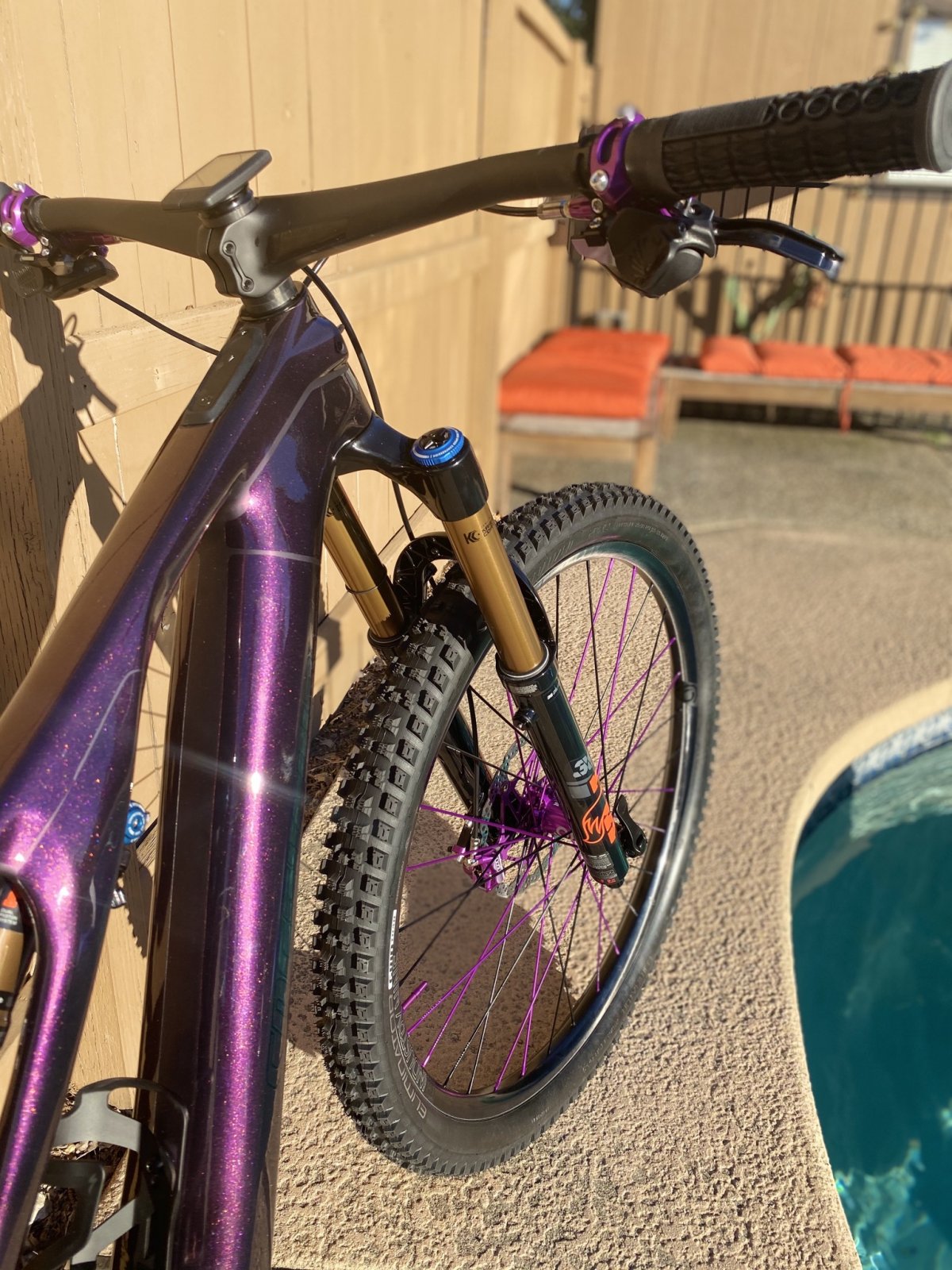

Love it, i have the same colour and always wondered what it would look like with a gloss finish as the Matt paint is hard to keep clean, now i know
Last edited:
SquireRides
E*POWAH Elite World Champion
Big hits, mine is relatively quite. Smaller chatter, the break pads/spring rattle in the caliper is really loud. Like, i though my headset or fork was broken. Mostly in the front caliper, less so at the back.
Spreading the pad spring thing helped a lot, but it's still a bit noisy over certain terrain.
(Expert, with SRAM G2)
Anyone gonna get one of these?
Levo SL Link
Our link for the Levo SL gives the suspension 70% more progression, as well as a 5mm travel increase. This allows the bike to be run with a stiff enough spring to prevent harsh bottom outs, without having to compromise on small bump sensitivity or ride height. For riders on air shocks, fewer...
Just ordered one from the UK store - cascadecomponents.co.uk. Been hoping this solves my issues with blowing through travel to hard while still having some small bump performance.
simmo-mj99
Member
hi new SL owner here purchased a new comp carbon black-gunmetal in large a week ago from freeborn in horsham, put 120 miles on it. Was a previous 2018 turbo levo carbon comp owner for two years. Just thought i would share a few initial thoughts and some upgrades i have made may help someone whose thinking of buying or already has one.
main use long rides to coast and back along bridal paths railway lines plus big loops cross country so I'm setting this up to be as light and fast as possible but being capable going to the likes of surrey hill if i choose.
little about me 56yo 100+kilos not great fitness (ride mainly in eco 25%/100%) getting 60km with about 40% remaining is just about right amount of effort for getting fitter for me.
couple things I've noticed so far this bike gives me the chance to ride with fit acoustic bike riders 30y olds at a good pace, the cut off point is not hardly noticeable unlike my old levo. i can climb hills which i would normally be pushing up on normal bike but still having to put some effort in. getting to the brakes guide r was so under whelmed with them was thinking about swapping them out for something new but had a couple of ice tec 203mm rotors with mounts + brought some disco pads (copper free) now they have gone from lever pulling all the way to bar s and pretty vague. to firming up the lever and bit point somewhere near shimano feel they are as good now as guide re on my old levo and with not even having to re bleed them.
upgrades so far:
dt swiss h1900 already had
203mm ice-tec rotors front and rear
nuke proof carbon bar + horizon 50mm stem
sram eagle gx cassette & rear mech
vittoria barzo 29x2.6 (in a few days)
main use long rides to coast and back along bridal paths railway lines plus big loops cross country so I'm setting this up to be as light and fast as possible but being capable going to the likes of surrey hill if i choose.
little about me 56yo 100+kilos not great fitness (ride mainly in eco 25%/100%) getting 60km with about 40% remaining is just about right amount of effort for getting fitter for me.
couple things I've noticed so far this bike gives me the chance to ride with fit acoustic bike riders 30y olds at a good pace, the cut off point is not hardly noticeable unlike my old levo. i can climb hills which i would normally be pushing up on normal bike but still having to put some effort in. getting to the brakes guide r was so under whelmed with them was thinking about swapping them out for something new but had a couple of ice tec 203mm rotors with mounts + brought some disco pads (copper free) now they have gone from lever pulling all the way to bar s and pretty vague. to firming up the lever and bit point somewhere near shimano feel they are as good now as guide re on my old levo and with not even having to re bleed them.
upgrades so far:
dt swiss h1900 already had
203mm ice-tec rotors front and rear
nuke proof carbon bar + horizon 50mm stem
sram eagle gx cassette & rear mech
vittoria barzo 29x2.6 (in a few days)
jimslade
Member
Quick note of thanks to all who post here.
I posted a few weeks ago while I was demoing an SL. I’ve had my new SL for a week now, and just yesterday sold my ‘19 Levo Comp.
Very happy with the switch as the SL fits my riding profile much better than the Ffat Levo did.
Perspectives here and the SL videos I watched got me to try one.
Thank you!
I posted a few weeks ago while I was demoing an SL. I’ve had my new SL for a week now, and just yesterday sold my ‘19 Levo Comp.
Very happy with the switch as the SL fits my riding profile much better than the Ffat Levo did.
Perspectives here and the SL videos I watched got me to try one.
Thank you!
Nice one dude. I just put on some Disco Brakes Kevlar and super impressed with them..
jcmonty
Well-known member
Yeah - I was their prototype tester. we needed to remove some material from the stump jumper linkAnyone gonna get one of these?
Levo SL Link
Our link for the Levo SL gives the suspension 70% more progression, as well as a 5mm travel increase. This allows the bike to be run with a stiff enough spring to prevent harsh bottom outs, without having to compromise on small bump sensitivity or ride height. For riders on air shocks, fewer...
It does the job - better small bump and if you have similar sag , better bottom out . Just be careful to check clearance at bottom out. We found that some chain stays may be tighter than others if you have modified anything on your geometry (offset bushing).
I ran about 20 psi (10%) more pressure due to the higher leverage ratio
jcmonty
Well-known member
Tahoe?
jimslade
Member

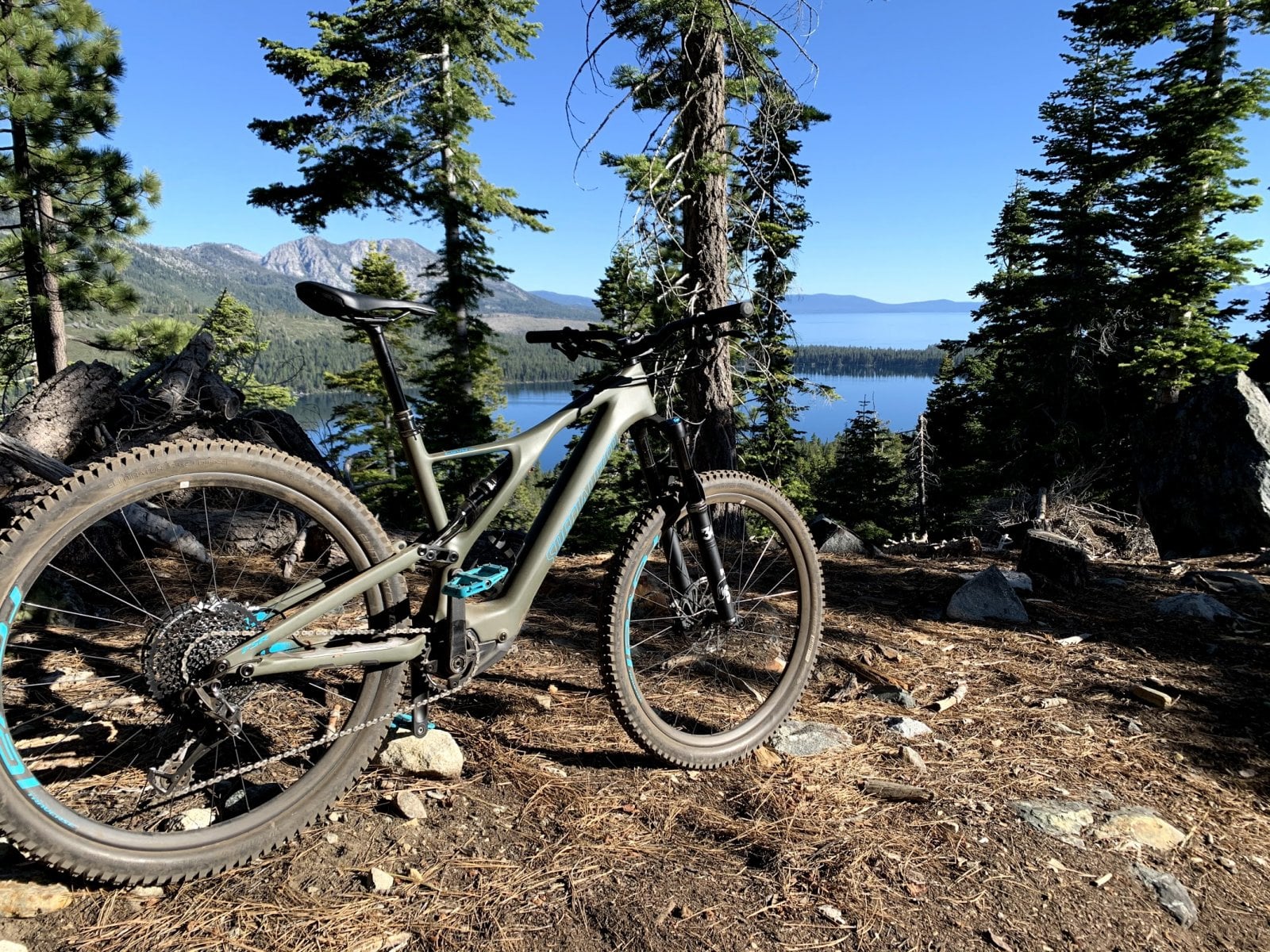

Yes! That is fallen leaf lake, with Lake Tahoe further out. This is my favorite trail for the views, out my front door.
Eebs
New Member
Anyone know what magura mounts I need for fork and frame on the comp ALU? Mt7, 203mm rotor front and 180 rear. TIA
Rich the gasman
E*POWAH Master

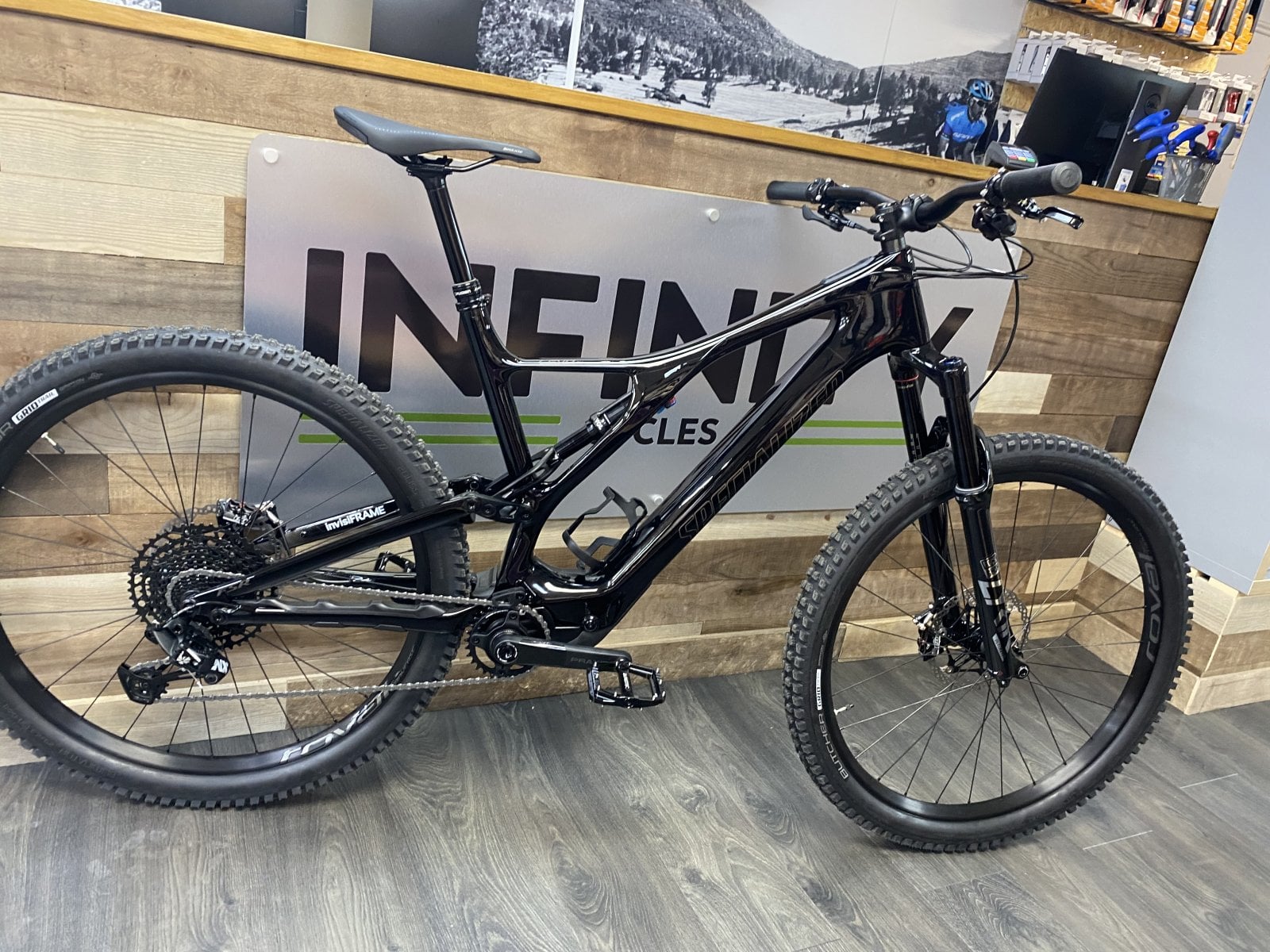

I’m back on an eeb. After hating them due to my problematic FF levo, I’ve gone full circle ish and picked up my SL today. Few more upgrades to come but many thanks to infinity cycles in Durham for sorting everything out. My mega tower may become a clothes horse lol
