Markhor new carbon ebike Kunlun with M560 motor

[Sayonara]

have an m600 and its fun, but range sucks.

i rather use a more balanced motor like m510. i even cap the max power to something like 85%. dont need all that

M560 is much more efficient than m600 though.



[LAnton]

have an m600 and its fun, but range sucks.

i rather use a more balanced motor like m510. i even cap the max power to something like 85%. dont need all that

The observatory continued in the M560 branch. Bafang M560



[kaaskopf]

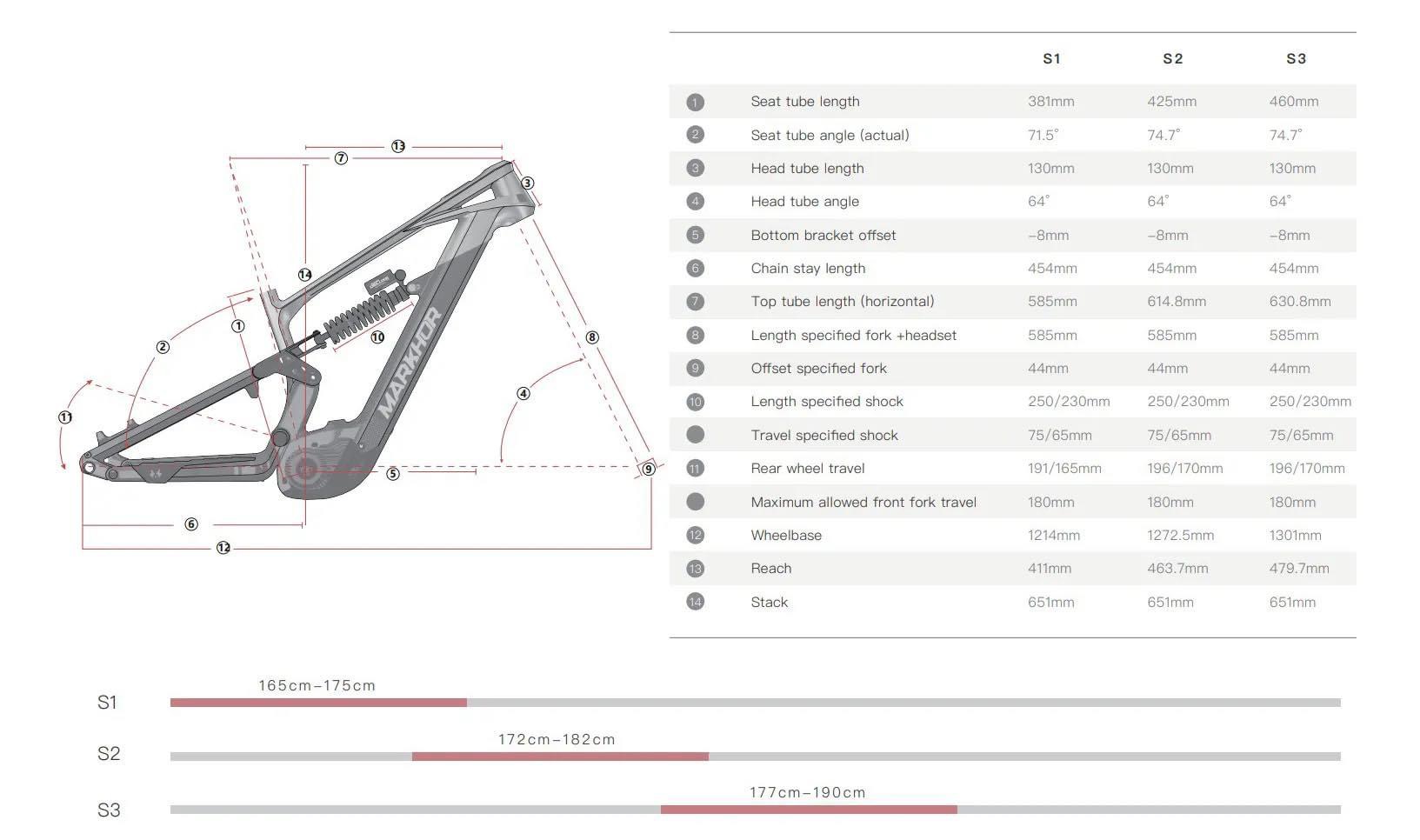

so i found an updated geo chart



[kaaskopf]

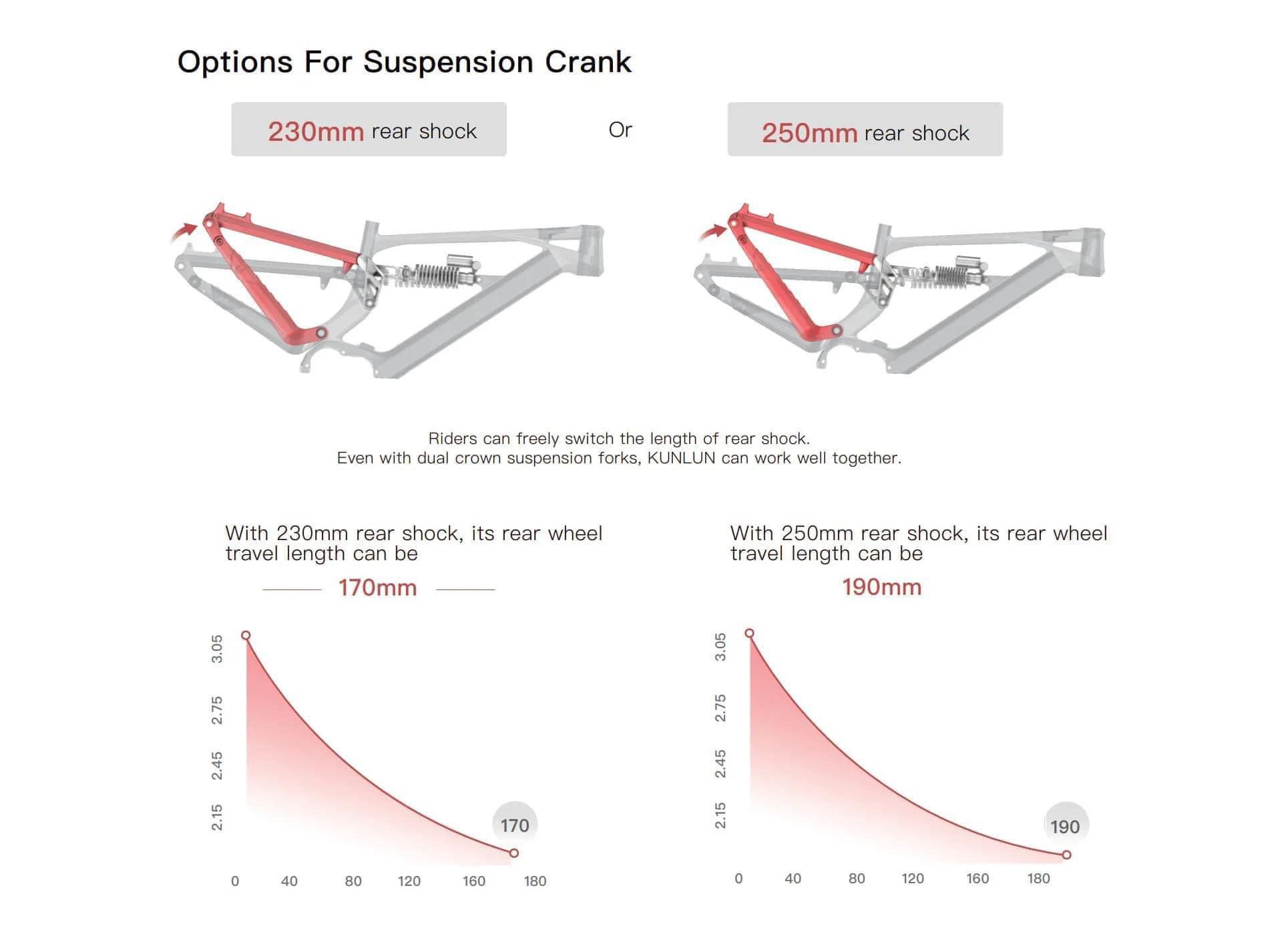

different rear travel can be adjusted with different length rear shocks and yokes.

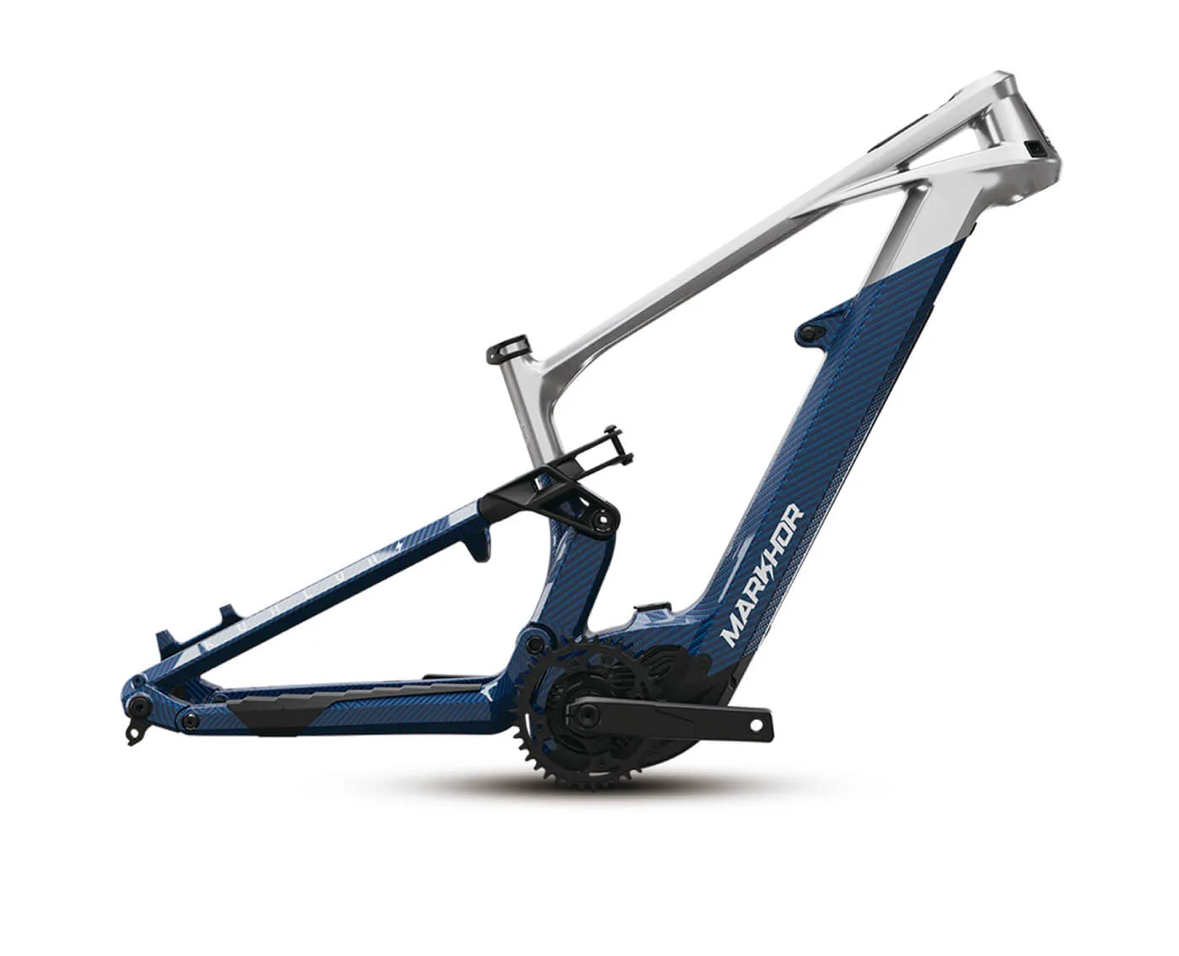

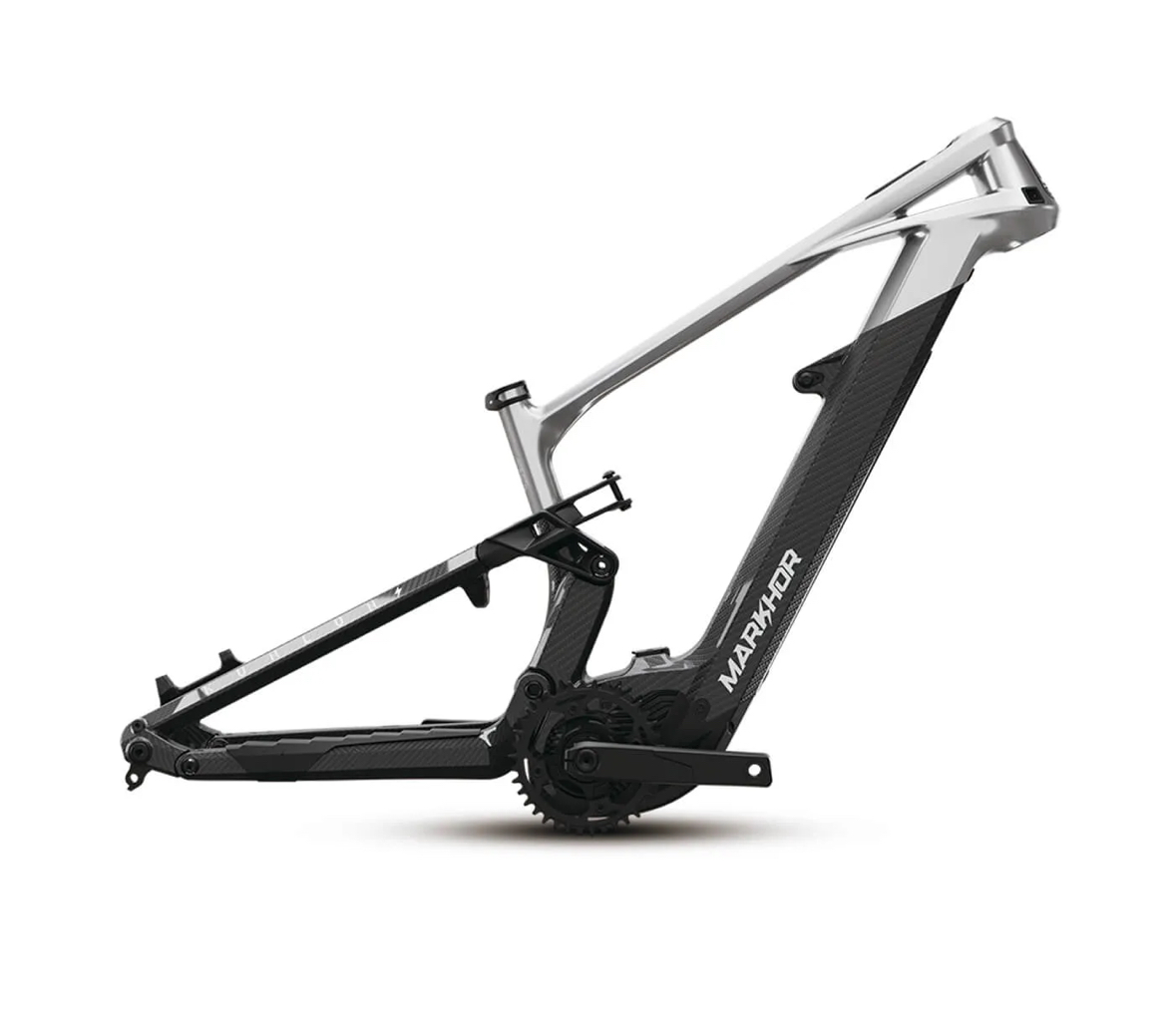

i ordered the frameset in S3 with the shortest yoke for the longest shock possible

250x75 for 196mm rear wheel travel
bushing sizes are 22.2 x 8mm according Markhor.



[kaaskopf]

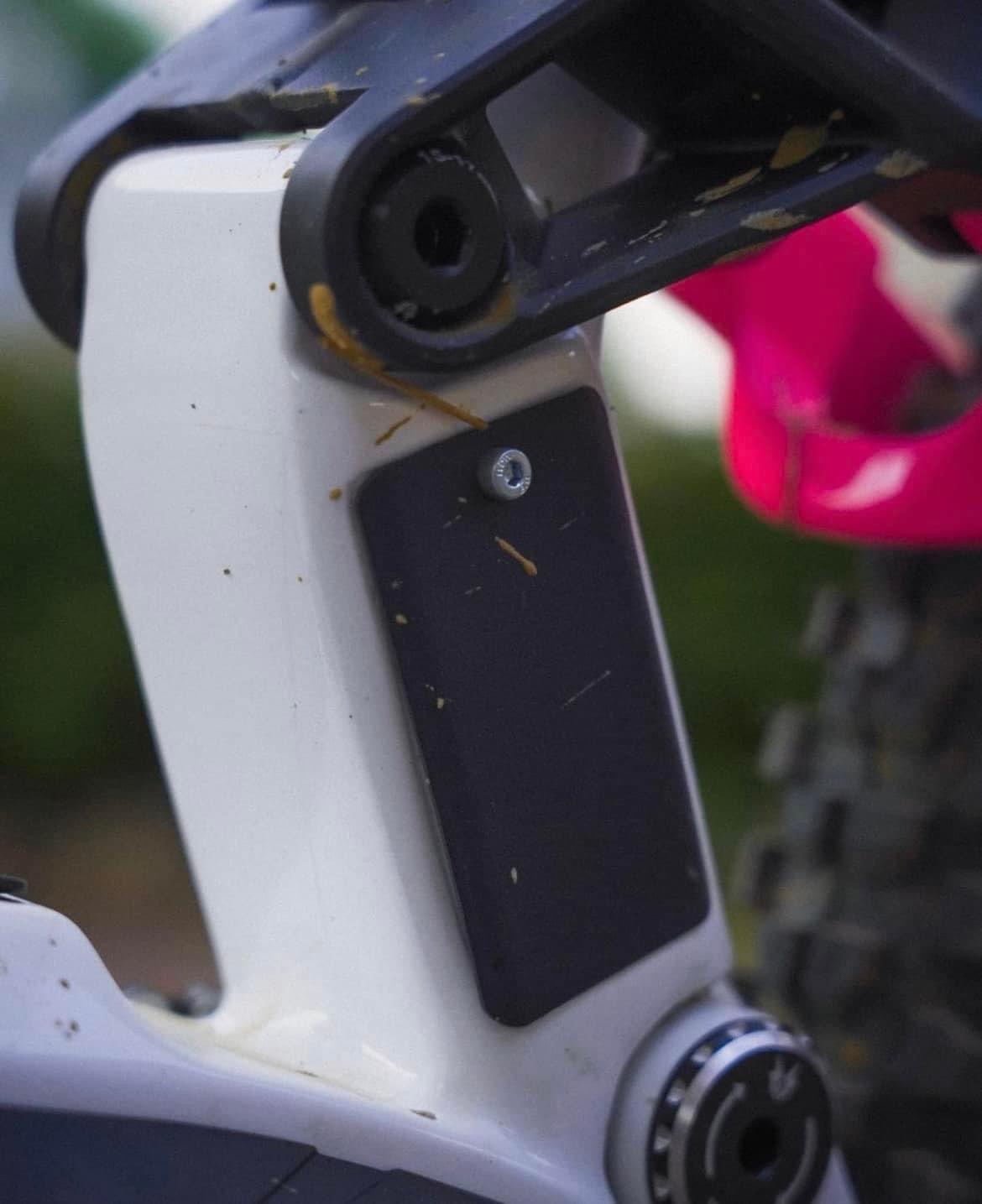

the dropperpost connects to the storage area on top of the motor for easy service of dropperpost cable
also this makes so a long dropper can fit,

have to see this in real if i can fit my oneup 210mm dropper on S3 frame, hopefully it fits..

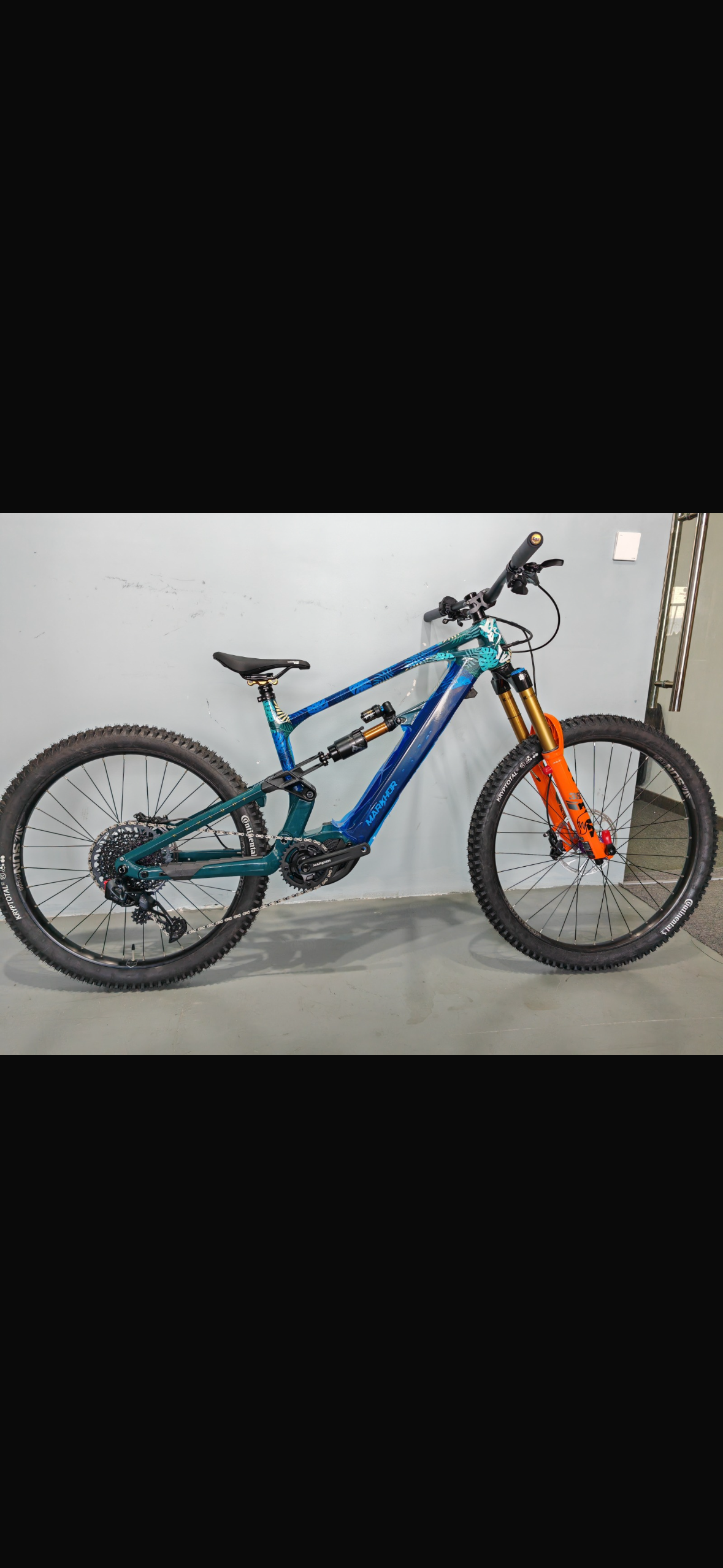

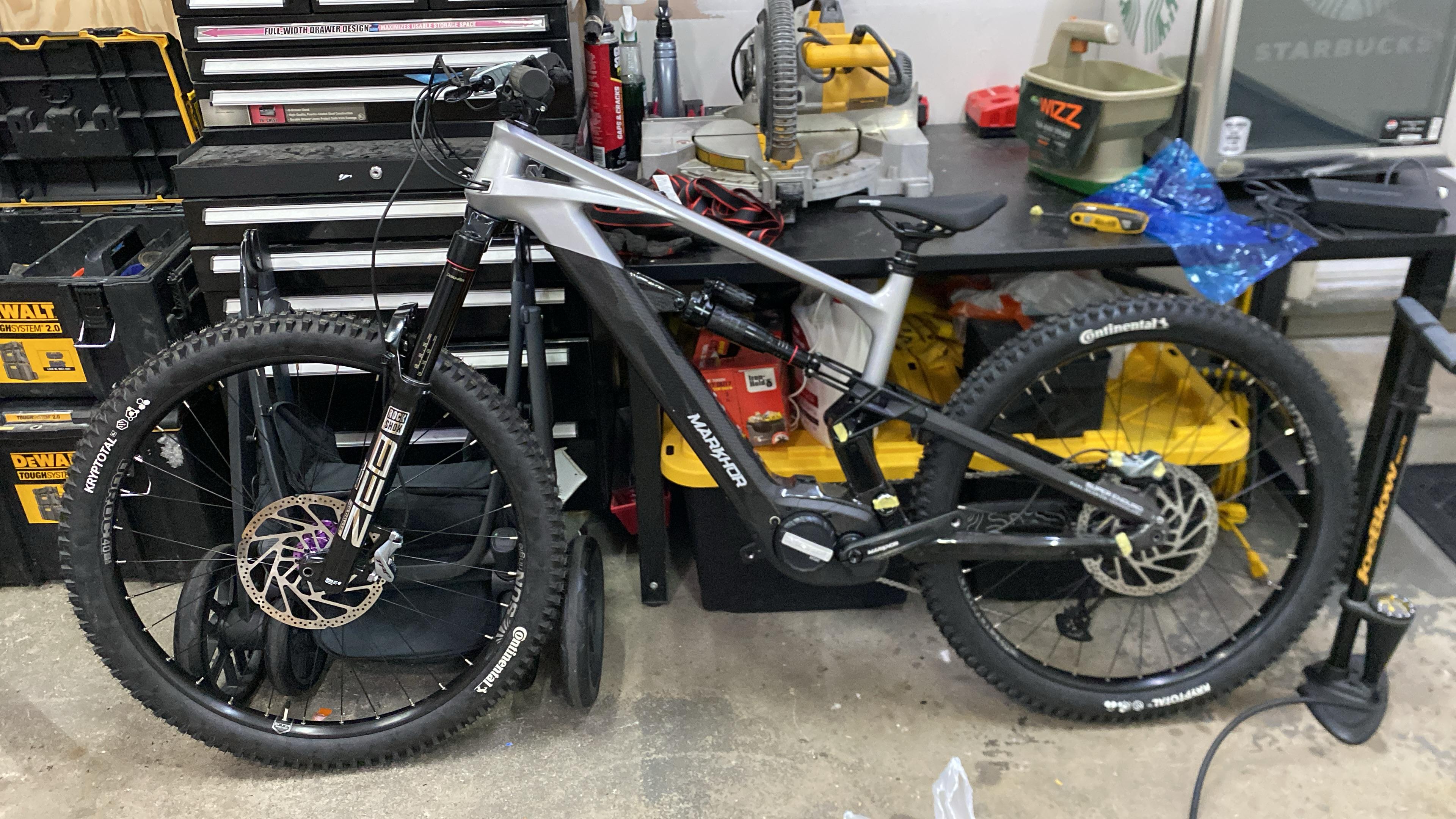

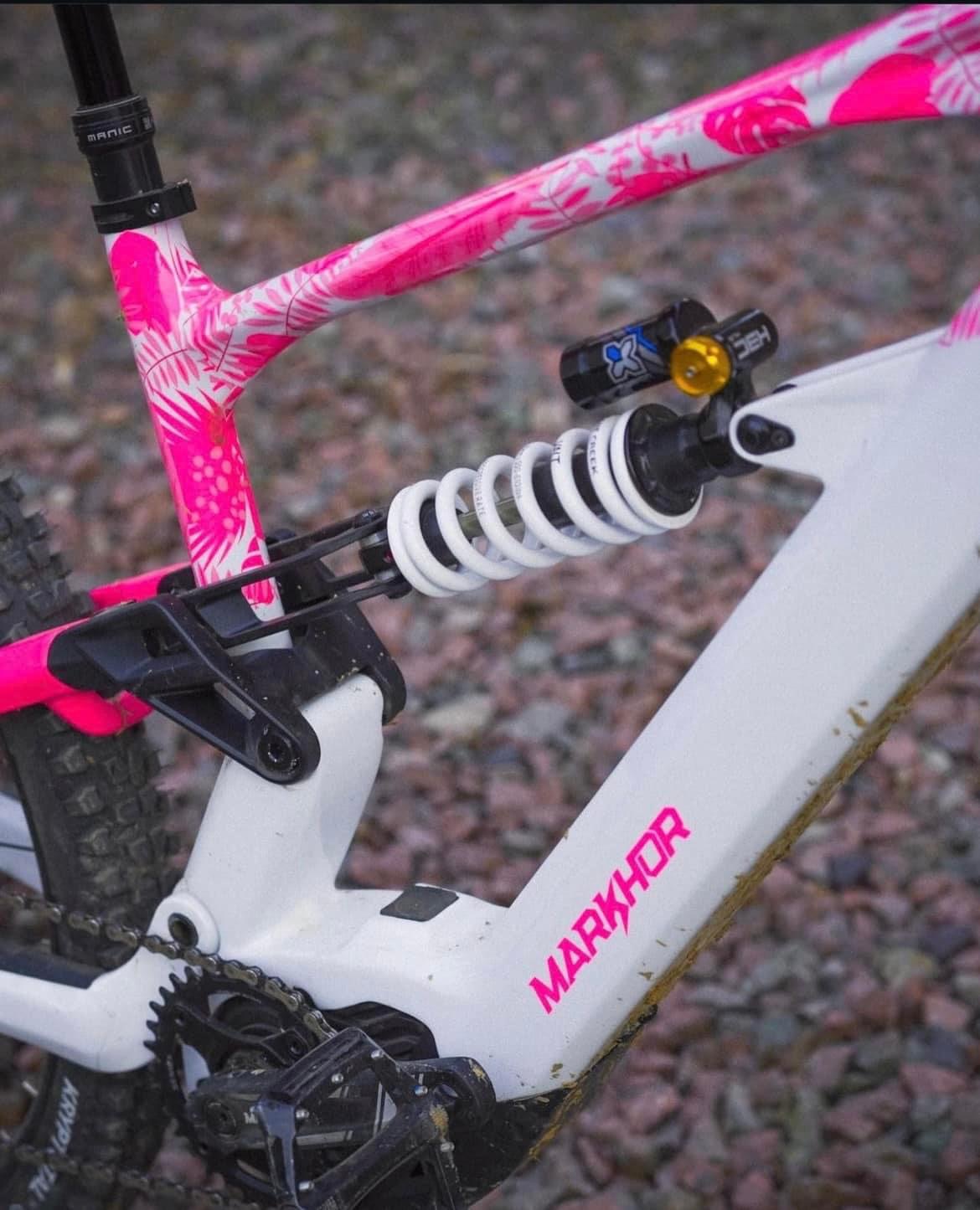

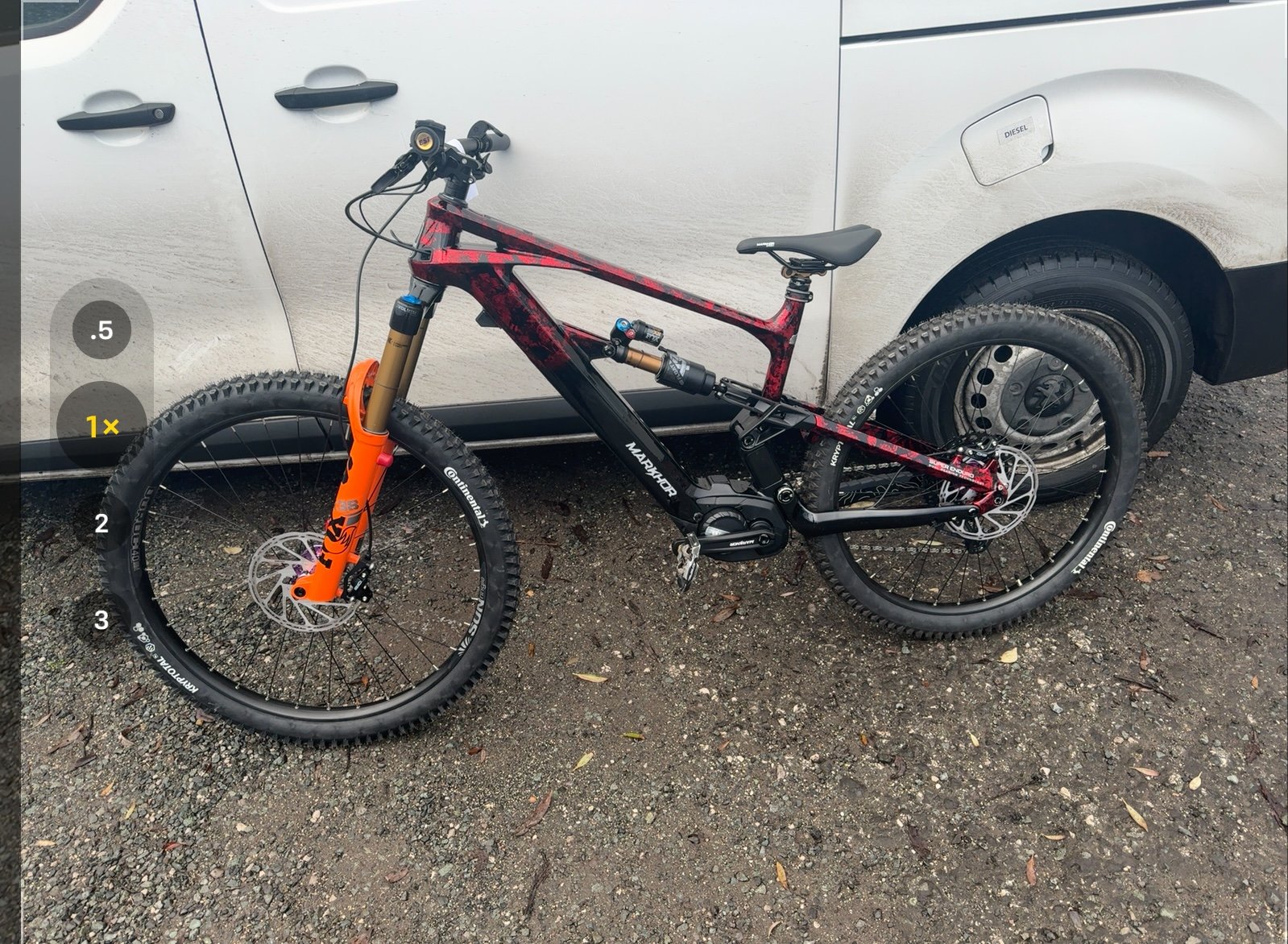

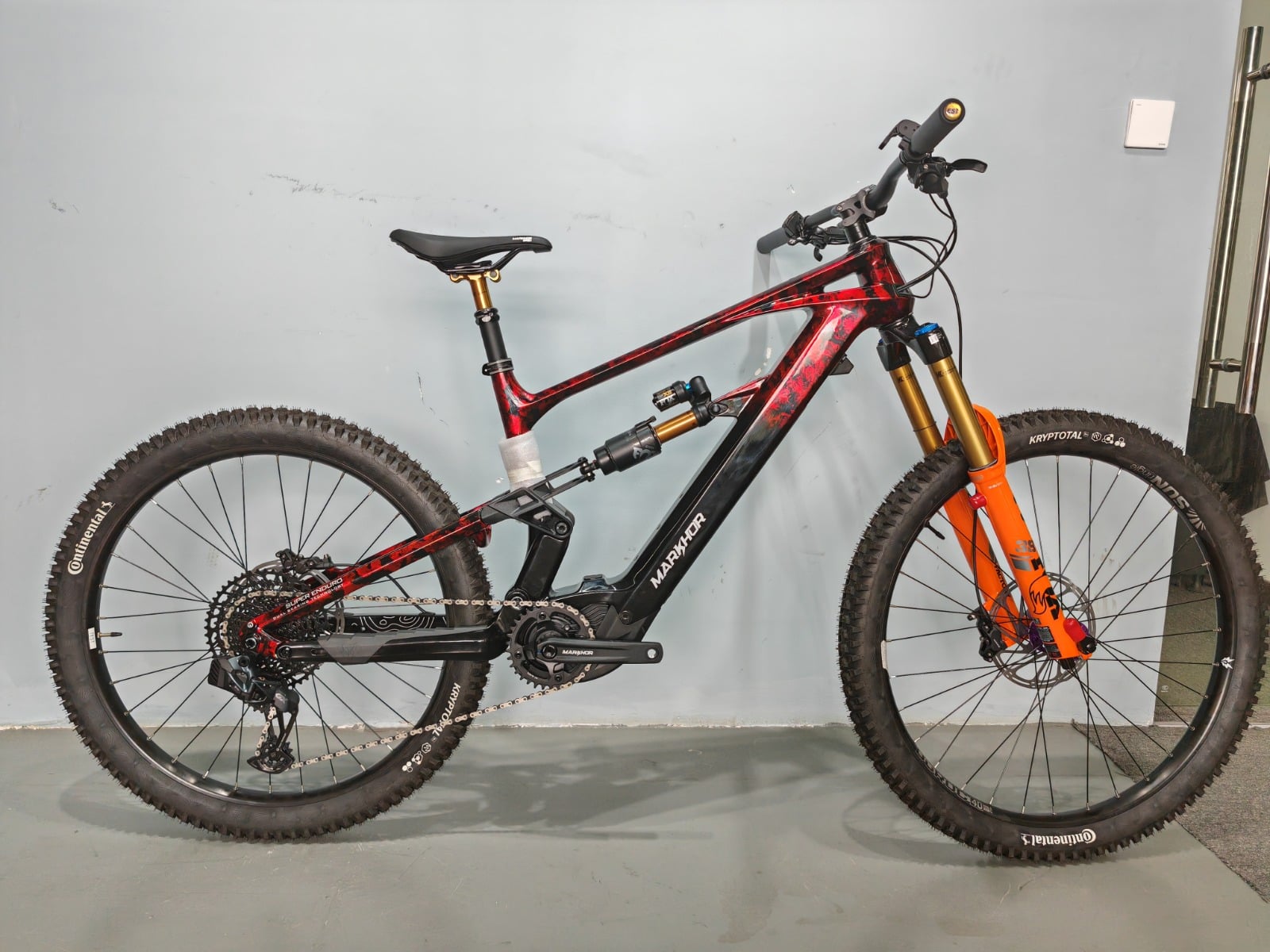

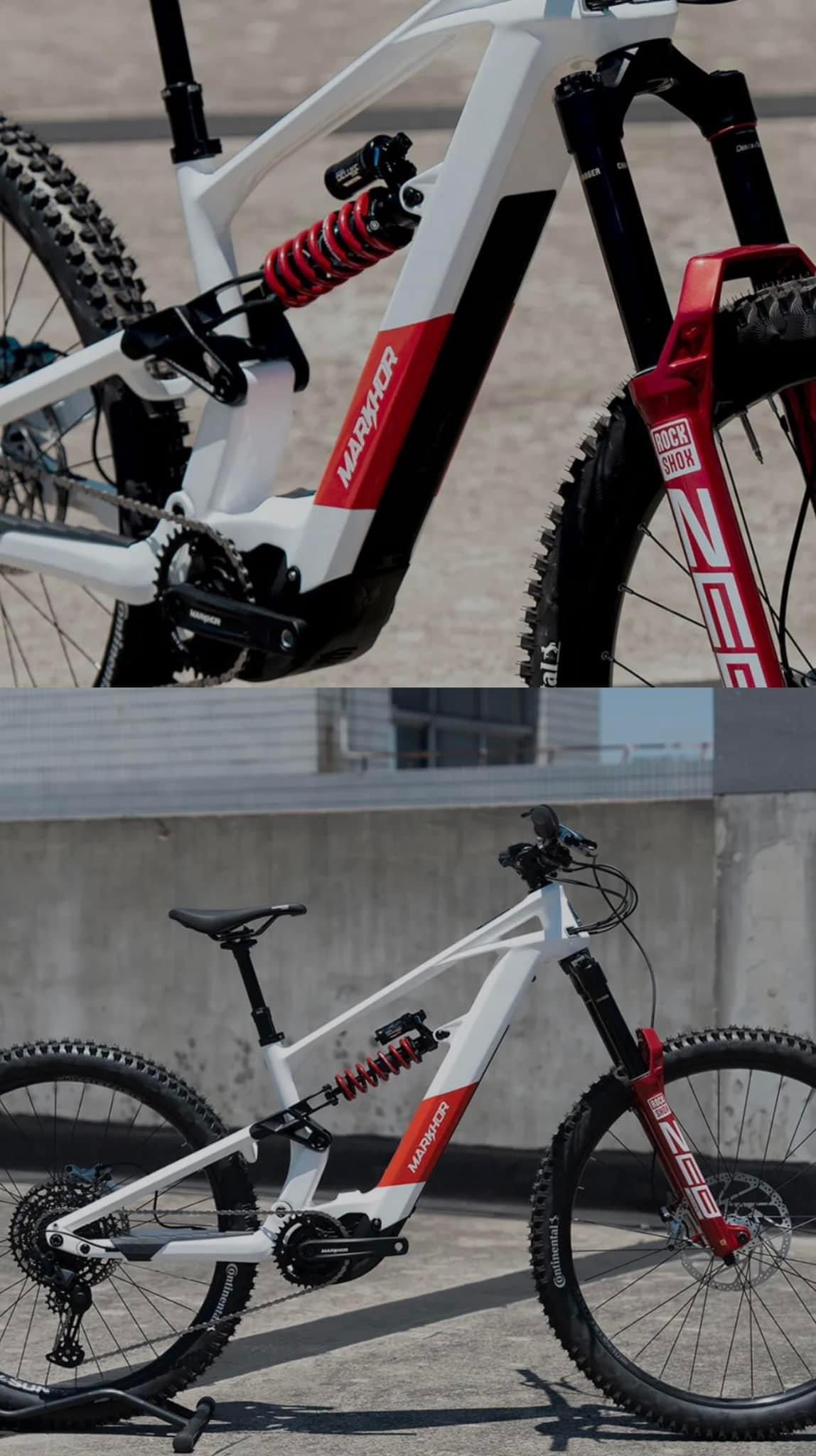

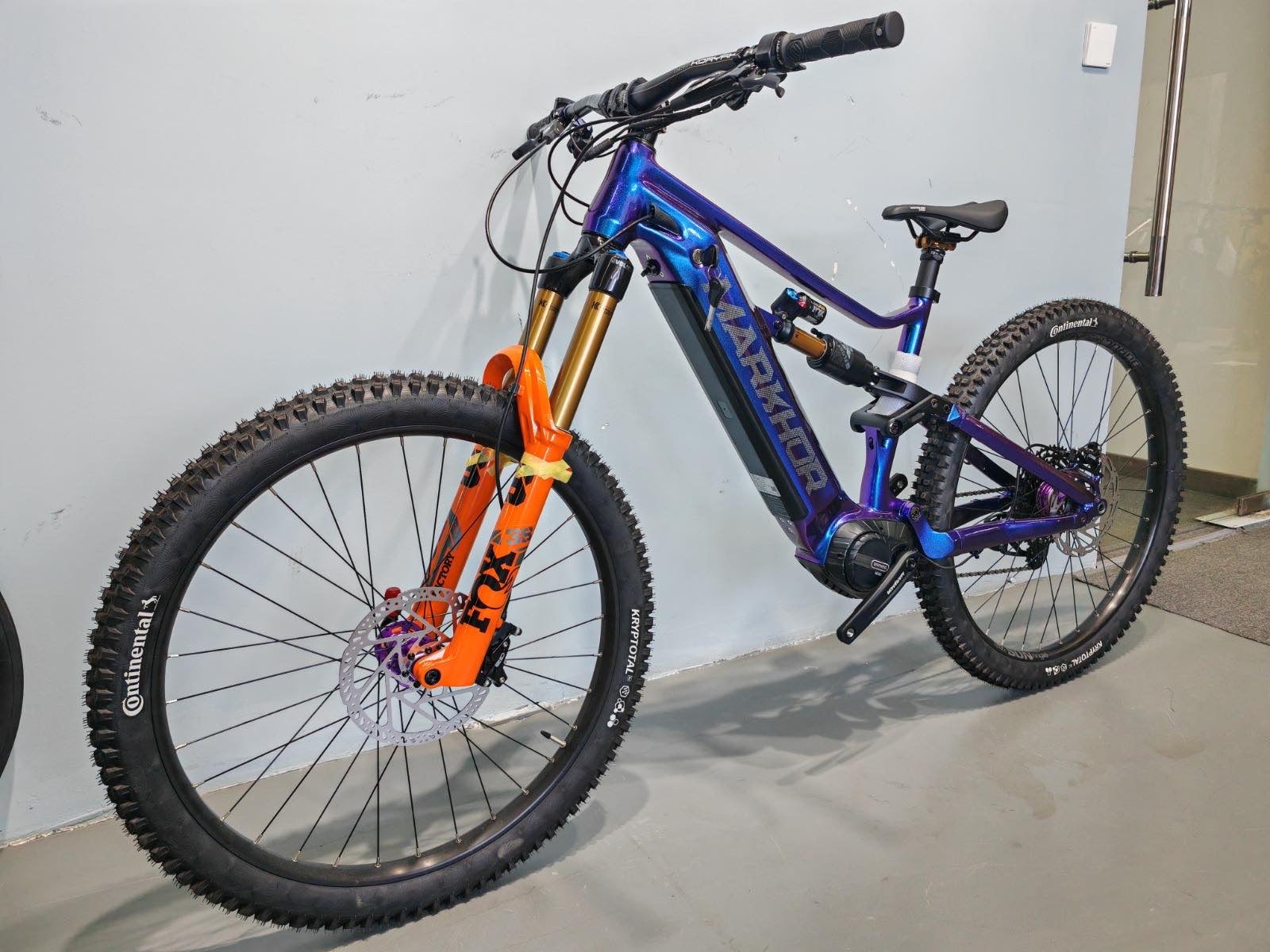

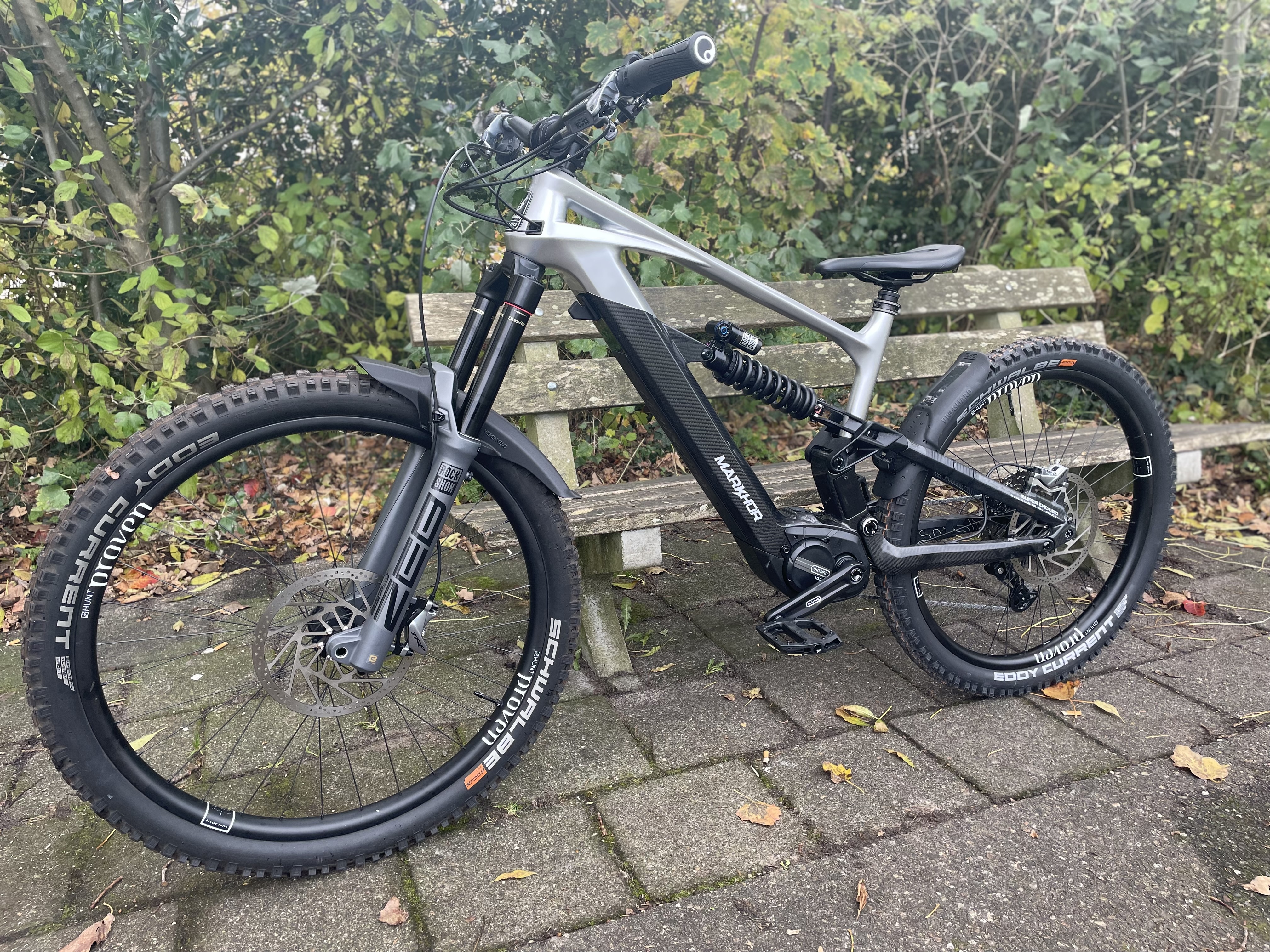

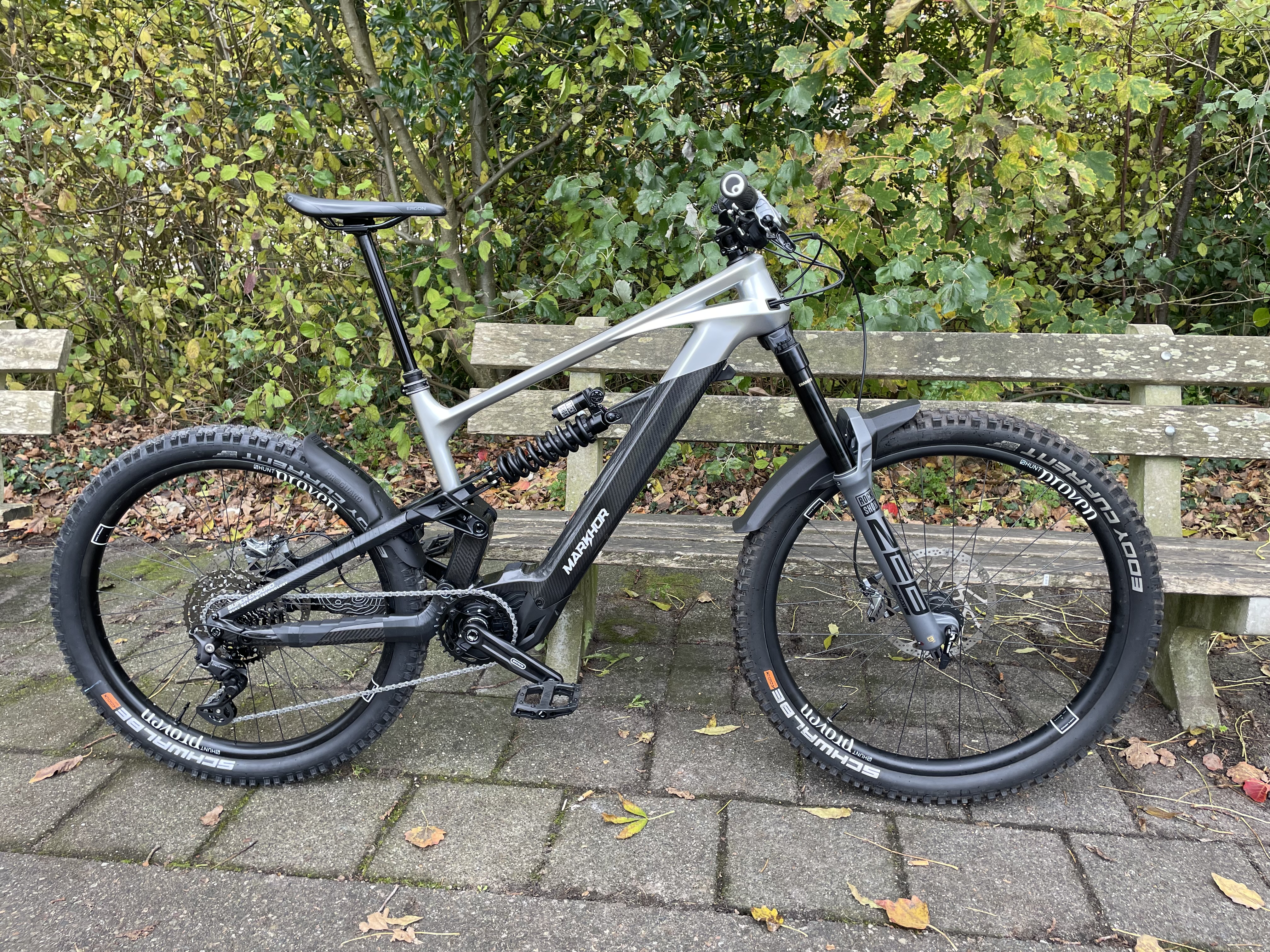

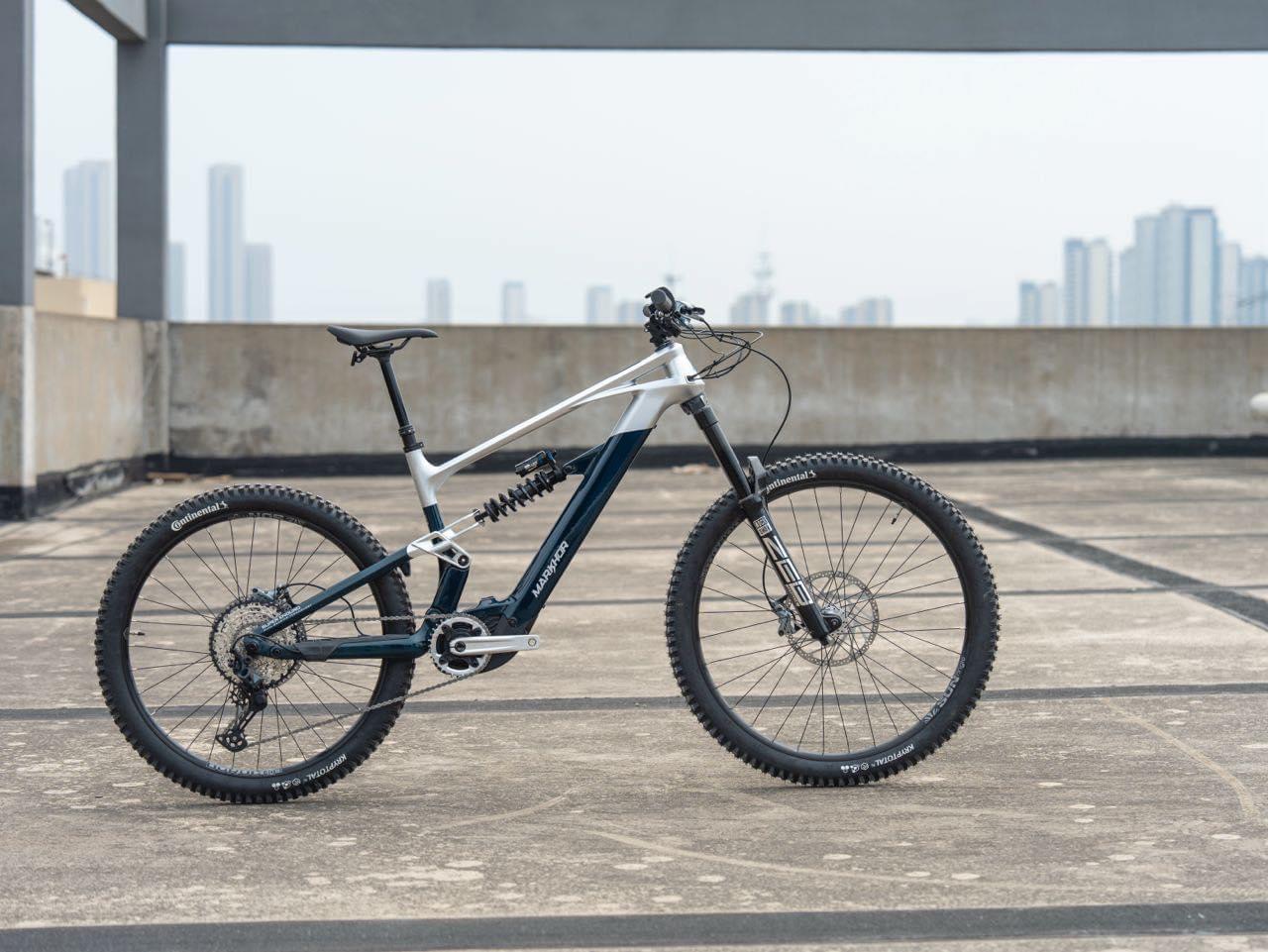

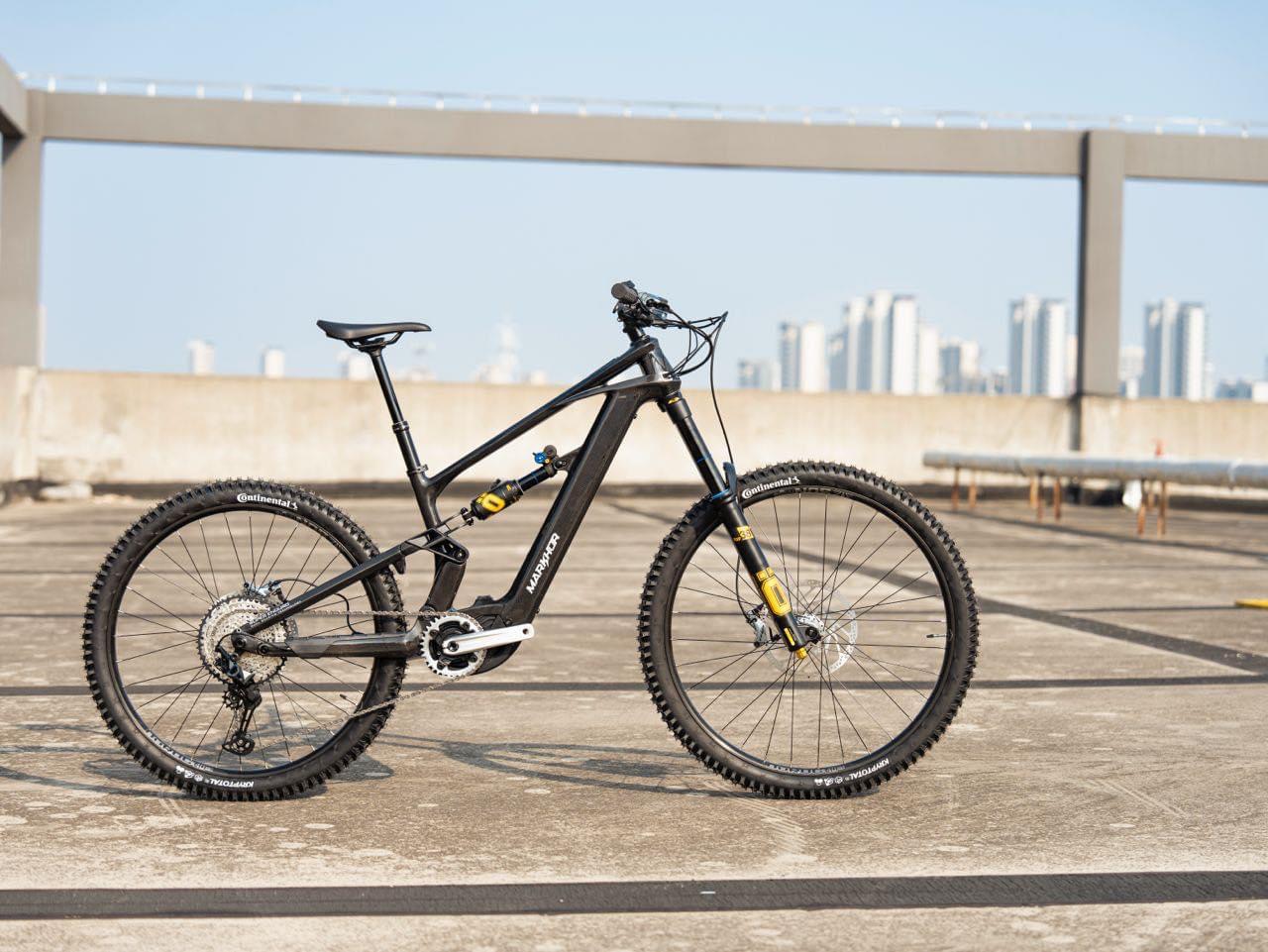

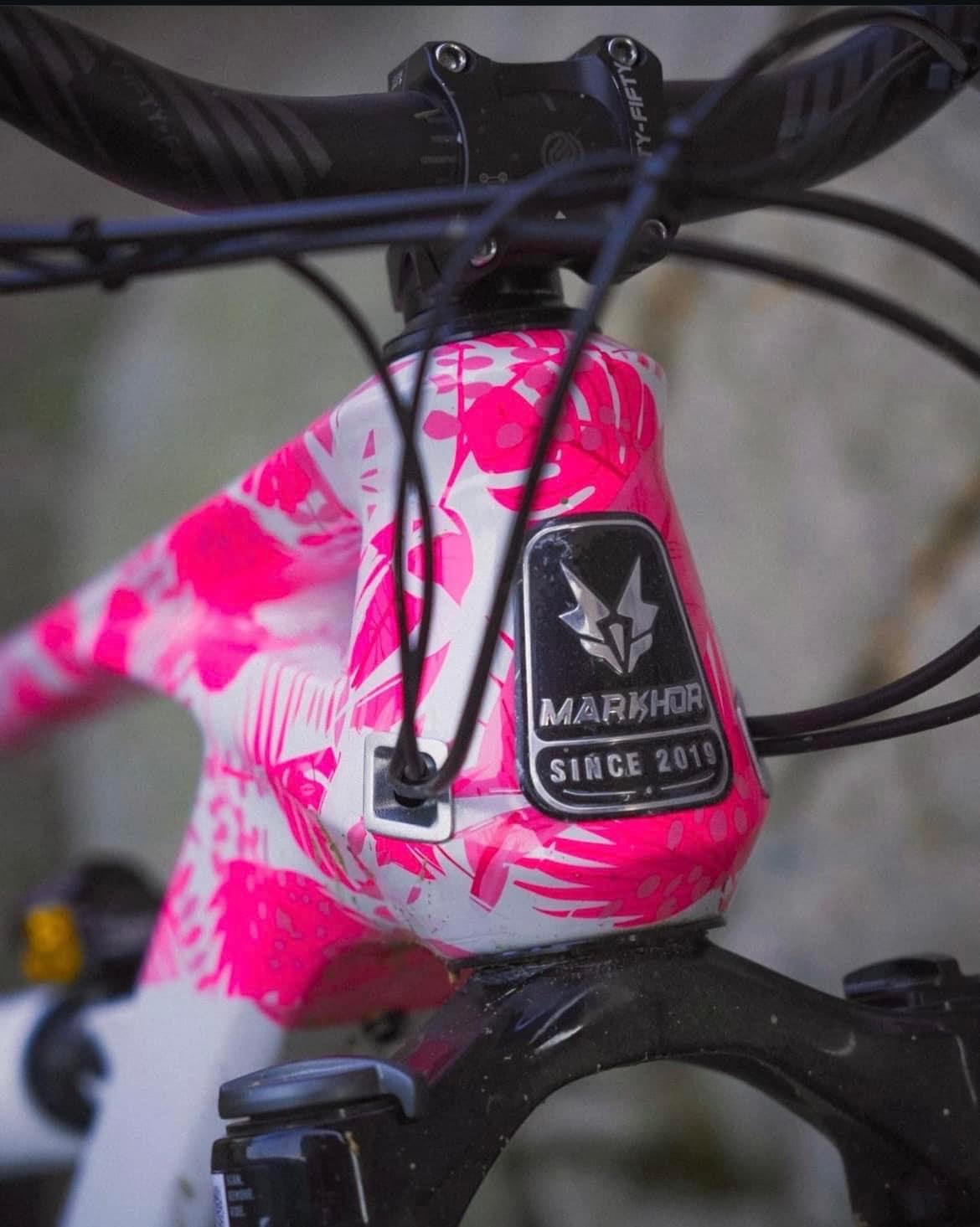

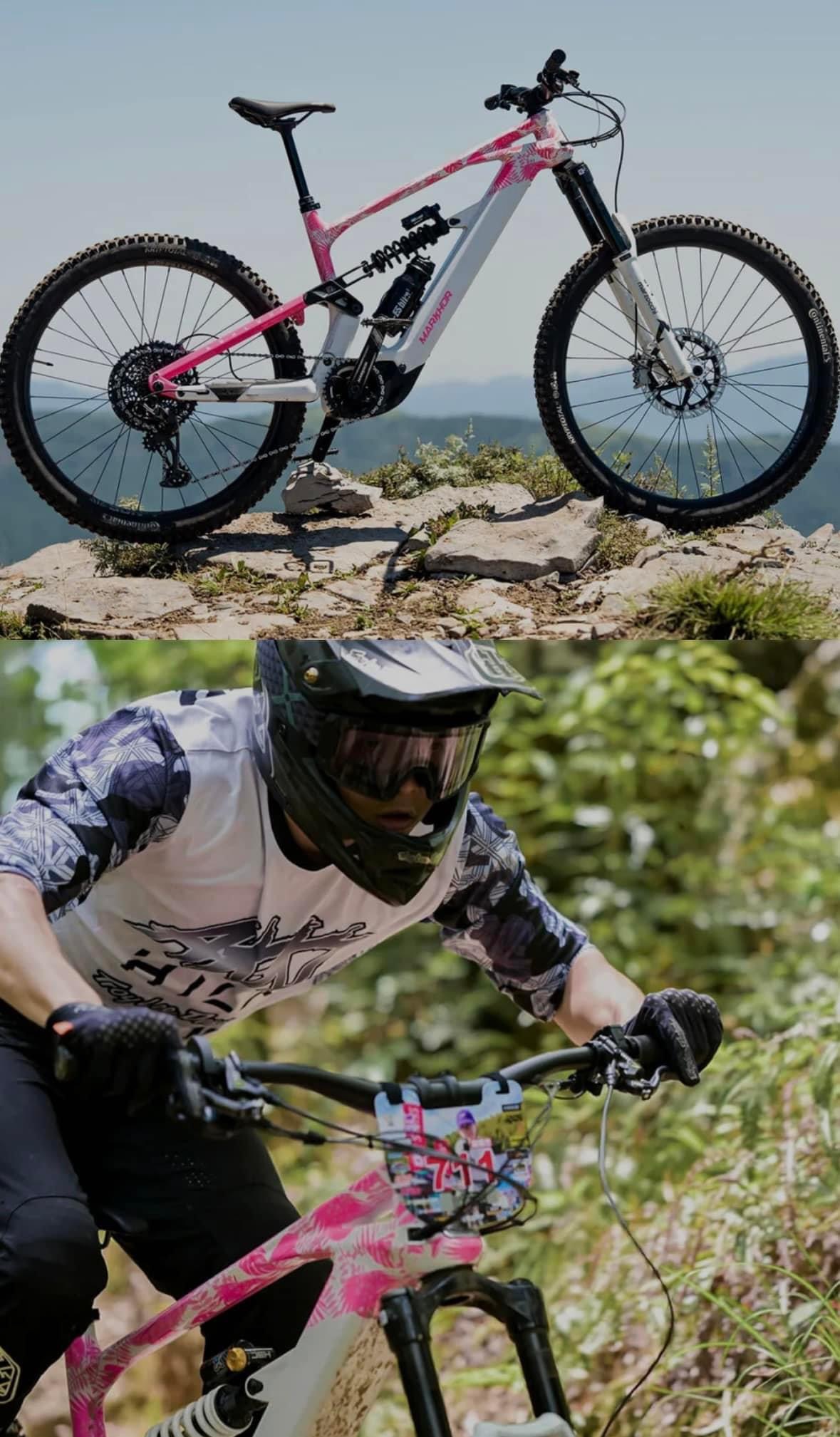

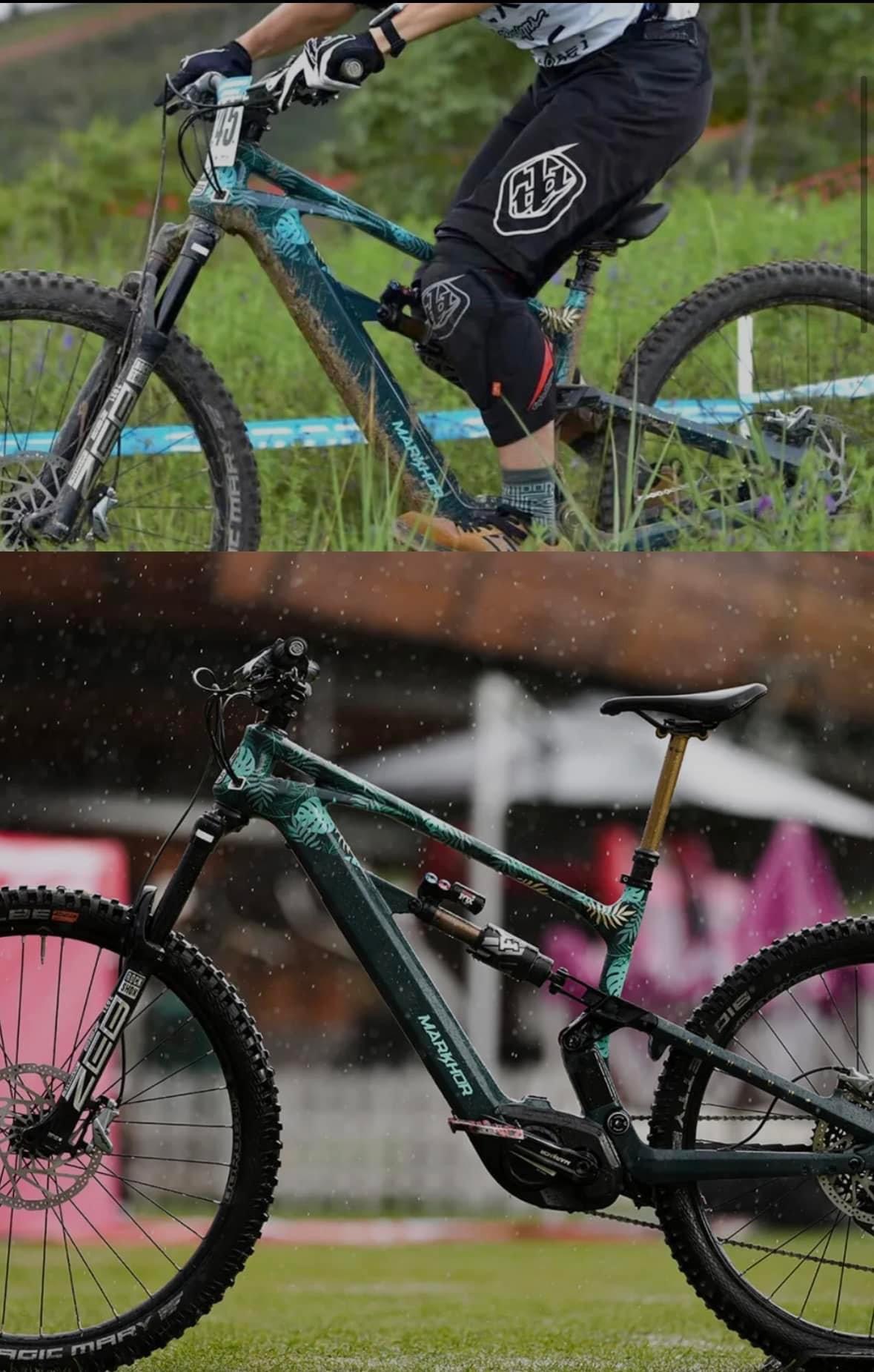

found some more pics



[kaaskopf]



[TommyR]

Dang, I’m kinda wishing I’d opted for this over the CEF50 I ordered a couple weeks ago…
