Markhor Kunlun M510 - 190mm - Super Enduro Build-Log

[zorro77]

What do you think of these answers? I was thinking S3...and I understood that 29 behind wasn't possible

- I'm 174 cm can I use S3?
My suggest is use S2 .is better .

- is there a different rear frame to use 29 rear?
can use .and rear wheel all can change 27.5 and 29inch .

Speaking of autonomy:
If you go slow using little motor and battery, how much D+ can you do at most? with the Levo and 700 battery I reach 2000D+ I would like to understand with this 720



[zorro77]

+ Leva contagocce ZTTo
+ Cuffia e distanziali ZTTo

Trasmissione
+ Trasmissione ebike Shimano M5130 linkglide con catena KMC e10 ept
+ Tenditore ISCG05 DH

Okay for the spacers, but the headset is NOT included?

Is Shimano linkglide compatible with UDH?



[kaaskopf]

please keep it english,
-29" rear for now not possible
- usage of battery depends on to many factors to say anything about that

for sizing check the geo table. on the bottom it shows riding length



[zorro77]

please keep it english,
-29" rear for now not possible
- usage of battery depends on to many factors to say anything about that

for sizing check the geo table. on the bottom it shows riding length

Sorry my mistake!!



[zorro77]

and what about headset?



[kaaskopf]

Okay for the spacers, but the headset is NOT included?

Is Shimano linkglide compatible with UDH?

yeah shifting works fine. UDH is just the hanger part. now its universal its easy to get replacements. if you would remove the hanger you could install a direct mount from sram i guess but i did not try that.

headset was included yes, but got one anyway



[maasy]

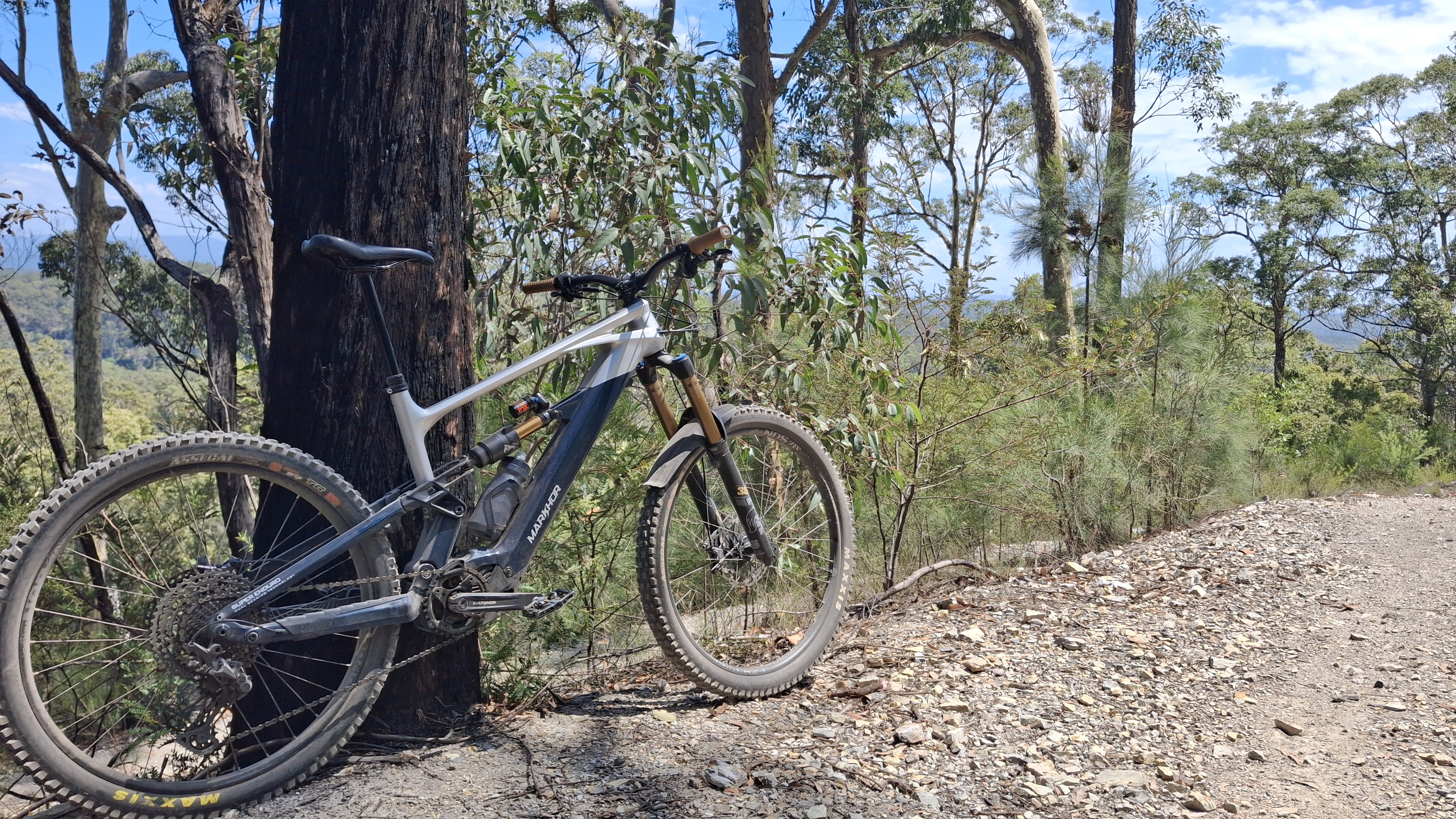

I just got back from a 4 day mounting biking holiday at Narooma and Eden trails in Australia, putting the Kunlun though some punishment... from fast flow trails to double black janky lines to big jumps lines I've put the bike it though it all and it hasn't missed a beat. My bike is set up with an 180mm fox 38 and a fox x2 at 175mm rear which is perfect for my riding, I'm 5 11" tall on an S3 frame size and can fit a oneup 210mm dropper, the suspension has an sensitive bottomless feel about it no harsh bottom outs good support in berms, I find you need to weight the front wheel in switch backs when climbing but other than that its a pretty competent climber . bike weights 24kg but rides a lot lighter and is quite nimble at speed easy to change direction, it's a long beast at 1300mm and very stable at speed but the trade off with the longish chain stays is a little more effort to manual the front up, bafang m510 motor has been good, I've only ridden the shimano ep8 to compare it to. but the bafang is a lot more powerful at 95nm and feels smooth, has a lot of adjustment in the app with 4 parameters adjustable, but lacks the adjustment of the torque sensor sensitively in lower power modes, I have ordered a k1 programing tool to fix this issue ? it comes with a 48v 720wh battery which when ran in s+ mode lasts 35 to 45km 1000+ elevation on most of my rides away, you could get a lot more km in lower power modes... haven't in counted any issues with the bike as yet ? broke the plastic motor cover on a rock so order a few spare's when ordering your frame and Loctite the suspension pivot bolts as had one come loose and unscrewed, hope this helps...

I'm pretty happy with my purchase get ordering



[zorro77]

I'm waiting for replies to my emails, we want to order 2



[kaaskopf]

I'm waiting for replies to my emails, we want to order 2

sweet ! show us when finished!



[zorro77]

Hi, how many teeth does the bafang M510 chain ring come with?



[kaaskopf]

38 but you need 36



[zorro77]

38 but you need 36

On my Levo I use 32 in front and 11-46 in the rear, I go slow uphill I like to pedal. I'm not interested in unlocking speed and power. I think 32 can also be good on this bike or am I missing something?



[zorro77]

dolce! facci vedere quando hai finito!

Entrambi ordinati oggi



[kaaskopf]

depends on the engine

the m510 likes the 34 or 36
my max speed is already low at 32km
i use my bike in mainly eco mode and cadance of around 80-100



[zorro77]

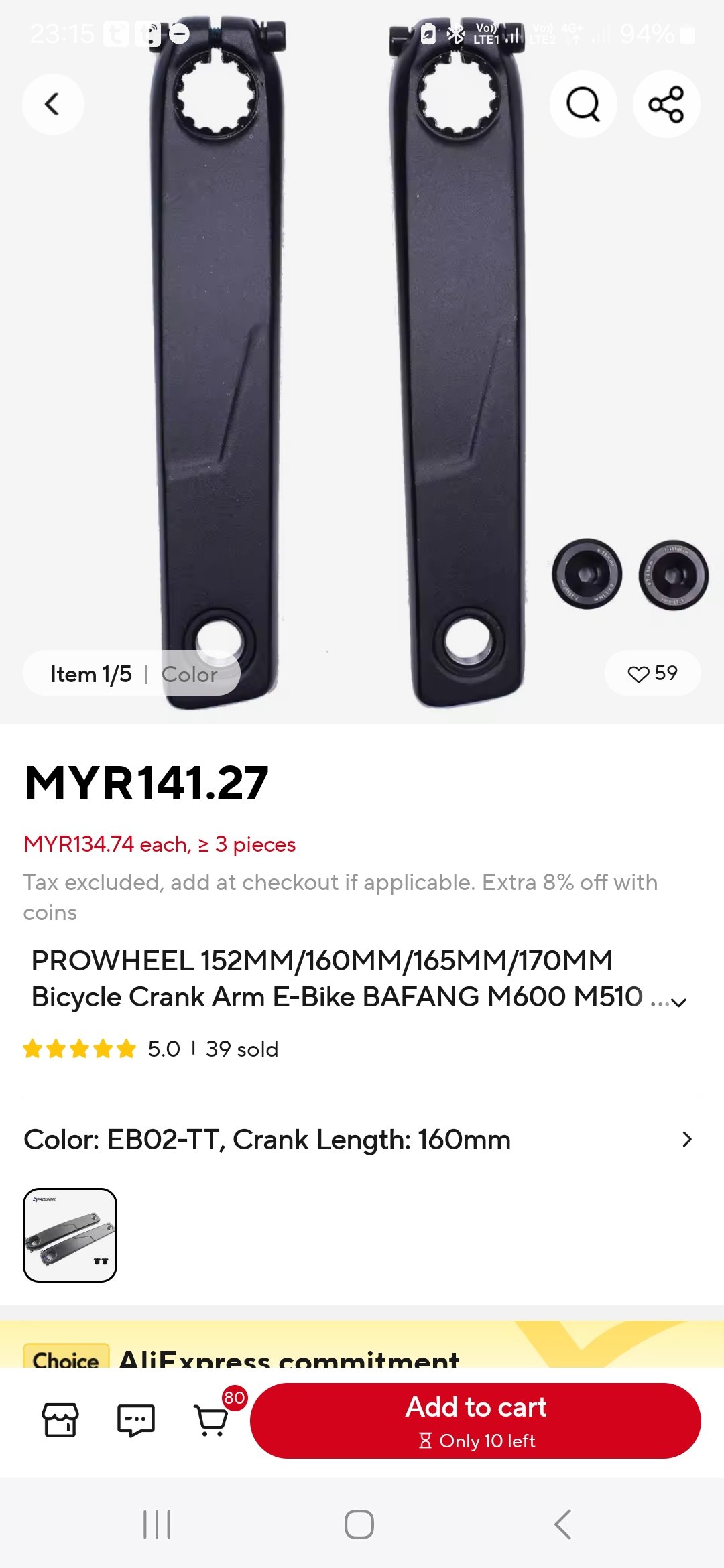

I've now ordered it with 32T, we'll see after some tests, I've seen that they are cheap on Aliexpress... how long does it take to recharge the battery?



[azure]

battery size is 500x75x60 mm

bleeding of the brakes was the easiest i ever did! well done TRP! took me 3 min each

also adjusted the shifter and installed the dropper

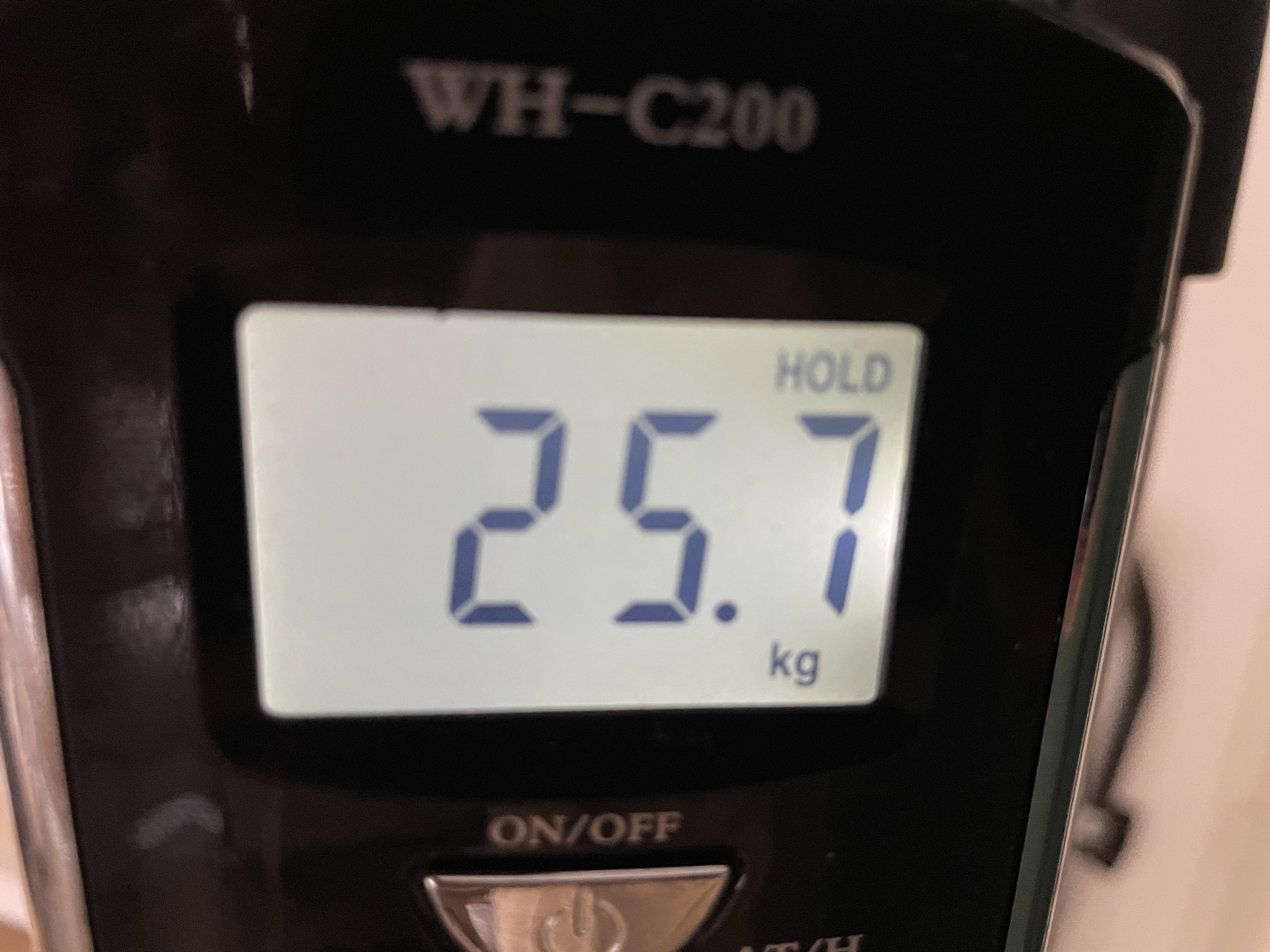

i threw all the parts on the bike quickly and weigh it. this i was the most curious at.

because of bad weather i didnt testride it yet or took any pics...

View attachment 150111

still acceptable weight i think, mind it is basicly a DH bike at this point

my E10 with smashpot and same rims was heavier in the end at 26.9kg


what do you guys think?

Identical weight to my Markhor Rocket bike, where I didn't take care about kg's...



[kaaskopf]

I've now ordered it with 32T, we'll see after some tests, I've seen that they are cheap on Aliexpress... how long does it take to recharge the battery?

about 3-4hrs
