That is very disappointing as it would seem Bosch have only done half the job. Without the HR being saved as part of the ride stats, only having it on the display little more than a gimmick, I already have that with my Garmin 530 synched to my watch & that does add the hr to the ride recording.
Bosch Flow App - News & Updates
- Thread starter Rob Rides EMTB
- Start date
Can‘t see the problem. Does anybody buy/use a HR belt without any other capable device?
The Bosch devices are not (yet) intented to be health & fitness monitors but can be linked at least with iOS apps. For checking and working on your health/fitness there are better devices and software than the on-eBike systems.
Ark
Active member
yea it seems really lazy.
theres probably a website somewhere that lets you combine the .gpx or whatever files from 2 devices and combine the data.
too much effort for me though

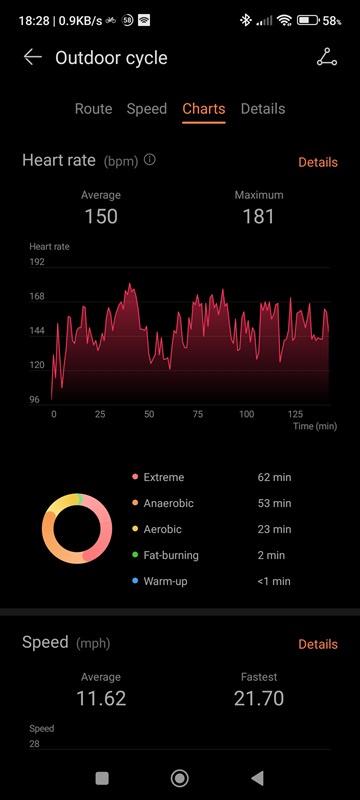

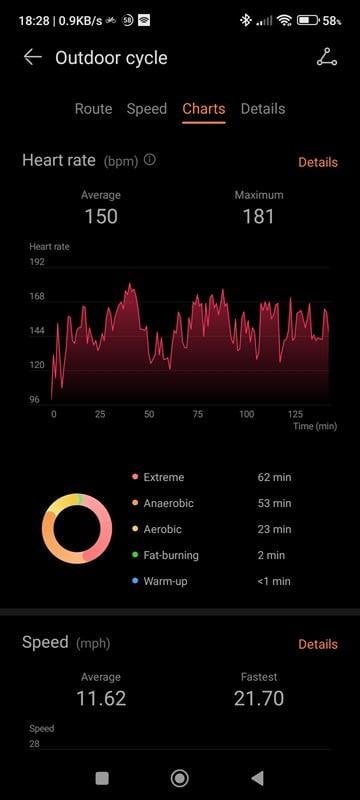

still nice to see an ebike does give a workout, heres the first ride I did since buying a smart watch
On the "up" list, bosch kiox is very easy to pair with any third party heart monitor, much easier than a garmin device.
On the "down", though, its a very long list of things that bosch fails to provide, on a very personal note, for example, their apps are NOT even available on many countries, so that I had to create an EU based account at apple, only to be able to download ebike connect app where I live. Else, they do not support any electric gearing system like shimano di2 or sram AXS, now they introduce an 'auto' mode only to change support level, that is totally unnecessary IMHO, and folks who claim that autoshift is no advantage now rave about this...
I do no care about 'smart' gadgets to control my bike riding characteristics, really would rather not have any and be the only 'smart' one on board, I once was caught by the idea of having a bike with a 'brain', only to find out that such 'brain' was put at the rear end and could see shite of what the trail was about to throw at me, besides, such rear end was really way more flexible than I could accept, soon I got rid of that said specialized bike.
I would consider a 'smart' feature, one that ground referenced if you are riding a trail or not and changed assistance limit from 25 to 32 or even 45 km per hour, but, really, one that will change the level because of a 'head wind' is out of touch to me. Where on earth will a head wind hinder your performance on a trail is a mystery to me... maybe Patagonia or Moab trails...
On the "down", though, its a very long list of things that bosch fails to provide, on a very personal note, for example, their apps are NOT even available on many countries, so that I had to create an EU based account at apple, only to be able to download ebike connect app where I live. Else, they do not support any electric gearing system like shimano di2 or sram AXS, now they introduce an 'auto' mode only to change support level, that is totally unnecessary IMHO, and folks who claim that autoshift is no advantage now rave about this...
I do no care about 'smart' gadgets to control my bike riding characteristics, really would rather not have any and be the only 'smart' one on board, I once was caught by the idea of having a bike with a 'brain', only to find out that such 'brain' was put at the rear end and could see shite of what the trail was about to throw at me, besides, such rear end was really way more flexible than I could accept, soon I got rid of that said specialized bike.
I would consider a 'smart' feature, one that ground referenced if you are riding a trail or not and changed assistance limit from 25 to 32 or even 45 km per hour, but, really, one that will change the level because of a 'head wind' is out of touch to me. Where on earth will a head wind hinder your performance on a trail is a mystery to me... maybe Patagonia or Moab trails...
oldfartwannabembker
Member
2024 Mondraker Crafty,
I've just updated. Had to update my flow app before this update showed/was availble to download. Before I did that it said I was on latest FW.
So,
As that update to the bike hit 100% the kiox beeped, showed an error code which I missed because I glanced back at flow app on phone which did come up with a warning saying had to switch bike off and by the time I looked back to read code on the kiox it and the bike had switched off. After 1min of anger and worry I thoughT I'd try just switching bike back on AND it was fine, no error code. I have just been told that the eroor code will still get store in the bikes system until I take it to a shop who can connect to bosch system and clear the code.
BUT after ALL that I am still left with the just the same 4 ride modes as before and no new ride modes to select and not needing heart monitor option it was a wste of time for me and could of ended up having to spend time and money having to pay to have the bike taken to bike shop IF code had not gone away.
I've just updated. Had to update my flow app before this update showed/was availble to download. Before I did that it said I was on latest FW.
So,
As that update to the bike hit 100% the kiox beeped, showed an error code which I missed because I glanced back at flow app on phone which did come up with a warning saying had to switch bike off and by the time I looked back to read code on the kiox it and the bike had switched off. After 1min of anger and worry I thoughT I'd try just switching bike back on AND it was fine, no error code. I have just been told that the eroor code will still get store in the bikes system until I take it to a shop who can connect to bosch system and clear the code.
BUT after ALL that I am still left with the just the same 4 ride modes as before and no new ride modes to select and not needing heart monitor option it was a wste of time for me and could of ended up having to spend time and money having to pay to have the bike taken to bike shop IF code had not gone away.
Roundbadge
Member
Does the modes update also work on my cx Race motor?
I’d love to get rid of eco mode
I’d love to get rid of eco mode
Yes, but Try and confirm.
Updated my mondraker lever r and got the 112001 error that some others have had.
Mine is because I had fitted the purion 200. I’ve reinstalled the original led controller until I can get to a shop to have it configured properly and all is ok now. Bit miffed that the shop I bought it from (they aren’t local) told me there was no set up required and it was just “plug and play”.
Disappointingly there are no extra modes anyway so was all a bit of a waste of time.
Mine is because I had fitted the purion 200. I’ve reinstalled the original led controller until I can get to a shop to have it configured properly and all is ok now. Bit miffed that the shop I bought it from (they aren’t local) told me there was no set up required and it was just “plug and play”.
Disappointingly there are no extra modes anyway so was all a bit of a waste of time.
Sport mode is one of the four classic ride modes on Bosch motors. The original list was
- ECO with 60% support
- TOUR with 140% support
- SPORT with 240% support
- TURBO with 340% support
Over time Bosch added multiple new ride modes in order to support different rider needs.
- eMTB, progressive mode with support from 140% to 340% depending on rider input power, developed for MTB enthusiast, gives more control, adds extended boost function
- eMTB for short cranks (165mm and shorter), progressive mode with support from 140% to 340% depending on rider input power, less power needed to reach higher support
- TOUR+, progressive mode with support from 60% to 340% depending on rider input power, developed for touring, needs more rider input than eMTB standard to reach higher support levels, supposed to be more economic
- AUTO, adaptive mode with support from 60% to 340% depending on riding resistance (head wind, climbs), developed for the city/trekking rider, holds moving average speed of the last few seconds without the rider needing to raise own effort, quickly moves up to the higher support levels
For some special motors there are even more modes.
- Cargo motors have CARGO mode with 400% support and more controlled start behavior even with full load.
- Race motors have RACE mode, a more aggressive eMTB mode with up to 400% support and longer extended boost.
- The SX motors have a SPRINT mode with up to 280% support depending on cadence (higher than 100 needed), developed for gravel bikes and city commuters.
Something is missing on your bike configuration.
Have you been to a dealer in the past and let him change one mode for another one?
If so, it could be that the dealer deleted the unwanted mode and installed the other. He should have installed an additional mode. The Bosch motor can hold at least 8 different modes, some sources claim 12. Only 4 of those installed can be selected as active.
Thanks, good work.
Could LBs put me Race mode on non Race mode Motor? Or cargo? Thanks
No.
Just done the update on mine. 2023 Cube 140 Action Team - got all the new modes and screens
Has anyone ridden yet using the heart rate monitoring?
I was able to pair my apple watch to the kiox before this and it showed my heart rate whilst cycling. Was very nice and worked well but then when it pushed the ride to Strava - no heart rate data.
Which sucked cos I love that it has all the cadence/power etc... that I don't get on an apple workout - but it was annoying that heart rate was shown on the screen and not included at all in the ride data.
Maybe that's fixed with this update?
Has anyone ridden yet using the heart rate monitoring?
I was able to pair my apple watch to the kiox before this and it showed my heart rate whilst cycling. Was very nice and worked well but then when it pushed the ride to Strava - no heart rate data.
Which sucked cos I love that it has all the cadence/power etc... that I don't get on an apple workout - but it was annoying that heart rate was shown on the screen and not included at all in the ride data.
Maybe that's fixed with this update?
oldfartwannabembker
Member
Sadly, this is not the case on my 2024 Mondraker Crafty which the controller is on 10.12.3 Software and after this update the flow app is still only showing the same 4 power setting the bike came with from the factory last month, which are ECO, TOUR+, EMTB, TURBO. Unless I am missing something because I can see that Cube owners are getting all the power settings and new screens after the update.
I think I mentioned this before. It is possible that some manufactures simply install only four ride modes because until now the rider couldn’t select different modes anyhow.
You will need to see an LBS and have the missing modes installed by him.
The new Flow App gives you only the selection capability, not the installation.
JP-NZ
E*POWAH Elite
Just record the ride on strava on your watch. My apple watch gives a "warning" that it can't do two things with HR at once. But I start strava first then open the flow app on my watch. You get the HR on the Kiox and a full strava ride with HR from the watch.
Of course I don't have the flow app sending health data otherwise you'll get a double up in exercise mins and Kj's/calories
Yeah that's what I've been doing - just would be nice to get the other data like power and cadence etc... that flow does record and strava obviously doesn't
Oh well
Cheers @Rob Rides EMTB for this. I'll go update the app and see how it goes.
To me coming from the car world, it sounds like Bosch now have different maps on an ecu for delivering different power/torque for various conditions depending on the application.
Cannot wait to try this out and super pleased now that I picked a Bosch equipped ebike in the end. @Rob Rides EMTB your video about your Trek Rail emtb was what convinced me to get my Trek Rail 5
To me coming from the car world, it sounds like Bosch now have different maps on an ecu for delivering different power/torque for various conditions depending on the application.
Cannot wait to try this out and super pleased now that I picked a Bosch equipped ebike in the end. @Rob Rides EMTB your video about your Trek Rail emtb was what convinced me to get my Trek Rail 5
oldfartwannabembker
Member
Well,
Mate with 2022 crafty updated, no error code and he has now got 3 extra, 7 in total power modes to choose from. So, I've not a clue why I haven't got them (2024 crafty) and why I got an error code and the system/update turned the bike off.
Last edited:
Ark
Active member
then you lose power meter data from the motor
JP-NZ
E*POWAH Elite
Ark
Active member
yea but we shouldn't have to choose between power meter/HR
should be so simple for the flow app to log HR
My Mondi Crafty got the extra mode options though after reading the Bosch site descriptions I stuck with those it came with, tweaked to my preferences.
Gilbo
Member
Can I see what firmware version I’m on using the flow app.
