Bafang M500 and M600 motors

Mabman

E*POWAH Elite World Champion
Feb 28, 2018
1,124
1,853
Oregon USA
@Mabman out of interest, how tall are you?

5' 10". Have used 170's since 1999 but going to long travel FS was having issues with strikes as many do. I am not sure if rider height has as much to do with it as the cadence frequency ability to be higher with the shorter cranks and leverage not as much of an issue? Nothing scientific to add other than seat of the pants time in the saddle comparison on known terrain, primarily the ups.


thaeber

Well-known member
Jan 26, 2021
887
769
Bruchsal, Germany
This could already be answered but the M620 cranks are a standard ISIS and the M600 are a non-standard. Paging @rtp to the crank hotline as he sourced some 150's for his M600.

I on the other hand have the former and got some Miranda 155's easily and cheaply enough. After fitting them I found that they are a very significant improvement over the stock 170's in that while they offer less chance of strikes they also interact much better with the Bafang PAS combo of cadence/torque sensing. In fact I am even considering sacrificing my stock cranks and making them 140's just to see if even shorter makes any difference in pedaling efficiency. It will further insulate against strikes also but let's face it paying attention to the trail is the best defense.
Hmmm…short cranks significantly shorten the „platform“ You are standing on in downhill. I never tried, but isn‘t that a weird feeling?


patdam

Well-known member
Jan 17, 2019
902
601
france
This could already be answered but the M620 cranks are a standard ISIS and the M600 are a non-standard. Paging @rtp to the crank hotline as he sourced some 150's for his M600.

I on the other hand have the former and got some Miranda 155's easily and cheaply enough. After fitting them I found that they are a very significant improvement over the stock 170's in that while they offer less chance of strikes they also interact much better with the Bafang PAS combo of cadence/torque sensing. In fact I am even considering sacrificing my stock cranks and making them 140's just to see if even shorter makes any difference in pedaling efficiency. It will further insulate against strikes also but let's face it paying attention to the trail is the best defense.
hi. have you link / reference of this miranda crank arms ? at my last request they have answered that they don't produce arms for bafang M series. thanks


Mabman

E*POWAH Elite World Champion
Feb 28, 2018
1,124
1,853
Oregon USA
hi. have you link / reference of this miranda crank arms ? at my last request they have answered that they don't produce arms for bafang M series. thanks

They only do so for the larger M620 series motors with the ISIS interface. I found them on Amazon and they came from I believe Aus or the UK? Took a few weeks regardless.

Does kind of raise the ? why did they switch to proprietary for the M5/600. Maybe they just didn't want to pay the ISIS licensing fee.....

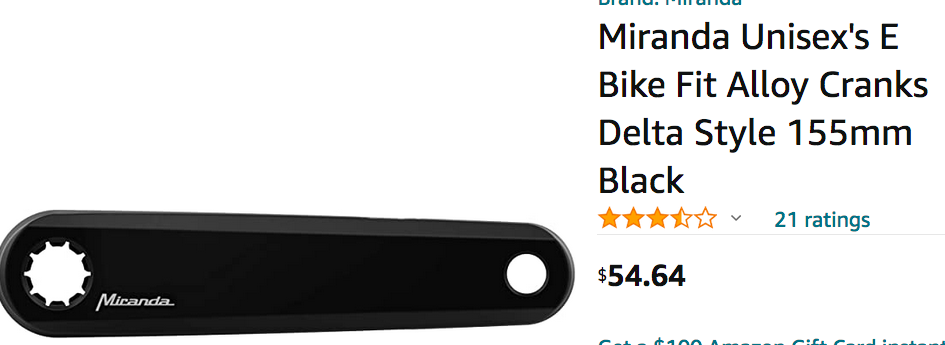

Screen Shot 2022-01-05 at 10.13.58 AM.png

Last edited:

Waynemarlow

E*POWAH Master
Dec 6, 2019
1,108
889
Bucks
hi. have you link / reference of this miranda crank arms ? at my last request they have answered that they don't produce arms for bafang M series. thanks
Not sure which motor we are looking for shortened cranks for ? Luna have 150mm cranks for the M500 / M600


Kyokushin

Active member
Mar 28, 2021
332
195
Sol

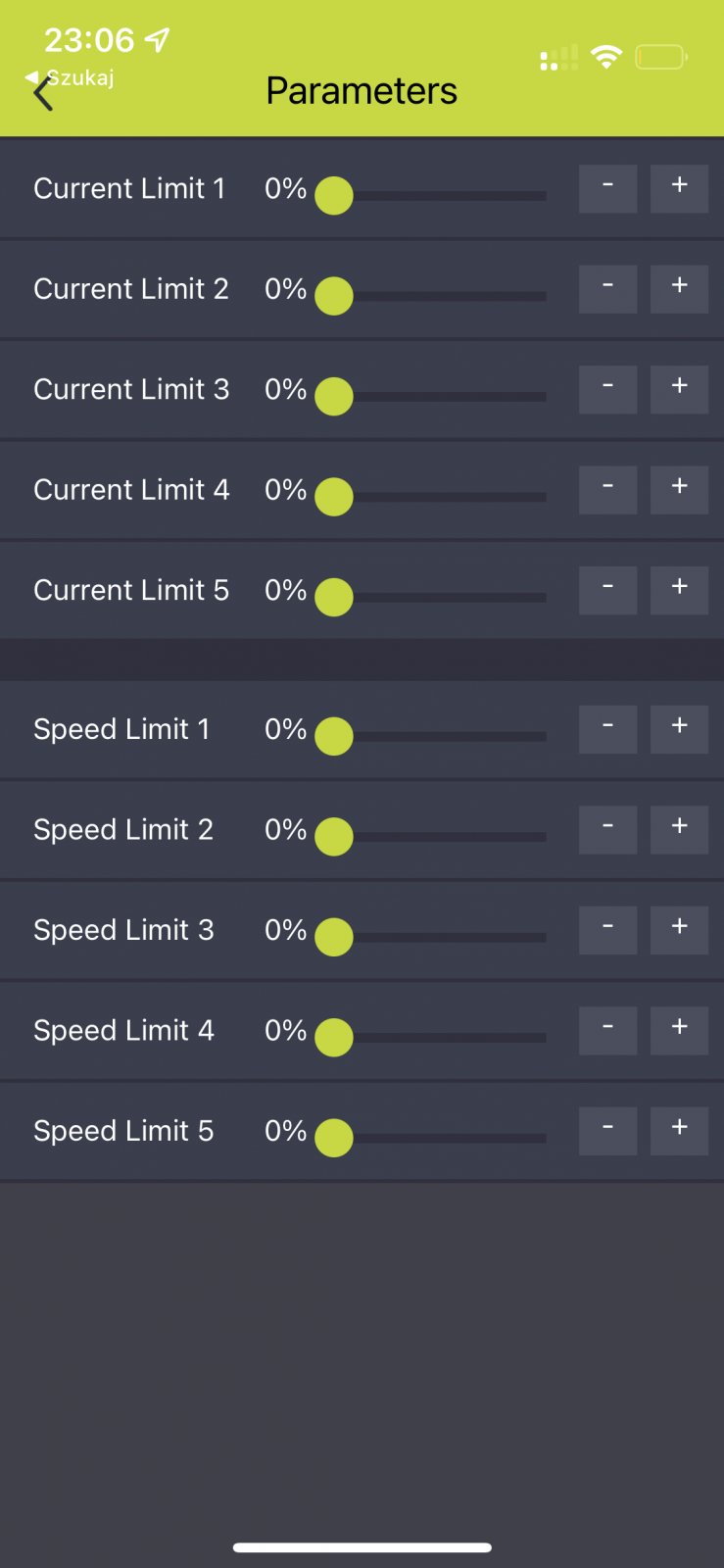

I have found interesting thing in the Bafang GO app.
CAN Display Settings -> Parameters...

Anyone tried to change this on M500/M600?



patdam

Well-known member
Jan 17, 2019
902
601
france
Not sure which motor we are looking for shortened cranks for ? Luna have 150mm cranks for the M500 / M600
it is original arms shortened, i have build it but not tested, i find 150 tooshort. I'm ask for miranda because they builts machined arms, more strong than cast, but they had saied me that they don't produce for M600


patdam

Well-known member
Jan 17, 2019
902
601
france
They only do so for the larger M620 series motors with the ISIS interface. I found them on Amazon and they came from I believe Aus or the UK? Took a few weeks regardless.

Does kind of raise the ? why did they switch to proprietary for the M5/600. Maybe they just didn't want to pay the ISIS licensing fee.....

View attachment 79380

Sorry i'm not any fluent in english and it'is not any clear for me. You have purchase these arms in 155 and mount it on M600 motor ? TheM500/600 arms have not classic "ISIS" alike those visible in the pic (teeths more large). It seem that some M620 have standard ISIS (but not all, as i think has reading ?)


Waynemarlow

E*POWAH Master
Dec 6, 2019
1,108
889
Bucks
it is original arms shortened, i have build it but not tested, i find 150 tooshort. I'm ask for miranda because they builts machined arms, more strong than cast, but they had saied me that they don't produce for M600
Have you actually tested them on the bike ? I thought 150mm would be way too short as well, but having now fitted them, really finding they suit the motor and bike. It does feel a bit weird for the first hour but now they just feel normal even though I ride 170's on my analogue.


patdam

Well-known member
Jan 17, 2019
902
601
france
Have you actually tested them on the bike ? I thought 150mm would be way too short as well, but having now fitted them, really finding they suit the motor and bike. It does feel a bit weird for the first hour but now they just feel normal even though I ride 170's on my analogue.
No i havn't tested, but i will do it. At this time, when i have shortened the arms it is only to soluce problem of cranks ground touch. In reality i didn't find really a differency on motor functioning, i estimate also that reducing arms length, reduce human torque and by consequency consume more battery power. But i will test.


VMG Chris

Member
Feb 25, 2021
99
130
Sydney
No i havn't tested, but i will do it. At this time, when i have shortened the arms it is only to soluce problem of cranks ground touch. In reality i didn't find really a differency on motor functioning, i estimate also that reducing arms length, reduce human torque and by consequency consume more battery power. But i will test.

I'll be shipping my bike with 160mm cranks. If there is enough interest, I may order extra for after market sales


Waynemarlow

E*POWAH Master
Dec 6, 2019
1,108
889
Bucks
Saw those, but shipping to the UK is more than the cranks themselves. I'm just as much cheep as I am cheeb!
You may want to check with Luna as I don't remember there being such a high shipping, I know that you now have to pay UK VAT at Luna but if it had been that high I would have done my first option, get the original pedal threads filled by welding and then drill & tap to 160mm which I think is the length Specialized spec on their new EBikes.


Mabman

E*POWAH Elite World Champion
Feb 28, 2018
1,124
1,853
Oregon USA
No, never on trails. That’s exactly why I‘m asking, no experience at all. And, how does it feel? Do you need much time to get used to it, or is it just a matter of a couple of minutes? Thanks!

I was surprised by the same response from another that had asked the same actually. Although I try and pay attention to Q factor, the distance between the crank arms, I had never considered if there would be any downsides to shorter cranks ability to post on while riding. Well of course other than my first lesson I got when going around a left hand corner with my right foot down as usual and the pedal jamming into the ground and getting bucked off rather rudely that is.....which helped lead me to shorter cranks and also that one should not post foot down on 150+ travel bikes......

So I would say there is 0 penalty for using shorter cranks as you describe and didn't take me any time at all to get used to them either. What I really get the most out of them it turns out is their enhanced pedaling performance going up and across interacting with the PAS. I won't be specing them on a push bike though and stick with the 170's that I have used since switching from 175's in 1999. If I maintained one anymore that is.


rtp

Member
Nov 21, 2021
52
32
USA
This could already be answered but the M620 cranks are a standard ISIS and the M600 are a non-standard. Paging @rtp to the crank hotline as he sourced some 150's for his M600.

I on the other hand have the former and got some Miranda 155's easily and cheaply enough. After fitting them I found that they are a very significant improvement over the stock 170's in that while they offer less chance of strikes they also interact much better with the Bafang PAS combo of cadence/torque sensing. In fact I am even considering sacrificing my stock cranks and making them 140's just to see if even shorter makes any difference in pedaling efficiency. It will further insulate against strikes also but let's face it paying attention to the trail is the best defense.

The only crank arms I could find at this point for the M600 were Luna's 150mm. Would love to find out some other options are available but I couldn't find any.

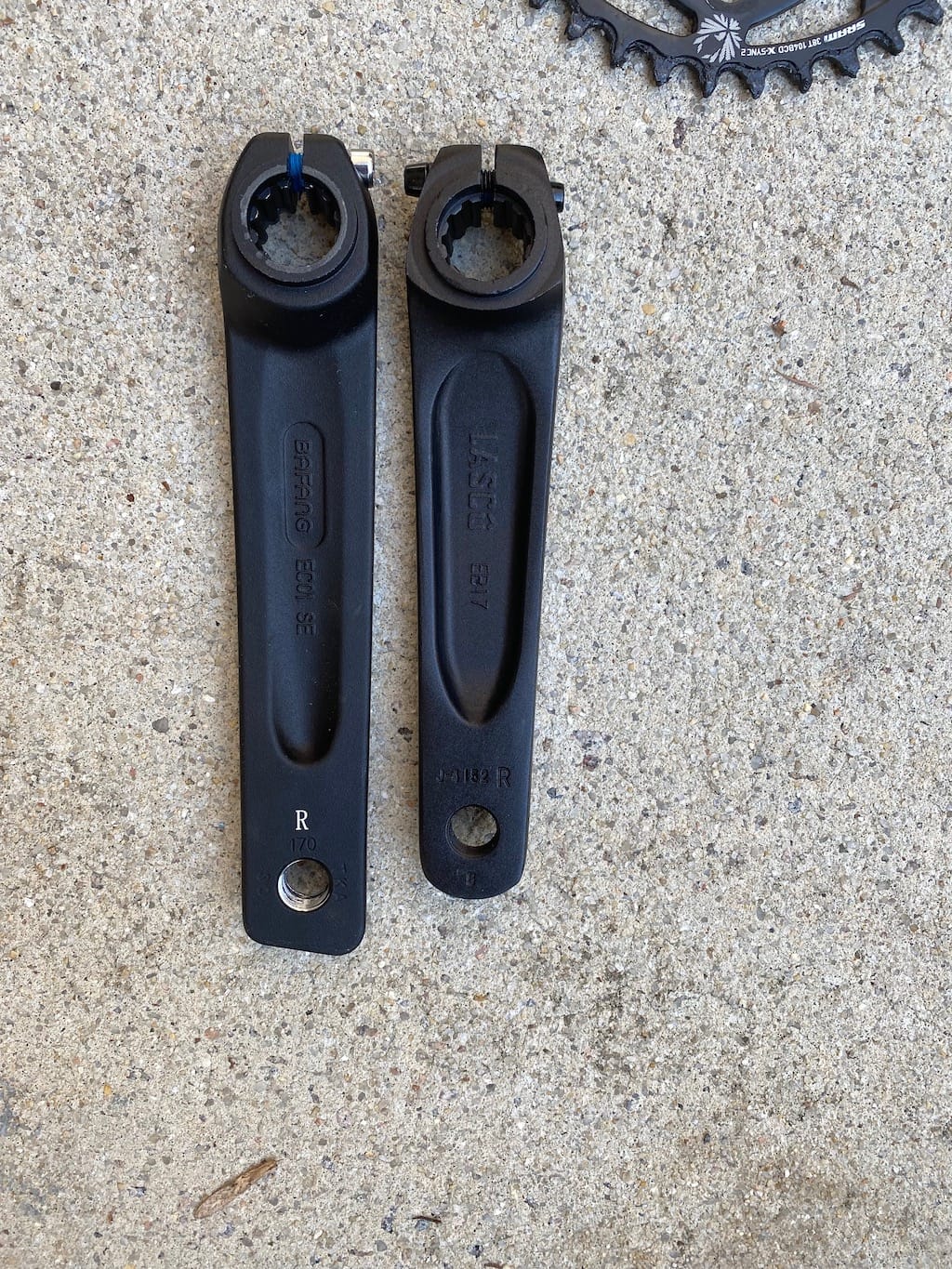

Left is the 170mm, right is the 150mm..



rtp

Member
Nov 21, 2021
52
32
USA
Interesting vid discussing the M600 motor. It talks in details about the cadence bias and fast ramp up of the power and probably backs up my initial thoughts of how the torque sensing works.

Sadly if only we could play around with the bias to suit our own requirements, it would be a pretty robust and mechanically sound engine with just tad bit of porkiness about it.


That review is interesting, but what it sounded like to me is they took the collection of firmware available, probably include 'Luna's' 14.5 firmware, used the BESST tool to change them, and are claiming life has 'special firmware' versus just picking one out of presumably 14.4, 14.5(Luna Ludicrous, not great for most), 14.6 and equivalents for e.g. if they are building a 43v or 48v bike for someone?

As others have said, user configurability as to the bias and ramp times etc. would go a long ways towards making the motor suitable for a wider range of users. I have the VESC/Ludiv2 controller and can say it certainly isn't cadence-based..for that matter I don't think it uses the cadence sensor at all currently (confirmed this after I swapped wheels and while 'reminding' myself 10x 'don't forget to swap the magnet over' - I forgot to swap it over... ;) ). I usually ride in PAS 2-3 of 9, assist seems pretty linear to torque input, and might like to reduce the rampup very slightly but only from a complete standstill.

I did also move to the shorter Luna crank arms, and had some concern, as aomeone else had noted - you are reducing the moment lever, or amount of leverage you have and certainly this 'should' impact the torque input to the sensor and controller for a given amount of rider input. It has not impacted the VESC/Luna V2 controller/ride negatively for me, at low PAS levels... meanwhile someone still running the 'questionable' 14.5/LundiV2/shunt mod firmware (levels 1 and 2 were useless, 3 was too much power assist, jerky etc.) found that moving to the shorter cranks made the 'bad' firmware' overall ride much better with the shorter cranks.

Nothing really new here - stuck on Bafang either opening up use of BESST configurability further, improving their firmware, making their app actually useable - or ideally a combination of all 3, or someone releasing a programmable controller available to all M600 owners, as by all accounts it seems the issues are really in the programming versus the motor itself.


rtp

Member
Nov 21, 2021
52
32
USA
I have the same device. Asked for distributor of BAFANG for codes.
for login on firmware versions?
You can find a login bypass script out there (I think someone posted in this thread) and can find a bunch of the available firmware on endless share and on GitHub here: GitHub - OpenSourceEBike/Bafang_M500_M600
Make sure you decode the filenames and e.g. don't install 43v on a 48v system or vice versa etc. though or fun things like battery thresholds, cutoffs and percentages will be all jacked up..


rtp

Member
Nov 21, 2021
52
32
USA
Saw those, but shipping to the UK is more than the cranks themselves. I'm just as much cheep as I am cheeb!
I expect there would be, depending on cost and construction etc. I looked everywhere for something between the 170mm originals and Luna's 150mm but none appear to exist.


thaeber

Well-known member
Jan 26, 2021
887
769
Bruchsal, Germany
I expect there would be, depending on cost and construction etc. I looked everywhere for something between the 170mm originals and Luna's 150mm but none appear to exist.
I checked Miranda Manufacturer Website and found they issue a new crankset for M500/510/600, the „Delta BFG“ Ref. 018. It is available in 150 - 170 length, in 5 mm increments. I‘ll check back with German sales rep Hartje on Monday. Looks promising!


Waynemarlow

E*POWAH Master
Dec 6, 2019
1,108
889
Bucks
Been running my M600 on 52 volts without a problem until yesterday where the Err 07 ( over voltage ) popped up on first connection, didn't seem to stop the engine and the motor just carried on as usual. The float fully charged voltage is just under 59 volts and I had simply unplugged the charger and fitted the battery, so the voltage would have been at its absolute peak.

Not found any really downsides to 52 volts as yet and with the shorter cranks the motor is really sweet to the point that I had an hour on a brand new Bosch Gen 4 motor equiped Focus and couldn't wait to get back on mine. Yes the Bosch is better at detecting torque inputs off the pedals, but it doesn't seem to want run into the higher cadence levels I can get with the 52 volt M600 and is somewhat noisier. From riding alongside the Bosch I would guess max power levels are not unsimilar.
