It was a typo, I have 160mm Miranda cranks
Bafang M500 and M600 motors
- Thread starter Rob Rides EMTB
- Start date
thaeber
Well-known member
Sorry..even better! Thanks Chris!
Hello, there may be an answer to this elsewhere but I cant find it. Is there a UK or European seller where I could get this gear from to save on shipping cost. Luna wants $50 to ship to UK.
Cheers, Mike
Waynemarlow
E*POWAH Master
Only the very early M600 motors had a steel main gear in them, are you sure you actually have one of those motors ?
I just ordered my frame and motor last autumn, so probably nylon but was looking to get a spare so I am not stranded too long if I strip this one out. They are kind of pricey.
I will shorten the original to 150mm and test the functionality ...
thaeber
Well-known member
Not yet. Waiting for the 160 mm to be available. I‘ll post here once I received it!
Q16 ?
thaeber
Well-known member
it must be in the specification in the order
thaeber
Well-known member
Yes I saw it. I‘ll ask Chris from VMG bikes for the right specs. He already got some of the 160 mm cranks.it must be in the specification in the order
thaeber
Well-known member

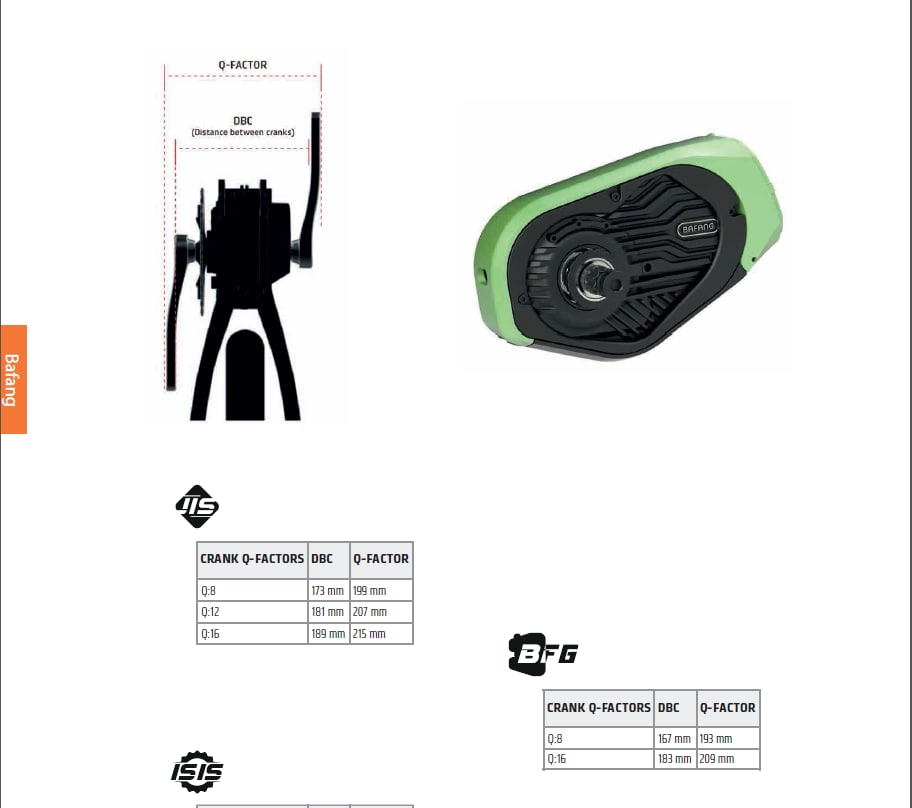

Can You tell which Q-factor is correct? Q16 or Q35?
Caio
Member
Hello guys,
I have been searching for more details on how the M500 performs, especially when compared to a regular Specialized Turbo Levo, which is already too powerful for my taste, when riding it, I usually ride it on ECO Mode mostly, although I appreciate the extra power on more technical uphill segment, short burst of power. I’ve tried to look up on YOUTUBE and elsewhere, nothing conclusive.
It seems that M600 is way too powerful, seems overkill to me, however more in line power wise to regular E-Bikes on the market, like Rob Ride Bikes mentioned on the CHEEB V1 build, delivering extra kick, having said that, here are the following Questions regarding M500?
1. How weak is M500 compared to regular Turbo Levo? Does the M500 turbo mode equals the ECO Mode on the Turbo Levo (factory setup)?
2. It seems per what I saw on other posts that the motor power decreases once it hits 50% of battery? Is it related to Voltage Drop or it’s programed to do so as a safety mechanism? Will a 50v battery resolve this instead of a regular 48v?
3. It seems that you need to spin more the cranks to get the extra power on the M500? Is this correct? If so, does it compensate the lack of power?
4. Will a 12 speed groupset help, (like a Sram Eagle cassette 11-50)? I mean, resembling more a XC bike performance, Spinning uphill?
I mean when realizing that this motor (M500) was used by the AMERICAN EAGLE team on E-MTB race, 2nd place in Val Di Sole 2019, seems pretty good.
ebike-mtb.com
I'll appreciate your thoughts on those, this will help when deciding between M500/M600 motors.
Thanks!
Caio
Carpe Diem
I have been searching for more details on how the M500 performs, especially when compared to a regular Specialized Turbo Levo, which is already too powerful for my taste, when riding it, I usually ride it on ECO Mode mostly, although I appreciate the extra power on more technical uphill segment, short burst of power. I’ve tried to look up on YOUTUBE and elsewhere, nothing conclusive.
It seems that M600 is way too powerful, seems overkill to me, however more in line power wise to regular E-Bikes on the market, like Rob Ride Bikes mentioned on the CHEEB V1 build, delivering extra kick, having said that, here are the following Questions regarding M500?
1. How weak is M500 compared to regular Turbo Levo? Does the M500 turbo mode equals the ECO Mode on the Turbo Levo (factory setup)?
2. It seems per what I saw on other posts that the motor power decreases once it hits 50% of battery? Is it related to Voltage Drop or it’s programed to do so as a safety mechanism? Will a 50v battery resolve this instead of a regular 48v?
3. It seems that you need to spin more the cranks to get the extra power on the M500? Is this correct? If so, does it compensate the lack of power?
4. Will a 12 speed groupset help, (like a Sram Eagle cassette 11-50)? I mean, resembling more a XC bike performance, Spinning uphill?
I mean when realizing that this motor (M500) was used by the AMERICAN EAGLE team on E-MTB race, 2nd place in Val Di Sole 2019, seems pretty good.
Spy Shot: American Eagle eMTB with the new Bafang M500 motor
American Eagle and Bafang announced a partnership at the beginning of 2019 to work together to develop a race eMTB to compete at the UCI eMTB World Championship in Mont-Sainte-Anne, Canada. We got a first peek at the photos and key details of the development of the American Eagle ebike fitted...
ebike-mtb.com
I'll appreciate your thoughts on those, this will help when deciding between M500/M600 motors.
Thanks!
Caio
Carpe Diem
thaeber
Well-known member
I can not directly compare to a turbo levo, but I‘m riding with buddies on
Propain Ekano (ep8)
Fantic Xef 1.9 pro (Brose Mag S)
Commencal Meta Power SX (ep8)
With the 13A firmware I can easily keep up with alle the other bikes. No lack of power, mostly I use PAS 2 or 3 out of 5. Max power I saw is appr. 720+ Watt (some say 750) peak. I think the Brose Mag S is comparable to the Levo, and I think the M500 is at same level in regards of power and battery consumption.
The feeling is very natural in my opinion, supporting best with higher cadence around 70 rpm, which suits my style. The engine does not like very low cadence at high load. My gearing is 32 front and 11-46 rear 10-spd. Cheap and absolutely sufficient.
Battery attenuation (derating at lower voltage) is much better with the 13A firmware, starting at 30% battery left but only reducing peak output to appr. 500W. Below 20% it is significantly reduced to appr. 250W. Still enough to come home. Hope that helps!
Propain Ekano (ep8)
Fantic Xef 1.9 pro (Brose Mag S)
Commencal Meta Power SX (ep8)
With the 13A firmware I can easily keep up with alle the other bikes. No lack of power, mostly I use PAS 2 or 3 out of 5. Max power I saw is appr. 720+ Watt (some say 750) peak. I think the Brose Mag S is comparable to the Levo, and I think the M500 is at same level in regards of power and battery consumption.
The feeling is very natural in my opinion, supporting best with higher cadence around 70 rpm, which suits my style. The engine does not like very low cadence at high load. My gearing is 32 front and 11-46 rear 10-spd. Cheap and absolutely sufficient.
Battery attenuation (derating at lower voltage) is much better with the 13A firmware, starting at 30% battery left but only reducing peak output to appr. 500W. Below 20% it is significantly reduced to appr. 250W. Still enough to come home. Hope that helps!
Caio
Member
Thanks thaeber!! this helps a lot!! i'm getting M500 for sure! I like the high cadence, since it resembles more to a regular bike.
CHeers,
Caio
thaeber
Well-known member
May be You are patient and wait for the release of the upgraded M510 motor. It will be available very soon, 0,5 kg lighter and even more powerful then M500. There is a thread here on the forum for more details!
I tested the latest FW46.8 and today I went below 30% and at max. power display showed me 550-600W. Under 20% 250-300W. Now I'm trying FW46.6 and I don't feel any difference. Less kicks at the start and at the 1st level, the power is max. 250W. Battery life also doesn't matter much. We will probably return to the original FW, 46.7 ...
Last edited:
thaeber
Well-known member

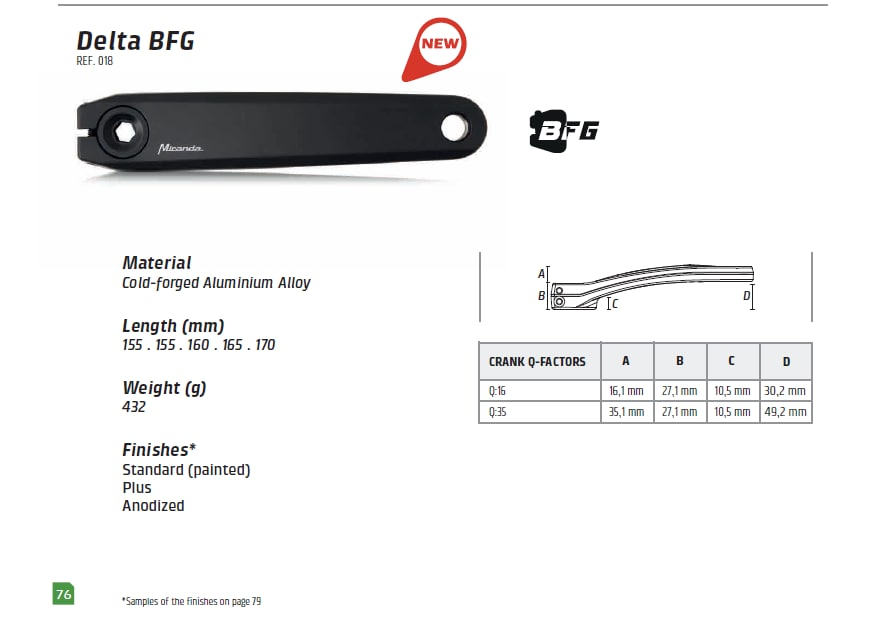

Miranda cranks for Bafang spline M500/510/600 are available now on Miranda online store. Just ordered the 160mm version for my bike! Only Q16 available.
Delta LS Cranks 160 Q:16 RF Baf Cold-forged aluminium alloy Standard (Black) for E-BIKE
155 and 165 are also available.
Delta LS Cranks 160 Q:16 RF Baf Cold-forged aluminium alloy Standard (Black) for E-BIKE
155 and 165 are also available.
Last edited:
thx, what was on the 46.7 ? below 30 and 20% ?I tested the latest FW46.8 and today I went below 30% and at max. power display showed me 550-600W. Under 20% 250-300W. Now I'm trying FW46.6 and I don't feel any difference. Less kicks at the start and at the 1st level, the power is max. 250W. Battery life also doesn't matter much. We will probably return to the original FW, 46.7 ...
Came to post the same - ordered a set of 160mm.
for the m600, its dependent on the PAS Levels. It's pegged on the maximum watts per level. so each pas level will yield different Vmax.
I'm not sure, so I'm not ordering yet
According to my measurements they do not fit, too large q-factor.
I'm waiting for the first one who will receive and try on his bike
On max pas and full throttle but without paddling.
