Fuel EXe Trek Fuel EXe - Trying to understand range and altitude possibilities

Cell4soul

E*POWAH Master
Jul 11, 2022
517
1,323
Mesa, AZ
Just did 25.63 miles with 2,687‘ elevation. I had 4% battery left. I rode probably 1 mile with no assist towards the middle of the ride. I am 175 lbs ready to ride. I used a combination of all 3 assist modes.


Salespunk

Active member
Jul 27, 2020
107
144
Encinitas, CA
Yesterday I did 30 mi / 6200 ft of climbing mostly in Boost….but I had to come back to the car twice to recharge the battery. Good thing the charger is fast. An hour charging between laps was enough.
Now instead of finding places with hose spigots for water bottle refills I have to look for outdoor outlets to recharge!


Cell4soul

E*POWAH Master
Jul 11, 2022
517
1,323
Mesa, AZ
Yesterday I did 30 mi / 6200 ft of climbing mostly in Boost….but I had to come back to the car twice to recharge the battery. Good thing the charger is fast. An hour charging between laps was enough.
Sounds like a great day. The TQ battery/motor is not efficient, but it does charge really fast. I can usually get it from 15-20% to 100% in about 2 hours. If only we could get your range numbers without a mid-ride charge.


Cell4soul

E*POWAH Master
Jul 11, 2022
517
1,323
Mesa, AZ

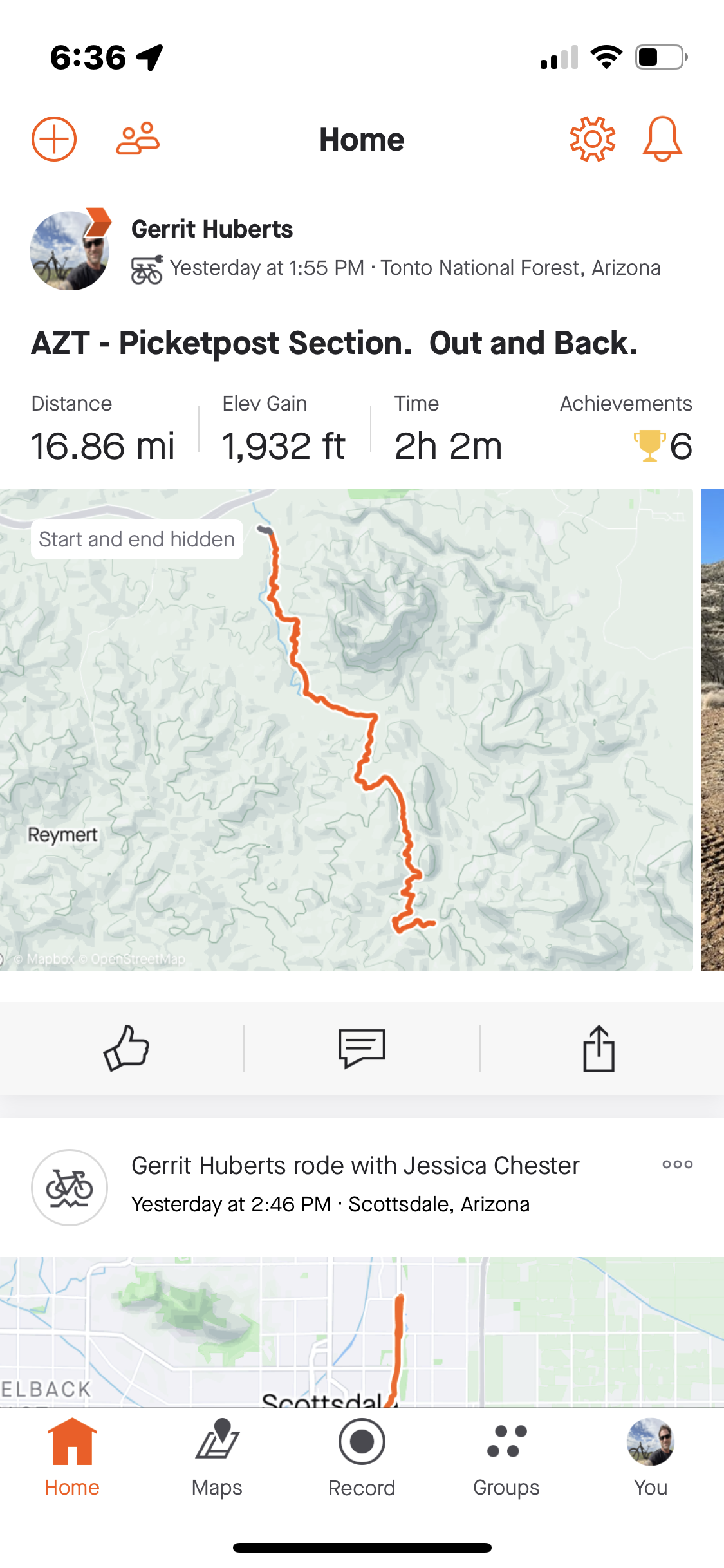

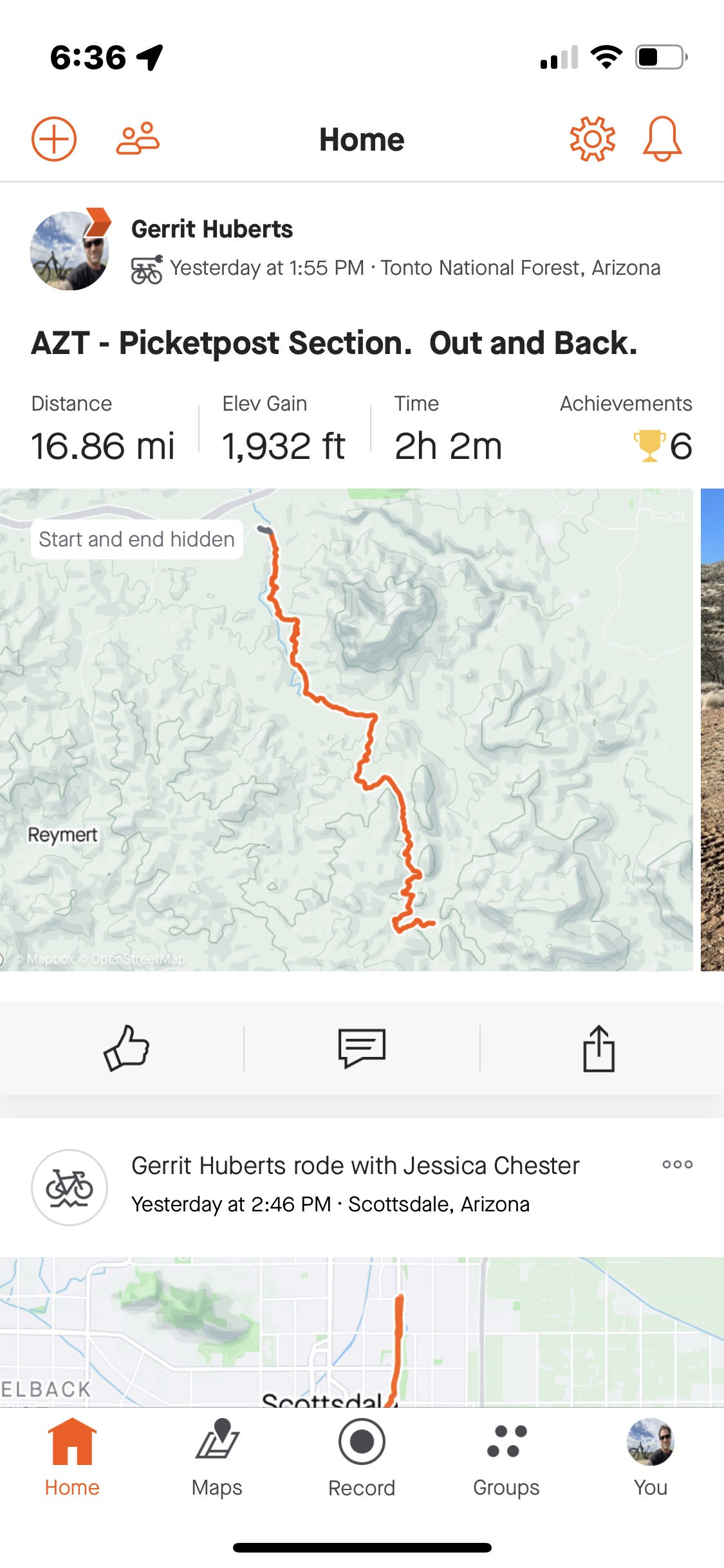

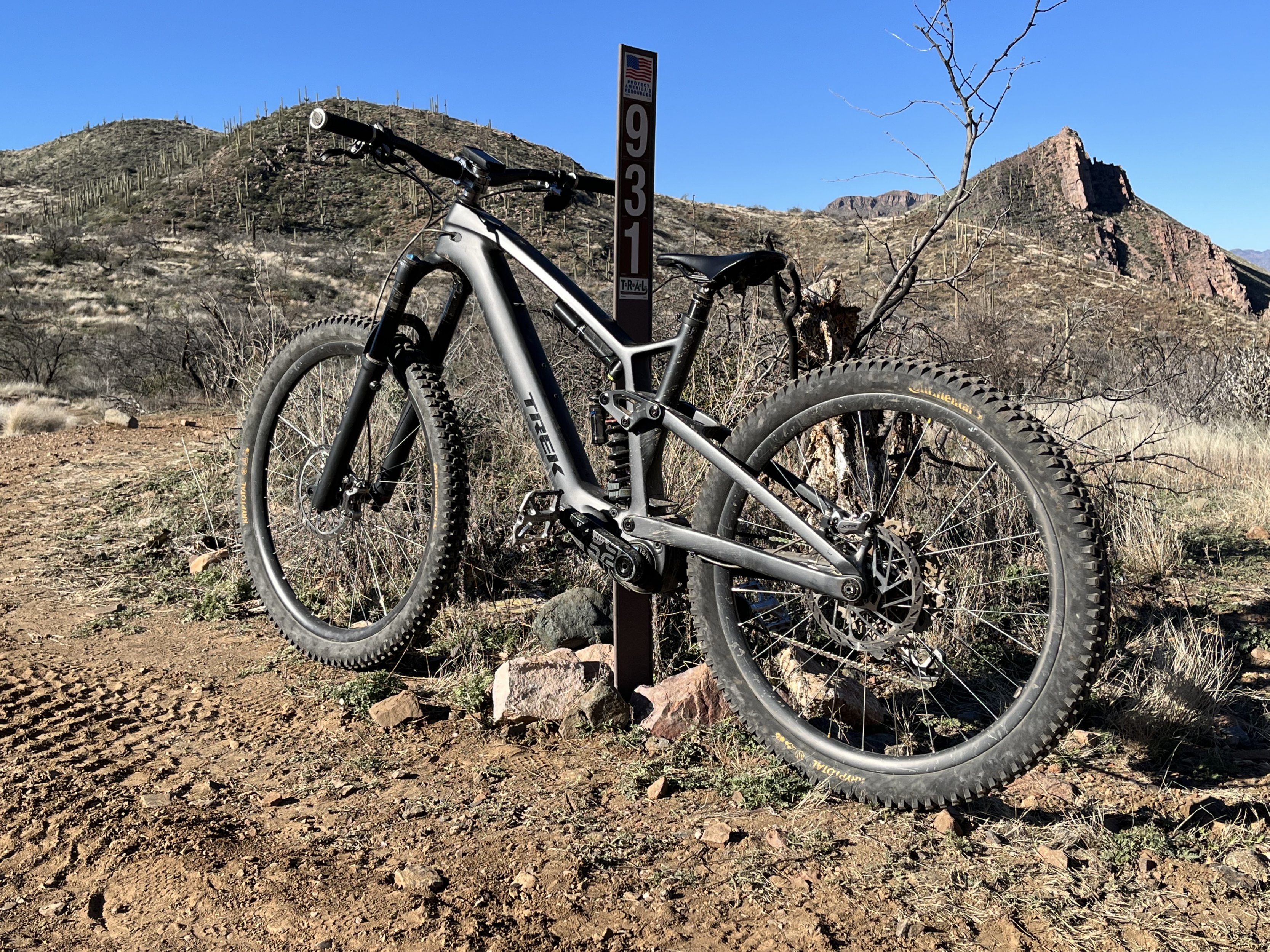

My ride yesterday was 16.86 miles and 1,932’ elevation.

23903A8D-D63A-4DC1-978B-1DF30F92BA96.png 9643BE95-0CF3-4EFB-831B-B4F35BEDEA55.jpeg


wildsau2

Active member
Jul 6, 2018
167
123
Germany, Karlsruhe
@stygz1
If you want to nerd out on data here are some rides I captured. Basically on the Levo SL I average 5-7 wh/mi for fun rides. I’m 210lbs and garmin says I’m 24 years old in fitness age which is About half my earth years.

I’m Sure with full power on the new trek it’ll easily be 30wh/mi or more climbing but if you give around 200 watts with your legs, That would legitimately be hauling ass up hill and that’s a full time hill climb.
my morning commutes are 4-5 wh/mi with super light wheels/tires and hard packed dirt/german paved trails.
View attachment 92721 View attachment 92722 View attachment 92723
Botnang is my hometown ✌🏾


Cell4soul

E*POWAH Master
Jul 11, 2022
517
1,323
Mesa, AZ

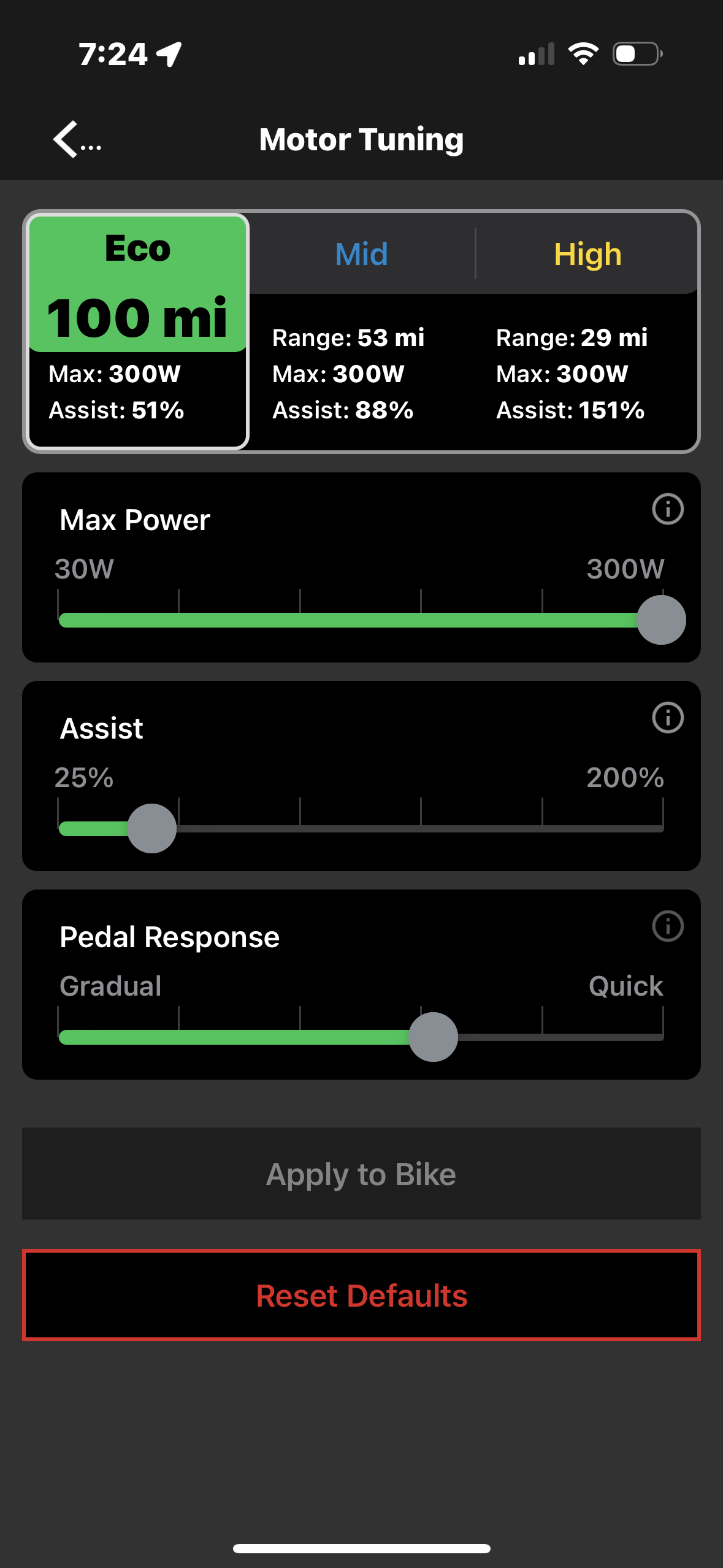

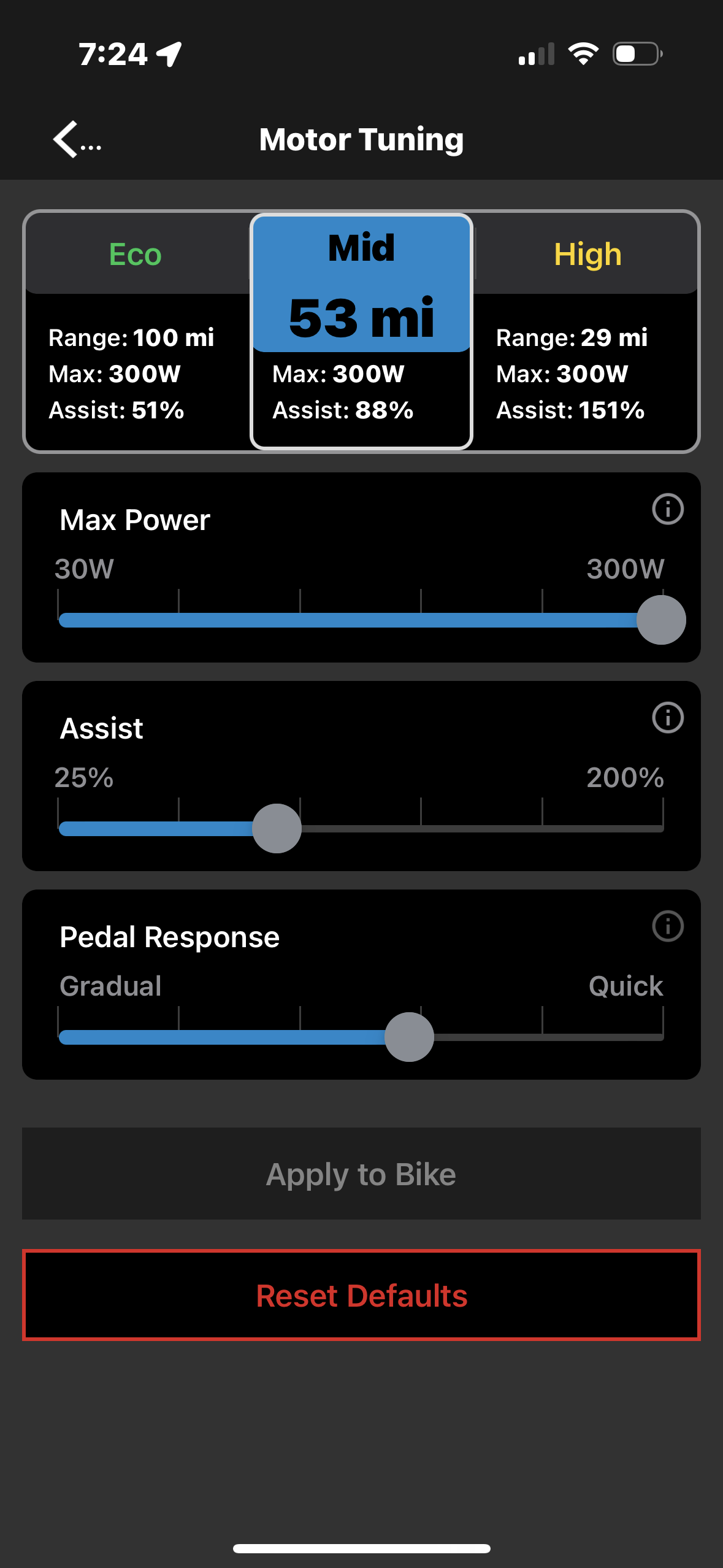

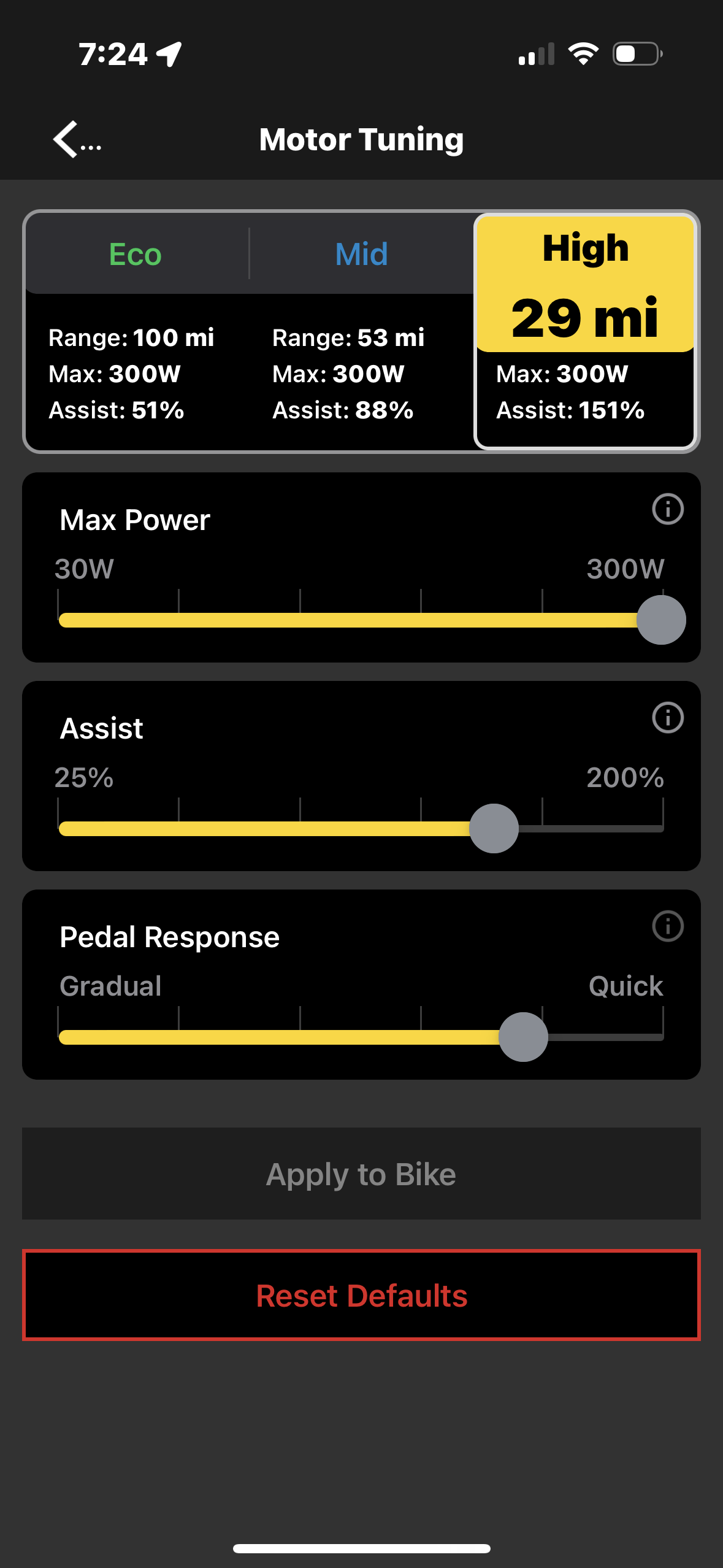

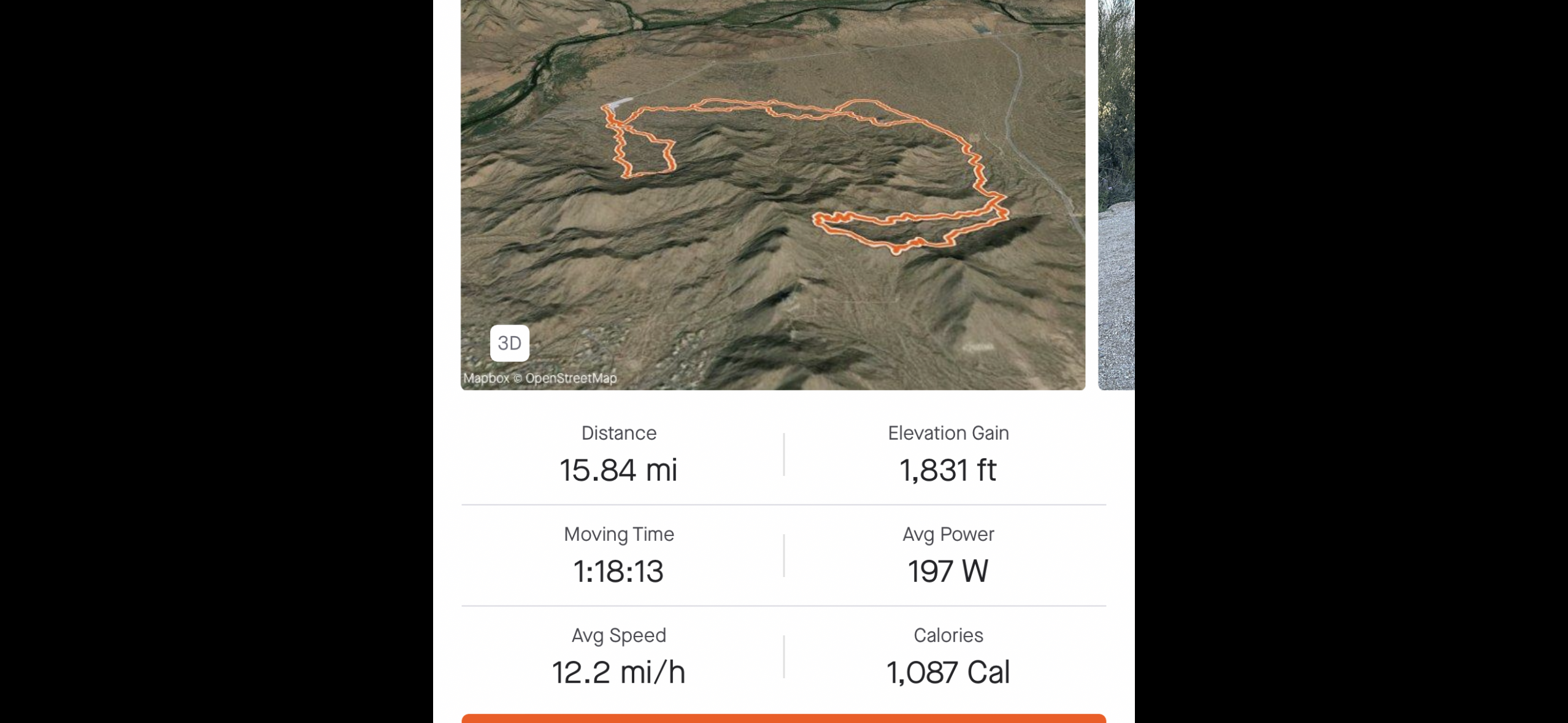

Did a ride yesterday. I finally felt pretty good about my range. My have been doing PT on my hip, so been off the bike for a month. I decided to ride in all mid and high mode, no eco. I am not sure why, but I had the same range as I did in eco. The mid settings re definitely higher on the Trek app. I had exactly 25% battery remaining. Here is the range and my current settings:

C2202803-34C7-40BA-A144-E0141910478F.png EDF6FB7B-5BDA-4919-B65A-448CC48143E4.png 86D8499B-481B-410C-8644-9E1244A86346.png 4C7F5199-0444-42F5-9ECB-B381D1CCE35B.png


thomasbran

New Member
Feb 15, 2023
29
24
Italy
Just came back from an afterwork ride. 12 km uphill with 1200 meters of elevation gain. I did it all in mid which for me is 100% assist with max. 150 W. When I got at the top I had 4% battery remaining. Only my 3rd exit with my bike, I estimate around 2000 m possible gain in Eco (50% assist max. 80 W).


Swingset

Active member
Sep 9, 2022
276
310
Southern Cal
I have been waffling on what to do about more battery. Last year I spent three weeks driving around the West with my Decoy on the back of my travel trailer. Thankfully it was incredibly easy to pull the battery and bring it into the truck to charge. Sometimes I would ride in the morning then drive for a few hours then ride again in the afternoon. I could rig up an extension cord out the back of the truck, under the trailer and run the charger to the EXe on the back. Or I could buy another battery and do a swap. This is attractive for multiple days where there is no juice to be had. The option to carry both if needed is nice as well.


Cell4soul

E*POWAH Master
Jul 11, 2022
517
1,323
Mesa, AZ
I have been waffling on what to do about more battery. Last year I spent three weeks driving around the West with my Decoy on the back of my travel trailer. Thankfully it was incredibly easy to pull the battery and bring it into the truck to charge. Sometimes I would ride in the morning then drive for a few hours then ride again in the afternoon. I could rig up an extension cord out the back of the truck, under the trailer and run the charger to the EXe on the back. Or I could buy another battery and do a swap. This is attractive for multiple days where there is no juice to be had. The option to carry both if needed is nice as well.

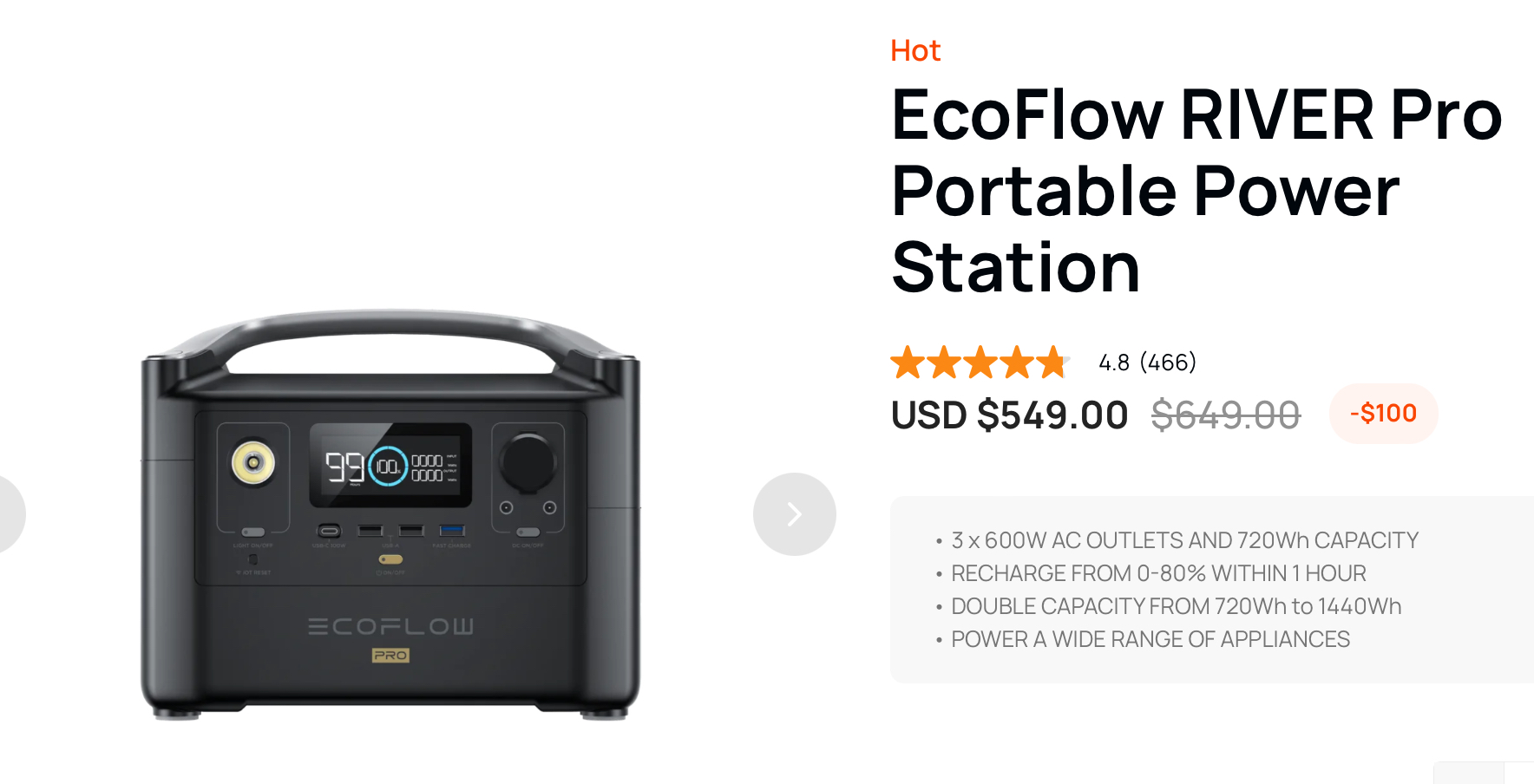

I used the Ecoflow power station on a 10 day camping trip through Utah and Colorado. I have a solar panel mounted to the roof rack on my 4Runner. This system works perfectly to charge the bike.




volts

Active member
May 15, 2018
343
266
DK
If you get a second battery, don't be a dumdum like me. Get the handle, end pieces and screws too. They are sold separately, for some reason.


Cell4soul

E*POWAH Master
Jul 11, 2022
517
1,323
Mesa, AZ
Rad! Did you get into hangover/hiline area?

We’ve been alternating between epic early season conditions and snow here on the local trails.

I didn’t get over to the “H” trails. Hopefully I’ll hit hiline next trip up, but I’d really prefer to do it with anther rider. Not sure I’ll ride either trail alone.

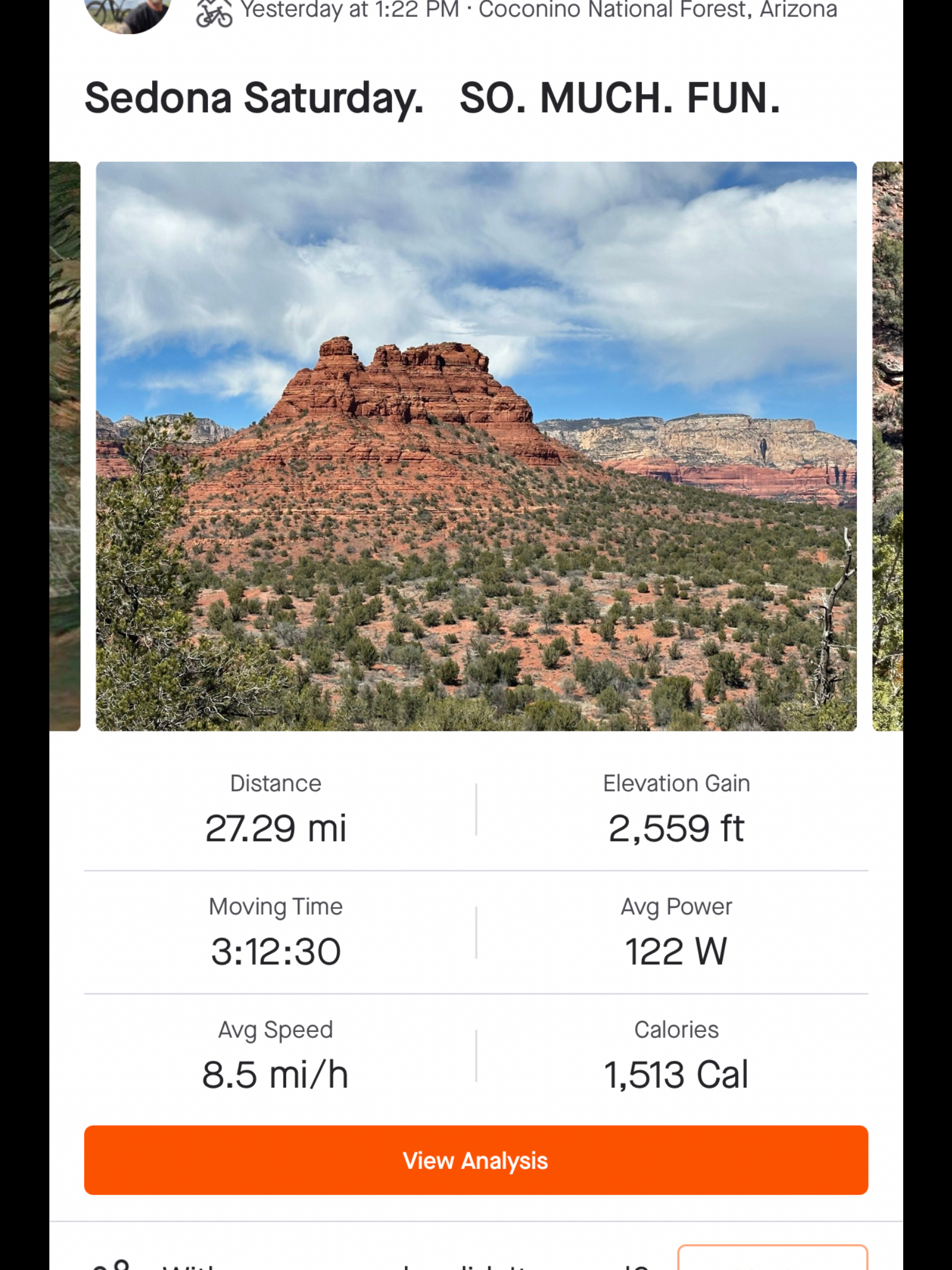

I stuck with the west side stuff this time. I never go to Sedona because I only have time on the weekends. I hate crowds and Sedona has a lot of them. It is nuts how many cars are out near the trails. Good thing is, most people don’t hike more than a mile or so. The west side trails are honestly not bad. West side trails are fun with some decent tech, but nothing too difficult.


Cell4soul

E*POWAH Master
Jul 11, 2022
517
1,323
Mesa, AZ
@Cell4soul I’ve done many riding trips there, but haven’t been in at least a decade. Maybe this fall or next spring!

If you make it out, I'd love to hit the "H" trails with if you wouldn't mind me tagging along. The amount of cars parked on the road and in lots was insane. I almost left and went to Cottonwood because of the crowds, but I am glad I didn't.


clivem25

New Member
Mar 5, 2023
37
25
Perth Western Australia
Picked up an EX-e while they were on special, spur of the moment type of thing. Among other changes I put a 160mm Zeb on the front and the bike now comes in at 20.6kgs (45.3lbs). Played around with the motor tuning as I want something that pedals like a normal bike that I can turn up at the end of the ride and manage a couple more laps rather than calling it a day.

Maiden voyage today and rode the whole ride in mode 1 which was set at 50% assist with a max of 80W. Covered 51km with 1370m of climbing (32miles/4500ft) and still had 31% battery which is awesome I think.

Mode 1 was still providing more assist than needed as towards the end I was still climbing in a gear one or two cogs higher than I would have been on my other bike and I didn't feel the need to use a higher mode at all.


mitea

Member
Sep 10, 2022
135
98
Switzerland - LU
Yesterday ride



52.9km with 1218m elevation gain

most of the time in eco. 87% Battery used



this means 1400m elevation gain should be possible with 100% Battery. And season here in switzerland is just starting. Noticed from my trackedd powerprofile that I'm not yet in my usual fitness shape. So maybe even more. Love the fact that this bike pedals so easy. So with the right fitness one can extend the range quite a bit and only use the mltor for the really steep climbs.

Settings (stock):



Last edited:

jabar1975

Member
Feb 16, 2023
51
33
Zurich
The very first ride done. 27km, 700m of altitude gained, mix of eco (85%) and turbo in very steep long part of trail. All in default settings.
50% battery left.


jabar1975

Member
Feb 16, 2023
51
33
Zurich
Yesterday ride

View attachment 111594

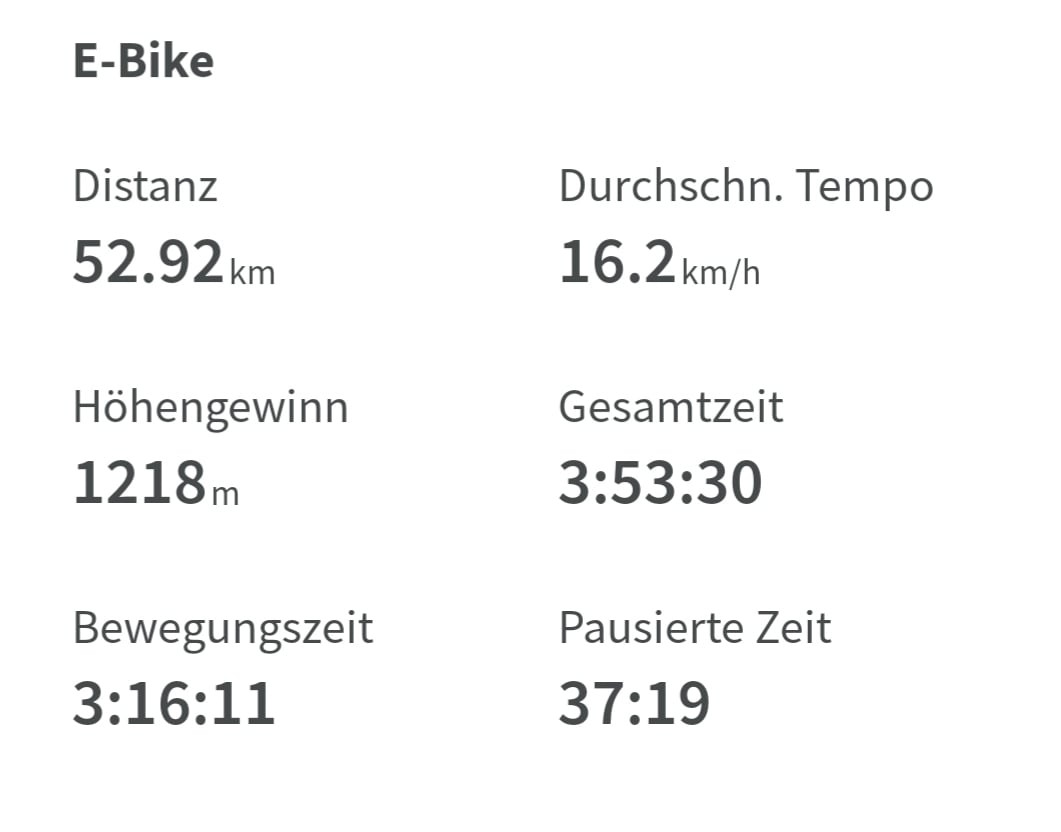

52.9km with 1218m elevation gain

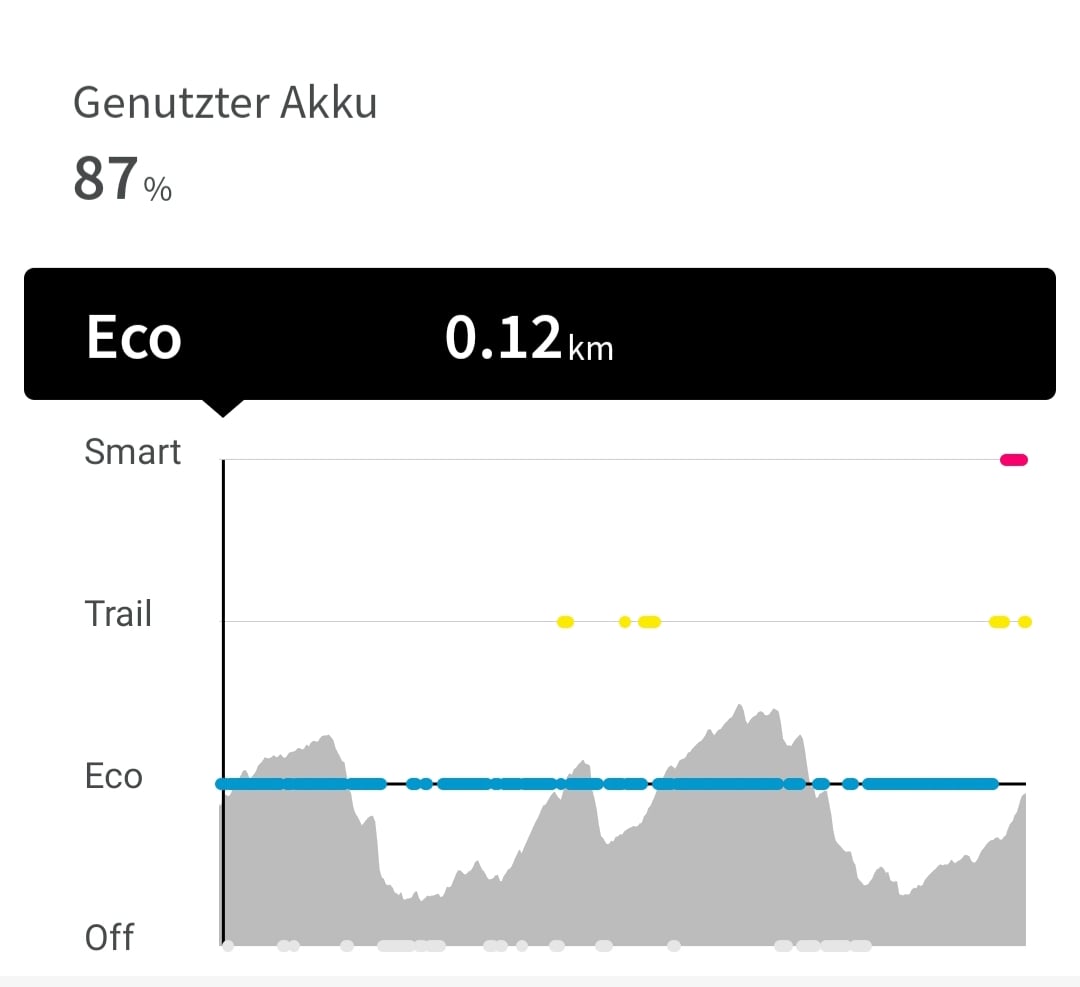

most of the time in eco. 87% Battery used

View attachment 111595

this means 1400m elevation gain should be possible with 100% Battery. And season here in switzerland is just starting. Noticed from my trackedd powerprofile that I'm not yet in my usual fitness shape. So maybe even more. Love the fact that this bike pedals so easy. So with the right fitness one can extend the range quite a bit and only use the mltor for the really steep climbs.

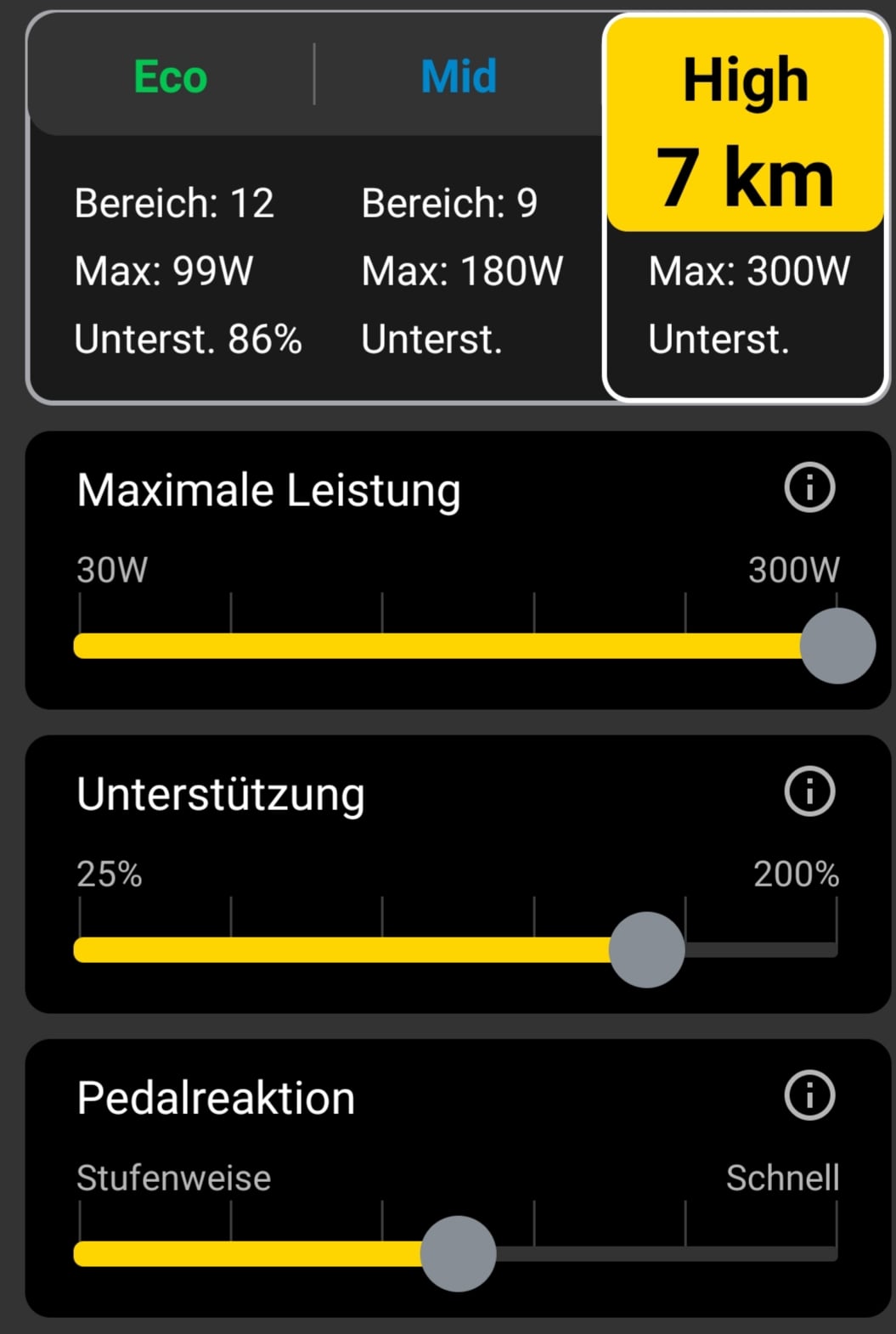

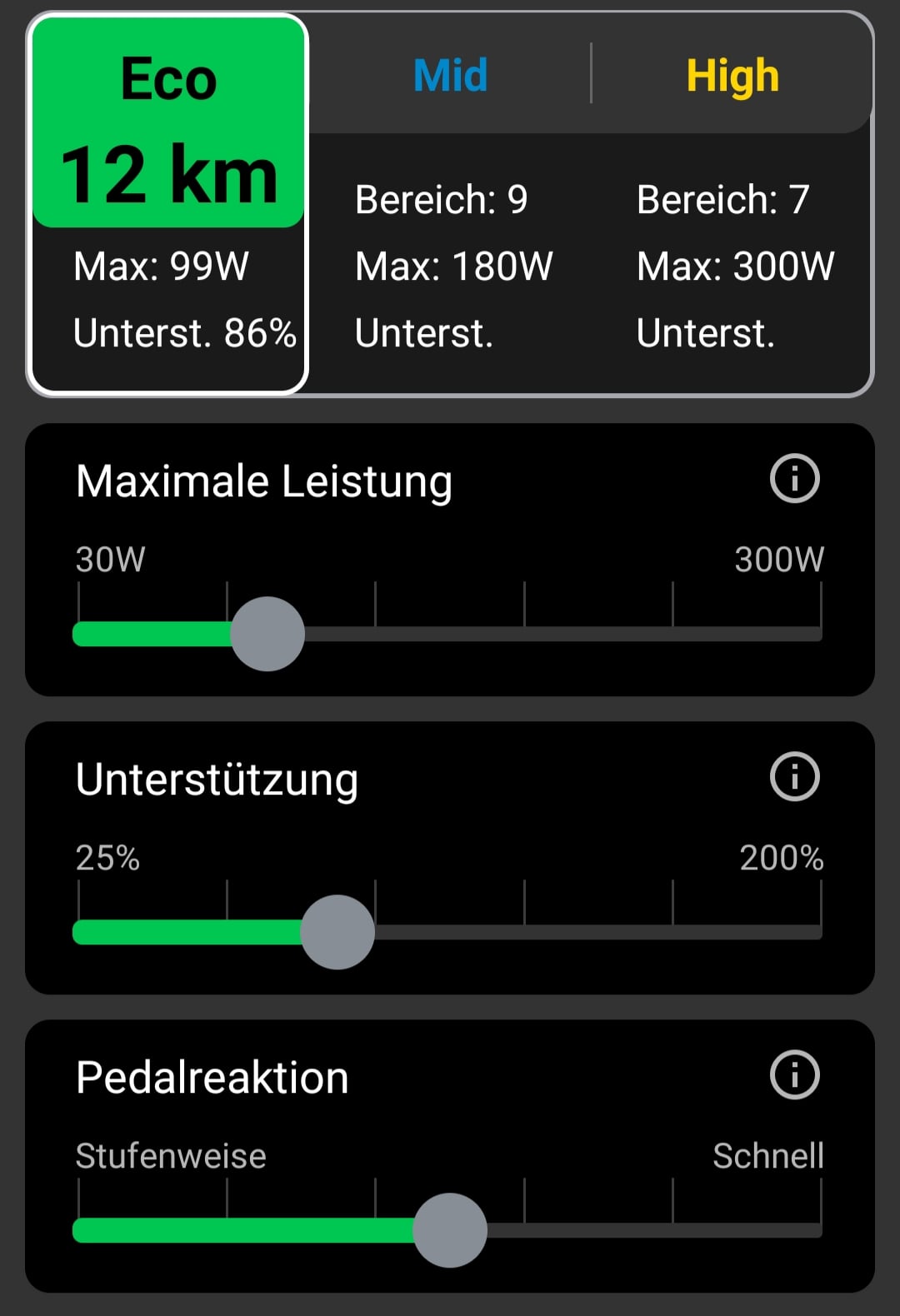

Settings (stock):
View attachment 111596
View attachment 111598
View attachment 111597

What part of CH you live?


Montana St Alum

Active member
Feb 13, 2023
255
204
Park City Utah
Picked up an EX-e while they were on special, spur of the moment type of thing. Among other changes I put a 160mm Zeb on the front and the bike now comes in at 20.6kgs (45.3lbs). Played around with the motor tuning as I want something that pedals like a normal bike that I can turn up at the end of the ride and manage a couple more laps rather than calling it a day.

Maiden voyage today and rode the whole ride in mode 1 which was set at 50% assist with a max of 80W. Covered 51km with 1370m of climbing (32miles/4500ft) and still had 31% battery which is awesome I think.

Mode 1 was still providing more assist than needed as towards the end I was still climbing in a gear one or two cogs higher than I would have been on my other bike and I didn't feel the need to use a higher mode at all.
Wow. This was just with the 360wh battery?


5earchkaine

Member
Apr 9, 2023
14
2
Austria
I don't if it's my region where i live, but the Trek Central app is way off with the elevation data. Had a ride today tracked with Trek app and Strava. Distance was very similar, but elevation difference was almost 700m. How is the data in the Trek app calculated?

Strava 926m total elevation, Trek 1613m.

Distance ~33km, 76% battery used, 70% eco/30% mid.


Cell4soul

E*POWAH Master
Jul 11, 2022
517
1,323
Mesa, AZ
Did a ride yesterday. The EXe seems to get equal or more range if I use all mid and high assist (trail and boost) the entire ride and do not use eco mode. I am not sure why, but I have heard about motor drag with no assist. I'd rather run in trail or boost anyways. For my ride yesterday, I did 10.63 miles and 1,391' elevation; I had 48% battery left. Those numbers are good for me. My range extender should be here this month. I may get 2 range extenders for epic long rides.
