Reign E+ 2022
- Thread starter zorro77
- Start date
Bordtea
Member
I’d be interested to hear also!
Hi there,
Can anyone help me out with this snap ring on the drive side BB? It’s obviously bent and needs replacing as it’s eating up the seal but I can’t work out what it even is supposed to do? The notch it sits in would have it not touching anything other than the crank arm? Is anyone able to take a pic of this area for me, or a parts diagram?
Thank you,
Alex
Can anyone help me out with this snap ring on the drive side BB? It’s obviously bent and needs replacing as it’s eating up the seal but I can’t work out what it even is supposed to do? The notch it sits in would have it not touching anything other than the crank arm? Is anyone able to take a pic of this area for me, or a parts diagram?
Thank you,
Alex
Has anyone changed the cable of the droper post ?
The end cap on the lever went loose, as result the cable frayed and then it was impossible to pull it back to place without causing it to fray more and more.
Removed the seat post, took the cable out only to see that the cable housing is nested deep inside the seat tube, it is impossible to catch it with something and try to pull it upward. On the other side, pushing the cable housing from the head tube, it does not move.
So I can't seem to find a way to push a new cable in, from that point.
Any ideas?
The end cap on the lever went loose, as result the cable frayed and then it was impossible to pull it back to place without causing it to fray more and more.
Removed the seat post, took the cable out only to see that the cable housing is nested deep inside the seat tube, it is impossible to catch it with something and try to pull it upward. On the other side, pushing the cable housing from the head tube, it does not move.
So I can't seem to find a way to push a new cable in, from that point.
Any ideas?
Garybee
Member
If you remove the battery and flip the bike over, most likely you will be able to push the cable housing up the seat tube.Has anyone changed the cable of the droper post ?
The end cap on the lever went loose, as result the cable frayed and then it was impossible to pull it back to place without causing it to fray more and more.
Removed the seat post, took the cable out only to see that the cable housing is nested deep inside the seat tube, it is impossible to catch it with something and try to pull it upward. On the other side, pushing the cable housing from the head tube, it does not move.
So I can't seem to find a way to push a new cable in, from that point.
View attachment 103583
Any ideas?
Thank you, that worked !
Garybee
Member

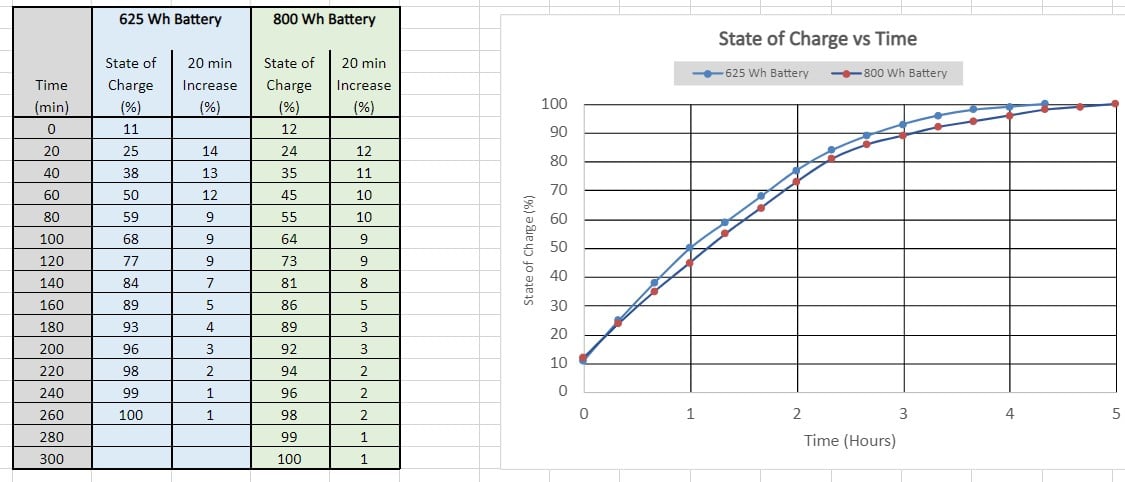

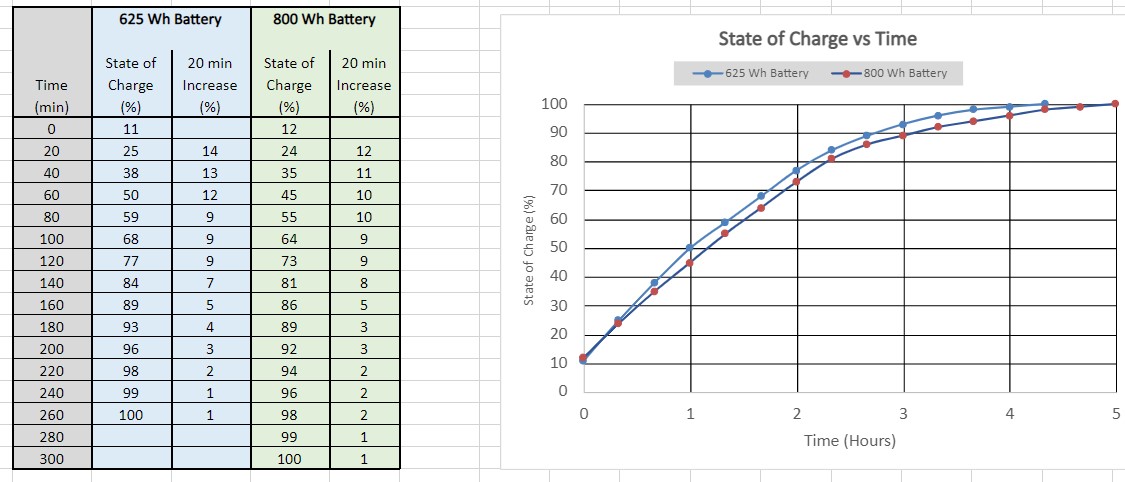

I was curious how the battery charged over time so for a 625 Wh battery and a 800 Wh battery I took charge readings every 20 min. Both batteries were reading just above 10% before I started to charge.
From the readings it looks like the charge rate gradually decreases with time until its just a trickle at the end.
For both batteries the charge increased just 4% in the last hour (2%+1%+1%). Compaired to the first hour where the charge increased 39% (625 Wh battery) and 33% (800 Wh battery).
I also charged the 625Wh off the bike and it took the same time as on the bike.
From the readings it looks like the charge rate gradually decreases with time until its just a trickle at the end.
For both batteries the charge increased just 4% in the last hour (2%+1%+1%). Compaired to the first hour where the charge increased 39% (625 Wh battery) and 33% (800 Wh battery).
I also charged the 625Wh off the bike and it took the same time as on the bike.
I do believe the later of the charge cycle is the bms balancing the cells, that can take some time
trailaddict
Active member

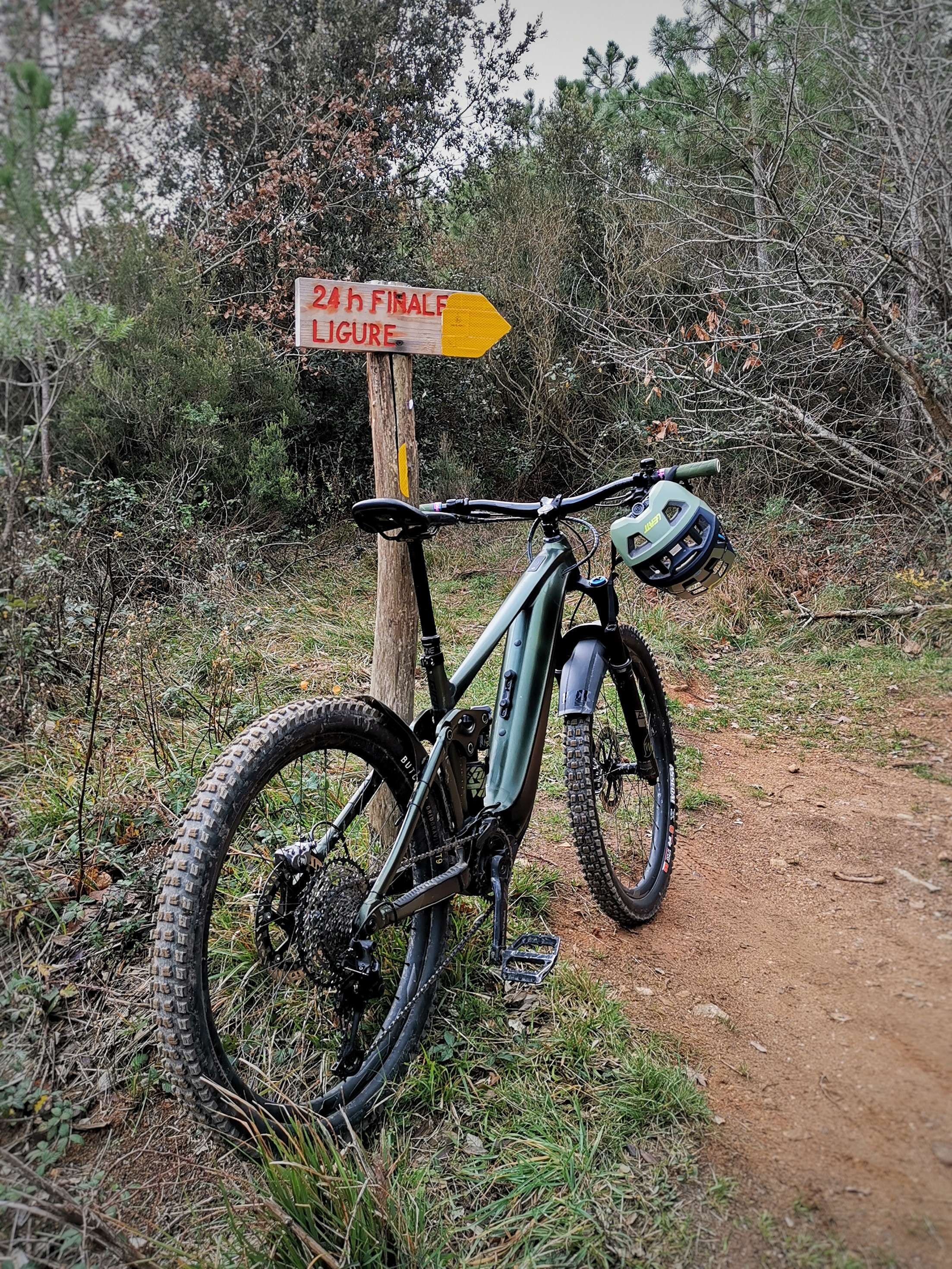

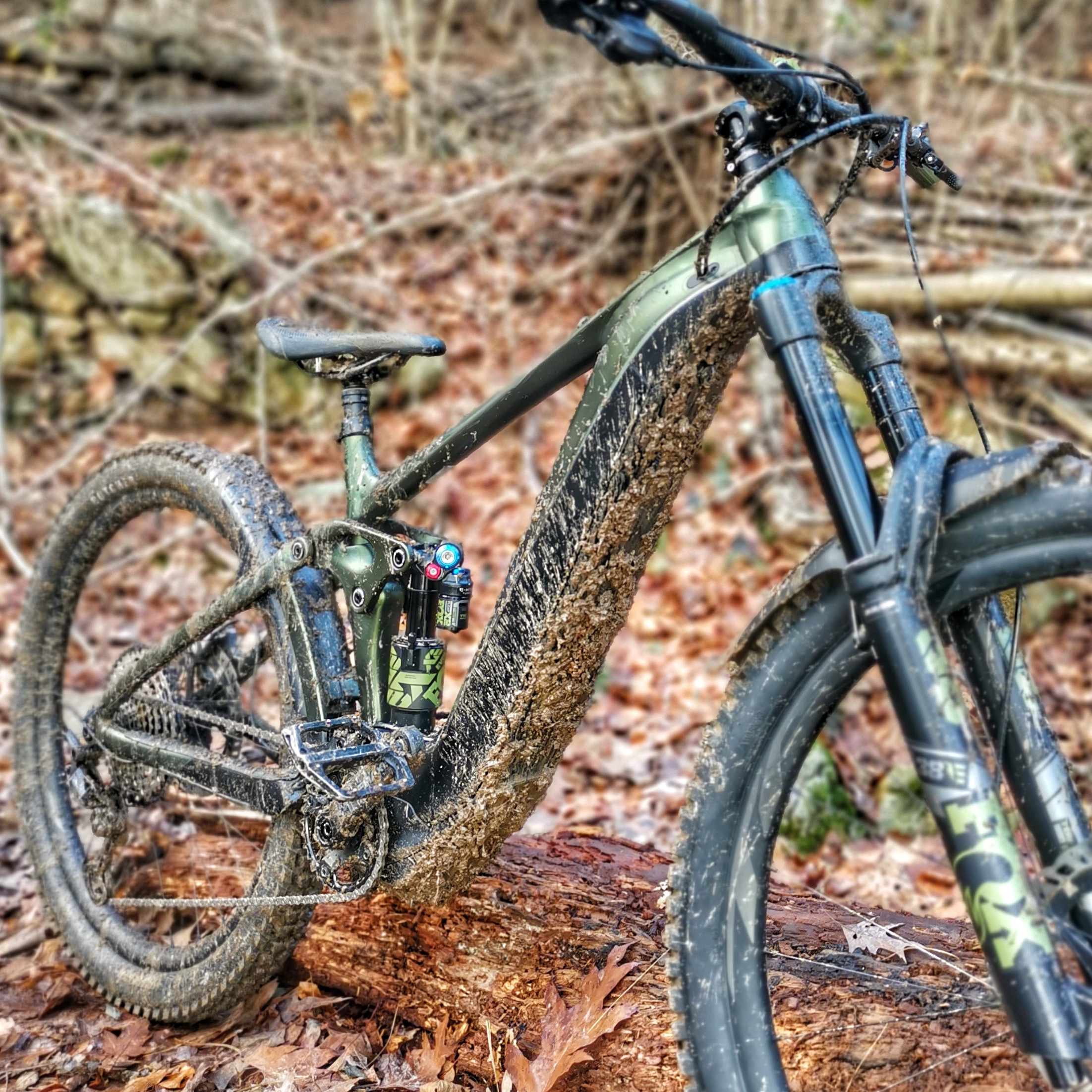

Greetings from Finale Ligure
Some rain yesterday made the ride quite interesting
Luckily I've upgraded to the Fox XL Mud Guard on the Front and it does it's job incredibly well. Suspension was serviced by Fox just recently, and now the bike feels so much better again.
Have a good time and stay healthy and positive.
Last edited:
trailaddict
Active member
3rd Day with the Dec 25th Update of the RideControl Go and Smart Gateway. Bikes work flawlessly and I did not encounter any issues so far on either the Reign nor the Trance X adv. With this being said, I close the Saison for this year and wish you all a goid start to 2023. Ride Safe!
Hello everyone, happy new year !
Since I'm in to mtb for about a year, I have never had the need to deal with freehubs so far. Now I'm thinking to upgrade the rear wheel of my '22 Reign E+2 and I'm lost. If I have understood correctly :
- since the '22 model, +2 , uses a 12-speed SRAM cassette with a smallest cog of 11 teeth, it has an HG driver ? Which is Shimano technology.
- looking for new ready to use wheels, I should be looking for those that are listed to have a freehub of "Shimano", not XD which are only for SRAM cassettes with 10-tooth smallest cog, neither "Shimano 12-speed" as the latter will be micro spline.
Am I correct ?
And if later down the road, I want to change my cassette, let's say go to a GX with a 10-tooth smaller cog, then I would also have to simply replace the driver by buying an XD one ?
Since I'm in to mtb for about a year, I have never had the need to deal with freehubs so far. Now I'm thinking to upgrade the rear wheel of my '22 Reign E+2 and I'm lost. If I have understood correctly :
- since the '22 model, +2 , uses a 12-speed SRAM cassette with a smallest cog of 11 teeth, it has an HG driver ? Which is Shimano technology.
- looking for new ready to use wheels, I should be looking for those that are listed to have a freehub of "Shimano", not XD which are only for SRAM cassettes with 10-tooth smallest cog, neither "Shimano 12-speed" as the latter will be micro spline.
Am I correct ?
And if later down the road, I want to change my cassette, let's say go to a GX with a 10-tooth smaller cog, then I would also have to simply replace the driver by buying an XD one ?
SRAM SX/NX cassettes are using HG driver (Shimano)
SRAM GX/X01/XX1 are using XD Driver (SRAM)
Newer Shimano 12 speed stuff are all running on Microspline driver.
If you can find parts to swap the driver to XD you're fine, but I'm not sure you'll be able to find the driver alone as it's all Giant stuff...might have to replace the whole wheel or the hub at least.
Yes, I'm looking to buy a new whole wheel. But keep the existing cassette because the bike has only done about 300 kilometers so far.
Thinking about a DT Swiss HX1700. Hub options are : XD, Shimano, or Shimano 12-sp, so I guess the right choice is Shimano.
peddleaddict
Member
After the October firmware update, my charge rates are not at all like these figures!
More than double I'd estimate. My battery appears to only trickle charge!
Example: I put my bike on charge this morning at 10am with 15% charge, unplugged at 17h40 (7h40 on charge) and the battery is at 74% charge.
I have 2 smart chargers and both give similar charge times for on-bike charging, so, not a charger issue!
I haven't tried charging the battery off the bike yet!
Are there other users apart from vte.ktm who are experiencing these charging issues?
peddleaddict
Member

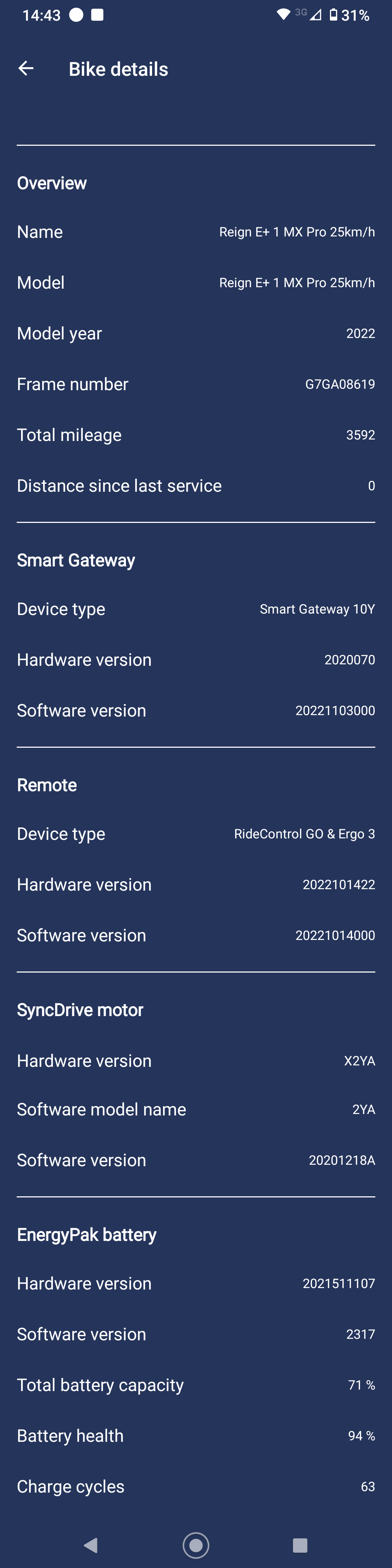

I have identical software releases and versions as you, on-bike charging is very slow. Don't know whether to take the bike back or wait for new firmware release?
![Screenshot_20221224-144305[1].png](https://www.emtbforums.com/data/attachments/104/104000-0cc08eb1d04184b7d417be4262ba2524.jpg "Screenshot_20221224-144305[1].png")
Mr Dog
Member
One thing I noticed after the recent firmware install is that the surging at the assistance cut off point came back. It had been fixed in an earlier update, I was pretty happy with the motor feel and the cut off felt comparable to Bosch. I was also getting assistance just after 25kph indicated on the Garmin before the update. That seems to have now dropped back to around 24/24.5kph. I’m pretty bummed. I didn’t notice any changes elsewhere and I have not charged on bike yet. Too cold to check the overheating issue which I did experience a couple of times on long climbs this summer. Hopefully we get a new update soon.
Thank God I returned my 0 and got my money back only after threatening them with legal action. Giant in their “wizdumb” have taken a spectacular motor and have really screwed it up.
peddleaddict
Member
Yes, a 2.6 width tyre will fit both front and back and is a good size for an eMTB
trailaddict
Active member
Speciaalized Butcher 27,5 x 2.6 fits easily. Even 2.8" would fit.
Last edited:

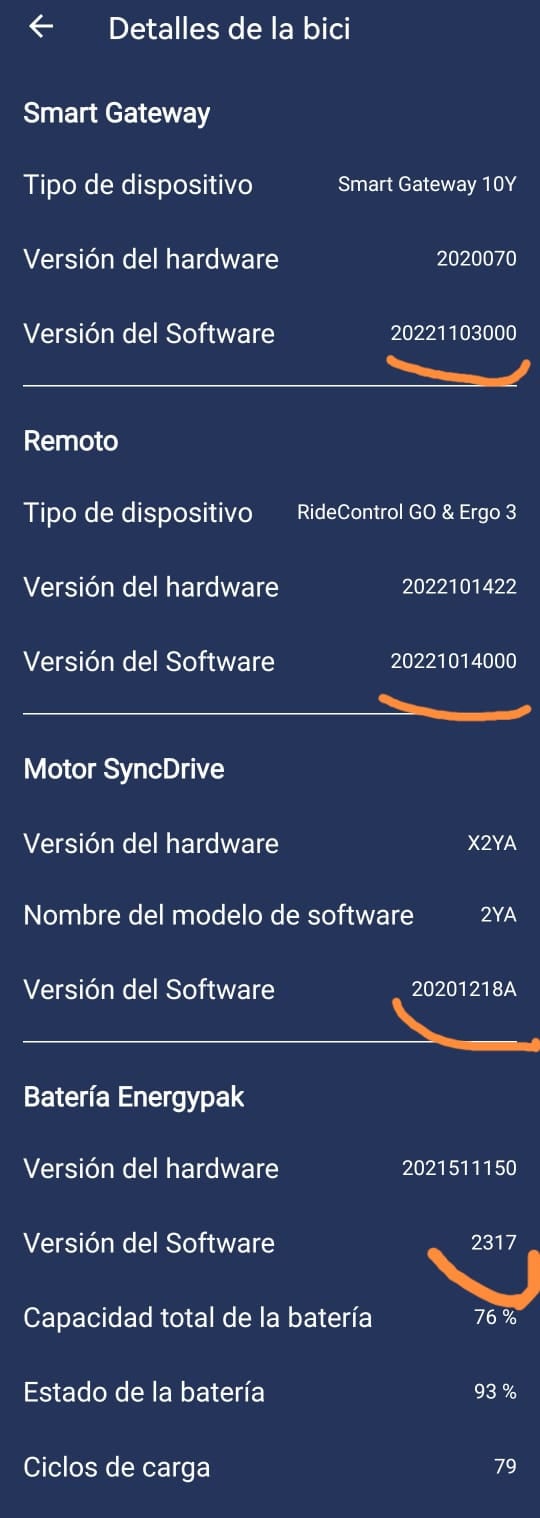

I'm still waiting for an update, for now, I charge it twice, first once all night, it stays at 76%, I disconnect the charger and reconnect it, I wait a couple of hours and it's already at 100%, but I have to do it twice
Heems
Member

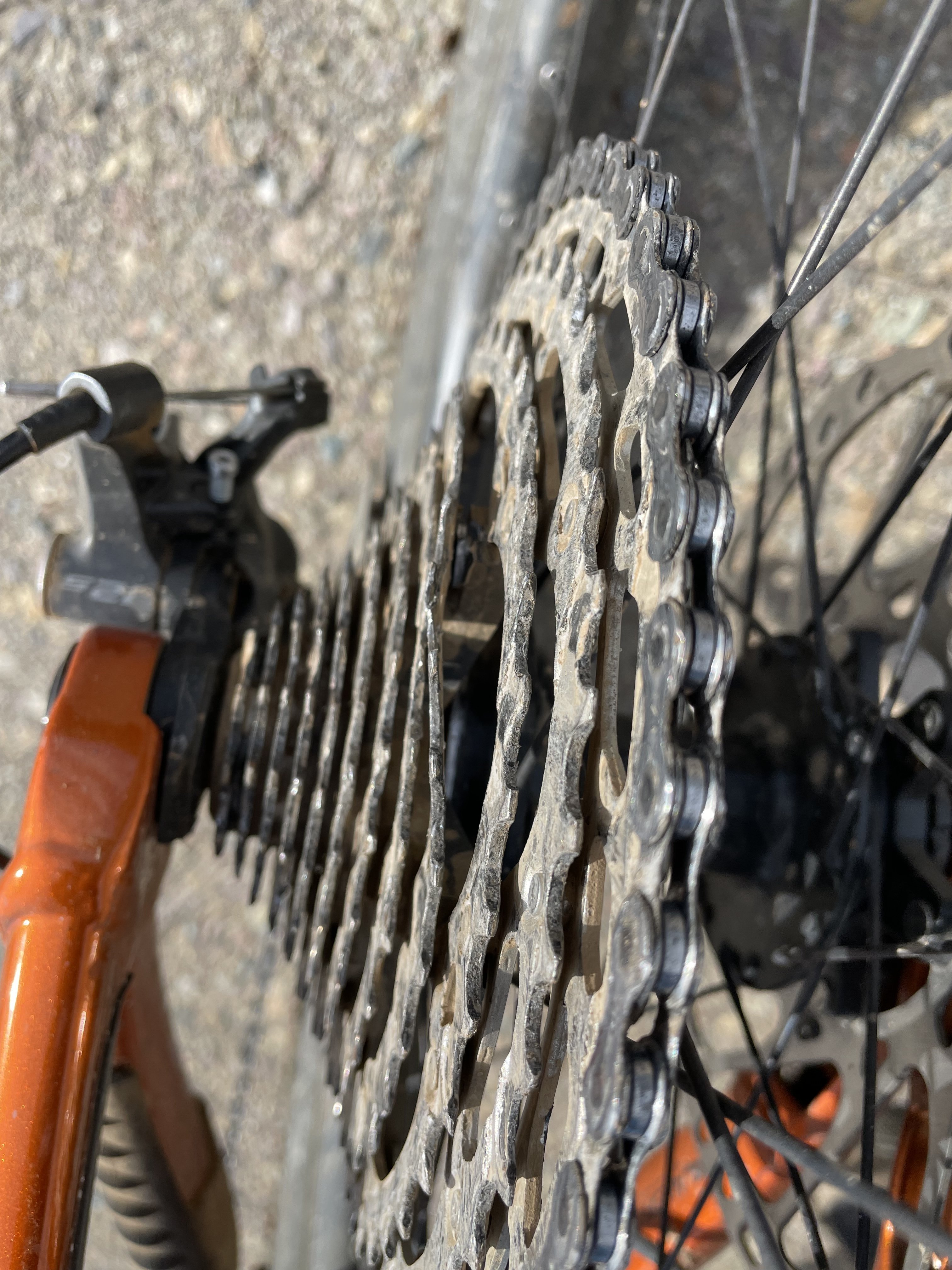

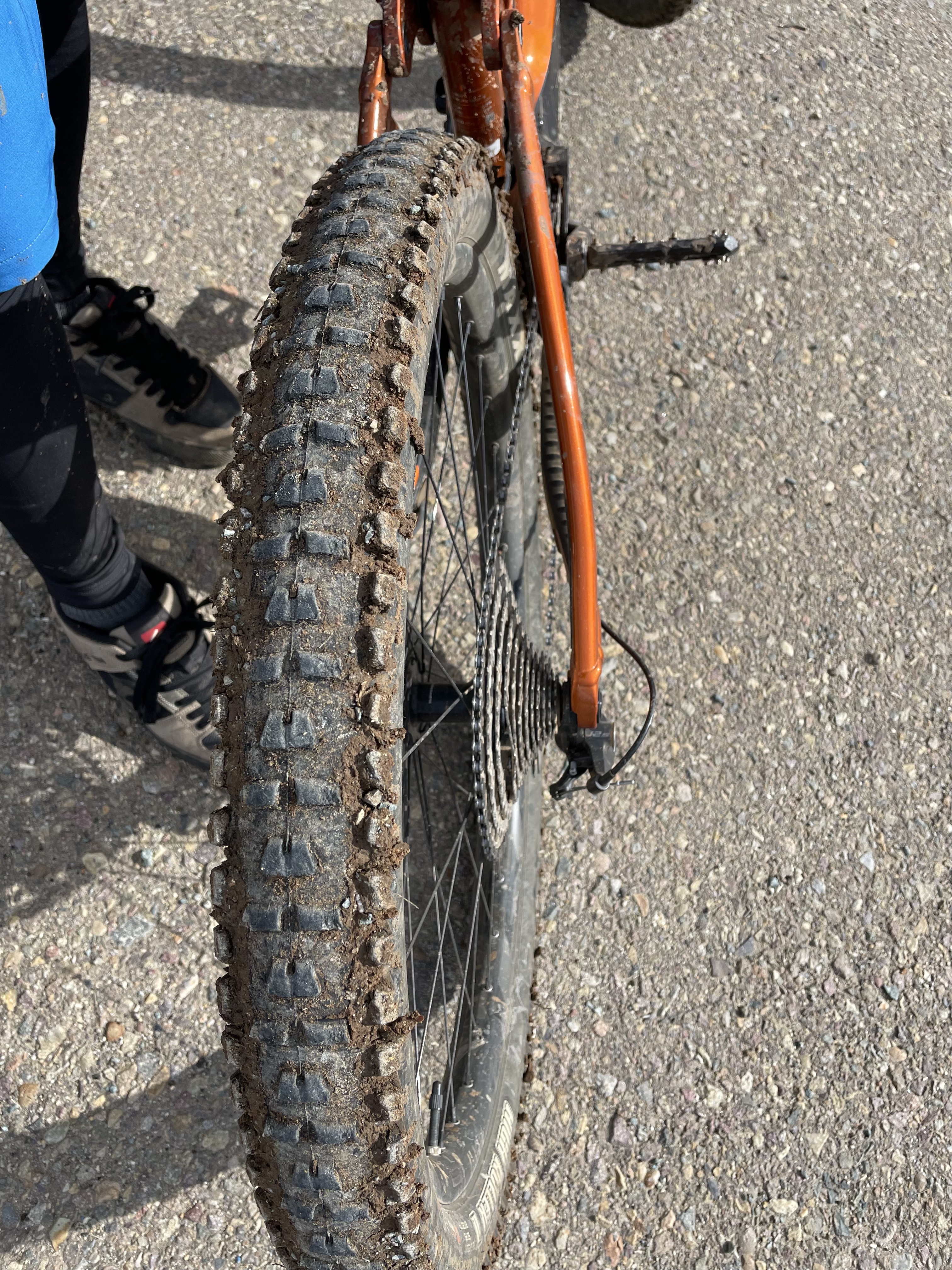

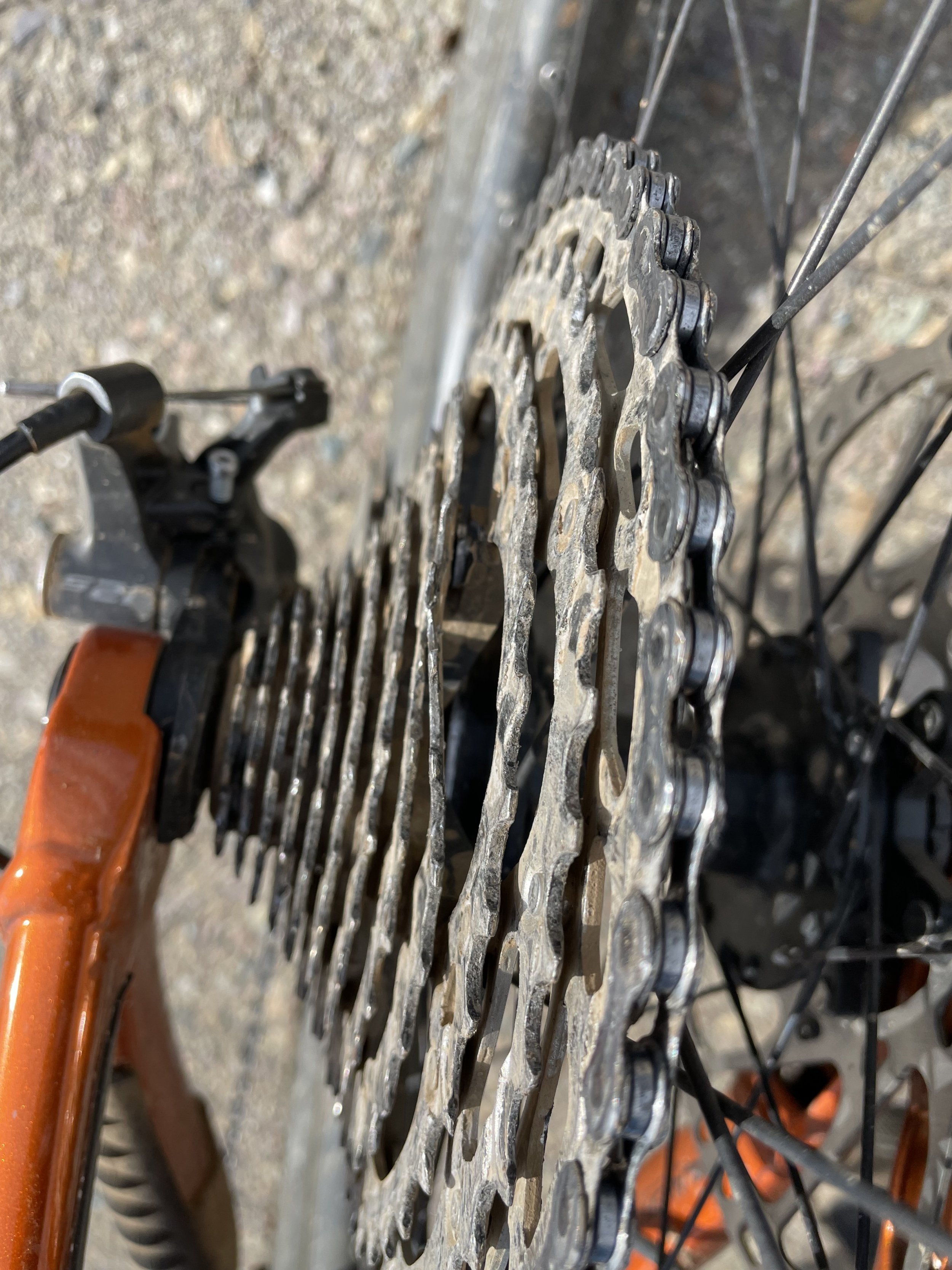

Experienced a cassette failure today. About 700 miles on the bike (E+3) … LBS going to replace it. My chain was also really loose in the lowest gear so they’ll shorten it as well. Going to use the opportunity to replace the tires as well. Assagi up front and DHR II in the back.
Mikects
New Member
Latest issue - mode switch down button started sticking on. Back at the bike shop for repair. 700km.
Starting to really like the bike now - when its working properly. Easily the highest maintenance bike I have owned in over 30 years of mountain biking……
Starting to really like the bike now - when its working properly. Easily the highest maintenance bike I have owned in over 30 years of mountain biking……
Buckaroony
Member
I’m going to Morzine in June for the passportes du soliel event and am really struggling to secure a battery to hire out there. As we are flying taking my own battery isn’t an option.
Has anyone tried riding proper downhill trails without a battery installed? Are there any issues with the frame flexing? I assume the battery isn't structural when installed.
The event only has about 1200m of climbing in total, the rest is lift assisted downhill.
Not sure how my legs would cope without the power assist but the bike doesn’t feel that heavy without the battery.
Has anyone tried riding proper downhill trails without a battery installed? Are there any issues with the frame flexing? I assume the battery isn't structural when installed.
The event only has about 1200m of climbing in total, the rest is lift assisted downhill.
Not sure how my legs would cope without the power assist but the bike doesn’t feel that heavy without the battery.
trailaddict
Active member
Yes, I did run the Reign down various DH and Bikepark Laps without a battery. It remains a heavy rig but feels very planted on rough stuff.
No, not at all.
No it isn't.
I won't do that bro. But why don't you try it yourself at home how it feels?
Buckaroony
Member
Finished the last 5 miles of a ride the other day with a flat battery, that was hard work and not convinced it would be that much easier with the battery out.
Oh well will dig out the old Orange Five for the event.
Can’t believe it’s still impossible to hire an Energypak out there.
Oh well will dig out the old Orange Five for the event.
Can’t believe it’s still impossible to hire an Energypak out there.
there is someone here on the forum with a 750 for sale (new)
Buckaroony
Member
Do they live in Morzine?
Buckaroony
Member
Thanks for the offer, have come up with a solution - a friend can drive the battery out for me beforehand and store it there for the event. Bonus is I get to justify buying an 800wh battery.
