Levo SL Gen 1 Official Levo SL Thread
- Thread starter Rob Rides EMTB
- Start date
-
- Tags
- levo sl
From the pics I've found of the SL1.1 motor, it has a standard ISIS interface, same as the Levo and Kenevo. I'm picking up my SL in the morning, so will know for certain soon enough. That being the case, Hope, FSA, Miranda, and a host of other cranks will fit the SL, in a wide range of sizes.
Its something about the Q factor on them being something really odd more than the axle.
soundwave
Active member
Did you upgrade the wheels to a comp model or just added the tires to your existing wheels?
Both, wheels and tires.

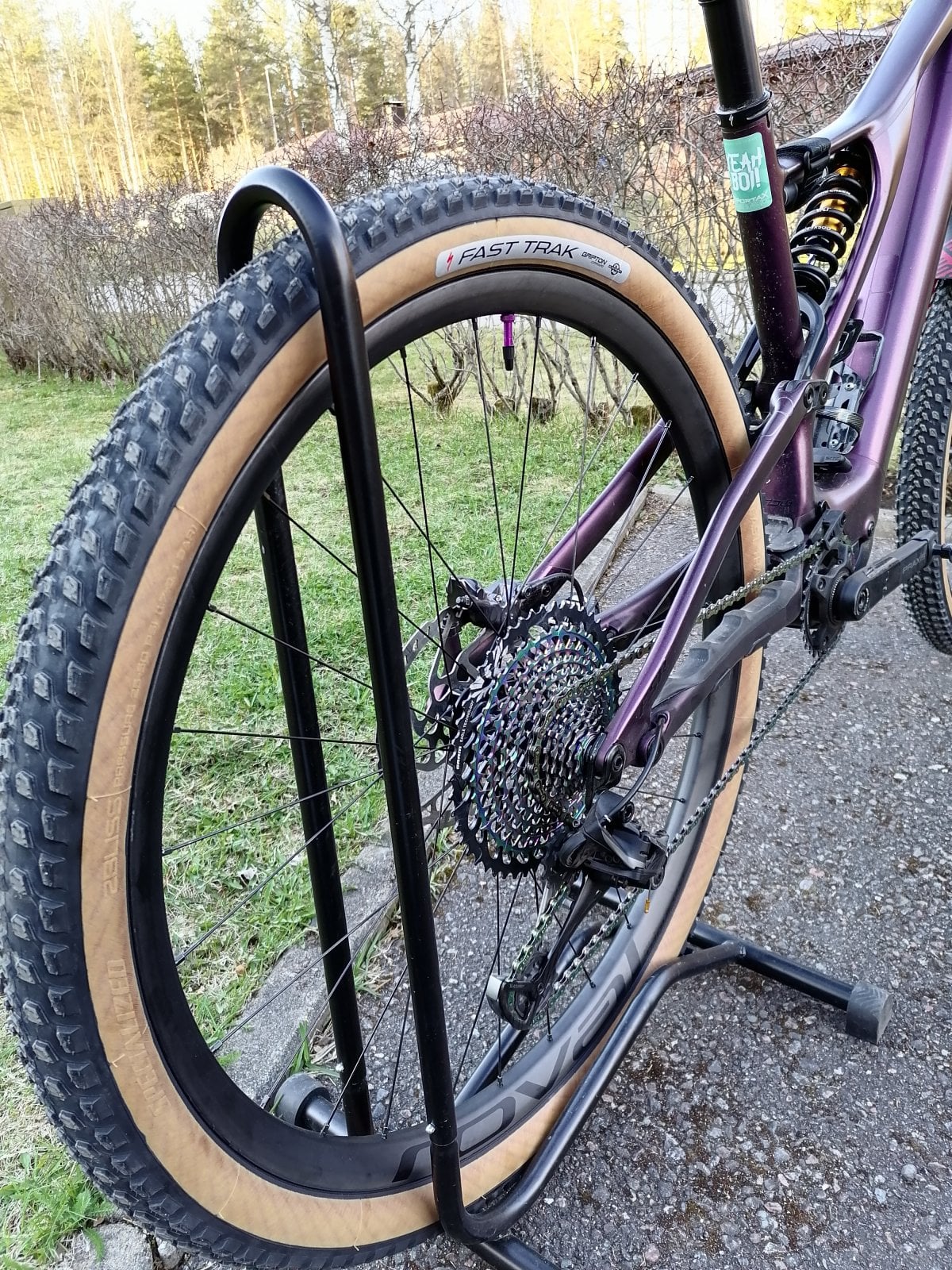

Skin Wall Fast Tracks?
My motor is exchanged now and sound & feels like it should. What is the best way to describe it? It feels super compact and "tight" again. You could hear from "shaking" of the old, loose motor that the entire content had already been "run in well" ,not everything was as tight as it was at the beginning. I am curious if this will be the case with the new one again. Changing process took about 45 minutes. Afterwards update on it, we were done. I didn't even have to register the motor again with Mission Control because everything runs via the TCU.
The Q factor may well be different, I don't know, but what I can state as fact is that the SL does NOT use an ISIS crank interface. I've just had the driveside crank off mine and a Levo/Kenevo crank would not fit. Phoned LBS who did the same and confirmed. It appears that Spesh have created a(another!) new and unique standard for the Levo SL cranks. I then had a live chat with a Miranda (one of Europe's largest parts manufacturers), who confirmed that they were totally unaware of this new standard. So, in short, right now the only cranks that will fit the SL are the M30 standard, which only come from Praxis.
soundwave
Active member
Ibkbike seems to have really good deals on SLs - Comp Carbon 5355€. However, it says tax is excluded, but if you add the bike to cart, the price is still the same and not it also says tax is included...?
Anybody have experiences with ibkbike in general? Warranty issues remain a question mark for me if ordering the bike from abroad. The Specialized warranty claims the right to restrict warranty and repairs to the country where the bike was purchased from...
Anybody have experiences with ibkbike in general? Warranty issues remain a question mark for me if ordering the bike from abroad. The Specialized warranty claims the right to restrict warranty and repairs to the country where the bike was purchased from...
Warranty issues remain a question mark for me if ordering the bike from abroad. The Specialized warranty claims the right to restrict warranty and repairs to the country where the bike was purchased from...
Almost, they claim the right to restrict the warranty SERVICE to the country where the bike was purchased from. It would not be legal to restrict the warranty within EU to a specific country. This means the LBS could charge you for the repairs under warranty if they and Specialized play hardball. Cheaper for Specialized to fix things locally in any case.
To take advantage of this Warranty, a dated proof of original retail purchase must be presented to Specialized on the same continent (North America, South America, Europe, Asia, Africa, Australia) where the Product was purchased.
...
Specialized reserves the right to limit warranty service to the country where the Product was purchased.
@jemen
Also got a question:
What is the "right" way to use extender? Set in mc to use extender first or not?
Today it was set to use extender first and when it was empty, bike did shut down as i tought it would be.
When restarting it, blue and red blinked on tcu. Only way i managed to make it work again was that i took the extender cable of and closed the cover.
How are people using extender?
Hey guys, picked up a Levo SL before the covid madness hit and it's been a lifesaver. Anyway, is anyone else finding that the cap to the charging port pops open on rides? I've noticed it on the last two rides that i'll come home and noticed that it's popped open.
I read in a review this is the standard behaviour and they should be used simultanously to be able to get everything out of the extender, not extender first.
Hopefully getting the bike by Friday so I can set it up over the weekend
Long weekend ahead, bike arriving Monday morning...
Thx! Thats what I expected. Will try that when I next need the extender.
Vin829
Member
So i normally do all day rides. I have 2 extenders with me. For the first extender i will set up the bike to use that one first. Then when I add the second extender I will set it to use the bike and the extender simultaneously
- Thread starter
- #1,339
You can configure either way. Extender first gives the option if you’re at a trail centre / park loops to ditch the extender in the car when it’s finished. Leaving you a bit lighter with full internal battery.
SquireRides
E*POWAH Elite World Champion
In my experience, when my bike is on and I select use extender battery first in Mission Control, and it *looks* like its enabled, it doesn't work. It drains both batteries together. I have to turn the TCU off/on for the command to take....
Isnt that the normal way? Imo mc says that the bike has to be restarted to enable some of those options.
Vin829
Member
You are correct. The bike needs to be restarted to take affect
I did not use an extender yet. All i can say is that there is a "Display update" available IF your dealer makes a motor update but i did not find out what its exactly for.
Last edited:

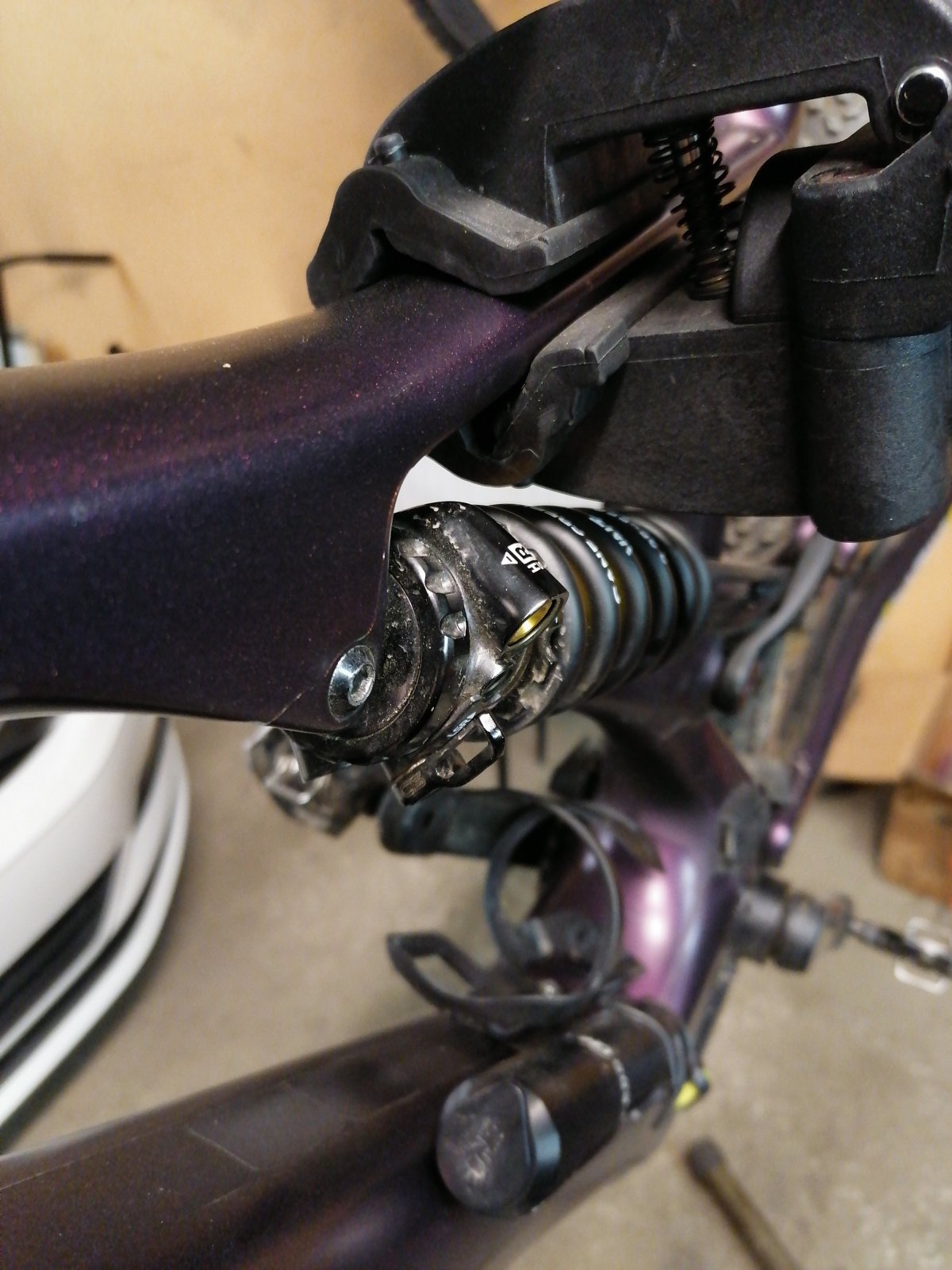

Can you send me a picture of the upper part from your shock mount, please?
I tried to fit a cane creek shock and it didn‘t work.
It needs to be stumjumper specific and top of the shock needs to be tilted 45' to the right

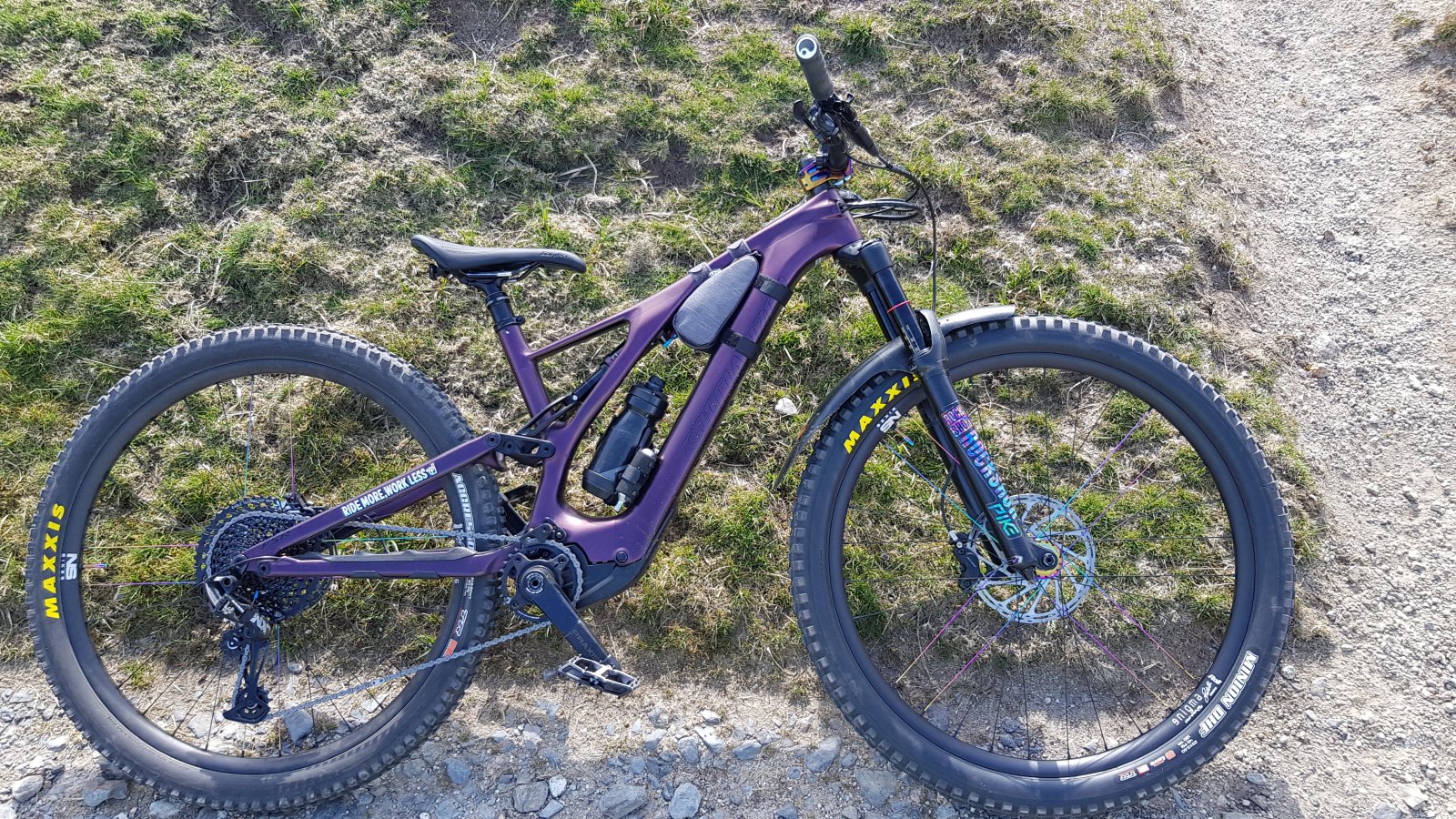

Well, she's here, after 3 long weeks of waiting and a day of stripping and rebuilding. Size M, comes in at a shade over 20kgs, ride ready and with a full water bottle. Like for like, as if it had come out of the shop, my build was 10g lighter than the stock spec! That includes Code R brakes, a GX cassette, the Pike (2018 RCT3, with 2021 DebonAir spring), a Double Down 2.5" rear tyre, and a Nukeproof insert in the 2.6 Exo+ front, plus a bunch of other bits. The wheels and stem are particular highlights for me, just because of the bling (wheels lighter than stock, stem heavier)!

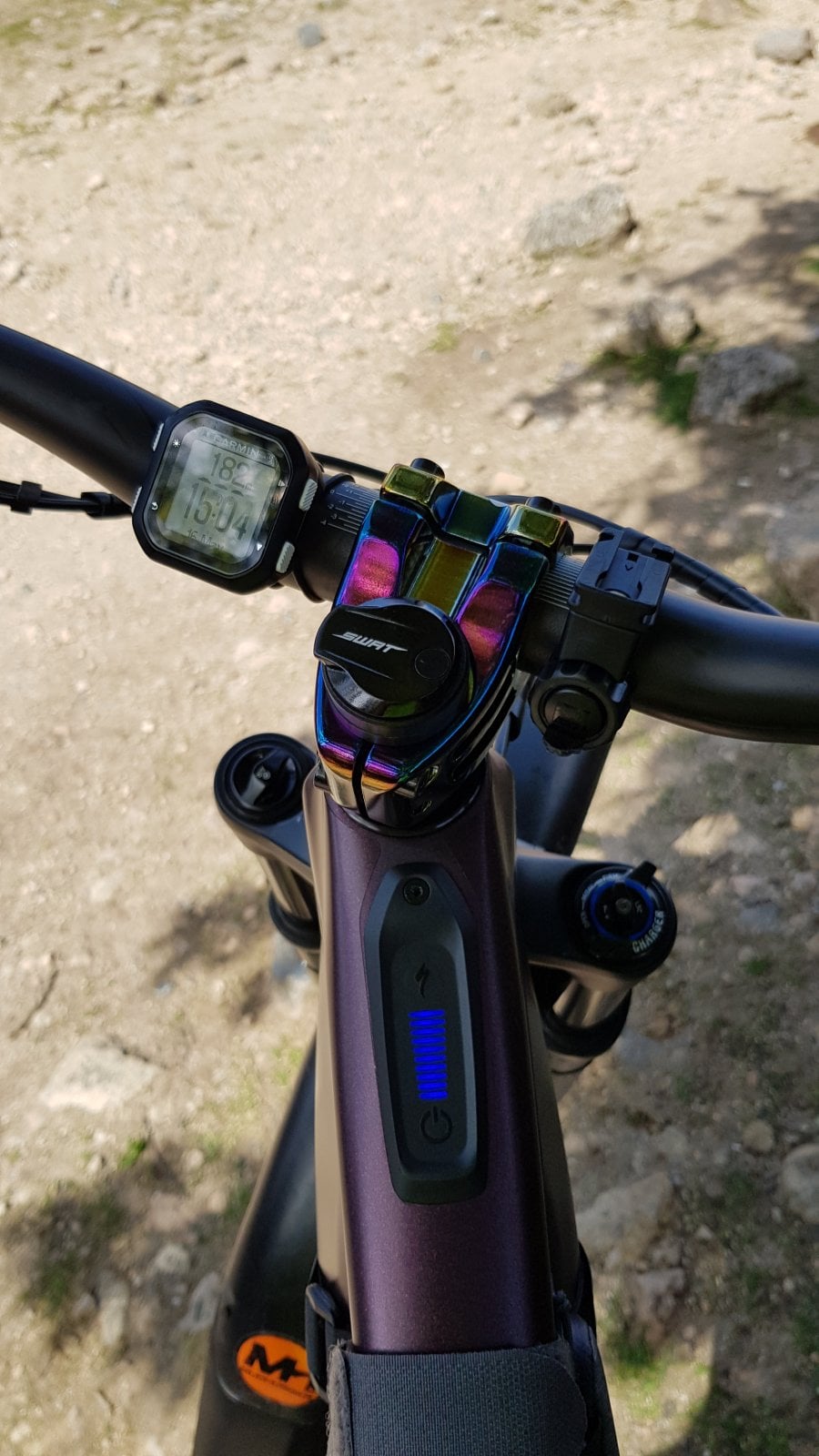

The stem is definitely striking, very nice match with the cast berry!
