M820 Bafang - LIGHTCARBON LCE930 Frame (lightweight)

Thai B

New Member
Aug 5, 2024
5
0
Australia

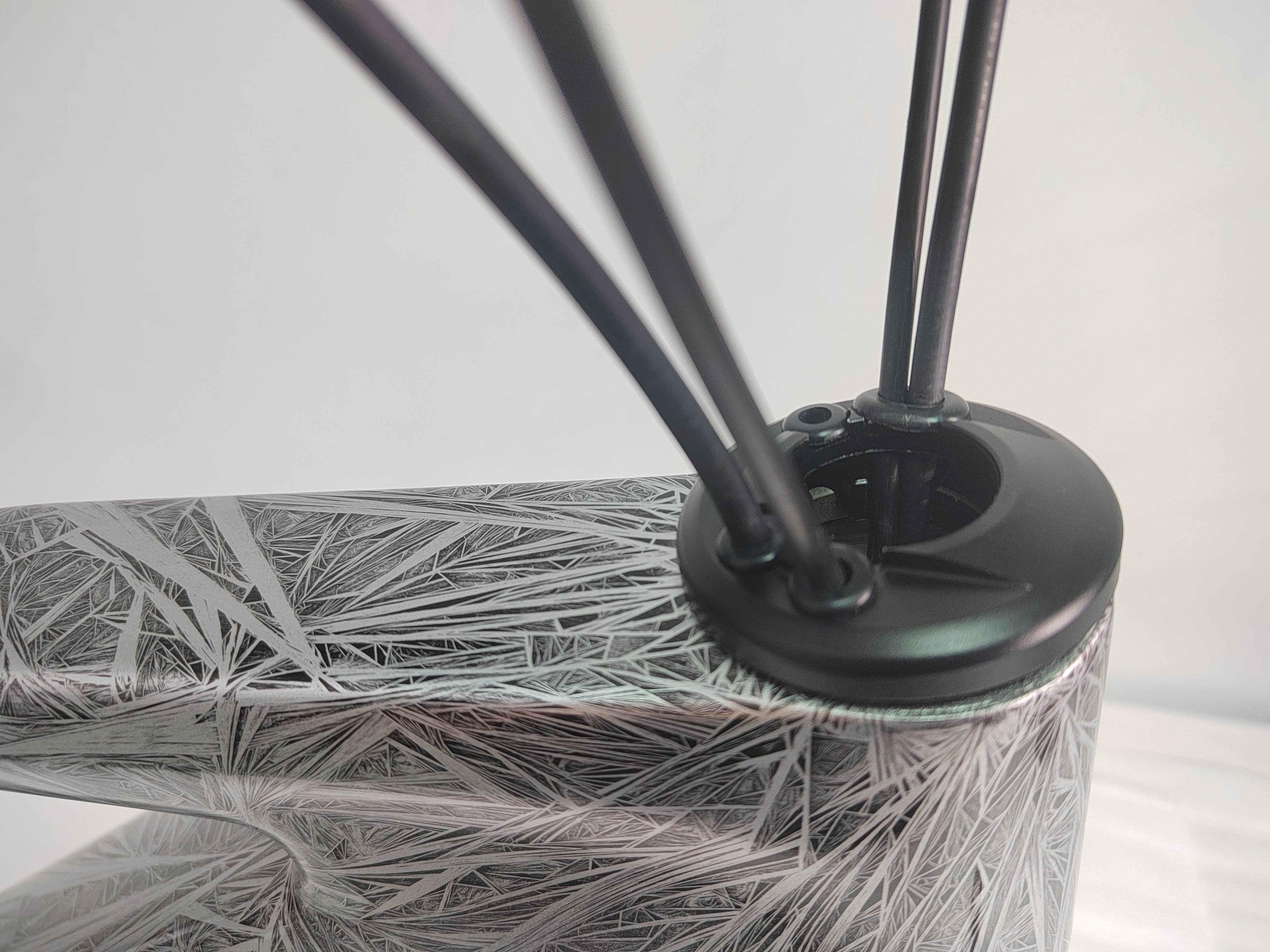

The stock headset definitely isn't the best. I think the cables are getting caught between the compression ring and the inner race of the bearing leading to it being pinched?

Some like the Acros ICR, the compression ring has a physical barrier between the cables and bearing race which should prevent pinching, if anyone has tried it I would love to hear your opinions? Acros also has the cables enter from the side rather than the front which would relieve pressure on the cables as its more natural.

Last edited:

fenomeno

Member
Dec 25, 2022
19
0
Spain
No it doesn’t and yes you can still the battery level on the display and the app.

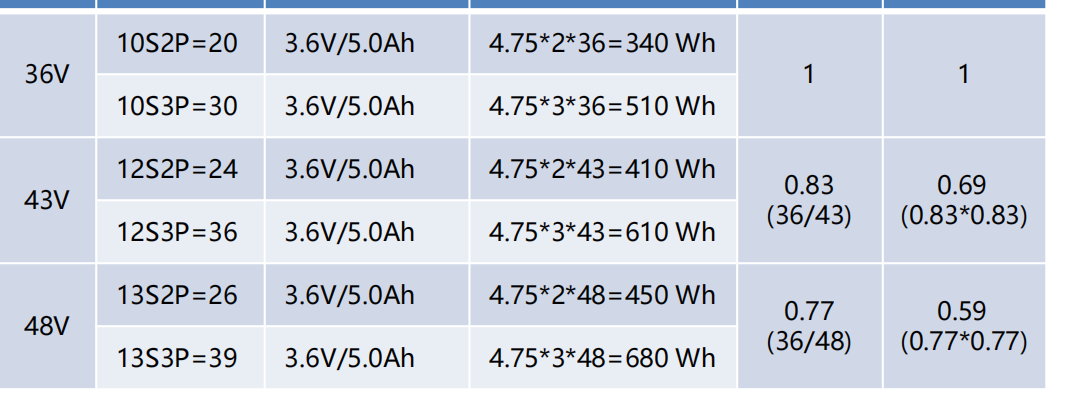

While it maybe possible to build a 48V battery to fit this frame it will take some time to configure the layout where as 36 & 43 volts is easy,. Are you thinking 39 18650 cells 3 x 13?

About the DIY battery, lots of peoples want the bigger battery, 720wh, 840wh, 960wh, the more the better,
but please note,
1. This is an electric assist bicycle, electric energy is only auxiliary and should not be the main force, Use your feet to move the pedals, not just sit there.
2. We talked with the bafang designers, they not suggest the bigger battery more than 500wh for M820 motor, That is, the full electric mode for two hours; high current output for a long time may cause the motor to overheat, which involves the effective conversion of energy of a motor, and they are still being resolved.

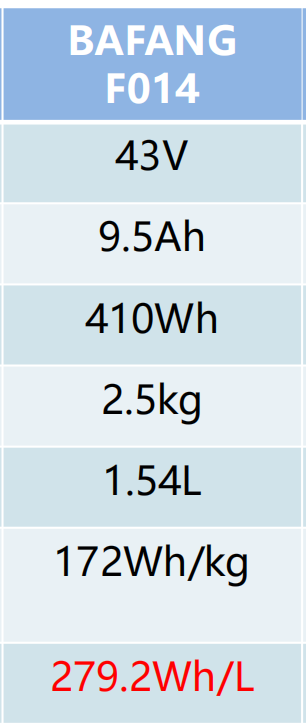

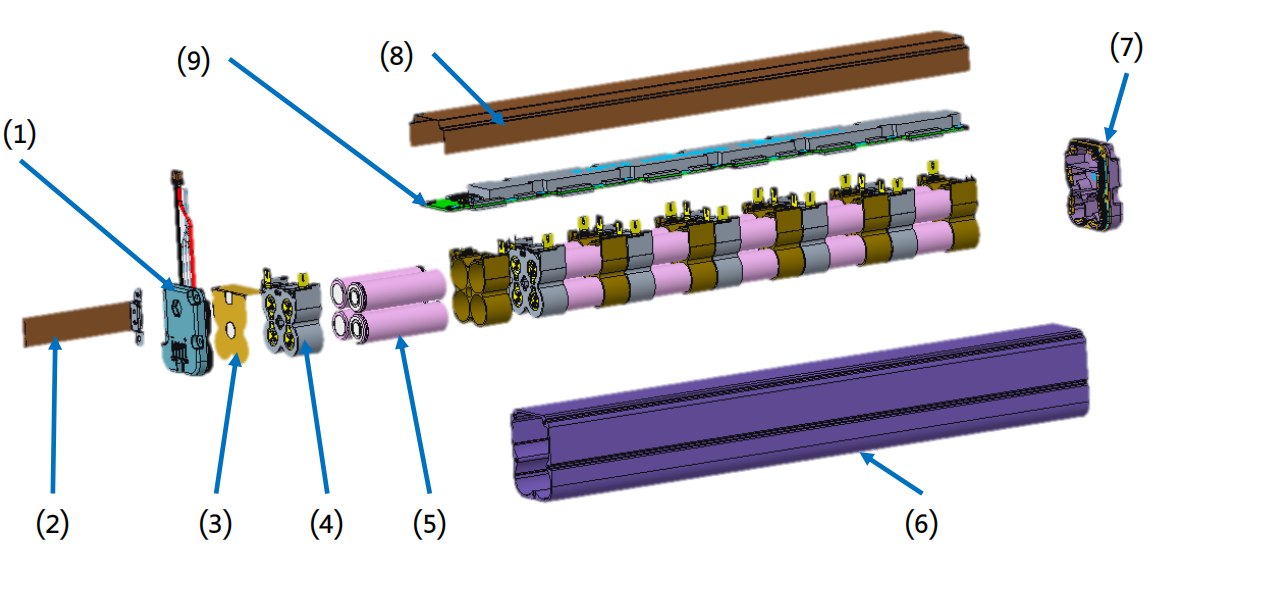

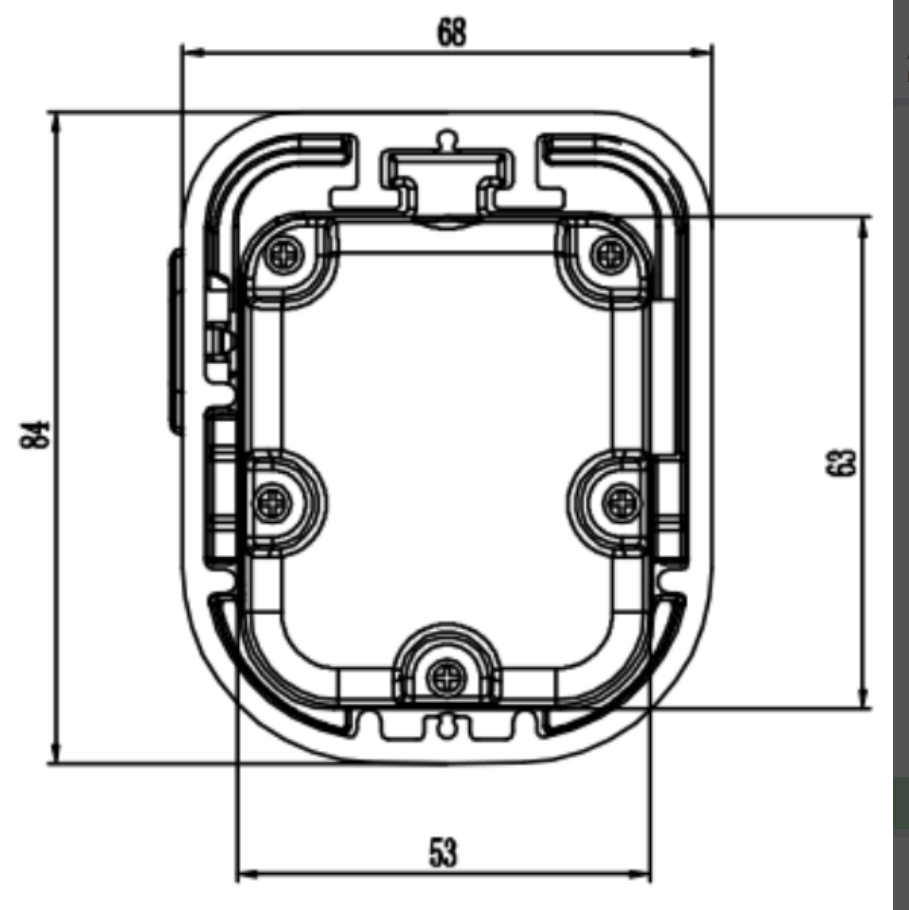

3. some info about BF F014, the infomations are old version, the newest version only change the battery mount.
View attachment 114234 View attachment 114235
View attachment 114236

View attachment 114237
Hi Jim
Do you have any updated info with drawing for the batteries avaliable from Bafang?
Thanks


Radolf

New Member
May 9, 2024
33
40
Poland
Hi. Do you know if you can buy stronger engine mount bolts? The aluminum ones that come with the frame won't hold up to the third tightening... Or, can I buy the aluminum ones only from JIM or are they available in online stores - which ones?


Devey73

New Member
Apr 27, 2024
25
8
Australia

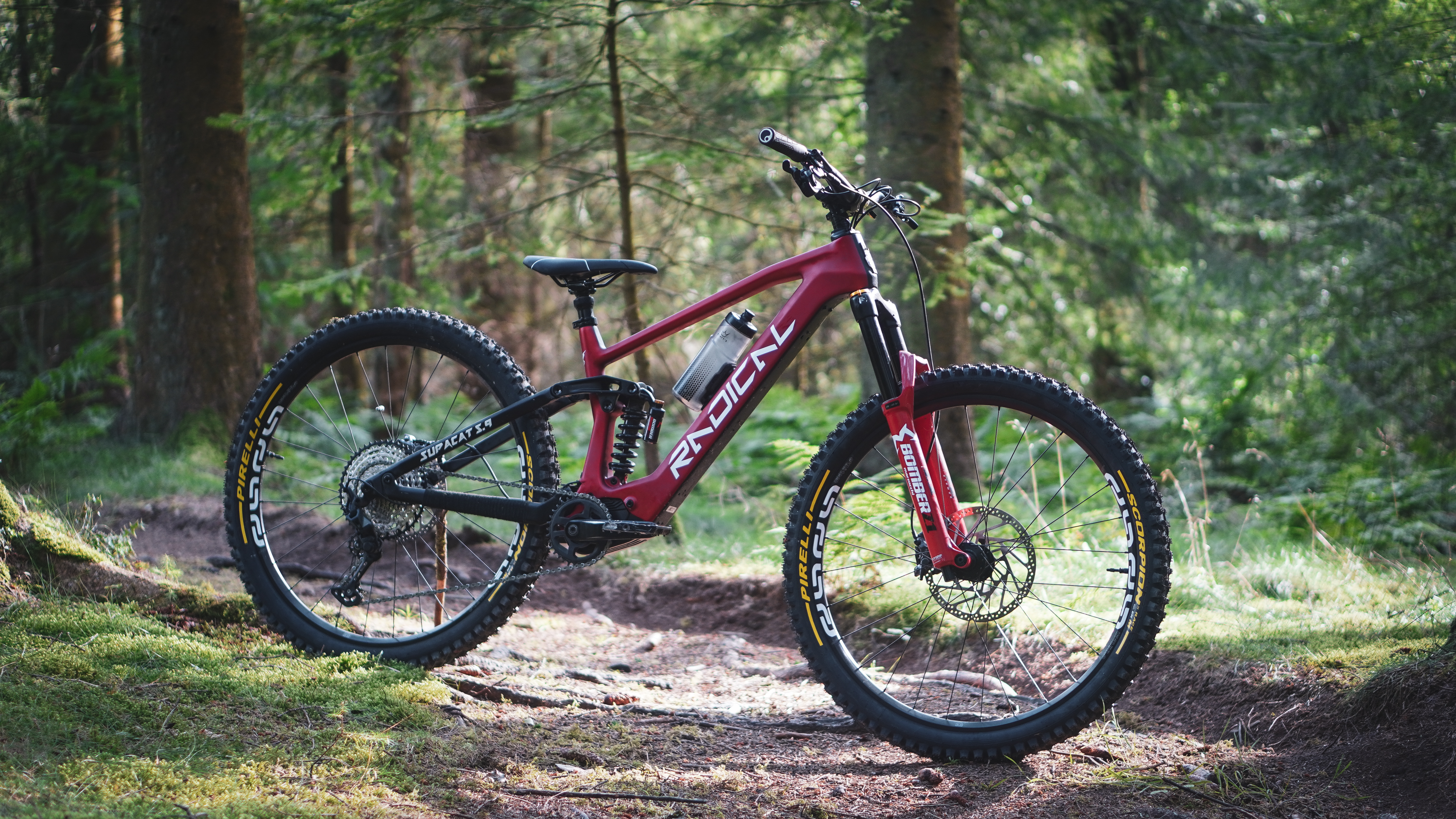

The frame has a progressive leverage ratio. We have ran a coil on our test frame (for around 12 months), and current demo. You won’t necessarily require a progressive coil due to the nature of the curve (we use a standard spring).

There is fair amount of compression especially in the early stroke (so bear that in mind for the old pedal bob), but it really holds the ground well and is super supple; and without a harsh bottom out. Just make sure you get the correct spring rate to your weight for the suspension design, that is key.

We will be uploading recommended spring rates on our website for coils. Just a bit of work to do on everything else yet….! View attachment 145917
what is the rake on that fork?


Mikael1

New Member
Sep 29, 2024
12
8
Finland

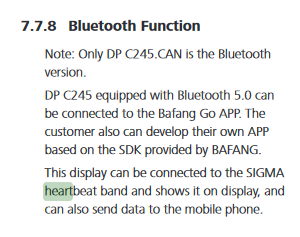

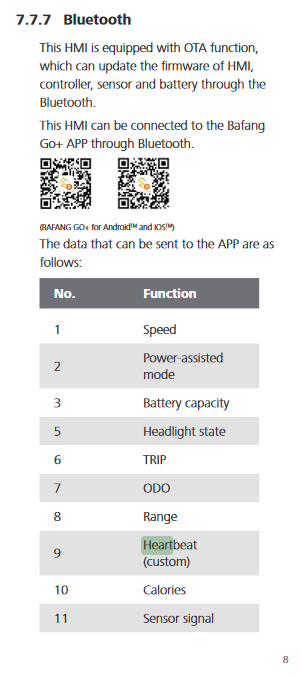

Actually, reading bafang documentation, I saw some diplays have mentions of "heartbeat". For example C245 ble 5.0 and 5.1 versions along with C010. Maybe someone with either display could confirm?
C245:

C010:


Edit:

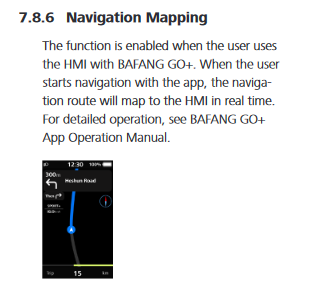

C010 seems to also have some support for navigation

Last edited:
