Lightcarbon LCES004 (Dengfu E10 alternative in USA)

[Dave Rand]



[Dave Rand]

Mines very similar



[TCFlowClyde]

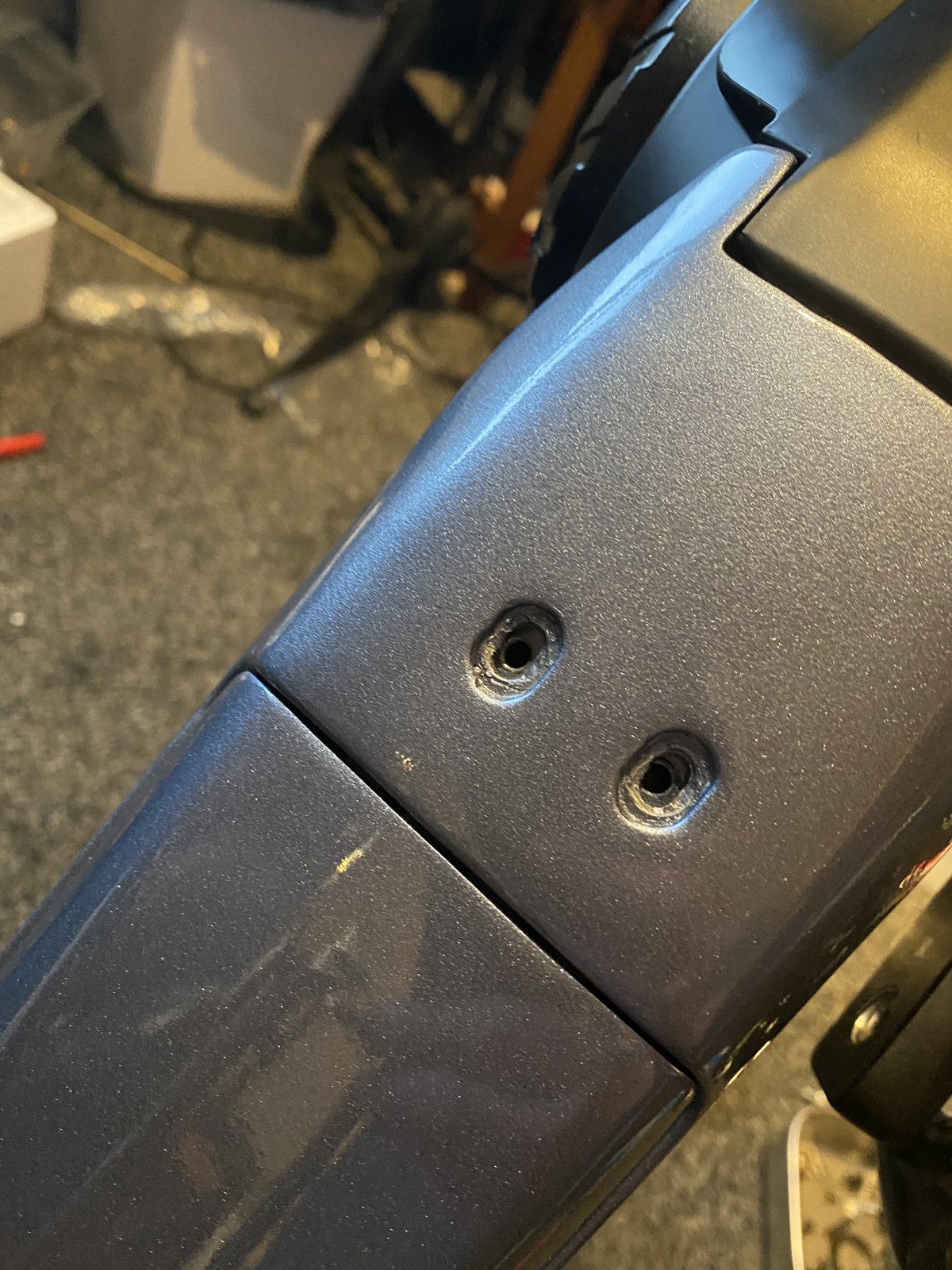

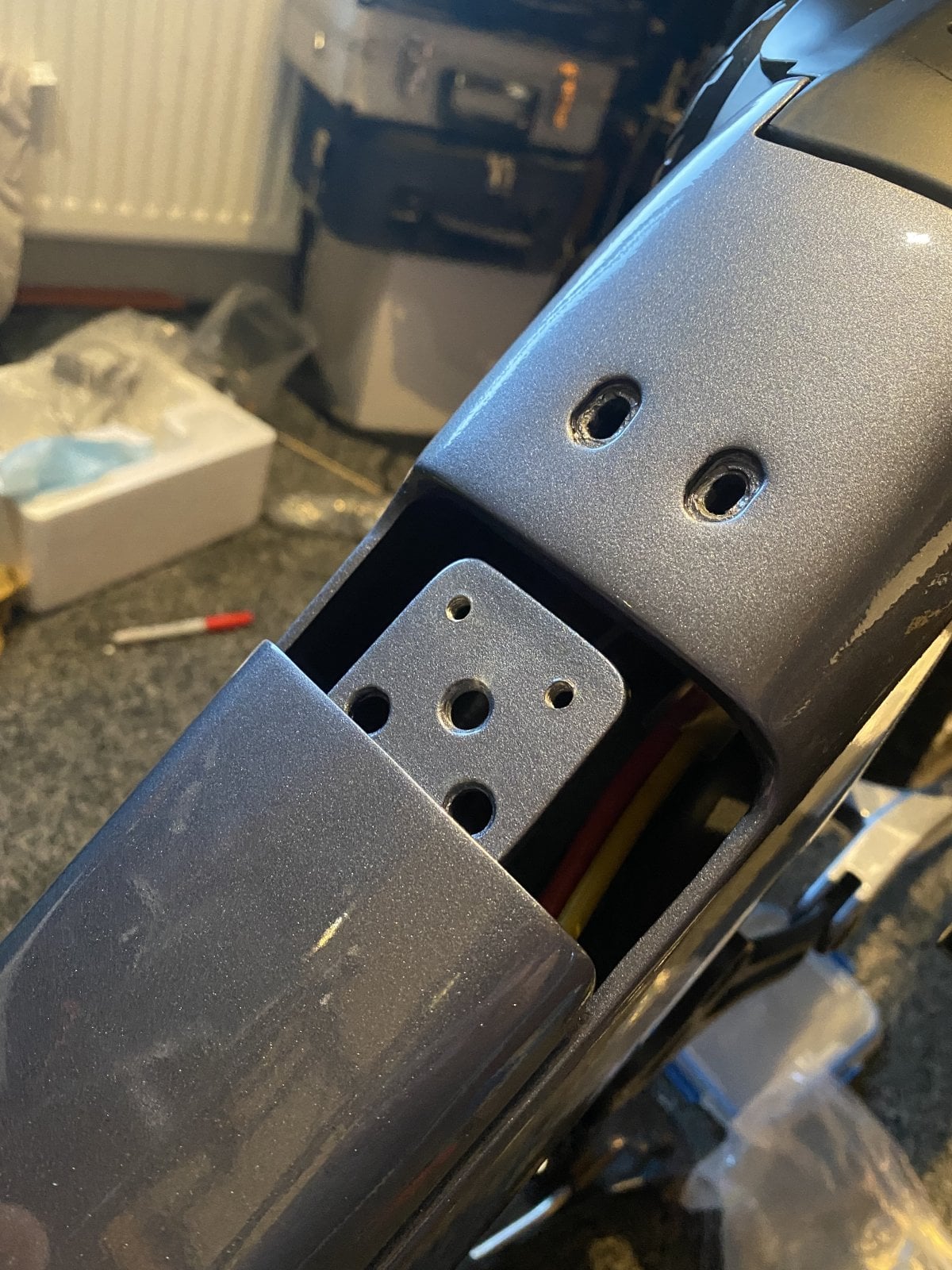

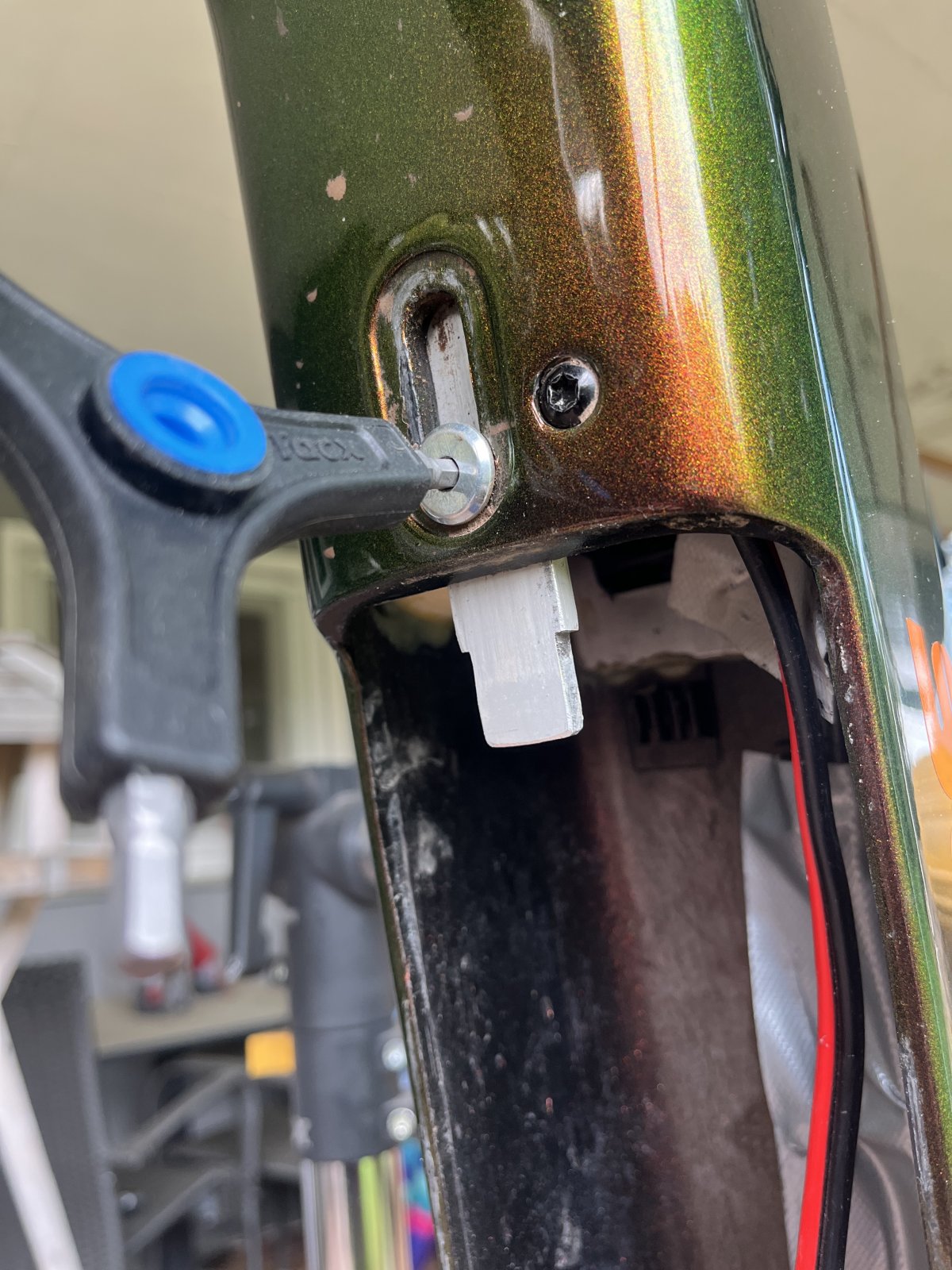

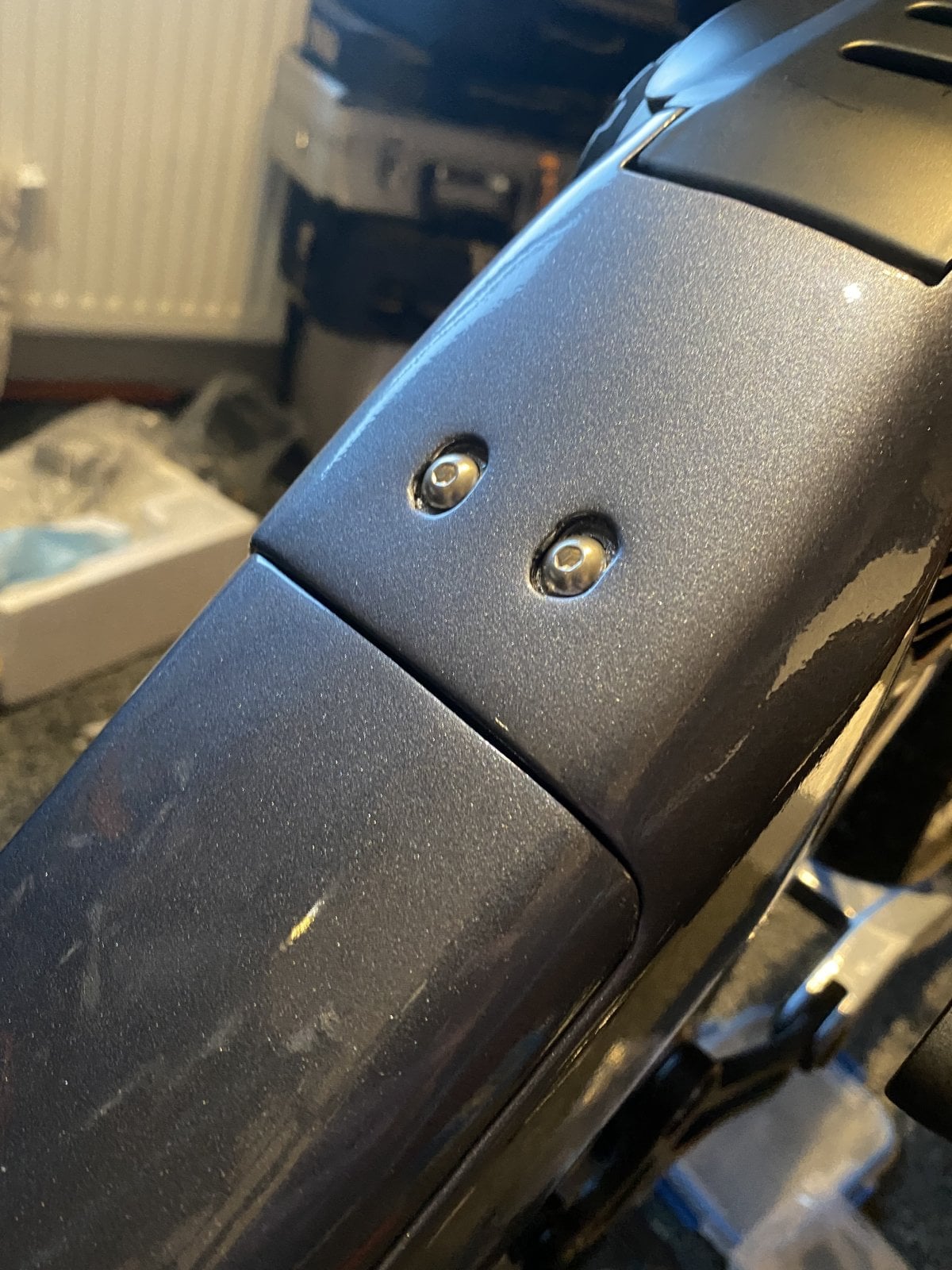

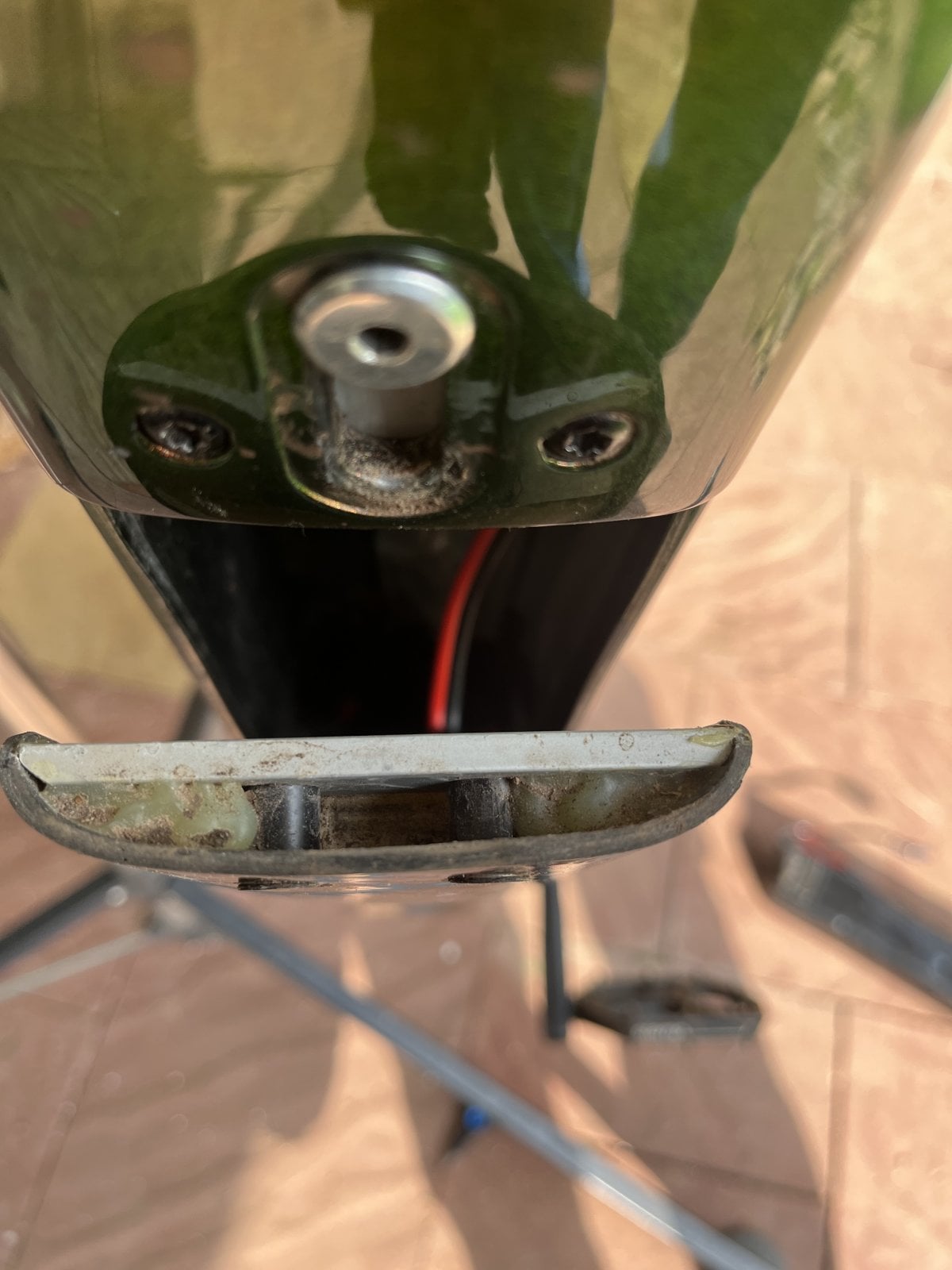

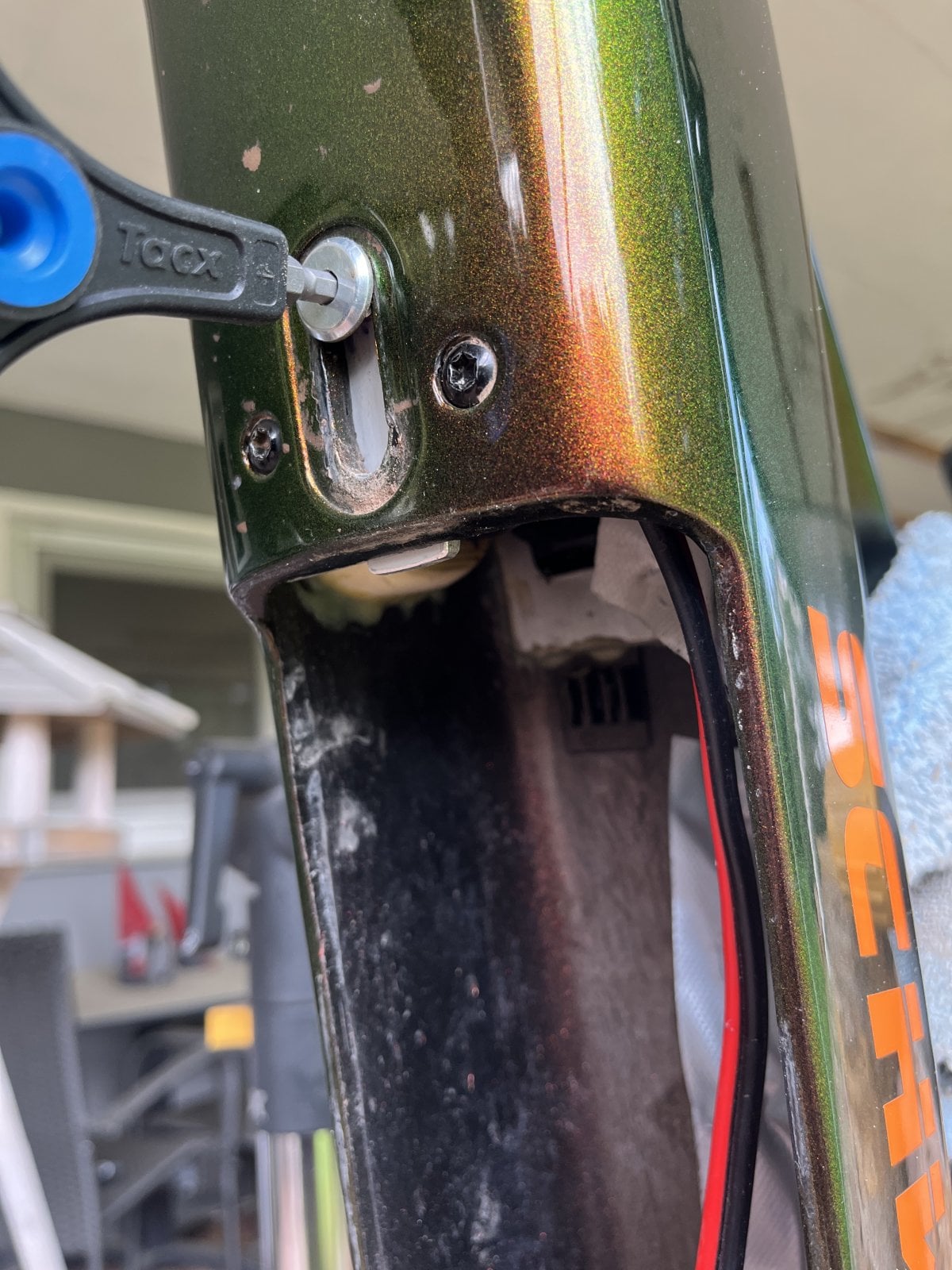

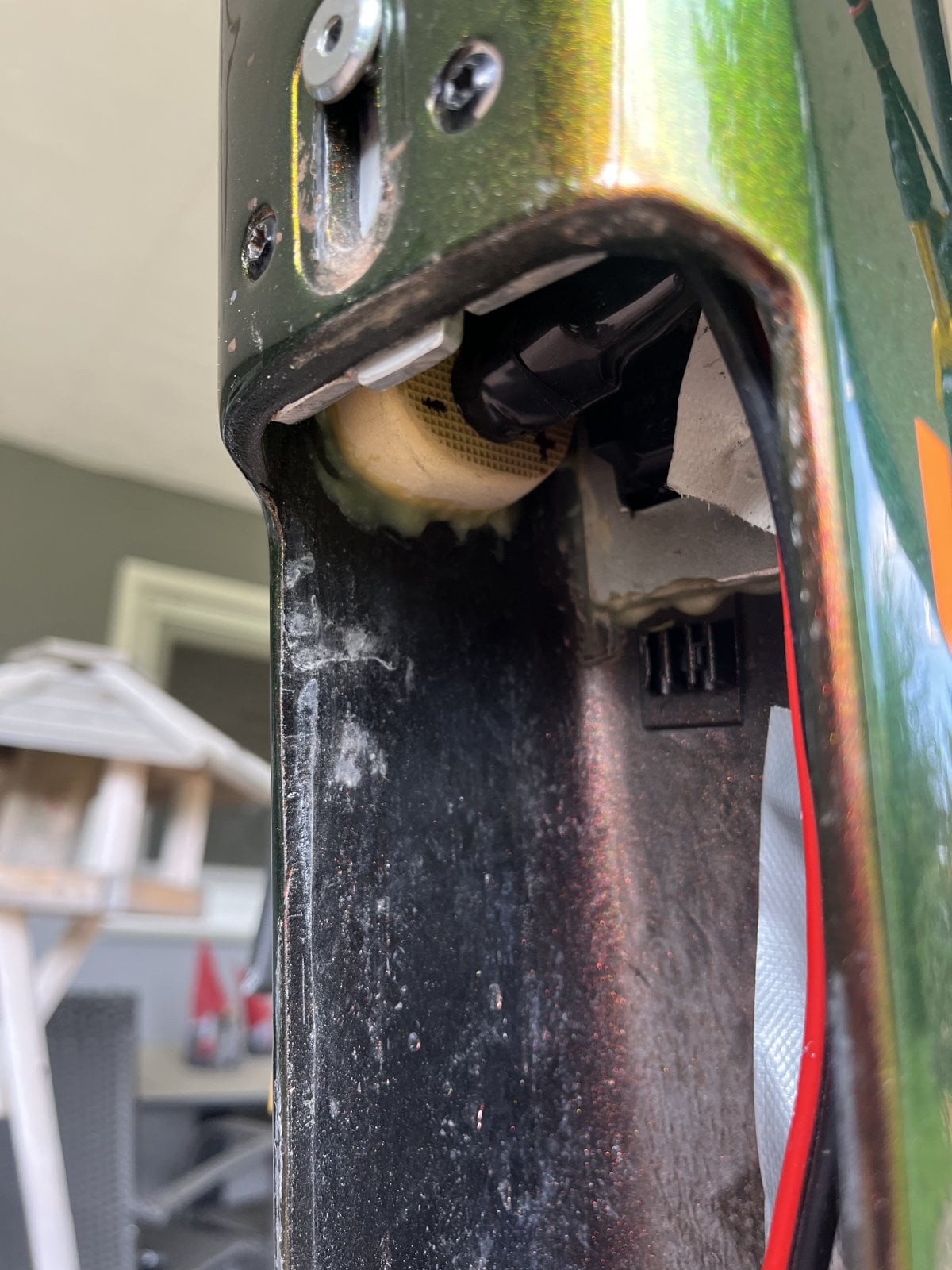

The lock is clamped with an screw
View attachment 87164 View attachment 87163

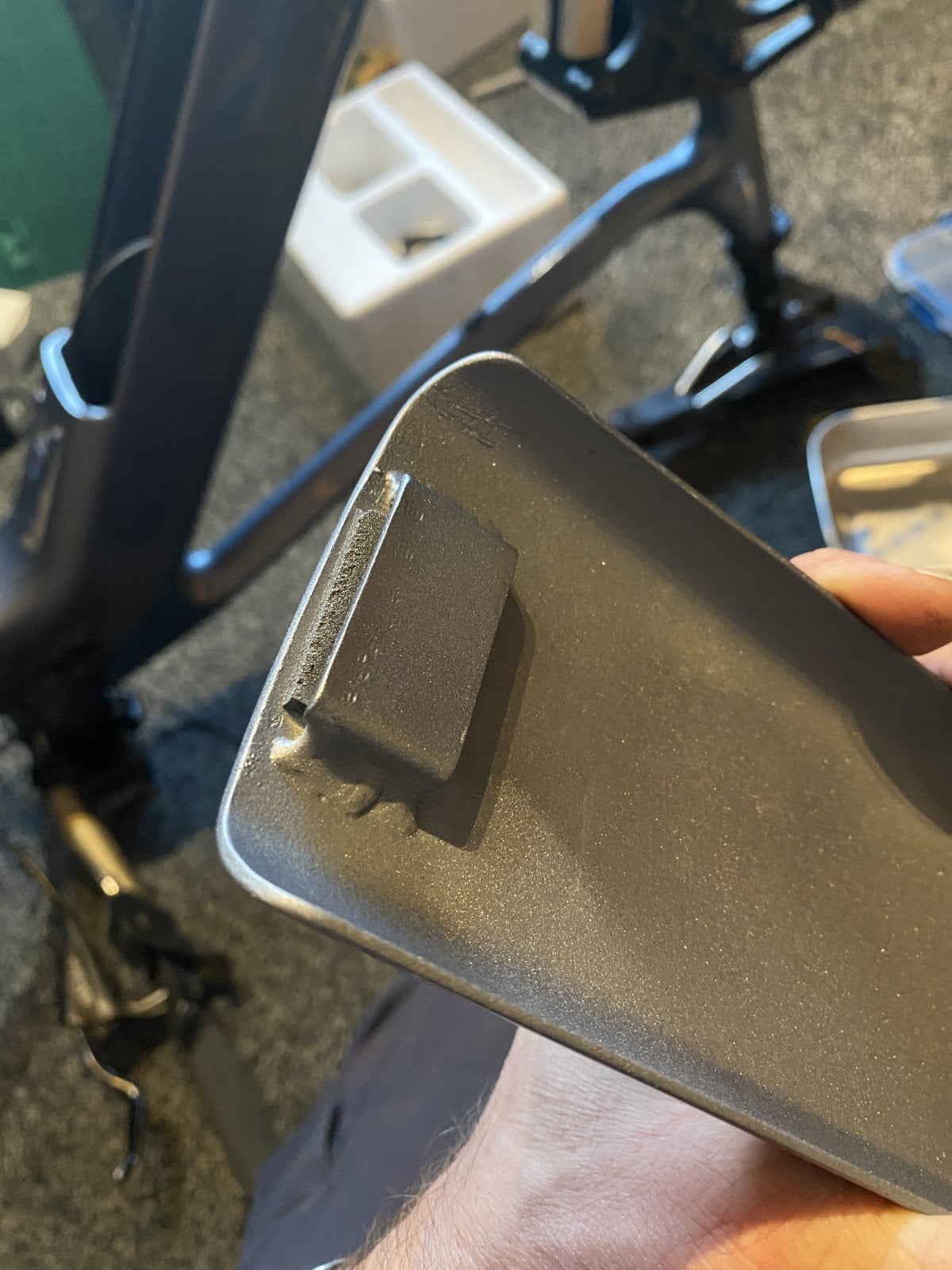

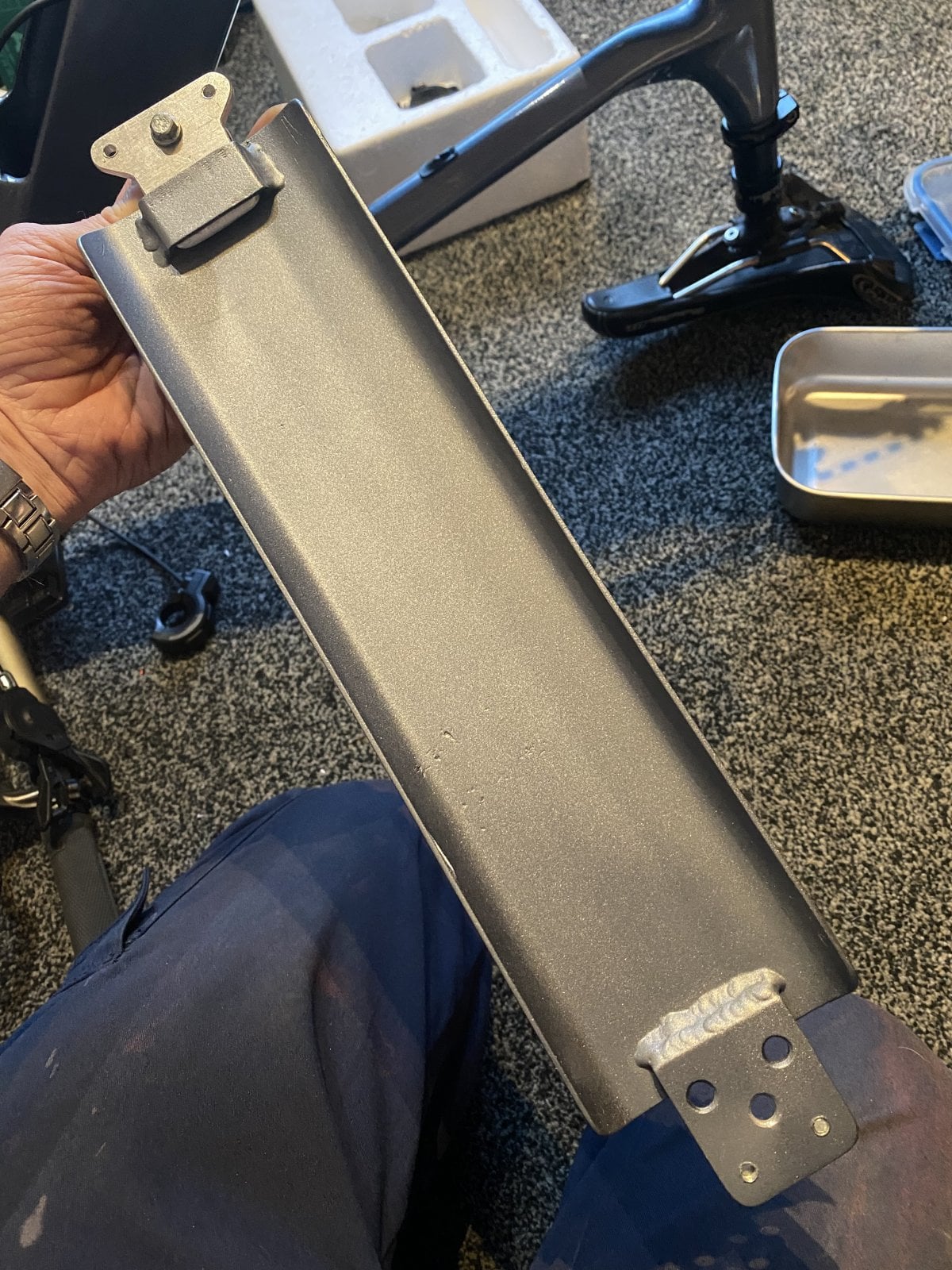

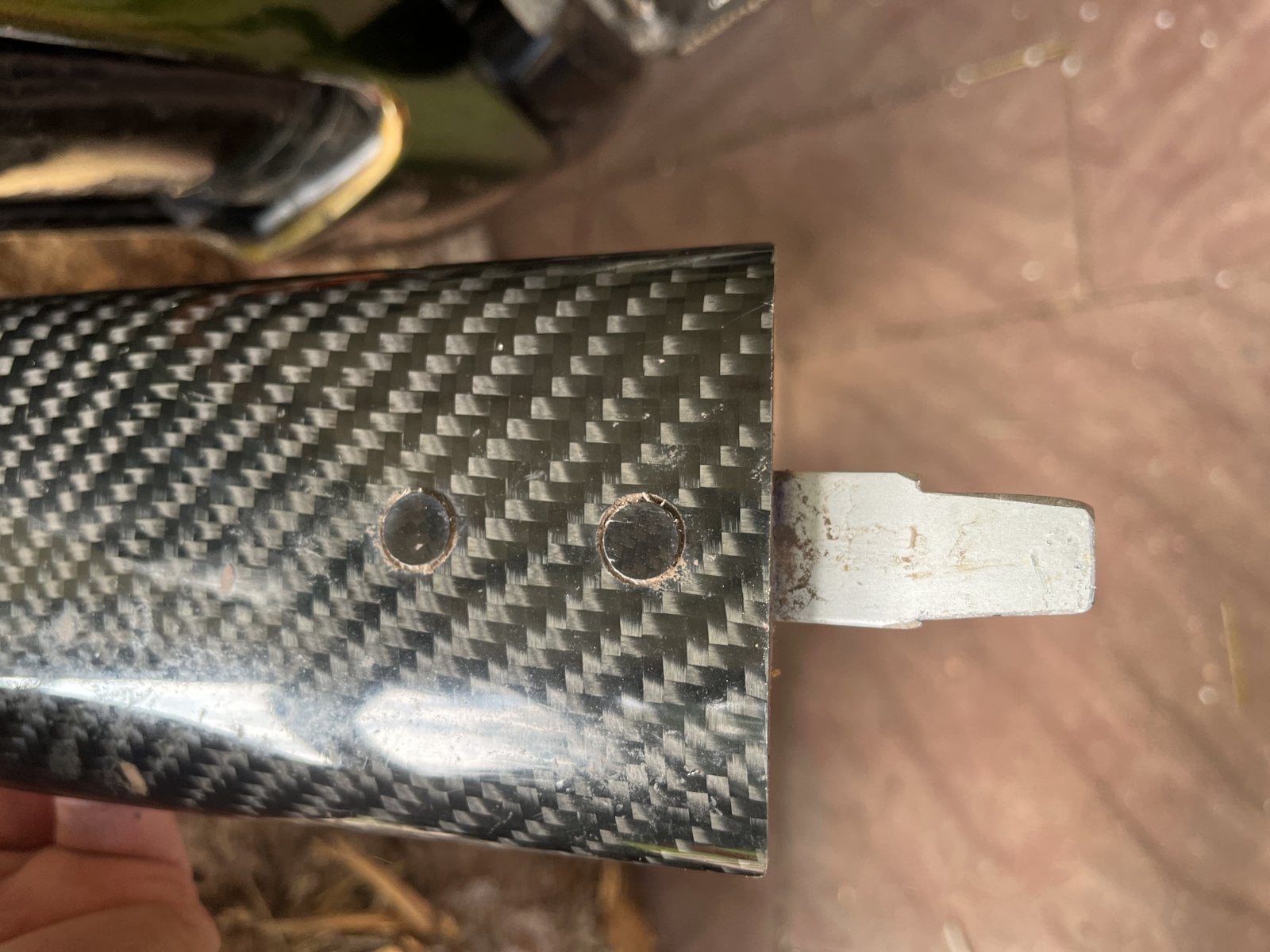

The counterpart on the flap

View attachment 87165 View attachment 87166

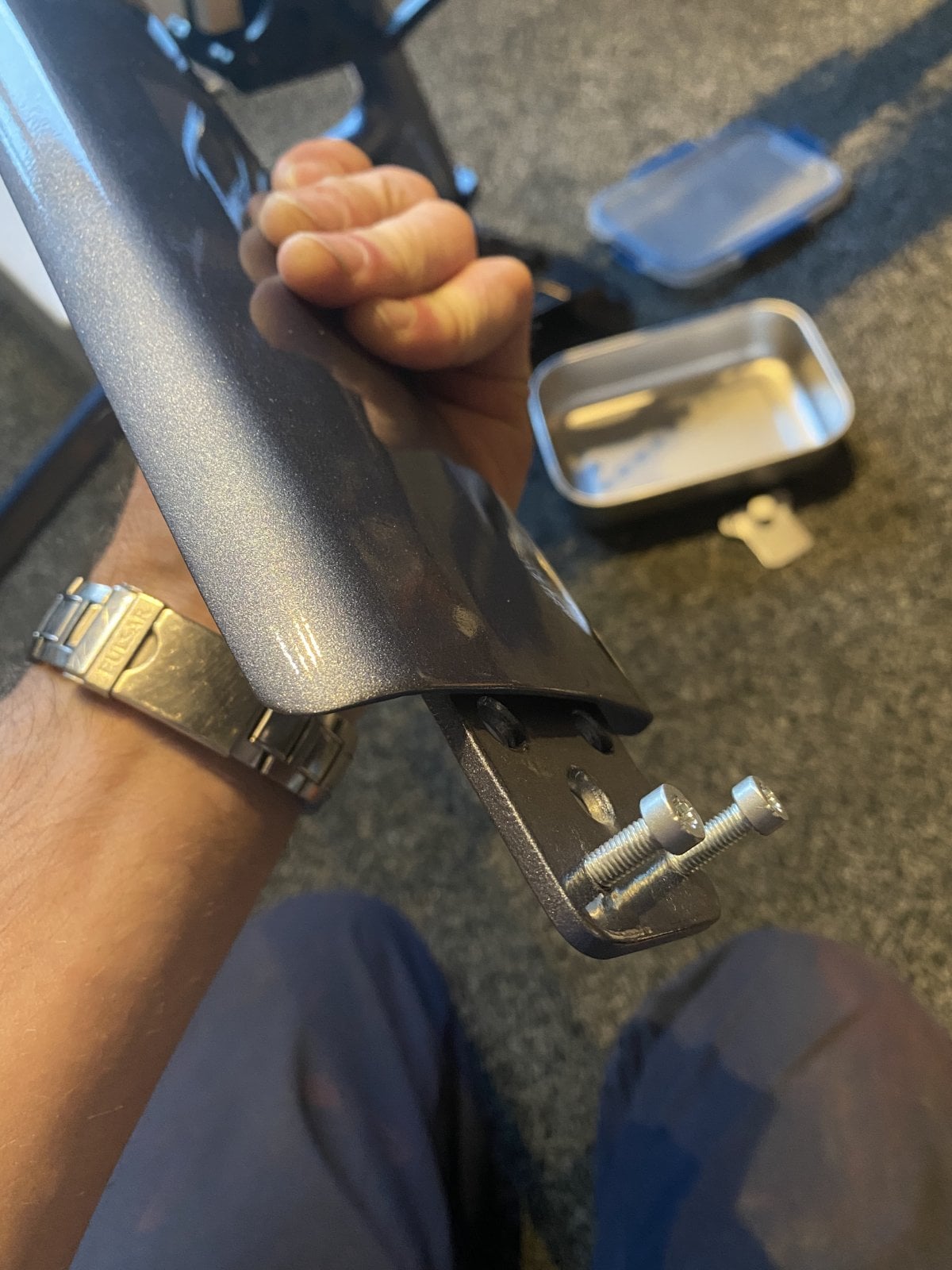

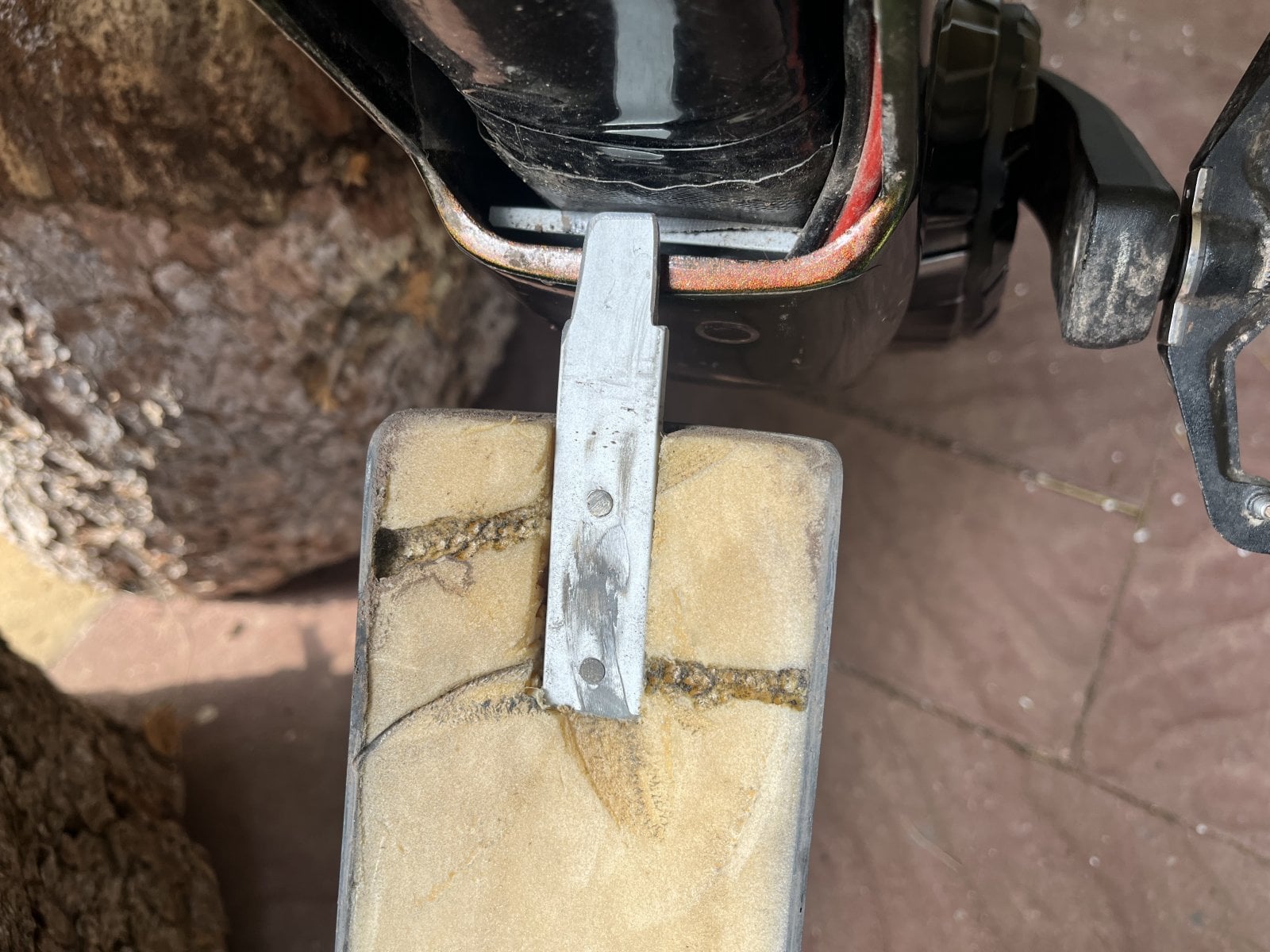

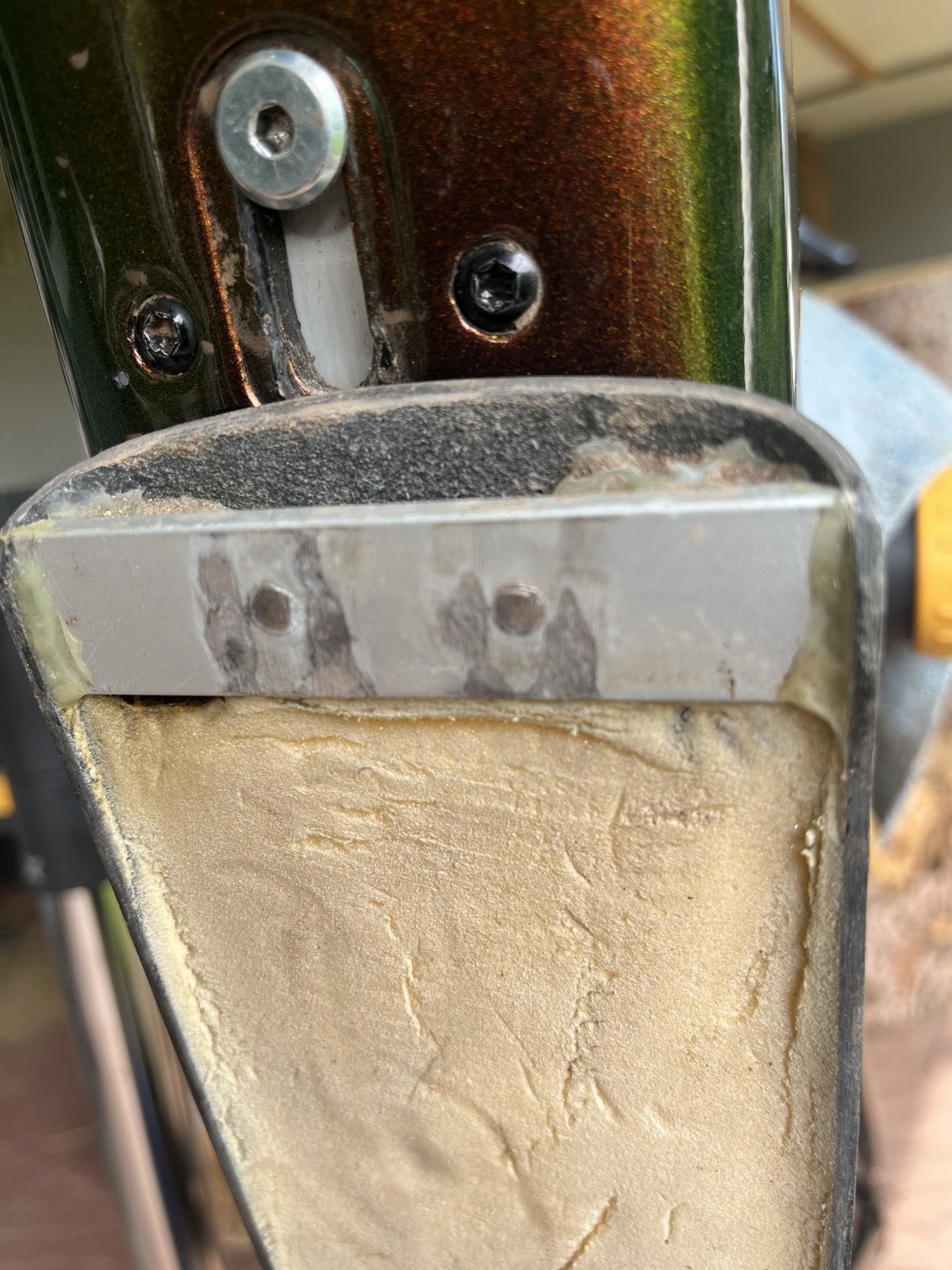

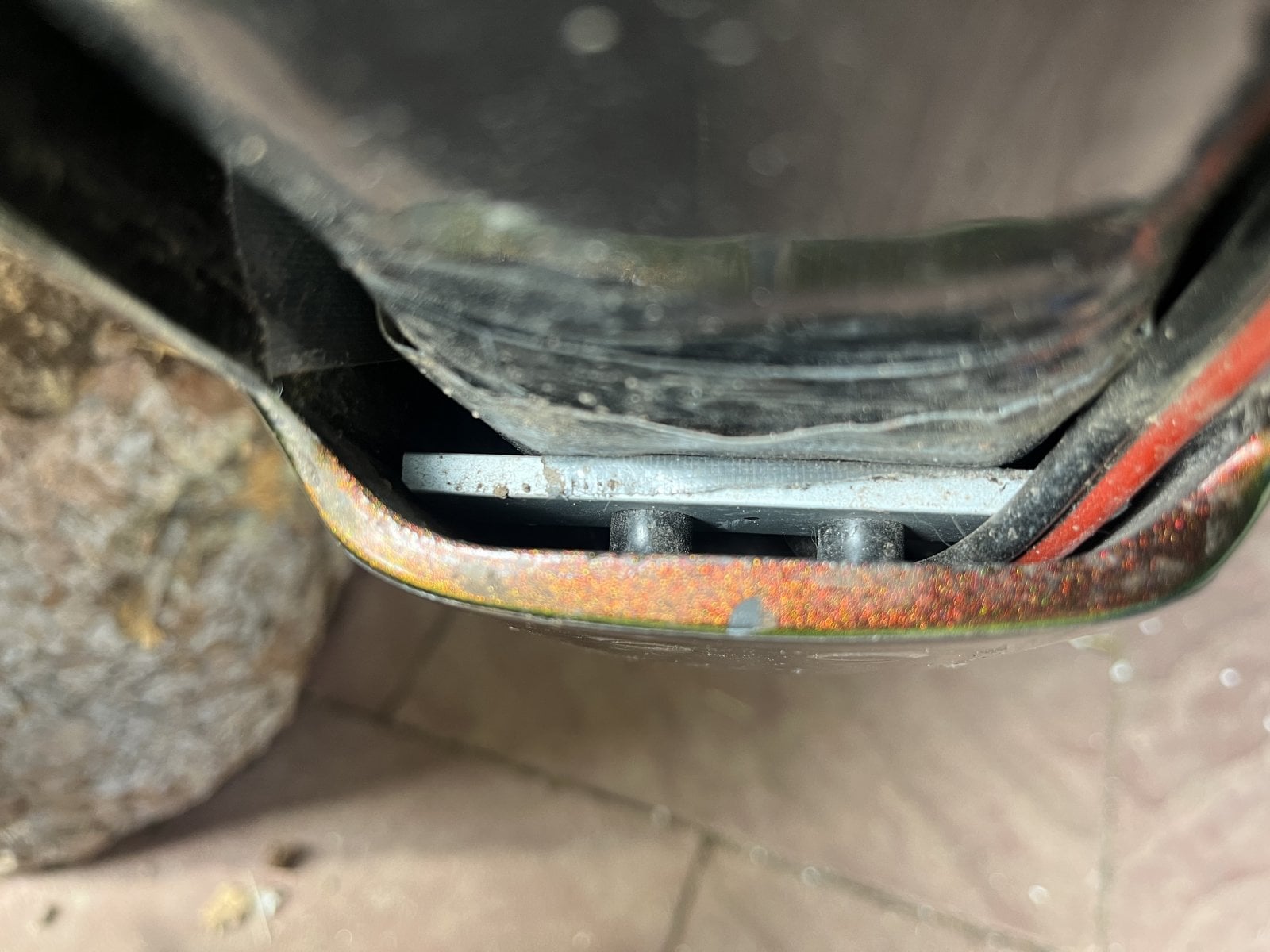

The bottom of the flap

View attachment 87169 View attachment 87170
View attachment 87175

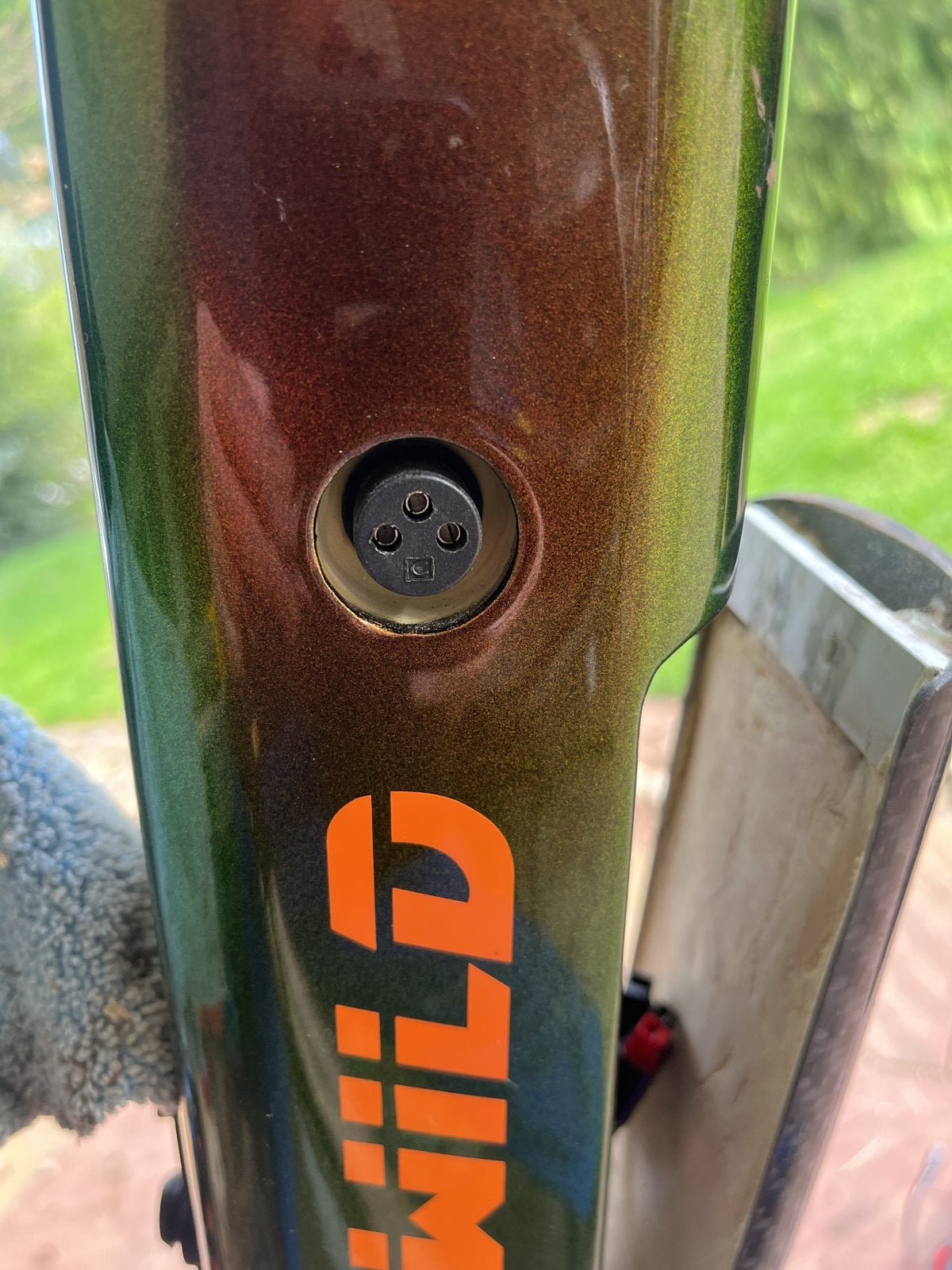

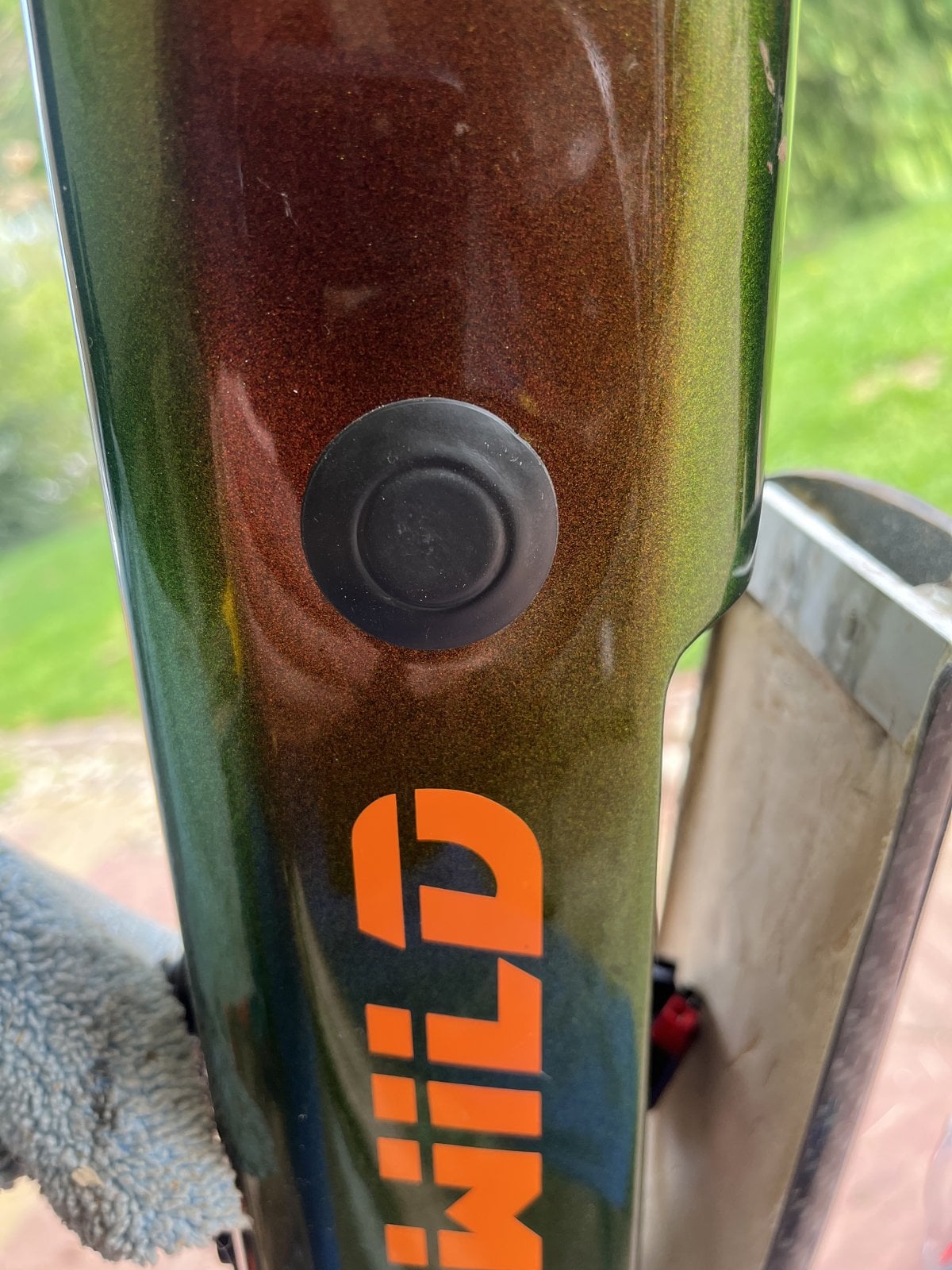

And the position of the charging socket

View attachment 87176
View attachment 87177
View attachment 87178
View attachment 87179

Awesome!!! You're the master craftsman



[TCFlowClyde]

Mines very similar

View attachment 87180

View attachment 87181

View attachment 87182

View attachment 87183

View attachment 87184

View attachment 87185

Wow! That's great work too!



[JimLee-Lightcarbon]

The lock is clamped with an screw
View attachment 87164 View attachment 87163

The counterpart on the flap

View attachment 87165 View attachment 87166

The bottom of the flap

View attachment 87169 View attachment 87170
View attachment 87175

And the position of the charging socket

View attachment 87176
View attachment 87177
View attachment 87178
View attachment 87179

Great!
one question, How do you fix your battery inside the frame without shaking?



[JimLee-Lightcarbon]

Mines very similar

View attachment 87180

View attachment 87181

View attachment 87182

View attachment 87183

View attachment 87184

View attachment 87185

Well done, perfect!
You're an expert,



[Marc P]

So clean! wish I had skills like that



[KaroKönig]

Great!
one question, How do you fix your battery inside the frame without shaking?

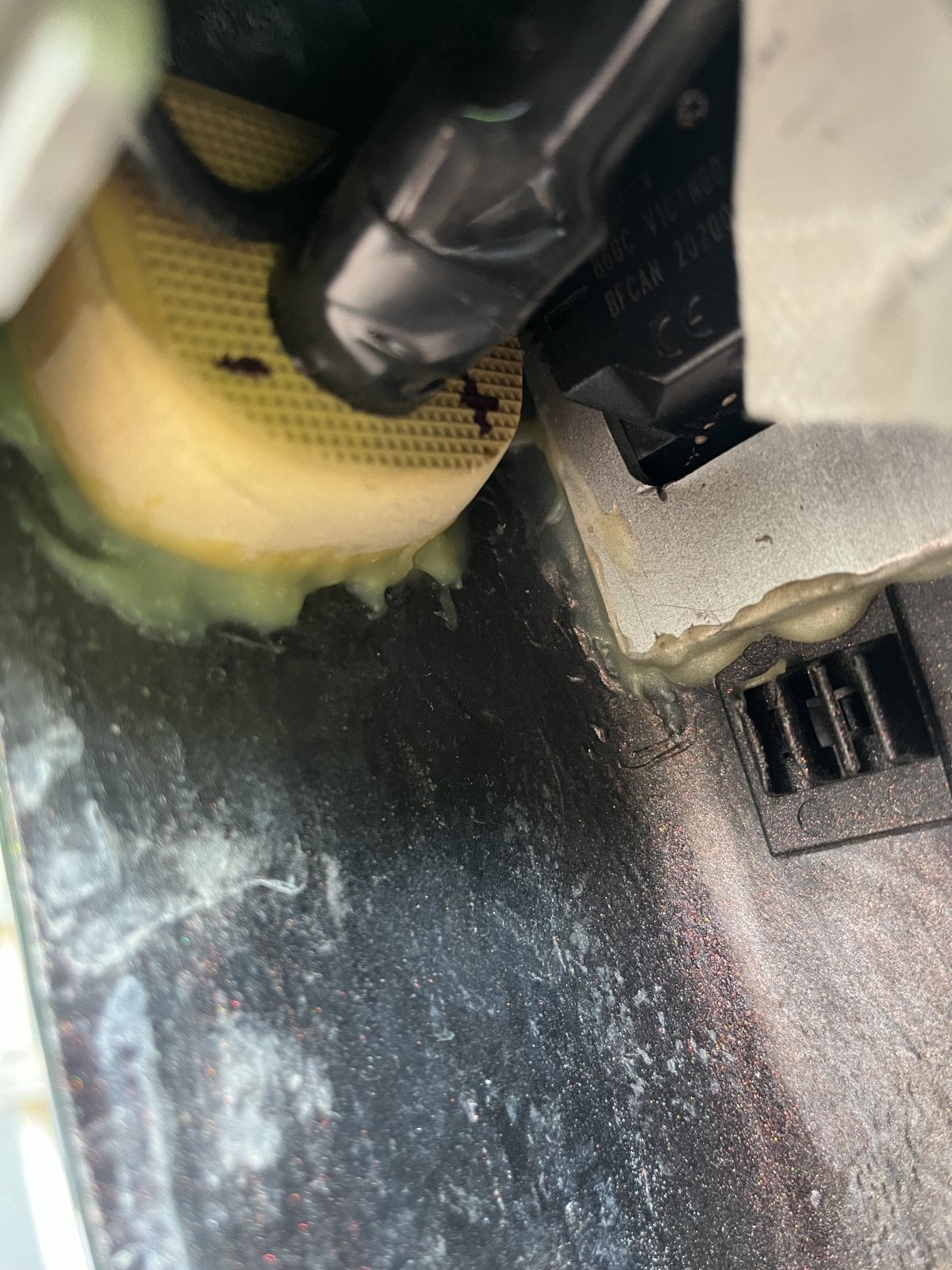

With foam around the battery and in the frame. As a result, the battery is clamped with the cover.



[KaroKönig]

@JimLee-Lightcarbon , it’s time for a new frame. Maybe something with a horizontal shock similar to Specialized. Do you have something planned in that direction?
Like this, only with a mounting plate for the M500/600 :LightCarbon 2019 New All Mountain Suspension Enduro Frame Suppliers,Manufacturers,Factories
That'd be wonderful



[Dave Rand]

@JimLee-Lightcarbon , it’s time for a new frame. Maybe something with a horizontal shock similar to Specialized. Do you have something planned in that direction?
Like this, only with a mounting plate for the M500/600 :LightCarbon 2019 New All Mountain Suspension Enduro Frame Suppliers,Manufacturers,Factories
That'd be wonderful

Now that would be wicked!!
And drop Bafang and do a deal with Bosh



[Waynemarlow]

Now that would be wicked!!
And drop Bafang and do a deal with Bosh

Nah latest Fazua Ride 60 and then you would have a genuine light weight Emtb

FAZUA - RIDE 60

fazua.com

Or for the American power hungry boys, Polini MX where at least its serviciable

NEW POLINI E-P3 MX - poliniebike

NEW POLINI E-P3 MX Polini Motori always makes the best even better. Faithful to its slogan, the company of Bergamo goes on with the development of the products dedicated to the e-bike world, making a new evolution of the E-P3 motor.

www.poliniebike.com



[TCFlowClyde]

@JimLee-Lightcarbon , it’s time for a new frame. Maybe something with a horizontal shock similar to Specialized. Do you have something planned in that direction?
Like this, only with a mounting plate for the M500/600 :LightC I'marbon 2019 New All Mountain Suspension Enduro Frame Suppliers,Manufacturers,Factories
That'd be wonderful

Good idea! But not me, the LCES 004 trunnion rear linkage is excellent...it closely mimicks the Trek Rail baby! Awesome! Just recently put on my matching purple highlights: RF turbine stem, Spank pedals, Reverse clamp, plus caps, and a cool metal thermos, purp. camo overgrips...yep it matches too! Maybe a big size frame would fit taller riders looking to get in this DIY rig



[JimLee-Lightcarbon]

Mines very similar

View attachment 87180

View attachment 87181

View attachment 87182

View attachment 87183

View attachment 87184

View attachment 87185

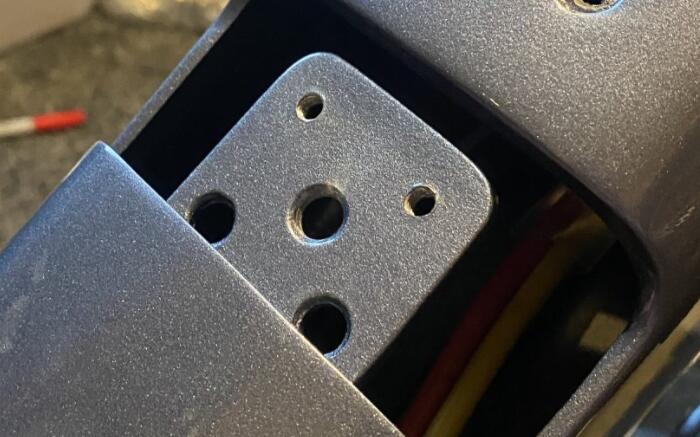

Fixing these two gaskets is the key,



[JimLee-Lightcarbon]

Now that would be wicked!!
And drop Bafang and do a deal with Bosh

The new model is not means to give up Bafang motor kit.
we will develop two model with the new sharpe, one is fit for Bafang M620 (750/1000w) motor and battery BT F25(820 wh) for small order and DIY buyer, so then can easy get the motors and battery in market, even one set,
and another model face to brand bike and wholesaler, who can get other brand motor kits, but now we have no decision which brand motor, because we have 3 customers with 3 choices, bosch, yamaha, shimano,



[JimLee-Lightcarbon]

Nah latest Fazua Ride 60 and then you would have a genuine light weight Emtb

FAZUA - RIDE 60

fazua.com

Or for the American power hungry boys, Polini MX where at least its serviciable

NEW POLINI E-P3 MX - poliniebike

NEW POLINI E-P3 MX Polini Motori always makes the best even better. Faithful to its slogan, the company of Bergamo goes on with the development of the products dedicated to the e-bike world, making a new evolution of the E-P3 motor.

www.poliniebike.com

rob (webmaster of emtb forum) also recommend Polini MX to me,very good, make it as one choice, Fuzua is very light, right, but hardly to get it, we have one road E-bike with Fuzua motor. But now only once one year, 200 units at one time, sold for one year, It takes three years to recover the mold cost,



[JimLee-Lightcarbon]

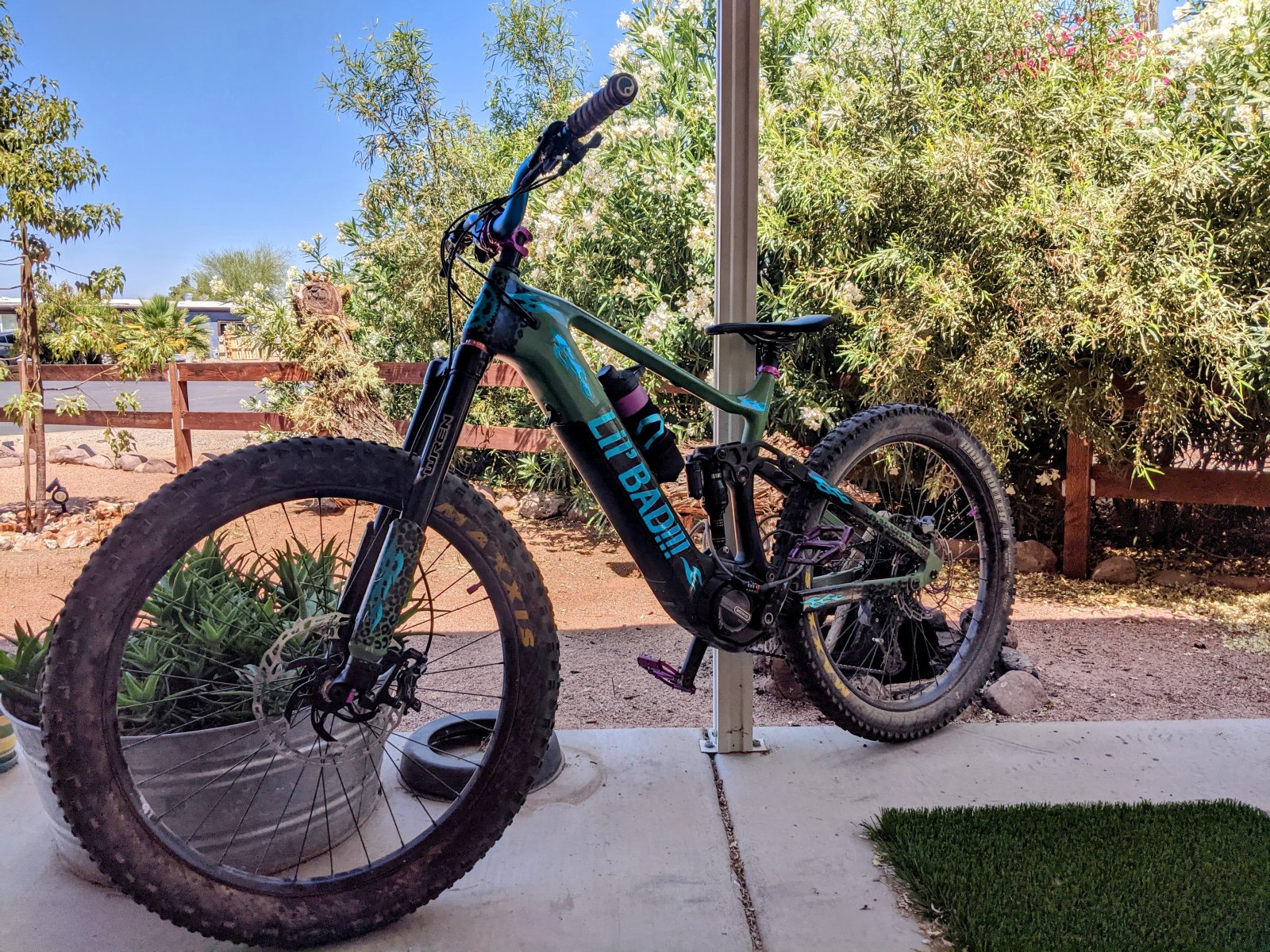

Good idea! But not me, the LCES 004 trunnion rear linkage is excellent...it closely mimicks the Trek Rail baby! Awesome! Just recently put on my matching purple highlights: RF turbine stem, Spank pedals, Reverse clamp, plus caps, and a cool metal thermos, purp. camo overgrips...yep it matches too! Maybe a big size frame would fit taller riders looking to get in this DIY rig

View attachment 87980

Aha, thanks, yes, LCES004 is our classic model, we will sell it in a long time,
and, the color of your bike is amazing and fascinating.



[Waynemarlow]

Fuzua is very light, right, but hardly to get it, we have one road E-bike with Fuzua motor. But now only once one year, 200 units at one time, sold for one year, It takes three years to recover the mold cost,

Jim, don't give up on the Fazua / light weight Emtb, its a market thats very ripe for the right product. Take myself for example, I have an Analogue bike, a light weight Fazua EZesty, and a Dengfu E10. The Analogue doesn't really get ridden much now as I'm getting to the age where fitness and body recovery is taking to long between rides to fully recover. And I had a real problem with the E10/ M600 it is too powerful to ride with my friends still on analogue bikes, too heavy to lift over styles and gates and I wasn't keeping my fitness using it.

The Ezesty, Orbea Rise and Specialized SL's all fill that very light weight and great fun to ride bikes on typically trail and some downhill. The Ezesty also has the ability to simply remove the motor and battery and I have a conventional Mtb that 13kgs. I'm quite new to the EZesty but I think it will become the bike most used, last night I went out with a fast group on Gravel bikes, not a problem to fit in, Sunday I went with analogue riders, turned the motor off and on a recent trip to Bike Park Wales I was surprised to see so many Rises and SL's, talking to the riders they like the almost MTB feel in the downhills, they just fit another battery at lunch time.

My prediction is that there is about to be an explosion of sales in this market, the full fat EMtb is now fully catered for and a lot of bikes sold, the very light weight EMtb pushes $10K so the sales are few. Get that price right and my betting is that it will quickly become a whole new market. The major problem to date has been the limited range of only 250Wh's, the Fazua gets around this with easily changeable batteries, the Rise and SL by fitting range extender batteries. Why not simply fit a 400W/h battery such as the new Fazua 60 ?

I'll move this over to the main General forum.



[JimLee-Lightcarbon]

Jim, don't give up on the Fazua / light weight Emtb, its a market thats very ripe for the right product. Take myself for example, I have an Analogue bike, a light weight Fazua EZesty, and a Dengfu E10. The Analogue doesn't really get ridden much now as I'm getting to the age where fitness and body recovery is taking to long between rides to fully recover. And I had a real problem with the E10/ M600 it is too powerful to ride with my friends still on analogue bikes, too heavy to lift over styles and gates and I wasn't keeping my fitness using it.

The Ezesty, Orbea Rise and Specialized SL's all fill that very light weight and great fun to ride bikes on typically trail and some downhill. The Ezesty also has the ability to simply remove the motor and battery and I have a conventional Mtb that 13kgs. I'm quite new to the EZesty but I think it will become the bike most used, last night I went out with a fast group on Gravel bikes, not a problem to fit in, Sunday I went with analogue riders, turned the motor off and on a recent trip to Bike Park Wales I was surprised to see so many Rises and SL's, talking to the riders they like the almost MTB feel in the downhills, they just fit another battery at lunch time.

My prediction is that there is about to be an explosion of sales in this market, the full fat EMtb is now fully catered for and a lot of bikes sold, the very light weight EMtb pushes $10K so the sales are few. Get that price right and my betting is that it will quickly become a whole new market. The major problem to date has been the limited range of only 250Wh's, the Fazua gets around this with easily changeable batteries, the Rise and SL by fitting range extender batteries. Why not simply fit a 400W/h battery such as the new Fazua 60 ?

I'll move this over to the main General forum.

hei my friend,
Thank you for your sincere advice. I have a careful look at fuzua's motor. As you said, it has great advantages in weight, and its volume is smaller than that of Bafang. The weight of the overall frame can be further reduced.

I'm considering contacting some EMTB wholesalers and brands that use fuzua motors now to see if they can cooperate to develop an EMTB framework using fuzua motors, because if a framework can find the beginning of an order for more than 200 sets, we can speed up the mold cost recovery cycle, which is f important for factories like us



[Dave Rand]

The Bosch motor is the way forward! The EMTB mode is just incredible, no changing power modes all the time it just reads your mind and reacts.
Bafang need a proper mountain bike development team to really move it forward, it’s software seems quite dated in comparison.



[Mabman]

Miranda cranks on amazon.

Second ride I was doing a left hand turn and my right side crank drove into the ground and caused me to crash. That is what made up my mind to switch. When under compression the bb height gets pretty low.



[Dave Rand]

Miranda cranks on amazon.

Second ride I was doing a left hand turn and my right side crank drove into the ground and caused me to crash. That is what made up my mind to switch. When under compression the bb height gets pretty low.

yes, I’m going to order some. But I’m also fitting a volume spacer to my DPX2 which should help



[JimLee-Lightcarbon]

is anyone like the frame fit for Bafang M510 (250w) but battery BTF 25 (720wh/820wh)?
so can reduce the possibility of DIY battery? Or do many people still want larger batteries?



[TCFlowClyde]

is anyone like the frame fit for Bafang M510 (250w) but battery BTF 25 (720wh/820wh)?
so can reduce the possibility of DIY battery? Or do many people still want larger batteries?

LCES004 frame M600 with 820 Wh battery.



[Sandur-Rx]

is anyone like the frame fit for Bafang M510 (250w) but battery BTF 25 (720wh/820wh)?
so can reduce the possibility of DIY battery? Or do many people still want larger batteries?

I would buy it. Love the LCES004 frame. But the btf04 just don’t fit my needs.



[JimLee-Lightcarbon]

LCES004 frame M600 with 820 Wh battery.

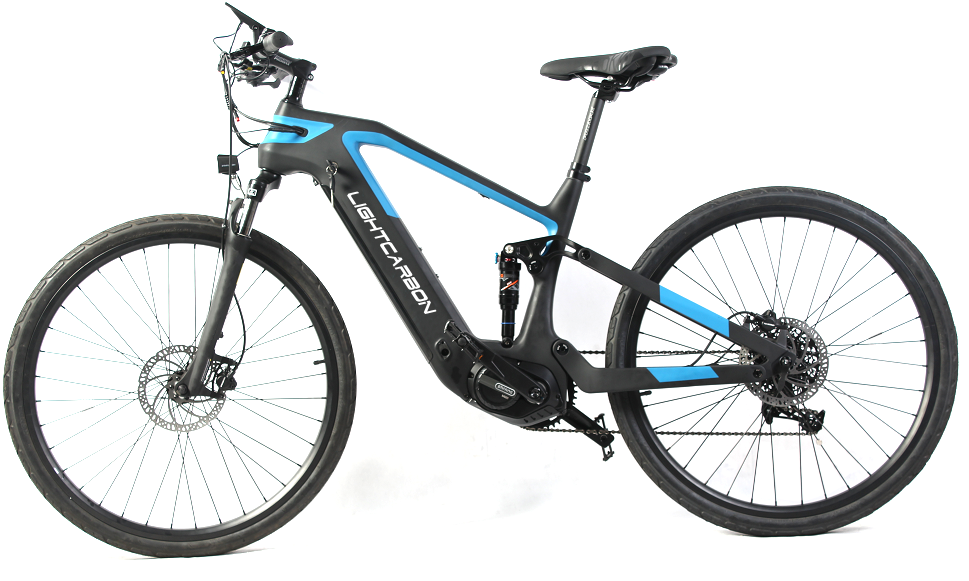

not LCES004, Due to the size limitation of the battery slot, LCES004 can only install BT f04 at most, the frame I said fit for M510 and BTF 25 is LCE28, have two model, LCE28A fit for M620 motor (750/1000w) and BTF 25, LCE28-B fit for M510 /M600 motor, and battery BT F25, but request the motor and battery have the same voltage, same 48V or same 52V.



[JimLee-Lightcarbon]

not LCES004, Due to the size limitation of the battery slot, LCES004 can only install BT f04 at most, the frame I said fit for M510 and BTF 25 is LCE28, have two model, LCE28A fit for M620 motor (750/1000w) and BTF 25, LCE28-B fit for M510 /M600 motor, and battery BT F25, but request the motor and battery have the same voltage, same 48V or same 52V.

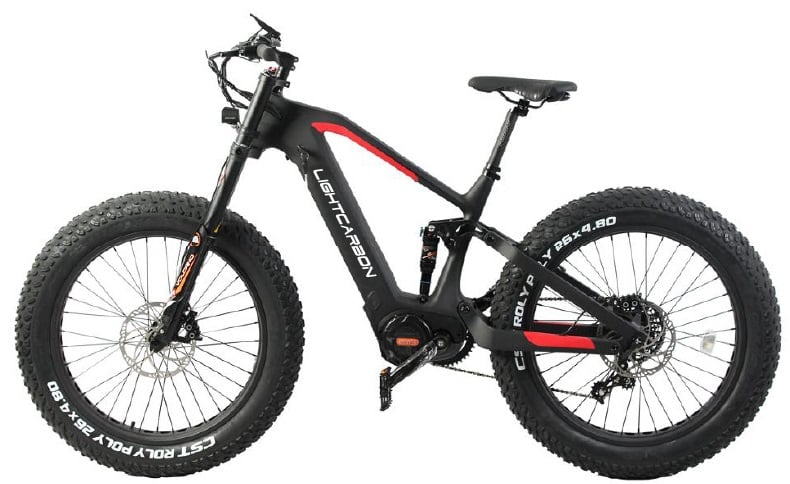

also have the brother modle fat EMTB frame LCE18



[brw0513]

I'm considering contacting some EMTB wholesalers and brands that use fuzua motors now to see if they can cooperate to develop an EMTB framework using fuzua motors, because if a framework can find the beginning of an order for more than 200 sets, we can speed up the mold cost recovery cycle, which is f important for factories like us

I'm hoping you can make this happen. I'd place an order today for a Fuzua driveline in an eMTB at an affordable price.



[Dave Rand]

Thinking of new wheels.
What’s size did you Lces004 boys go for?
Would I get away with a 29er on the back?



[TCFlowClyde]

Thinking of new wheels.
What’s size did you Lces004 boys go for?
Would I get away with a 29er on the back?

I mullet-sized mine 29 x 3.0/27.5 x 3.0. Cornering is fun and is very playful. Obviously, it's tricky to find a stiff 60 TPI sidewall in 3.0s, but I manage well with my MAXXIS HR II + for what its worth. I think a 29 x 2.6/5 might squeeze in rear stays. I'm in the desert, so mud clearance isn't an issue for me that might reduce rainy /soft weather conditions to a a 2.3/2.4?



[Dave Rand]

Cheers
I’m Uk so lots of Mud. Was leaning towards a Mullet setup, my only concern was my BB height as I’ve had a few pedal strikes. so a 29 all round would lift that a bit and along with Miranda cranks that would solve that.

I mullet-sized mine 29 x 3.0/27.5 x 3.0. Cornering is fun and is very playful. Obviously, it's tricky to find a stiff 60 TPI sidewall in 3.0s, but I manage well with my MAXXIS HR II + for what its worth. I think a 29 x 2.6/5 might squeeze in rear stays. I'm in the desert, so mud clearance isn't an issue for me that might reduce rainy /soft weather conditions to a a 2.3/2.4?
