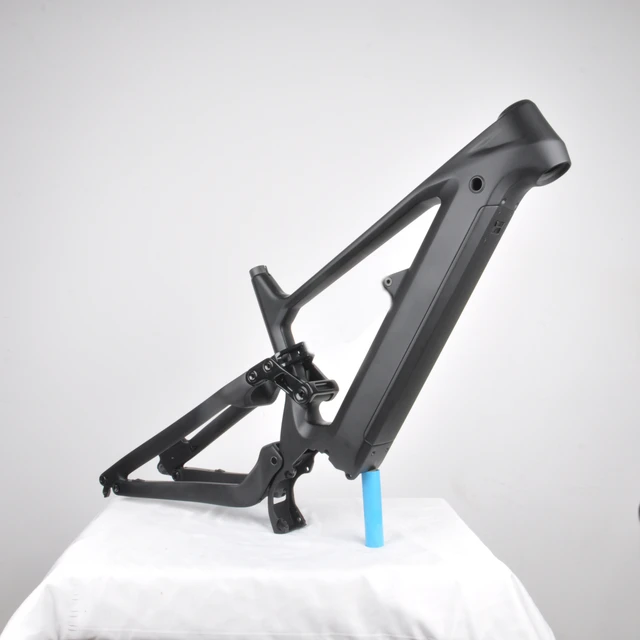

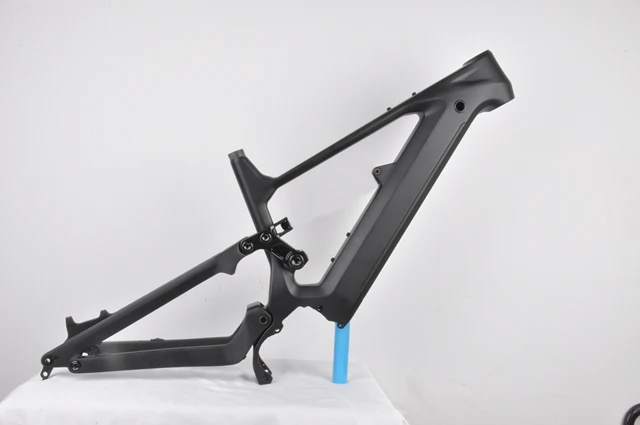

E82 Dengfu frame now available

[thaeber]

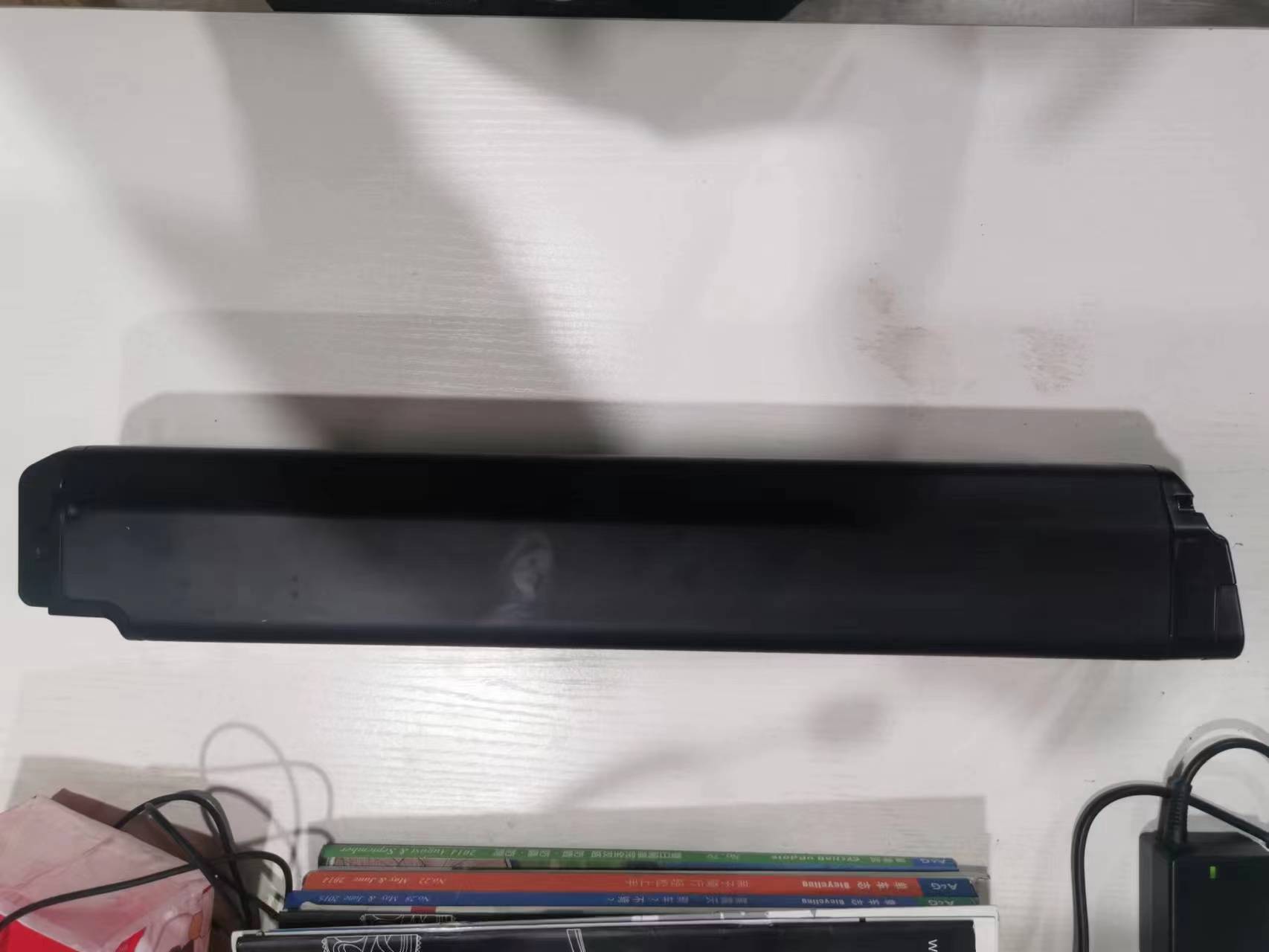

Yes, it's a 1000Wh battery

Thanks mate! It’s the same battery housing used for E10? Are they interchangeable?



[iscander13]

Thanks mate! It’s the same battery housing used for E10? Are they interchangeable?

looks like new. Dengfu told me that the old battery mount is no good and they are working on a new one. There is no button (kill switch) on the new frame.



[HiGrade]

Removed (thought I was posting a picture of an E82)



[Sayonara]

View attachment 135759

What frame is that?



[HiGrade]

What frame is that?

My mistake! I believe that was the older e10 frame.



[xtraman122]

My mistake! I believe that was the older e10 frame.

I thought so as well until I saw the cable routing not going through the headset



[Dado]

Thanks mate! It’s the same battery housing used for E10? Are they interchangeable?

Hello Thaeber

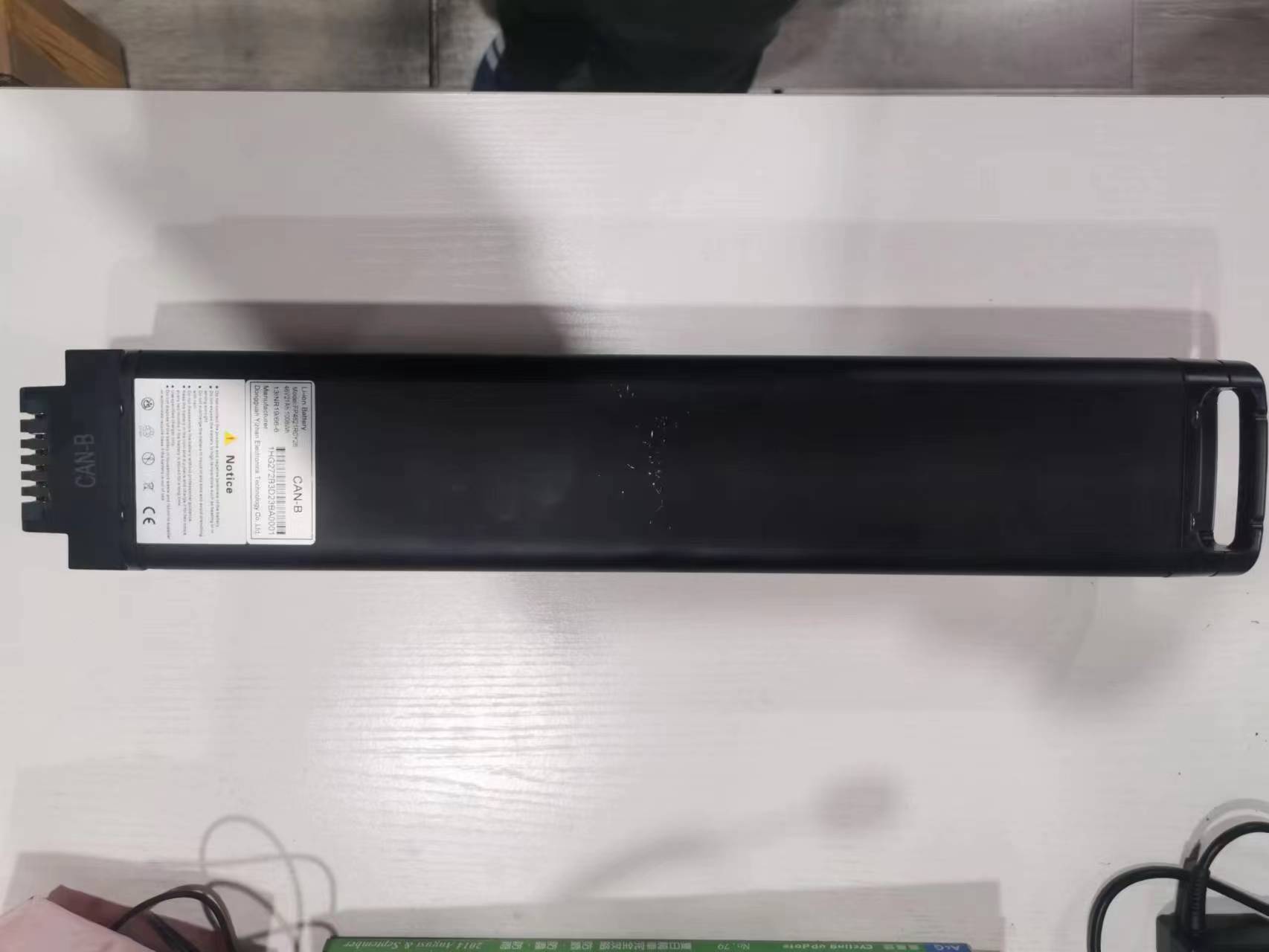

What I see they did use same connector with 6 knife contacts. Some are used for CAN communication. So you wont put there old battery (has 4 contacts). And E82 battery is bigger.

So lets see if they come up with new battery connector. Extra CAN connector from battery would be also ok. Just I guess they want to leave it with simple battery removal.
I would also welcome if they remove that key lock mechanism and replace with one hex screw. And battery would hold there tight. No rattle and no water ingress over key mechanism if they put there a nice rubber cap.



[Sayonara]

Hello Thaeber

What I see they did use same connector with 6 knife contacts. Some are used for CAN communication. So you wont put there old battery (has 4 contacts). And E82 battery is bigger.

So lets see if they come up with new battery connector. Extra CAN connector from battery would be also ok. Just I guess they want to leave it with simple battery removal.
I would also welcome if they remove that key lock mechanism and replace with one hex screw. And battery would hold there tight. No rattle and no water ingress over key mechanism if they put there a nice rubber cap.

Personally I prefer keylock or other quick locking system because I commute to work on my bike as well and need to get the battery inside during work day. Temperatures go from -30°c in the winter and summer can get to +30°c. Battery would die during work day in the winter or the sun would fry it.



[Waynemarlow]

Dengfu E-bike 29er Suspension Mountains MTB electric Carbon frame Bafang E82M560 | eBay

Bafang M510/M560 750W/M600. Tire size: 29er 2.6" or 27.5er 2.8". Material: Full T800 Toray Carbon. Use For: 29"Boost UDH Suspension ENDURO E-Bike. Seat Stay:437g. Chain Stay:407g. Full carbon fiber. Rear Shock: 230 60mm.

www.ebay.co.uk

Looks like its on EBay under the Carboncycles site.



[Sayonara]

Dengfu E-bike 29er Suspension Mountains MTB electric Carbon frame Bafang E82M560 | eBay

Bafang M510/M560 750W/M600. Tire size: 29er 2.6" or 27.5er 2.8". Material: Full T800 Toray Carbon. Use For: 29"Boost UDH Suspension ENDURO E-Bike. Seat Stay:437g. Chain Stay:407g. Full carbon fiber. Rear Shock: 230 60mm.

www.ebay.co.uk

Looks like its on EBay under the Carboncycles site.

Yep, just like I said in my first post when I started this! Sadly they still don't have plans yet to make it in any other size that M 17".. :/



[Dado]

That does not make sense not to do L. I think L is most selling size.



[Sayonara]

That does not make sense not to do L. I think L is most selling size.

Well. Clearly not since they and as well many others start with M 17" size frame. That must the most sold size. L 19" should be the next most sold for sure tho.

It's odd that they have it listed with S/M/L/XL available tho.

Maybe they haven't had enough people message them about size L 19" yet. If you haven't make sure you do and let them know you are interested!



[Waynemarlow]

Yep, just like I said in my first post when I started this! Sadly they still don't have plans yet to make it in any other size that M 17".. :/

It was missing for a while but now back on the EBay site.

Not sure about the L but I think when I bought my E10 there wa sonly medium available, they slowly bought on the other sizes over about 6 months.

Note the size of batteries ?



[Sayonara]

It was missing for a while but now back on the EBay site.

Not sure about the L but I think when I bought my E10 there wa sonly medium available, they slowly bought on the other sizes over about 6 months.

Note the size of batteries ?

Ah good to know.

Yeah well they haven't officially even lauched E82 yet so might be a good while before we see L size then :/

Yeah battery size from 600-1000wh.



[Sayonara]

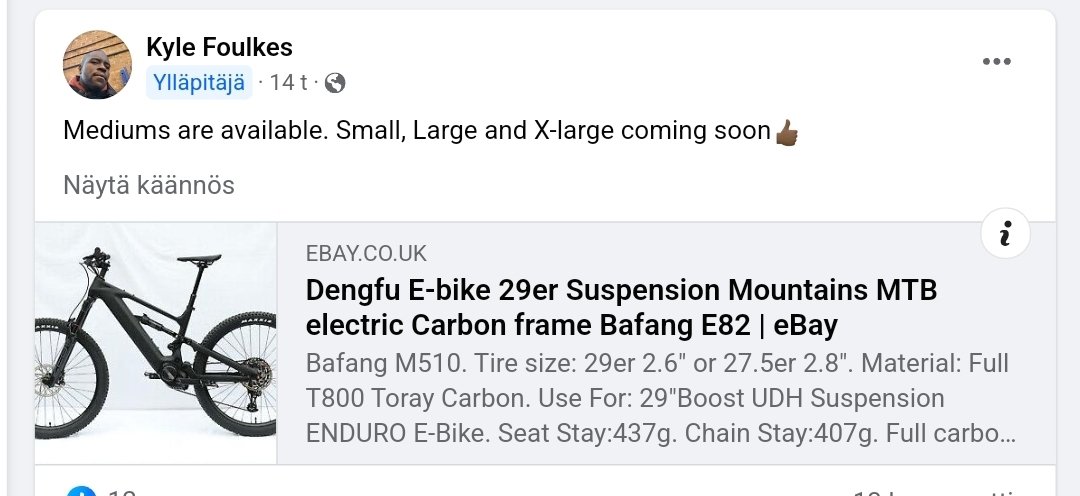

Saw this in the dengFu ebike group.

How even Ben from DengFu said this: "At present, there is no production plan for L or other sizes, only some inventory of M sizes is in retail.".

So I don't know what to make of that.



[Sayonara]

Ben responded with this.

"If the sales of samples in size M are good, other sizes should be fast."

Lets hope people will buy the size M frames quickly



[Sayonara]

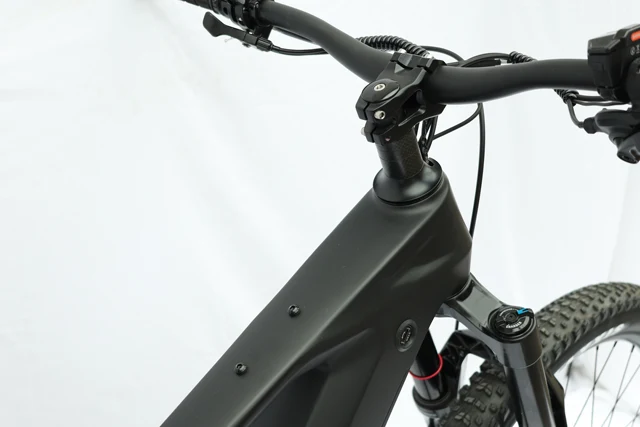

Good news! They are looking into making holes for the cables so you don't have to use the headset for the cables!

I got this image as an example.



[Dado]

Or you will use drill. Should be ok.



[Sayonara]

Or you will use drill. Should be ok.

Well yeah, but if they do it for you then you get to keep warranty

Plus factory molded hole is always better looking than self drilled



[Dado]

Thats right, you will be missing that aluminium part for hoses.

It is pain with hoses running through headset. And in services they dont like it much.



[_gregor]

I have ordered and I'm waiting for delivery of the E82 frame in size M with a 48V 1008Wh battery. When it arrives, I will post more photos.



[rezystor1990]

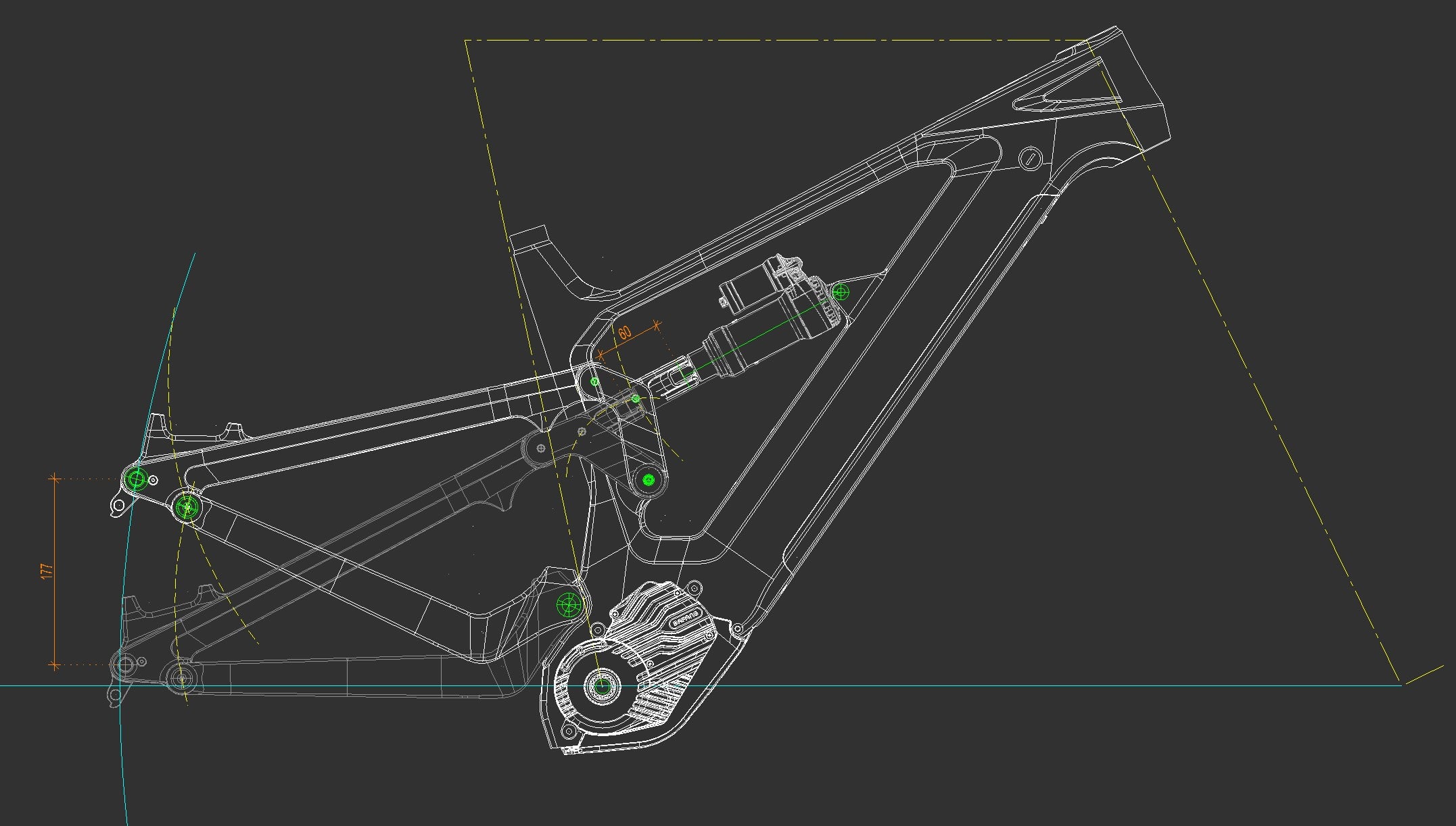

I converted the PDF to DWG and then checked the rear suspension travel. Shock absorber travel of 60 mm.



[iscander13]

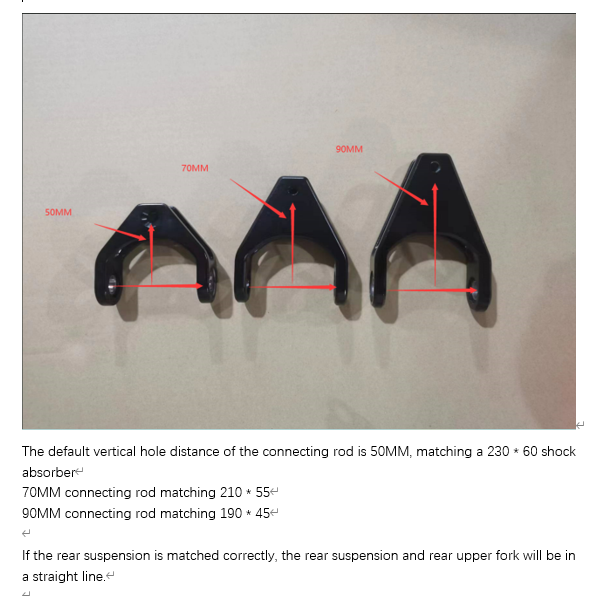

Interesting. This is new yok for the shock?



[_gregor]



[LAnton]

This is a very convenient solution. You can modify the 90mm rocker arm and install a shock absorber of any length. I just have a spring-loaded cane creek 216x63



[LAnton]

I can't wait to find out how much the frame weighs without the carbon battery cover



[Sayonara]

I have ordered and I'm waiting for delivery of the E82 frame in size M with a 48V 1008Wh battery. When it arrives, I will post more photos. View attachment 136576 View attachment 136577 View attachment 136578 View attachment 136579
View attachment 136584
View attachment 136596
View attachment 136597
View attachment 136598

Do you know what size dropper post will fit the frame? 30,9mm or 31,6mm and how deep can you install it?



[_gregor]

Do you know what size dropper post will fit the frame? 30,9mm or 31,6mm and how deep can you install it?

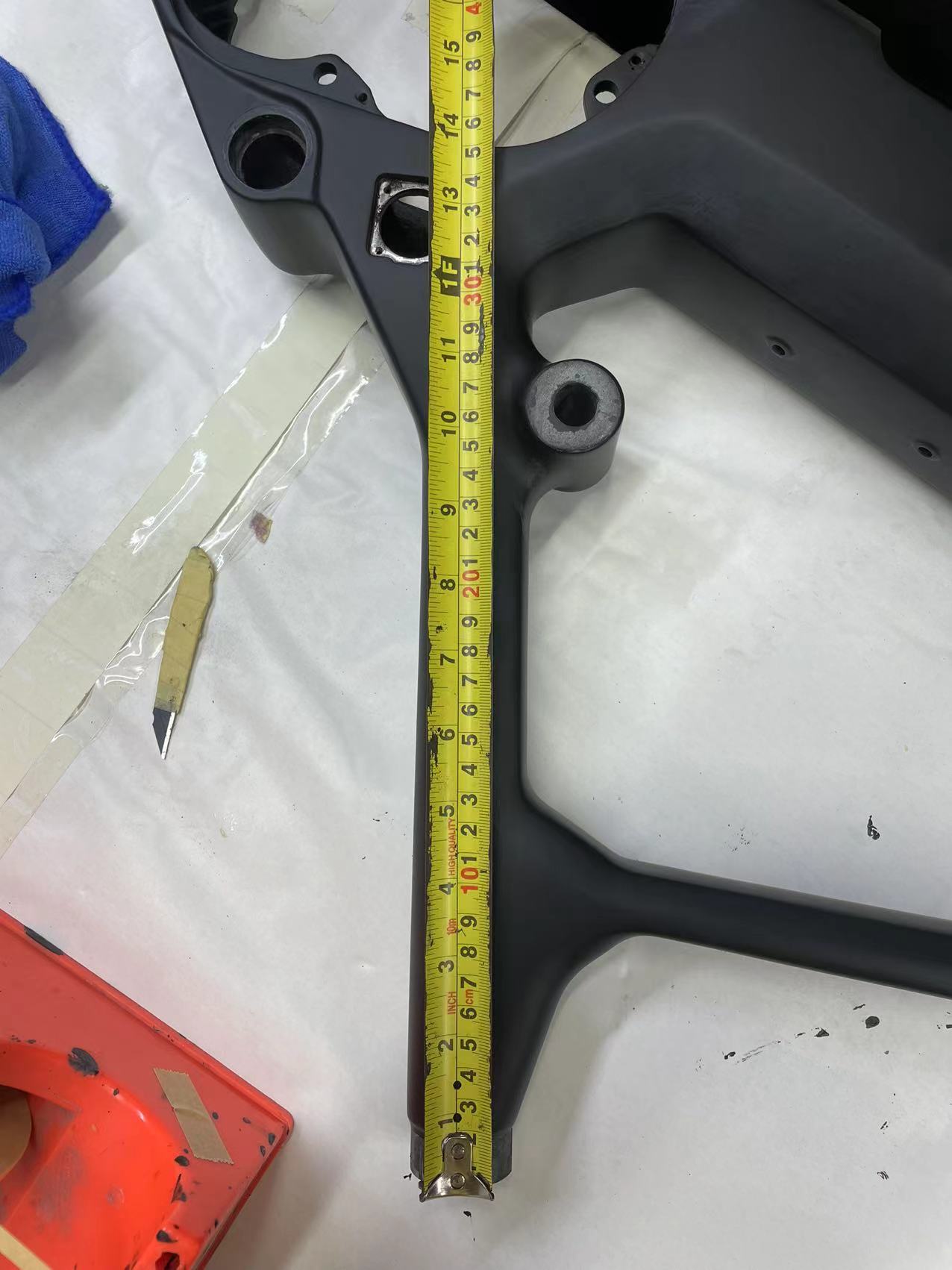

31,6mm. See my photo from previous post, I think it's about 230mm. I'll use OneUp V2.1 150mm



[Sayonara]

31,6mm. See my photo from previous post, I think it's about 230mm. I'll use OneUp V2.1 150mm

Thanks!

I also got this from Ben

"The seat tube is 31.6mm, and the maximum length supported by the M size E82 is 280mm for the lifting seat tube. This length is calculated from the position of the seat tube clamp, which means that replacing it with a regular seat tube of 350mm is not a problem."



[_gregor]

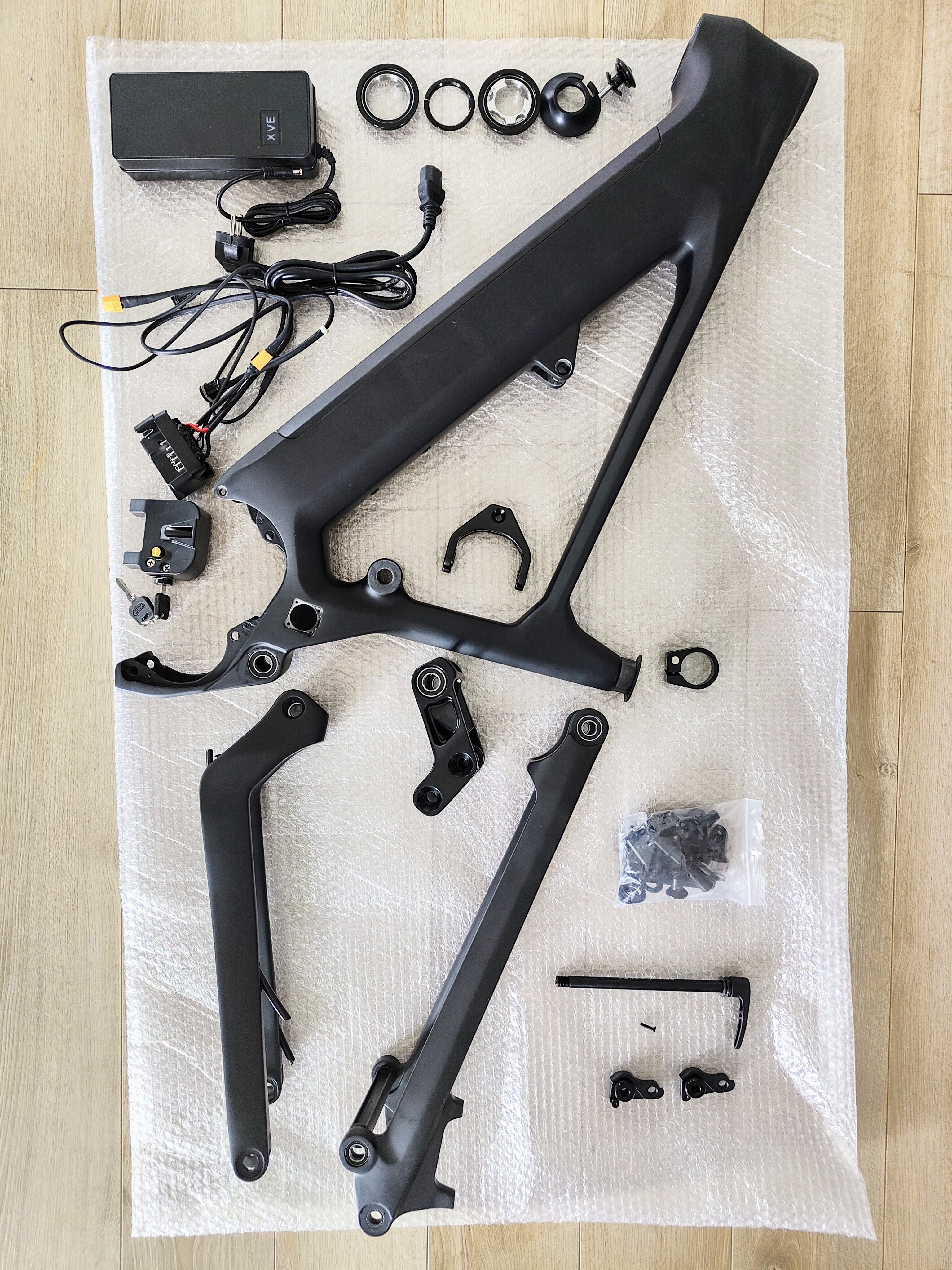

Just arrived, very good quality and perfect painting.
