Decathlon STILUS Full Suspension Electric Mountain Bike - SRAM SX

[Taters]

Has anyone put 27.5 2.8 inch tires on it?

Eddy Currents here.

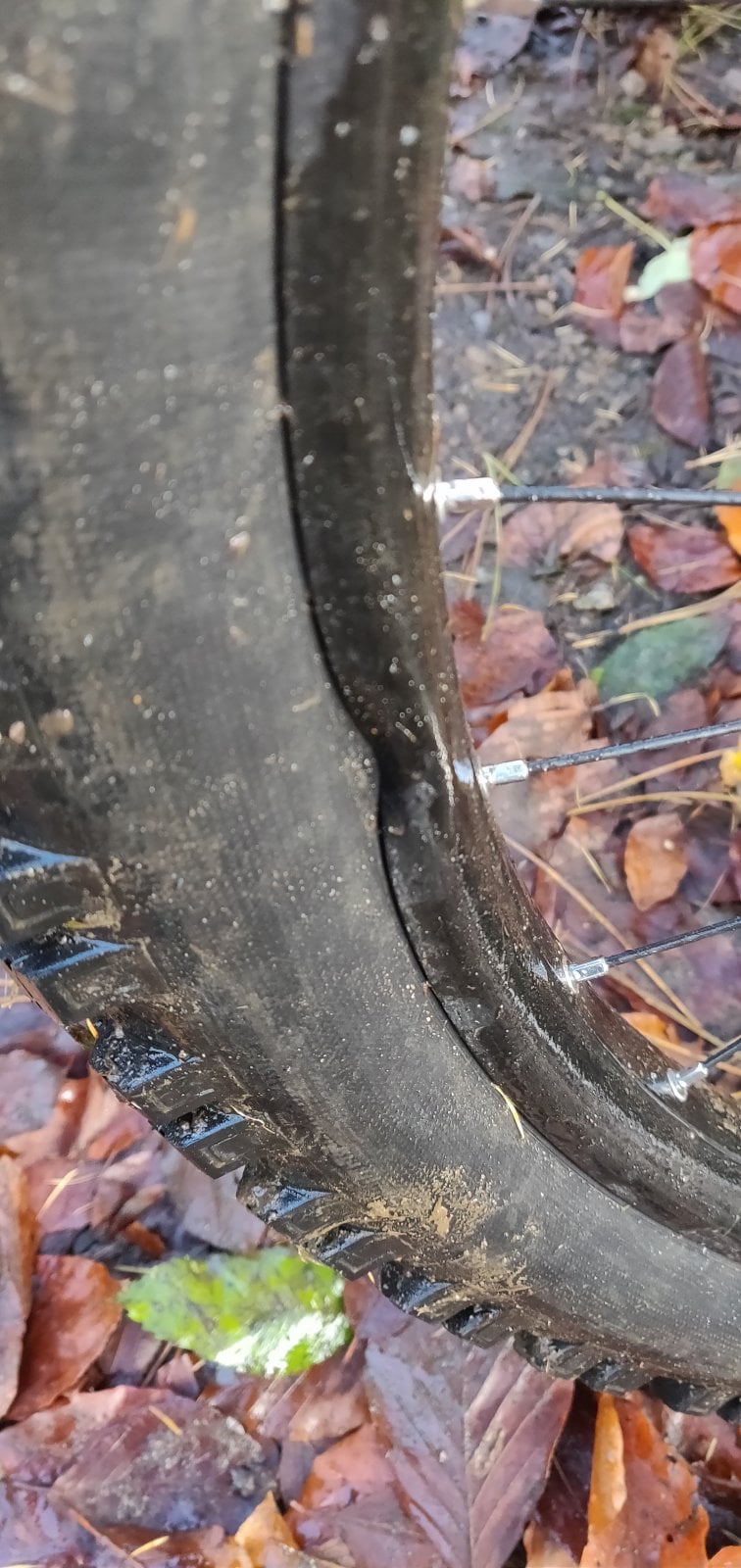

Rock strike on the rim, threw me off going down a rocky path in the peaks. Ouch. Tyre stayed up though, unlike me.



[Buzz720]

Eddy Currents here.

Rock strike on the rim, threw me off going down a rocky path in the peaks. Ouch. Tyre stayed up though, unlike me.

View attachment 43565

Wow nice work! I also cracked my rim abit so won't stay up tubless. But I'm still running it with a tube in it. How close is the chain in the lowest gear. With my 2.6 it runs already pretty close!



[Taters]

Wow nice work! I also cracked my rim abit so won't stay up tubless. But I'm still running it with a tube in it. How close is the chain in the lowest gear. With my 2.6 it runs already pretty close!

I'll take a look tomorrow. Bloody close I reckon but I really haven't noticed before.



[LewisM]

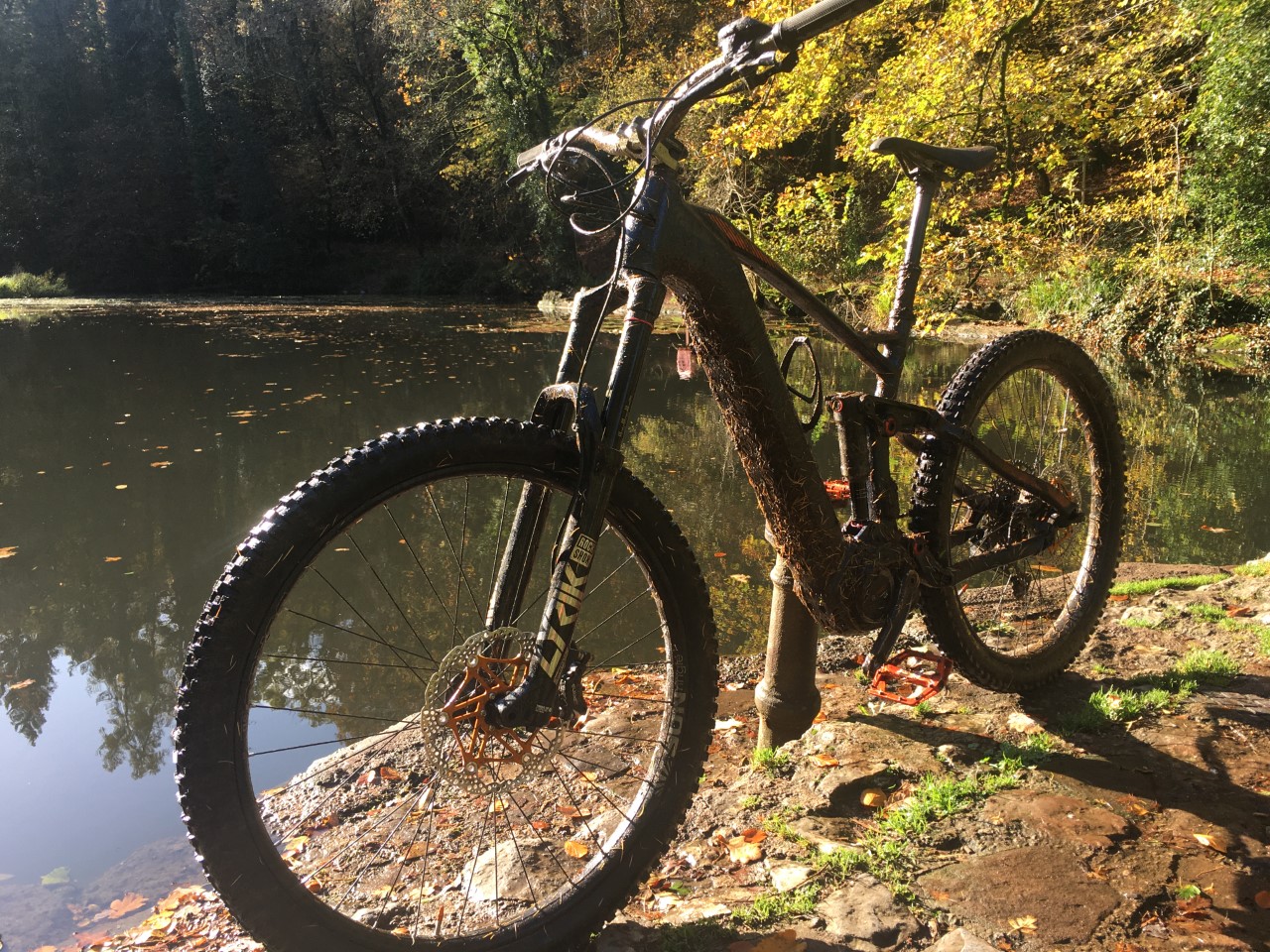

Here we go...

Stilus with a 180mm Lyrik (29 wheel on its way in the post), 625 battery, 85Nm update, Maxxis tyres, orange Hope floating rotors, orange DMR pedals and the Renthal bars and stem from my old bike.

I'm loving it at the moment!



[Lordy71]

Wow 180mm travel with a 29 wheel that will be a slack head angle, and hopefully give you better BB clearance, let us know how it rides am interested in doing the same to mine. Bike looks well trick btw..



[LewisM]

Wow 180mm travel with a 29 wheel that will be a slack head angle, and hopefully give you better BB clearance, let us know how it rides am interested in doing the same to mine. Bike looks well trick btw..

I'm fine with the prospect of a slacker head angle (and I have no spacers below the stem so the bars shouldn't be too high).

I have noticed that I do hit my pedals more than on my previous bike - I'm not sure if this is because it has a lower BB, or just because I'm spending more time pedalling when before I may have freewheeled. It's something I'll no doubt get more used to as I ride the bike more.

It just feels awesome - it's like I'm riding a downhill bike with the legs of an XC racer!



[moonhead911]

has anybody fitted a 220mm rotor the the front. if so what spacer do i need



[Taters]

Wow nice work! I also cracked my rim abit so won't stay up tubless. But I'm still running it with a tube in it. How close is the chain in the lowest gear. With my 2.6 it runs already pretty close!

Checked this the other day and I've got about 7mm gap from tyre Edge to chain in 1st gear.



[Rap Dance 9000]

..Absolute amateur hour here .. think I’ve just fecked my Stilus crack arm pedal thread.. what is my best option ? New crank arms ? No bike shops open... canny re thread . Measured them at 17cm at bolt centres. anyone recommend some that won’t break the bank , preferably with colour choices :/ bloody typical wanted to go out in the morning .



[Johnny rider]

..Absolute amateur hour here .. think I’ve just fecked my Stilus crack arm pedal thread.. what is my best option ? New crank arms ? No bike shops open... canny re thread . Measured them at 17cm at bolt centres. anyone recommend some that won’t break the bank , preferably with colour choices :/ bloody typical wanted to go out in the morning .

Amazon selling some for about £45 for a set



[Rap Dance 9000]

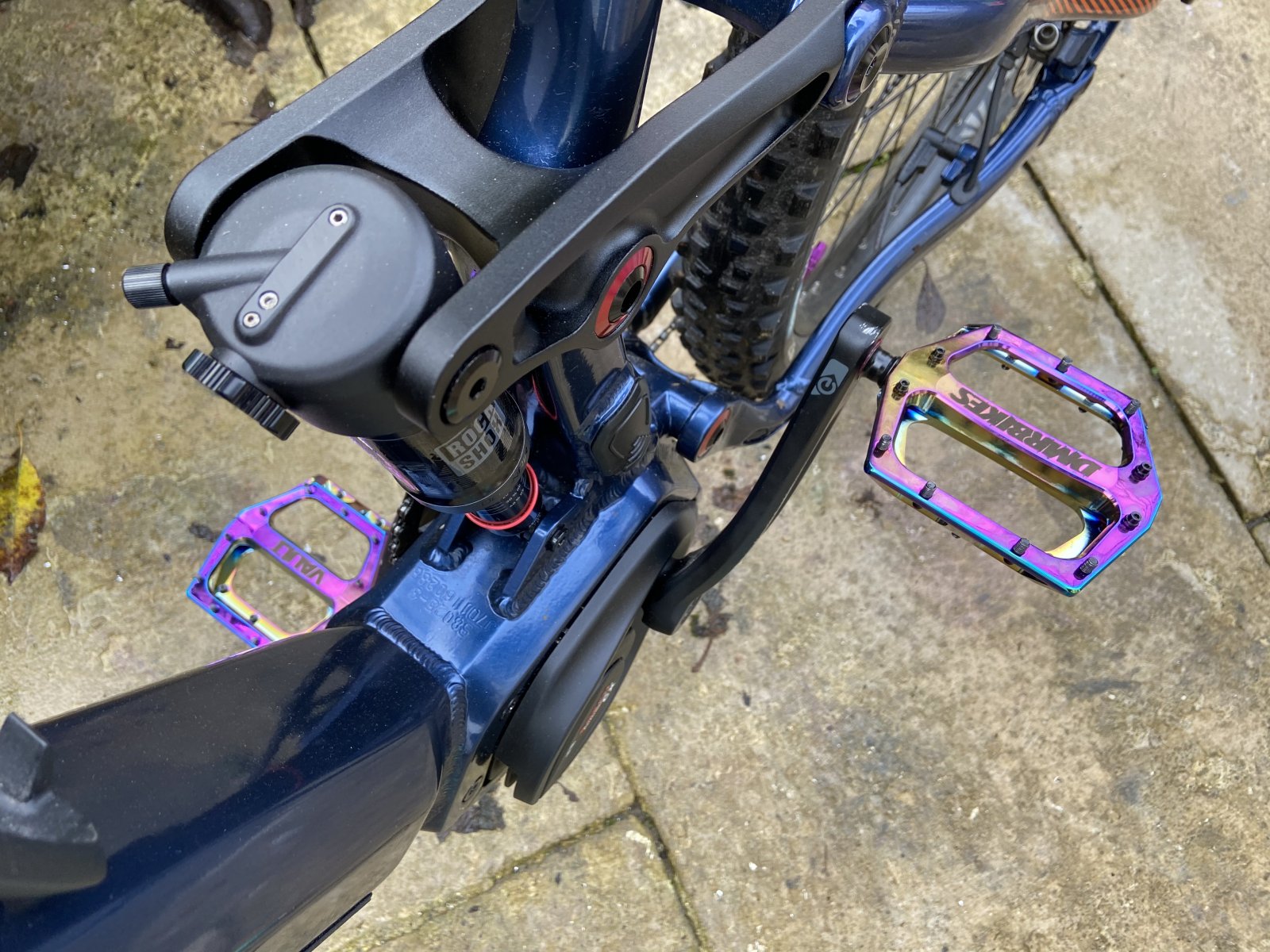

Other than the obvious style thing... hope crank arms ? Anyone got them on Stilus other than Rob. So Pricey ! I’m also wondering about slightly shorter 160mm cranks.



[PhilBaker]

Take a look at Rob's Youtube review comparing the different crank arm sizes and the pro's and con's. I'd definitely consider going slightly shorter as I get a lot of pedal strikes...



[Rap Dance 9000]

Thanks phil, yep I also get a fair few, will have a read up. Was it you who was rocking the ewilds?



[PhilBaker]

Thanks phil, yep I also get a fair few, will have a read up. Was it you who was rocking the ewilds?

Sure was!

Pro's:
- Offroad Grip is night and day different from the stock Smart Sams
- They look way better

Con's:
- They have a lower overal circumference than the Smart Sam's. I'd not read this anywhere, but net net the tyres are noticable smaller than the Smart Sam's. I'd say when you put on an eWild and measure the distance from the floor to the top of the tyre, they are an about an inch lower! What this meant was with the speed restrictor is I was getting engine cut out at 17mph (it tailed off from 15.5mph to 17mph), now the engine cuts out at 16mph.
- I have really seen a big decline in battery performance as clearly the rolling resistance is much greater than the Smart Sams. I'd say I've been getting maybe 10miles less out of a battery. Now the weather is colder and I did upgrade the Bosch SW to 85NM at the same time as the tyres, but ride mainly in Tour which doesn't use the extra torque apparently.

Summary:
I'd still recommend the tyres, as any decent grip offroad tyre will have a battery impact compared to the high rolling Smart Sams, I just hadn't even consider the tyre circumference would be smaller. I may try Swarbe Magic Mary's next as most of the guys I ride with swear by them and given Smart Sams are Shwarb, I assume they will have the same circumference!



[PhilBaker]

Other than the obvious style thing... hope crank arms ? Anyone got them on Stilus other than Rob. So Pricey ! I’m also wondering about slightly shorter 160mm cranks.

I'd also take a look at this:-

What’s the best crank length on an E-MTB?

The trail in front of you gets steeper and you don’t want to lose your momentum, so you start pedalling like a maniac. Then you hear a loud clunking noise and everything comes to an abrupt halt… the next thing you know you’re flying over the bars! What happened? Chances are you jammed your crank […]

ebike-mtb.com

I reckon 160mm all the way



[Rap Dance 9000]

Sure was!

Pro's:
- Offroad Grip is night and day different from the stock Smart Sams
- They look way better

Con's:
- They have a lower overal circumference than the Smart Sam's. I'd not read this anywhere, but net net the tyres are noticable smaller than the Smart Sam's. I'd say when you put on an eWild and measure the distance from the floor to the top of the tyre, they are an about an inch lower! What this meant was with the speed restrictor is I was getting engine cut out at 17mph (it tailed off from 15.5mph to 17mph), now the engine cuts out at 16mph.
- I have really seen a big decline in battery performance as clearly the rolling resistance is much greater than the Smart Sams. I'd say I've been getting maybe 10miles less out of a battery. Now the weather is colder and I did upgrade the Bosch SW to 85NM at the same time as the tyres, but ride mainly in Tour which doesn't use the extra torque apparently.

Summary:
I'd still recommend the tyres, as any decent grip offroad tyre will have a battery impact compared to the high rolling Smart Sams, I just hadn't even consider the tyre circumference would be smaller. I may try Swarbe Magic Mary's next as most of the guys I ride with swear by them and given Smart Sams are Shwarb, I assume they will have the same circumference!

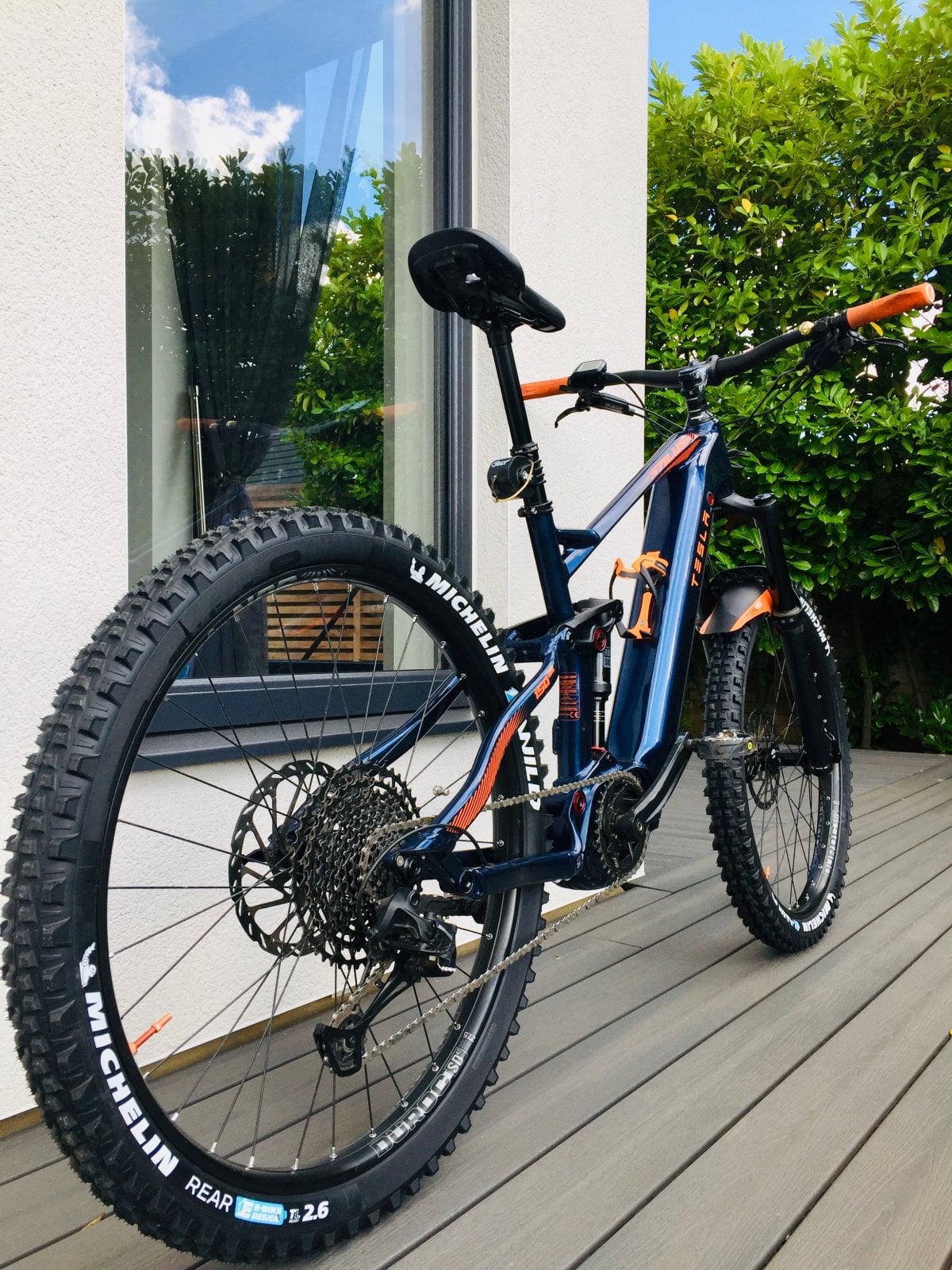

View attachment 44205

Cheers Phil, I'm running the Ewilds also. Now you mention it I think I have noticed the battery drain. I'm running them pretty low-pressure wise and have found them brilliant compared to the stock sams, shame about the knock-on for speed restrictor. I can't say that's bothered me as it still feels powerful, although i think i will be having a look at the marys also .Just went to my LBS and they sorted my crank arm , fancy pedals ahoy. Main reason got these is needed a bigger foot platform, dmr vault v2



[Zecalama]

Hello, just a short test on some stairs in my backyard.
Hope to take it soon to some real test in the mountains.



[Rap Dance 9000]

Hello, just a short test on some stairs in my backyard.
Hope to take it soon to some real test in the mountains.

Those dogs need mini Stilus’s



[PhilBaker]

I know I mentioned the BATTERY IMPACT I'm seeing with the eWilds, but just wondered what ranges your all getting on your Stilus 500w batteries as you head into winter, with some of you on stock tyres still, some of you on new rubber, some of you with Bosch SW update and some of you without?

Here's the difference on a full charge between what I was getting in May with the Smart Sam's (and before the 85nm Torque Bosch SW update) and what I'm seeing now with the eWilds:-

• May Eco 85
• May Tour 55
• May EMTB 47
• May Turbo 41

• Nov Eco 52
• Nov Tour 34
• Nov EMTB 29
• Nov Turbo 25

Appreciate the miles remaining is based on the last mile, so the gap between the two isn't quite as large as this, but it is a solid 10-15 miles difference in Tour.

Bike has done 1500 miles and I weigh 75kg.



[Timmoh]

I know I mentioned the BATTERY IMPACT I'm seeing with the eWilds, but just wondered what ranges your all getting on your Stilus 500w batteries as you head into winter, with some of you on stock tyres still, some of you on new rubber, some of you with Bosch SW update and some of you without?

Here's the difference on a full charge between what I was getting in May with the Smart Sam's (and before the 85nm Torque Bosch SW update) and what I'm seeing now with the eWilds:-

• May Eco 85
• May Tour 55
• May EMTB 47
• May Turbo 41

• Nov Eco 52
• Nov Tour 34
• Nov EMTB 29
• Nov Turbo 25

Appreciate the miles remaining is based on the last mile, so the gap between the two isn't quite as large as this, but it is a solid 10-15 miles difference in Tour.

Bike has done 1500 miles and I weigh 75kg.

I'm getting what you see in Nov data. I am 95kg and got the 85nm update on smart sams.
I have about 600 miles on the clock.
Due to medical stuff and rehab, I have been using the bike on mixed trails, mountain roads, and canal paths. No full on DH at mo but loads of climbing in each ride.
Just as a few examples, 2800ft climbing with 40 mile bikepath/canal included, mostly eco and tour with a smattering of emtb and turbo towards the end. That's with 95kg plus a 5kg pack. I still had a reading of 26 mile in eco at the end.
I also did a real tough mountain/fire road ride a few weeks ago which saw 1 h 20 mins of continuous climbing from the start (that's Wales for you) in tour, then a major boggy few miles on the top for a while, cracking long down and then a gentle 8 mile ascent with a steep last mile home and this still showed 15 mile left after a total of 26 in the saddle.
I tend to use the footpath app to plan a route and vary the route to make the most of the battery tbh. It's a different way of riding but then again, on my analogue bike my legs used to run out of battery 5 mile from home regularly ?. Hope this helps.



[PhilBaker]

Quick Update on the eWilds!!!!

They don't give me 10-15miles less distance on one charge like I thought, I'm just an idiot!

Here's the chain of events:-

• Smart Sams provided poor grip offload in mud or hardpack/loose trails
• Lowered tyres pressures and lowered again to improve grip
• It did help but decided to move to eWilds
• eWilds offer great grip but complained that I was getting 10-15 less miles per charge

So can you guess what I didn't do?

Put a decent tyre pressure in the eWilds! They were at 13 PSI.

Pumped them up today to about 28PSI and went for ride (albeit mainly road/hardpack trails and....

• 23.5 miles
• 1300ft climbing
• 2 hours riding
• Used 1 bar of battery
• Still showing 37 miles left in Tour

Normal service has resumed!

Just wanted to update to let others know the eWilds are great tyres and don't cause you to lose 10-15 miles per charge as I implied earlier...



[Rap Dance 9000]

Quick Update on the eWilds!!!!

They don't give me 10-15miles less distance on one charge like I thought, I'm just an idiot!

Here's the chain of events:-

• Smart Sams provided poor grip offload in mud or hardpack/loose trails
• Lowered tyres pressures and lowered again to improve grip
• It did help but decided to move to eWilds
• eWilds offer great grip but complained that I was getting 10-15 less miles per charge

So can you guess what I didn't do?

Put a decent tyre pressure in the eWilds! They were at 13 PSI.

Pumped them up today to about 28PSI and went for ride (albeit mainly road/hardpack trails and....

• 23.5 miles
• 1300ft climbing
• 2 hours riding
• Used 1 bar of battery
• Still showing 37 miles left in Tour

Normal service has resumed!

Just wanted to update to let others know the eWilds are great tyres and don't cause you to lose 10-15 miles per charge as I implied earlier...

Ah good, mine are running very low psi, will get them pumped in the morn !



[Tallguy888]

Hi All
I own a Stilus and have brought a new chain as no matter how much I care for the original it seems to rust even with good lube and clean after every ride, I know I can size my new chain to the way the bike came but is there a super easy method to check the shop got it right in the first place? Thanks in advance.



[jupiter]

Daft question time, I’ve had my Stilus a couple of months, great bike, and while it came with two keys I’ve never used either. What do they do!? I’ve assumed they release the battery compartment cover but do they disable the bike in any way? Thanks.



[Rap Dance 9000]

it’s to release your battery. I hope your taking the battery cover off and checking for ingress, it needs regular checking .

Daft question time, I’ve had my Stilus a couple of months, great bike, and while it came with two keys I’ve never used either. What do they do!? I’ve assumed they release the battery compartment cover but do they disable the bike in any way? Thanks.



[Timmoh]

Daft question time, I’ve had my Stilus a couple of months, great bike, and while it came with two keys I’ve never used either. What do they do!? I’ve assumed they release the battery compartment cover but do they disable the bike in any way? Thanks.

They release the battery not the cover. Youtube has a video on it that explains. It can be fiddly getting the battery in the first time but you'll get the hang of it.
The cover removes by pressing the button on the top of the cover and sliding down.
I take the battery out in colder weather and take it indoors as cold affects bat life.



[Rap Dance 9000]

They release the battery not the cover. Youtube has a video on it that explains. It can be fiddly getting the battery in the first time but you'll get the hang of it.
The cover removes by pressing the button on the top of the cover and sliding down.
I take the battery out in colder weather and take it indoors as cold affects bat life.

Yep this is what I meant that cover clip is a real bugger for getting grit in , I’ve taken mine to bits and greased it a number of times . Few not pretty solutions on here to stop it getting mudded up



[Timmoh]

Yep this is what I meant that cover clip is a real bugger for getting grit in , I’ve taken mine to bits and greased it a number of times . Few not pretty solutions on here to stop it getting mudded up

Tried loads such as neoprene Velcro straps etc but ended up getting a crud catcher XL front mudguard-epic results and clip has not suffered since (nor my face) ?.



[jupiter]

Thanks everyone. I have taped round all four sides of the cover but I’ll check under the cover next time I have five minutes.



[Knightrider99]

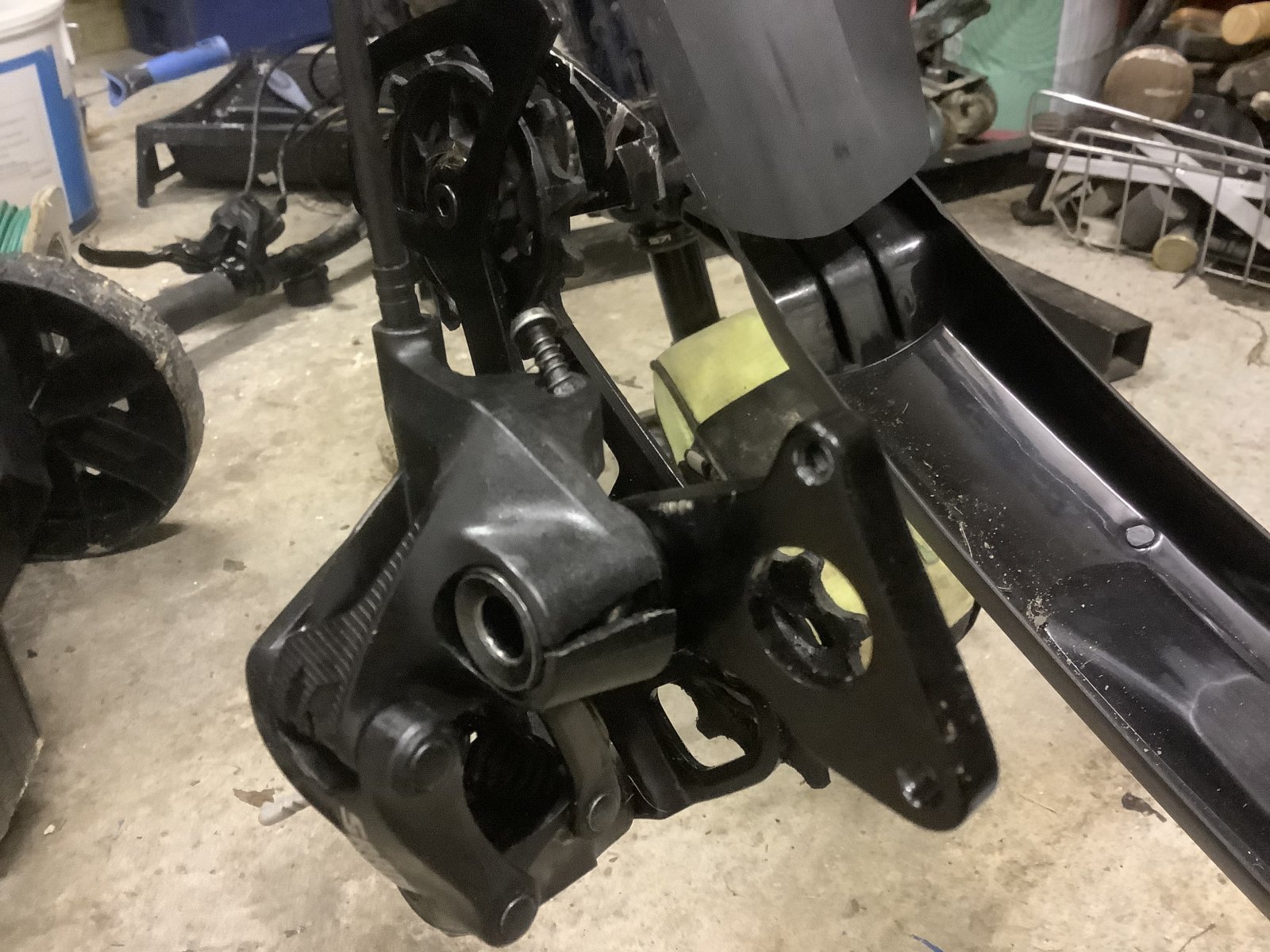

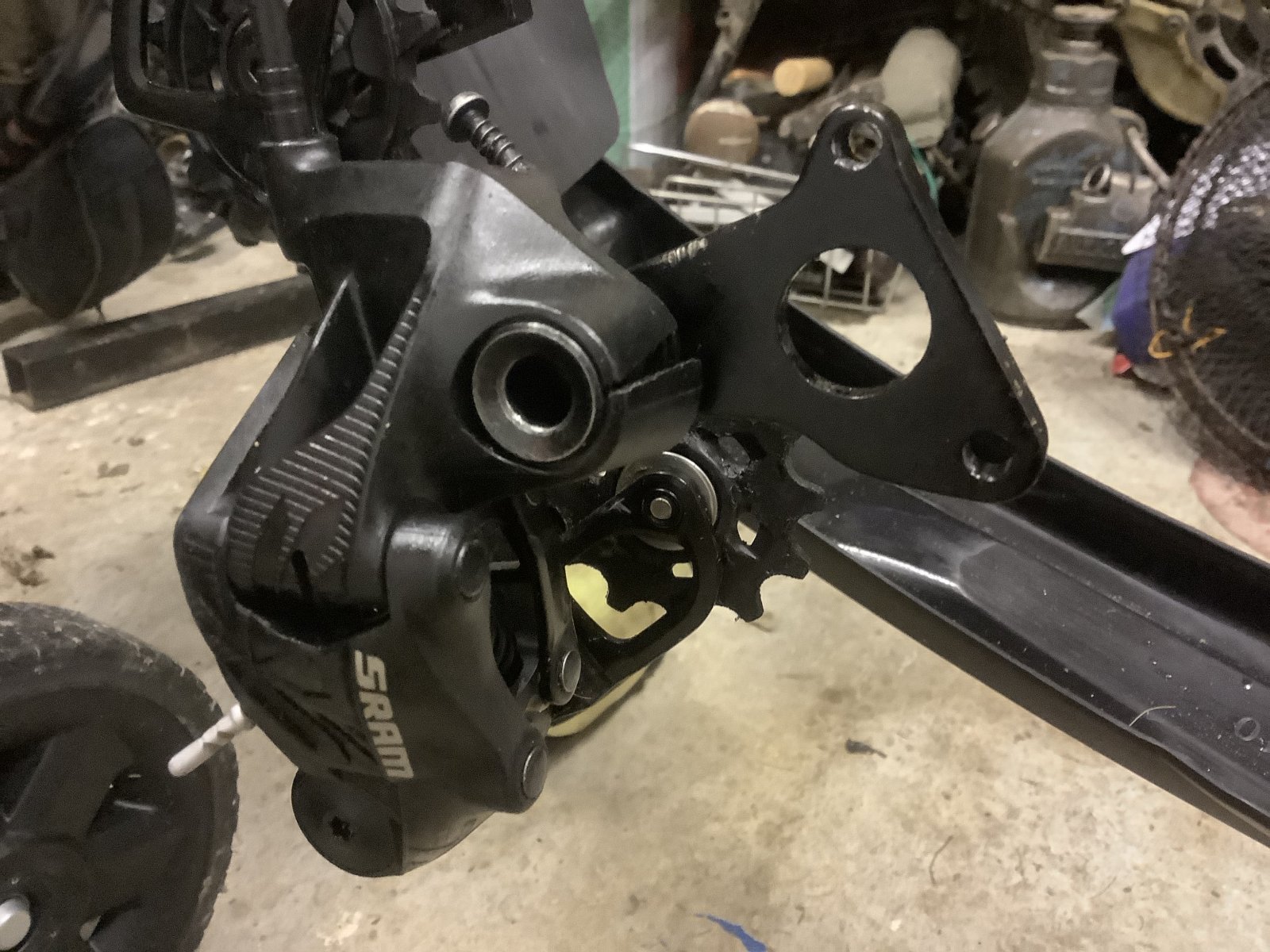

Has any body had this happen to there derailleur, has split through where it fits onto the hangar, I have emailed Decathlon to see if it is warranty, bike has only done 198kms.
