A new E-gravel carbon frame set fit for Bafang M820

[JimLee-Lightcarbon]

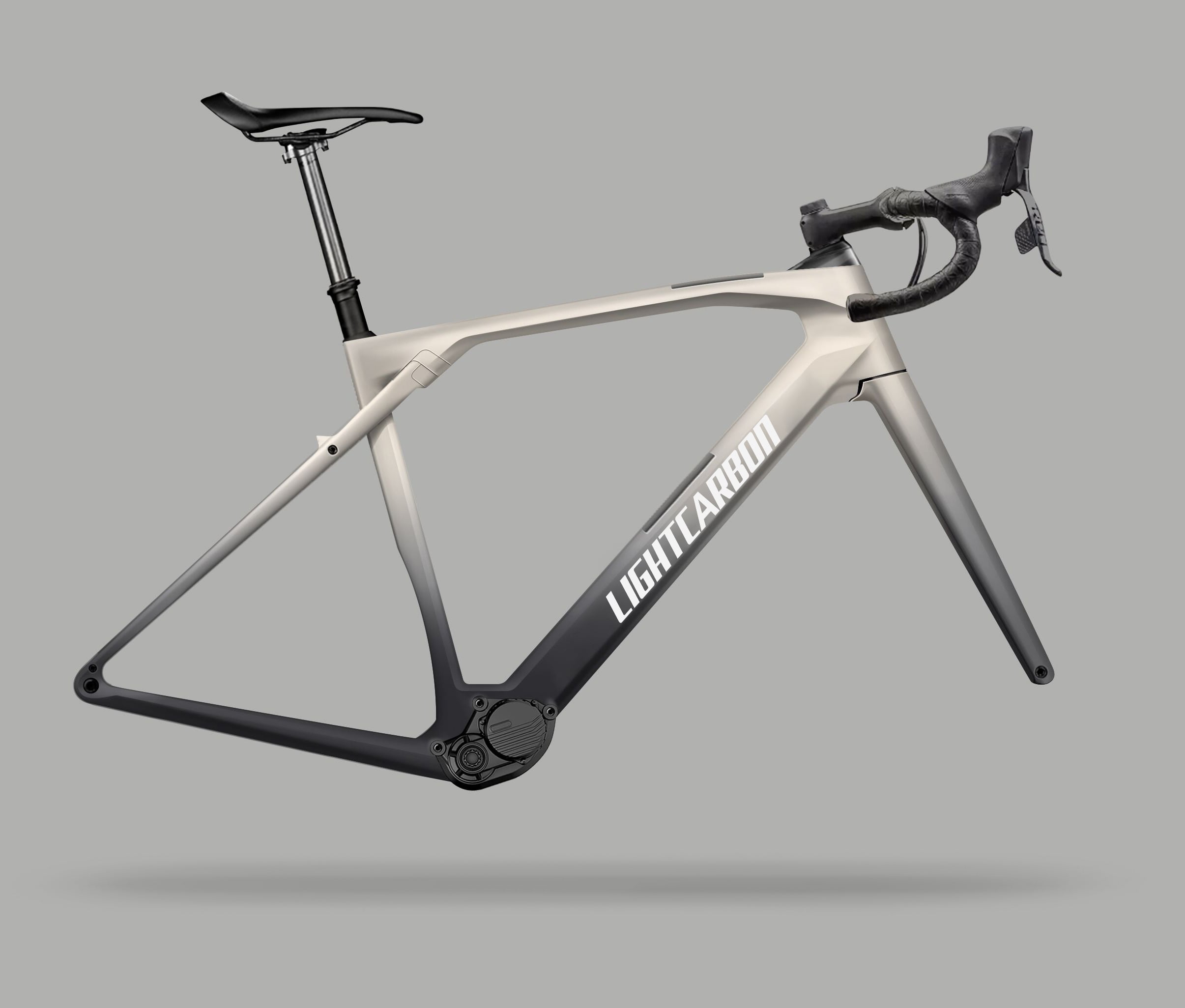

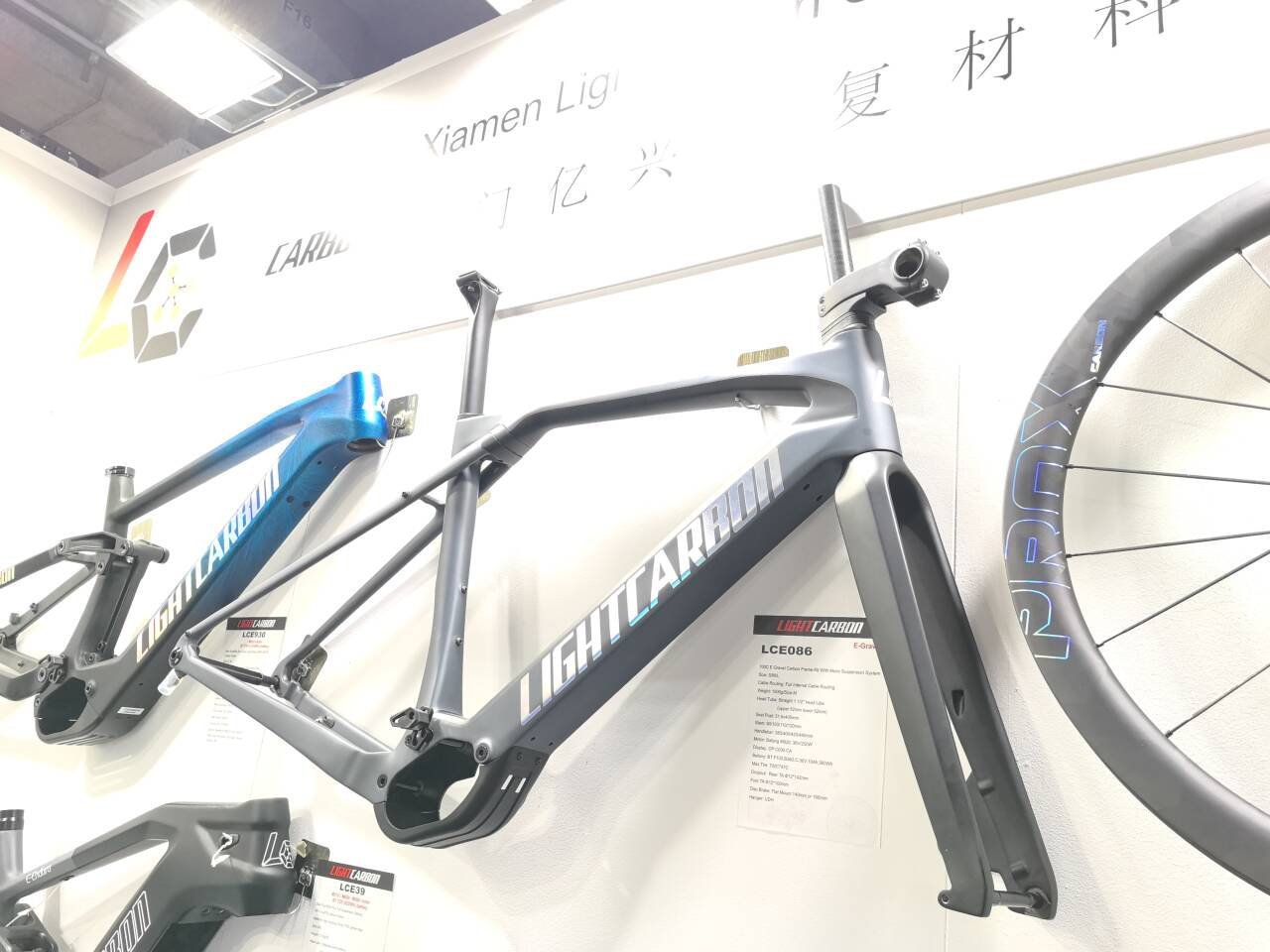

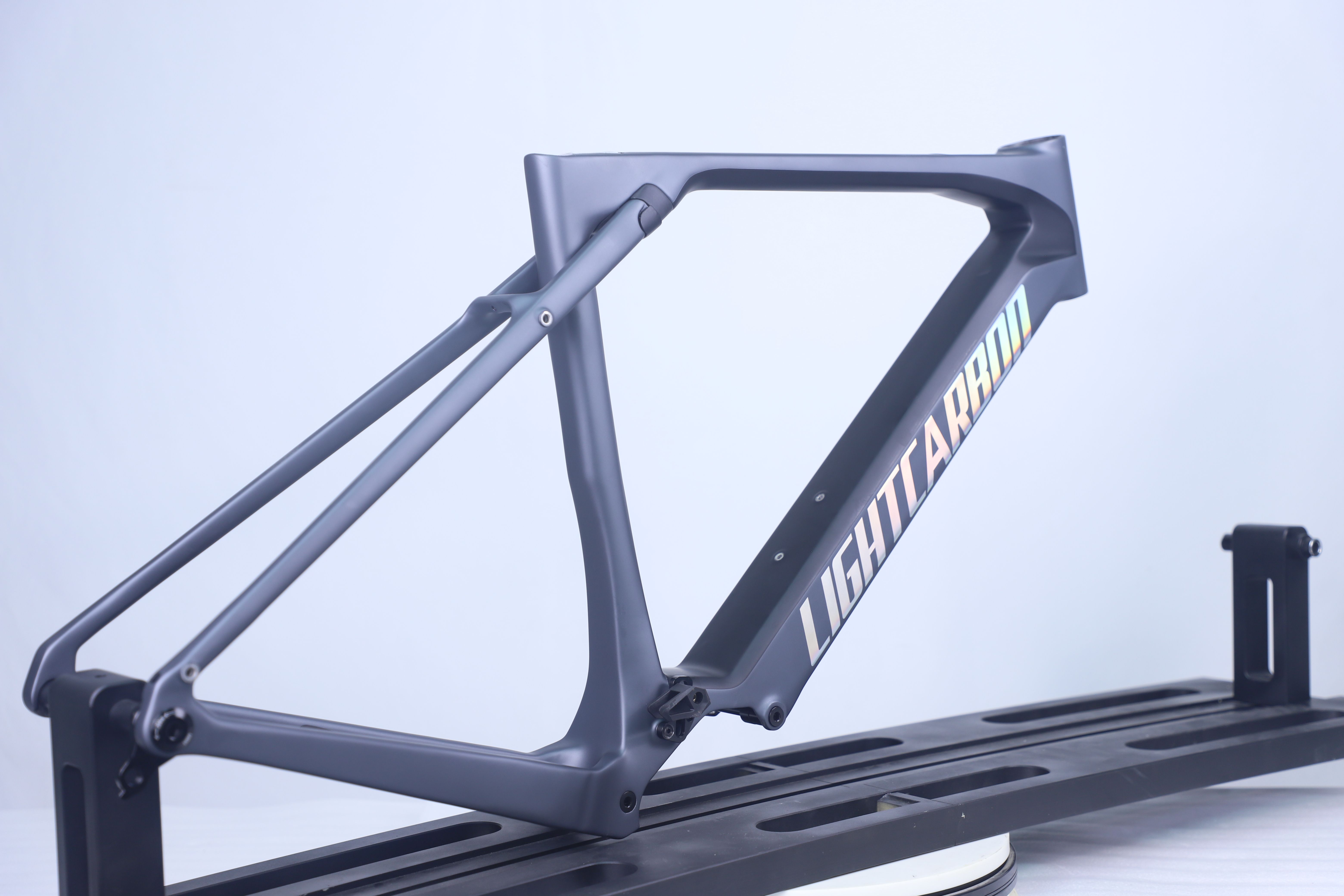

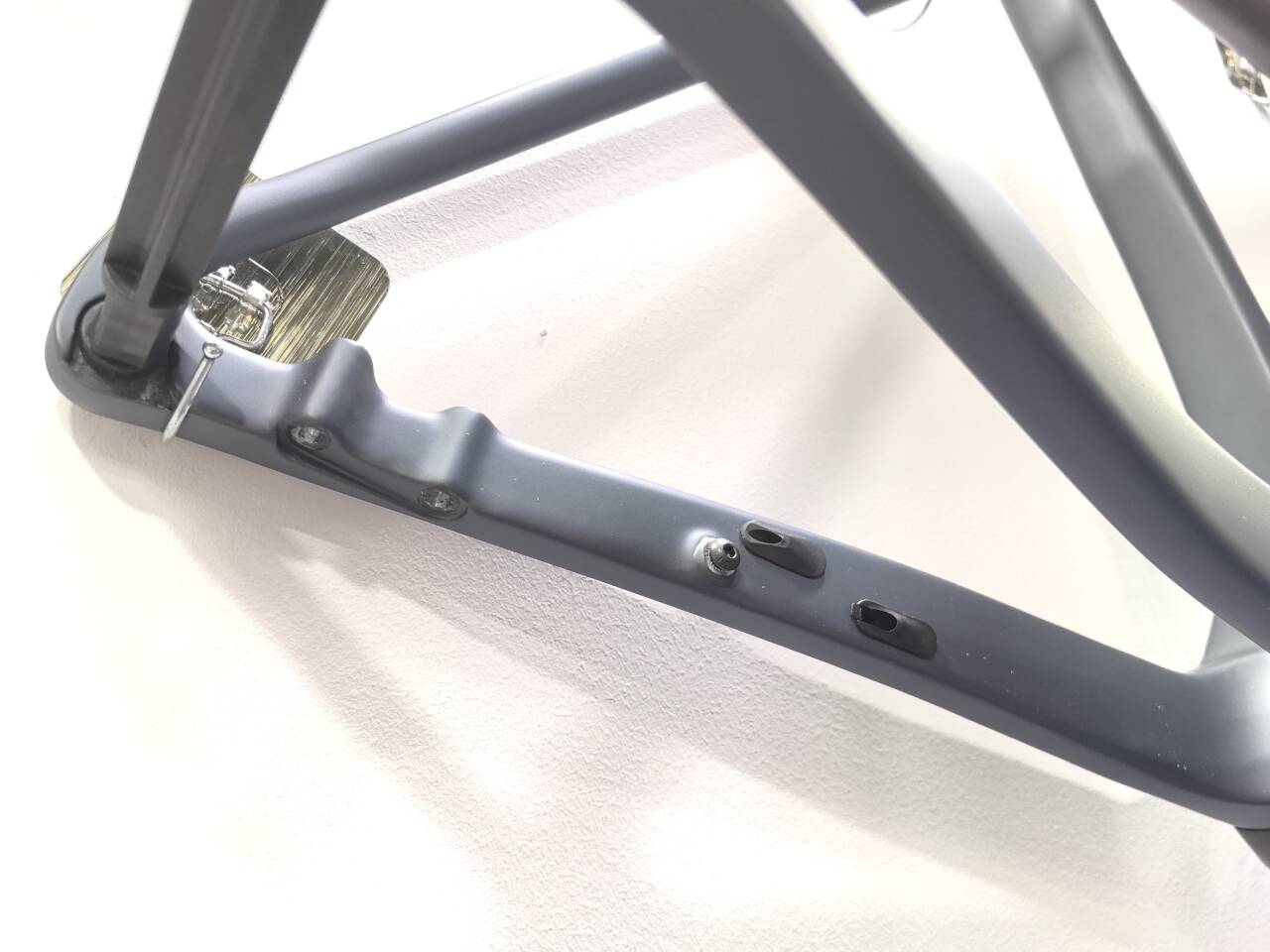

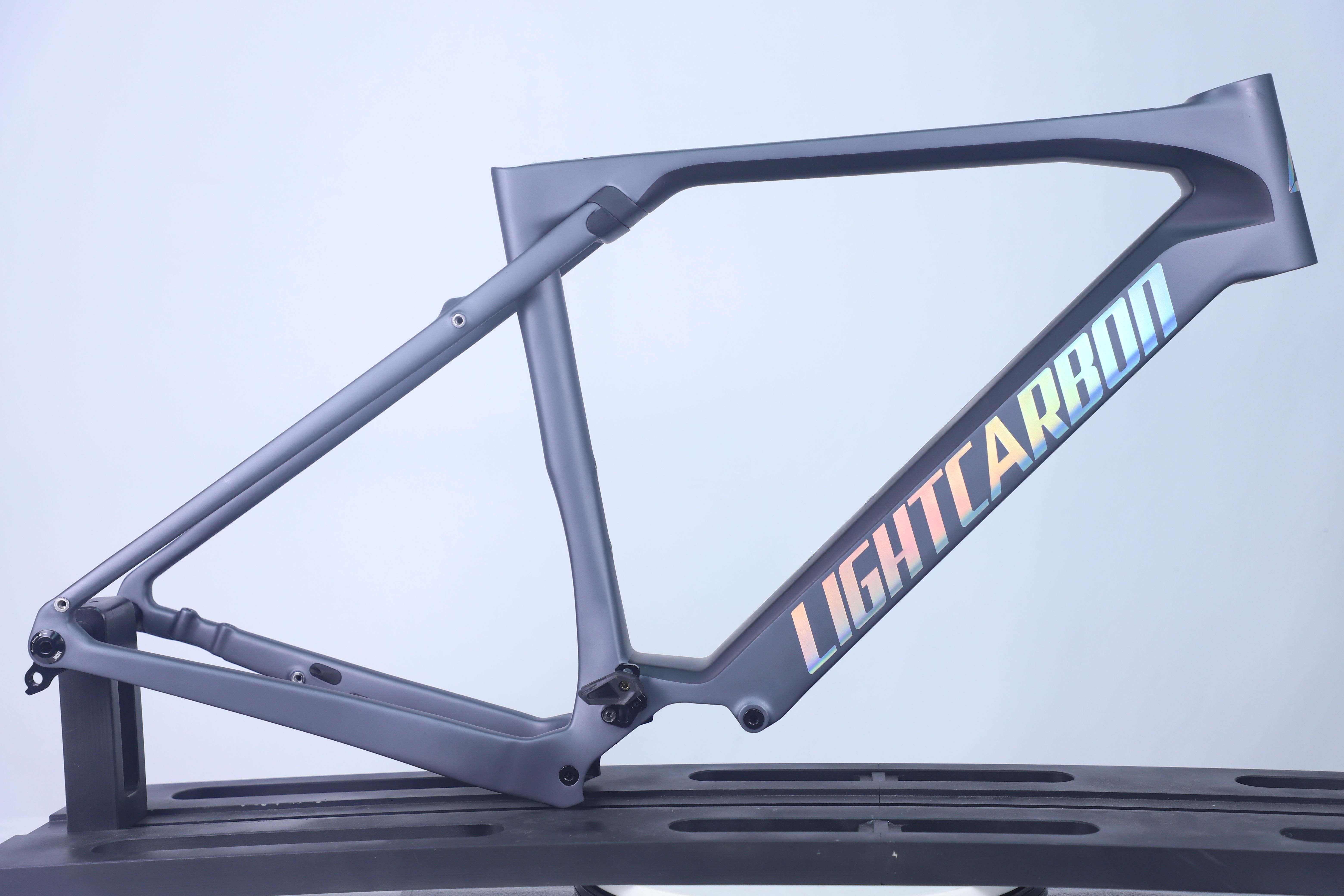

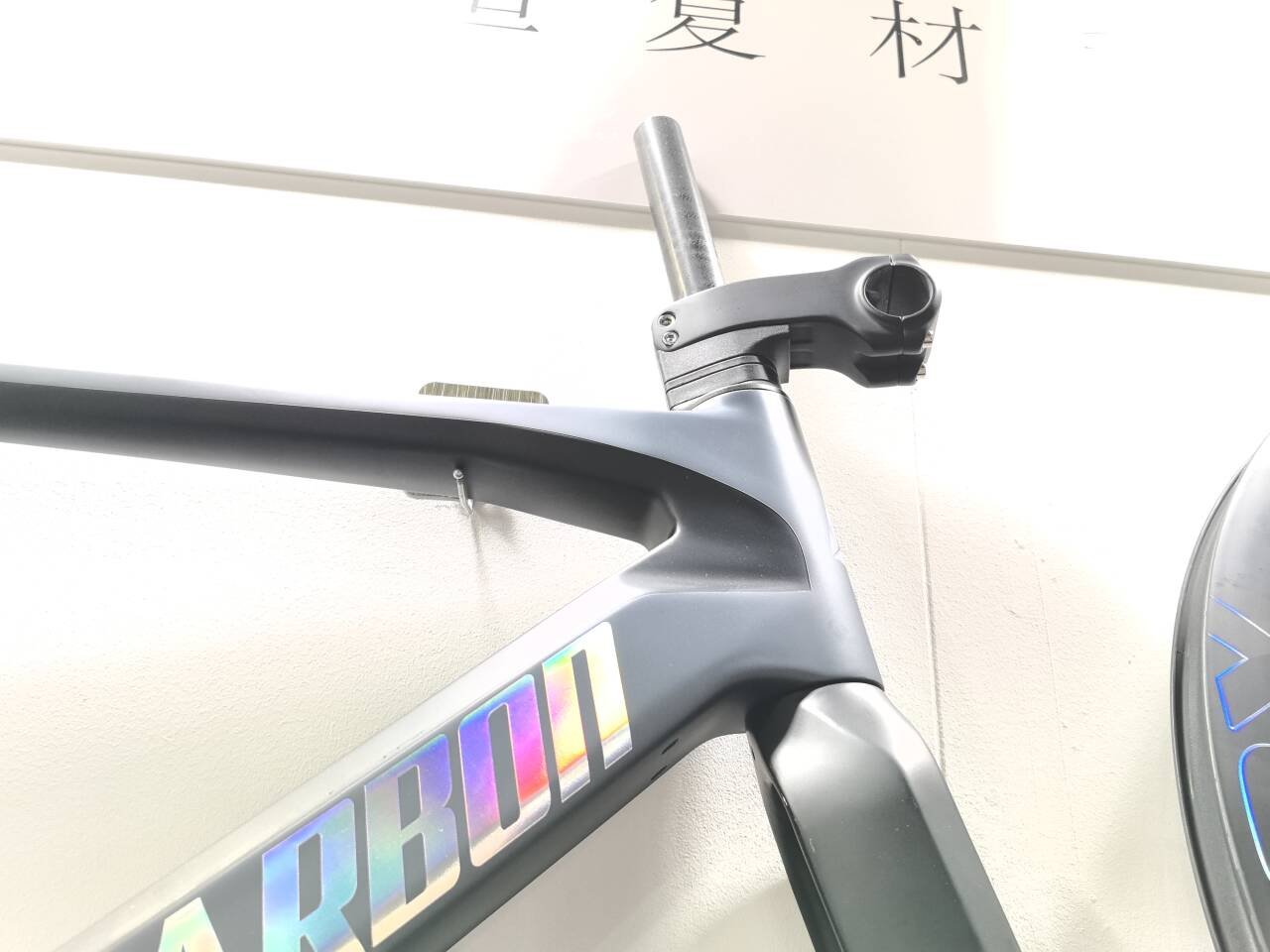

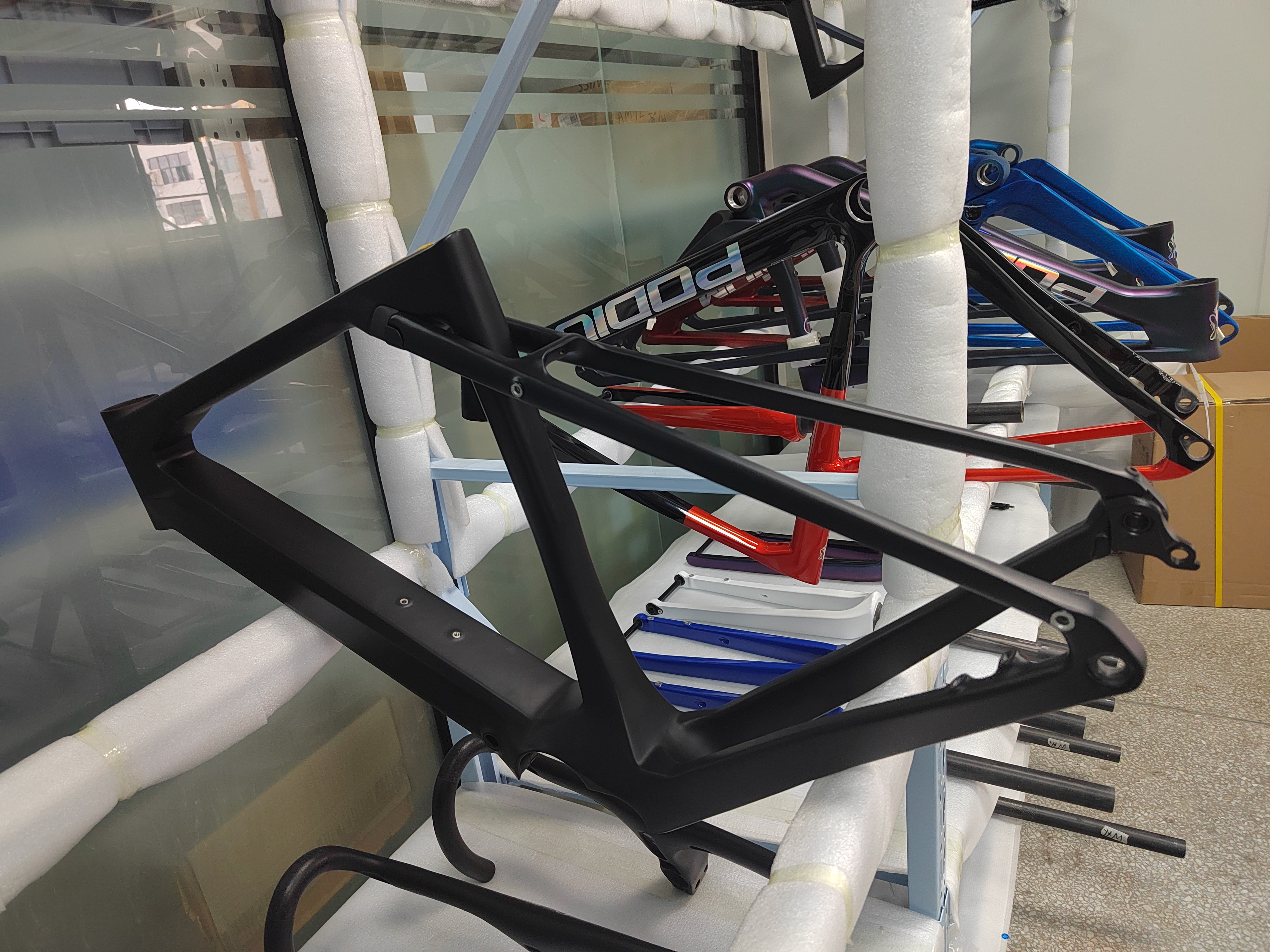

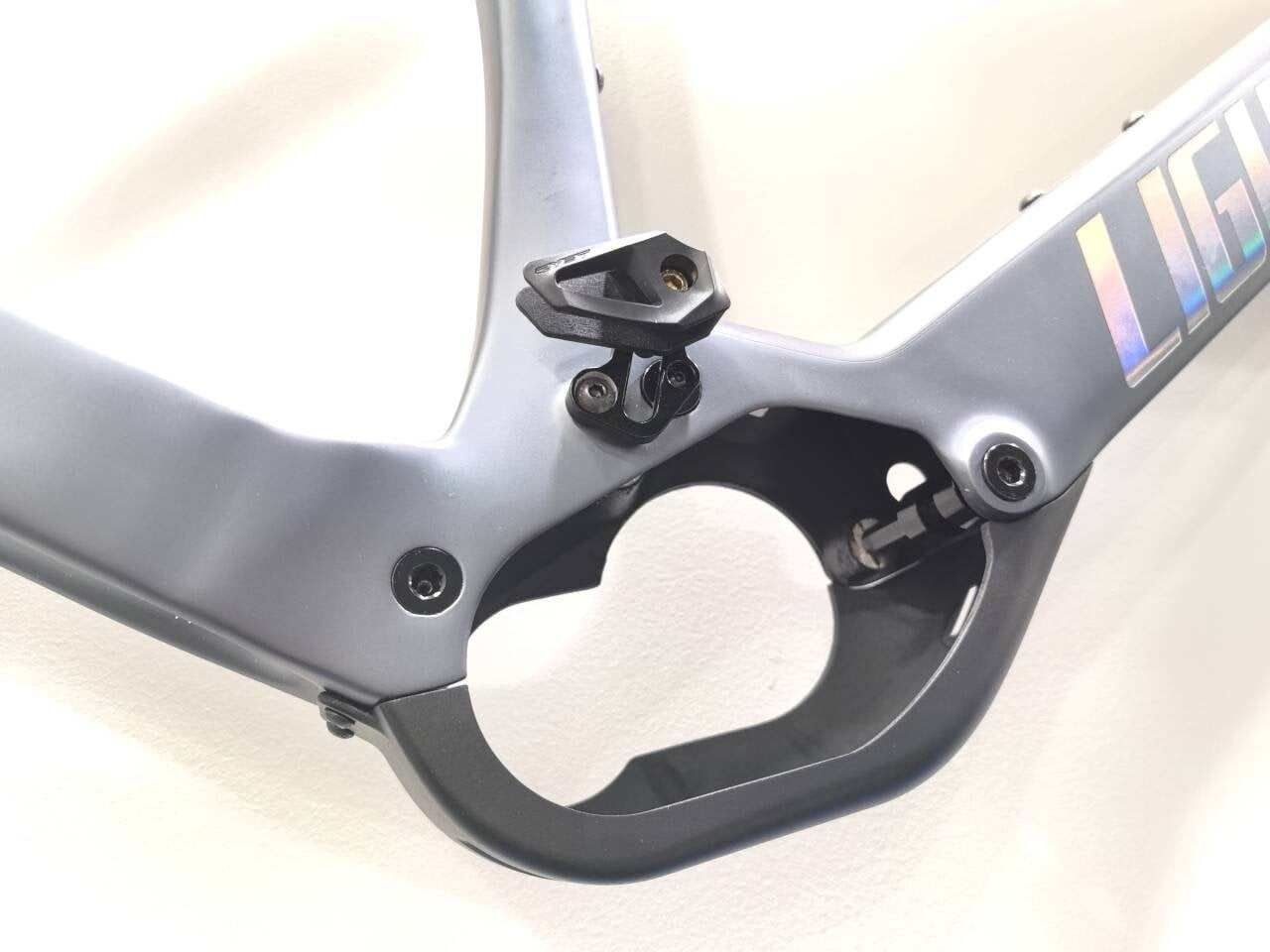

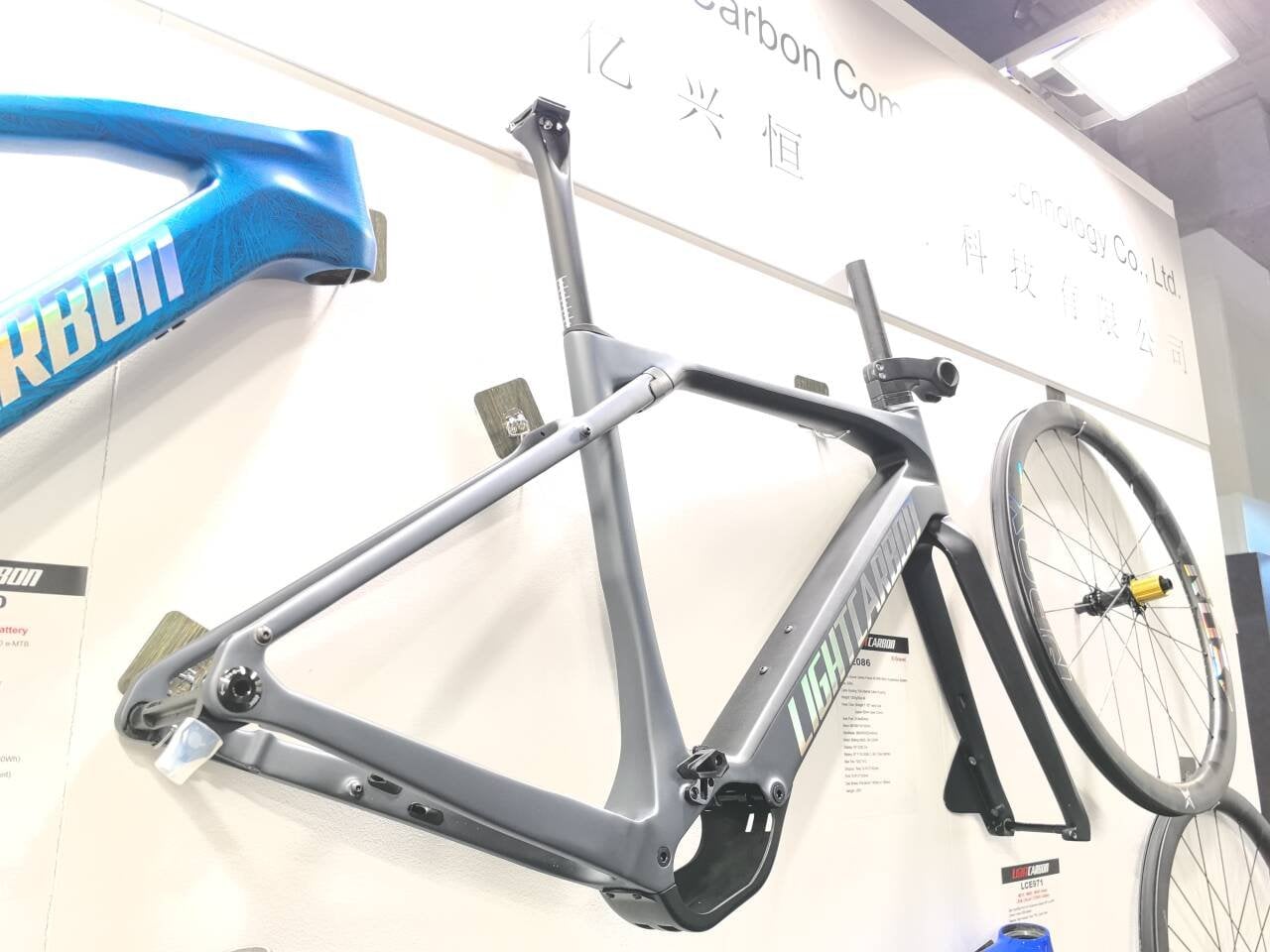

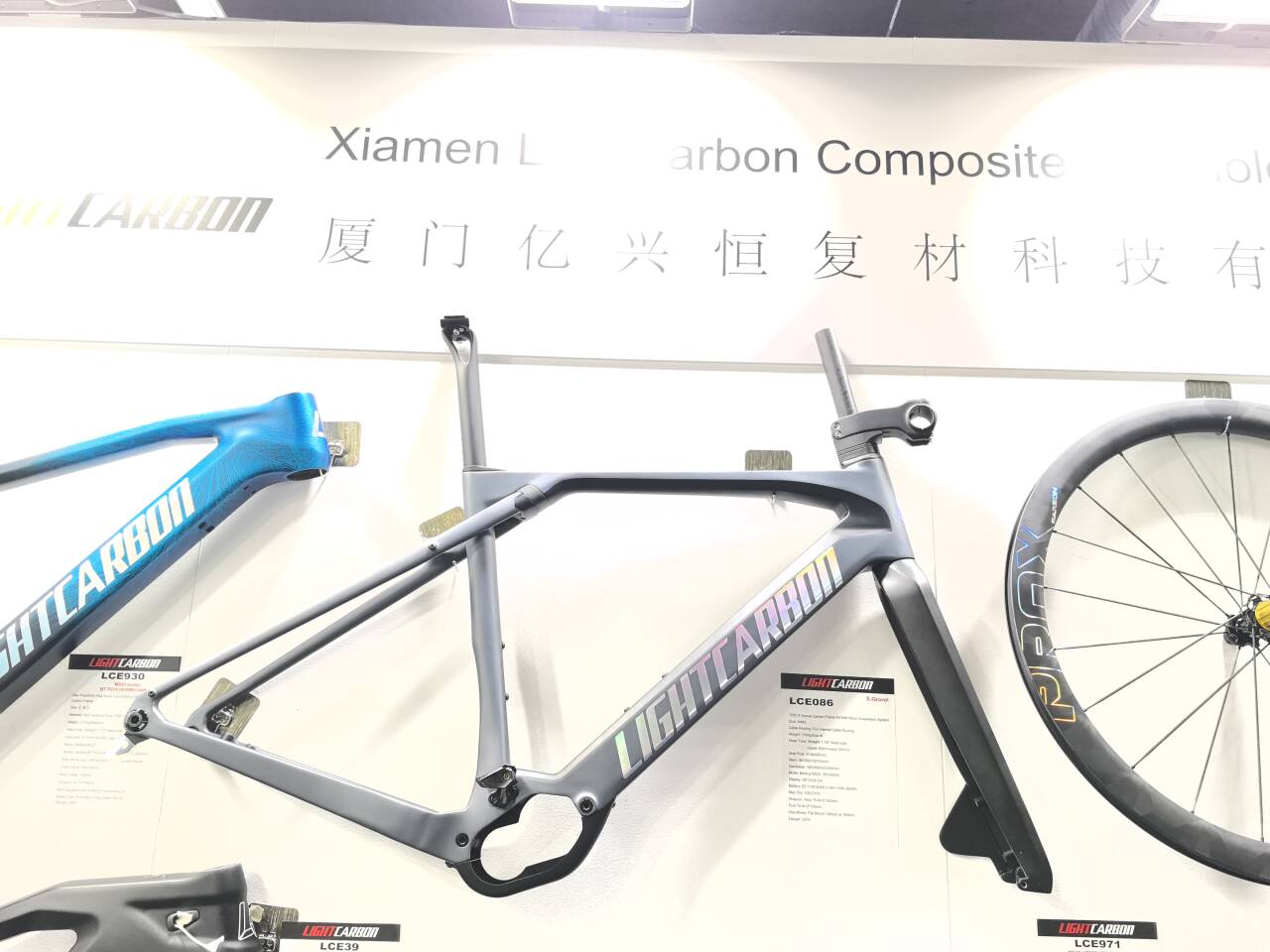

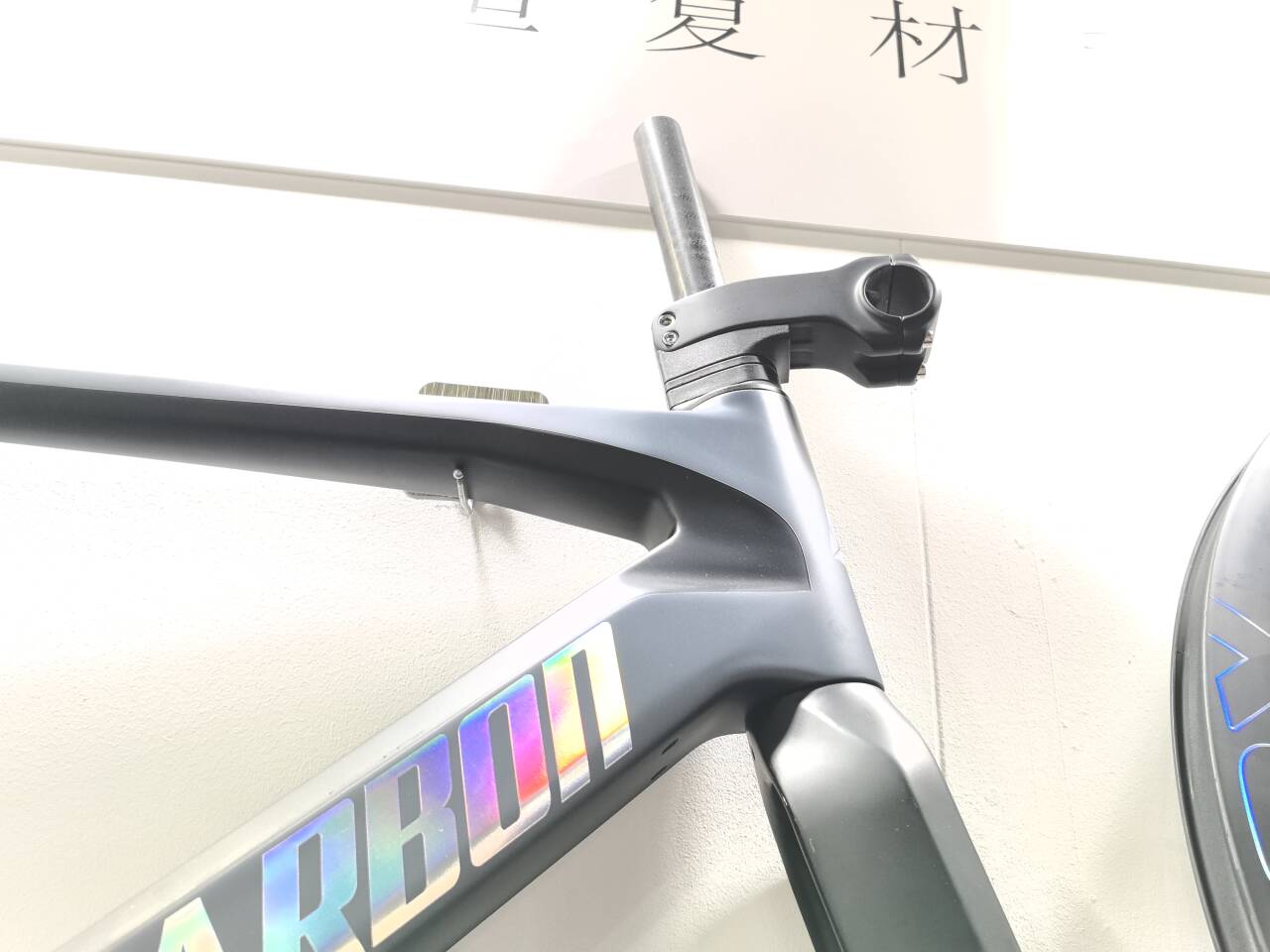

At Eurobike 2024, we launched a new E-gravel frame that fits the M820 36V motor and 360wh battery.
Experts are welcome to give their opinions and suggestions!
If there are bulk customers interested, we can design and produce similar frames fit for other brand motors for you. We also have contact information for mid-drive motor versions of Mahle motors.

View attachment 143934 View attachment 143943 View attachment 143944 View attachment 143945 View attachment LCE86 (1).jpg View attachment LCE86 (4).jpg



[Freda]

No expert, but please make speedsensor with magnet attached to brake disc instead of spoke. Same goes for all the other frames as well of course.



[patdam]

I don't know the efficiency but congratulations for the innovation on suspension stays.



[brbr]

Hi @JimLee-Lightcarbon , what would the price to Europe? And also availability ?



[lkdoido]

I'm going with the momentum. Hello @JimLee-Lightcarbon, what would be the price for Brazil? Do you have an availability forecast? What sizes and geometry?



[JimLee-Lightcarbon]

Hi @JimLee-Lightcarbon , what would the price to Europe? And also availability ?

now only size M is passed the tests, The current production is not high, so the delivery time is relatively slow.
ship to Euro about USD$830 including all duties, the correct price according the address and post code



[JimLee-Lightcarbon]

I'm going with the momentum. Hello @JimLee-Lightcarbon, what would be the price for Brazil? Do you have an availability forecast? What sizes and geometry?

Ship to Brazil, the shipping cost is high, and taxes is very high, so now the buyers from South America usually ship through their agents in China.



[JimLee-Lightcarbon]

No expert, but please make speedsensor with magnet attached to brake disc instead of spoke. Same goes for all the other frames as well of course.

You are talking about two different speed sensors.
To install it on disc, it usually requires enough space at the end of the frame, which is generally not done on road frames.



[JimLee-Lightcarbon]

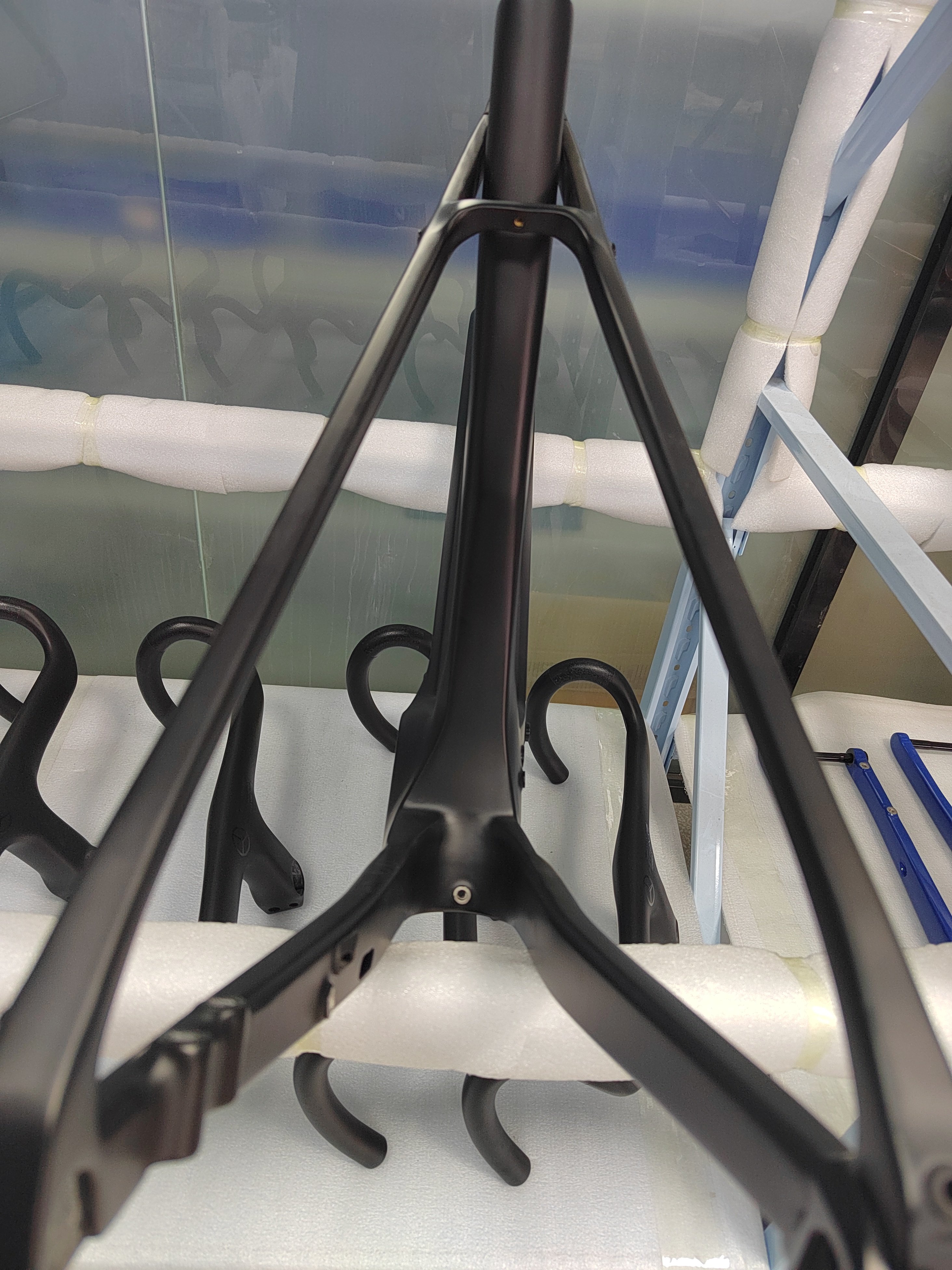

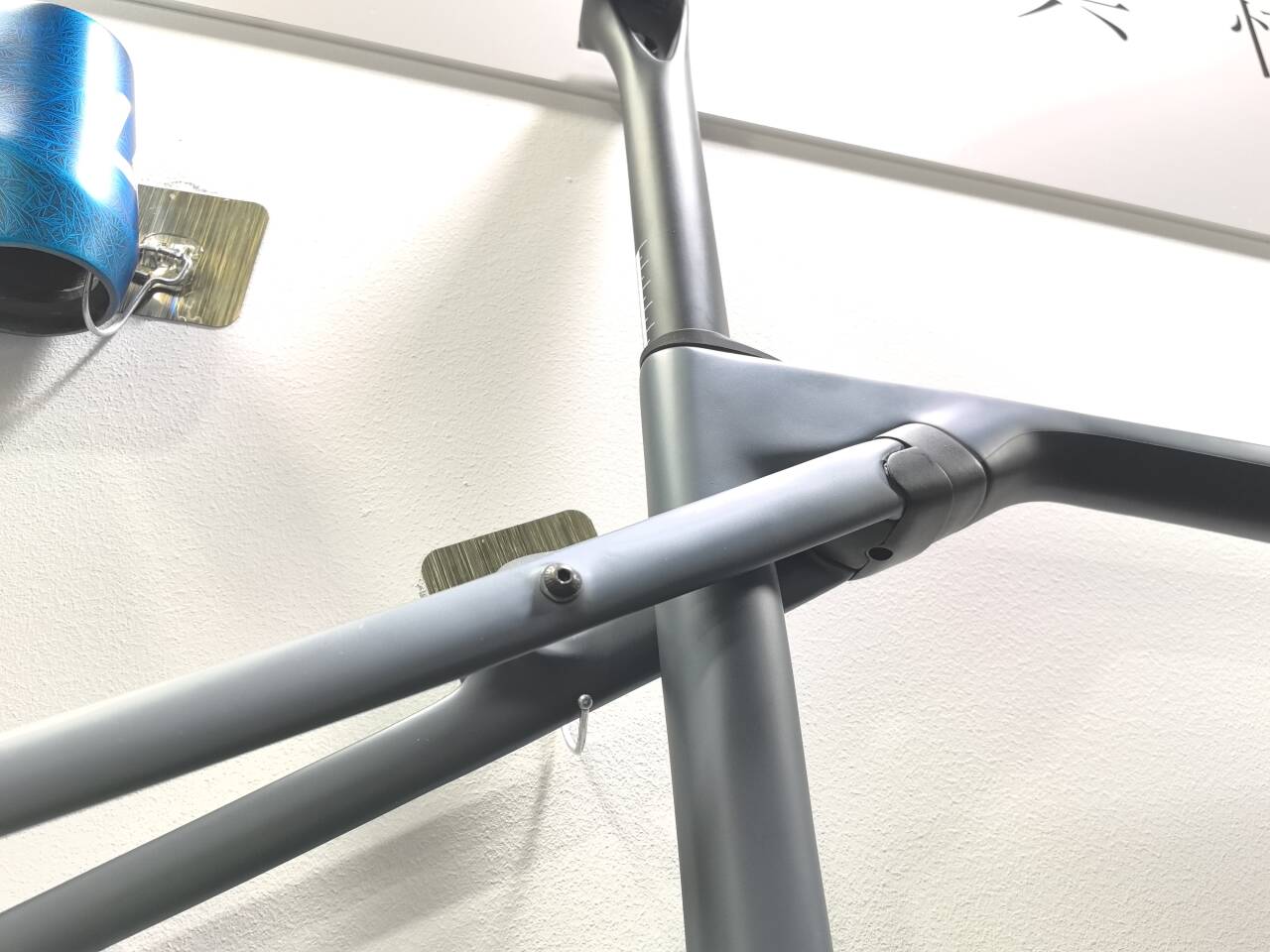

I don't know the efficiency but congratulations for the innovation on suspension stays.

Thanks!
We have tried this micro suspension system on non-electric gravel frames and the customer feedback was very good; so we continued it on the new E-gravel frame.



[JimLee-Lightcarbon]

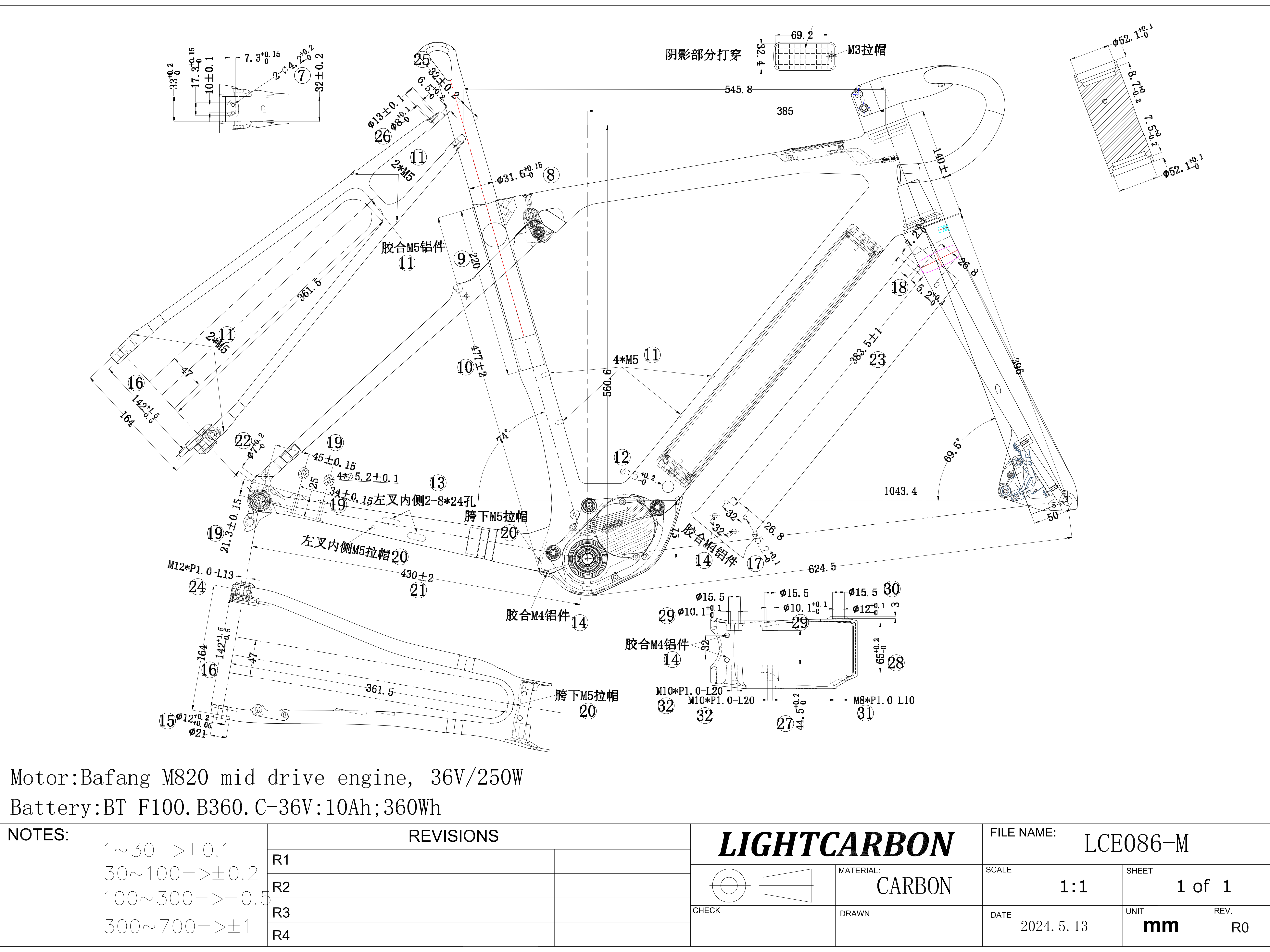

Geometry data

View attachment LCE086-M-EGRAVEL5-13_00.png



[RockySpieler]

Can M820 and this frame have a front dérailleur?
Currently I ride Fazua bike with double chainring.
Looks comfortable frame for flat bar commuter bike.



[kimochi]

@JimLee-Lightcarbon , congrats on the gravel bike! any new long travel mtb frame coming out with m820?



[JimLee-Lightcarbon]

Can M820 and this frame have a front dérailleur?
Currently I ride Fazua bike with double chainring.
Looks comfortable frame for flat bar commuter bike.

It is not recommended to install a front derailleur, as it may cause the shift to be too far apart to be effective. Ebikes usually don’t need a front derailleur



[JimLee-Lightcarbon]

@JimLee-Lightcarbon , congrats on the gravel bike! any new long travel mtb frame coming out with m820?

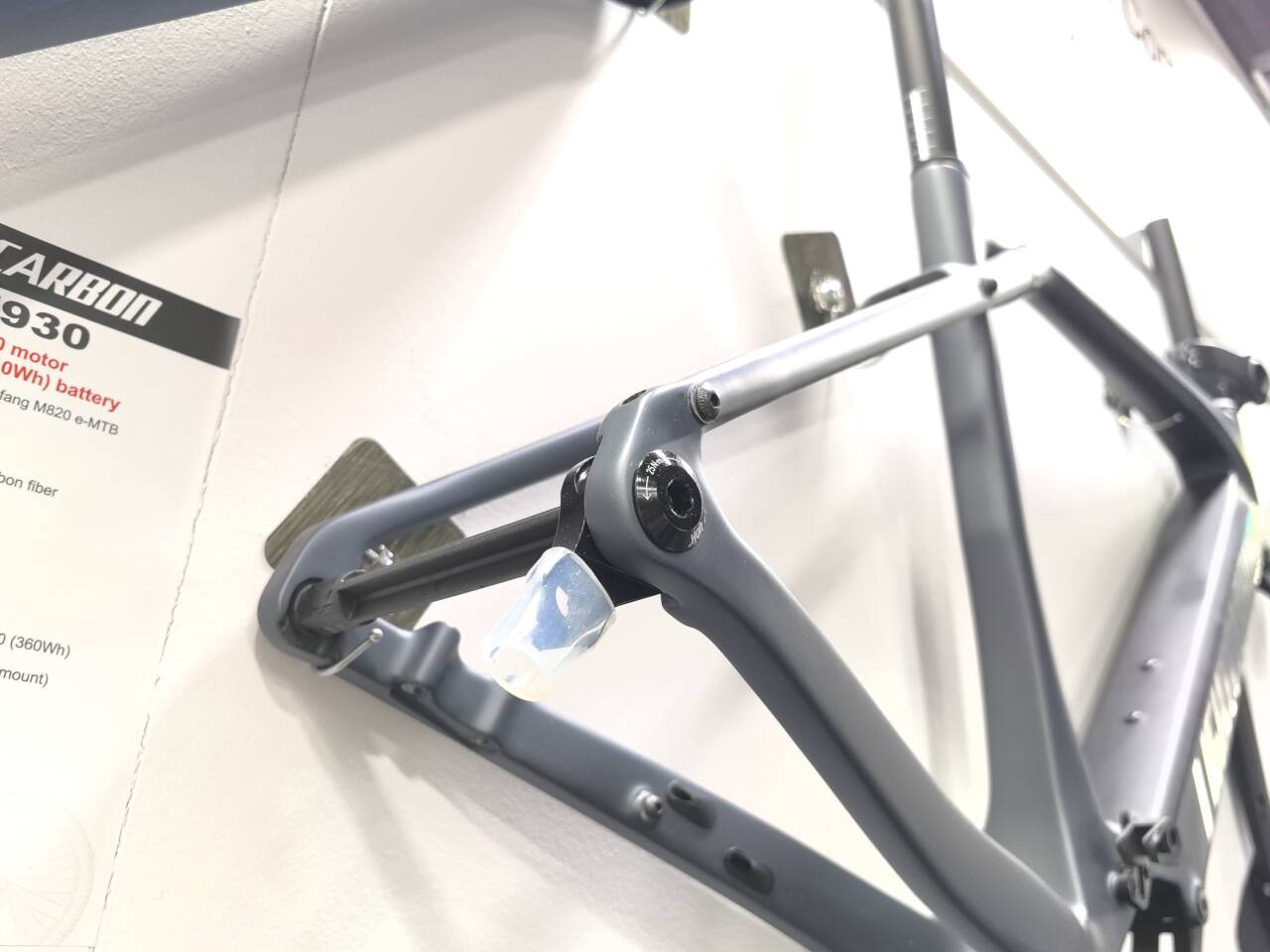

EMTB frame fit for M820 now only LCE930, fit for front fork 156-160mm, rear 150mm,



[El Topo]

Thanks for posting this here. The frame certainly has a great design, congratulations for that. Is it possible to mount a fender and/or rack, considering the rear suspension?



[JimLee-Lightcarbon]

yes， mounts for fender and shelves



[El Topo]

Great

yes， mounts for fender and shelves

Great, thanks for posting. What is the max. load, that I am allowed to put on the fender?

Am I right to assume, that I can't use the fender mounts above the axle, the fender mounts close to the saddle, and the fender mounts close to the BB for a single fender rack/rack combo - considering how the suspension works?

I would like to mount such a fender/rack combo to the bike, is that possible, or would that lock the suspension from moving freely?

Mudguard 791 | ALUMEE - Hebie. Since 1868 made in Bielefeld, Germany.

www.hebie.de

Also, is there a chance to get another fork, with gussets for bike packing?



[El Topo]

Geometry data

View attachment 144580

Will there be more than one frame size?



[JimLee-Lightcarbon]

Will there be more than one frame size?

now only the geo data of size M, size L is on designing,
