Trek rail rear shock upgrade ideas please

[Doomanic]

What size frame is that?



[03sonicywrx]

What size frame is that?

Large



[Doomanic]

What shock and what stroke?



[03sonicywrx]

What shock and what stroke?

MRP Hazzard, 230x60, progressive spring. Was going to go with the DVO though i was told they're B/O until October. So far so good, shock feels great.



[Doomanic]

Thanks, what weight spring and rider?



[03sonicywrx]

Thanks, what weight spring and rider?

I'm 195ish, 450-540 spring



[Doomanic]

How much sag does that give you? We're similar weight but I'm going for a 550.



[03sonicywrx]

How much sag does that give you? We're similar weight but I'm going for a 550.

About 30%, i may end up going to a 500, wanted to give this a shot first



[Supernils]

Someone should tell me if it is possible to fit a DHX2 2021 230x62,5.



[Doomanic]

Frame size?



[Supernils]

Large. I think it's possible to quite easy reduce it to 230x60 if it doesn't work, but if someone actually knows...



[Branny21]

Guys with the coil shock do you feel like the suspension bottoms out to easily due to the shock being so linear? I have the Jade X and everything is great on it but i hit some chunky high speed trails and it almost seemed like it was to low in the travel to often? could just be in my head or how the Ebike rides



[Doomanic]

Cane Creek do a progressive spring, could be worth a try.



[acmcdonaldgp]

A question for those who’ve already swapped to a Rockshox coil....

I’m looking at a 230x57.5 super deluxe ultimate that is a takeoff from a new Megatower.

If you have already made this swap, can you tell me if you needed any new bushings or bearings? Or can the fittings from the existing shock be transferred over?

I’m having a heck of a time trying to figure out what I might need to be prepared with, if anything.

Thanks in advance



[Hob Nob]

Guys with the coil shock do you feel like the suspension bottoms out to easily due to the shock being so linear? I have the Jade X and everything is great on it but i hit some chunky high speed trails and it almost seemed like it was to low in the travel to often? could just be in my head or how the Ebike rides

Nope, the Rail is reasonably progressive (certainly in the zone for working with a coil). How much sag are you running? Maybe i'm slightly different as my shock has a hydraulic bottom out.

A question for those who’ve already swapped to a Rockshox coil....

I’m looking at a 230x57.5 super deluxe ultimate that is a takeoff from a new Megatower.

If you have already made this swap, can you tell me if you needed any new bushings or bearings? Or can the fittings from the existing shock be transferred over?

I’m having a heck of a time trying to figure out what I might need to be prepared with, if anything.

Thanks in advance

Is this the coil or air RS SD? AFAIK, normal RS piggyback shocks don't fit as the piggyback is too big & hits the downtube before using all of it's travel.



[Iggy_BBR]

Guys with the coil shock do you feel like the suspension bottoms out to easily due to the shock being so linear? I have the Jade X and everything is great on it but i hit some chunky high speed trails and it almost seemed like it was to low in the travel to often? could just be in my head or how the Ebike rides

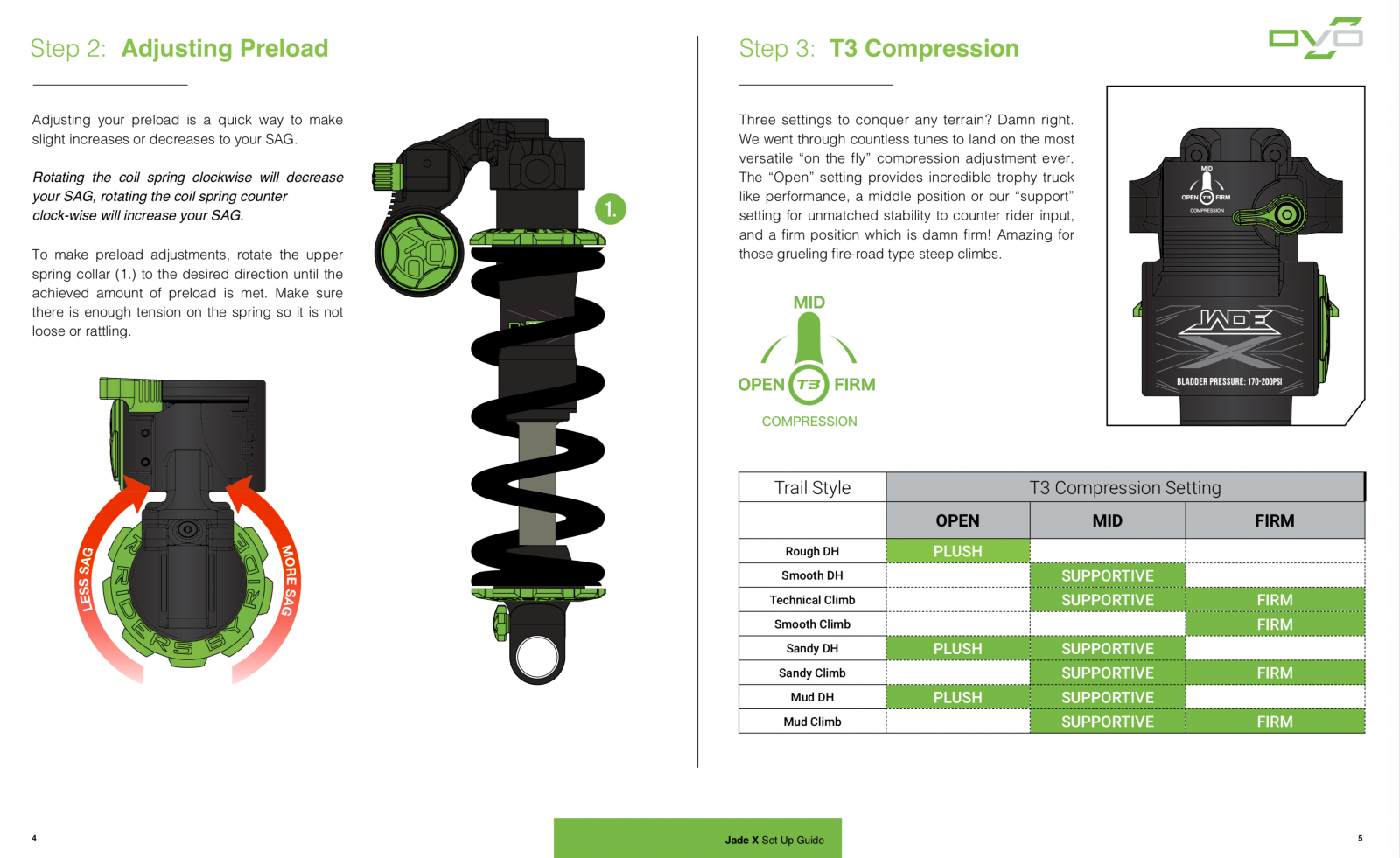

I would also suggest reaching out to the guys at DVO, I worked with Ronnie and he help work on settings on the D1 Boost and Topaz 3 from my previous eMTB. Everything recommended by him did the trick. From my experience with DVO suspension, that the switch can be flipped to firm and is still ridable.

http://tech.dvosuspension.com/wp-content/uploads/2019/09/Jade-X-Set-Up-Guide-2.pdf



[acmcdonaldgp]

Is this the coil or air RS SD? AFAIK, normal RS piggyback shocks don't fit as the piggyback is too big & hits the downtube before using all of it's travel.

It’s the coil....I’ve got an XL frame, and I’m pretty sure I’ve seen people on here who’ve made the swap......

But if a RS piggyback coil won’t fit, I’d appreciate that confirmation too.



[Leo76dragon]

Can confirm the EXT Storia does fit, but needs the shorter piggyback option. (45mm rather than 55mm).

Bike was running 230x60 for a bit more rear travel, had to put a spacer in, so it's now 230x59 to ensure it doesn't hit on hard bottom out.

do you have a picture ... Im thinking of going with Storia for my rail...



[smuts]

PSA: Cane Creek Double Barrels are a no-go as well due to piggyback size. I suspected it and got proof today when I had a chance to verify on basis of an older CCDB



[turn_one]

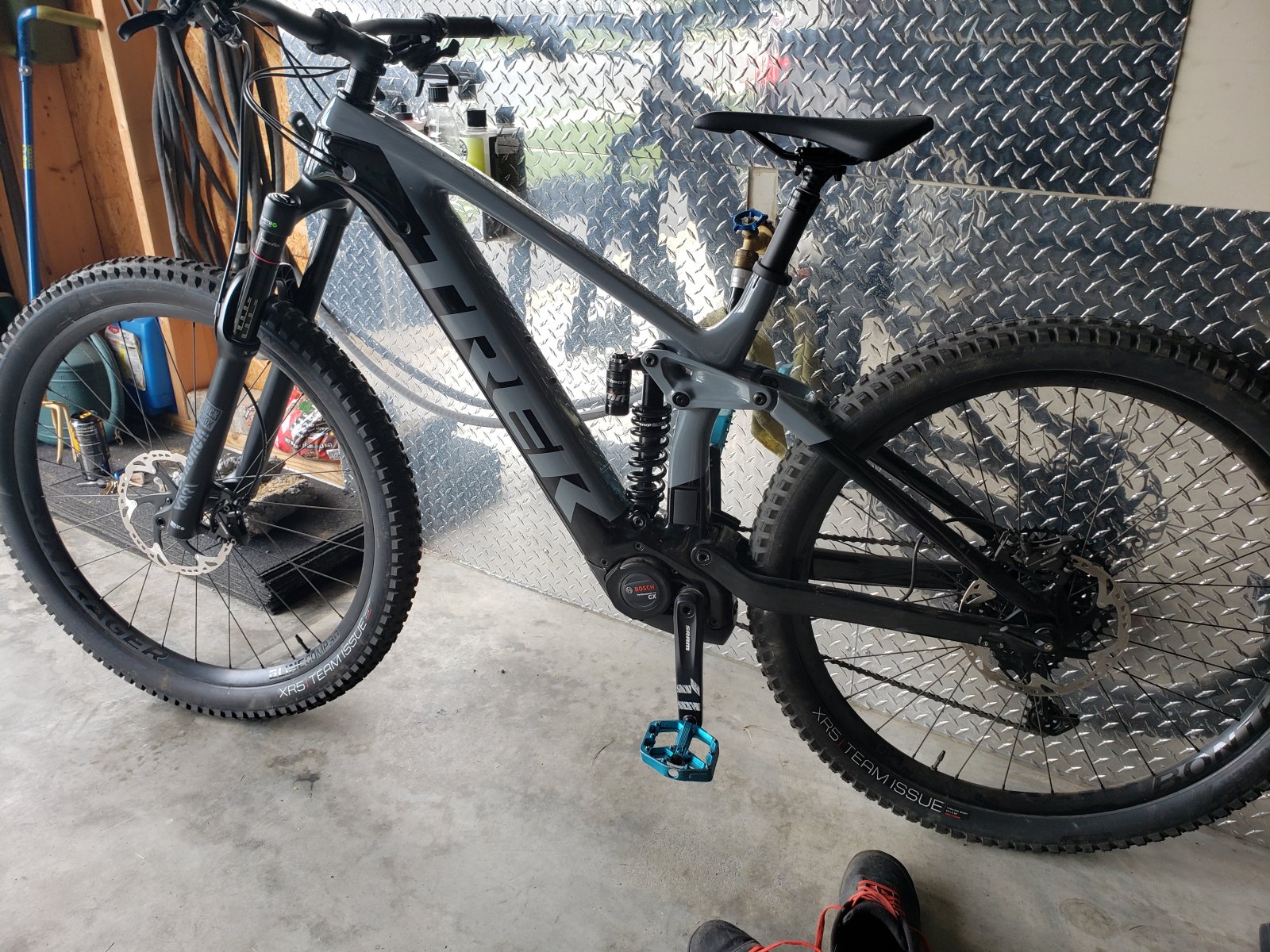

Game changer, huge improvement over stock! Close to downtube on full compression, though it fits.

View attachment 37603

Curious how you're liking the MRP. Where did you source the mounting hardware and which bushings were they?
Considering this shock or a DVO as well on my 9.8.

Thanks.



[Doomanic]

Where did you source the mounting hardware and which bushings were they?

I couldn't find anything off the shelf so I modified the stock bushings to suit my shock.



[hmsgeoff]

Does the Push ElevenSix fit?



[Doomanic]

What size frame?



[hmsgeoff]

What size frame?

Large Carbon.



[Doomanic]

If you’re in the UK give TFTuned a call. They are PUSH dealers and have experience fitting coil shocks to Rails.



[Hob Nob]

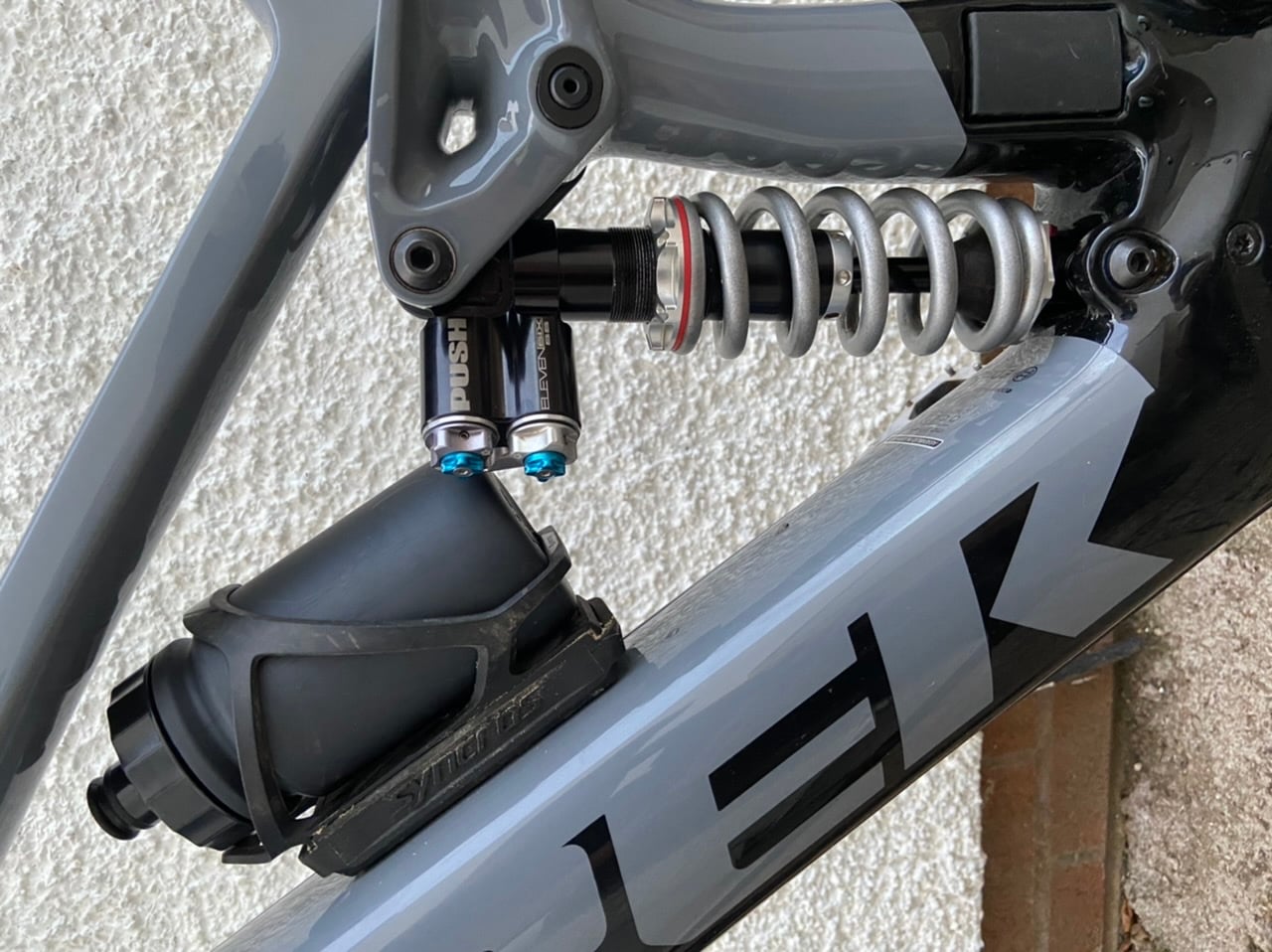

For those interested. A Push 11-6 SS fits. Mine is 230x65mm & it ‘just’ has enough seatstay brace clearance against the back of the seat tube. I have put a 1mm spacer in it just to ensure if Indont fully bottom out on a hard flat landing & have a contact.

I think it equates to approx 166mm rear wheel travel. It also just fits a bottle now too, which is a win



[Leo76dragon]

For those interested. A Push 11-6 SS fits. Mine is 230x65mm & it ‘just’ has enough seatstay brace clearance against the back of the seat tube. I have put a 1mm spacer in it just to ensure if Indont fully bottom out on a hard flat landing & have a contact.

I think it equates to approx 166mm rear wheel travel. It also just fits a bottle now too, which is a win

Got a picture of it? I have a 230 x 60 on my sb150 and would like to put it on my rail 9.9. What hardware/spacers did you use?



[Hob Nob]

Got a picture of it? I have a 230 x 60 on my sb150 and would like to put it on my rail 9.9. What hardware/spacers did you use?

See here. Just used the standard spacers & metal bushes.



[Leo76dragon]

See here. Just used the standard spacers & metal bushes.

View attachment 39594

Thanks! Looks great! I have the reaktiv shock... It doesnt have spacers/bushings... Im still in search of the hardware to get a standard shock on... I might try a cane creek progressive spring with the 11-6 if i can get the hardware....



[Moto1]

Game changer, huge improvement over stock! Close to downtube on full compression, though it fits.

View attachment 37603

What’s next? Mrp up front? Bartlett. My slash..I my go mrp again..
