Trek rail rear shock upgrade ideas please

[BiGJZ74]

Hi guys, i have a doubt i bought a DHX2 shock with 500lbs of the spring. My total weight is 85kg and i changed the spring to 550lbs but i'm not sure that it is enough to avoid bottom out, can you help me? i' m open to receive your suggestions
Many thanks

Slide the bottom out bumper up to the top of the shaft then use it to test ur sag. What stroke is ur shock?



[Stray cat]

Hi guys, i have a doubt i bought a DHX2 shock with 500lbs of the spring. My total weight is 85kg and i changed the spring to 550lbs but i'm not sure that it is enough to avoid bottom out, can you help me? i' m open to receive your suggestions
Many thanks

Here you are:



[Gutch]

IMO, I wouldn’t drop a coil on the Rail. It’s quite Linear. But hey, just my opinion.



[Lloyd Christmas]

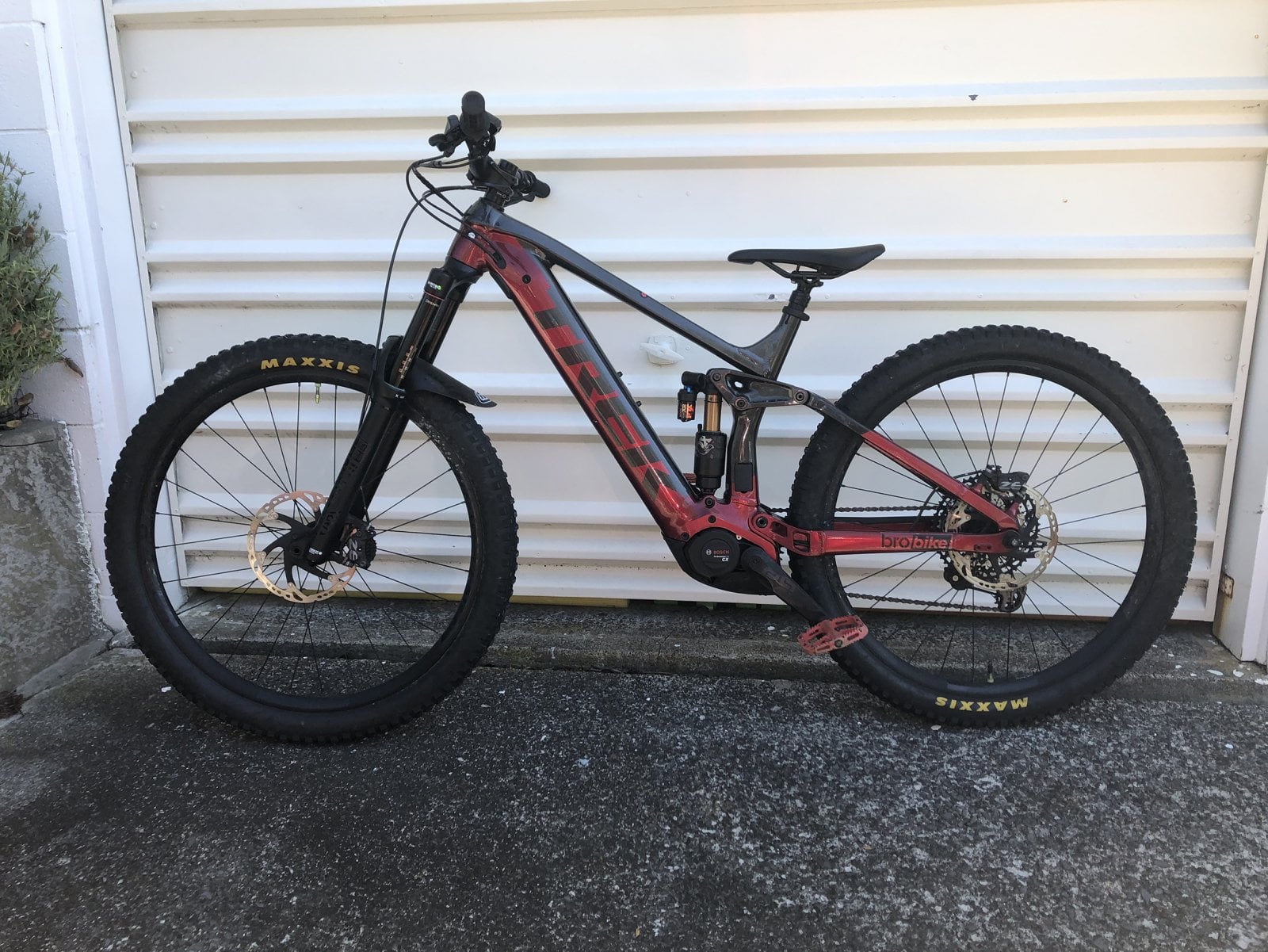

I've just installed a 2021 Fox X2 (230 x 57.5) on my rail 7 (large). Still dialling it in but it feels great so far.



[Gutch]

I've just installed a 2021 Fox X2 (230 x 57.5) on my rail 7 (large). Still dialling it in but it feels great so far.

View attachment 57802

Nice shock!



[magic82]

Slide the bottom out bumper up to the top of the shaft then use it to test ur sag. What stroke is ur shock?

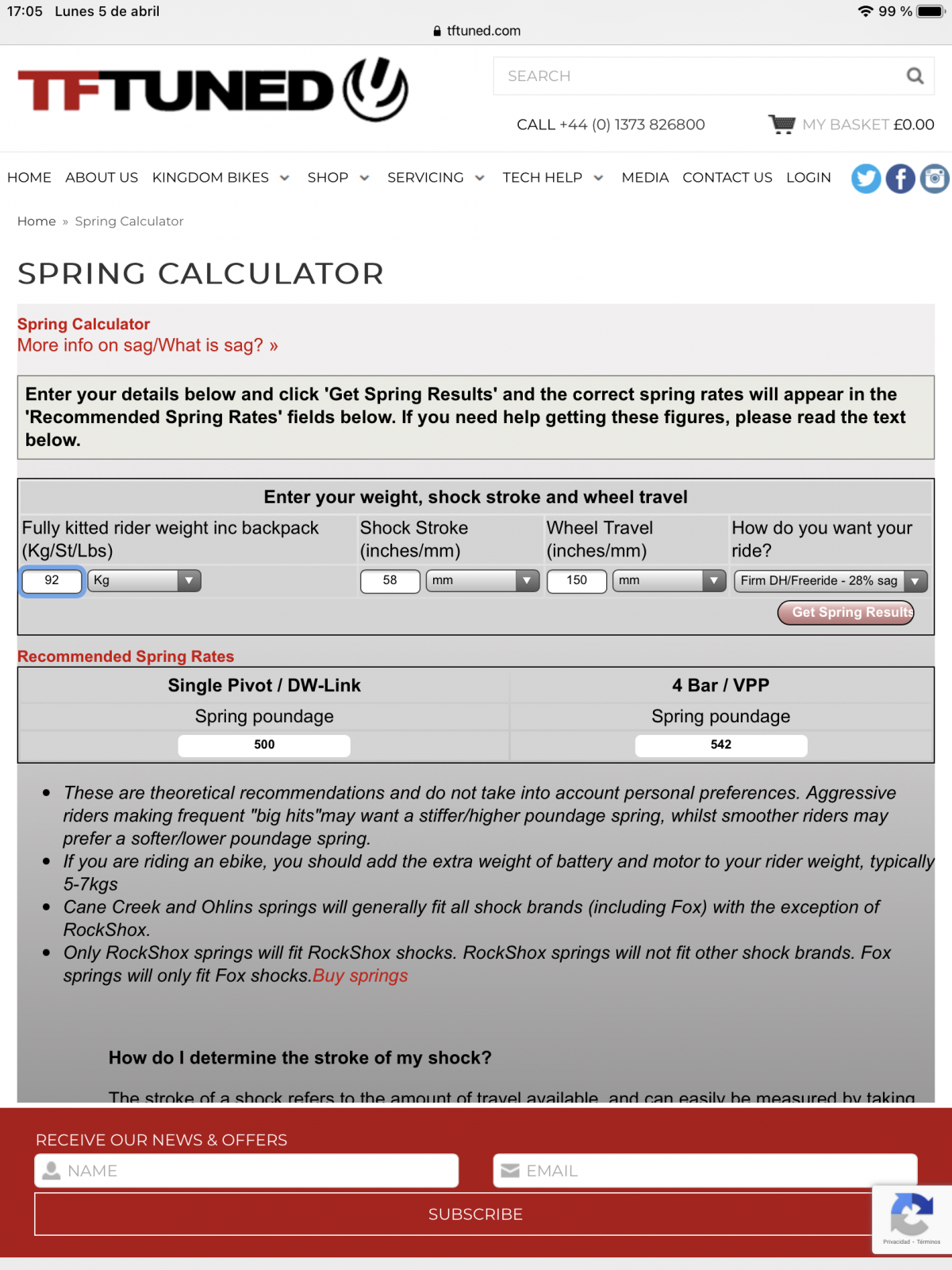

Hi, my shock is 230x57.5, for the spring I used the Fox spring calculator, the SAG is about 27%. the bumper gets to the bottom.



[runjhike]

Anyone know where to get the Trek lower shock bolt #599900? I just got an Ohlins coil and all I’m missing is the lower bolt. My Trek LBS says mid June. That’s a crazy wait. Aftermarket? Used? Anything?



[BiGJZ74]

Hi, my shock is 230x57.5, for the spring I used the Fox spring calculator, the SAG is about 27%. the bumper gets to the bottom.

to the bottom when you set sag?



[BiGJZ74]

Anyone know where to get the Trek lower shock bolt #599900? I just got an Ohlins coil and all I’m missing is the lower bolt. My Trek LBS says mid June. That’s a crazy wait. Aftermarket? Used? Anything?

This? Trek Rear Shock Pin-to-Trunnion 16mm Head Hardware | Trek Bikes



[Nick69]

It's early days and I haven't hit anything big yet. I've had to back off how much I'm compressing into jumps and I need to have a play with the rebound damping.

Just fitted the Jade X to mine, 230 x 60, with the 400lb spring that came with it, it's bit soft I think. Which make progressive coil did you go with and what size did you go for.? I don't mean spring rate.



[runjhike]

This? Trek Rear Shock Pin-to-Trunnion 16mm Head Hardware | Trek Bikes

That’s exactly what it looks like but it’s not the right part number. Can anyone confirm that bolt will work?



[magic82]

to the bottom when you set sag?

after the single track, after some drops.



[Doomanic]

Just fitted the Jade X to mine, 230 x 60, with the 400lb spring that came with it, it's bit soft I think. Which make progressive coil did you go with and what size did you go for.? I don't mean spring rate.

Cane Creek Progressive. 65mm. Swinnerton Cycles have the best price at the moment.

Why did you get a spring with the shock, was it part of a package?



[Nick69]

Cane Creek Progressive. 65mm. Swinnerton Cycles have the best price at the moment.

Why did you get a spring with the shock, was it part of a package?

It was new/hardly used from Ebay.
Have you decided yet, whether it was a worthy upgrade from a linear spring..? Or do you just like tinkering like I do... ?



[Doomanic]

Or do you just like tinkering like I do...

This.

Today was spent rebuilding my freehub after it self destructed at FoD yesterday...

Have you decided yet, whether it was a worthy upgrade from a linear spring..?

Not yet, but I suspect it'll be staying on.

What do you weigh? I have a 550lb linear spring to sell.



[Nick69]

This.

Today was spent rebuilding my freehub after it self destructed at FoD yesterday...

Not yet, but I suspect it'll be staying on.

What do you weigh? I have a 550lb linear spring to sell.

72kg all kitted up.



[Doomanic]

Shame. I don't suppose you want to buy some pies as well?



[Doomanic]

TFT's Spring Calculator says 400lb is ballpark for your weight, have you checked the sag or are you going off feel?



[Nick69]

I thought the sag was ok'ish, but it's uses all the travel on a flattish, pumpy, rooty section. But I haven't actually noticed any harsh bottom outs though, even on some 4-5ft drops.... ?



[GlassKnee]

Is anyone able to confirm if a Rockshox Super Deluxe Coil will fit my Large Trek Rail 7? My LBS can’t confirm it and they don’t have a stock to try. Cheers!



[BiGJZ74]

Is anyone able to confirm if a Rockshox Super Deluxe Coil will fit my Large Trek Rail 7? My LBS can’t confirm it and they don’t have a stock to try. Cheers!

I've seen it been posted before that the Resi on the SD coil hits the frame but i'm not sure if i've seen pics. Good luck, I have one on my Evil Wreckoning V3 and love it



[sgtcurry]

I have a trek rail 9.7 in medium and wanted to swap the shock out with a Fox float X2. Is it a straight swap or do I need to buy any additional hardware?



[Ajrail9.7]

Finally installed my coil TTX22 on med Rail. Got my hardware from offset bushings. So far so good.



[NETTA17]

This one I guess..

ZyroFisher

Hello Rob,
Did you manage to increase RS Deluxe stroke to ~62mm along with 170mm ZEB upgrade ?
How does it feels? recommended ?
Cheers



[Slapbassmunky]

Hello Rob,
Did you manage to increase RS Deluxe stroke to ~62mm along with 170mm ZEB upgrade ?
How does it feels? recommended ?
Cheers

I did, works just fine, although on my medium I need to run the minolink in high to get clearance at bottom out. It's not a problem as the extra sag and 170mm forks offset it slightly. I'm running the sag O ring at about 33% and it feels great.



[NETTA17]

Thanks for the prompt reply
Is it easy to change the shock internals (I have some knowledge ....)
Any tip for it?
Cheers,



[Slapbassmunky]

Thanks for the prompt reply
Is it easy to change the shock internals (I have some knowledge ....)
Any tip for it?
Cheers,

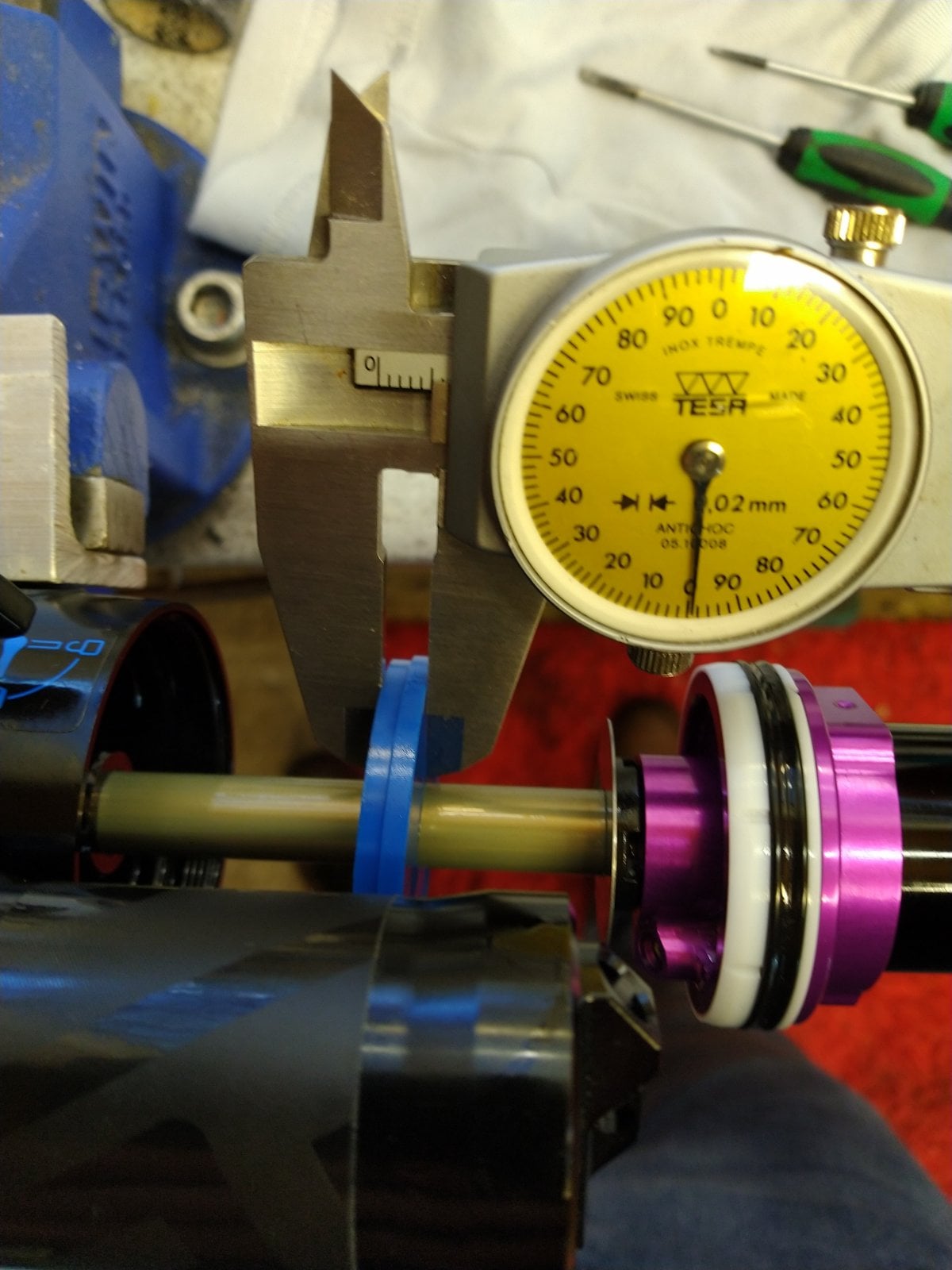

You don't need to change the internals, just remove the air can (you'll need a thin spanner to get the yoke off) and CAREFULLY cut off the blue spacer on the damper shaft. Remember your sag gradients will now be off, so lower your air pressure accordingly.



[Freedomflier]

ZDENNY55 i love the 205-230 yoke extension! there has to be a market for these!! I would pay good money for one! I have a 205X60 Push Shock for my Kona Process that i was thinking of selling, but if i had an extension, i that would be awesome! AND.. this allow you to rotate the bottom of the shock 90 degrees, so you can have better access to the Rebound adjustment clicker!!



[bluewater87]

Looking at ordering the new 2022 Fox float X in 230x60 for my XL carbon rail. Currently have the stock deluxe select + (non reservoir).
Any ideas if it will fit?
Pinkbike - First Look: Fox's New Float X & DHX Shocks



[Doomanic]

With that reservoir? I doubt it.
