M820 Bafang - LIGHTCARBON LCE930 Frame (lightweight)

JimLee-Lightcarbon · Mar 17, 2023

brbr said:
That’s a great news for the weight reduction!
ETA is still mid May at latest for L size?

your size L need wait to May 15th, if others want it,it request book it early, now the quantity can be book is less than 50 sets for the first produce plan in May,

JimLee-Lightcarbon · Mar 17, 2023

Flo7 said:
Have sent you an E mail

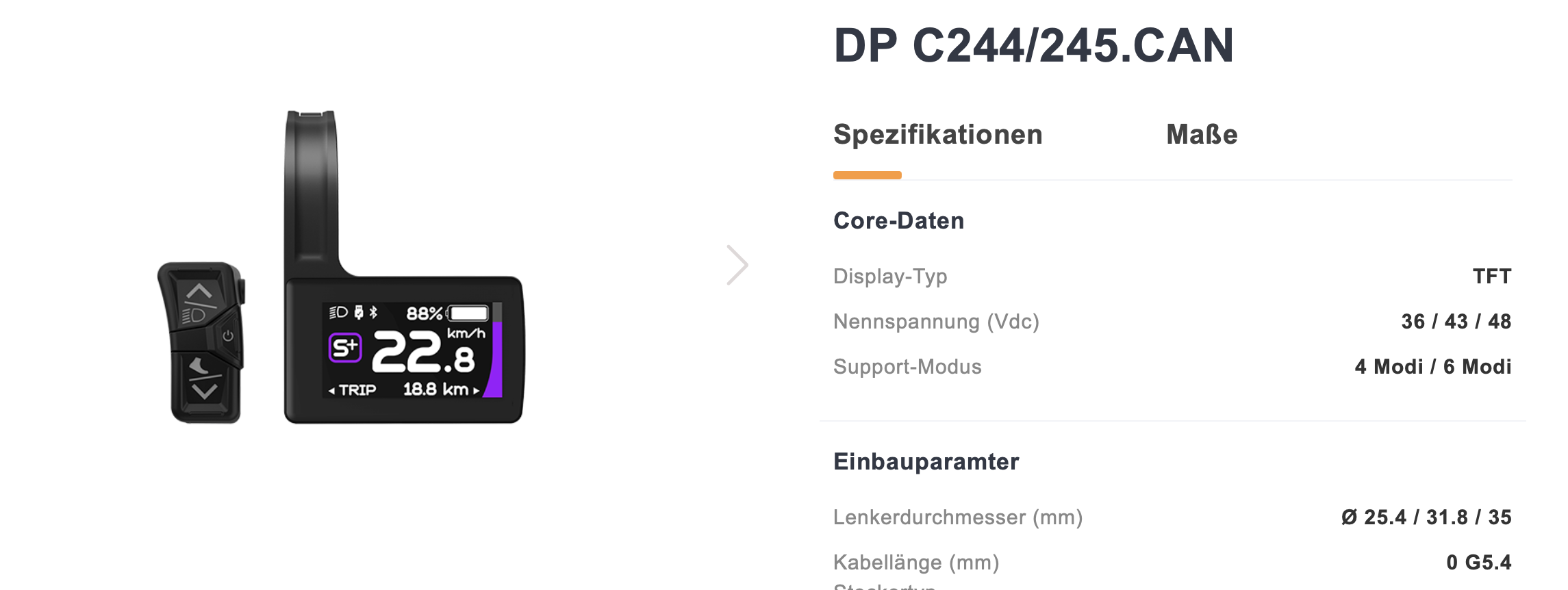

This Remote/ Display would be nice:

View attachment 109203

Which Speedsensor you will use for this frame?

the standard sensor for M820 is SR SD021.01, I don't know it can change or not. We don't know much about accessories, we can only confirm that our frame can be installed with various speed controllers, but whether it is compatible with M820, we are not sure, and the Bafang salesman we contacted is not clear about this.

brbr · Mar 17, 2023

JimLee-Lightcarbon said:

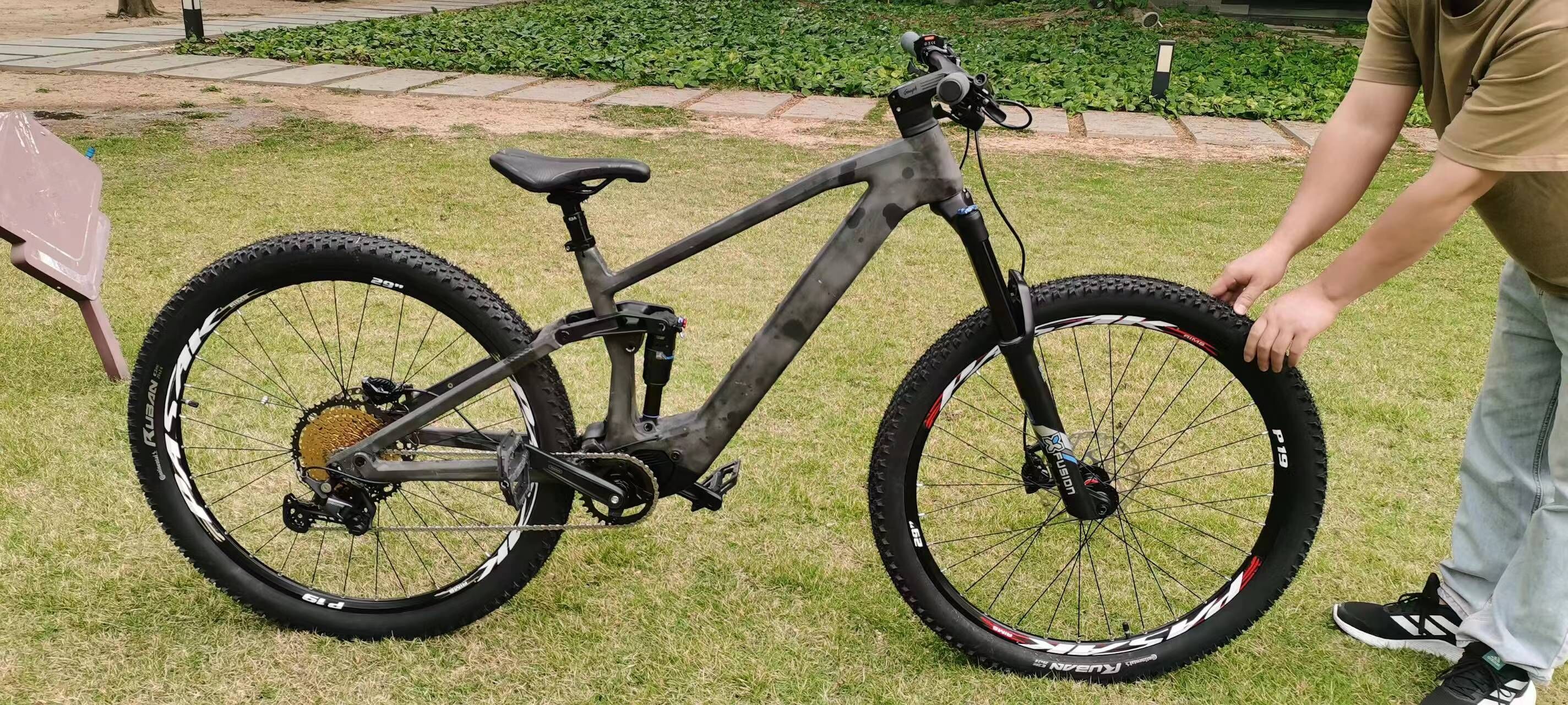

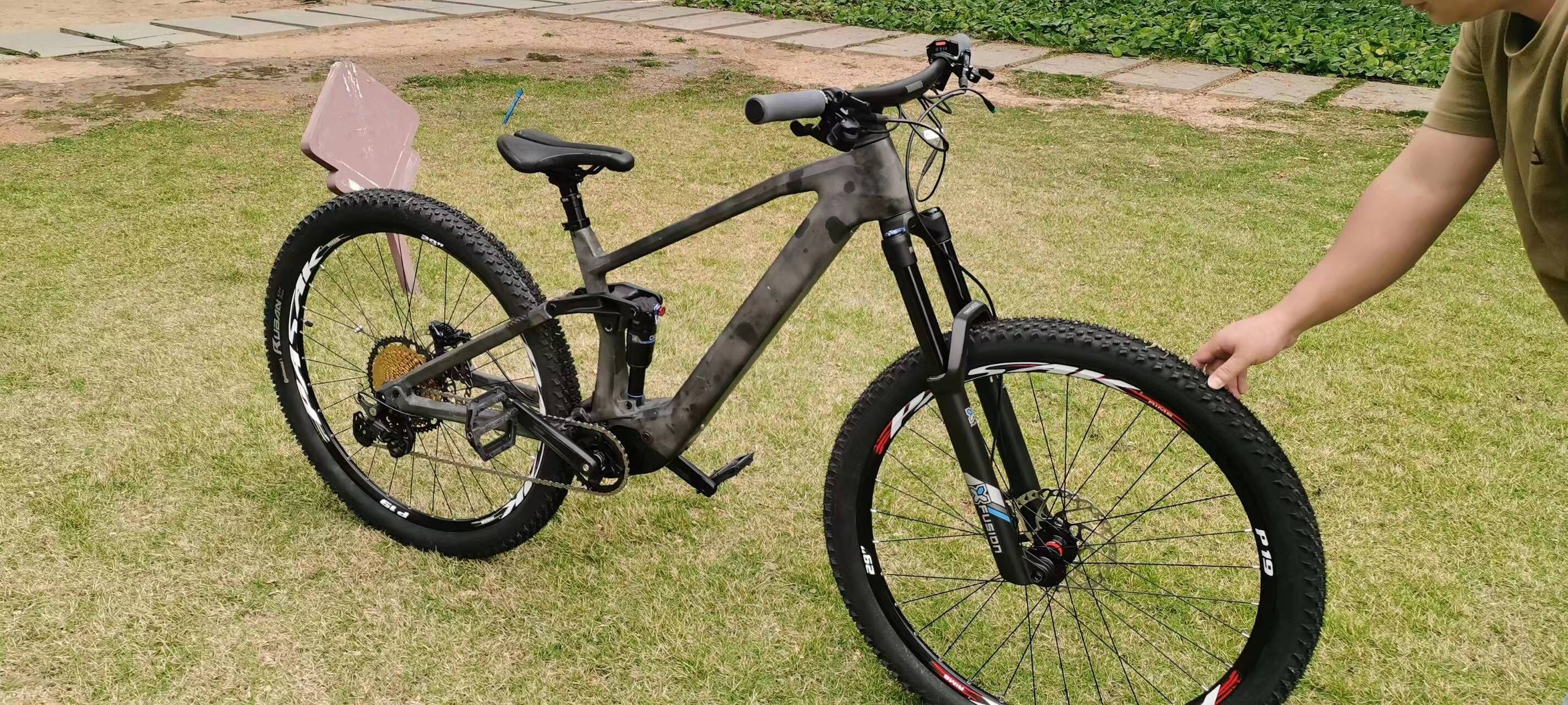

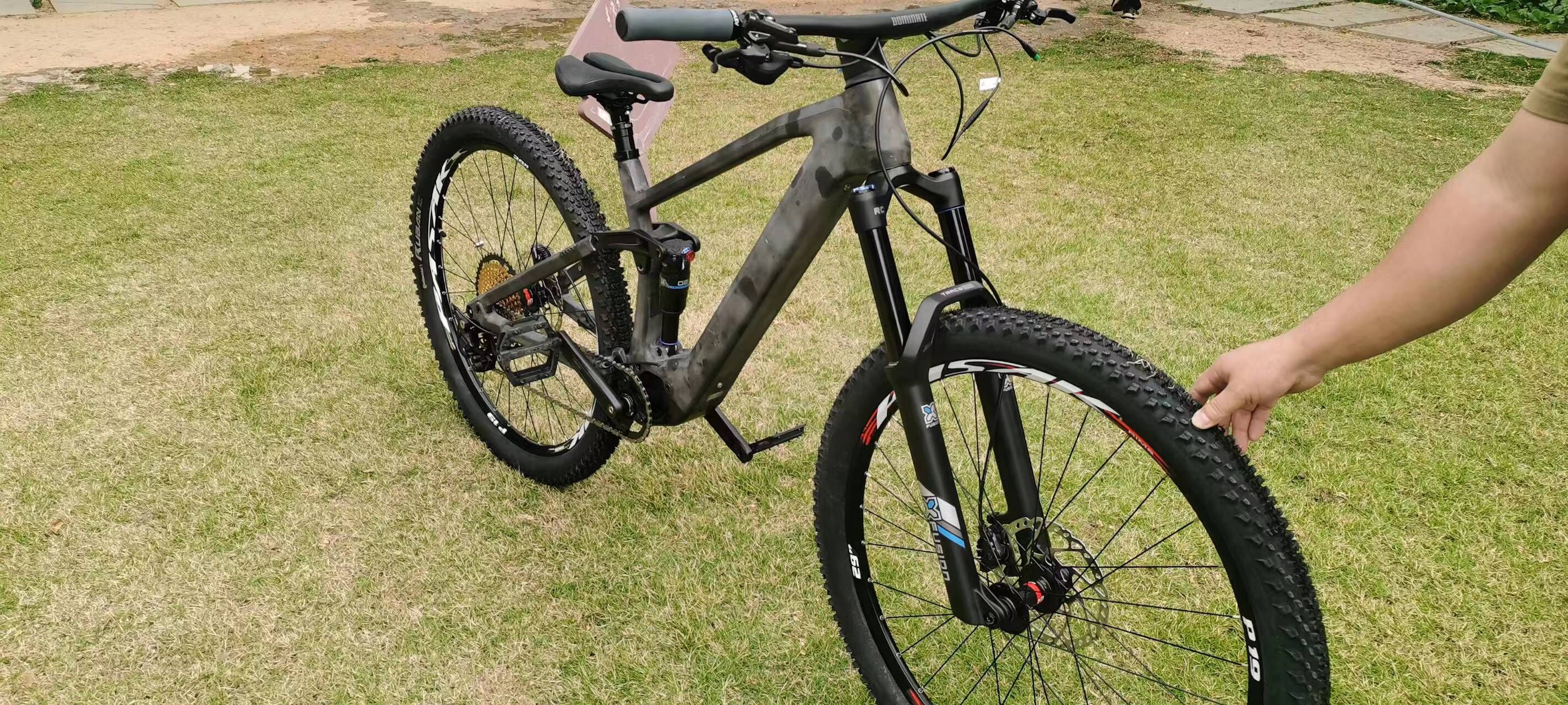

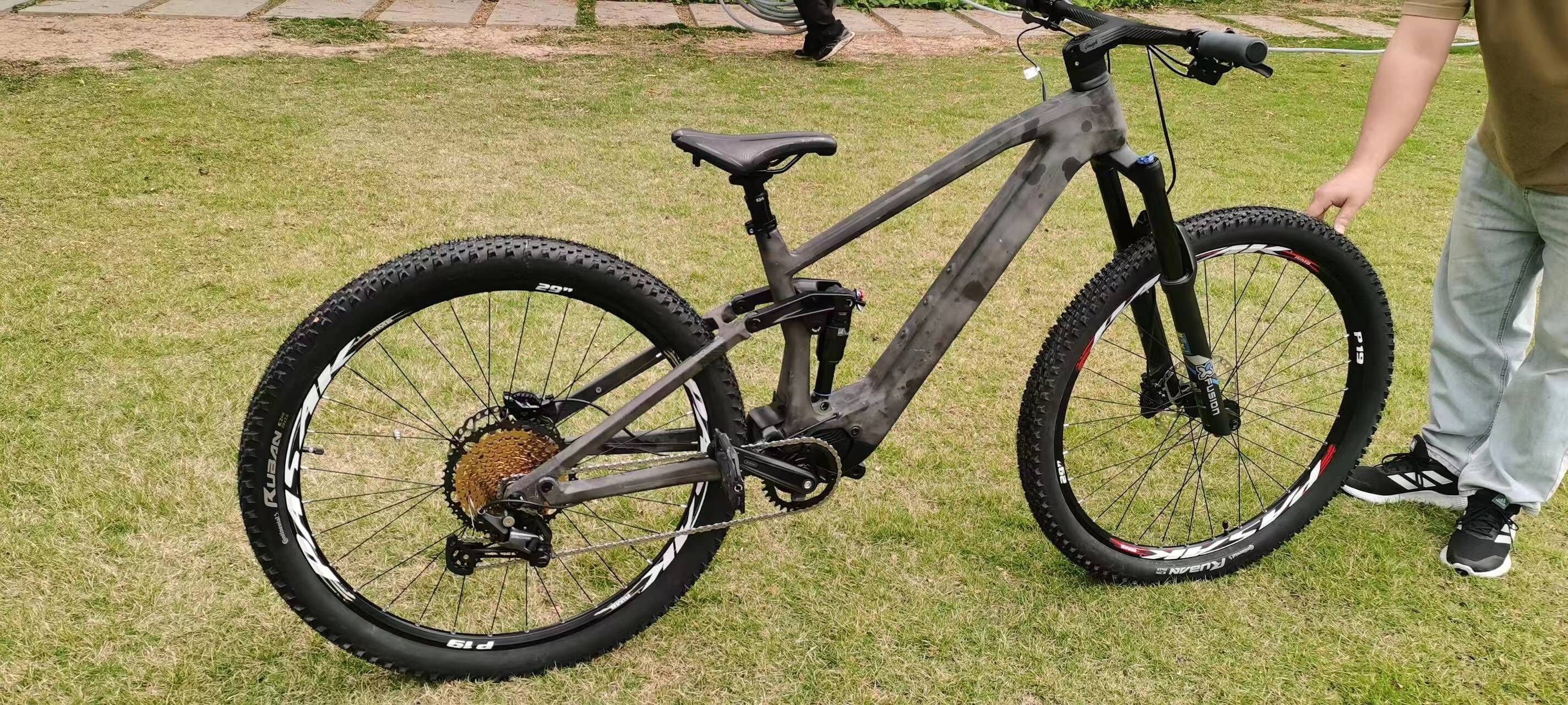

Some photos for whole bike, with carbon raw finished frame,

View attachment 109404 View attachment 109405 View attachment 109406 View attachment 109407

It looks amazing!

JimLee-Lightcarbon · Mar 17, 2023

borysgo2 said:
Hi Jim

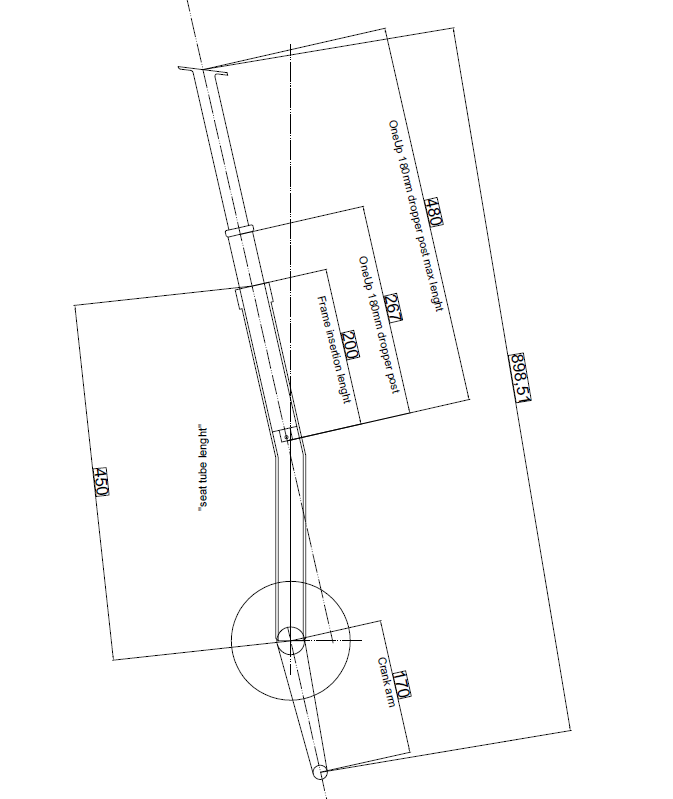

Yes insertion length is 200mm but the longest dropper post to fit the frame is 180mm (stroke). The shortest insertion length droppers are made by OneUp. If 240mm (stroke) dropper post is fitted in LCE930 frame than 184cm tall person will have too short legs to reach the pedals.

Are there any news if the frame can be supplied with the motor+battery kit ? Or the motor+battery kit have to be bought somewhere else?

Thanks

View attachment 109200

Thanks for sharing the knowledge, so the drooper seat post can only 180mm (stroke).
about the M820 motor and battery, now we can get it at normal price or introduce you get it from the agent, but we have have the sepcial price from bafang company, bafang said will reply us after China Cycle in April,
motor can ship with the frame, battery have to ship it alone, with special shipping way.

brbr · Mar 17, 2023

JimLee-Lightcarbon said:
Thanks for sharing the knowledge, so the drooper seat post can only 180mm (stroke).
about the M820 motor and battery, now we can get it at normal price or introduce you get it from the agent, but we have have the sepcial price from bafang company, bafang said will reply us after China Cycle in April,
motor can ship with the frame, battery have to ship it alone, with special shipping way.

That’s great! I’ll send you an email for the motor and battery!

temon10 · Mar 17, 2023

JimLee-Lightcarbon said:
Some photos for whole bike, with carbon raw finished frame,

View attachment 109404 View attachment 109405 View attachment 109406 View attachment 109407

will be better u take photo with dropper position full up

Nice frame btw, good job jim.

Waynemarlow · Mar 17, 2023

Nice frame Jim, what many of us have talked about for a good while now. I hope you sell plenty and your design pays off.

KaroKönig · Mar 17, 2023

JimLee-Lightcarbon said:
Some photos for whole bike, with carbon raw finished frame,

View attachment 109404 View attachment 109405 View attachment 109406 View attachment 109407

Very successful frame design with current geometry. By the way, what kind of handlebar is this in the photo? Does it have an internal cable routing?

brbr · Mar 17, 2023

JimLee-Lightcarbon said:
Some photos for whole bike, with carbon raw finished frame,

View attachment 109404 View attachment 109405 View attachment 109406 View attachment 109407

BTW, is it the default finish we have if we choose it unpainted ? because I love it

temon10 · Mar 17, 2023

JimLee-Lightcarbon said:
Some photos for whole bike, with carbon raw finished frame,

View attachment 109404 View attachment 109405 View attachment 109406 View attachment 109407

with this spec maybe u can share us total weight Jim.

brbr · Mar 17, 2023

temon10 said:
with this spec maybe u can share us total weight Jim.

Let's take the bets, I think 19.4 kg

JimLee-Lightcarbon · Mar 19, 2023

temon10 said:
with this spec maybe u can share us total weight Jim.

with allow 29*2.8" tire, weight is 18.8kgs, with carbon 2.4" carbon wheel, the weight is 18.2kgs, if change the fork and shock, the weight maybe change

JimLee-Lightcarbon · Mar 19, 2023

brbr said:
BTW, is it the default finish we have if we choose it unpainted ? because I love it

This is the original color of carbon fiber. If you need this color, you can directly spray the varnish on the outside, but you need to explain in advance, and you will see the seams and scars of the carbon cloth through the transparent paint.

JimLee-Lightcarbon · Mar 19, 2023

I

KaroKönig said:
Very successful frame design with current geometry. By the way, what kind of handlebar is this in the photo? Does it have an internal cable routing?

it's AM03 handlebar, handlebar for AM and DH and enduro have no full inner cable bars, only XC have full inner cable bar,
the cable though the head tube innner, but on the bar, it's out,

temon10 · Mar 19, 2023

JimLee-Lightcarbon said:
with allow 29*2.8" tire, weight is 18.8kgs, with carbon 2.4" carbon wheel, the weight is 18.2kgs, if change the fork and shock, the weight maybe change

nice

Tilt · Mar 19, 2023

avec un bon poteau compte-gouttes on peut gagner 200gr

brbr · Mar 19, 2023

Tilt said:
avec un bon poteau compte-gouttes on peut gagner 200gr

I’m french and I’m having a hard time understanding what you mean

Maybe dropper post?
Tige de selle télescopique ?

Tilt · Mar 19, 2023

brbr said:
Je suis français et j'ai du mal à comprendre ce que tu veux dire
Poteau compte-gouttes peut-être ?
Tige de selle télescopique ?

Oui tige de selle telescopique

stuff · Mar 19, 2023

Tilt said:
Oui tige de selle telescopique

If you can write in english that would be better since its the language forum and everyone could reply and help you

borysgo2 · Mar 19, 2023

I just spotted on the sample bike pictures my favourite tires, Continental Ruban. Light and very fast rolling tires, side knobs have really decent grip on a fast berms.

brbr · Mar 21, 2023

JimLee-Lightcarbon said:
This is the original color of carbon fiber. If you need this color, you can directly spray the varnish on the outside, but you need to explain in advance, and you will see the seams and scars of the carbon cloth through the transparent paint.

Thanks for the feedback, but I will go full standard ! I don't want to have delay or issues linked to a specific request

borysgo2 · Mar 22, 2023

Frame - ordered.
Motor - ordered.
Suspension + bits and pieces - ordered.

Now just wait wait wait wait....

I have made a small calculation for my build, should be about 19kG, happy enough.

brbr · Mar 22, 2023

borysgo2 said:
Frame - ordered.
Motor - ordered.
Suspension + bits and pieces - ordered.

Now just wait wait wait wait....

I have made a small calculation for my build, should be about 19kG, happy enough.

Nice!
Where dis you get the motor from?
I did not take the time to contact Jim yet for a quote for battery and motor.
My build should be around 18.5, still waiting for some pieces!

borysgo2 · Mar 22, 2023

brbr
I got it on alibaba

Changzhou Fieldebikes Co., Ltd.

Alibaba Manufacturer Directory - Suppliers, Manufacturers, Exporters & Importers

fieldebikes.en.alibaba.com

Talk to Chili from Changzhou Fieldebikes Co., Ltd.

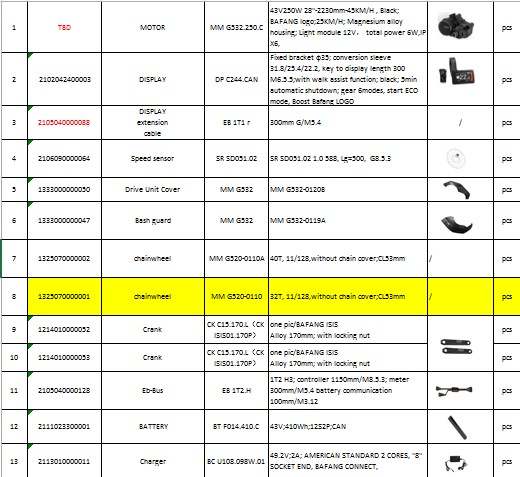

Kit comes with the small remote and display DPC244

brbr · Mar 22, 2023

borysgo2 said:
brbr
I got it on alibaba

Changzhou Fieldebikes Co., Ltd.

Alibaba Manufacturer Directory - Suppliers, Manufacturers, Exporters & Importers

fieldebikes.en.alibaba.com

Talk to Chili from Changzhou Fieldebikes Co., Ltd.

Kit comes with the small remote and display DPC244

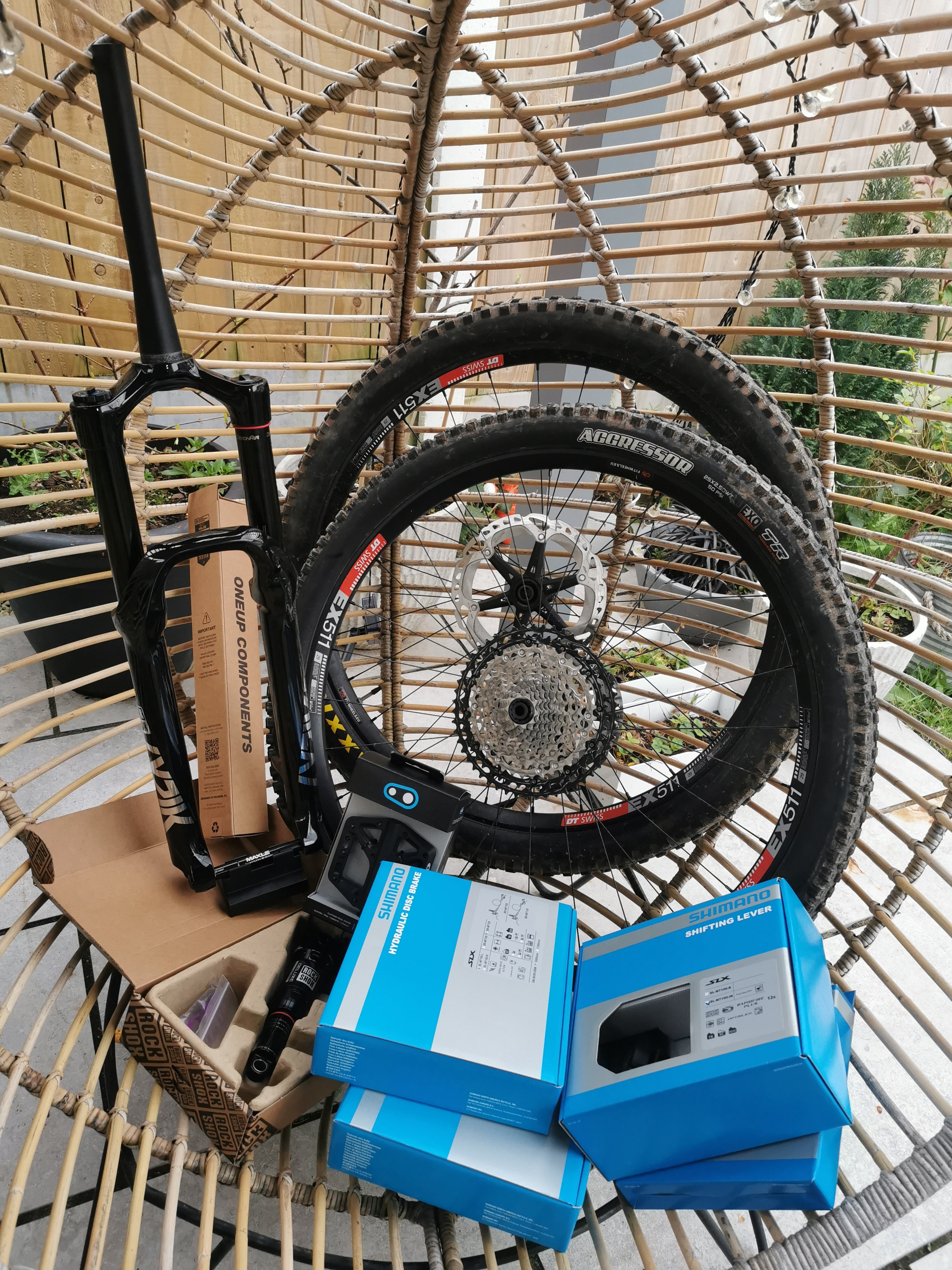

View attachment 109766 View attachment 109767

What was the price with shipping ?

brbr · Mar 22, 2023

brbr said:
What was the price with shipping ?

Sorry I did not see it on my phone!

borysgo2 · Mar 22, 2023

brbr

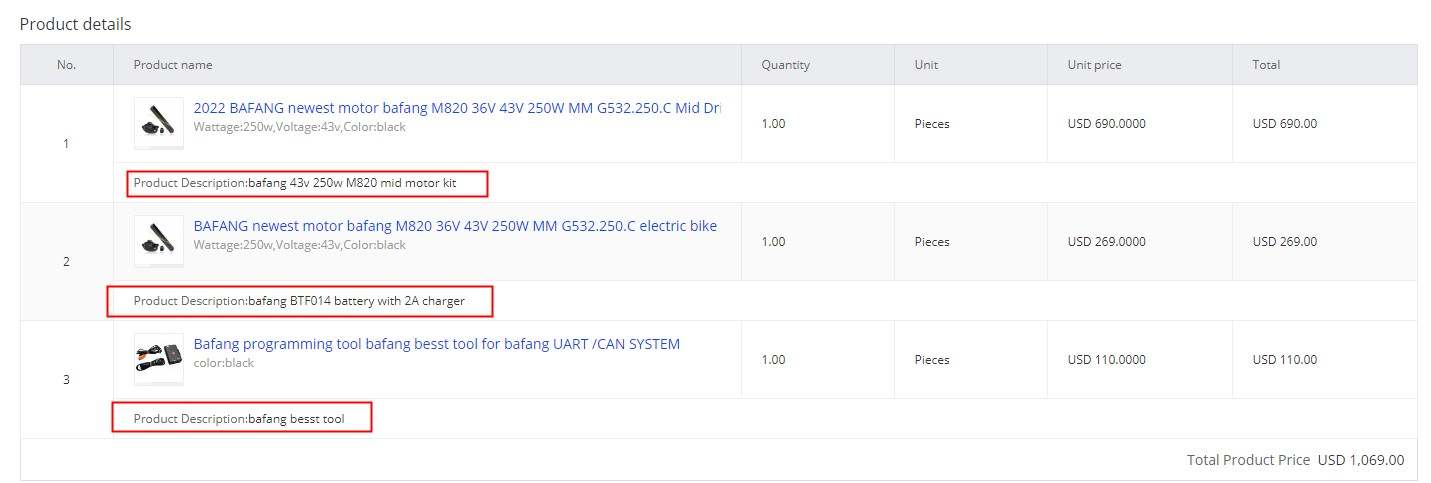

Following is the quotation of bafang M820 mid motor kits and battery .
-----bafang 43v 250w M820 mid motor kits ----690USD
-----bafang BTF014 battery with 2A charger--- 269usd
-----the shipping cost of the motor by air---- 90usd
-----the shipping cost of the battery by air----125 usd
-----paypal fee----25usd
Total price is 1199usd

brbr · Mar 22, 2023

borysgo2 said:
brbr

Following is the quotation of bafang M820 mid motor kits and battery .
-----bafang 43v 250w M820 mid motor kits ----690USD
-----bafang BTF014 battery with 2A charger--- 269usd
-----the shipping cost of the motor by air---- 90usd
-----the shipping cost of the battery by air----125 usd
-----paypal fee----25usd
Total price is 1199usd

Thanks!
After my big command of parts this month, I will wait for next month I guess

brbr · Mar 22, 2023

Jim, I see you’re providing the headset and spacer for irc. It looks like we don’t need a star in the fork with what I can see on the website ?
Also, can you confirm if you’re providing the bearings for the fork mount, if not, what size is needed?

borysgo2 · Mar 27, 2023

Jim
It looks like I am waiting only for You and the motor kit.
