M820 Bafang - LIGHTCARBON LCE930 Frame (lightweight)

[mike_kelly]

Jim, I see you’re providing the headset and spacer for irc. It looks like we don’t need a star in the fork with what I can see on the website ?
Also, can you confirm if you’re providing the bearings for the fork mount, if not, what size is needed?

The star nut normally comes with the fork. For metal forks, a compression nut for forks with carbon steerer tube.



[brbr]

The star nut normally comes with the fork. For metal forks, a compression nut for forks with carbon steerer tube.

You’re right, but in the pictures on lightcarbon website, we can see there’s something that looks like a compression nut



[mike_kelly]

You are right. Looks like a compression plug...



[brbr]

@JimLee-Lightcarbon can you update us on the headset needed? (Size, what is provided with the frame?)



[mike_kelly]

The specs on the website say straight 1.5" headtube.



[brbr]

The specs on the website say straight 1.5" headtube.

Yeah, so we have to find an adapter for a tapered fork with a straight headtube



[brbr]

The specs on the website say straight 1.5" headtube.

So correct me if I’m wrong - my experience in building modern bikes is zero - but it looks like the headset they present on the website has all the needed hardware ( top and bottom ).
Also, maybe they are using a non tapered design to allow more space for IRC?



[mike_kelly]

Yes, if you look through the thread the question was already asked and answered by Jim. They did not taper the headtube to allow more room for the cables. You use a tapered fork with an adapter headset.



[JimLee-Lightcarbon]

Hello everyone, sorry reply so you late, but just got back to the office from a business trip.
the head tube is Straight 1 1/2" , but the fork is Tapered, the rest space is for the inner cables,
the frame set including frame + head set+ seat clamp + thru-axle, and UDH hanger,
also including the Anti collision cover for motor, but no side cover。

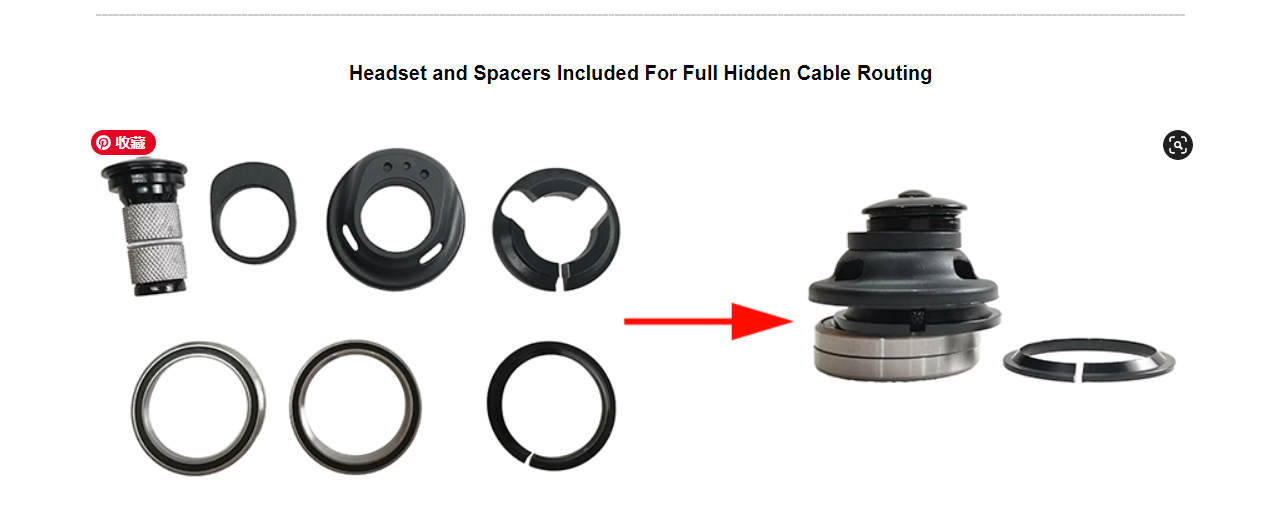

check the picture of headset, including the top cover.



[JimLee-Lightcarbon]

And, everyone please note,

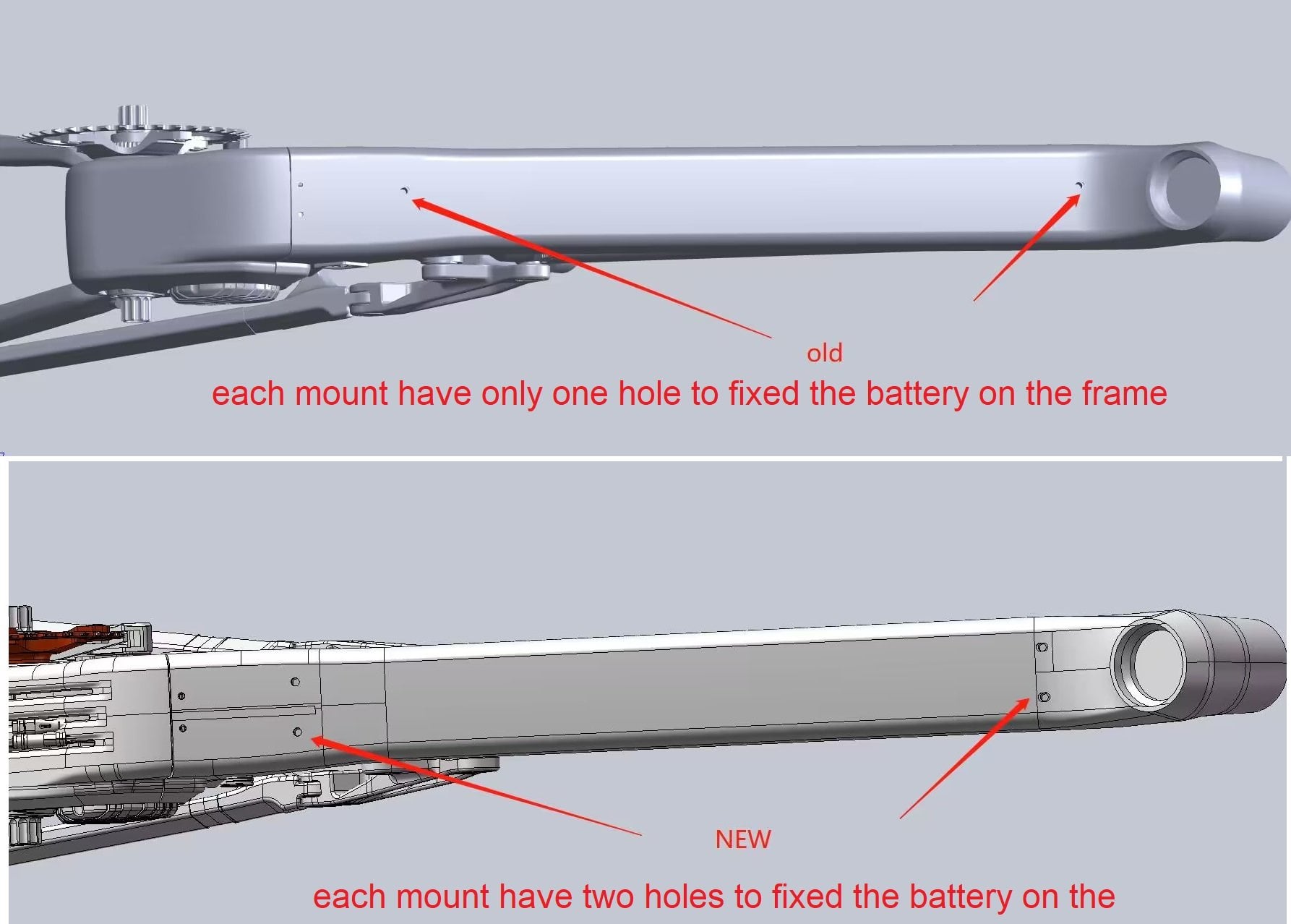

Bafang informed us that they changed the battery’s mount which fix the battery on the frame, before there are two mount, each mount have one hole, now they worry about not being fixed enough, so they will change it, but now they are just open the mold for the upport plate.
So, if you buy the battery now, your battery will be the old vesion with one hole, if buy it in next month, the battery maybe with two holes,.
We will also change our frame according the vesions of battery,
So, confirm your battery first, we will ship different frames to you,



[borysgo2]

Jim
Can You can ask bafang if the new mounting plates can be bought separetley to upgrade the battery fixing to 4 holes one?



[JimLee-Lightcarbon]

Jim
Can You can ask bafang if the new mounting plates can be bought separetley to upgrade the battery fixing to 4 holes one?

First of all, it is very difficult to only take the mounting plates of Bafang batteries. Bafang does not even sell empty boxes, except for its large foreign partners.
The upgrade of the new version of the battery is not only two more fixing holes, but also their cable layout has been modified, so even if you get the new plates, they cannot completely match the old battery,

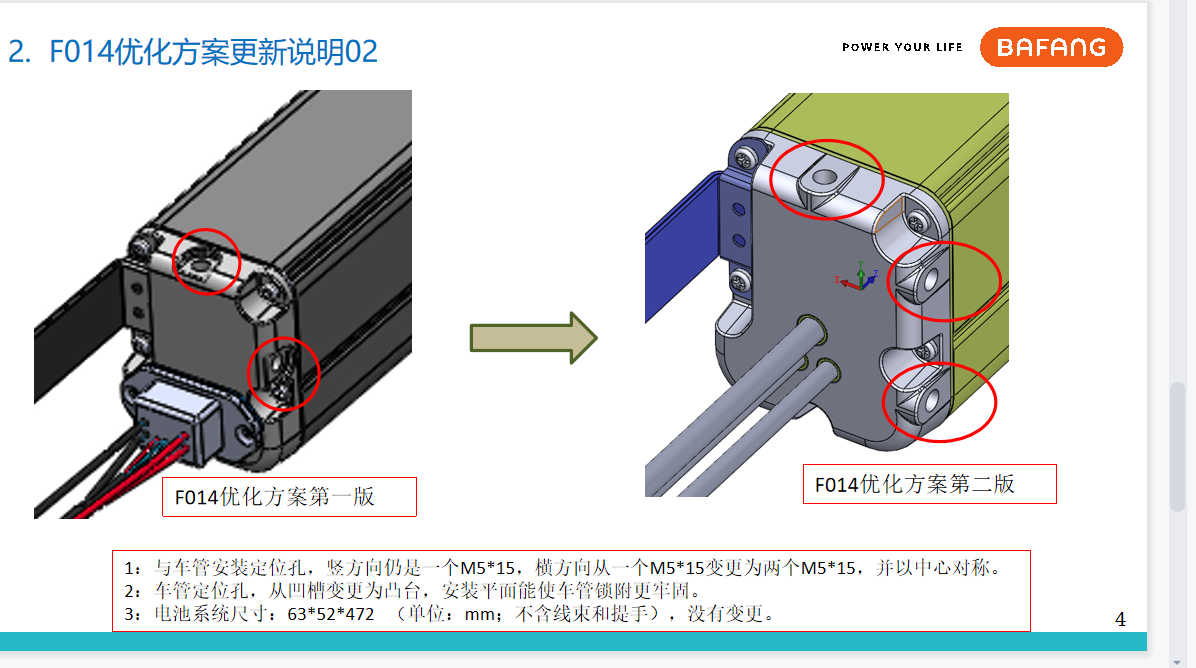

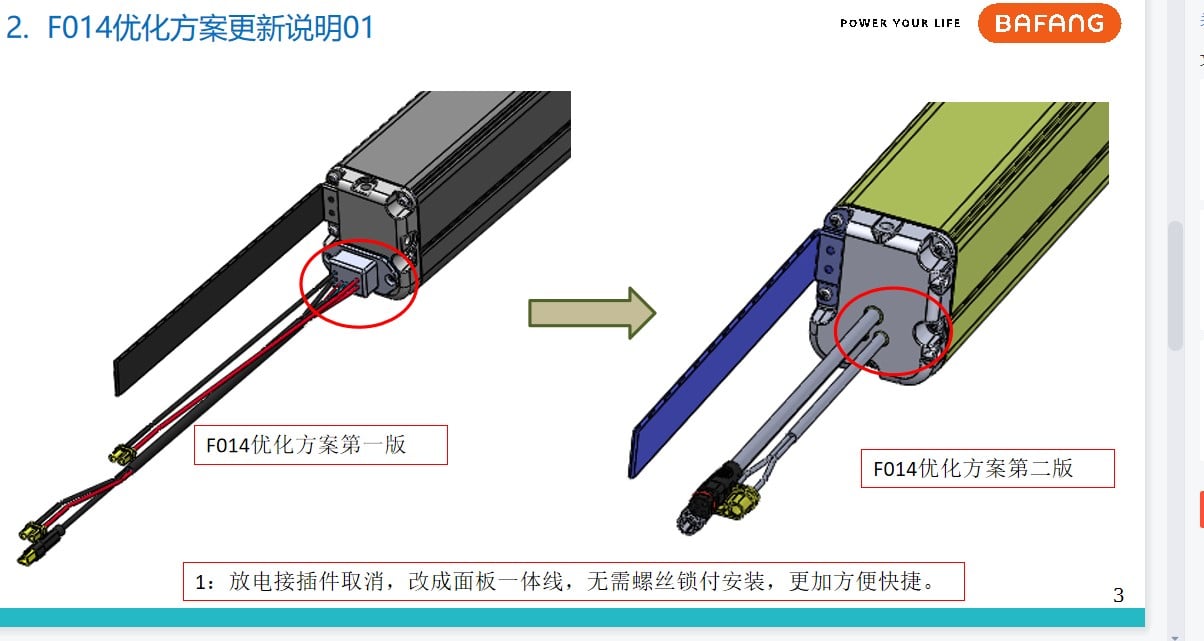

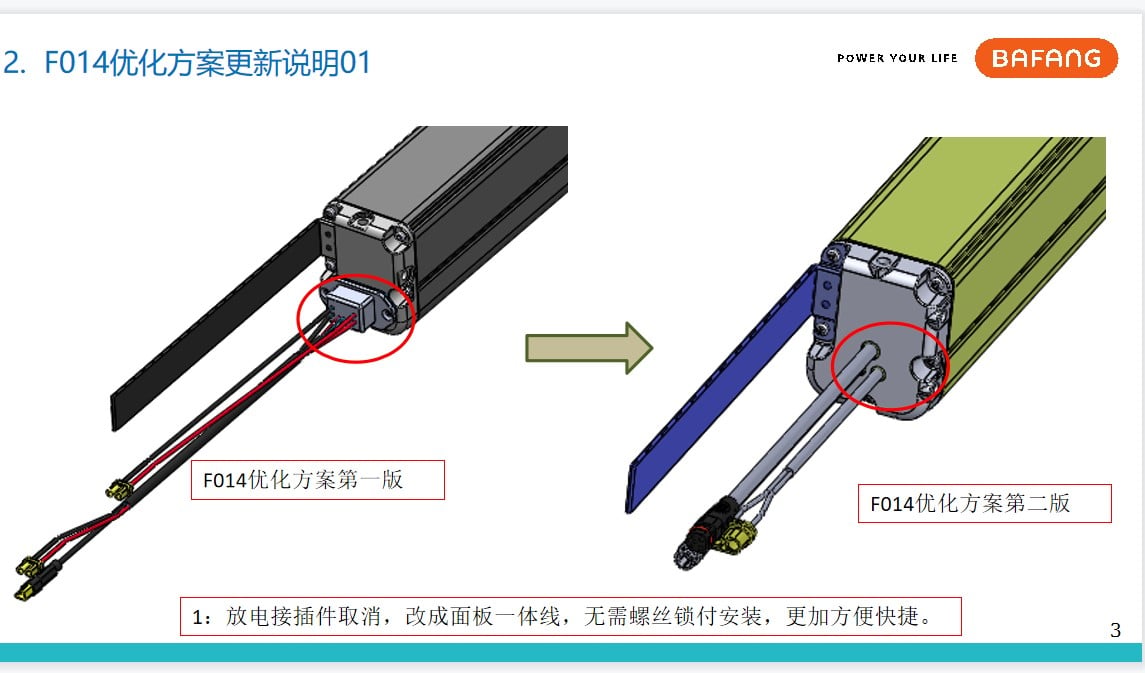

Please check the picture, the modified information provided by bafang company, the box on the left of the picture is modified version 1 (not mass-produced, it has some improvements compared to the mass-produced version sold now), and the right side is modified version 2 (will replace the mass-produced version) ,



[borysgo2]

First of all, it is very difficult to only take the mounting plates of Bafang batteries. Bafang does not even sell empty boxes, except for its large foreign partners.
The upgrade of the new version of the battery is not only two more fixing holes, but also their cable layout has been modified, so even if you get the new plates, they cannot completely match the old battery,
Please check the picture, the modified information provided by bafang company, the box on the left of the picture is modified version 1 (not mass-produced, it has some improvements compared to the mass-produced version sold now), and the right side is modified version 2 (will replace the mass-produced version) ,

View attachment 110552 View attachment 110553

As the cable connector look a bit different I presume that the motor might be modyfied also.
Thanks for info.
Regards Peter



[JimLee-Lightcarbon]

As the cable connector look a bit different I presume that the motor might be modyfied also.
Thanks for info.
Regards Peter

Bafang said motor have no any changes,



[lalaland]

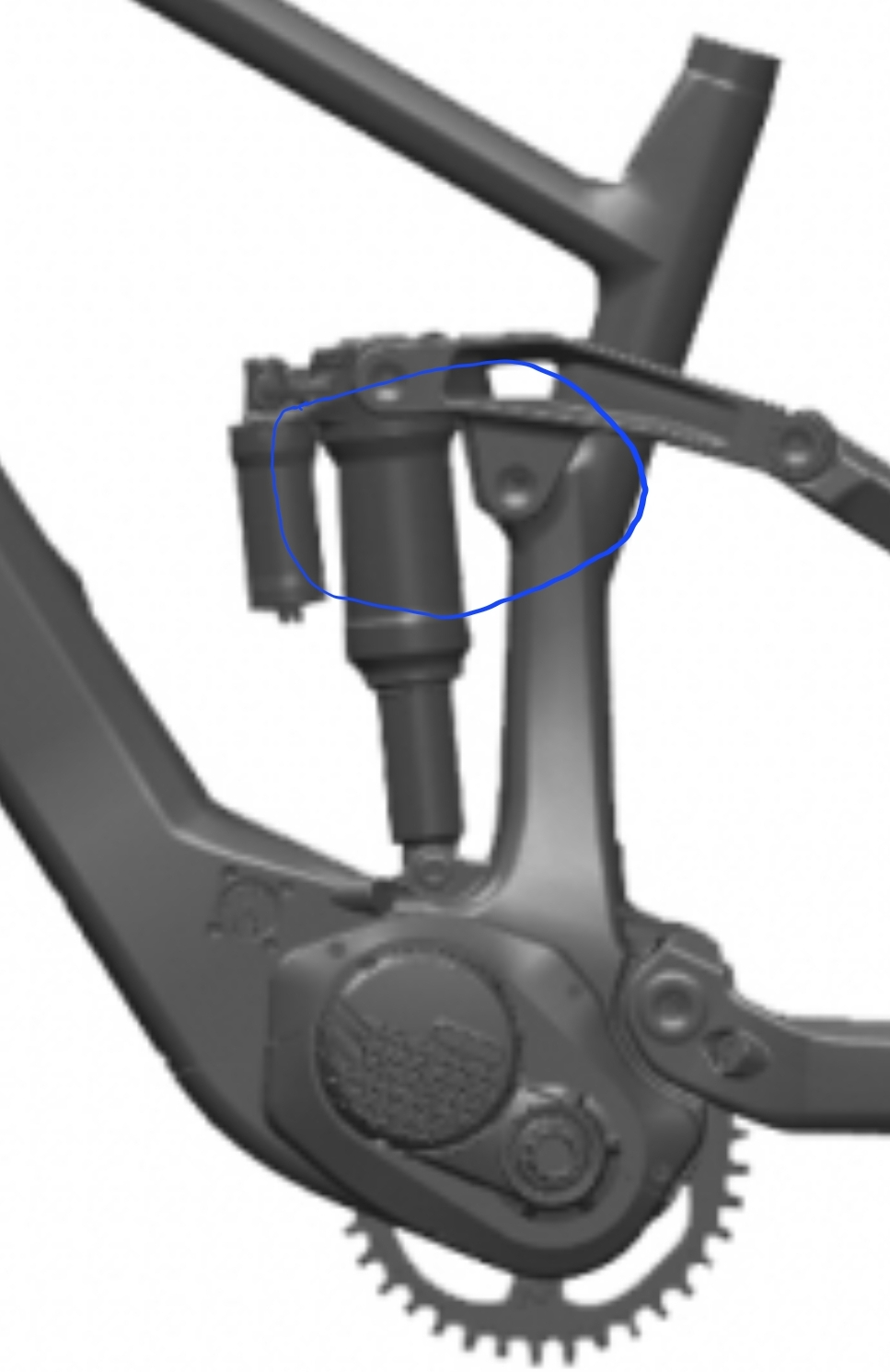

It seem like the rear shock is very close to the rocker arm, are we able to fit a big shock like fox float x2 or a rockshox with Megneg upgrade?



[Fresh]

It's a trunnion mount.
It should be fine.



[JimLee-Lightcarbon]

It seem like the rear shock is very close to the rocker arm, are we able to fit a big shock like fox float x2 or a rockshox with Megneg upgrade?

View attachment 110829

185*55mm trunnion mount rear shock will work on this frame.and there is enough rooms to accept the rear shock with piggy back design and coil design.



[JimLee-Lightcarbon]

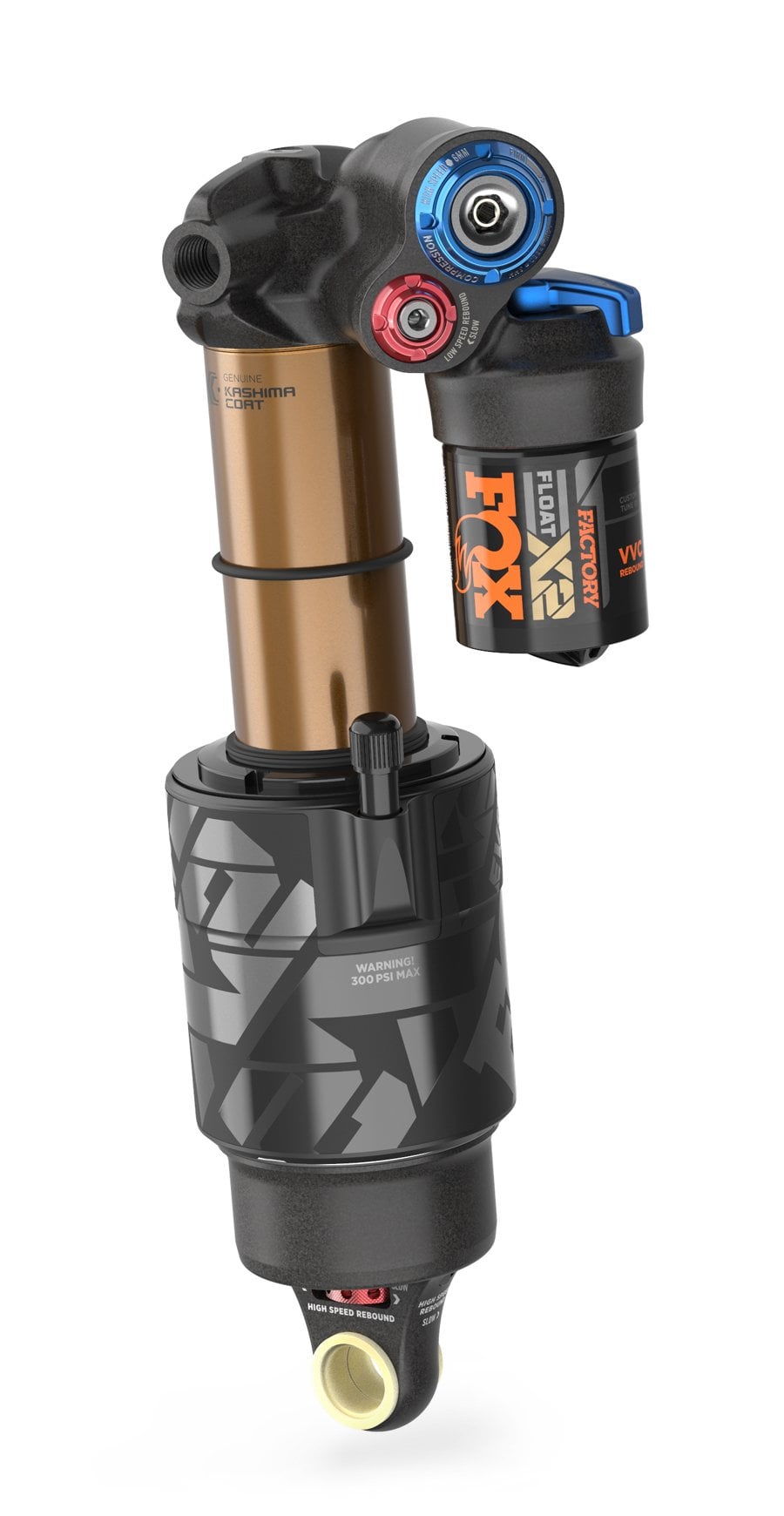

fox float x2 is also ok



[lalaland]

What's the biggest water bottle size can fit with a piggy back shock?



[Flo7]

Hi Jim, Please show us the painted Frame.



[JimLee-Lightcarbon]

Hi Jim, Please show us the painted Frame.

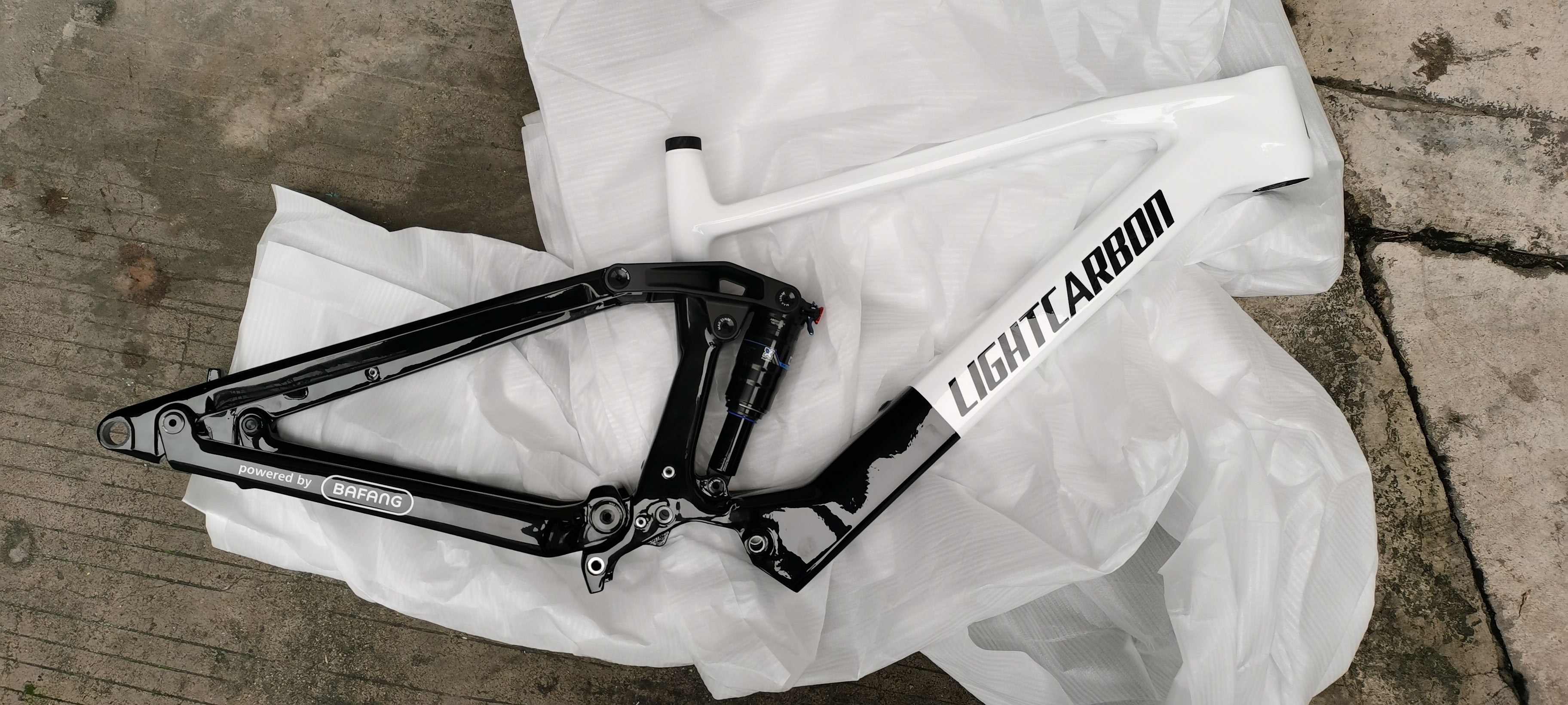

the painting frame with brand's logo, only the frame for bafang can be show, othe rbrand we are not authorized



[clix]

Hej @JimLee-Lightcarbon: If I understand correctly, you are currently only supling the frame, and not the motor+battery?
Is this for all the frames that you have, or only for this one, because you don't have M820 on stock yet?
tnx



[temon10]

Looks nice and slim, how many kg with this spec @JimLee-Lightcarbon ???



[JimLee-Lightcarbon]

View attachment 111198
Looks nice and slim, how many kg with this spec @JimLee-Lightcarbon ???

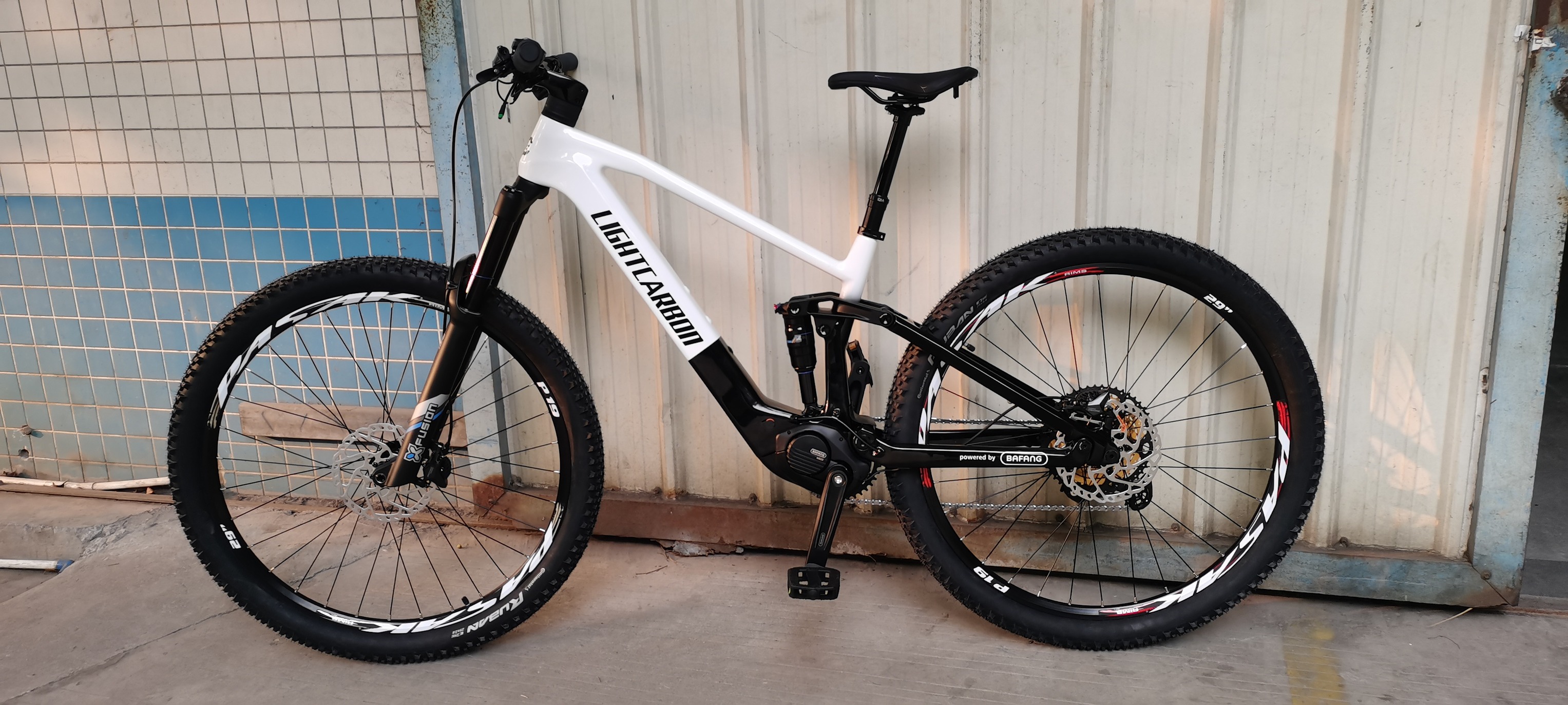

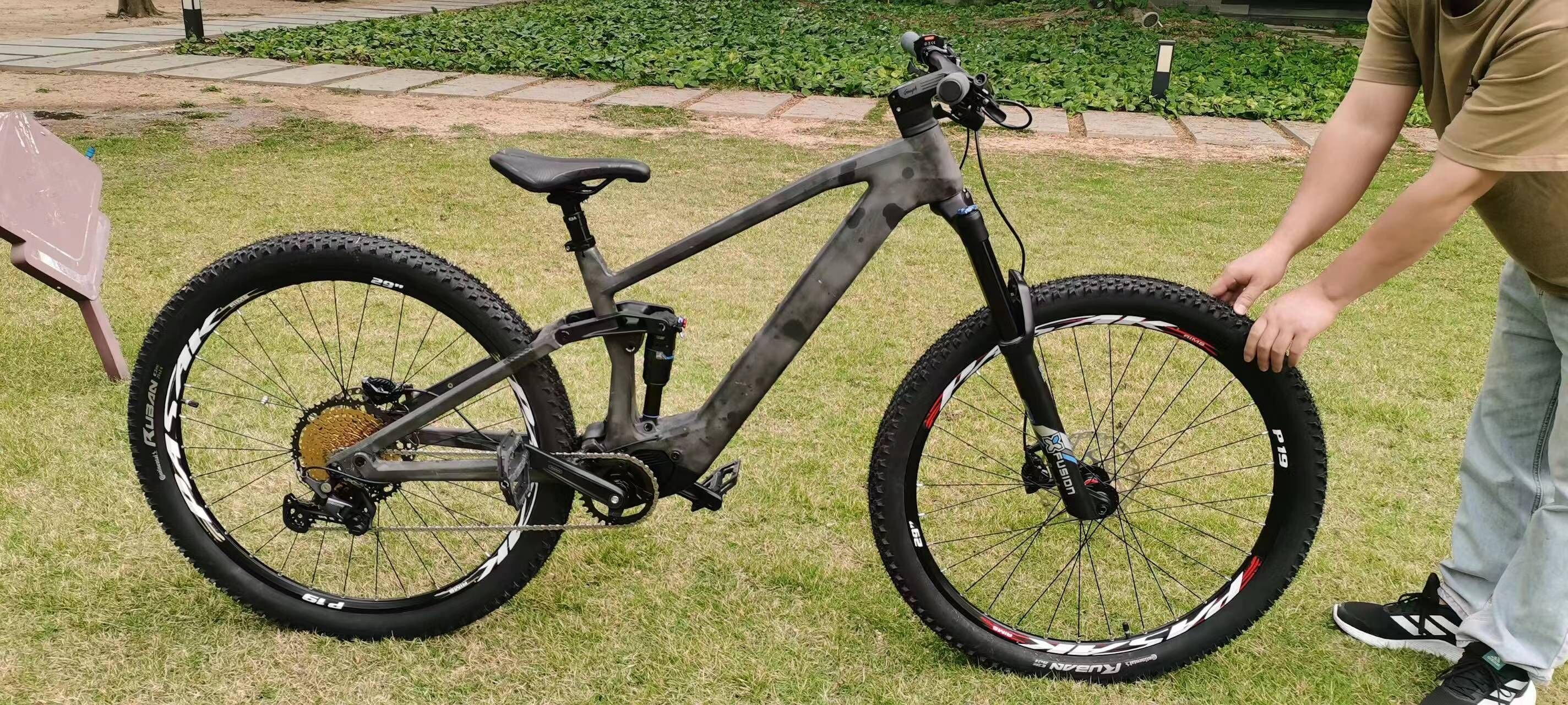

About 18.75kgs, the photos from Bafang company, they use it to show their M820 motor in Chinacycle 2023 and Europbike 2023.
more photos:

LCE930 whole bike from Bafang company

6 new items added to shared album

photos.app.goo.gl



[JimLee-Lightcarbon]

Hej @JimLee-Lightcarbon: If I understand correctly, you are currently only supling the frame, and not the motor+battery?
Is this for all the frames that you have, or only for this one, because you don't have M820 on stock yet?
tnx

yes we have no M820 in stock now, if quantity buyer, We can introduce you to Bafang's older brother, Regional Sales Manager， if personal buyers, we can introduce you the agent of bafang products in china,
and we will keep some N820 motor kits in stock in future, now still discuss the price, but we will no keep the other motor and battery, we are manufacturer of carbon bike parts, not bike shop.



[clix]

Hey guys, I have a question regarding the needed cables for this build. What is needed?

For power:
To me, it looks like the F014 battery comes with the cable "hanging out" and this plugs straight to the motor, no extension needed. Other two cables are connection to BMS and to charging port, probably?

For display, battery BMS and lights:
some type of EB 1T3.H With this, I will be able to connect to Bafang battery BMS(M3.12), and display (M5.4) and will also have hanging connectors for the ligths(?) (Female 2 Pins (7015-BS-2)).
For any of this things, do I need any extension cable?

For speed sensor:
On the remaining EB-BUS connector I have to somehow connect SR SD021.01 speed sensor.
What kind of cable do i need for this? Also, does the plug actually go trough the hole in the frame? Do I have to manualy splice the wire, to pass it trough the frame and solder the connector back?

Charging port:
Does this come with the battery and is plug'n play?

I don't need throttle, shift sensors or brake sensors.

This will be my first build, so I am a little overwhelmed with all the possible cables/connectors and lack of information that would clarify things.

tnx



[JimLee-Lightcarbon]

Hey guys, I have a question regarding the needed cables for this build. What is needed?

For power:
To me, it looks like the F014 battery comes with the cable "hanging out" and this plugs straight to the motor, no extension needed. Other two cables are connection to BMS and to charging port, probably?

For display, battery BMS and lights:
some type of EB 1T3.H With this, I will be able to connect to Bafang battery BMS(M3.12), and display (M5.4) and will also have hanging connectors for the ligths(?) (Female 2 Pins (7015-BS-2)).
For any of this things, do I need any extension cable?

For speed sensor:
On the remaining EB-BUS connector I have to somehow connect SR SD021.01 speed sensor.
What kind of cable do i need for this? Also, does the plug actually go trough the hole in the frame? Do I have to manualy splice the wire, to pass it trough the frame and solder the connector back?

Charging port:
Does this come with the battery and is plug'n play?

I don't need throttle, shift sensors or brake sensors.

This will be my first build, so I am a little overwhelmed with all the possible cables/connectors and lack of information that would clarify things.

tnx

yes, 014 battery can connect to the motor and BMS derectly, not need conect to charging port, the charging port on the top of the battery. so the newest battery only two cables,
the motor kits including the cables for display, battery BMS

EB 1T3 H	1 to 3 cable: 300mm female 8pin(M8.5.3) to controller,1300mm female 5 pin to display(M5.4), 100mm female 3pin to BMS(M3.12), 1000mm 2pin front lights connectors
EB 1T2 N	1 to 2 cable; 300mm male 8pin(G8.5.3) to controller, 1800mm 2pin rear lights connectors, 100mm 4pin female to RPM sensor(M4.3)

For speed sensor:
There is the hole to put it on the frame, and have the hole to fix the senor on the frame,
Charging port is plug'n play, fixed on the battery



[clix]

@JimLee-Lightcarbon, regarding the cables it makes sense now, tnx.

Regarding the charging port, you say it is directly on the battery. Is there a hole in the frame, in the designated spot, to plug charger directly to the battery? Or does battery have to be removed from the frame to be charged? Probability not, righ?

If there is the hole in the frame, I presume that the charging port location was than changed, from the pictures that we can see?



[JimLee-Lightcarbon]

@JimLee-Lightcarbon, regarding the cables it makes sense now, tnx.

Regarding the charging port, you say it is directly on the battery. Is there a hole in the frame, in the designated spot, to plug charger directly to the battery? Or does battery have to be removed from the frame to be charged? Probability not, righ?

If there is the hole in the frame, I presume that the charging port location was than changed, from the pictures that we can see?

There is no need to remove the battery when charging, there are holes on the body, corresponding to the charging port on the battery,

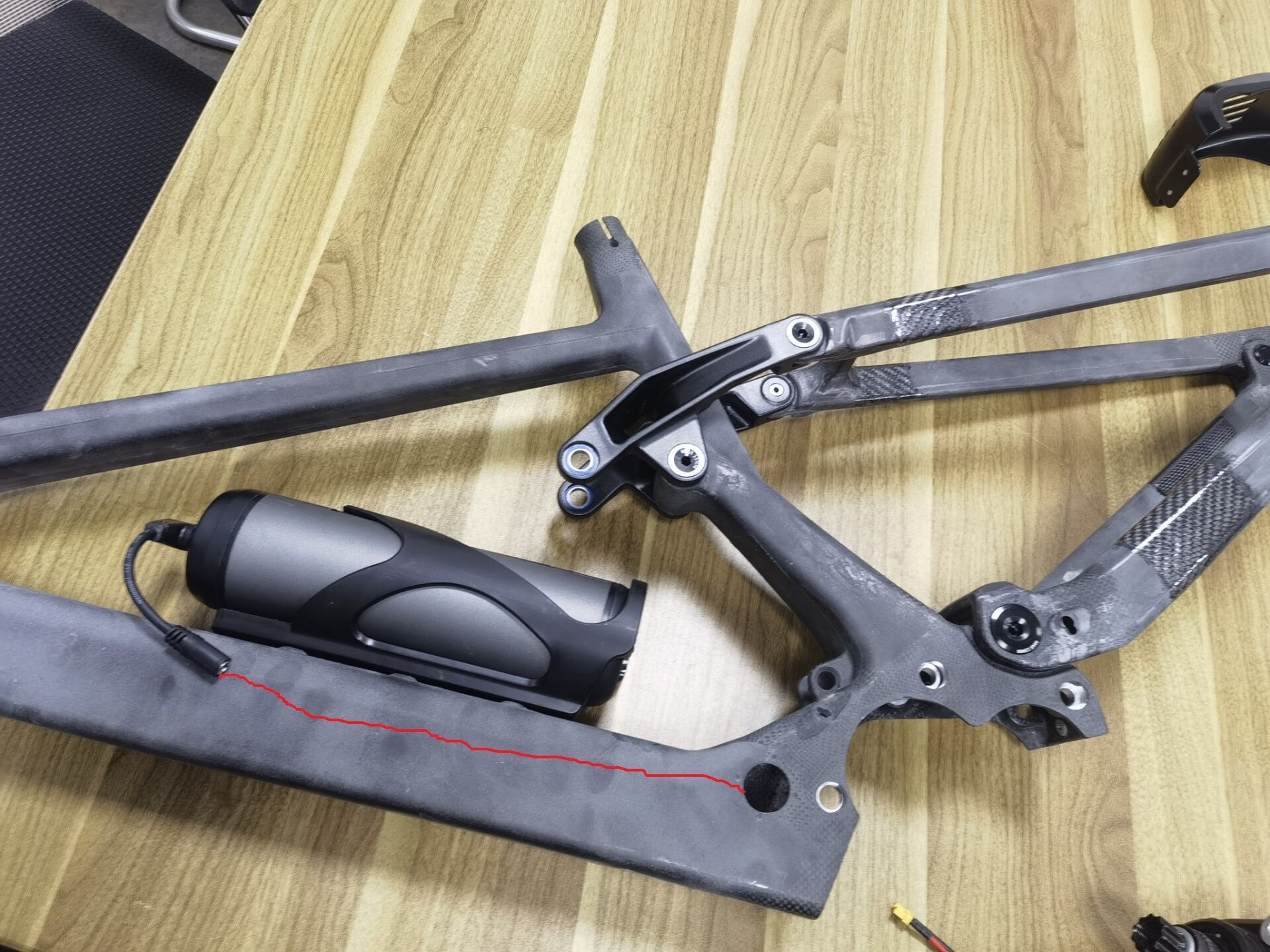

Please ignore the bottle cage battery this battery will not work, Bafang is developing a bottle cage battery for this frame



[brbr]

There is no need to remove the battery when charging, there are holes on the body, corresponding to the charging port on the battery,
Please ignore the bottle cage battery this battery will not work, Bafang is developing a bottle cage battery for this frame

View attachment 111373

Wow! Bottle cage battery for this frame, that’s great!
Do you have more information ?
