Hybridizer Sann Bafang M500 series Aluminum FS

Neeko DeVinchi

E*POWAH Elite World Champion
Dec 31, 2020
1,032
1,373
UK
This is crazy!!!😮

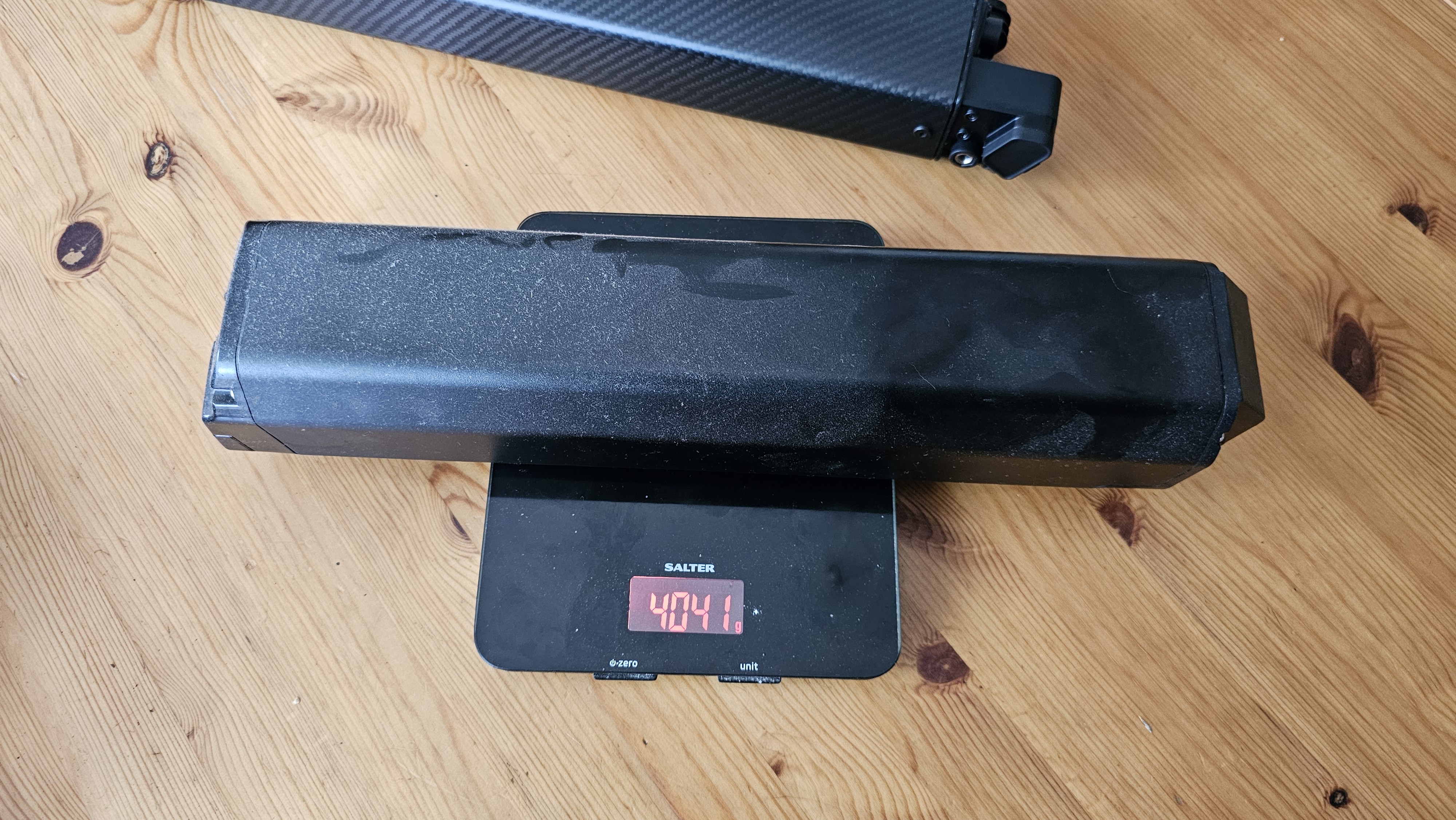

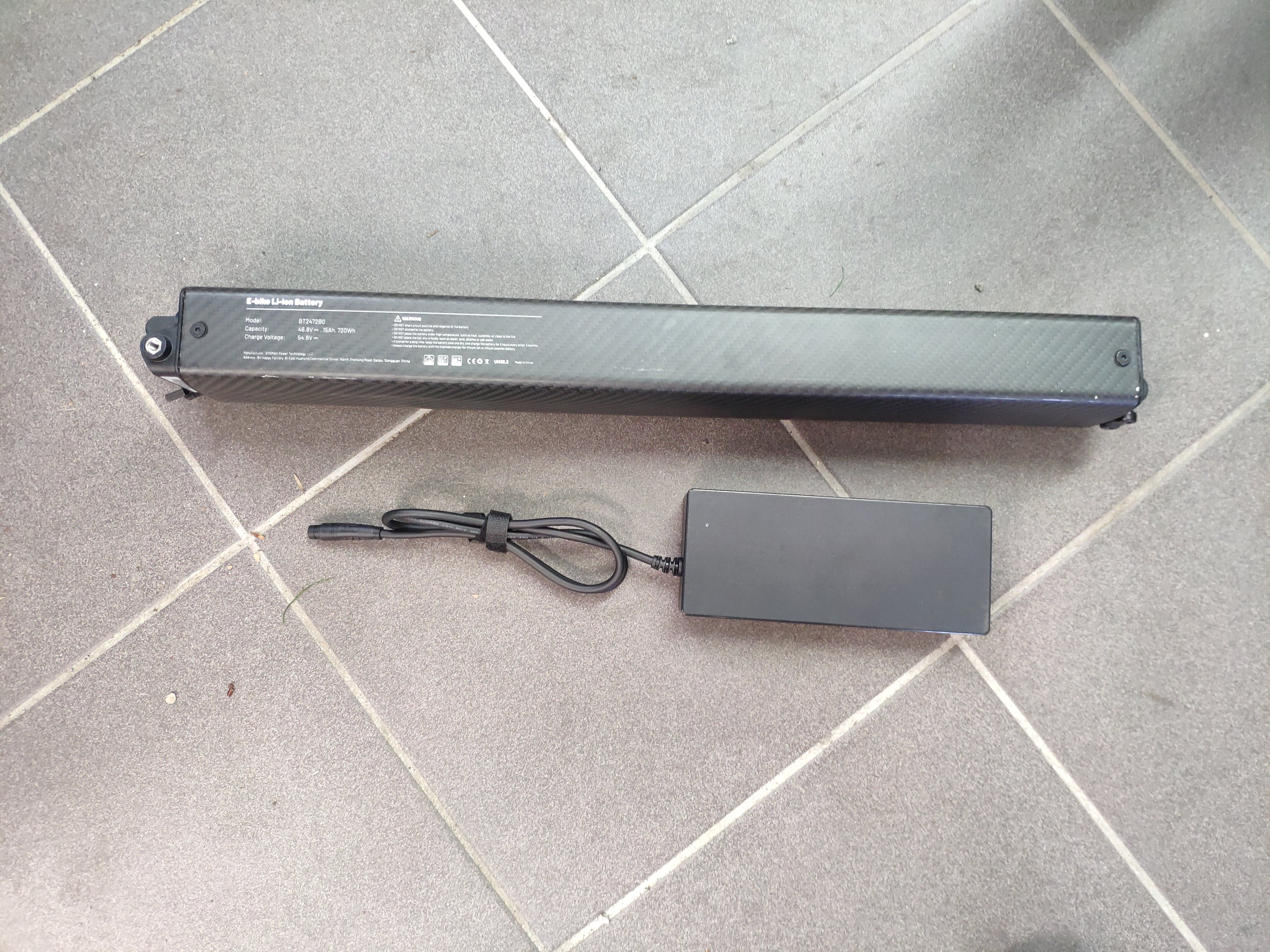

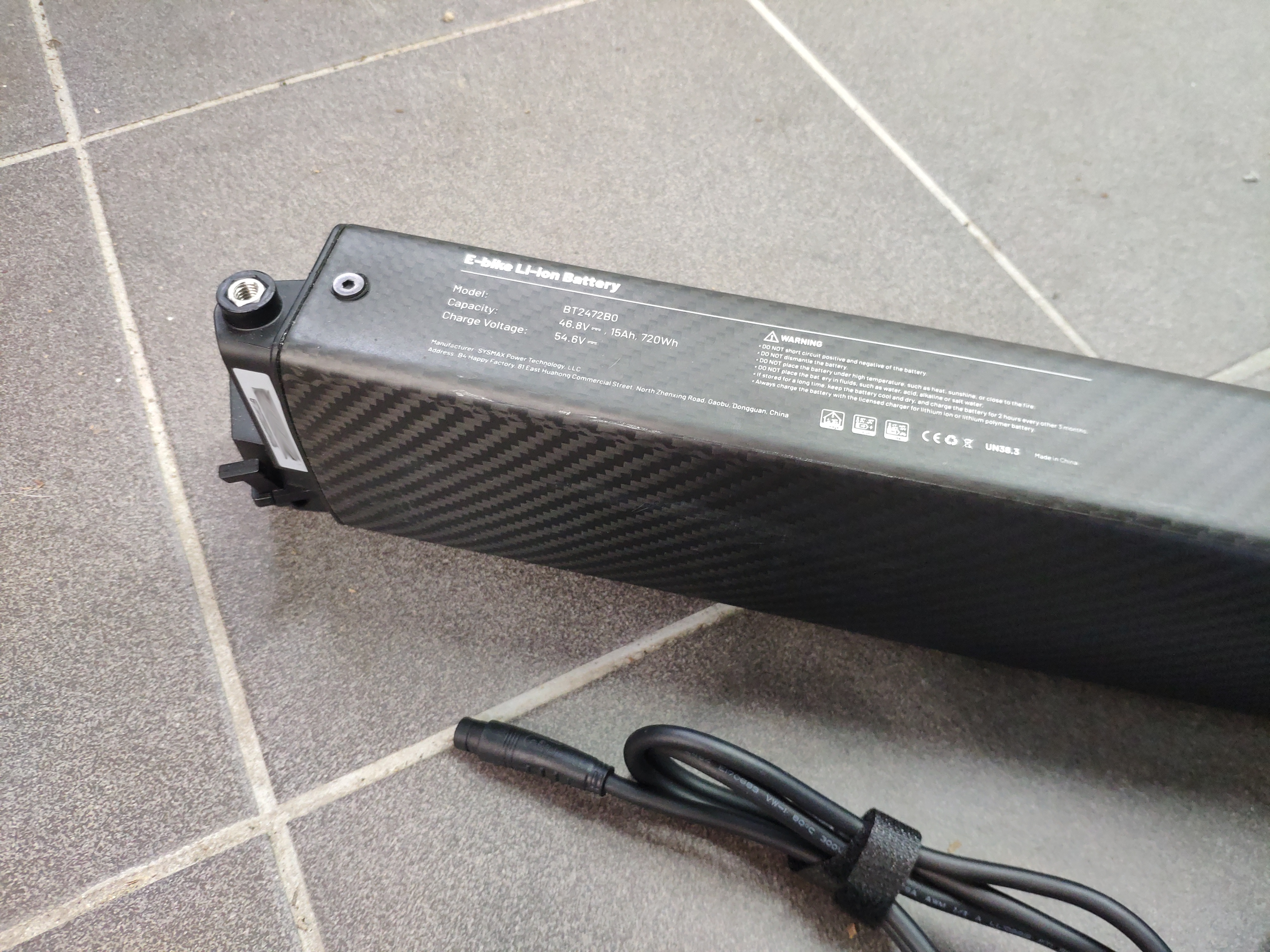

Seriously, why haven't other brands opted to use a carbon shell for batteries.

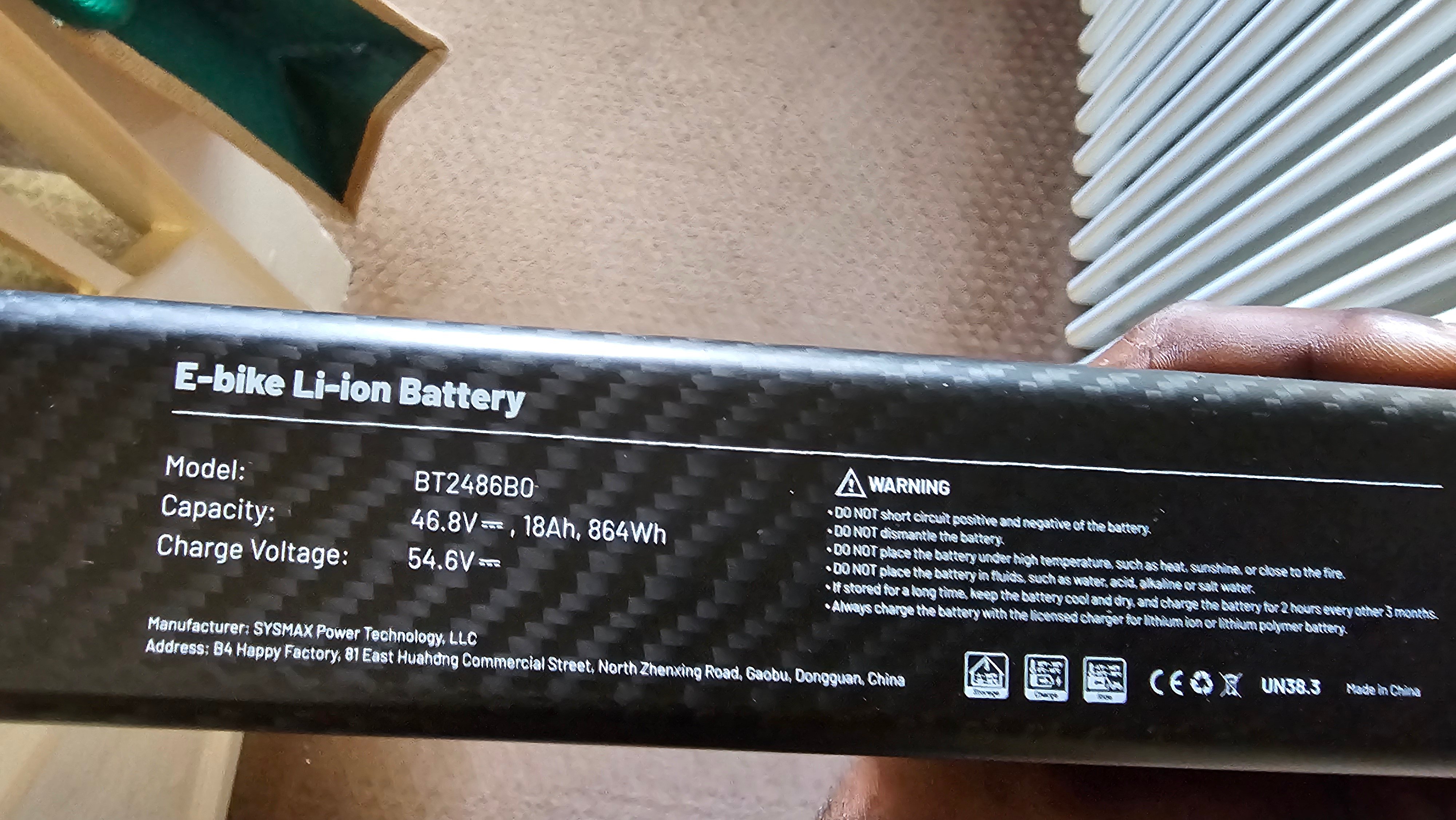

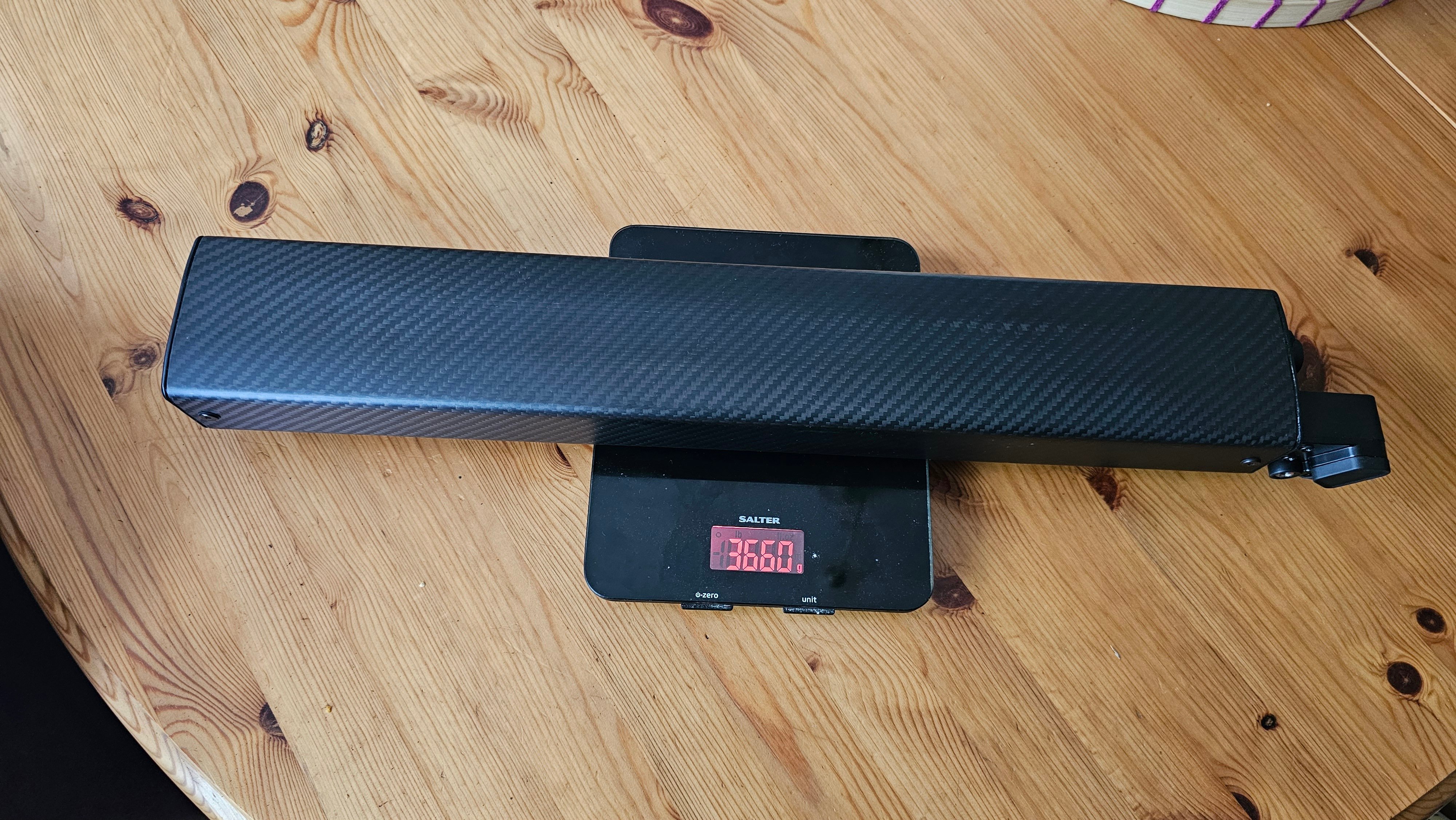

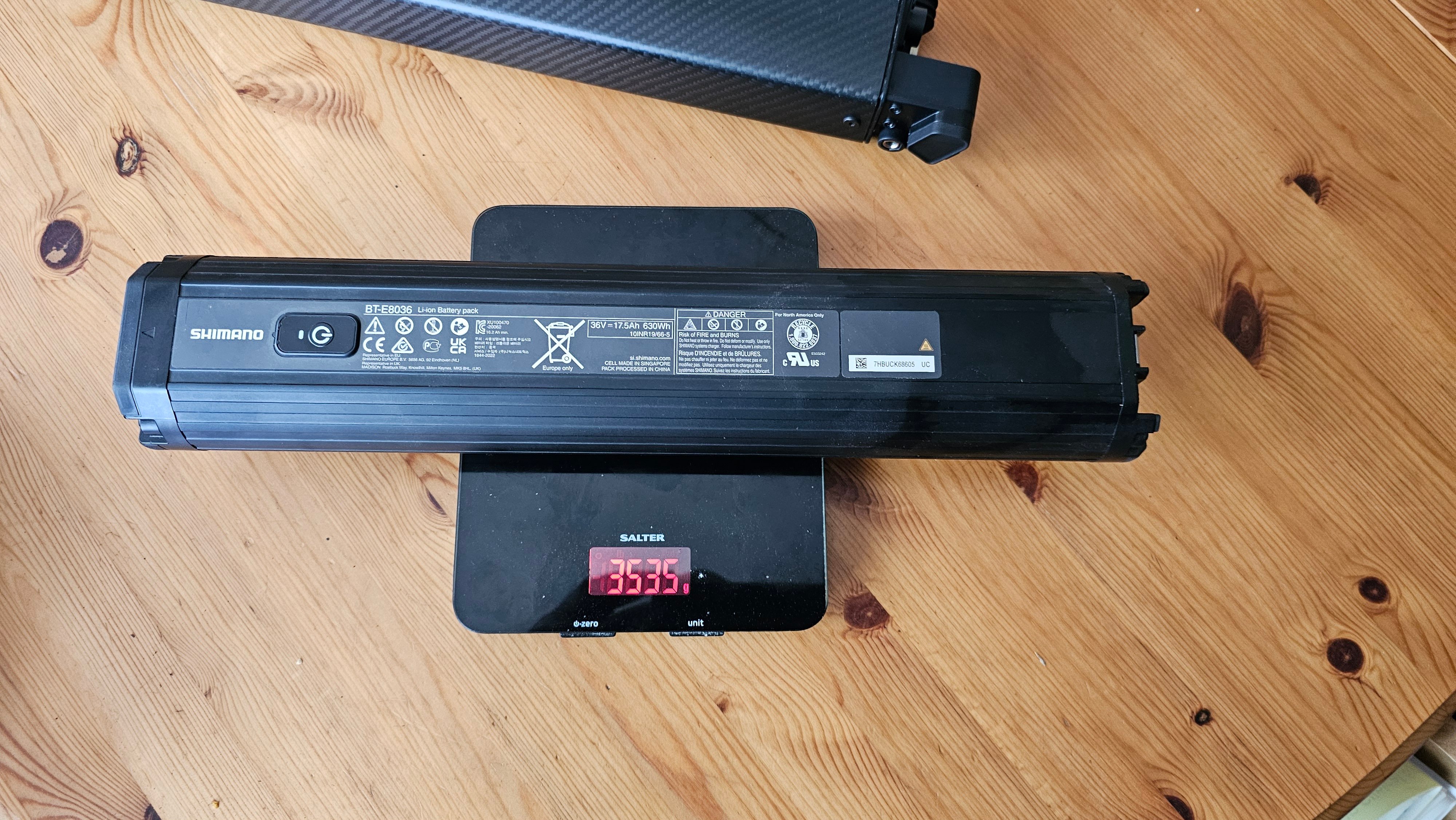

1 kg more between a shimano 36v 630wh battery compared to the 48v 864wh for the Hybridizer Sann.

And 400g lighter than the 840wh Dengfu E10/E22 battery.


Tomblarom

Active member
Feb 3, 2021
137
207
Germany
@lkdoido
  • Fork: Rockshox ZEB Ultimate RC2 190mm
  • Coil: RockShox Super Deluxe Ultimate 210x55mm + Sprindex (adjustable spring)
  • Tires: Schwalbe Eddy Current 27.5"x2.80
  • Rims: Rodi Blackjack READY40
  • Hubs: Novatec D462SB-SL-B12, Novatec D041SB-B15
  • Drivetrain: SRAM EX1 8S Derailleur + Shimano SLX SL-M7000 (modified to 8S)
  • Brakes: Shimano XTR M8000 + Magura MT5
  • Dropper: Satori Pro 150mm + KS Southpaw Lever
  • Lights: Lupine SL AX + Lupine C-14


Neeko DeVinchi

E*POWAH Elite World Champion
Dec 31, 2020
1,032
1,373
UK

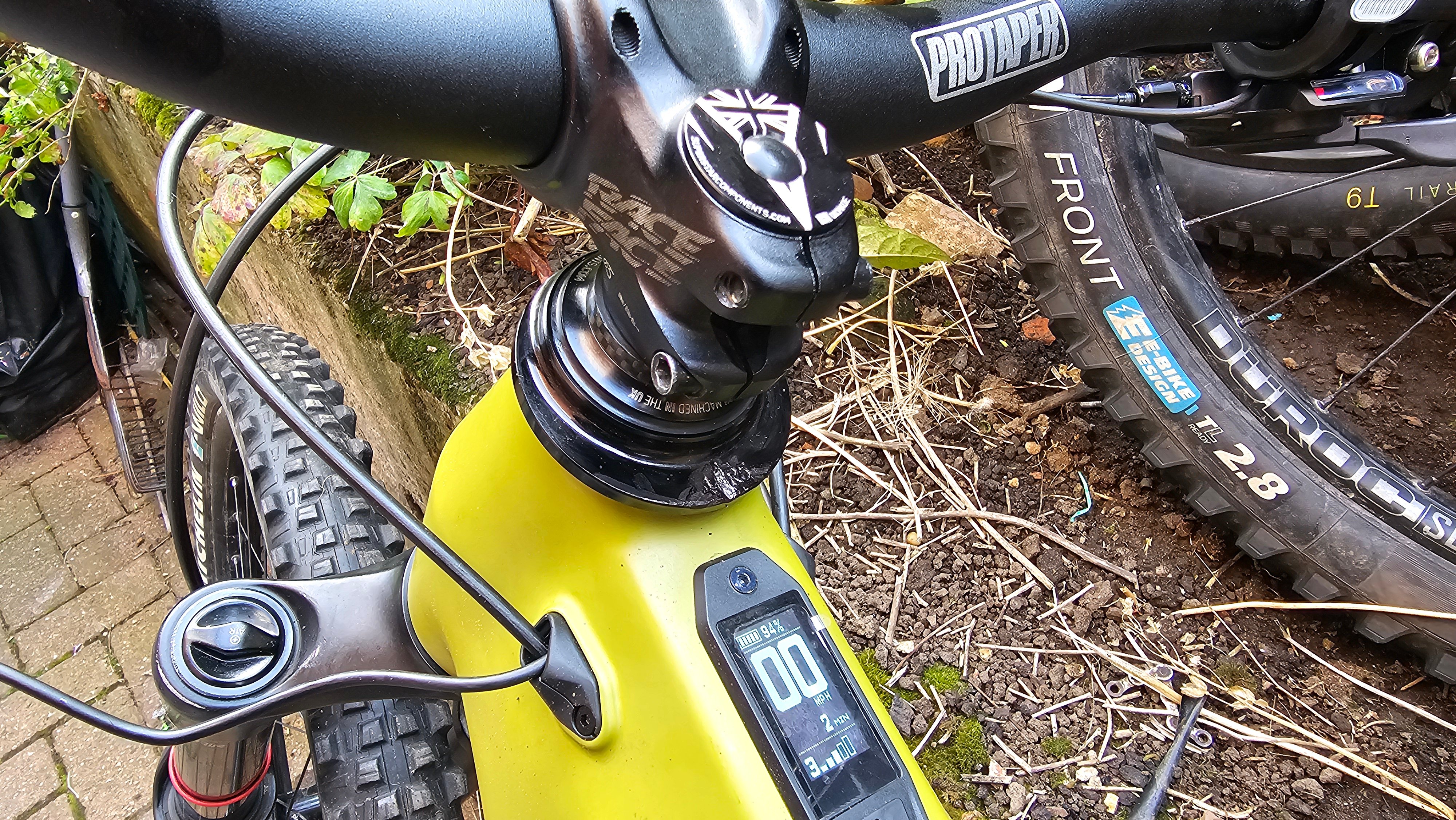

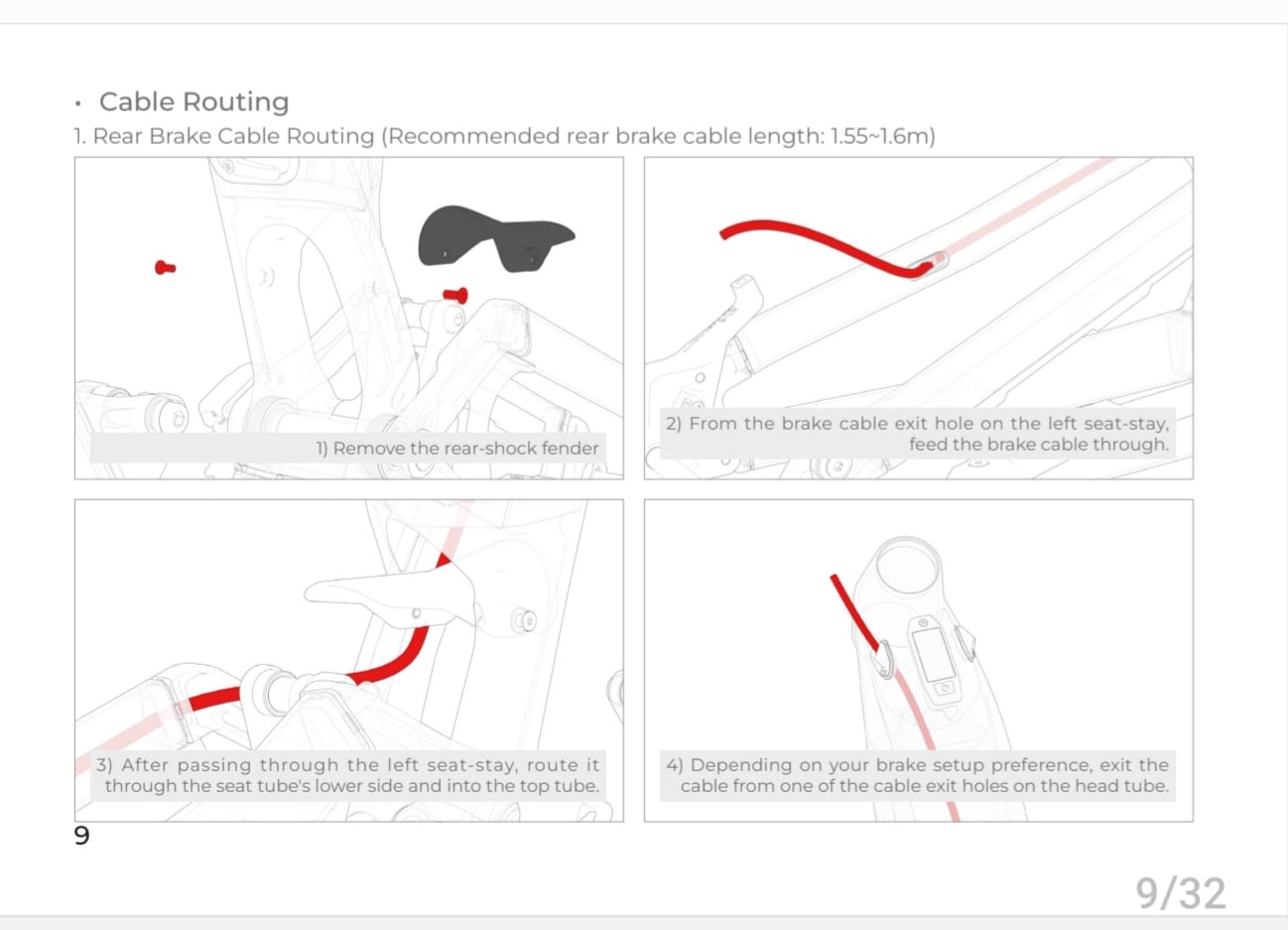

Has anyone else thought about running the rear brake hose through the downtube, instead of the top tube?

My fear is that I'm going to hear cable rattle constantly. Not to mention, I'm a UK rider.
Screenshot_20240820_134041_Samsung Notes.jpg

So my preference of routing the rear brake would suit going out of the right side of the headtube, instead of the left.


Neeko DeVinchi

E*POWAH Elite World Champion
Dec 31, 2020
1,032
1,373
UK
Hallelujah!!!

The reach adjust headset fits in the Hybridizer Sann👍🏿

Massive shout out to Superstar Components. They always come in handy for amending geometry for frames I build.

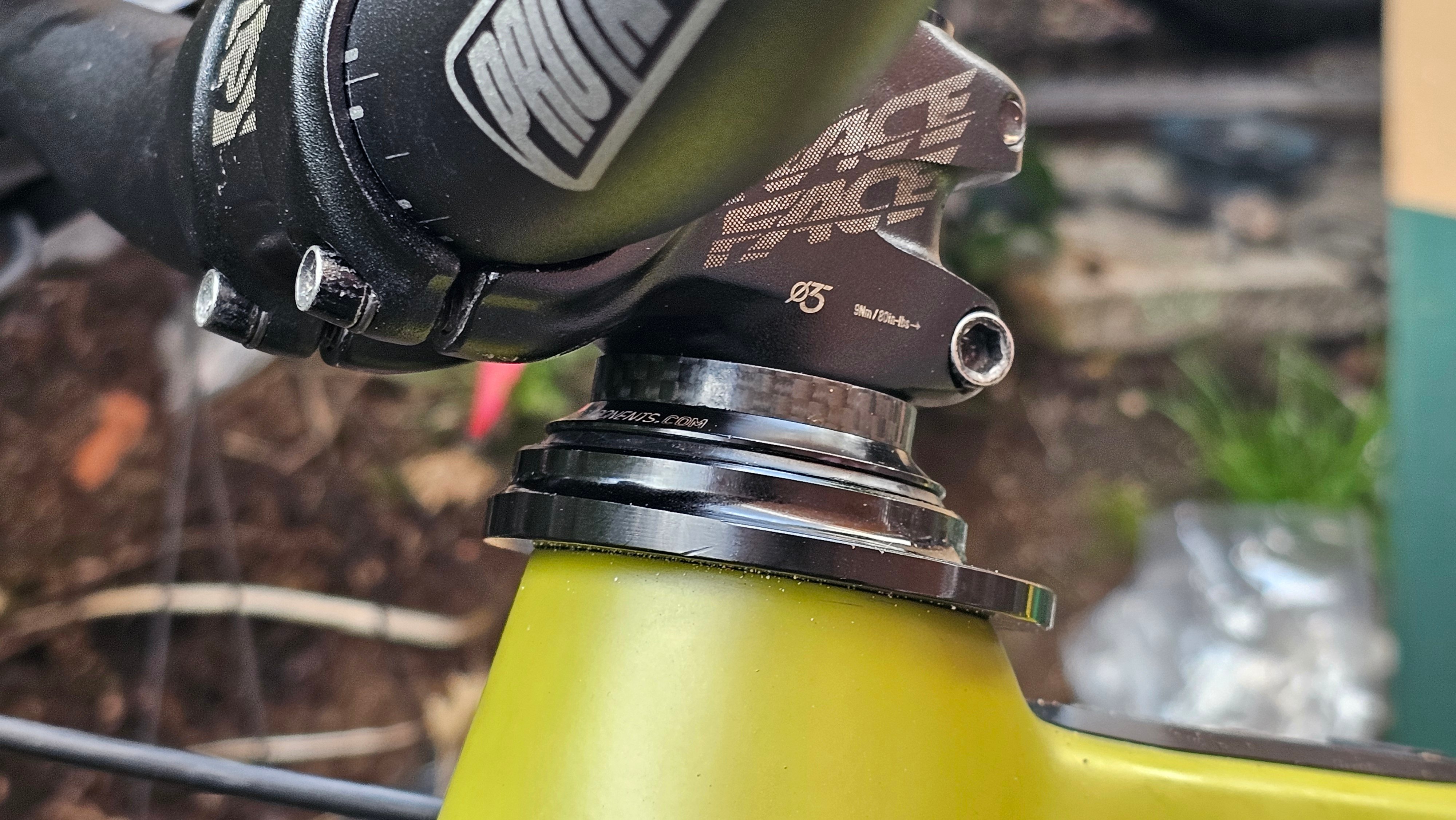

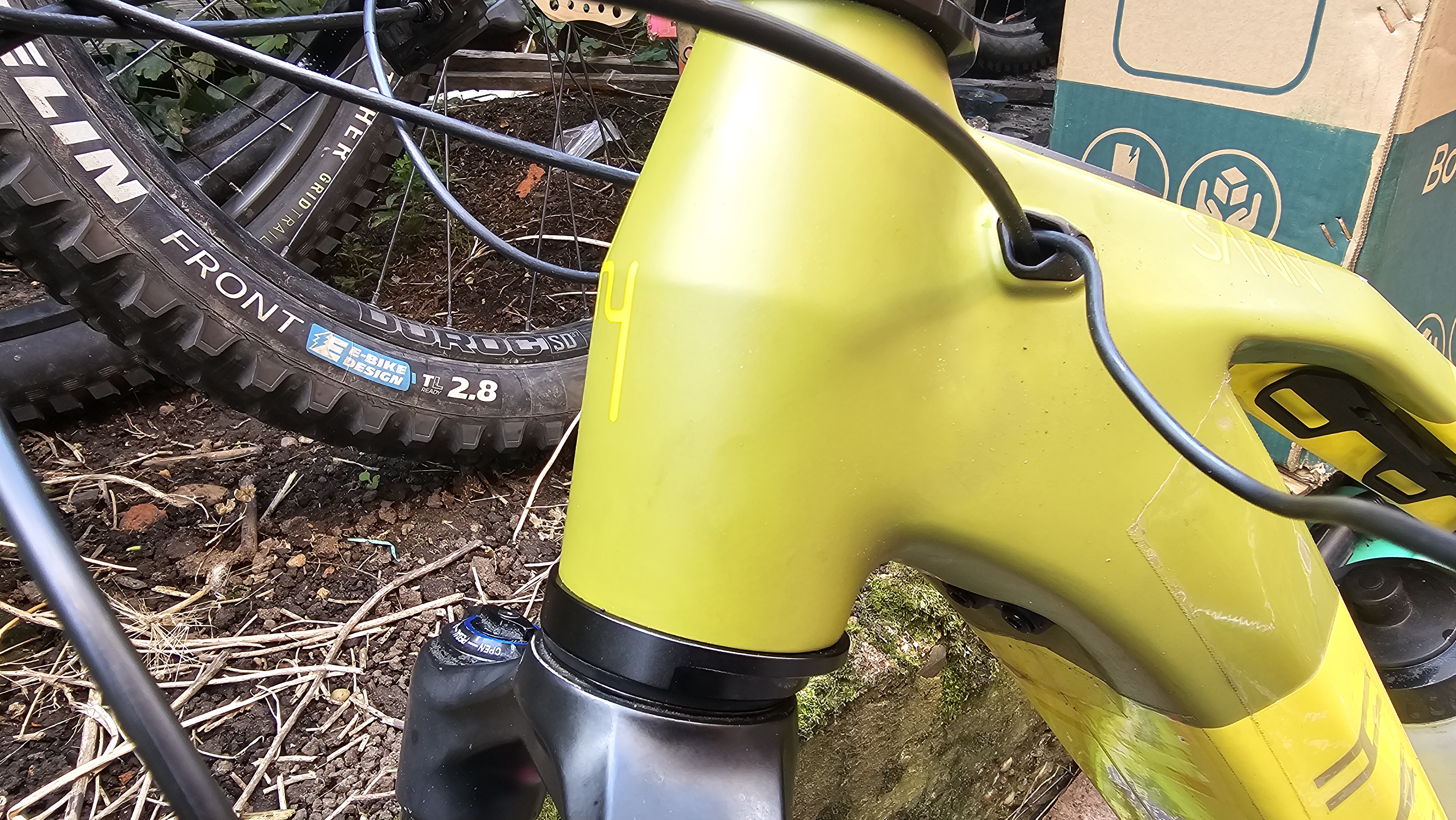

As you can see, the lower headset cup is perfectly seated into the headtube.

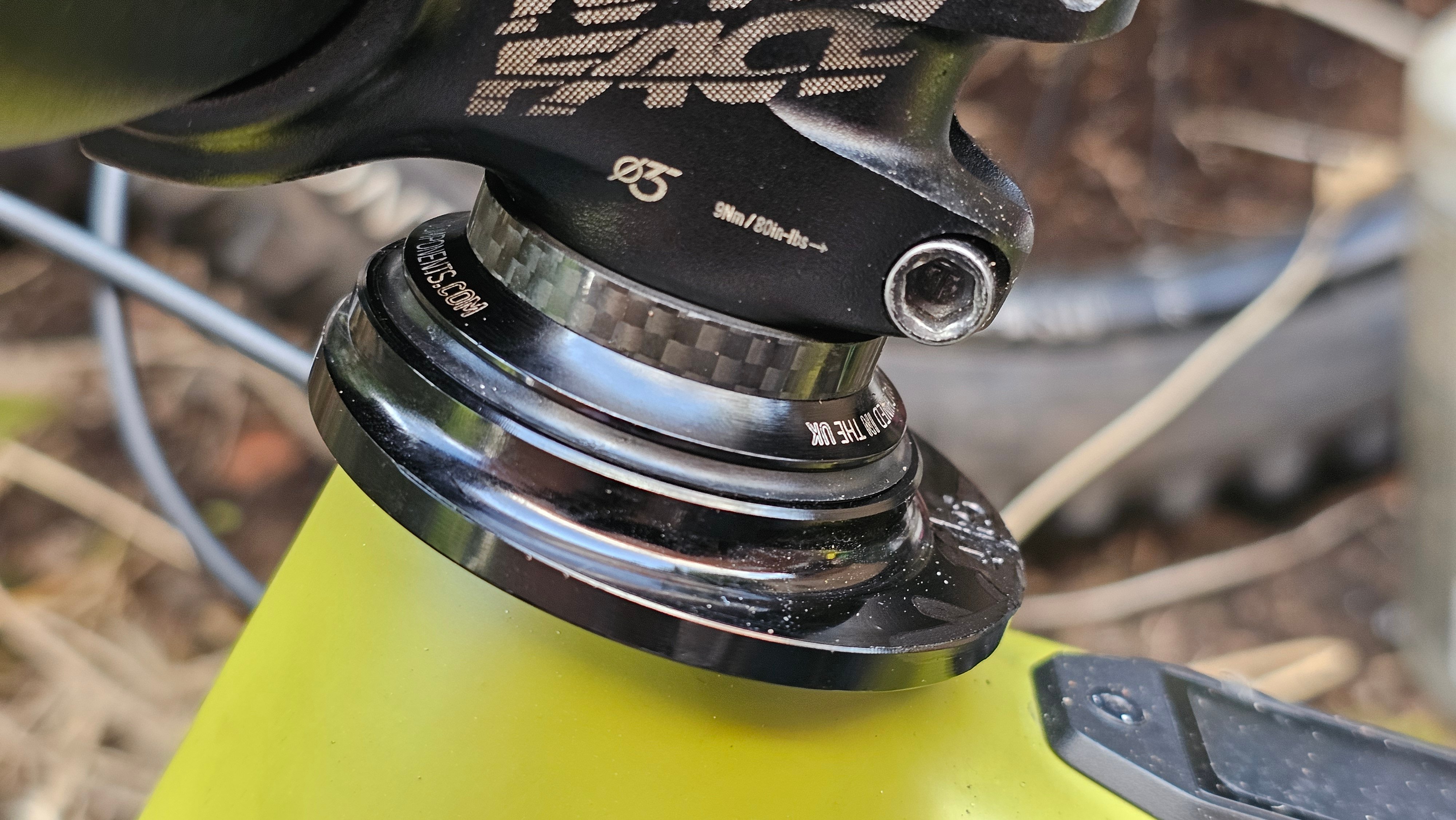

Same thing for the upper headset cup.

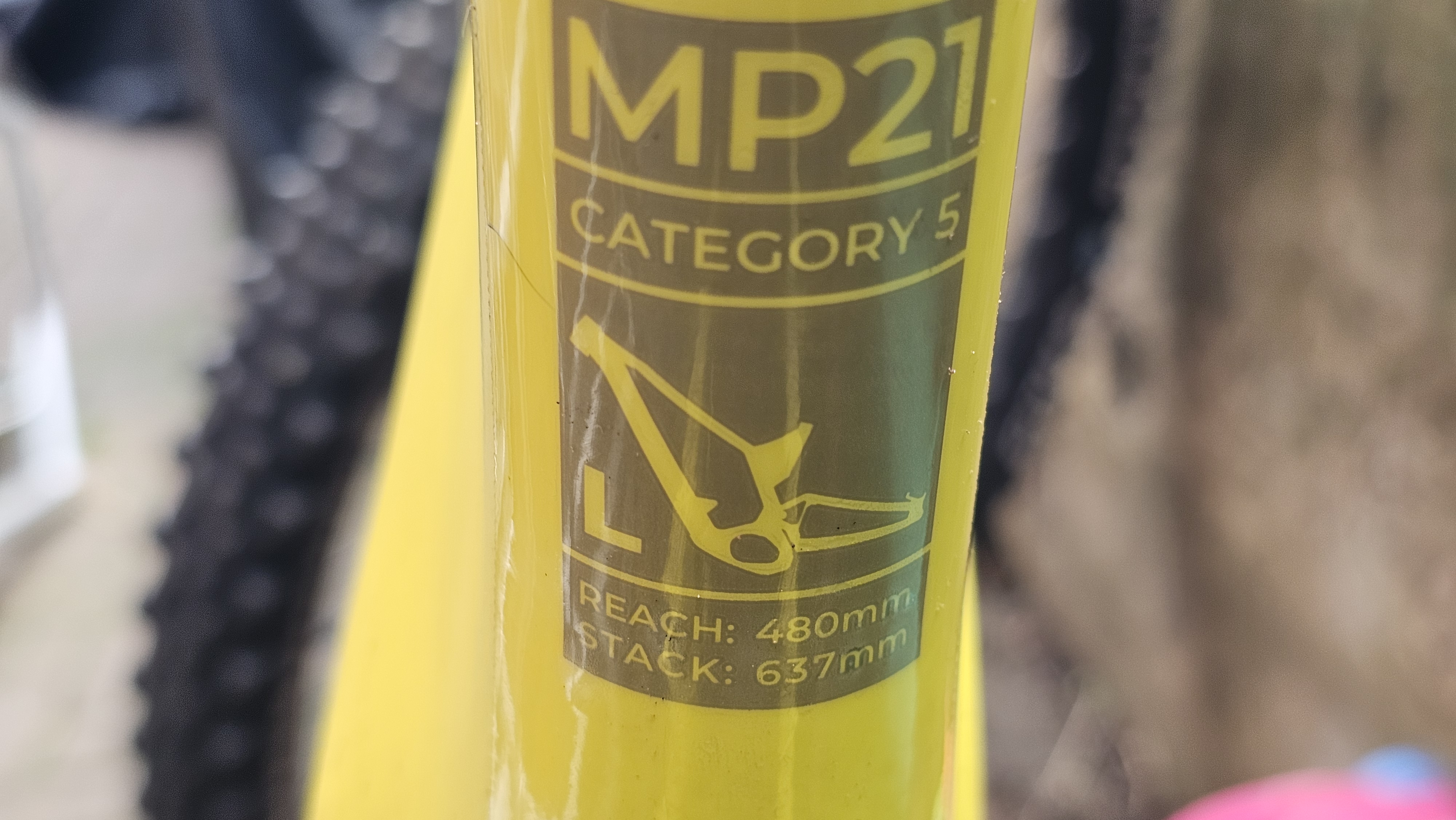

Naturally, the stack height has been altered. But that's OK for me, as the Large frame was on the smaller size for me at 6foot 3inches.

The outer cup of the upper headset is wider than the headtube. So aesthetically, it's obvious it's a modification.
But it has made a difference imo. Especially since the reach in the low position is slightly over 480mm.

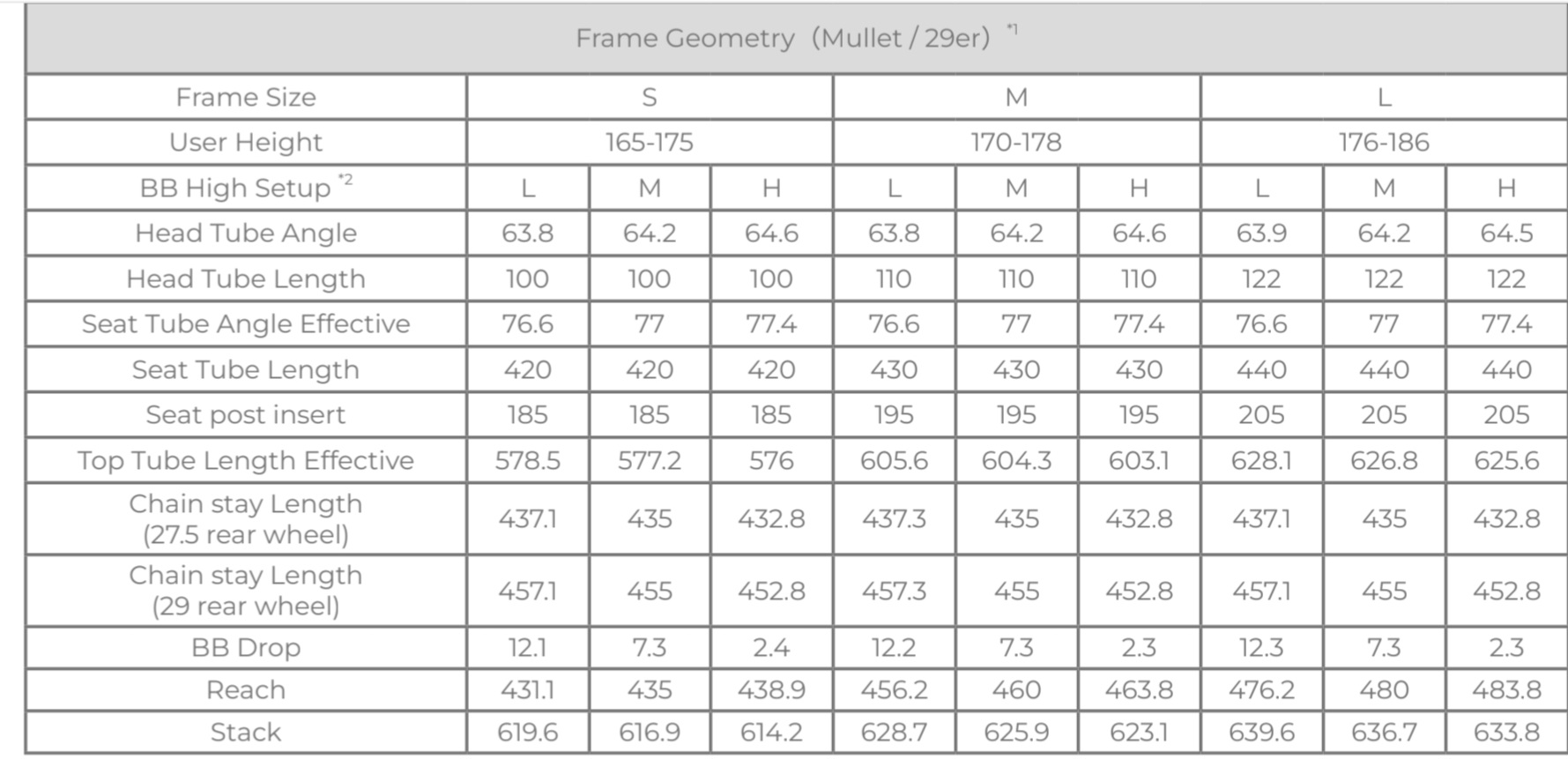

Screenshot_20240823_160745_Samsung Notes.jpg

It is a pity that Hybridizer don't have either an XL or XXL.

Especially since this is the first emtb to use a Bafang motor which is CAT5 rated.

Oct 17, 2022
3
0
PH
If anyone is thinking about buying a Hybridizer bike, I want to say that the bike is great. I also bought an adapter for bike parks (for a regular crankset without a motor and battery). The bike works really super.

Even with some problems and issues, the Hybridizer team is very responsive. They answer emails quickly and fix problems professionally. If you're unsure about buying a bike directly from Asia, you will be happy with Hybridizer.
Klemen
Where did you order the crank/BB adapter?


Neeko DeVinchi

E*POWAH Elite World Champion
Dec 31, 2020
1,032
1,373
UK
I need to try this as a full 29er now😲


ATXZJ

New Member
Sep 12, 2024
3
6
El Paso Texas
Hi.
Could anyone share about Hybridizer Sann build please.

I'm looking for:
1. Front fork
2. Derailleur
3. Cassette
4. Damper
5. Brakes

What did you use or you are going to use?
Thanks.

Built my wife's size small Sann up last week. Comes in at 55lbs with pedals

Lyrik 170mm
Sram EX1 8spd ebike drivetrain
DVO Topaz V3 210x55
XT Brakes with 200mm rotors
DTswiss EX11 with hope pro4 (mullet)



Neeko DeVinchi

E*POWAH Elite World Champion
Dec 31, 2020
1,032
1,373
UK

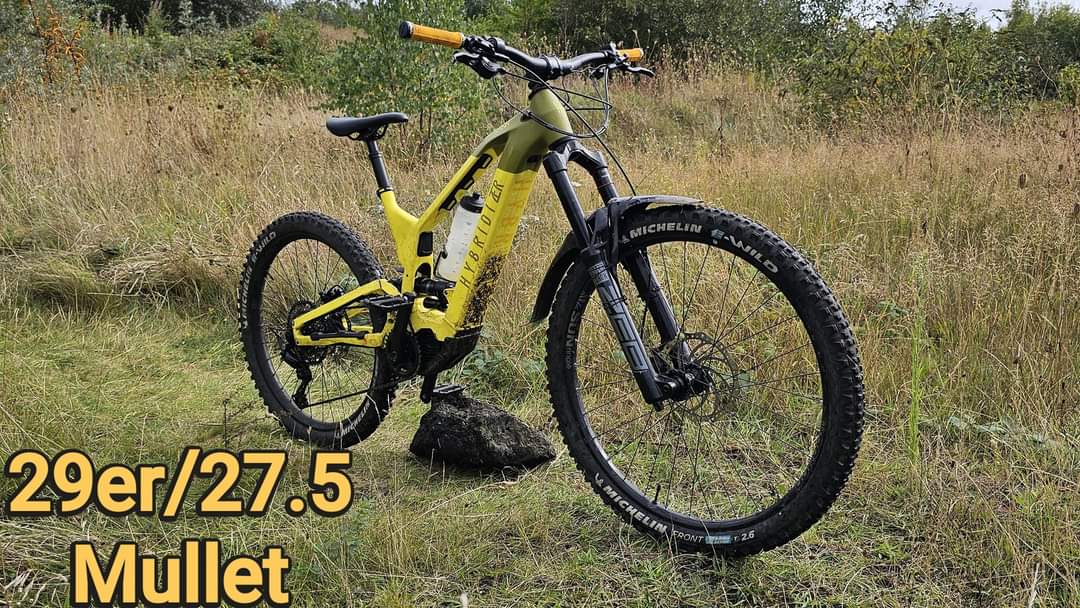

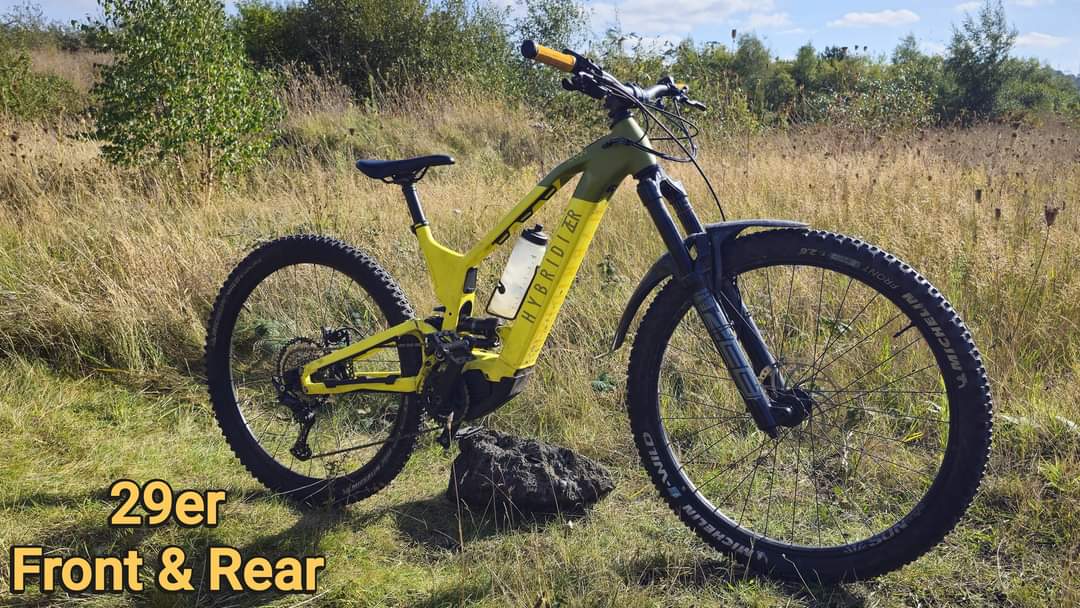

Hybridizer Sann in either MX setup or 29er

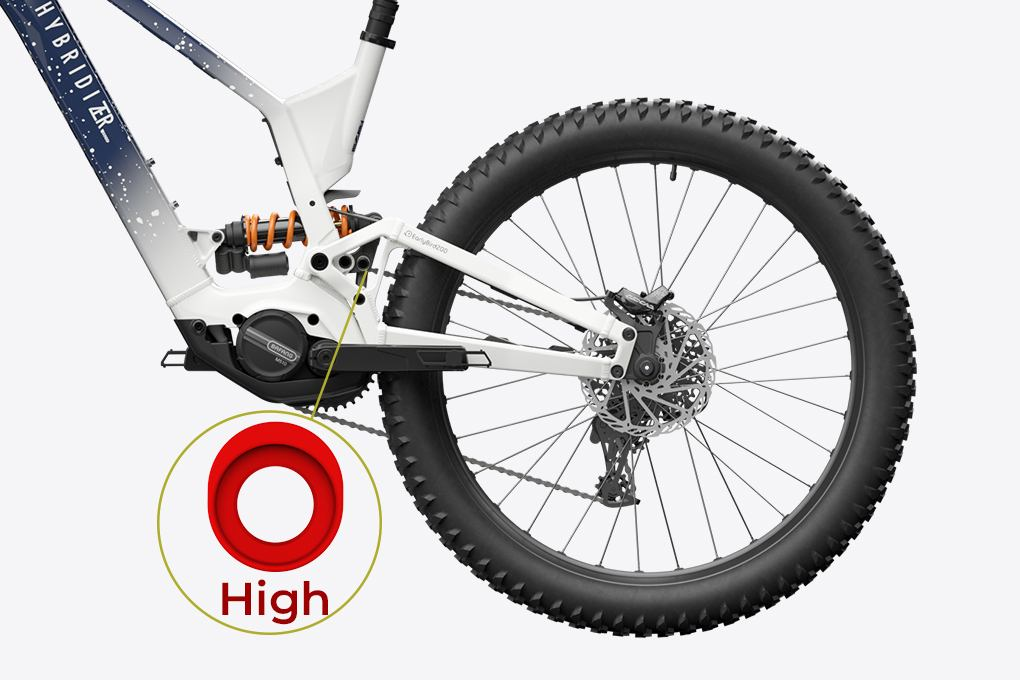

Personally, I do prefer it as a full 29er. Note the none-driveside crank position per each image to guage bb height change👍🏿


ATXZJ

New Member
Sep 12, 2024
3
6
El Paso Texas
Hybridizer Sann in either MX setup or 29er
View attachment 146768
View attachment 146769
Personally, I do prefer it as a full 29er. Note the none-driveside crank position per each image to guage bb height change👍🏿
Looks good!

Went with mullet since those were the wheels I had plus the wife is 5'3. Also ran the suspension in the neutral setting. As a bonus, it did come with a 160mm crankset


El Topo

Member
Jul 23, 2022
139
53
Germany, Bavaria

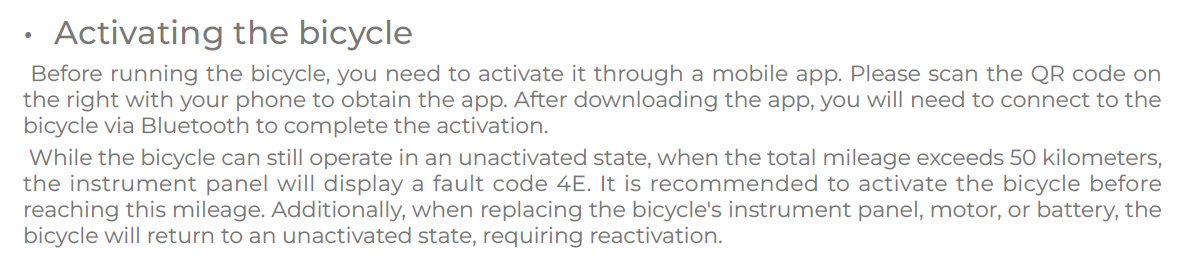

I discovered something very sketchy and untypical for Bafang. Hybridizer forces to activate the ebike, by downloading their chinese app. If you swap the battery, change the display or the motor, it will be deactivated again. This is super annoying when having multiple batteries or wanting to switch to M560!

What's even the purpose of this app? Gathering userdata for free? I see no advantage in using this app.

View attachment 133954
Thanks for pointing that out.
Can anyone confirm, that Bafang is basically bricking YOUR bike, if you don't install THEIR app?

If yes, I assume that is a "feature" of this new in-tube-display? Just so one knows what to avoid in the future.


ATXZJ

New Member
Sep 12, 2024
3
6
El Paso Texas
I discovered something very sketchy and untypical for Bafang. Hybridizer forces to activate the ebike, by downloading their chinese app. If you swap the battery, change the display or the motor, it will be deactivated again. This is super annoying when having multiple batteries or wanting to switch to M560!

What's even the purpose of this app? Gathering userdata for free? I see no advantage in using this app.

View attachment 133954
Never downloaded anything or even considered it as i pretty much hate any and all apps. The Sann was ready to go when i got it, including a full charge.

Shrug


Neeko DeVinchi

E*POWAH Elite World Champion
Dec 31, 2020
1,032
1,373
UK
Technically, the downtube display and remote aren't Bafang displays. Unlike the dpc245.3 etc. It's Hybridizers.


I too made that assumption. The Besst Tool doesn't recognise it as a HMI.

In addition, the display can't connect to either Bafang Go or Bafang Go+. It only works on Hybridizer' dedicated app.
It's somewhat similar to the DZ41 display. It recognises the protocols.

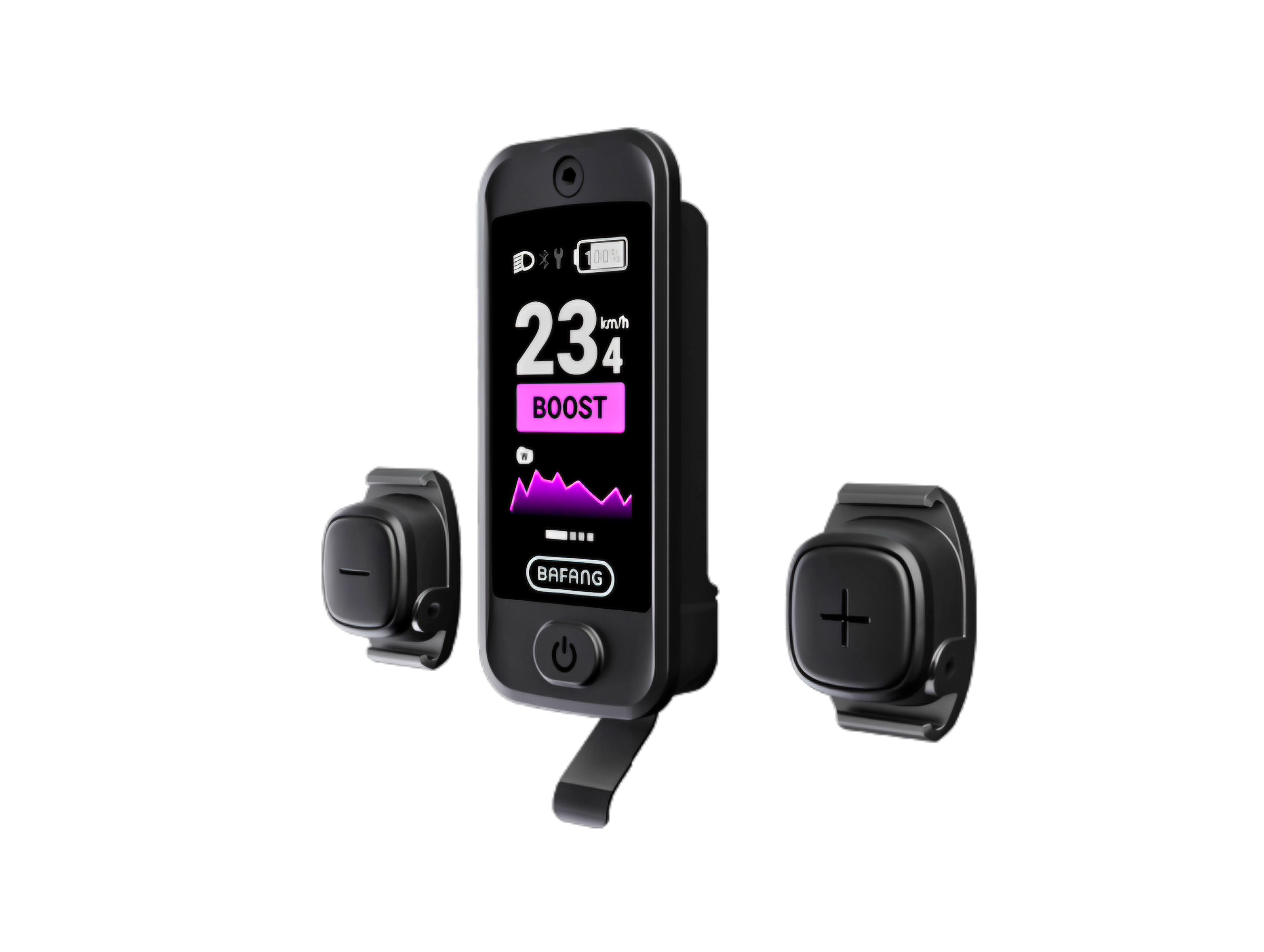

The DPC030 is the "True" Bafang display for top tube frames. Which will connect to Bafang Go/Go+ and Besst Tool. If I'm not mistaken, this display comes stock on the Frey Dopamine 2.0.


Tomblarom

Active member
Feb 3, 2021
137
207
Germany
@Neeko DeVinchi this display is not manufactured by Hybridizer. The model is called Topology DZ45. See my post here. The brand Topology (which also produced the famous SW102) meanwhile belongs to Star-Union Wuxing and is listed here: DZ45 - Displays - Products - JIANDE WUXING BICYCLE CO.,LTD.

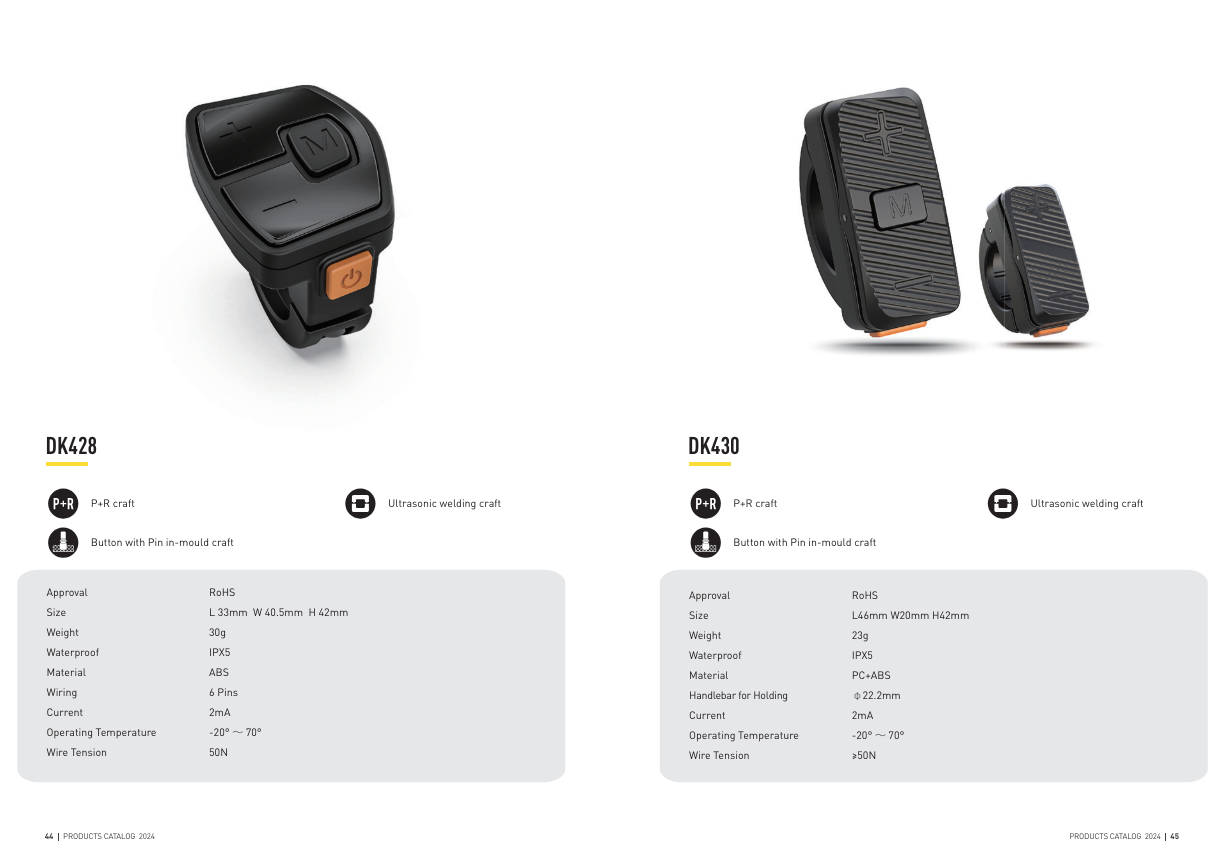

Btw you can swap the DK428 remote for a more ergonomical one: DK430. Unfortunately it can only be bought in bulk, not in small quantities. 😫 I was not able to source it...! The screenshot is from the attached catalogue PDF.
image (1).png


I was thinking about replacing my DZ45 with a Bafang DPC030.. I'm wiling to enlarge the cutout in the toptube, to make it fit. On the otherside I hate that Bafang is not allowing to show voltage instead of percentage as battery indicator anymore. I question whether doing a swap, is worth the effort, only for use of BESST GO+.

The Key-Disp KD186 also looks very promising.


Attachments

  • 2024-TOPOLOGY-PRODUCTS-CATALOG.pdf
    9 MB · Views: 42
Last edited:

patdam

Well-known member
Jan 17, 2019
889
598
france
@Neeko DeVinchi this display is not manufactured by Hybridizer. The model is called Topology DZ45. See my post here. The brand Topology (which also produced the famous SW102) meanwhile belongs to Star-Union Wuxing and is listed here: DZ45 - Displays - Products - JIANDE WUXING BICYCLE CO.,LTD.

Btw you can swap the DK428 remote for a more ergonomical one: DK430. Unfortunately it can only be bought in bulk, not in small quantities. 😫 I was not able to source it...! The screenshot is from the attached catalogue PDF.
View attachment 146805

I was thinking about replacing my DZ45 with a Bafang DPC030.. I'm wiling to enlarge the cutout in the toptube, to make it fit. On the otherside I hate that Bafang is not allowing to show voltage instead of percentage as battery indicator anymore. I question whether doing a swap, is worth the effort, only for use of BESST GO+.

The Key-Disp KD186 also looks very promising.
hi. do you find a supplier for the DPC030 ? i didn't


rhythm_101

New Member
Sep 16, 2024
3
1
Barcelona
I have been speaking with Xu regarding this frameset, and he confirmed you can purchase a compatible chainguide directly from them, this will help with better chainwrap and no modifications will be needed to make it fit,

Regarding Crank lengths, He said They can supply a set of 160mm cranks made by them, however, they only fit the M510 motor, as the 560 has a wider case, if you go for the 560, it will be supplied with the Bafang branded cranks.

He also confirmed he can supply an X-Fusion H3A RCP at a reasonable price (for Europe)



This will definitely be the frame i will be going for when I finally get round tobuilding up an E-bike, just need to sell my Norco now hahah!

Sam


El Topo

Member
Jul 23, 2022
139
53
Germany, Bavaria
Thanks for the feedback, regarding the forced activation. It seems like they didn't go through with it, but the development into that direction is very worrisome and counters the DIY-idea of these Eastern branded frames. I paid for the hardware, I demand the right to whatever I want with it.


LAnton

Active member
May 12, 2022
550
458
Russia
Hey @Mabman, have you bought one? They seem to only ship to US and UK. I'm currently trying to convince them to ship to Europe..

View attachment 125685
View attachment 125686
View attachment 125687

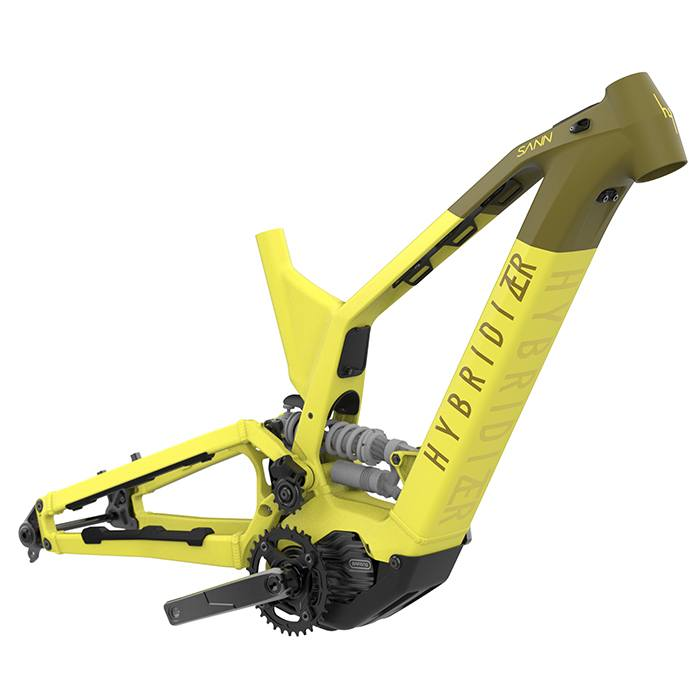

Their website is very informative: HYBRIDIZER High-Pivot design, M500/M600-bracket and modern geometry with adjustable parts. I don't understand why this bike isn't becoming more popular amongst emtb enthusiasts? Even Rob reviewed it recently:
Here is their YouTube-Channel: Hybridizer bicycle

Am I missing out something?
Perhaps it is very heavy for the m510. 25 kg is a lot


LAnton

Active member
May 12, 2022
550
458
Russia
its a alu frame with burly components. nothing strange

my full carbon e10 was also 26kg 😲
All companies started with heavy bikes. I hope that soon we will see a bike with an M560 motor weighing 20kg :) And it will be very quiet, like the M510 motor


LAnton

Active member
May 12, 2022
550
458
Russia
What e bike do you have and what is the weight?
Cef49 (M560) - 22kg, Cef50 (M820) - 18,5kg, e10, M600 - 25kg. I'm tired of the noise of the M820 and M560 engines. Therefore, I decided to assemble the E82 with the M510 engine. I used to have an M510 v1.0 engine and it was very quiet. Do you think the CEF50 frame weighing 2.7 kg is a good frame? Why can't we make a 2.7 kg frame for the M510 motor?
