Bosch Gen4 motor cover

[Embee]

Nice idea, I really would like to do something like this for my own Cube also! Is it easy to remove & install the original cover, just those 4 screws open and that's it..?

I was also thinking if 2mm aluminium plate would be enough, or maybe some 4-5mm PE plastic etc. What do you think?

Cover on the 2020 stereo is held on by just 3 fastenings - 2 at front and 1 at the rear/side. Haven’t tried mine in anger yet, but thought 2mm would be a good start and bendable given my limited metalwork skills. At just £2.60 (incl postage !) it’s worth trying to protect probably the most vulnerable part of the bike. Btw, shame Cube and others don’t put something there as std. I ride a BMW 1200 GSA motorcycle with a whacking big metal sump guard as std
!!



[D8N]

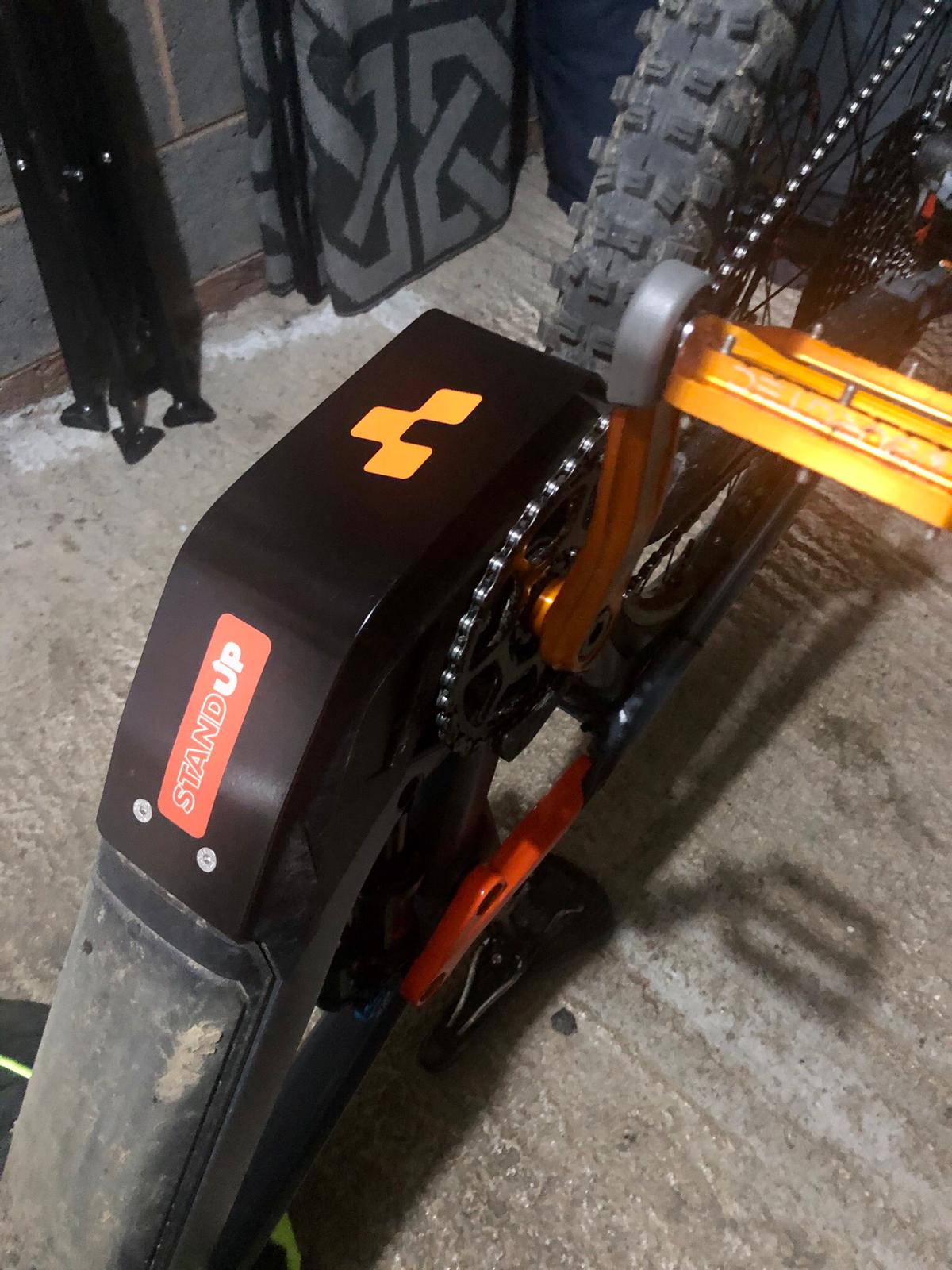

View attachment 37847

Hi Mitch,

I’m looking to order one of these for my bike.
Where did you order yours from mate?

Cheers, Dan



[MitchF]

Ordered it direct from the manufacturer in Italy, no UK distributor.
??



[D8N]

Ordered it direct from the manufacturer in Italy, no UK distributor.
??

Do you remember what you paid with postage? I've had a look through one website and its coming back at £138 with postage.



[Superken73]

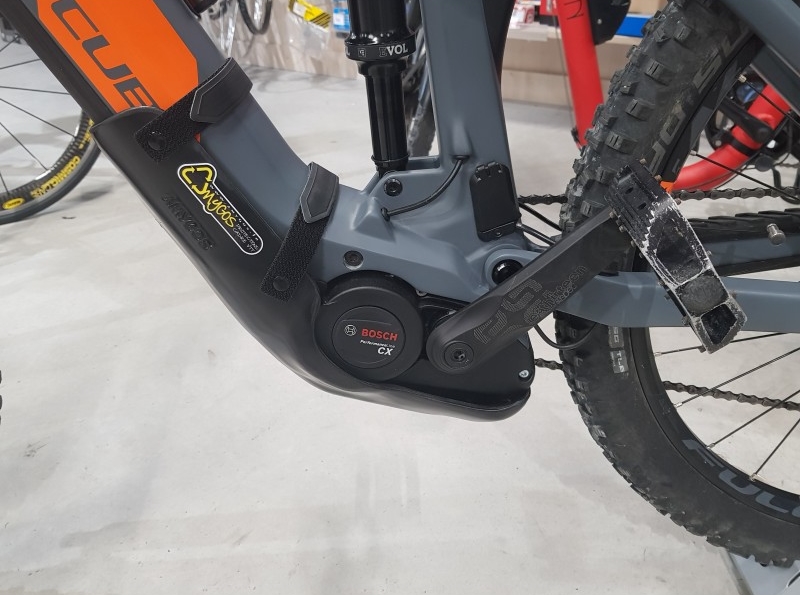

carter pour Stéréo Hybrid 2020, carbone 27,5 p - Amygos

carter pour Stéréo Hybrid 2020, carbone 27,5 p

www.amygos.fr



[Giff]

They are listed here in the UK.

Bosch Electric Bike Spare Parts for E-Bikes – e-bikeshop.co.uk

We don't just sell eBikes, we offer all the spares and parts to support them too. Offering spare parts for Bosch Active, Performance and CX eBike systems.

www.e-bikeshop.co.uk



[MitchF]

Do you remember what you paid with postage? I've had a look through one website and its coming back at £138 with postage.

No, but it was nothing like that , I wouldn’t have paid it



[Dave_h34]

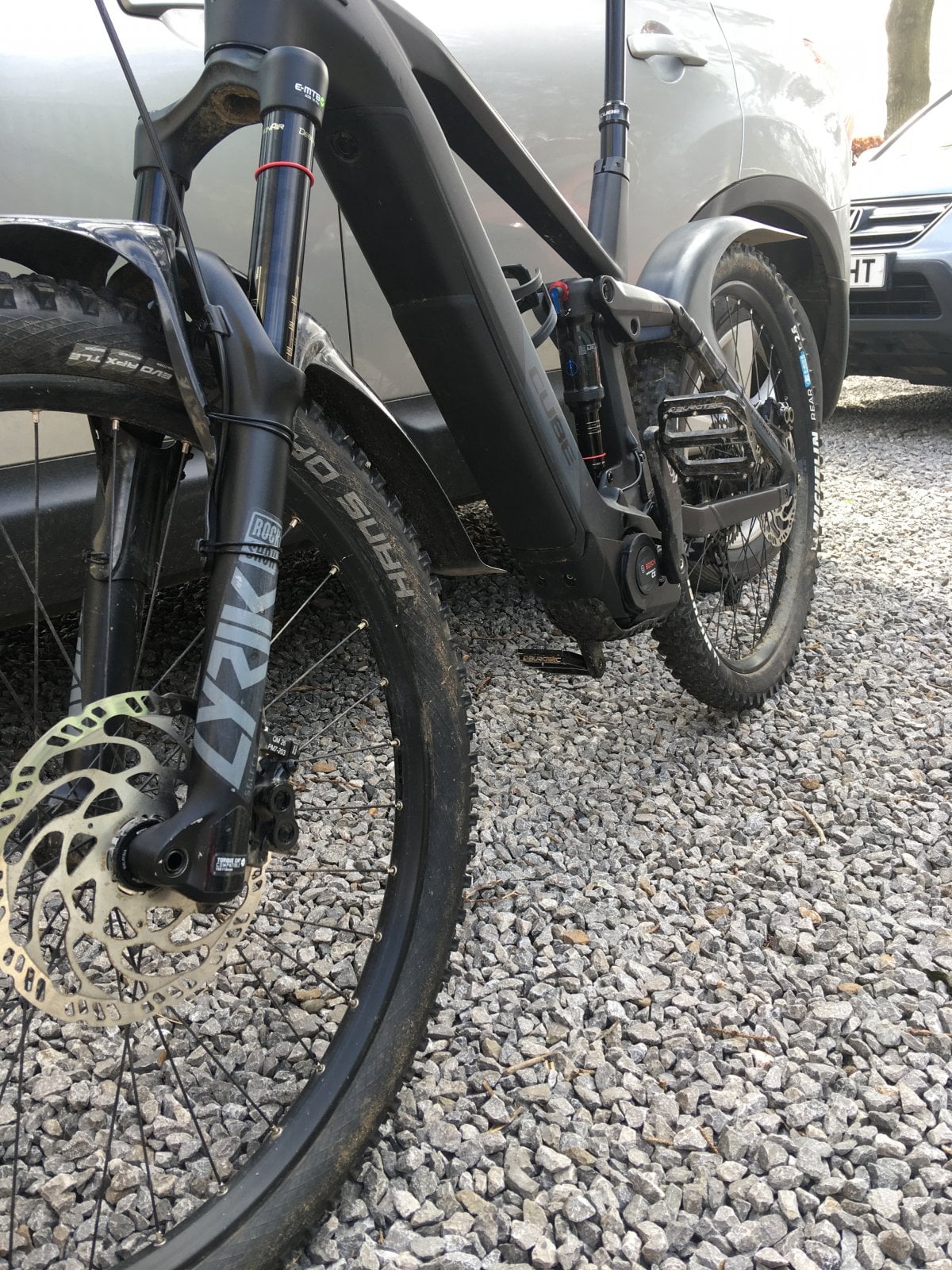

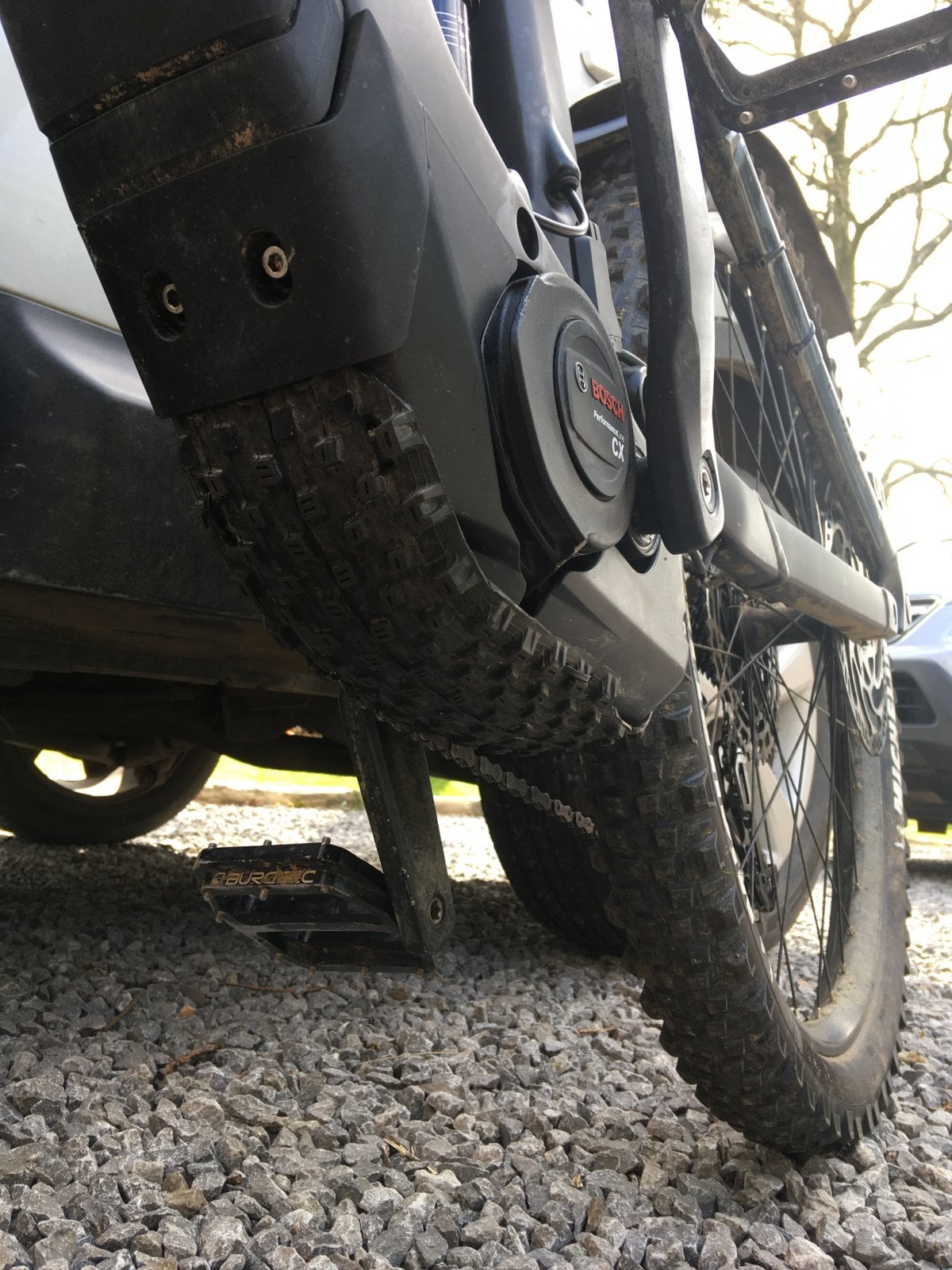

This’ll do until someone builds a nicer aftermarket one for the 2020 bike.

View attachment 28041

View attachment 28042

That right there is genius! I salute you. ?



[Jardoon]

I’ve smashed my bash guard on my cube 160 HPC TM 625
can anyone tell my how to get a replacement ori one if possible
ive googled it but find it confusing HELP please
thanks



[Studded E-mtb]

I’ve smashed my bash guard on my cube 160 HPC TM 625
can anyone tell my how to get a replacement ori one if possible
ive googled it but find it confusing HELP please
thanks

Hello Jardoon
You can get them from bike-discount.de

Hybrid Drive Unit Cover

Features - Cube Hybrid Drive Unit Cover Can even be replaced with a defect Easy installation Model (choose variant) 17-03625 / 33752 (COVER-motor-20_HY-HAT-LTD) Access Hybrid, Reaction Hybrid (Youth) 18-03749 /...

www.bike-discount.de

• 18-05599 / 3151 (COVER_motor-20_HY-P4-FSV-CA) Stereo Hybrid HPC

Probably from other shops to.

But i do not understand why Cube would make a plastic skid cower on a 24kg e-bike?
I am building me a aluminium skid plate, when i get my bike back from a repair/service.
Regards



[Jardoon]

Hello Jardoon
You can get them from bike-discount.de

Hybrid Drive Unit Cover

Features - Cube Hybrid Drive Unit Cover Can even be replaced with a defect Easy installation Model (choose variant) 17-03625 / 33752 (COVER-motor-20_HY-HAT-LTD) Access Hybrid, Reaction Hybrid (Youth) 18-03749 /...

www.bike-discount.de

• 18-05599 / 3151 (COVER_motor-20_HY-P4-FSV-CA) Stereo Hybrid HPC

Probably from other shops to.

But i do not understand why Cube would make a plastic skid cower on a 24kg e-bike?
I am building me a aluminium skid plate, when i get my bike back from a repair/service.
Regards

Thanks for that will order one
I totally agree it seems not rite putting a plastic one on I had a canondale before
and that had a alloy one on.
I found these on eBay don’t no if any good for you

BASH GUARD CUBE STEREO HYBRID 140 & 160 500/625W 2020/21/22/23 ANODISED BLACK | eBay

Protect E-MTB manufacture simple but high quality bash guards for your E-MTB. WILL NOT FIT THE 2022 750 WATT MODEL.

www.ebay.co.uk



[Akiwi]

Thanks for that will order one
I totally agree it seems not rite putting a plastic one on I had a canondale before
and that had a alloy one on.
I found these on eBay don’t no if any good for you

BASH GUARD CUBE STEREO HYBRID 140 & 160 500/625W 2020/21/22/23 ANODISED BLACK | eBay

Protect E-MTB manufacture simple but high quality bash guards for your E-MTB. WILL NOT FIT THE 2022 750 WATT MODEL.

www.ebay.co.uk

They look pretty nice.



[Dashfield]

They look pretty nice.

Has anyone tried one of these anodised ones from eBay? They look pretty good but without any product reviews I wasn't sure if they work well. I've just ordered my 140 TM today and have 4 weeks to wait before I get it. So looking to get a motor guard before the first ride.



[Reaper]

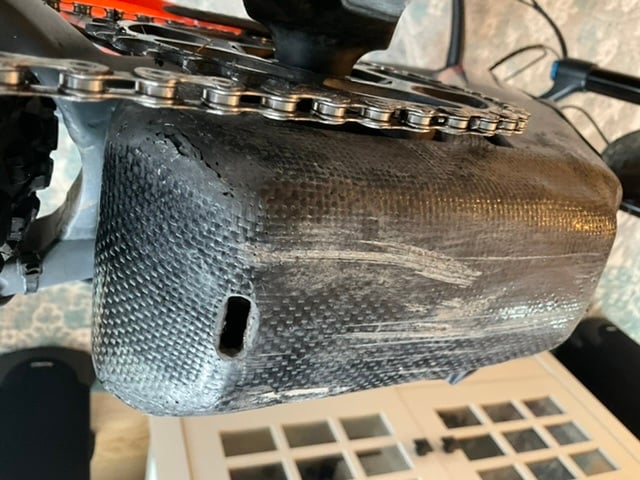

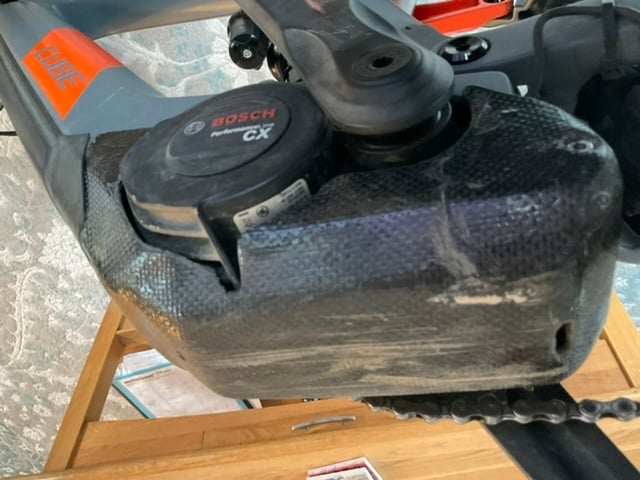

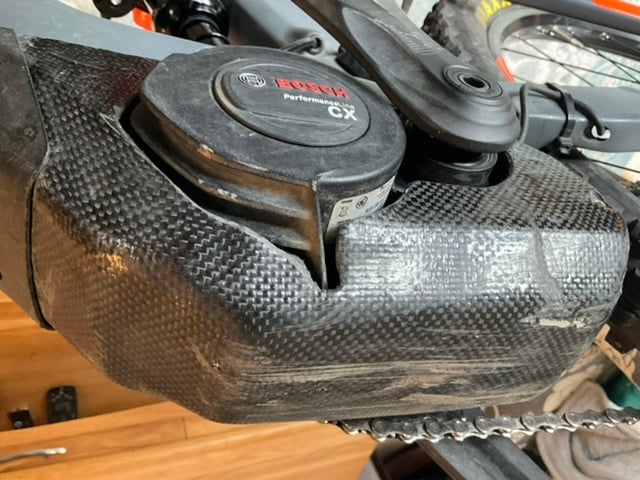

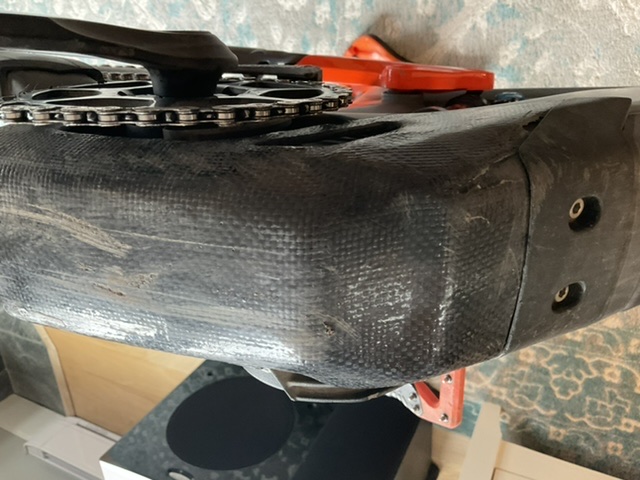

What I have done is skin the original bash plate in carbon fibre. The cloth and epoxy cost under $100 (CAD) That got me enough to do at least four covers in 2 layers. Super easy to work with. I tried fibreglass first and that was a nightmare, looked awful and broke after first hit. make sure you scuff up the plastic real good before you glue down the first layer. This is my first attempt and it came out looking pretty nice and shiny . These pics are after quite a few rides and a few hits and scrapes and it’s holding up very well. It’s not perfect but it’s a hell of a lot better than that Cube piece of crap.
I've been waiting on a new cover for four months now and will cover that one too. Maybe 3 layers and see how that works



[Jeffrey]

What I have done is skin the original bash plate in carbon fibre. The cloth and epoxy cost under $100 (CAD) That got me enough to do at least four covers in 2 layers. Super easy to work with. I tried fibreglass first and that was a nightmare, looked awful and broke after first hit. make sure you scuff up the plastic real good before you glue down the first layer. This is my first attempt and it came out looking pretty nice and shiny . These pics are after quite a few rides and a few hits and scrapes and it’s holding up very well. It’s not perfect but it’s a hell of a lot better than that Cube piece of crap.
I've been waiting on a new cover for four months now and will cover that one too. Maybe 3 layers and see how that works View attachment 61727 View attachment 61727 View attachment 61729 View attachment 61730

View attachment 61728

Looks nice!
What's the thickness of the carbon sheets?
How did you applied them? Just epoxy resin or also heating/drying?



[Reaper]

Looks nice!
What's the thickness of the carbon sheets?
How did you applied them? Just epoxy resin or also heating/drying?

Not sure about the thickness,they call it 5.8 oz. so I glued the first layer to the original shell then epoxy then another sheet then more epoxy. Just air dry.It looked fabulous just like that without sanding



[mochitloon]

Has anyone tried one of these anodised ones from eBay? They look pretty good but without any product reviews I wasn't sure if they work well. I've just ordered my 140 TM today and have 4 weeks to wait before I get it. So looking to get a motor guard before the first ride.

I fitted one of these to my 160 SL from new. First ride it did it's job when I whacked the underside off a rock and scarred the alu plate rather than destroying the plastic cover. Secured via two longer bolts at the front and some 3M velcro at the back. Pretty happy with it.



[Dashfield]

I fitted one of these to my 160 SL from new. First ride it did it's job when I whacked the underside off a rock and scarred the alu plate rather than destroying the plastic cover. Secured via two longer bolts at the front and some 3M velcro at the back. Pretty happy with it.

Thanks for that. I think I’ll give it a go.



[Reaper]

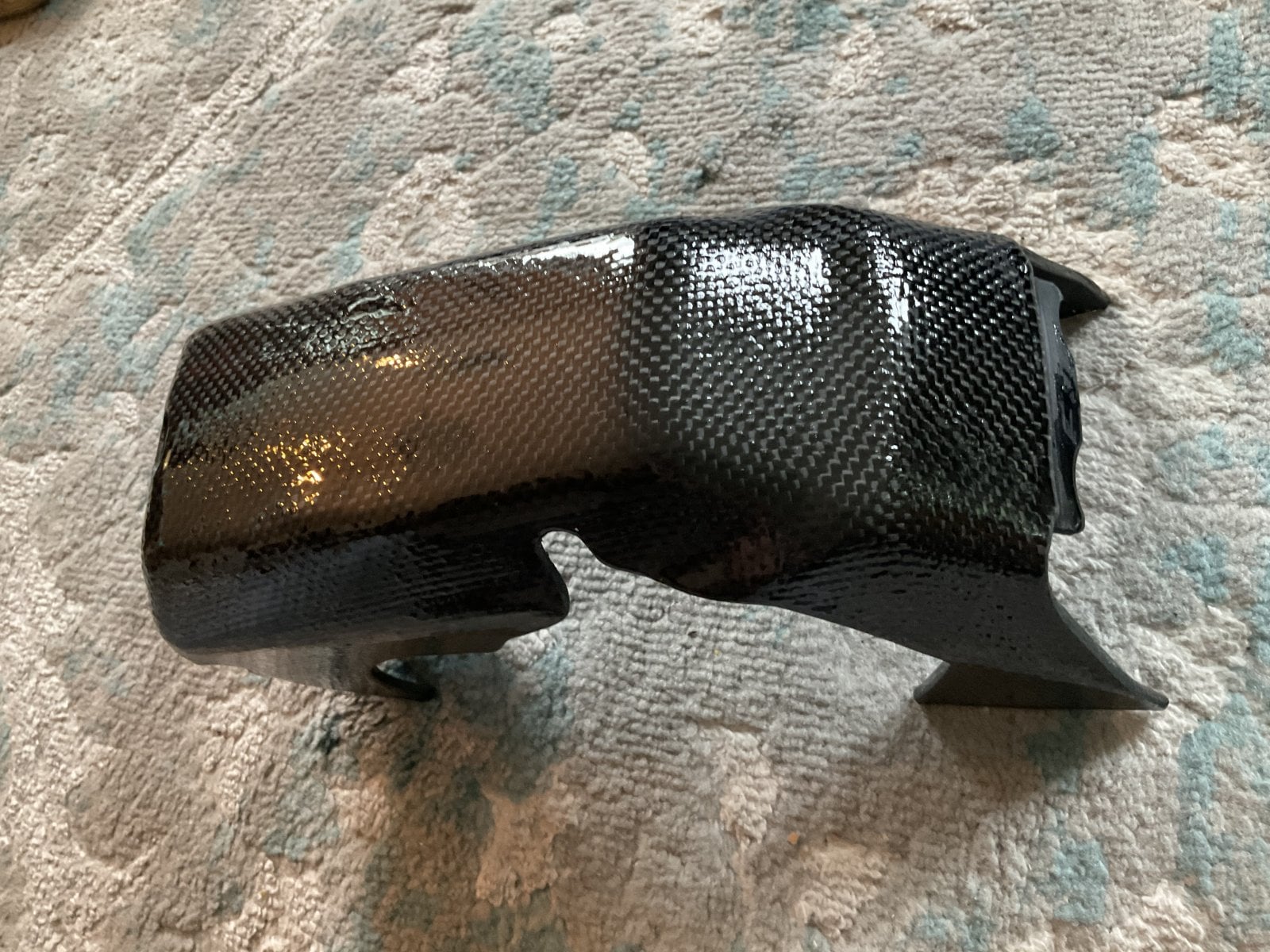

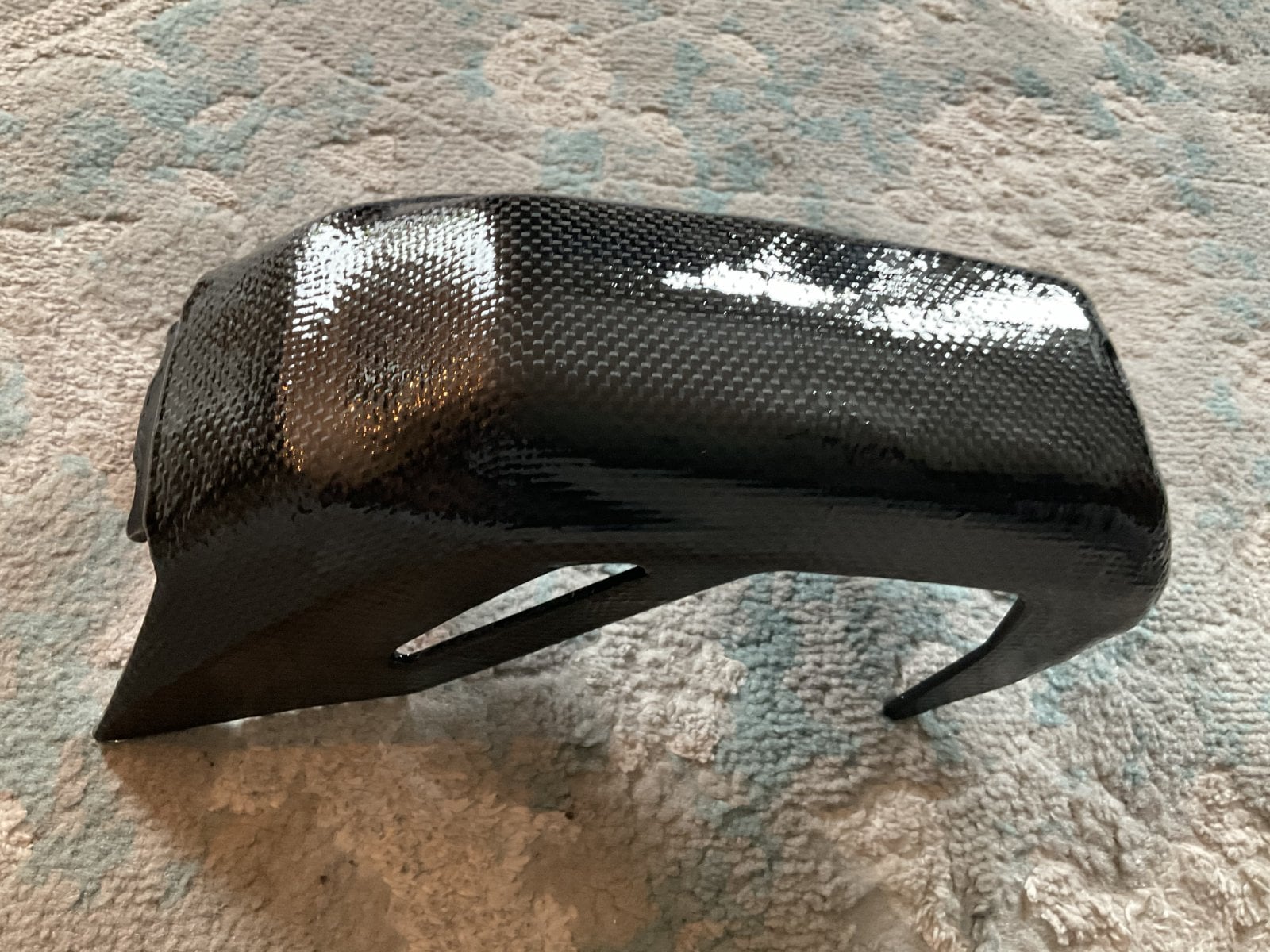

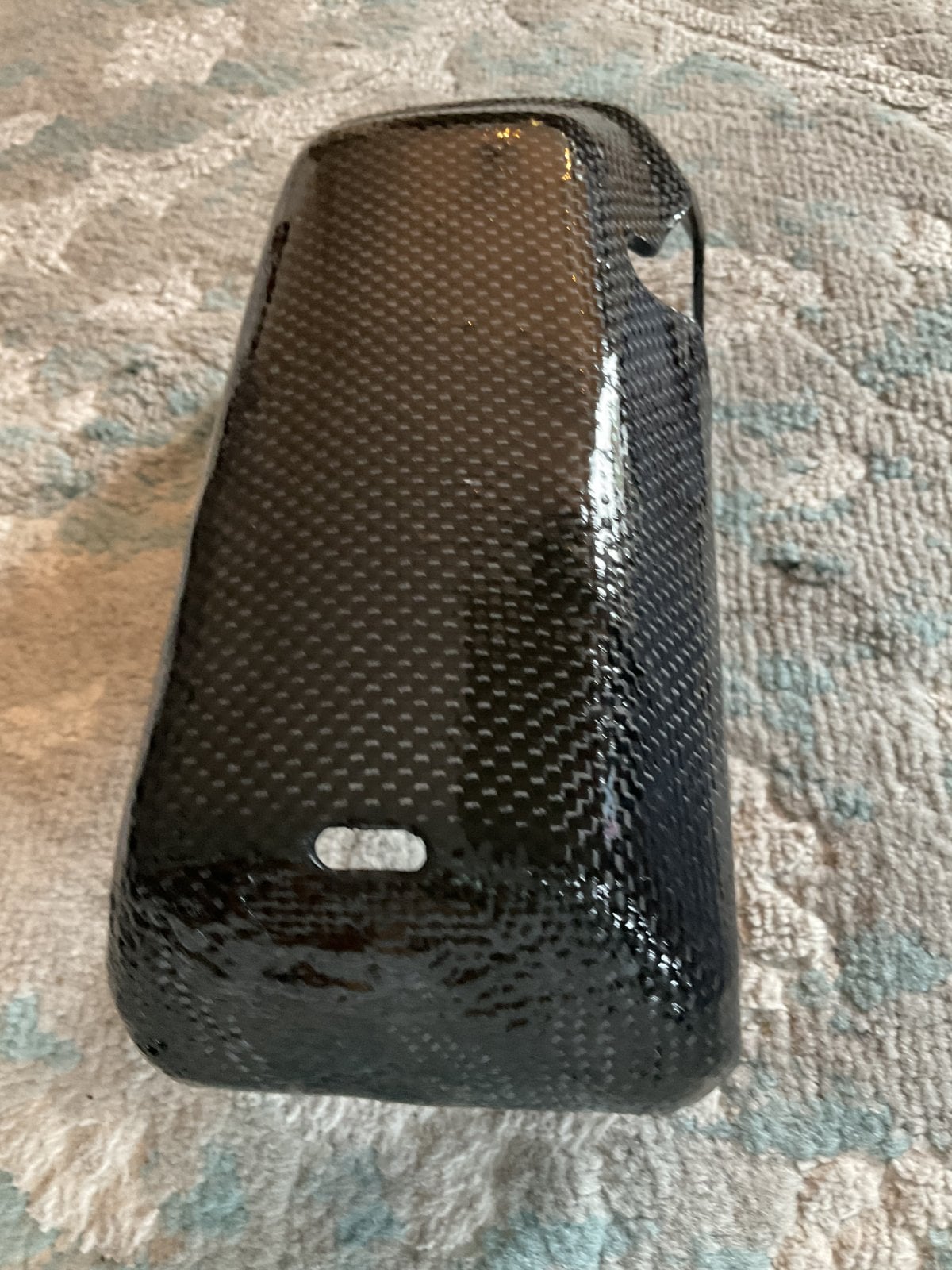

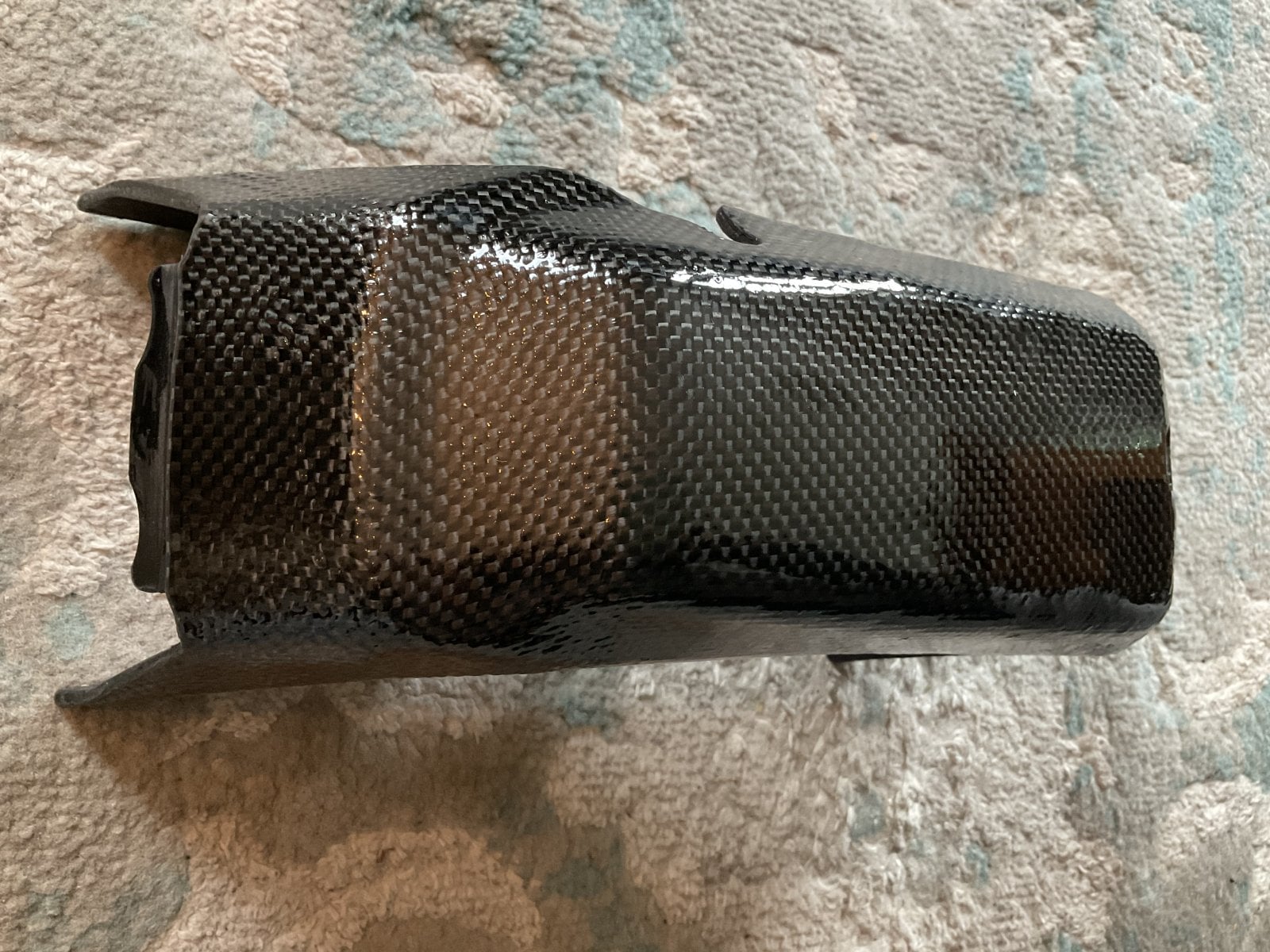

finally got a new motor guard from Cube and immediately skinned it with 2 layers.Definitrly getting better at it but still can’t get the folds perfect. Made sure the folds are at the back so not too obvious. It added 40 grams to it if anyone cares. 2 layers carbon and 3 layers epoxy



[marossala]

finally got a new motor guard from Cube and immediately skinned it with 2 layers.Definitrly getting better at it but still can’t get the folds perfect. Made sure the folds are at the back so not too obvious. It added 40 grams to it if anyone cares. 2 layers carbon and 3 layers epoxy View attachment 62441 View attachment 62442 View attachment 62443 View attachment 62444

Hello, is it just a carbon fiber imitation foil or is it something other more special ? Thanks for answer. @Reaper



[Reaper]

Hello, is it just a carbon fiber imitation foil or is it something other more special ? Thanks for answer. @Reaper

Real carbon fibre fabric. I buy it from a local shop called fiber tech. Amazon has it also.



[marossala]

Real carbon fibre fabric. I buy it from a local shop called fiber tech. Amazon has it also.

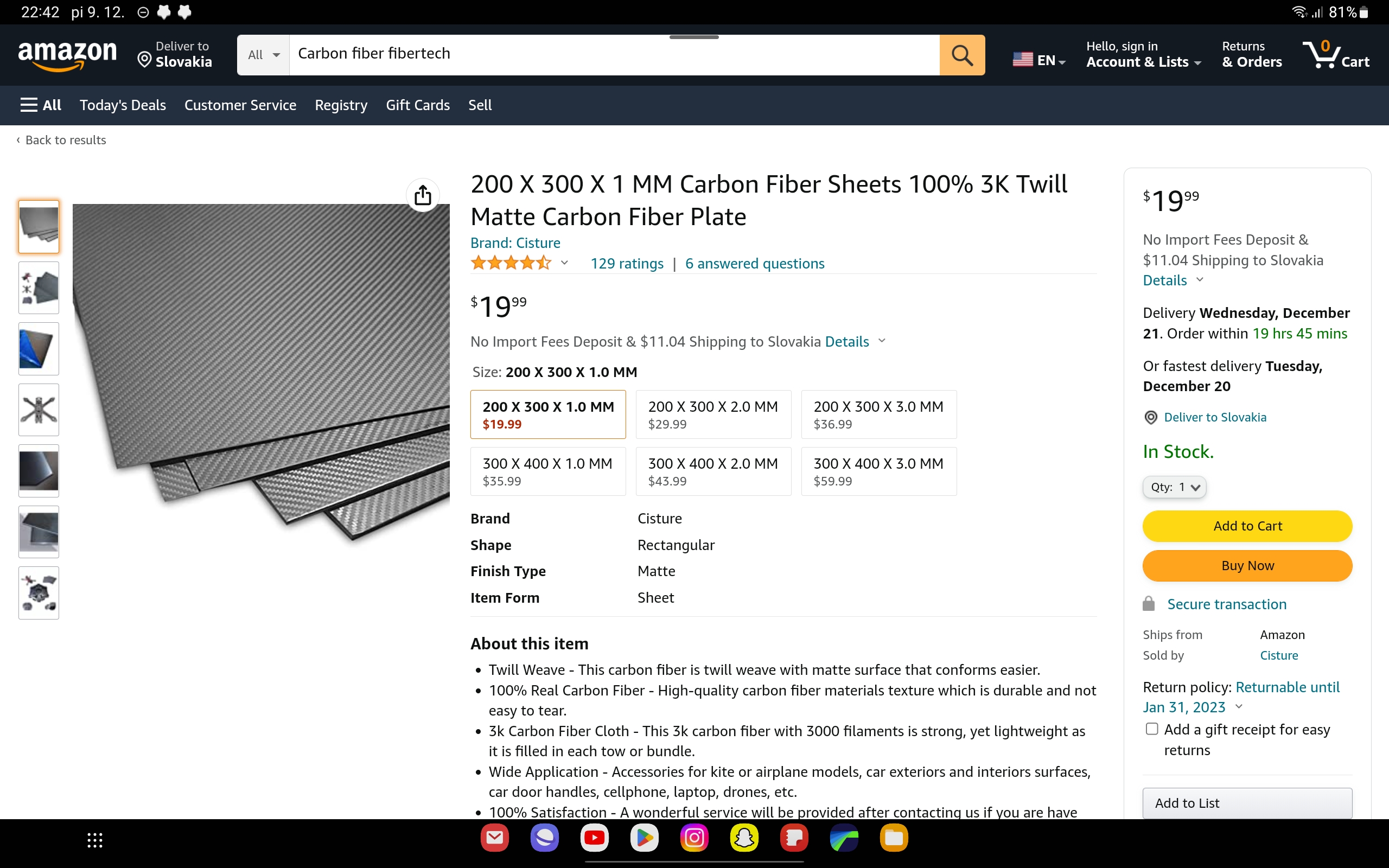

Is it sell in stripes ? Or could you send me link to Amazon please ?
Is it this ?



[Reaper]

Is it sell in stripes ? Or could you send me link to Amazon please ?
Is it this ?

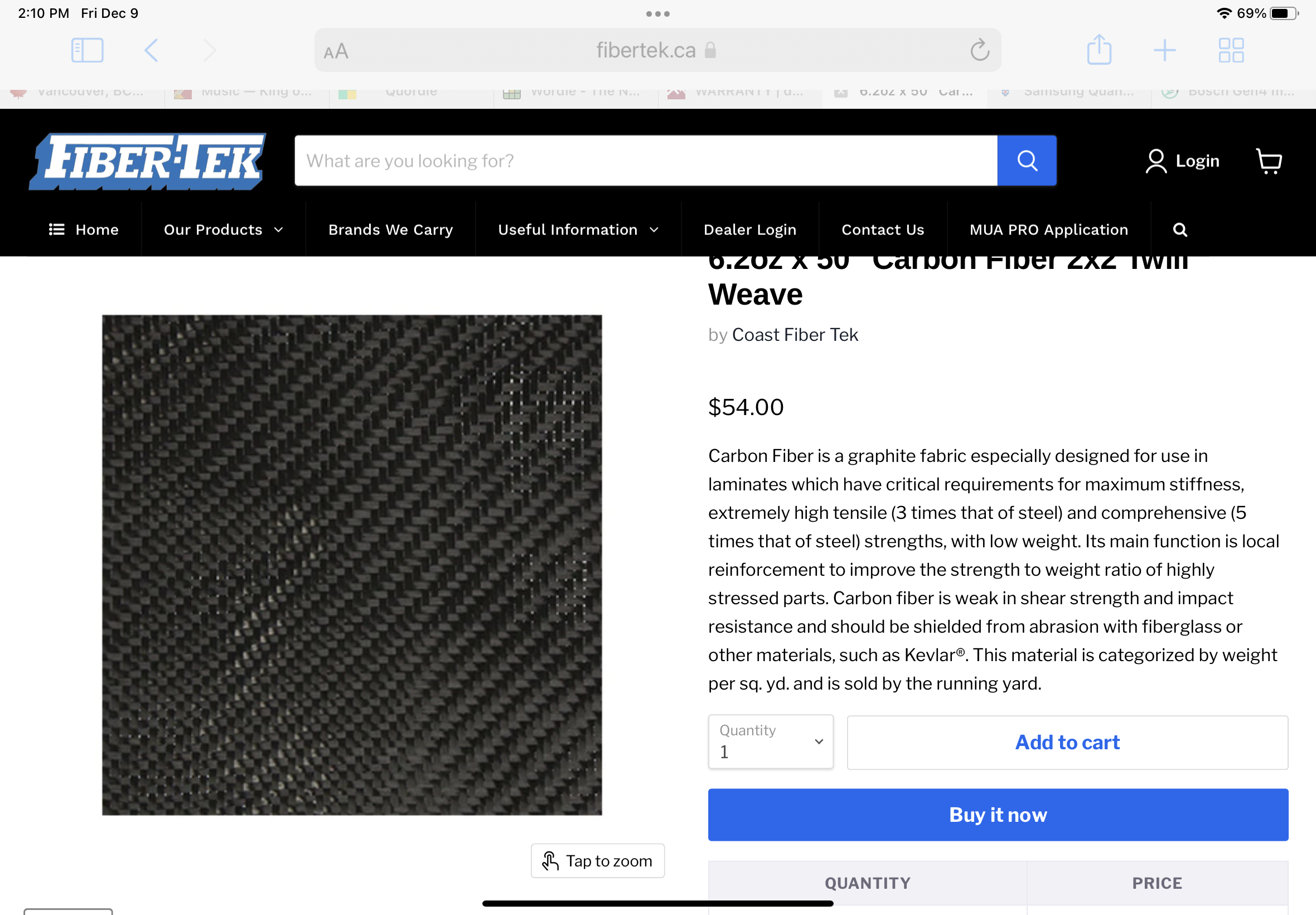

View attachment 102827

I buy it by the yard. That Amazon stuff looks real good. Great price! I think if you buy the thicker stuff you wouldn’t
need as many layers. mine says it’s 6.5oz whatever that means



[irie]

If it were me I'd laminate the CF with Kevlar and glass (for example "S" glass).



[Arminius]

Hi, this is being sold in Germany / EU:
Centurion
