captainhightop
Active member
I order multiples as I am ham-fisted and likely to mess it up at least once ;-)
@Hagbard and @captainhightop - thanks to both! I was thinking next step was buying a second one as backup to play with or search ES. Awesome info. About to head on a trip but following, especially as it seems like the remote really is a simple switch device.
I am curious as to your impressions of the DP160 - I didn't realize it was a rocker switch and through they were trying to be 'cute' yet way out of touch, and it was a touch screen input. Seems like less that thrilled with it? Only 5 PAS levels/can't set to 9?
If the remote is simple connections, I think I'm more inclined to try to Grin or Specialized part, but had completely discounted the DP160 - I suppose on incomplete info.
I am curious as to your impressions of the DP160 - I didn't realize it was a rocker switch and through they were trying to be 'cute' yet way out of touch, and it was a touch screen input. Seems like less that thrilled with it? Only 5 PAS levels/can't set to 9?
If the remote is simple connections, I think I'm more inclined to try to Grin or Specialized part, but had completely discounted the DP160 - I suppose on incomplete info.
captainhightop
Active member
- The whole screen is the rocker switch , it is really weird, but not vague like the rubbery buttons on the DP240, so in general not bad.
- Five Levels (unless there is a really obscure hidden menu - nothing documented)
- Easy to accidentally knock and change level due to it's height (put it quite far away to avoid this)
- Clip is fragile and plastic just breaks unless you are super careful (I am not careful) - similar issue on eggrider with BBSHD
- Seems to be locked to kilometres for speed, with no other info (I'm not particularly bothered about this)
- No boost mode
- It does have walk mode, but like all the others too fiddly to be useful
- Has the light toggle
- As usual battery display is useless (give us a real wattmeter and battery usage feature please Bafang!)
I guess that one's maybe somewhat incrementally better than the goofy 'protrusion' on the DP C240 remote, but it's an all in 1, limits to 5 PAS levels (I use 9), but does have a BT option.
Ergonomically, I guess if it's small enough, the battery indicator in the middle could be a tactile 'break' but it looks kinda chunky sticking up around 30mm/1"+ over the bar.
Might work ok for some. Guessing it's another push towards some variation of the Bafang Go app, and may or may not turn out to be M600 compatible?
Same. (already have DP C240).
I'm OK-ish with the DP C240 display, mostly as I don't bother looking at it all that much and at least it tucks out of the way, but the remote is atrocious. I wouldn't mind the display being more glare-resistant, and maybe 1cm longer/taller...
I rotate the remote so my thumb can hit up/down without thinking, and can live with the button feel, but of course at that point the power button 'extrusion' is just waiting to get smacked by <something>.
Interesting on the horizontal comment. For me I'd be good with slim/tucked in vertical placement so I don't have control overlap madness with a horizontal dropper remote, etc. That Giant one is looking pretty nice - could be a bit narrower but bet could adjust to it darned quick and no more worries about killing the remote in even casual riding.
thaeber
Well-known member
True, the remote is kind of chunky. The display has a nice format and safe position slightly below the handlebar, I like that. The visibility is the problem. Yesterday I played around a little with the settings. I changed brightness to 75%, and AI Senitivity to „0“. Now the display does not adopt to change of light conditions and is bright enough to be visible, even when sunny. Big improvement.
@captainhightop Look at this:
www.ebike24.com
6 pins out.....Interesting.....
Giant RideControl Ergo 3 SG control unit
The Giant RideControl Ergo 3 SG control unit focuses on minimalism and a compact design. The handlebar control unit is only compatible with the…
www.ebike24.com
6 pins out.....Interesting.....
captainhightop
Active member
Sounds promising, more so than the Shimano steps one, that looked like just 2 wires to me (DI2 I think they call it)@captainhightop Look at this:
Giant RideControl Ergo 3 SG control unit
The Giant RideControl Ergo 3 SG control unit focuses on minimalism and a compact design. The handlebar control unit is only compatible with the…
6 pins out.....Interesting.....
Also looks user serviceable with the screws on the side
Puschtrale
Active member
If there would be anyone that could work on the connector of the giant remote to be able to connect it with the dcp240 display I would definitly pull the trigger
. Maybe someone could help me out?
captainhightop
Active member
We could do with someone who has one of those switch units, who can disconnect it and check the wiring with a DVM for continuity when switches are pushed. Also although my tests looked favourable, I'm waiting on the HIGO connectors to properly verify my theory.If there would be anyone that could work on the connector of the giant remote to be able to connect it with the dcp240 display I would definitly pull the trigger
But if everything works out we could cut off the giant connector and add a HIGO! Not sure how long those are going to take from Aliexpress, but I've got a box full of different push switches to try out too.
Puschtrale
Active member
Let me know if you have more information. I would definitly try it out with the giant remote ✌. Would be a great improvement
Waynemarlow
E*POWAH Master
Over on ES there's quite a discussion going on re the switching of the start up and shut down of the M series motors, you may want to have a look in.
endless-sphere.com
Bafang M500/M600 thread
Since this seems to be an interesting motor, why not have a separate topic for it? I'll start with three quotes I have found about the motor on this forum, feel free to add more information that you can find. Over the last couple of days I had heard that there had been reports of the M600...
endless-sphere.com
captainhightop
Active member

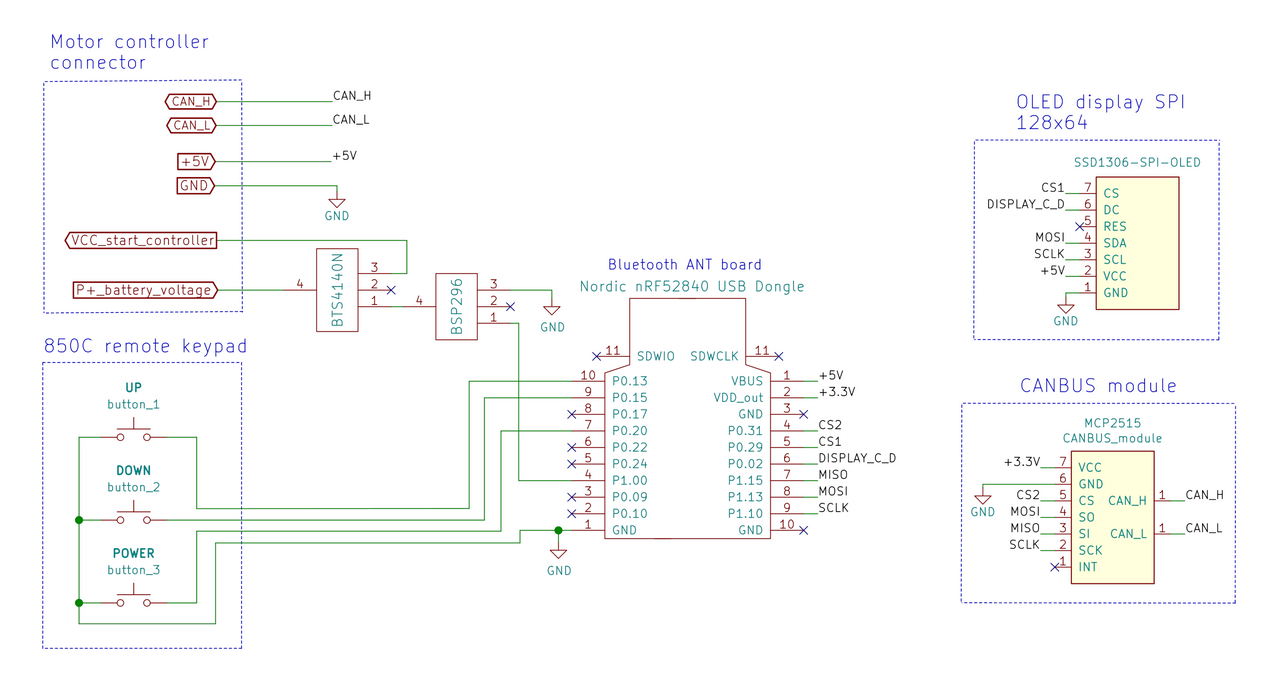

Looks there is also complete schematic for a HMI and display on there too using the nordic semi microcontroller:Over on ES there's quite a discussion going on re the switching of the start up and shut down of the M series motors, you may want to have a look in.
Bafang M500/M600 thread
Since this seems to be an interesting motor, why not have a separate topic for it? I'll start with three quotes I have found about the motor on this forum, feel free to add more information that you can find. Over the last couple of days I had heard that there had been reports of the M600...
The nRF52840 is a nice choice as it's small has bluetooth and ANT. Which means it may integrate with Garmin or other cycle computers, HR monitors etc.
At the moment, I'm concentrating on just the switch gear, but this design is pretty much what we've all been talking about long-term. I've got one of those SPI OLEDs and it's not a bad display at all, although keeping everything dry could be a challenge. I'm not sure how easy the Nordic board is to program compared to more mainstream boards (ESP32/NodeMCU etc.)
I tend to prefer the idea of hiding the electronics away and not having a display, just using the cycle computer via ant/bluetooth is my preference, but none of this circuit actually needs the display to work anyway.
Another massive benefit of making your own HMI and not using Bafang's DP C240 would be the opportunity change button functionality or add/remove buttons depending on your preferences.
Waynemarlow
E*POWAH Master
My thoughts are to parallel in the above design less display, use the DP C241 as the base display ( its actually quite good, waterproof and discrete ) and use my Garmin as the main display for engine info ( ES also lists a way of creating your own App within the Garmin ) which combines all the motor functions + Nav in one unit.
For those of you who are slightly less firmware savy than I ( which is not much more than basic stuff ) the Nordic board is used to take the Bafang CAN signals and then broadcast them as ANT LEV which is what the Garmin understands, via bluetooth. There are a couple of other benefits as well such as you wouldn't need a BEEST tool to make changes to the Bafang firmware as the Nordic module will talk in both directions. Things such as On road / off road modes could be controlled by the Garmin.
Certainly keeping an eye on this development as the main character Casainho has taken the TSDZ2 engine ( plus quite a few others ) from being a cheap and cheerful engine to something thats not far behind the M series motors ( and in some ways ahead ). As soon as he has an engine in hand and stabilises the design / firmware, I will definately be in for a play.
For those of you who are slightly less firmware savy than I ( which is not much more than basic stuff ) the Nordic board is used to take the Bafang CAN signals and then broadcast them as ANT LEV which is what the Garmin understands, via bluetooth. There are a couple of other benefits as well such as you wouldn't need a BEEST tool to make changes to the Bafang firmware as the Nordic module will talk in both directions. Things such as On road / off road modes could be controlled by the Garmin.
Certainly keeping an eye on this development as the main character Casainho has taken the TSDZ2 engine ( plus quite a few others ) from being a cheap and cheerful engine to something thats not far behind the M series motors ( and in some ways ahead ). As soon as he has an engine in hand and stabilises the design / firmware, I will definately be in for a play.
Neeko DeVinchi
E*POWAH Elite World Champion
Waynemarlow
E*POWAH Master
Somewhere on this forum was a link to a German guy who had a 3D print of a small spacer that expanded the bar strap to account for the 35mm bar. Equally there used to be on EBay the spacer milled out of Ali.Just a quick question,
Has anyone tried this display?
If not, no worries as I've ordered one as I'm sick and tired of using the Shimano Rip-off display without running a 35mm bar and stem combo.
Bafang DPC241 on 35mm bars
Seen as there is an issue with the clamp breaking if overtightened or not fitted with care does anyone have one fitted to 35mm bars without any problems - does the clamp fit well or does it need to be bent to accommodate the extra width?
www.emtbforums.com
thaeber
Well-known member
Not from Ebay mate. Handcrafted German Engineering!Somewhere on this forum was a link to a German guy who had a 3D print of a small spacer that expanded the bar strap to account for the 35mm bar. Equally there used to be on EBay the spacer milled out of Ali.
Bafang DPC241 on 35mm bars
Seen as there is an issue with the clamp breaking if overtightened or not fitted with care does anyone have one fitted to 35mm bars without any problems - does the clamp fit well or does it need to be bent to accommodate the extra width?
Guys, i have placed the M600 controller (with 15A limited firmware) to M500 and it feels stronger of course.
However i have switched the power output to Ampers and started look on it.
I am not sure which one of firmwares now are more torque required to get full power, my old 13A or new 15A on new controller, so i have two things for M600 users.
1) what is the most 'soft firmware' for M600?
2) could you try this 15A (CRX10NC4815i132020.8-20210924.bin ) firmware for M600 and tell me it require more torque than your standard 18A?
3) M500 and M600 have same torque sensor or its different?
However i have switched the power output to Ampers and started look on it.
I am not sure which one of firmwares now are more torque required to get full power, my old 13A or new 15A on new controller, so i have two things for M600 users.
1) what is the most 'soft firmware' for M600?
2) could you try this 15A (CRX10NC4815i132020.8-20210924.bin ) firmware for M600 and tell me it require more torque than your standard 18A?
3) M500 and M600 have same torque sensor or its different?
Last edited:
captainhightop
Active member

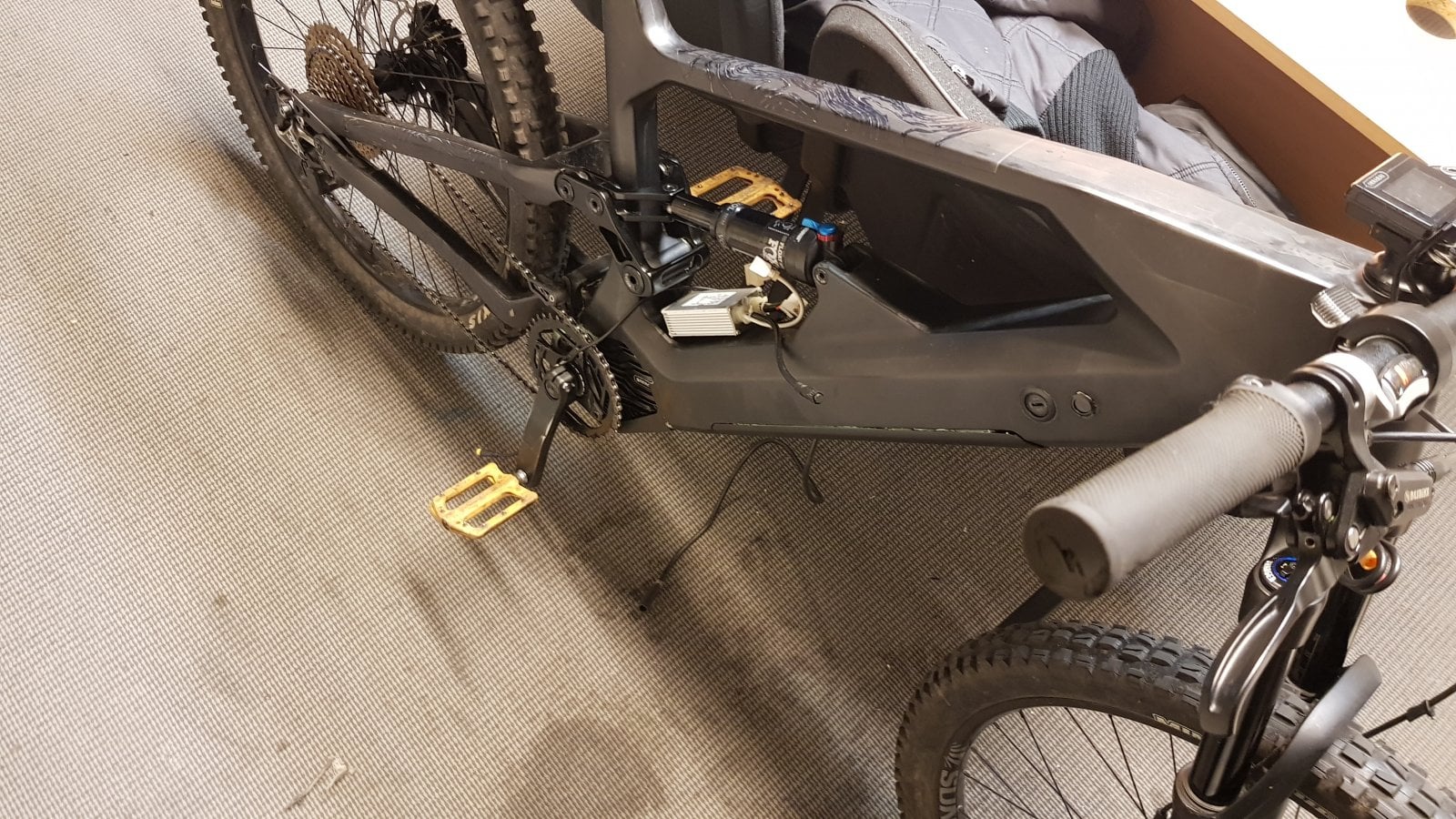

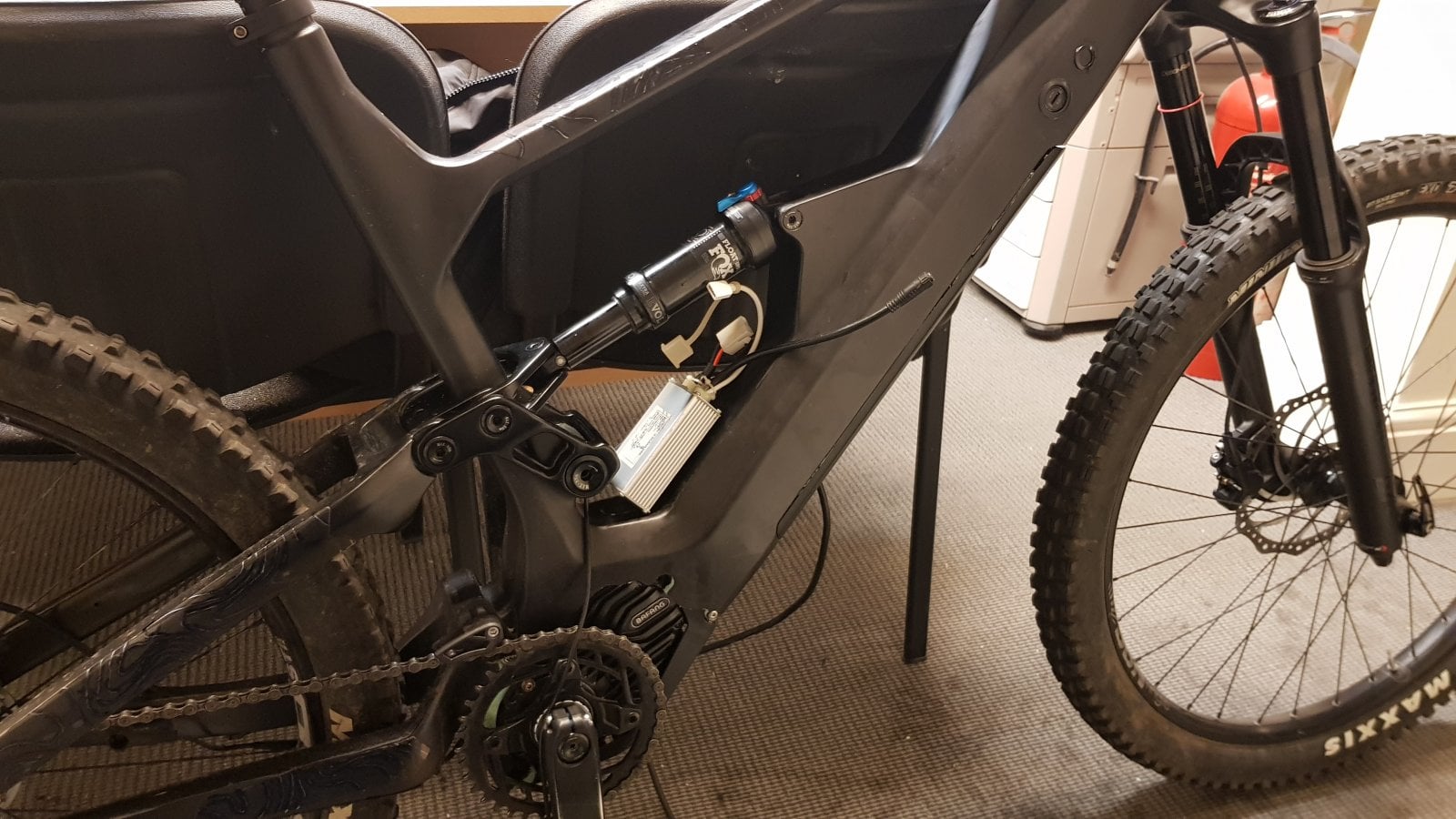

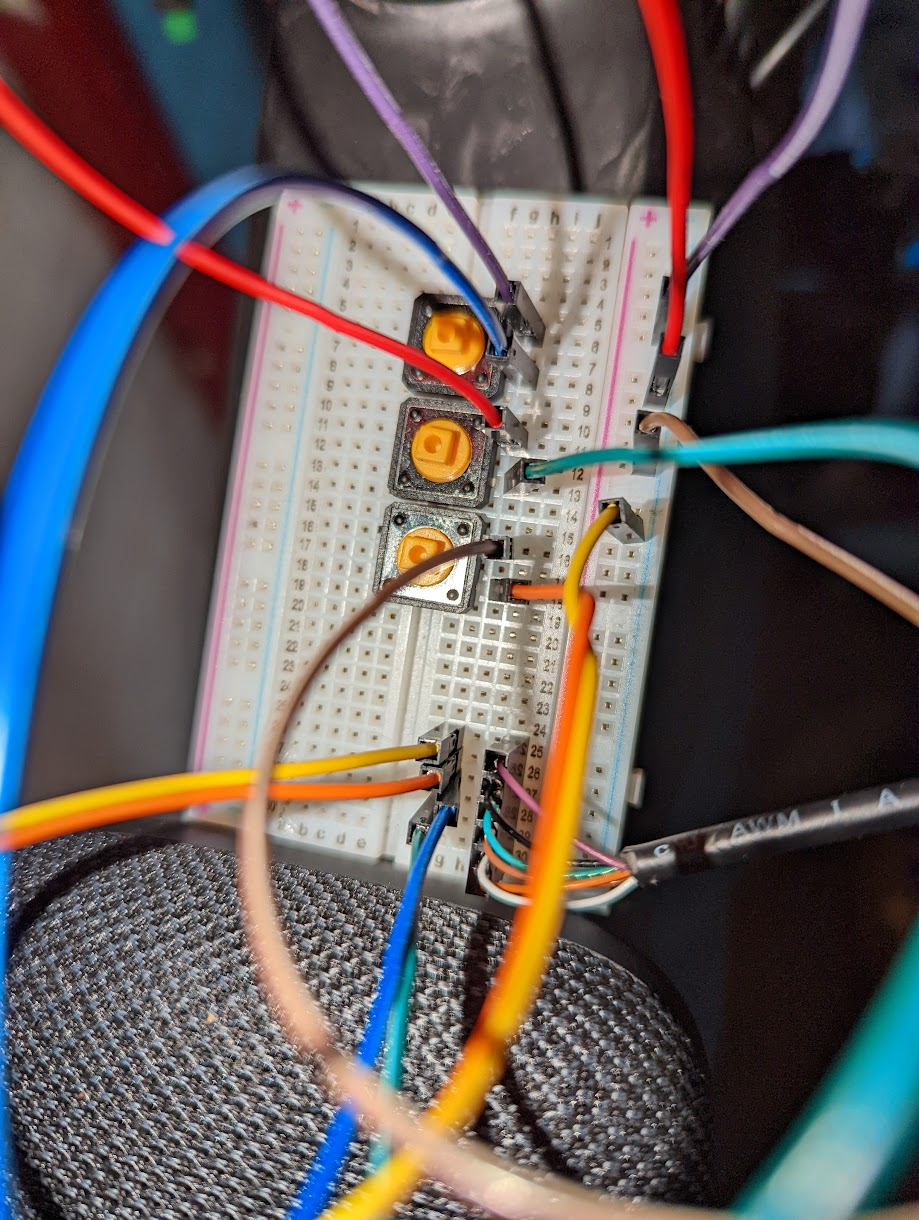

Received the HIGO connectors today, and wasted no time in making a contraption to test my theory about the buttons:
Turns out, it works:
Initial voltage across pins 5 and 6 (pwr button) is 50V, but after power up, it's about 4.8V
So:
After powerup
PWR 4.8V
UP:3.3V
DOWN:4.8V
No idea why UP is different to the other two, but it still works as a simple switch going to zero when pressed like all the others
Turns out, it works:
Initial voltage across pins 5 and 6 (pwr button) is 50V, but after power up, it's about 4.8V
So:
After powerup
PWR 4.8V
UP:3.3V
DOWN:4.8V
No idea why UP is different to the other two, but it still works as a simple switch going to zero when pressed like all the others
Last edited:
Neeko DeVinchi
E*POWAH Elite World Champion
I see. So your intending on using the stock controller but adapt the connectors.
Its plausible that this could work.
Keep us posted @captainhightop
Its plausible that this could work.
Keep us posted @captainhightop
captainhightop
Active member
Yes, initially my aim was to replace the button cluster with something lower profile (like the giant or specialized one), maybe design and print my own or just splice the cable into one of those.I see. So your intending on using the stock controller but adapt the connectors.
Its plausible that this could work.
Keep us posted @captainhightop
Long-term I'm looking at the Nordic semiconductors microcontroller to replace the whole HMI on the bars, but that's a much harder job, although people are working on the CANBUS protocol already.
As it's got ANT and I think bluetooth, I'm hoping that I can use it to add panels to my cycle computer (for battery/RPM etc.) and only have that as a display on the bars with the microprocessor out of sight inside the bike frame (still have the buttons on the bars though).
Neeko DeVinchi
E*POWAH Elite World Champion
Fair enough.
I'm speaking with someone also in an effort to adapt the communication protocol from CANBus to something else (maybe UART or something along those lines). My enquiries has revealed that all signs point to the controller (or swapping it out). My issue is that I'd rather not run an external controller.
Makes it look a bit ugly and adds another point of vulnerability.
Still, it's nice to know that I'm not alone in trying to adapt older displays to run on the newer bafang motors.
I don't think that's the point at all. The idea is to build our own display and buttons, with either improvement ergonomics (in the case of the buttons) or improved capabilites, such as the ability to integrate with a garmin watch, in the case of the display. Going from CANBus to UART seems a little regressive, though it does make sense if your motivation is to use UART displays.
Neeko DeVinchi
E*POWAH Elite World Champion
Hmmm!!
Food for thought.
Although one does ask the question, why not wait for a well known third party developer to build the display?
Eggrider comes to mind as they've pretty much covered alot of non-mainstream ebike motor brands.
I guess for 2 reasons:
1) Fun
2) It feels like the m500/600 series of motors have been superceded now so the odds of a third party undertaking any significant development on this old platform feels low.
It does still feel like there's loads of potential to still be unlocked with these motors, and as knowledge matures (which it's currently doing at a fantastic rate) we'll see some pretty interesting things.
Lol - as it is, a well known manufacturer (Bafang) can’t even get basic things right, or release displays and control pads actually suitable for riding. ‘Wait’ may be a loong wait, and no guarantees what they think someone wants - actually is.
Why did you build your own E22 (ok, other than for YT subs), and why not just wait for a well-known third party to just build the bike you want?
Hope you get the point… information is useful and lets people build what they want.
The Eggrider is neat, although not everyone wants an SW102 with custom firmware on it. The Giant control pad to me, is near perfection, and at least seems a much more robust solution vs the ‘dangling bits’ on the DP C240 controls.
RE: displays - people have widely differening desires there. Some want a tablet-sized display with all possible sensors being read, some want absolutely minimal. Some want integrated into the bike’s frame, others are fine with it above or below the bars. Pretty unlikely for a ‘well-known third party‘ to scratch all of those itches…
Even if EggRider does come out with an ER for CAN motors, it’s questionable as to if any additional configuration will be accessible, unless they are well beyond where the guys on ES and OpenEbike Firmware github projects are in decoding the CAN commands, which last I checked (been a few, possible more progress has been made) was more or less the one-time settings - wheel diameter and I think top speed? It’s an undertaking…at least short of building a replacement controller (like e.g. the Luna LudiV2 VESC - for BBHSD, M600 now - seems a matter of time before M620, M500 - if they decide to ever sell separately, or the Innotrace - which US buyers are locked out of due to WattWagons exclusive but inability to deliver..).
I’ll gladly take any steps <forward> which Capt, Hagbard and others seem to be making awesome progress on.
RE: Superceded - you mean by the M510 and <something else, maybe I missed, a new M6** series?>
Totally agree on knowledge maturing.
I have to say as a US-born ‘power hungry’ car and motorcycle fanatic, over time I had already adjusted on vehicles to - insane power is neat and addictive, but I also like to turn/have handling, so moved from muscle cars to forced induction Miatas of all things, and never looked back.
On ebikes - I had a BBHSD, and tired of the ‘let’s go 15 miles (max) on throttle and high assistance’ pretty quickly and was normally riding it in PAS 2 (of 9) for most trail riding, then moved on to an M600 (Ludi V2/VESC controller). I usually ride it in PAS 2 of 9, non-Ludi Trail mode (LudiV2 controller has 3 profiles for max power, throttle sensitivity etc., where max power is what you get at top PAS level, e.g. 3 of 3, 5 of 5, 9 of 9), quite happily.
I recently rented an M500 in Prague, and was expecting to be sorely underwhelmed, but I have to say, it did alright, and I rode mostly in PAS 2-3 of 9, doing a 50km ride. I certainly bumped it up higher more than on my M600 for similar riding, but it wasn’t all bad. If I wanted a motorcycle, well I have those as well, and while I think the EU speed/power restrictions are nonsensical, I can say I don’t routinely need e.g. an M620 or > 1kW peak power.
I’d be rather happy if we could source <not from Bafang> all parts to keep M500/600s running ourselves for years to come, while I think the real benefits to come are mostly around the controller programming and software. Granularity/number of breakpoints for torque sensor output, modes like ‘emtb’ on non-Bafang motors, and the ability to adjust settings sanely for things like rider weight and style of riding, without being locked into e.g. Bafang only batteries and such - would be a pretty decent foreseeable future to me.
Interestingly the LudiV2 already has a gyro build-in, and I know some brand or another was making some fuss over an ‘angle sensor’ although I’m not sure exactly how their programming used it - am guessing it was simplistic and perhaps just boosting assistance on steep uphills or something?
Given custom controllers with a couple of GPIO ports, additional sensors can be added (or upgraded), while BLE/BT can connect to more comprehensive ‘displays’ or for tuning/adjustments, etc. Better yet, with open source firmware, there’s at least a chance to improve the same hardware’s functionality and performance over time.
One thing I am hoping for is subsequent Bafang motors keep the same mounts, at least giving a path to replacement, but also in that the form factor for controllers remains somewhat constant - PCB layout and testing is time/$-consuming already, but given the same form factor, unless there’s a truly revolutionary overhaul, it may be possible to e.g. have a single (aftermarket or open source) controller capable of working for M500/510/600/<next> which would certainly benefit us all.
