Levo Gen 2 2019 / 2020 Specialized Turbo Levo info and FAQ

[Benson]

Can we get a link to an appropriately spec’d replacement chainring?



[scipy]

Does anyone know (or can measure) the clamping diameter on the seat tube for the 2019 Levo's? I know it should be around 38 mm, but need a confirmation as I'm looking into different seat clamp options for the new shim and dropper post.



[atcspaul]

Does anyone know (or can measure) the clamping diameter on the seat tube for the 2019 Levo's? I know it should be around 38 mm, but need a confirmation as I'm looking into different seat clamp options for the new shim and dropper post.

seatpost 34.9mm and the seat post clamp is 38.6mm



[scipy]

Thanks for the answer, Paul. That eliminates the Syntace SuperLock2 38.0 which I was eyeing



[Koo]

Anyone know what it the spare part for 2019 Turbo Levo Comp dropper lever? Is it a generic Specialized part? SRAM part (because it is connected to SRAM brake lever) or is it X-Fusion Manic Lever?

Broke my lever, and need a spare part.

https://www.emtbforums.com/community/attachments/imag0305-2-jpg.8848/

there you can see what it looks like. Stole the picture from another thread!

-K



[lumpy]

Anyone know what it the spare part for 2019 Turbo Levo Comp dropper lever? Is it a generic Specialized part? SRAM part (because it is connected to SRAM brake lever) or is it X-Fusion Manic Lever?

Broke my lever, and need a spare part.

https://www.emtbforums.com/community/attachments/imag0305-2-jpg.8848/

there you can see what it looks like. Stole the picture from another thread!

-K

I broke mine recently also and never could find a direct replacement. I ended up rebuilding it with some pieces of carbon fiber and epoxy to glue it all together. So far so good, but I too would like to know of a direct replacement.

Tim



[atcspaul]

is this what you are looking for sram brake mount to shifter adapter | eBay



[lumpy]

is this what you are looking for sram brake mount to shifter adapter | eBay

For me it was the actual lever that broke - right in the middle where there's a goofy shaped lightening hole - see the pic Koo attached.
As a backup in case my epoxy mend didn't work, I bought a "Wolf Tooth ReMote for SRAM Matchmaker X" and it just requires a cable mod. I haven't installed it yet.

Tim



[Koo]

same as lumpy, the "pedal" or "lever" itself broke.



[Koo]

same as lumpy, the "pedal" or "lever" itself broke.

except I lost the broken part... can't really glue it back together



[Koo]

and I was thinking for TURBINE DROPPER 1x LEVER

or something similar



[Xeretic]

Did anyone try fitting Schwalbe Ice soiker pros 2,6 tires on turbo Levo 27,5+? I wonder if there is any rub between the spikes and the frame/fork? Anyone can test this on their bike?



[lumpy]

except I lost the broken part... can't really glue it back together

Just found these for you ....
Command Post SRL | Specialized.com
Command Post SRL LE | Specialized.com



[Koo]

Just found these for you ....
Command Post SRL | Specialized.com
Command Post SRL LE | Specialized.com

I think it is this the latter one what is (was installed in my Levo.

thanks for this!



[Matt71]

So have spesh resolved the badly fitting casings and mud ingress I have read about ?



[Paul Carruthers]

On 2019 levo (alloy) does anyone know what size cap head is required on the black plastic cable retainer that sits in the small diagonal frame brace.

Thanks



[levity]

Wanted to give a “shout out” to @Al Boneta at Orange Cycle here in Southern California. I purchased a 2018 Levo there December ’17 and bought a 2019 Levo in January this year to accommodate the new 700Wh battery. Both bikes have performed without a hiccup likely due at least in part to Al’s service skills.

Al contacted me this week to let me know he had some upgrades for the 2019 model that I might like and that they would be covered by warranty: new 4-bolt motor covers (supposedly better fitting and stronger), a revised rear suspension link (to reduced the chances of pebbles being caught against the seat tube), and a new rear pivot protection kit (to keep stuff from getting into the gap in the motor housing). I hadn’t seen the new pivot protection hardware so I’ve attached a screenshot showing the part numbers and a photo of it installed (below).

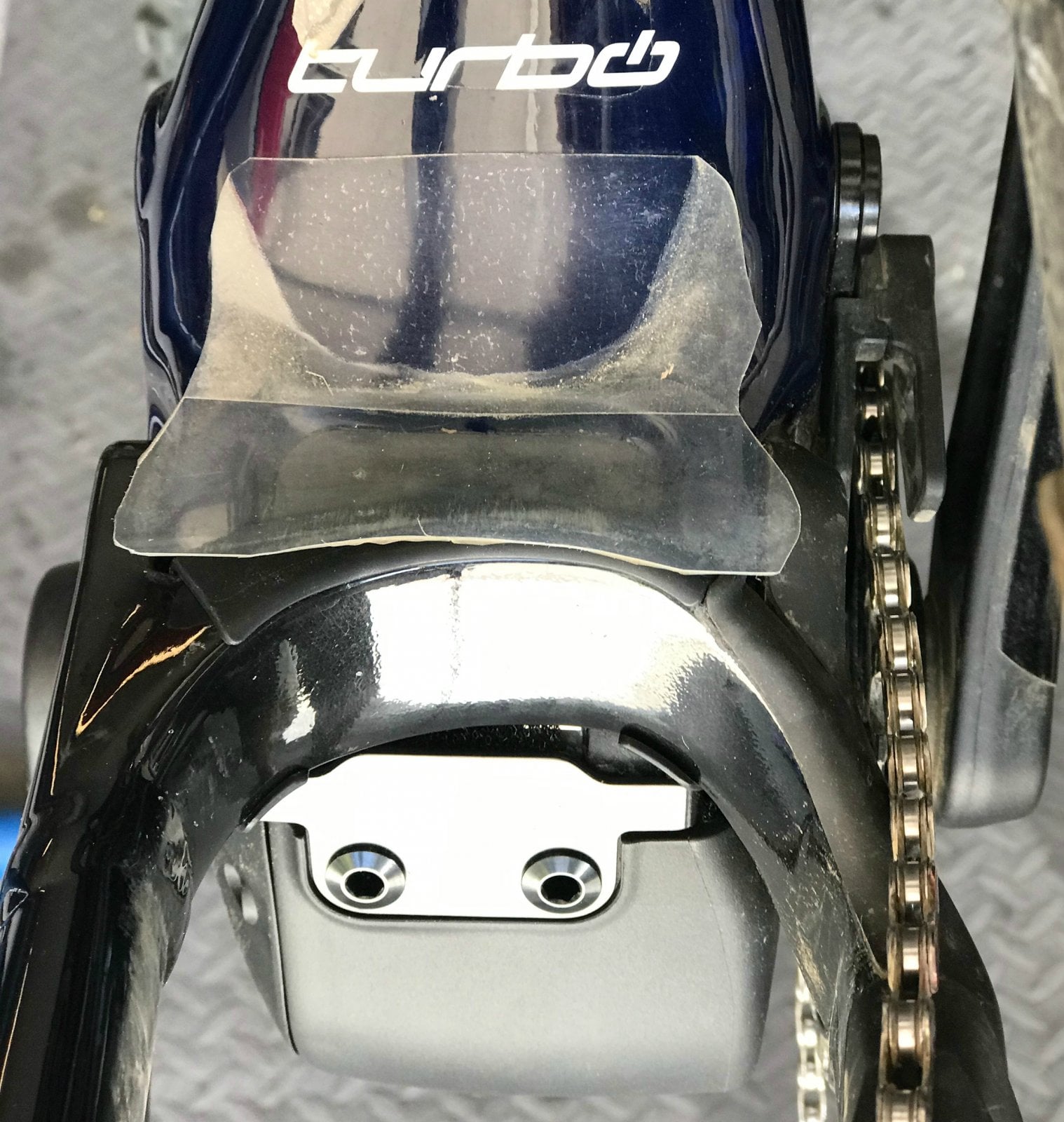

The inside of the motor housing on my bike was clean except for some dust, likely due to having the v.1 sponge installed together with the crude helicopter mud flap I fashioned to cover the gap:

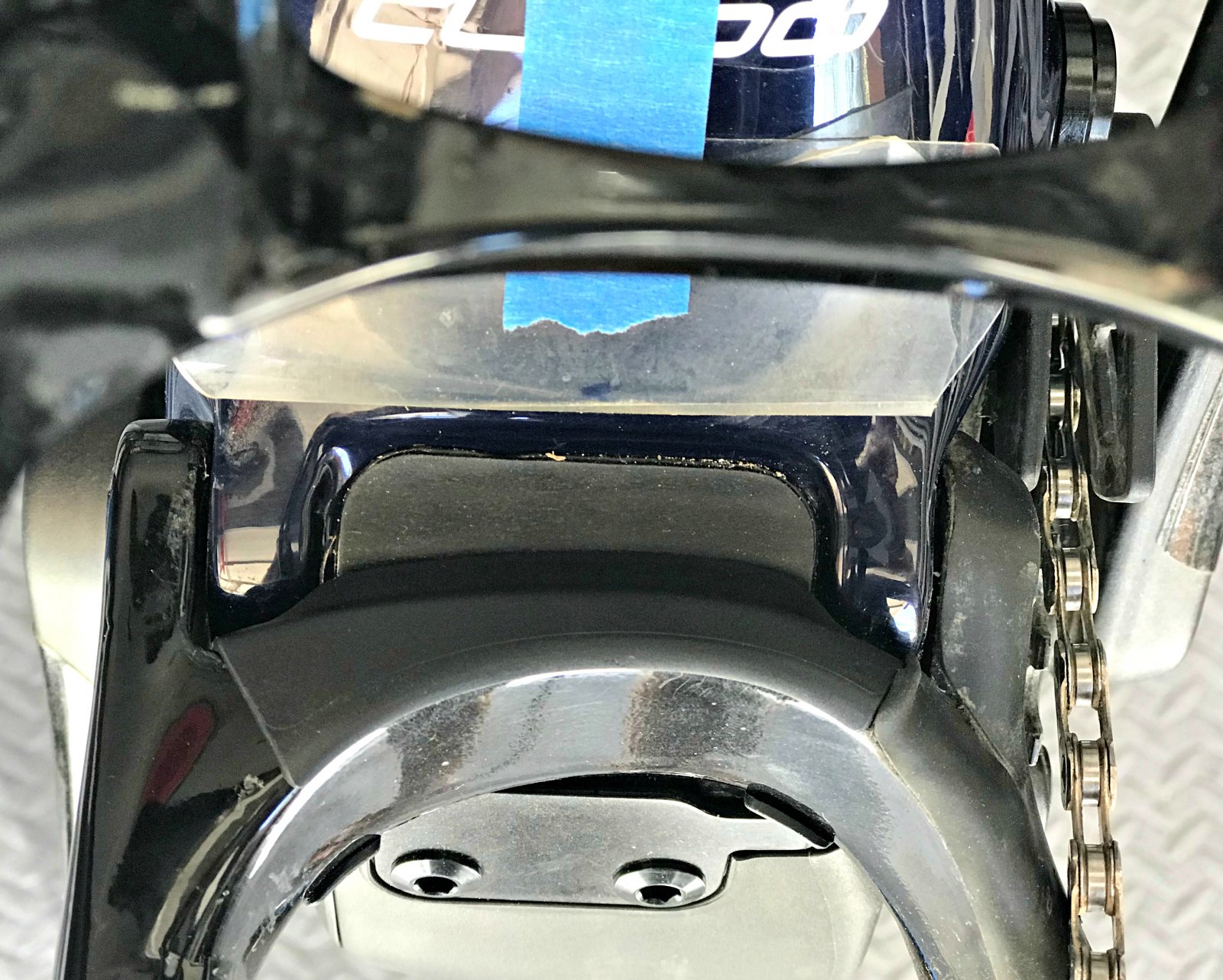

The new protection kit uses a v.2 sponge with denser foam and plastic parts that clip onto the frame and swingarm to fill the gap. Here’s what it looks like when installed, (mud flap is taped up to show the clips). It covers the gap while allowing the swing arm to move over it - tight ‘n tidy!

Props to both @Al Boneta and Specialized!


BTW, a very sharp looking Monster Green 2019 Expert Levo (size Large) sitting on the floor caught my eye, so if anyone is looking for one...



[Paul Carruthers]

Wanted to give a “shout out” to @Al Boneta at Orange Cycle here in Southern California. I purchased a 2018 Levo there December ’17 and bought a 2019 Levo in January this year to accommodate the new 700Wh battery. Both bikes have performed without a hiccup likely due at least in part to Al’s service skills.

Al contacted me this week to let me know he had some upgrades for the 2019 model that I might like and that they would be covered by warranty: new 4-bolt motor covers (supposedly better fitting and stronger), a revised rear suspension link (to reduced the chances of pebbles being caught against the seat tube), and a new rear pivot protection kit (to keep stuff from getting into the gap in the motor housing). I hadn’t seen the new pivot protection hardware so I’ve attached a screenshot showing the part numbers and a photo of it installed (below).

View attachment 13047

The inside of the motor housing on my bike was clean except for some dust, likely due to having the v.1 sponge installed together with the crude helicopter mud flap I fashioned to cover the gap:

View attachment 13048

The new protection kit uses a v.2 sponge with denser foam and plastic parts that clip onto the frame and swingarm to fill the gap. Here’s what it looks like when installed, (mud flap is taped up to show the clips). It covers the gap while allowing the swing arm to move over it - tight ‘n tidy!

View attachment 13049

Props to both @Al Boneta and Specialized!


BTW, a very sharp looking Monster Green 2019 Expert Levo (size Large) sitting on the floor caught my eye, so if anyone is looking for one...

Anyone know if the upgrades are coming to the UK?



[khorn]

Anyone know if the upgrades are coming to the UK?

They are indeed in the UK but Specialized is keeping it very secret so they can save a penny...... the same goes for the cable that have NEVER had a single issue as stated by the same Specialized

Btw I’m a Levo owner myself

Karsten



[Paul Carruthers]

I’ve emailed customer care to enquire re the pivot protector kit



[jimmyjam]

I’ve emailed customer care to enquire re the pivot protector kit

Great, I'd be interested



[Vilt]

So I'm tempted to get my bike to a shop and get all the warranty items installed.
What do we have so far?

1) S194200013 : 4-bolt motor cover
2) S199900061 : motor protection kit v2
3) S194300001 : replacement shock-link
4) motor cable? (I dont know the number)



[Paul Carruthers]

I was told by Specialized customer care the 4 bolt cover is not covered by warranty



[Apples]

I may take mine in for a 500 odd mile / 800 km service maybe in a few weeks and will ask then about anything new after a few checks .

Maybe pads / chain ! about 50 mile road the other 450 miles in off road muddy , wet conditions must have taken its toll



[goldo]

Does anyone know if you can modify the forks on the Comp, ( Revelation RC)? My dealer says no but why can't the internals be changed? Or if you know someone with a set of Fox 36's I'd be interested



[khorn]

Does anyone know if you can modify the forks on the Comp, ( Revelation RC)? My dealer says no but why can't the internals be changed? Or if you know someone with a set of Fox 36's I'd be interested

Sure you can, maybe find a more knowledgeable dealer!

RockShox Charger 2 RCT3 Damper Upgrade Kit for the 2018 Revelation fork - EMTB Forums

Karsten



[goldo]

Does it matter if it's a 2019? It has a damper rod already



[khorn]

Does it matter if it's a 2019? It has a damper rod already

If it already has the Charger 2/Debonair installed then it is not a Revelation but a Pike fork - I don’t think so.

That’s the only difference between Pike and Revelation forks.

Karsten



[Vilt]

The 2019 is a Revelation Charger RC with Debonair.

Revelation Charger RC

(Which is not a charger 2)



[atcspaul]

Wanted to give a “shout out” to @Al Boneta at Orange Cycle here in Southern California. I purchased a 2018 Levo there December ’17 and bought a 2019 Levo in January this year to accommodate the new 700Wh battery. Both bikes have performed without a hiccup likely due at least in part to Al’s service skills.

Al contacted me this week to let me know he had some upgrades for the 2019 model that I might like and that they would be covered by warranty: new 4-bolt motor covers (supposedly better fitting and stronger), a revised rear suspension link (to reduced the chances of pebbles being caught against the seat tube), and a new rear pivot protection kit (to keep stuff from getting into the gap in the motor housing). I hadn’t seen the new pivot protection hardware so I’ve attached a screenshot showing the part numbers and a photo of it installed (below).

View attachment 13047

The inside of the motor housing on my bike was clean except for some dust, likely due to having the v.1 sponge installed together with the crude helicopter mud flap I fashioned to cover the gap:

View attachment 13048

The new protection kit uses a v.2 sponge with denser foam and plastic parts that clip onto the frame and swingarm to fill the gap. Here’s what it looks like when installed, (mud flap is taped up to show the clips). It covers the gap while allowing the swing arm to move over it - tight ‘n tidy!

View attachment 13049

Props to both @Al Boneta and Specialized!


BTW, a very sharp looking Monster Green 2019 Expert Levo (size Large) sitting on the floor caught my eye, so if anyone is looking for one...

thank you for this, My shop is ordering in the parts for me
