Vitus E-Mythique LT won't power on.

[mtbman]

My bike is just completely dead after two rides. One through some muddy trails. Slight hose down afterwards. It doesn’t power up. About to take the motor out

Sounds like it could be the power board then. Best of luck and keep us posted. We’ve a lot to learn on diying this bike.



[willsendall77]

Hi there I’ve just visited my e-mythical , it weirdly turned on. Powered up and down twice! Now dead again.
So decided to split the motor.
To check for water ingress. Absolutely nothing looked brand new, (which it is) no traces of any water, dust or dirt etc.
To my e-bike repairing (very novice!) eyes, nothing untoward or obvious is wrong in here or would lead me to think it’s an issue due to water…..

Battery definitely good as I’ve tested that with a multi meter.

I still notice the power leads sparks when I plug it in, is this normal?

Any ideas?? Could it be the display?

Cheers Will



[willsendall77]

Ps a gentle tap with a mallet separated the casings easily. Gasket looked perfectly intact



[mtbman]

That’s good news re lack of water. I’d say the power board is faulty. And yes, I investigated the popping and noise when connecting the battery but it is perfectly normal.
I have used black tack around all the connectors to my motor now and hope that may help keep water from shorting that power connector (my hypothesis!). Best of luck.



[rotary]

These are the bits i used stripping the motor is fairly easy to do just make you know where the bits go back

View attachment 137784 View attachment 137785

Thanks for this



[Mikefiver]

My Mythique is now up and running again! Woo Hoo!
New connector board seems to have fixed it. At least a quick trip up and down the street shows its ok so far
There was signs of water ingress/corrosion on the soldered pins on the back of the connector blocks and one or two of the tracks looked dodgy. New one well sealed with dialectric grease - not on the pins though. Also the cavity inside the motor behind the chainring as water was getting in that way as well.
See how it goes from here.



[Mikefiver]

Sorry didn’t quite explain that right. The dialectic grease went between the rubber gasket and the engine casing particularly round the sockets.
The grease I packed inside the casing behind the chainring was Lucas Red n Tacky marine stuff. Cheers



[mtbman]

Fantastic- have had mine out twice on the trails - a great ride. Worrying the motor cut out today on a climb but powered off and on and worked perfectly for 10miles of hard black trails. Happy riding!!



[Curry]

Hey,

just thought I would say I have had similar issues with my mystique and found this thread very helpful. My motor stopped working after intermittently turning on and giving no assistance.

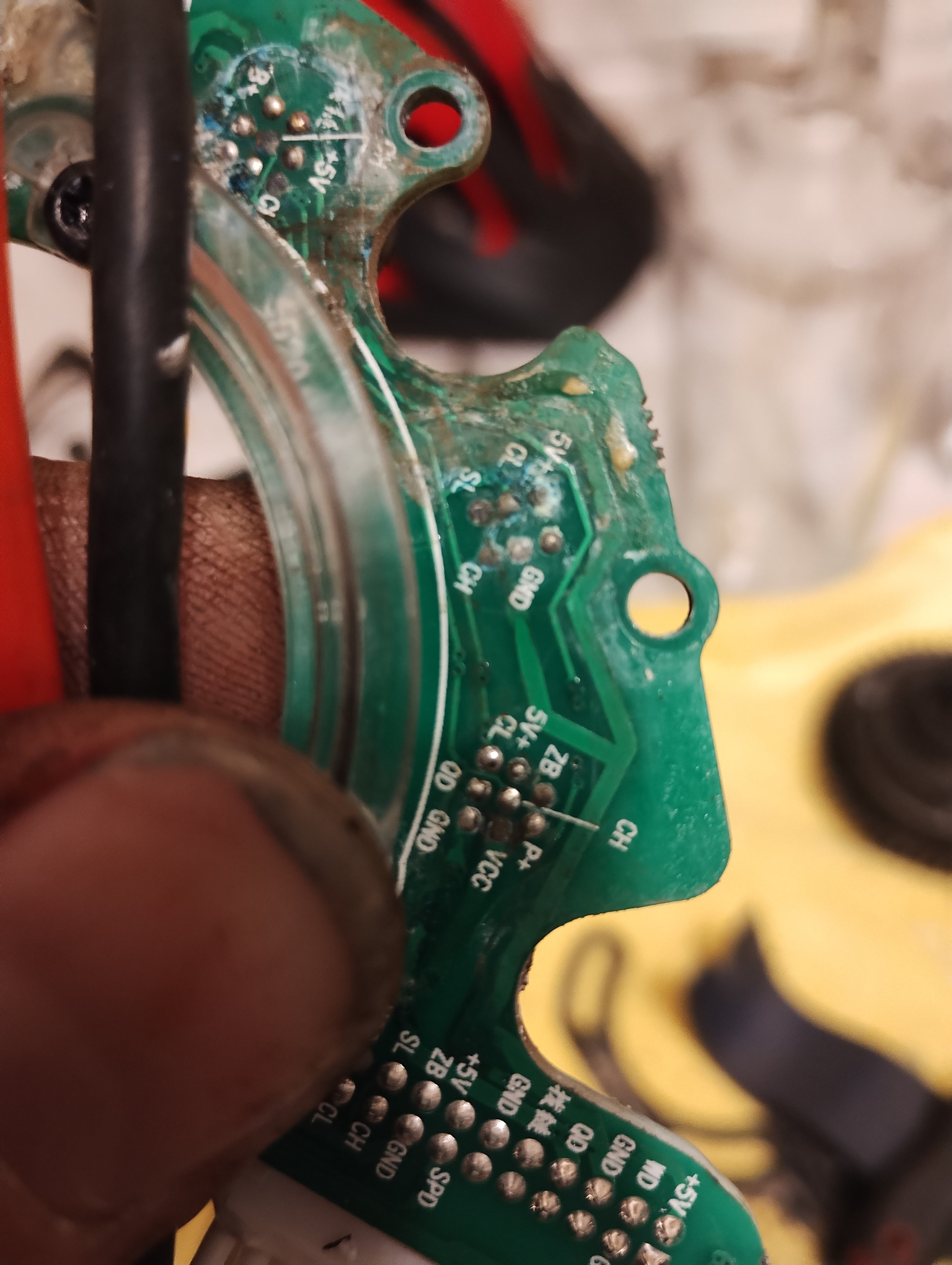

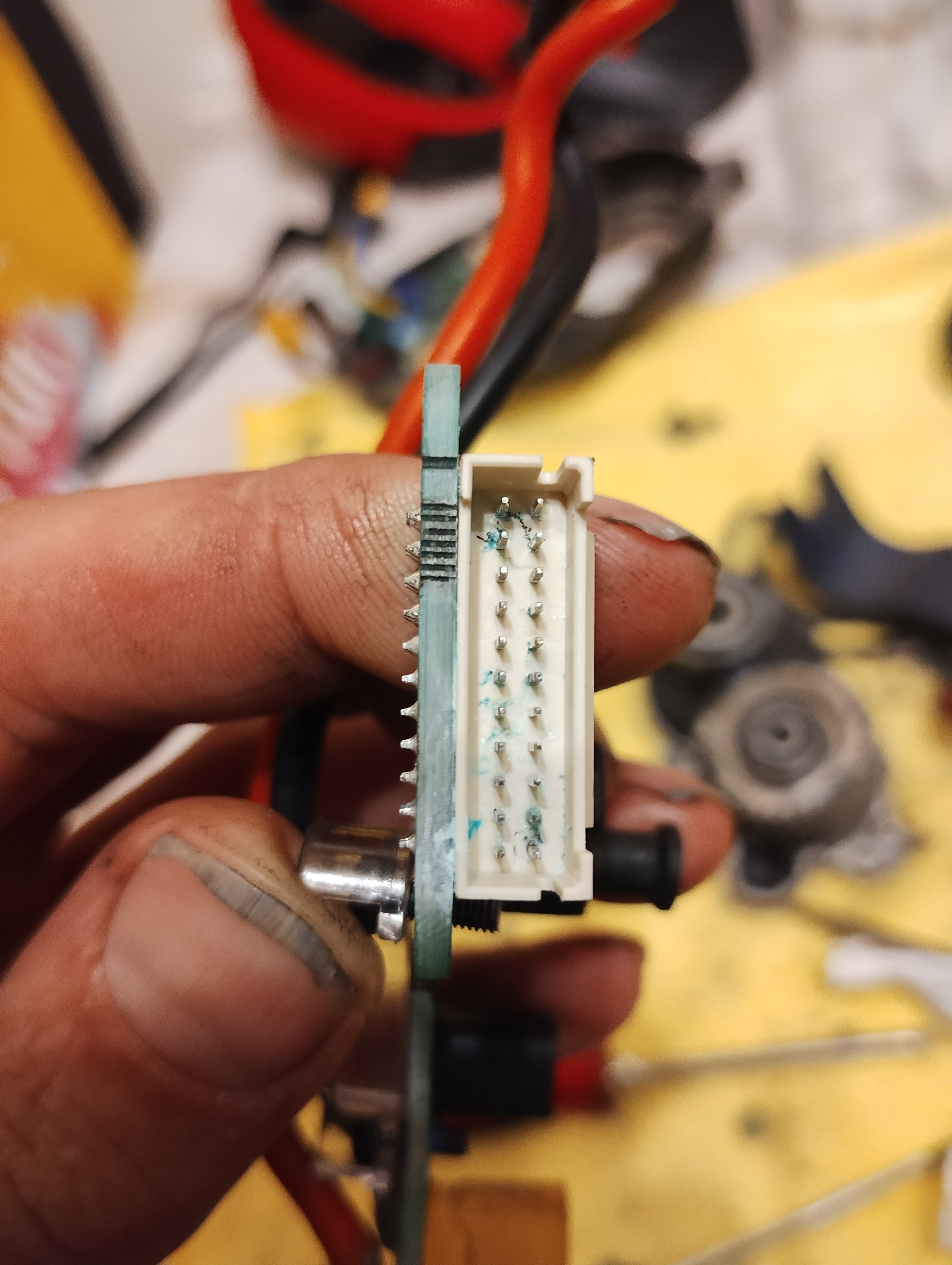

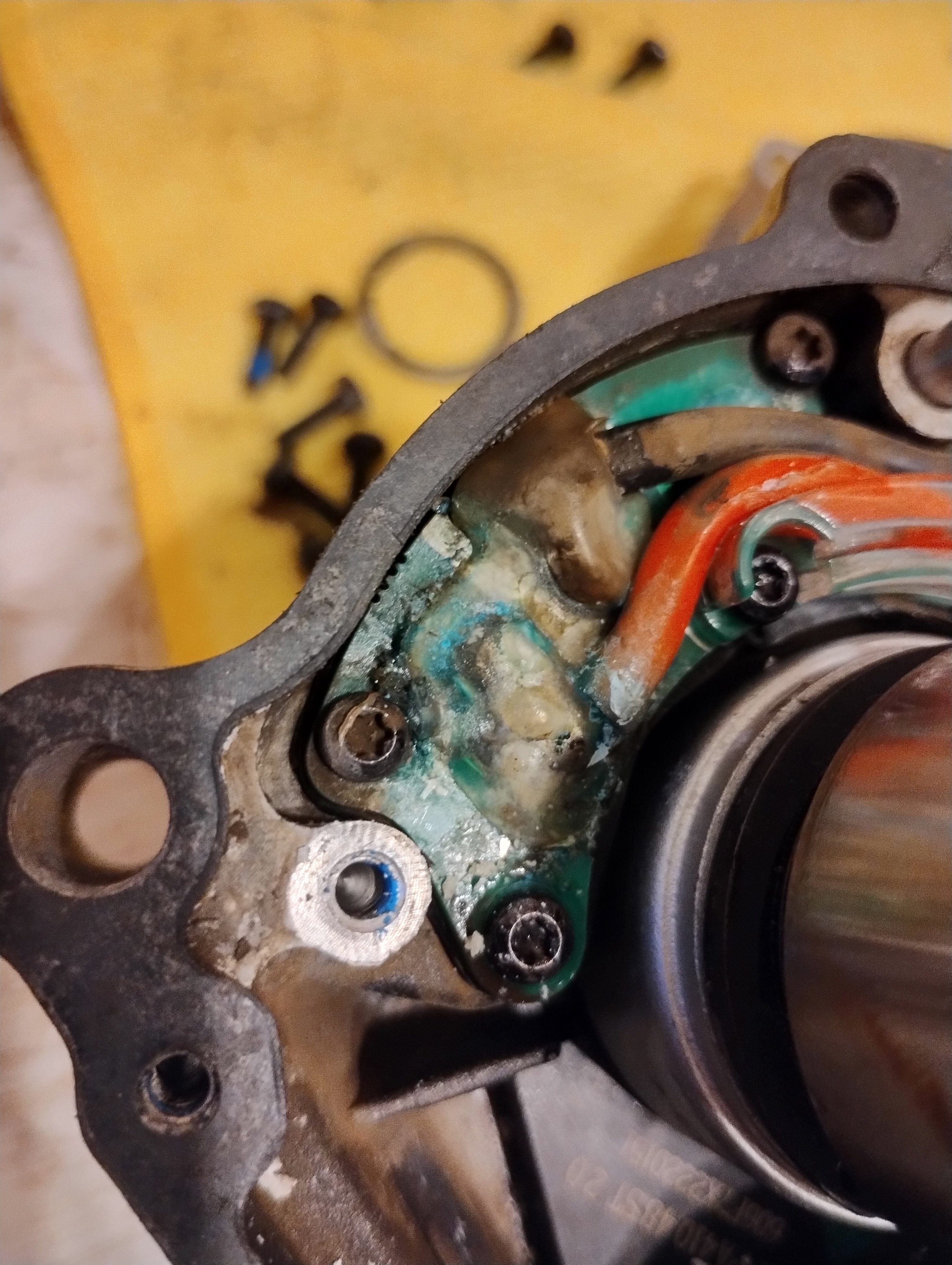

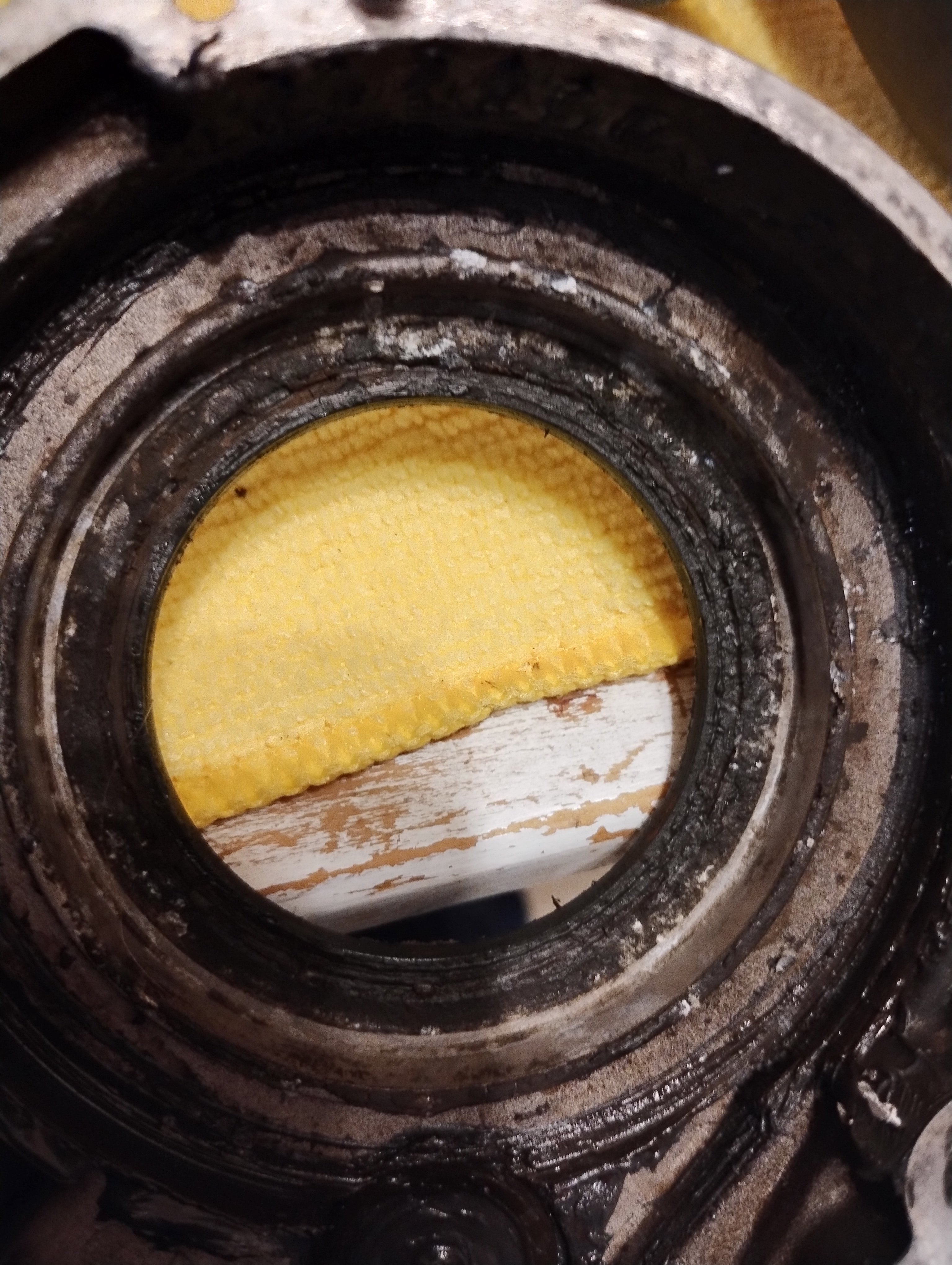

I checked all the connections and found lots of them where green inside so have them all a good clean with contact cleaner and ended up stripping the motor. I found the socket board very corroded as most have found. Looks like the Failure point is the main shaft seal on the drive side And the socket board is not conformal coated only hot glue used to protect the solder joints. Also interesting to see the arc path in the ribbon connector.

I cleaned socket board surfaces and connectors conformal coated everything and the re hot glued the back of the pins. Reassembled and it is now all working fine.

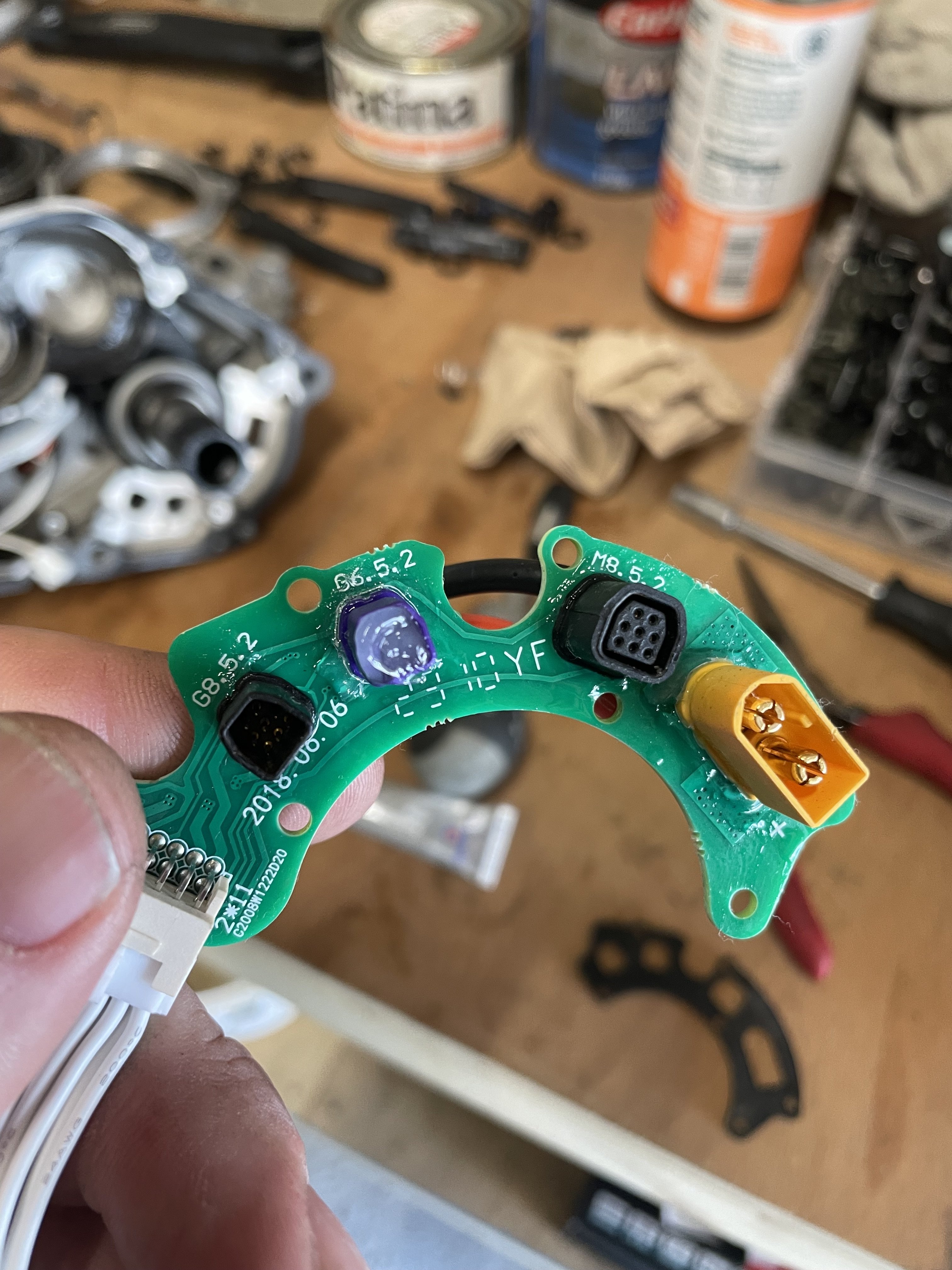

I have added some pics hopefully this will help others .



[willsendall77]

Hey,

just thought I would say I have had similar issues with my mystique and found this thread very helpful. My motor stopped working after intermittently turning on and giving no assistance.

I checked all the connections and found lots of them where green inside so have them all a good clean with contact cleaner and ended up stripping the motor. I found the socket board very corroded as most have found. Looks like the Failure point is the main shaft seal on the drive side And the socket board is not conformal coated only hot glue used to protect the solder joints. Also interesting to see the arc path in the ribbon connector.

I cleaned socket board surfaces and connectors conformal coated everything and the re hot glued the back of the pins. Reassembled and it is now all working fine.

I have added some pics hopefully this will help others .

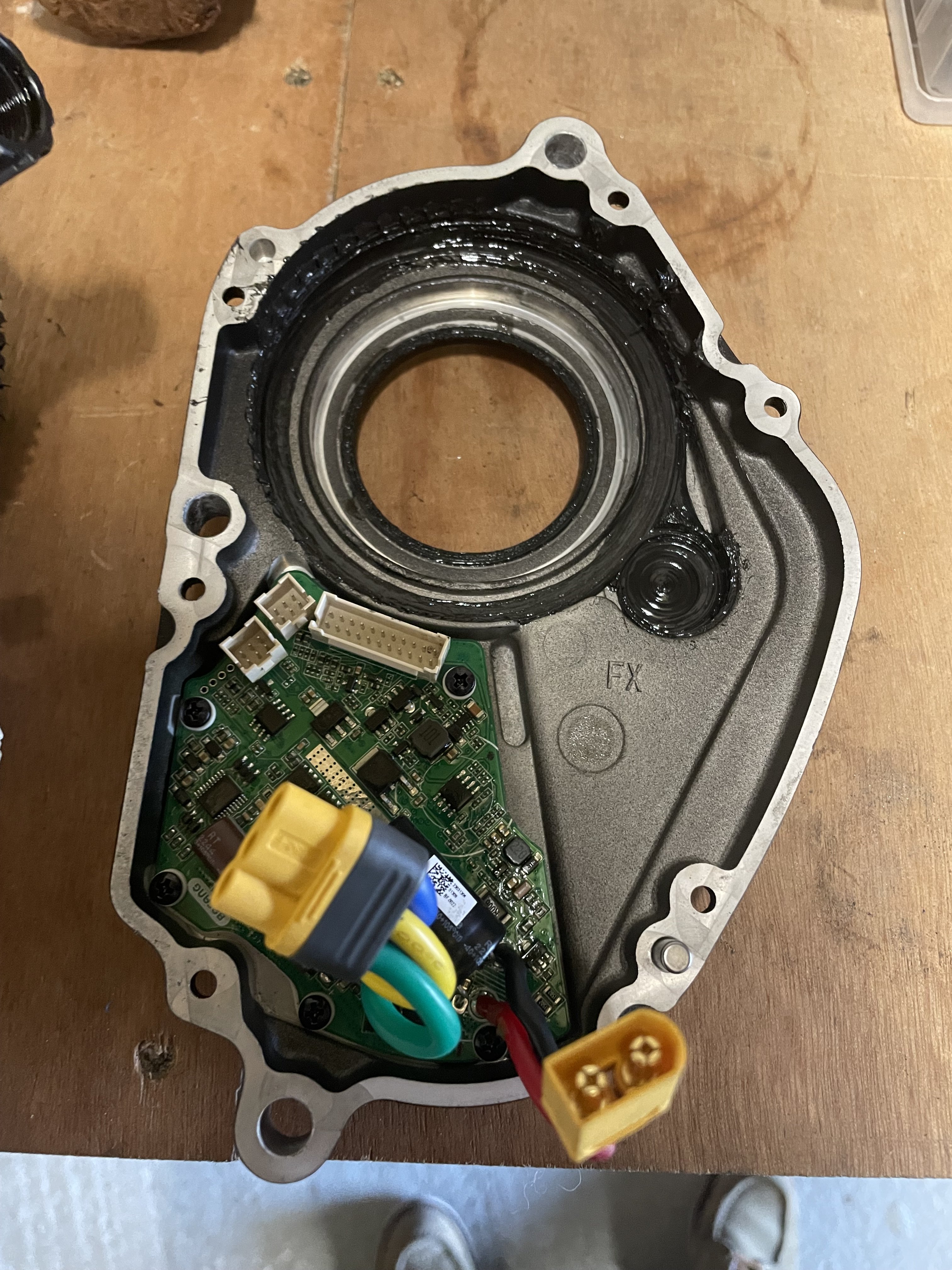

View attachment 139602

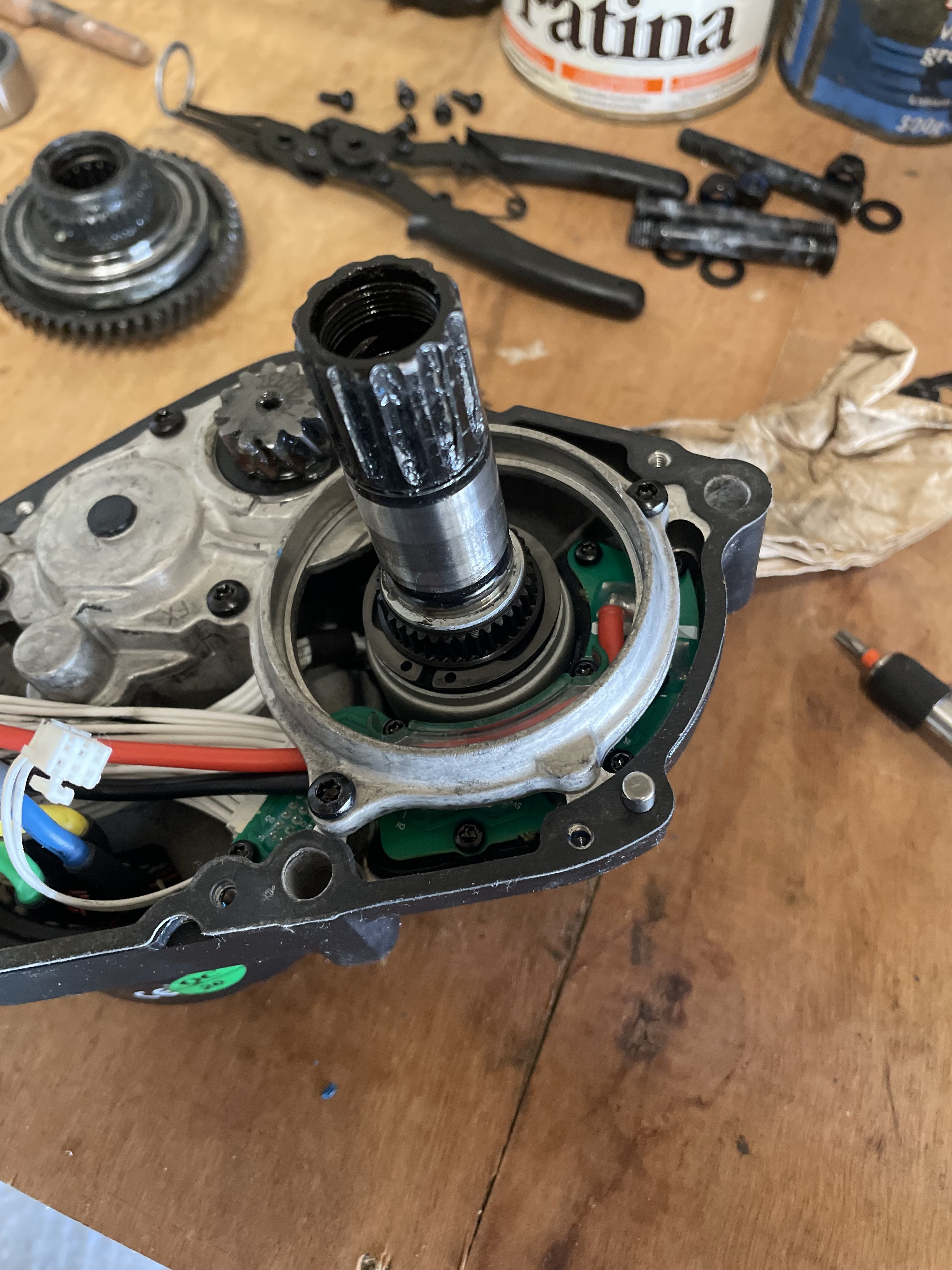

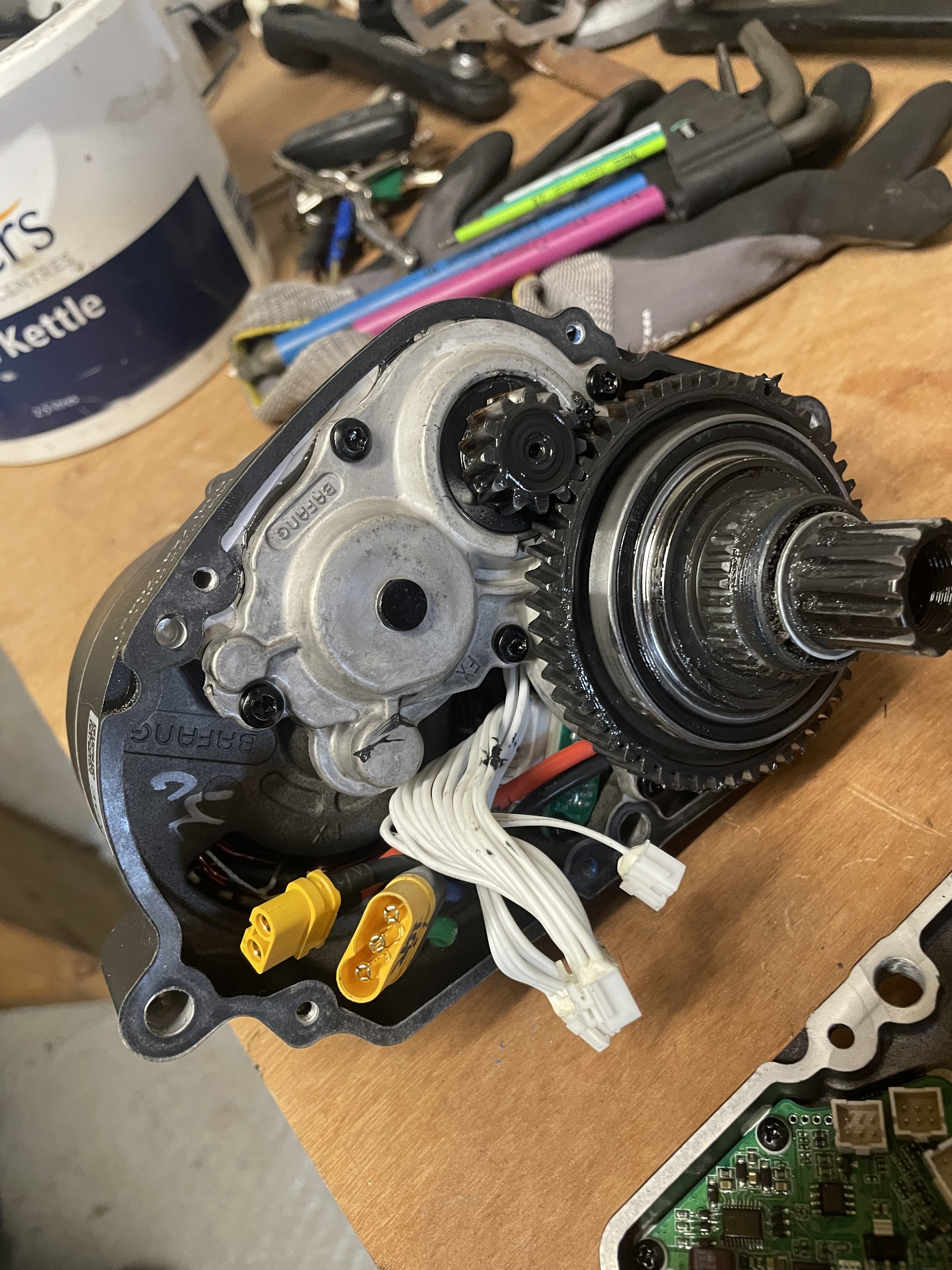

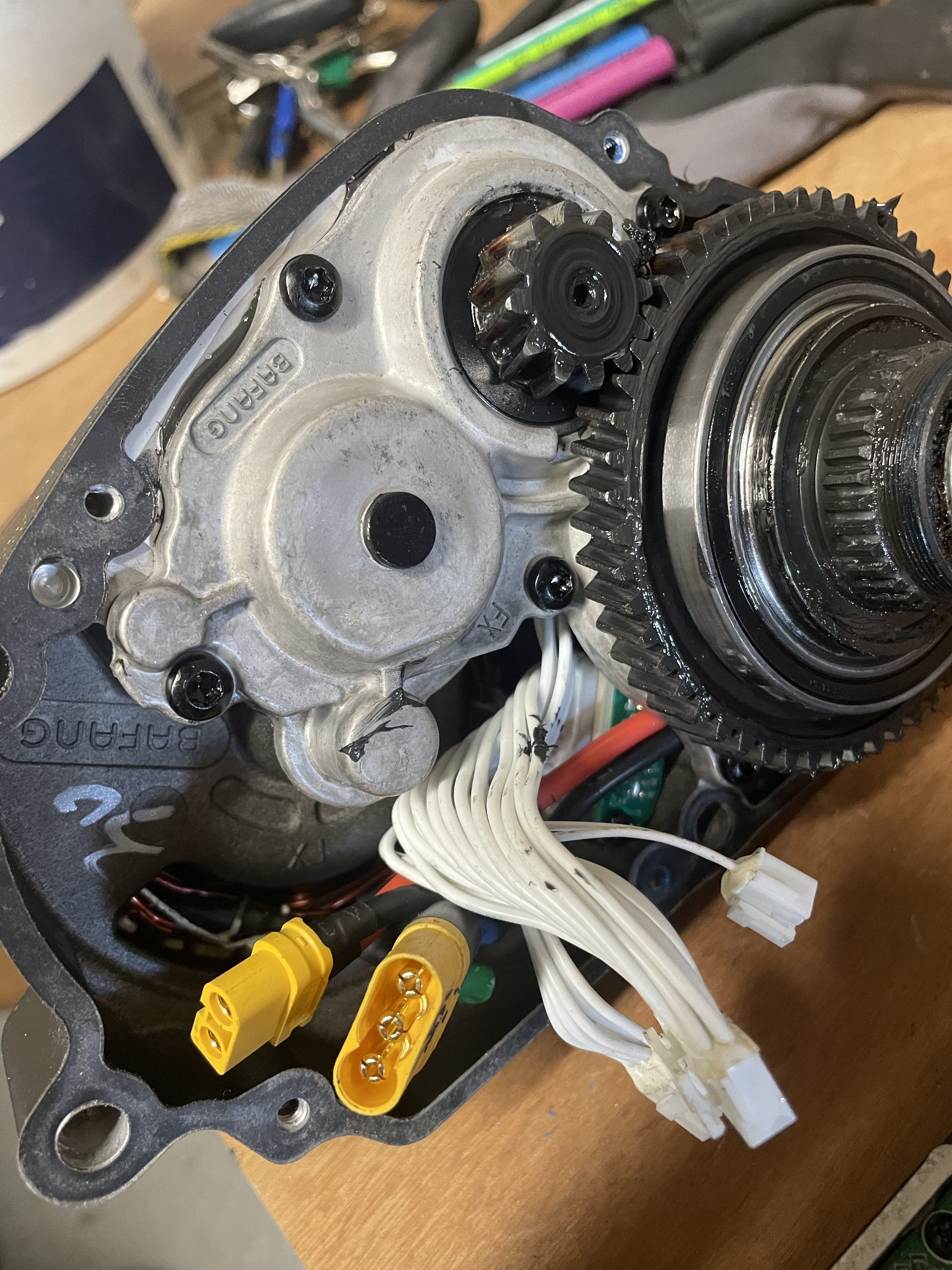

View attachment 139598 View attachment 139599 View attachment 139600 View attachment 139601

Great pics thanks for this post.
Do you think there’s a way to fix the seal or have you had any thoughts about possible solutions?
Cheers



[Curry]

Great pics thanks for this post.
Do you think there’s a way to fix the seal or have you had any thoughts about possible solutions?
Cheers

So I did a temporary fix as I im riding up Snowden in a few weeks and want to make sure it worked when back in the bike. I packed the drive side seal with water proof grease and the back face of it that touches the bearing for now.

I have ordered a new seal and the plan will be to get the dimensions from that seal and find a alternative seal. Ultimately I think the seal is just not doing its job properly. I have also started looking at designing a bolt on splash guard to try and keep water away from that area.

I will do a strip down and reassembly pics to show what I have done.



[willsendall77]

Ok I have a working e-mythique again

In this case it was the PCB as suggested by multiple participants in this forum. Many thanks for all the advice, definitely wouldn’t of had a clue without your help

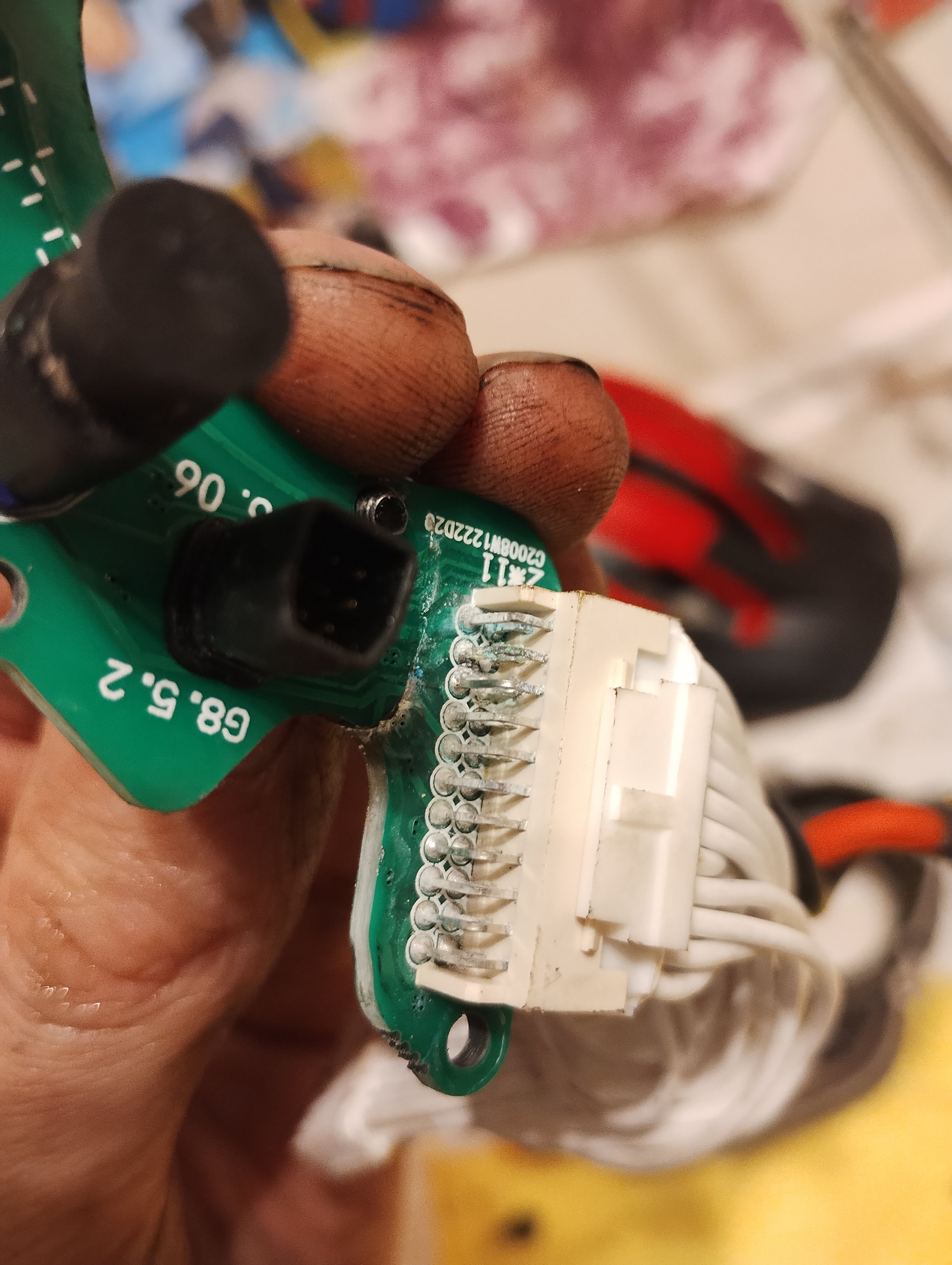

Split the casings and removed the PCB on the chainring side. Immediately saw corrosion around the dormant pin socket. Water ingress into that socket was the cause of the failure.

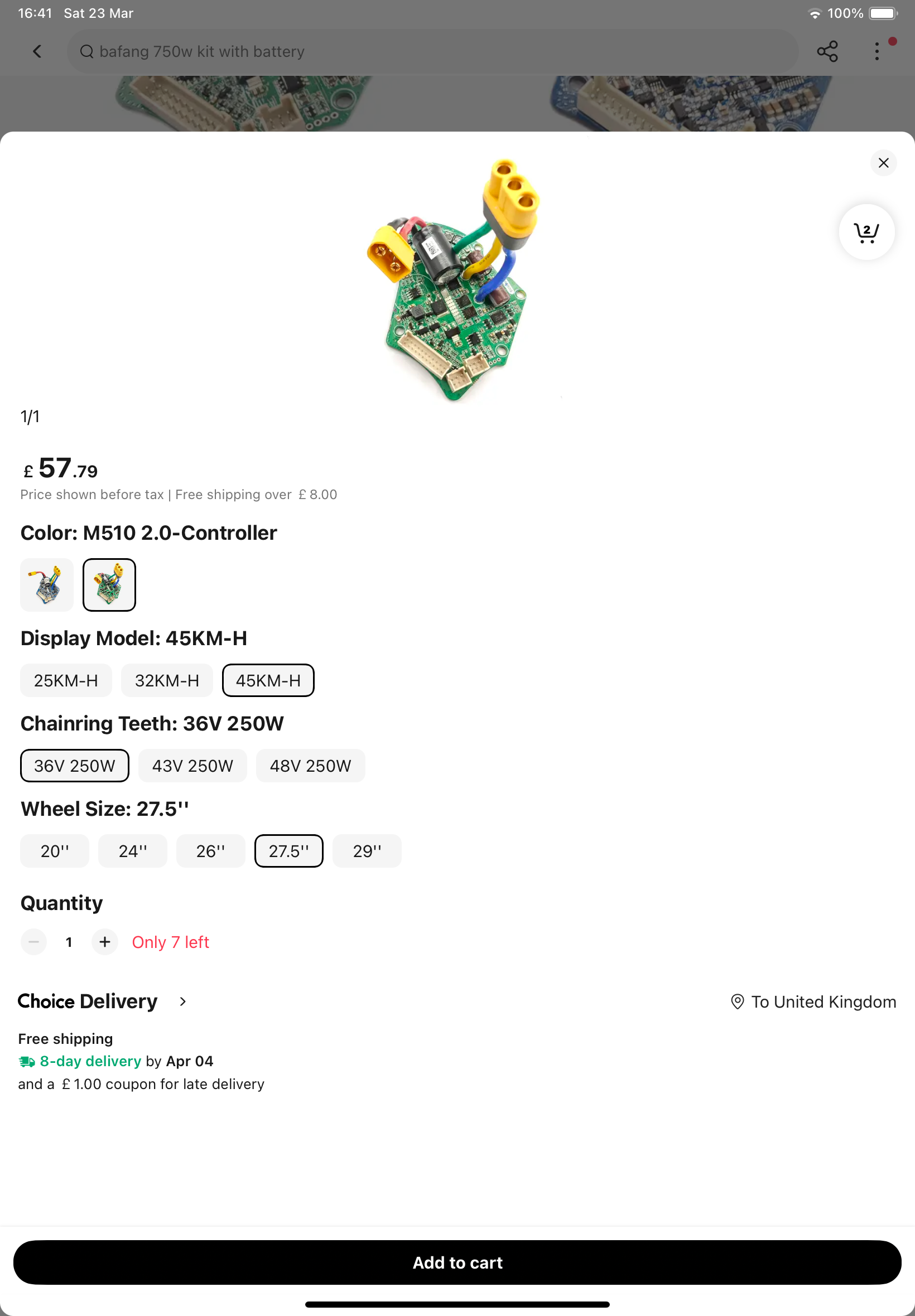

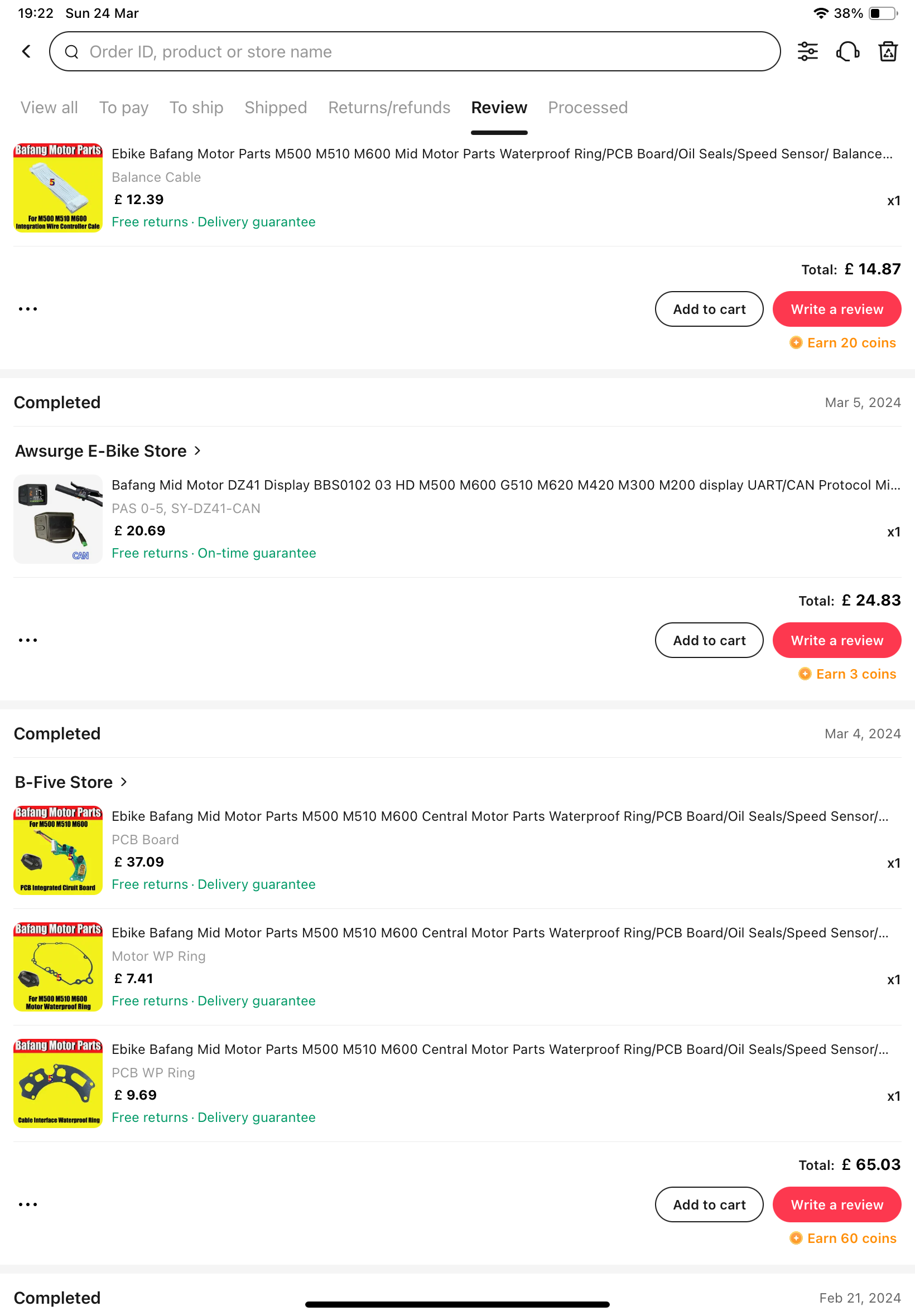

New PCB and seal as supplied by Ali Express.
I used some dialectic grease to pack into the unused socket before capping it. Also smeared on the seal both sides and around the pin sockets to help seal into the casing. Tightened it up nicely to make sure the seal was good.
Put it back together and it’s working perfectly.

Again many thanks to everyone who contributed to enable this fix. Definitely the weak point.

I’ll be using in dry conditions only and avoiding deep puddles! Also not hosing down!!

Hope everyone else has got their bikes sorted

Cheers Will



[willsendall77]

Specialist tools required by anyone wanting to do this job, which is fairly simple:

Bottom bracket tool
Chain whip tool
Torx screwdriver set
Circlip pliers



[Jimmylowblow]

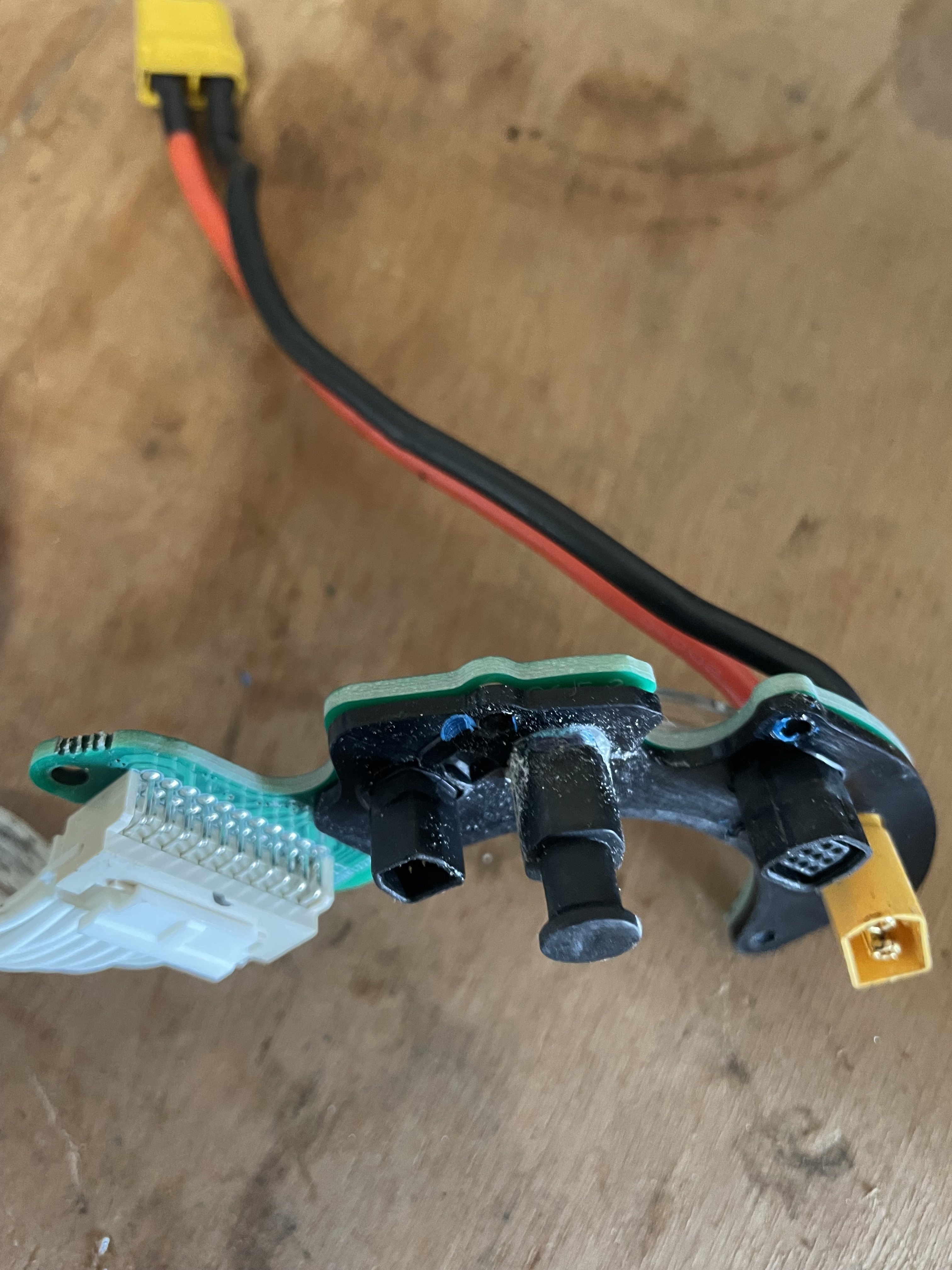

Mine personal bike went this week. Error 36 and then wouldn't power on after removing the battery. Socket board switch our and packed with dielectric grease around the socket board. Marine grease around the Crank shafts and black tack around all the plugs on the outside on the motor. Be surprised if any water gets in now.



[Jimmylowblow]

I now view the socket board as a part that I will need to replace like a bottom bracket, brake pads etc. It's an easy job and only takes and hour and a half. Just be careful and don't rush.



[Jimmylowblow]

Specialist tools required by anyone wanting to do this job, which is fairly simple:

Bottom bracket tool
Chain whip tool
Torx screwdriver set
Circlip pliers

A mallet is very handy too



[willsendall77]

A mallet is very handy too

Definitely



[SBJ]

Has anyone come across error 12 yet? I have replaced the PCB and tested with another controller but still no feedback from the motor.

Bike powers on and the controller lights up, both controllers show error 12



[Jimmylowblow]

Has anyone come across error 12 yet? I have replaced the PCB and tested with another controller but still no feedback from the motor.

Bike powers on and the controller lights up, both controllers show error 12

I haven't, but reading up online quickly replace the controller board.



[willsendall77]

Mine personal bike went this week. Error 36 and then wouldn't power on after removing the battery. Socket board switch our and packed with dielectric grease around the socket board. Marine grease around the Crank shafts and black tack around all the plugs on the outside on the motor. Be surprised if any water gets in now.

I just purchased some black tac, great idea



[Jimmylowblow]

I just purchased some black tac, great idea

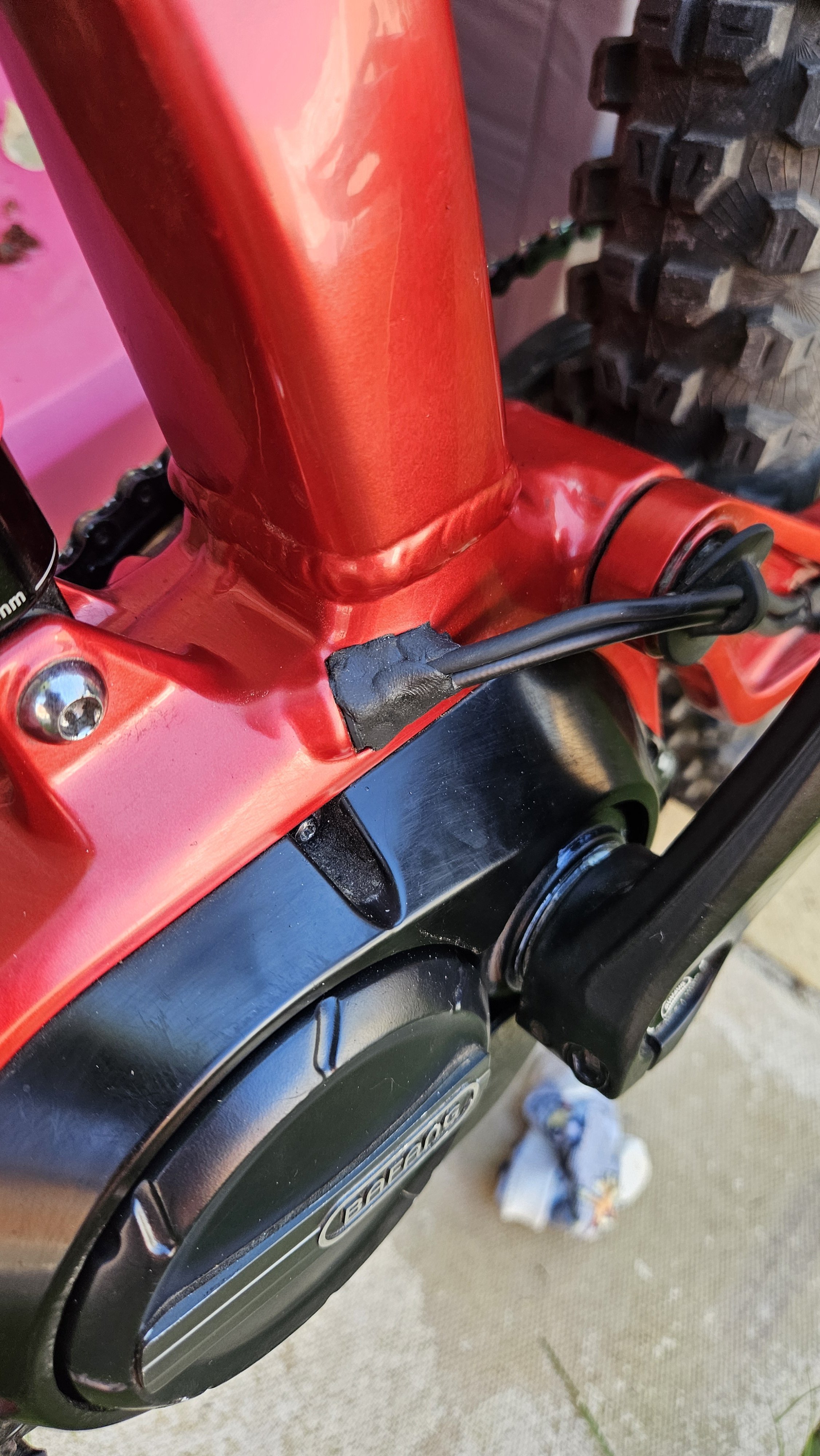

Use it to cover these cable inlets too.



[JamesGrant]

Mine won't turn on either. Got about 80 miles before it died. Taking it apart there was a tiny bit of water under the controller board but not loads.

I've replaced the power controller side and ribbon cable so now I guess it's the main controller board (the one with a tiny bit of water). Frustrating really given I will also need to buy a K1 or BESST tool.



[Jimmylowblow]

Mine won't turn on either. Got about 80 miles before it died. Taking it apart there was a tiny bit of water under the controller board but not loads.

I've replaced the power controller side and ribbon cable so now I guess it's the main controller board (the one with a tiny bit of water). Frustrating really given I will also need to buy a K1 or BESST tool.

Where are you based mate?



[JamesGrant]

Where are you based mate?

Near Wrexham.



[Jimmylowblow]

Near Wrexham

I work in Chester and live in north wales. Can flash your new controller board if needed.



[JamesGrant]

I work in Chester and live in north wales. Can flash your new controller board if needed.

Oh wow thank you!

However I did order the K1 yesterday so hopefully fingers crossed should be sorted.



[RonanGee]

Wow there's been so much info added to this since I started it. Unfortunately ours is now acting up again. I must catch up on all the AliExpress purchases to refresh the boards etc.

Question about dropping the motor:

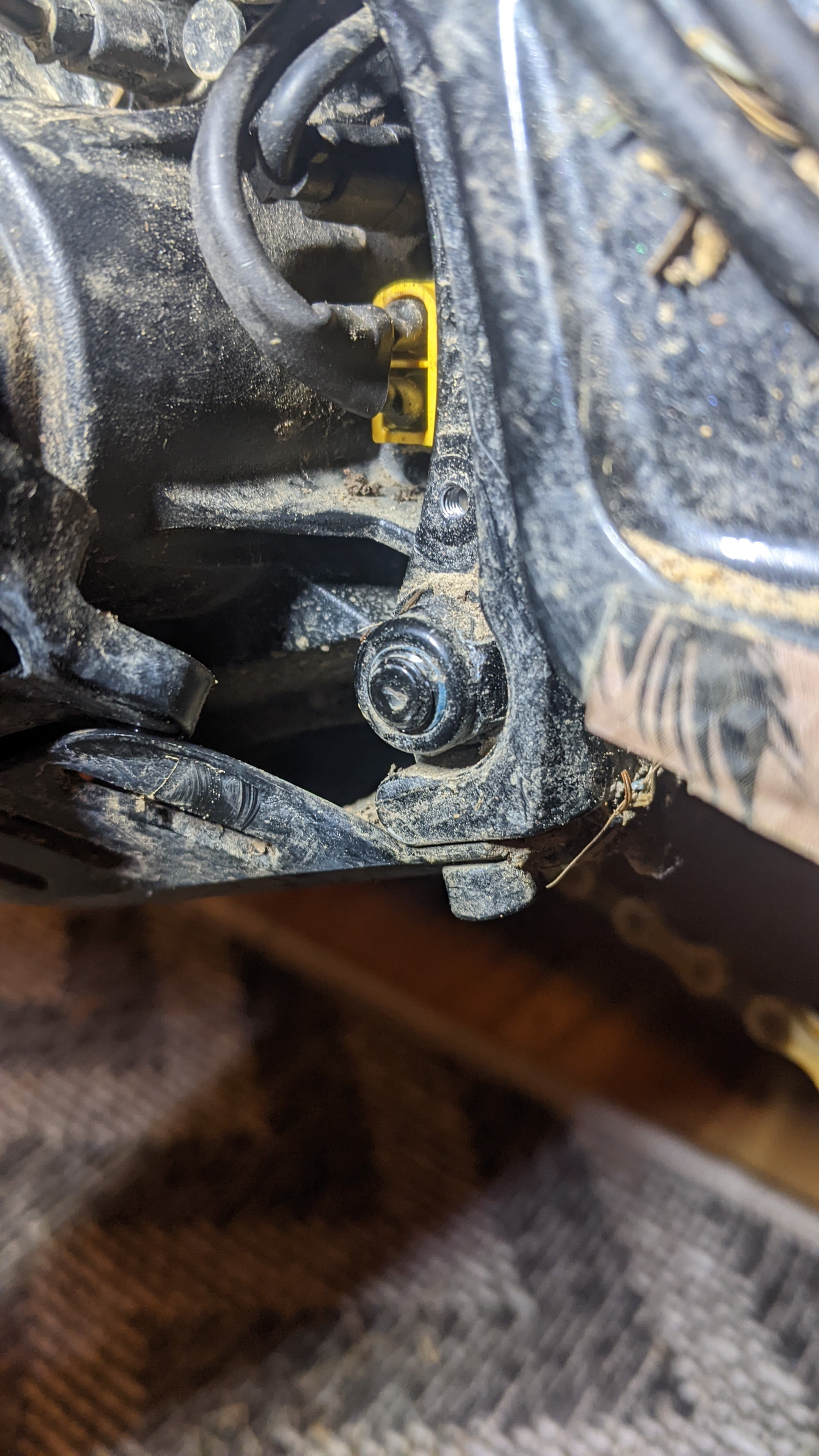

What are the using to undo the nut closest to the chain stay? A very slim socket? The socket I have won't clear the frame



[rotary]

Wow there's been so much info added to this since I started it. Unfortunately ours is now acting up again. I must catch up on all the AliExpress purchases to refresh the boards etc.

Question about dropping the motor:

What are the using to undo the nut closest to the chain stay? A very slim socket? The socket I have won't clear the frame
View attachment 146948

Yes, I had to turn down the OD of the socket on a lathe.



[RonanGee]

Yes, I had to turn down the OD of the socket on a lathe.

Thanks I've a lathe at work I must do the same. Do you remember what size the nut was? I'm measuring 13mm



[rotary]

Yes it’s 13mm but I used 1/2” which fit nice and snug
