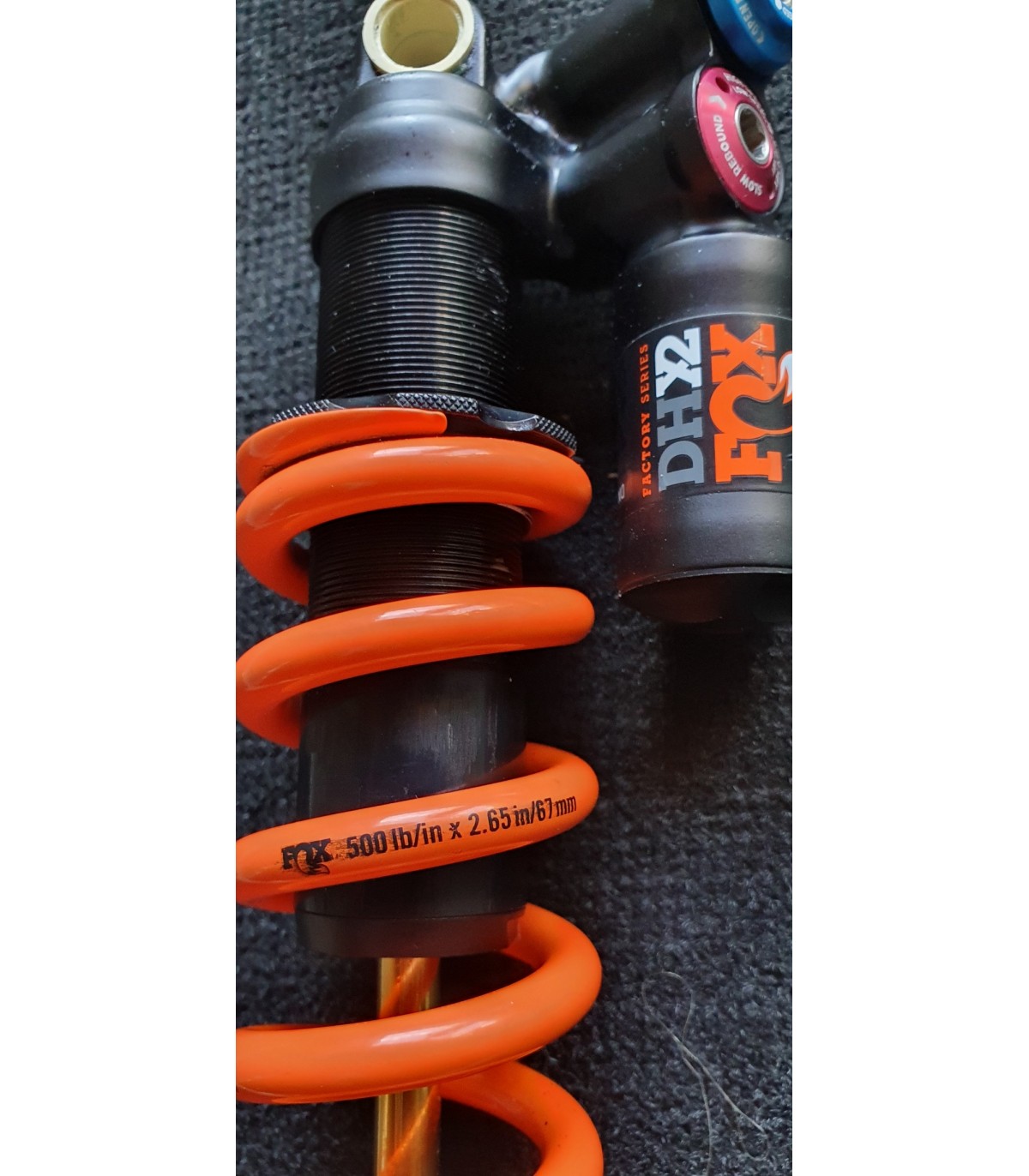

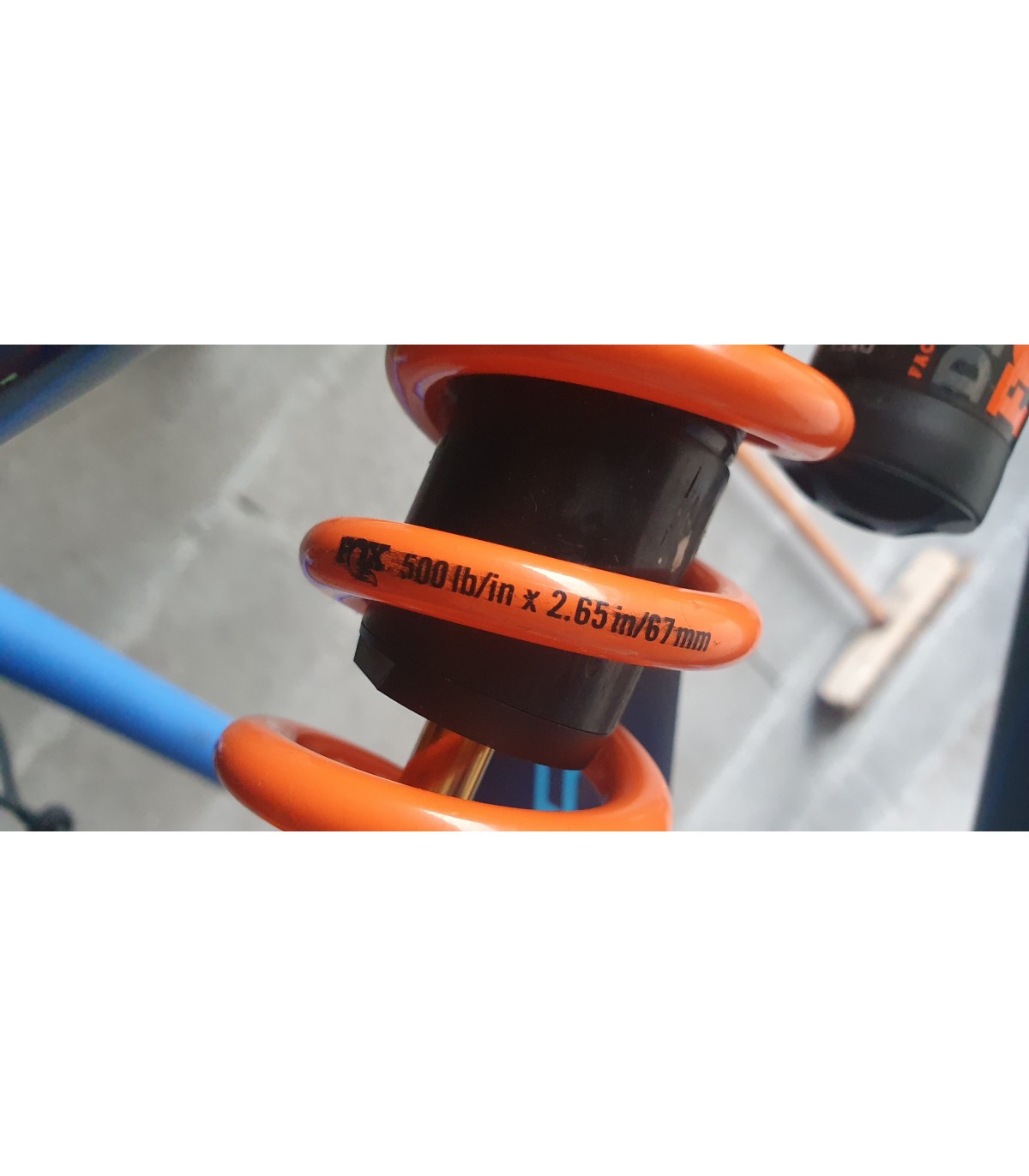

Zeb select plus that came stock on the 2021 9.8XT. BTW, it came on the bike bone dry. Issues from day 1. Now it's clunking like crazy.
Trek Rail with Fox DHX2 coil
- Thread starter zaykay
- Start date
In my experience the 2.1 damper is considerably better performing that the regular damper that the select+ comes with. Maybe an option to upgrade the damper?
Hello, have you thought about a smashpot spring or secus thingy from vorsprung, they get a great review.
Hi guys
I want to replace the RockShox Deluxe on my Rail 5 for a Fox DHX2 , but I have no experience with shock absorbers and their measurements
and I wouldn't want to be wrong ... I saw this DHX2 2020 ( 230x60 ) on sale and I need your advice to tell me if this Fox would be compatible on my Rail 5 size L ( my weight is 210 lbs ) and what I would need to install it .
I want to replace the RockShox Deluxe on my Rail 5 for a Fox DHX2 , but I have no experience with shock absorbers and their measurements
and I wouldn't want to be wrong ... I saw this DHX2 2020 ( 230x60 ) on sale and I need your advice to tell me if this Fox would be compatible on my Rail 5 size L ( my weight is 210 lbs ) and what I would need to install it .
Last edited:
Aside from the shock, we sell the shock bushings required to fit it here - Shock Bushings | Trek Rail
Hello, I'm not sure if the piggy back would hit the frame, that would be my main concern, I know that not all coil shocks fit the rail.
230x60
I will call on you if this Shock fits my bike ;-)
no I can't ... it's for sale on a bicycle parts site
FYI the first post in this thread is the OP showing this exact shock installed on his large rail 7.
2022 Rail 9.9 in XL, Carbon

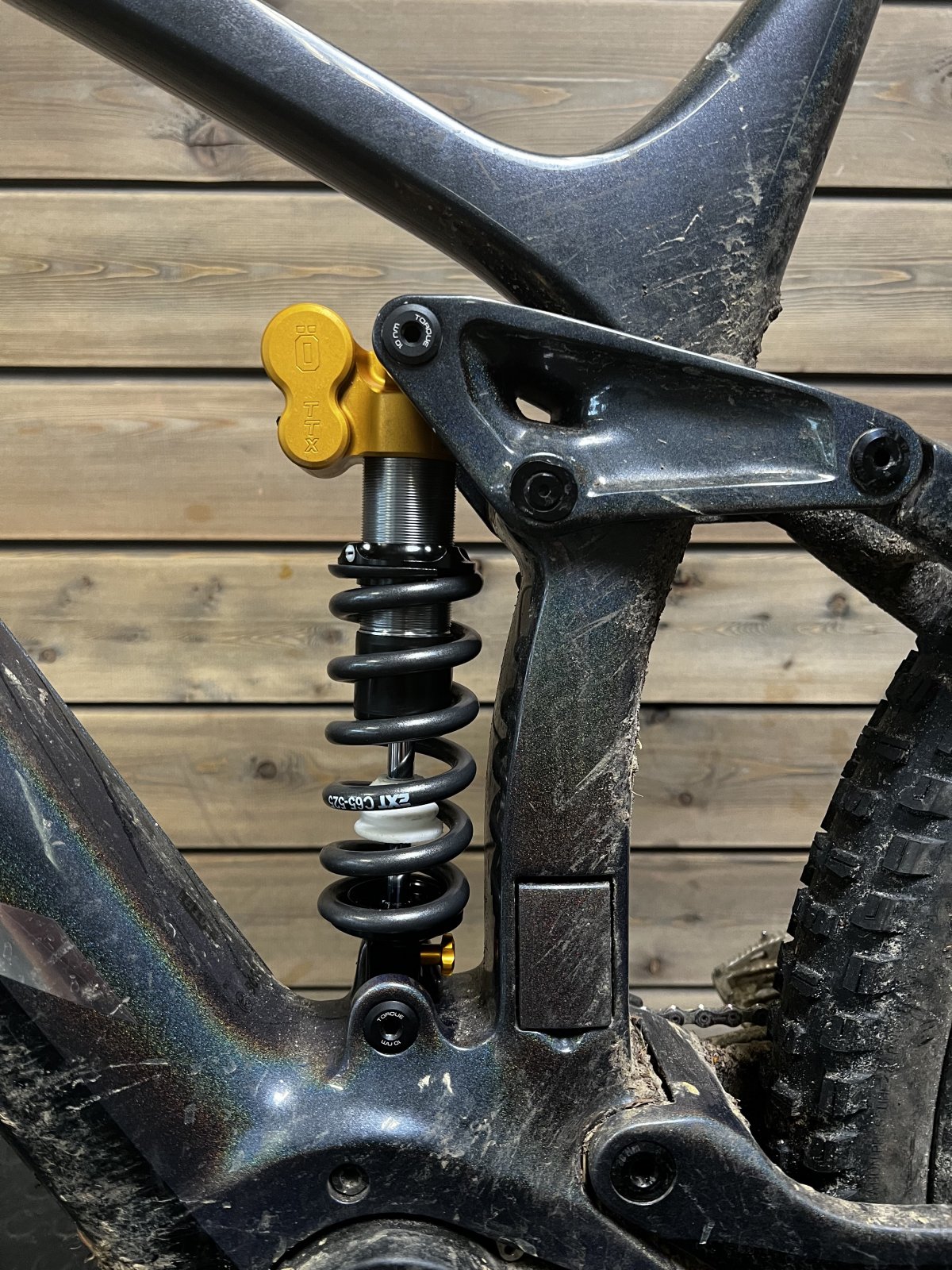

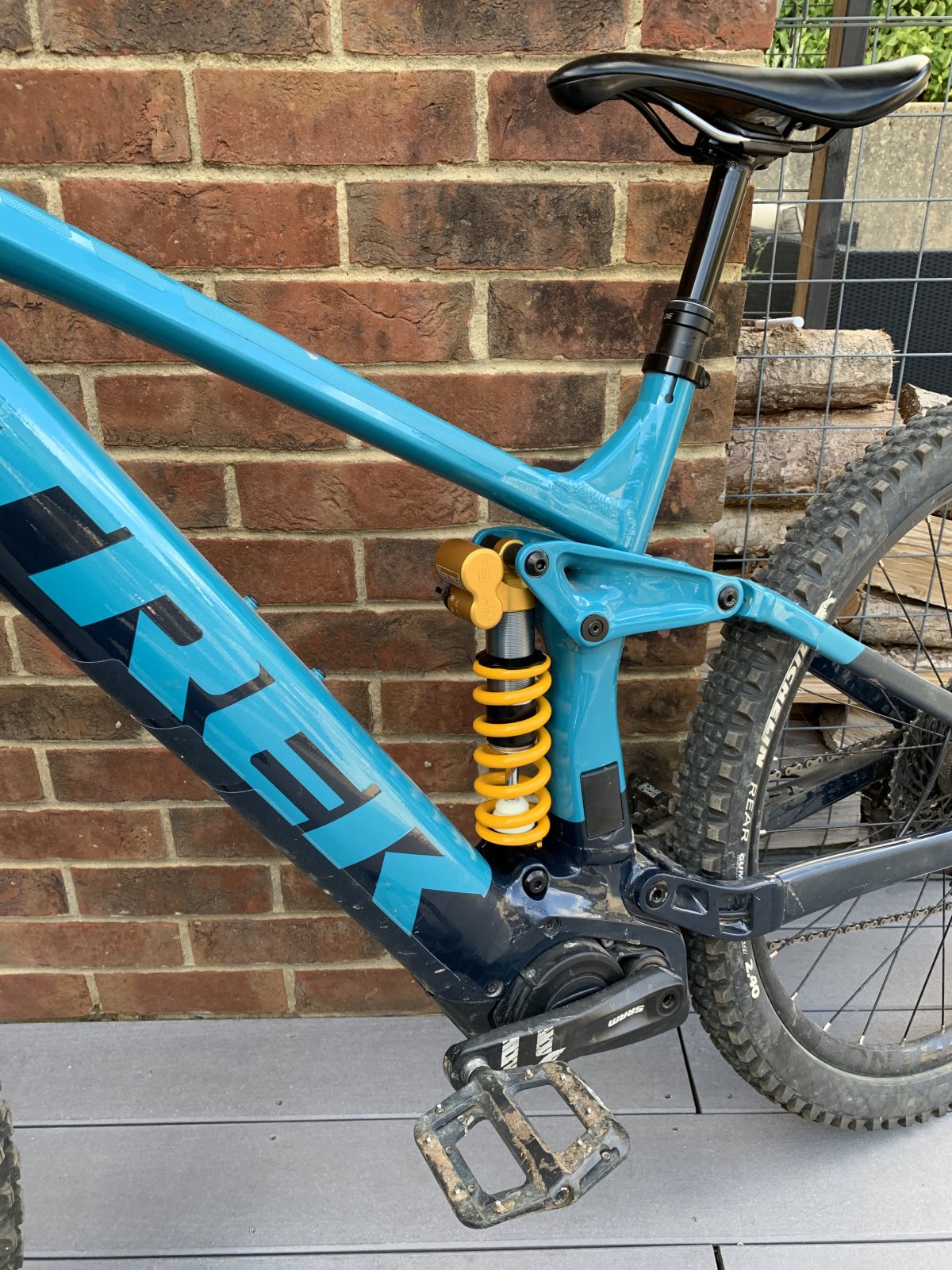

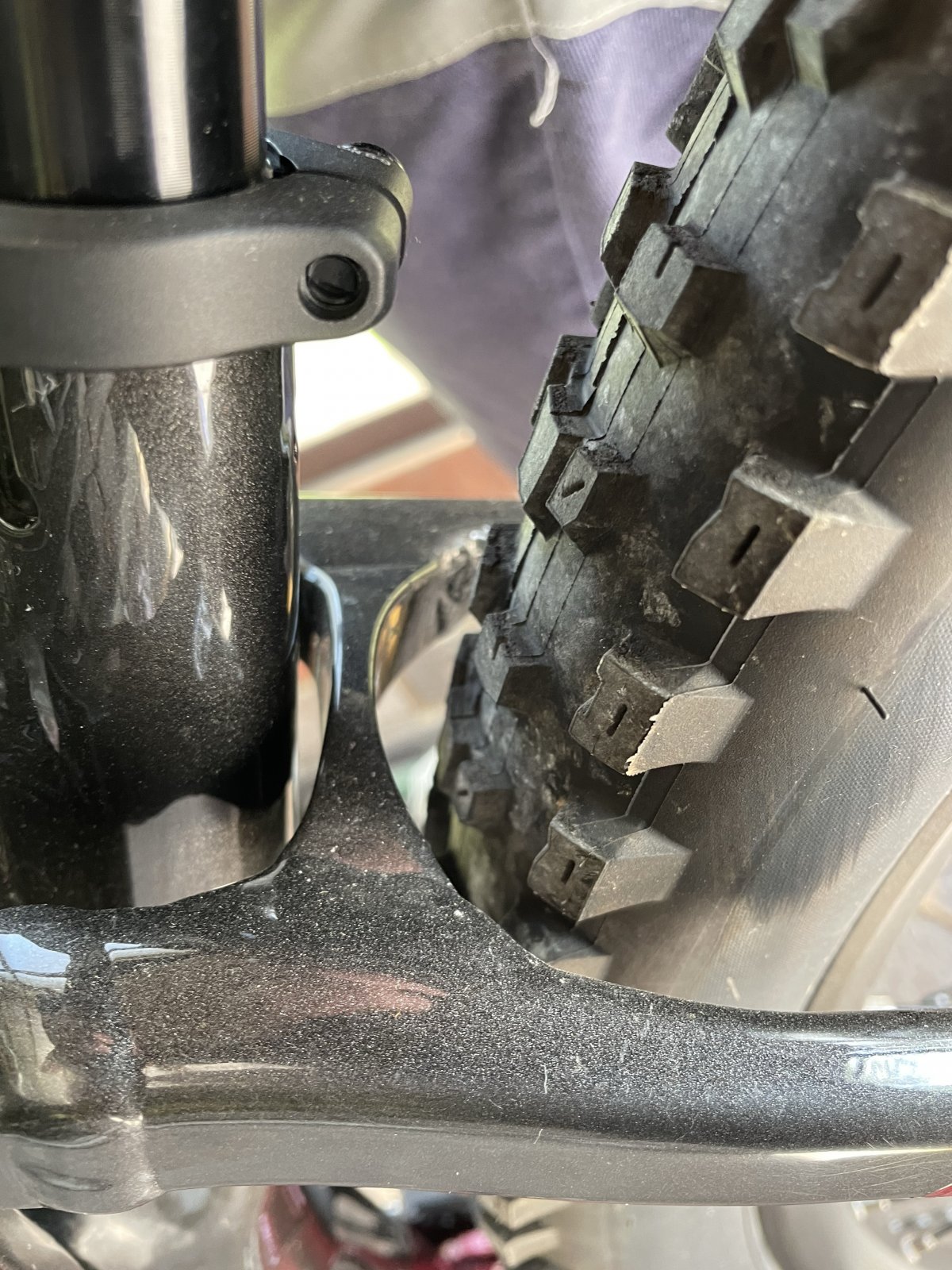

Ohlins TTX22M in 230 x 62.5 and enough clearance on seat stay bridge with spring off and slammed to the bottom of the bumper.
PS - Anyone wanting to convert the Through Shaft to regular metric, @Offset have the mounting kits. Just need to then get the Trek Bolts from Trek Direct of TF Tuned.
Ohlins TTX22M in 230 x 62.5 and enough clearance on seat stay bridge with spring off and slammed to the bottom of the bumper.
PS - Anyone wanting to convert the Through Shaft to regular metric, @Offset have the mounting kits. Just need to then get the Trek Bolts from Trek Direct of TF Tuned.
Stray cat
Well-known member
My settings are,what Fox recommend. HSC 6 clics out from fully closed. Take a look at his web page
DubbyMcDubs
Member
What size frame are you running?
DubbyMcDubs
Member
After reading over the thread a couple of times, it is still unclear to me if the 21/22 DHX2 or X2 will clear on a medium frame when fully compressed.
Does anyone have experience with this?
Cheers!
Does anyone have experience with this?
Cheers!
Battman85
New Member
Thanks to everyone for the great advice and tips in this thread.
Just got myself a 2021 DHX2 230x65 which i should be fitting up to my rail 7 (size L) in the next week or so once it arrives and i get the spring. will be ordering a progressive spring as i really want to get the nice plush feel but with the extra bottom out protection of the Prog. spring.
I will post how it goes once done to assist with anyone else looking to do the same.
Watching this thread has been so great, and helpful in making the decision on what to run with. Just signed up and keen to get involved with the forum
cheers,
Wayne
Just got myself a 2021 DHX2 230x65 which i should be fitting up to my rail 7 (size L) in the next week or so once it arrives and i get the spring. will be ordering a progressive spring as i really want to get the nice plush feel but with the extra bottom out protection of the Prog. spring.
I will post how it goes once done to assist with anyone else looking to do the same.
Watching this thread has been so great, and helpful in making the decision on what to run with. Just signed up and keen to get involved with the forum
cheers,
Wayne
DubbyMcDubs
Member
Look forward to your updates!
I am planning to do the same, and bought a Float X2 yesterday in 230x57.5, which should be here tomorrow. I'll post pics of the clearance at different stroke lengths, as I belive it can be adjusted internally. This is for a medium 2022 Rail 7, which has not been documented much in the various threads.
In preparation for a DHX2, I also bought a Cane Creek 65mm 450-550 progressing spring.
Battman85
New Member
Nice one, keen to see how you go. The photos in this thread of the float X2 seem to show its pretty close to the seat tube so hopefully works out ok with the medium.
I have just ordered the exact same spring. Wanted the DVO ProRate spring (as its Black) but they dont have stock of the one i needed for 3-6 weeks. So ive ordered the Cane creek one to get me through in the meantime. Its white and wont really suit the bike, but i want to get riding on it ASAP
DubbyMcDubs
Member
Nice one, keen to see how you go. The photos in this thread of the float X2 seem to show its pretty close to the seat tube so hopefully works out ok with the medium.
I have just ordered the exact same spring. Wanted the DVO ProRate spring (as its Black) but they dont have stock of the one i needed for 3-6 weeks. So ive ordered the Cane creek one to get me through in the meantime. Its white and wont really suit the bike, but i want to get riding on it ASAP
Nice! Look forward to the pics.
My shock literally just turned up in the post. Will post some pics tonight.
dixie600mhz
Active member
Large 2021 9.8XT
DubbyMcDubs
Member

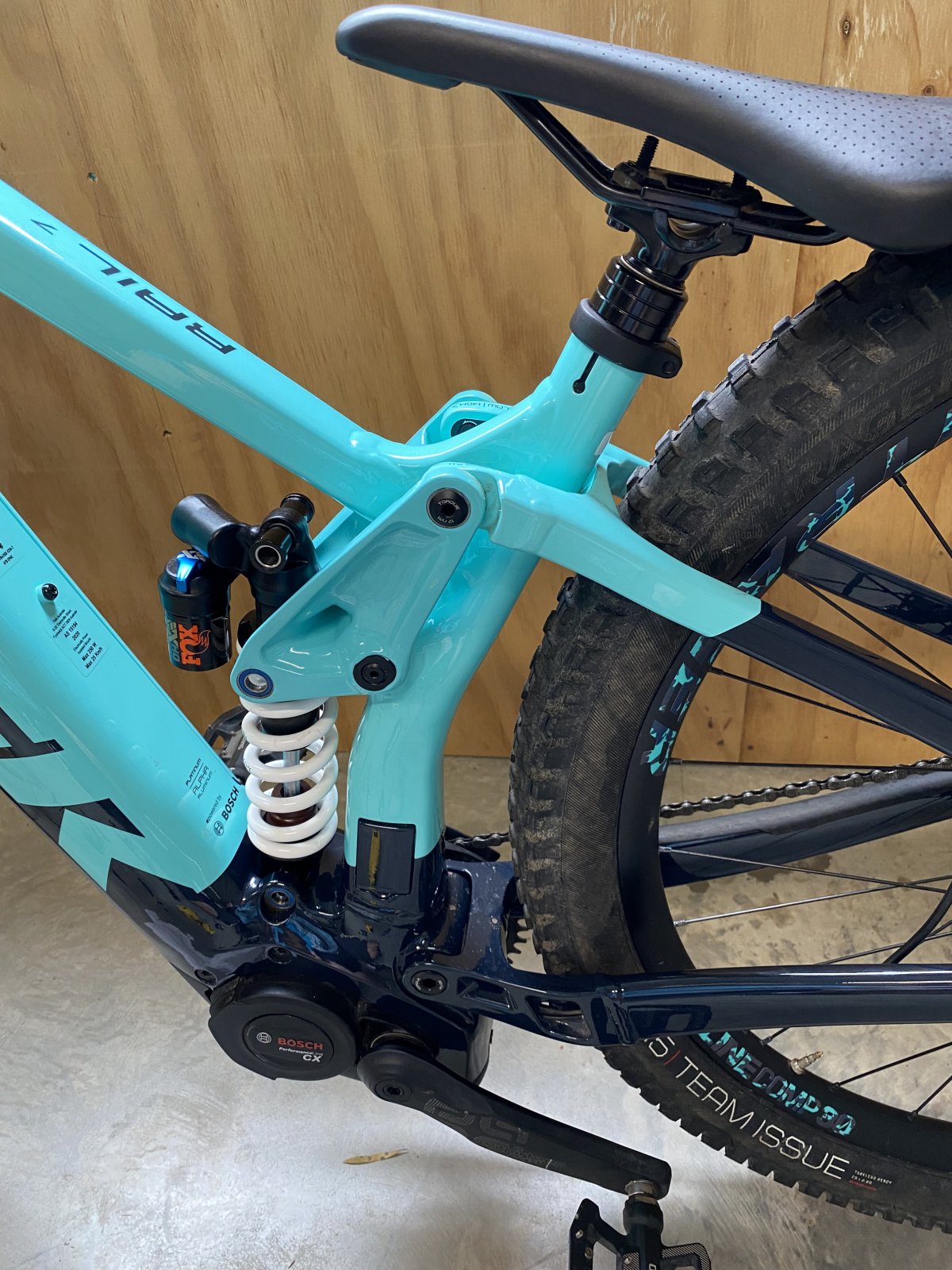

Float X2 on a Medium Rail aluminium install photos posted below. They serve as a good reference even for coil options.
www.emtbforums.com

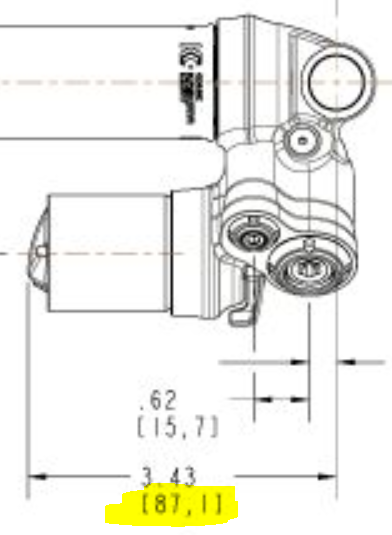

With coil shock options, the Fox DHX2 has the same 87.1mm high (from eyelet center) control/resevoir/piggy back as the Float X2, therefore theoretically it would have the same limitations as the Float X2. That same measurement on the Ohlins TTX22 is only 42mm, and Jade X 73mm. For reference, this is the dimension I am referring to:
Trek rail rear shock upgrade ideas please
I put a '22 Fox Float X2 230x60 on my '21 Rail 5 XL. Not much clearance when unloaded but works great.
www.emtbforums.com
With coil shock options, the Fox DHX2 has the same 87.1mm high (from eyelet center) control/resevoir/piggy back as the Float X2, therefore theoretically it would have the same limitations as the Float X2. That same measurement on the Ohlins TTX22 is only 42mm, and Jade X 73mm. For reference, this is the dimension I am referring to:
Last edited:
Battman85
New Member

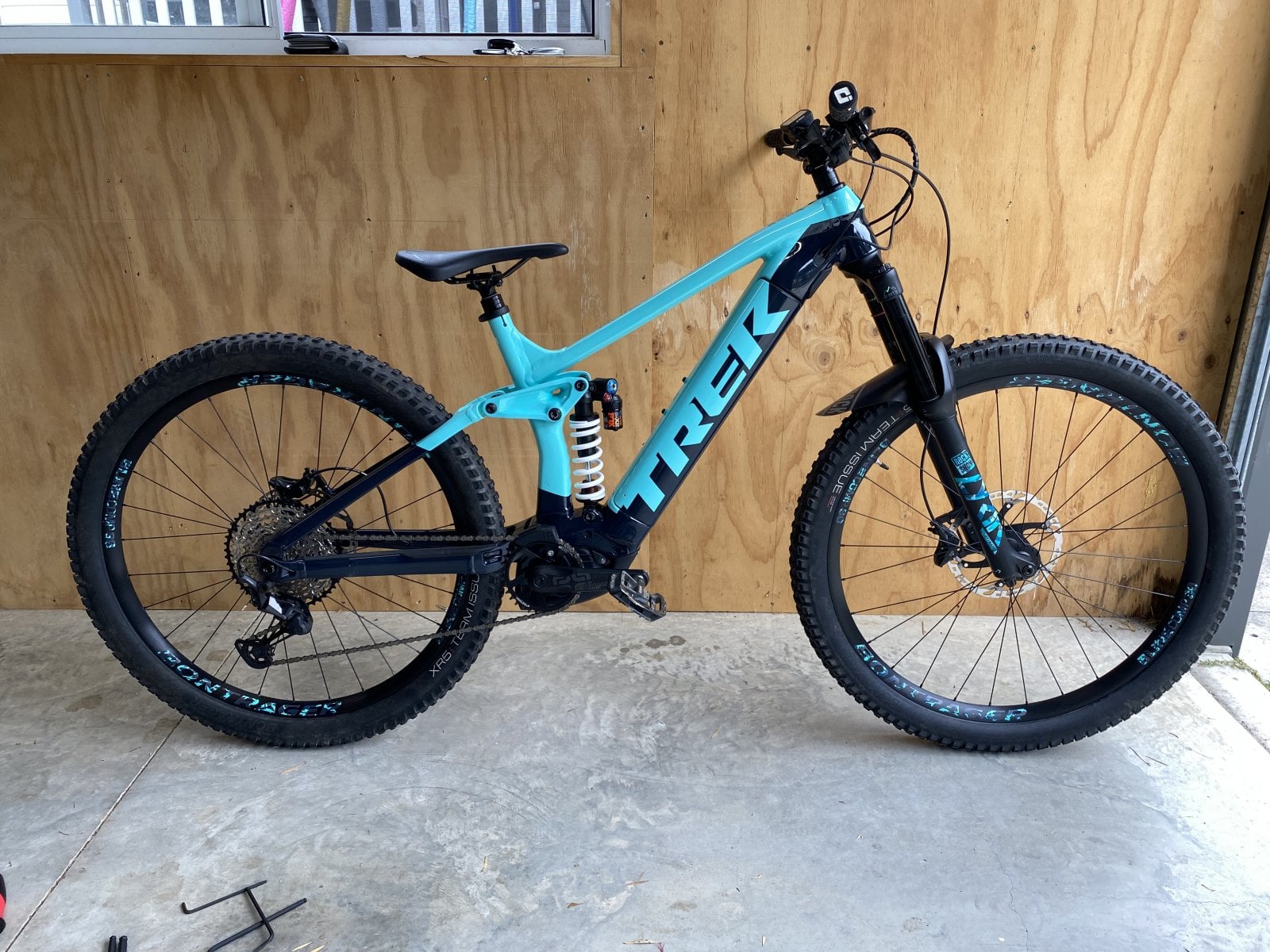

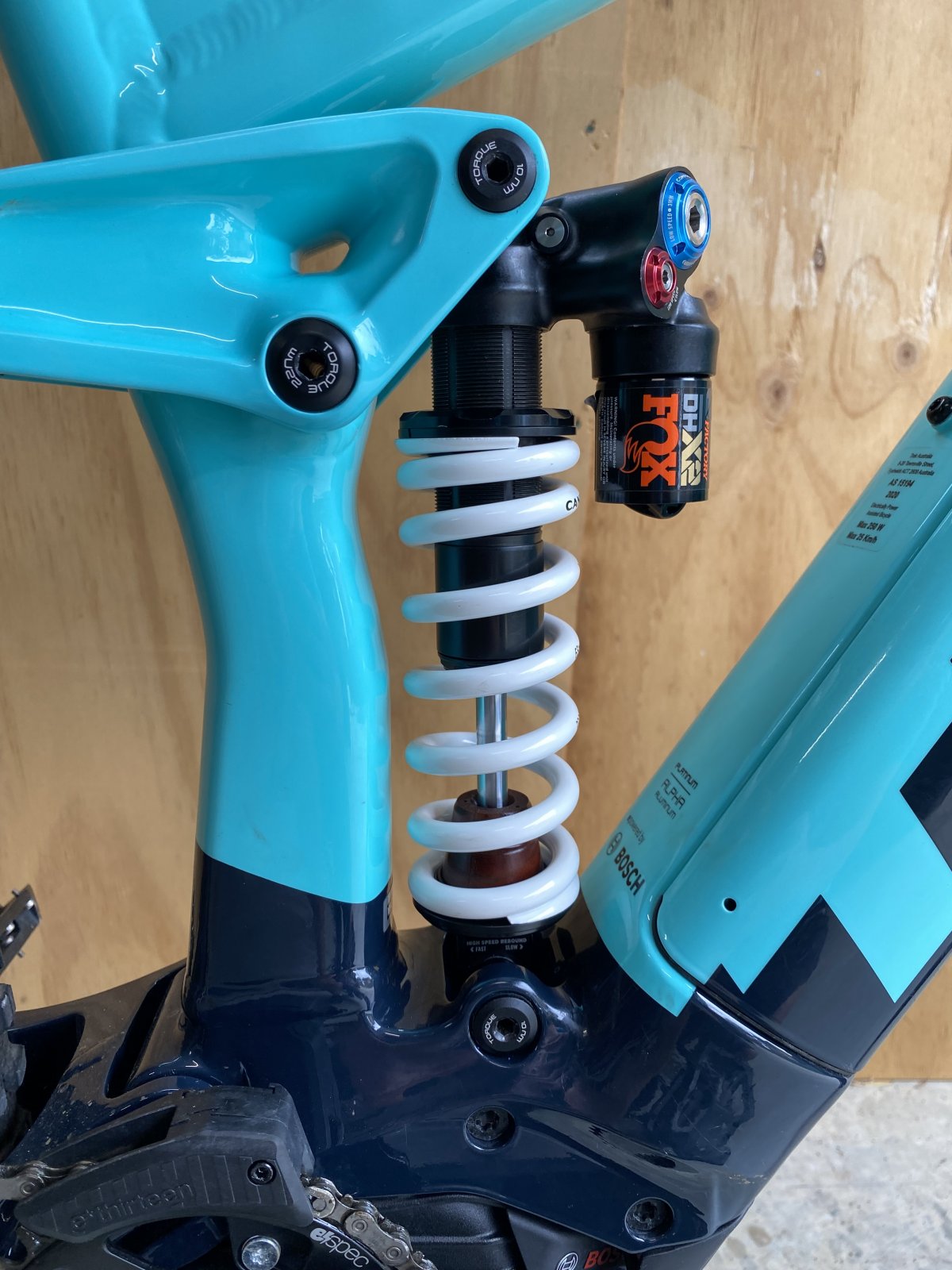

Ok, So i just mounted my DHX2 at 65mm stroke on my 2021 Rail 7 (Large).
Some things to note:
- Used the stock trek mounting hardware, but had to chuck some standard DU bushings in the Fox shock first

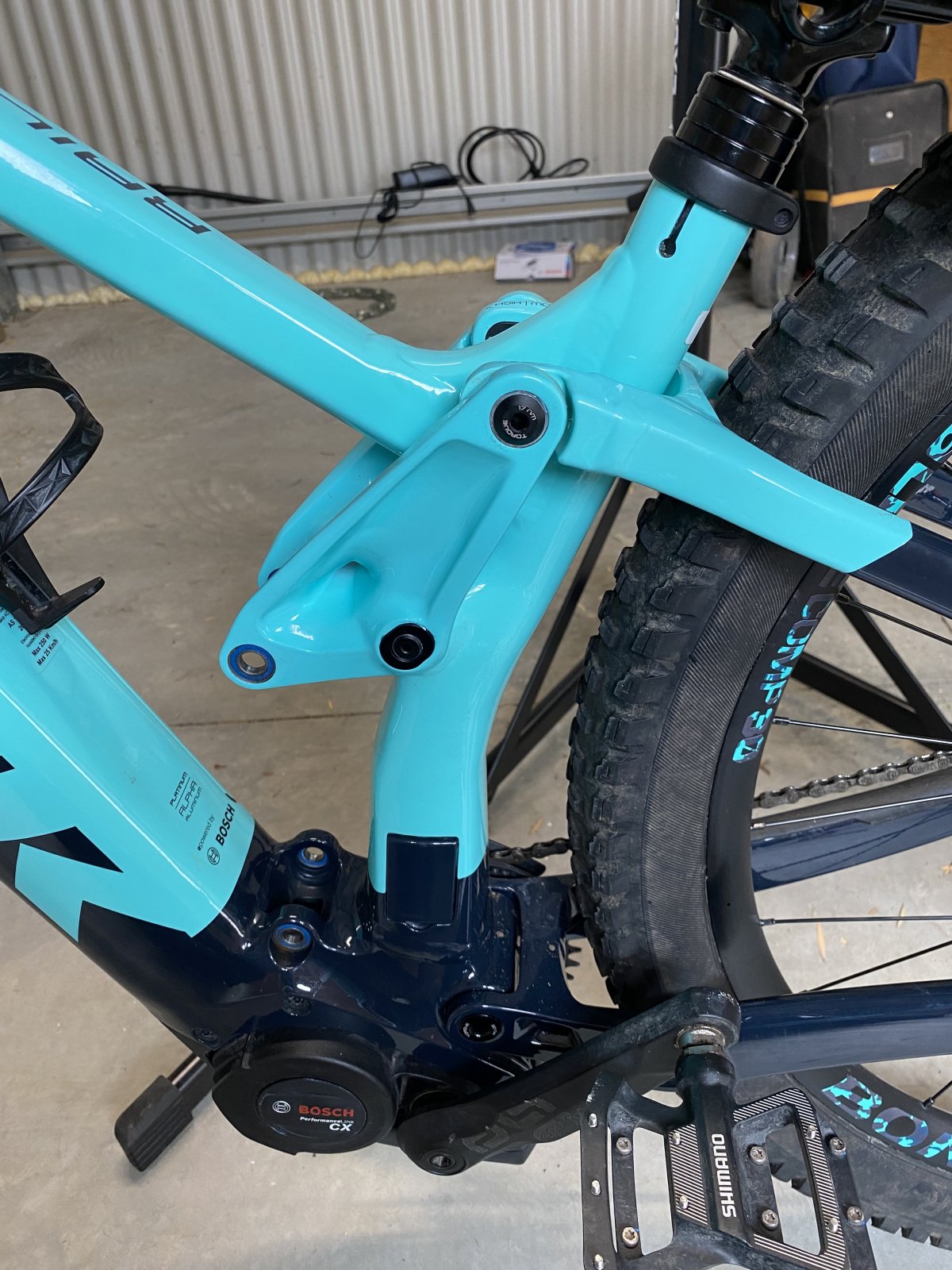

- To achieve 65mm stroke (169mm travel) i had to put rear frame Mono Link in HIGH setting (i tested with no shock in, measuring the eye/eye of shock mounts, rear frame hits seat post at 65mm stroke in LOW setting, Rear frame hits seat post at 69mm Stroke in HIGH setting which will give some clearance for the 65mm stroke. If i went back to 62.5 or 60mm stroke i could put back into LOW setting)

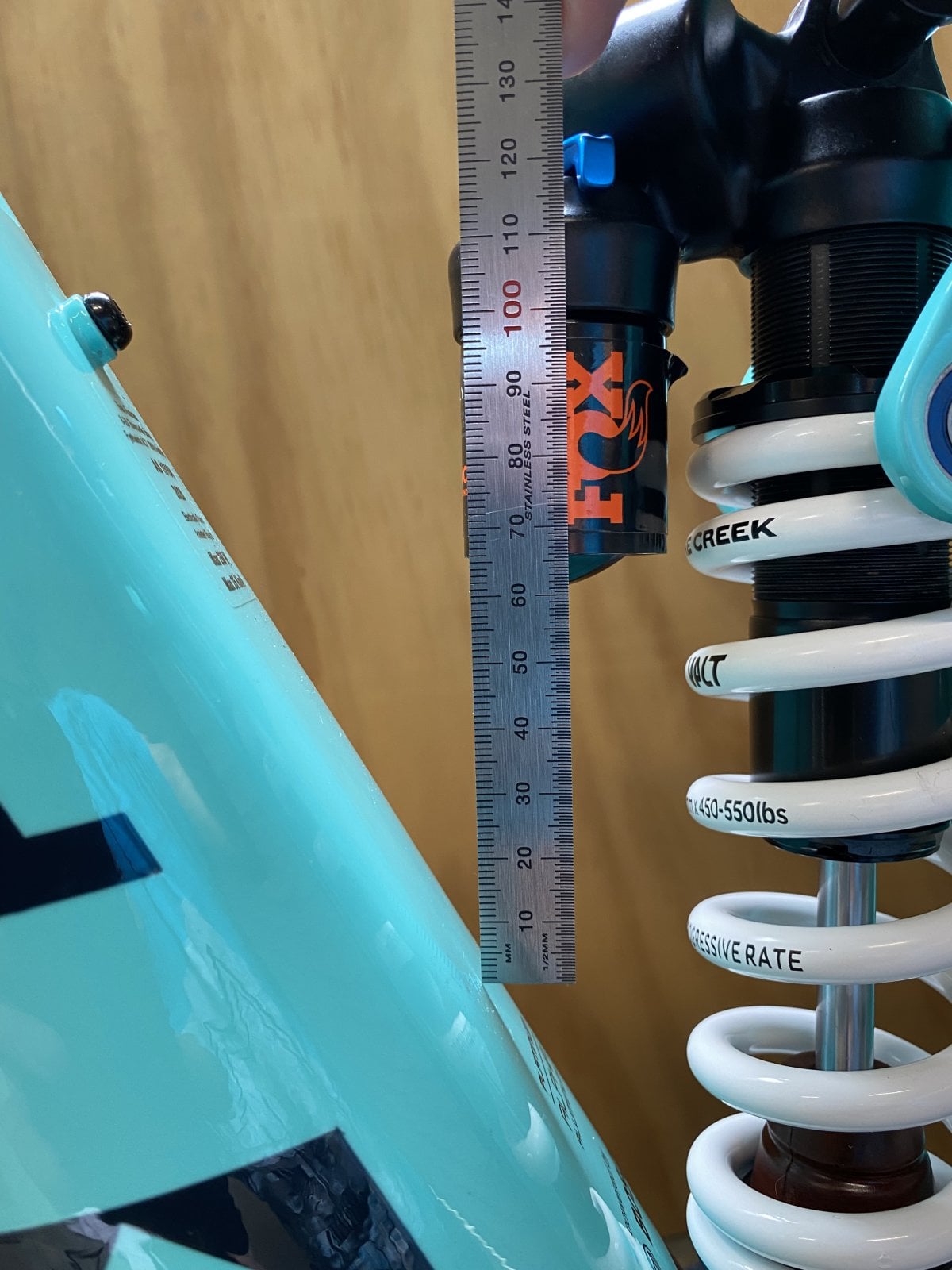

- Piggy back/Resevoir clearance to the down tube is TIGHT haha (possibly too tight lol). At best i could measure i have 1mm clearance at bottom out haha (didnt mount the top of shock, bottomed out frame to get the right line for the eye/eye. lined the shock up with this line, then measured from the resevoir down to the frame with a metal ruler). So i may end up changing shock back to 62.5mm stroke should it be needed. Im going to run the risk at this point and i think worse case scenario on a hard bottom out it may just "tap" the frame, but i dont think its going to be a shock/frame destroying issue if it happens. so if it does happen i'll reduce the stroke to avoid it happening again.
(** unfortunately due to not having the right tools to press the hardware in/out of the shock myself, i wasnt able to "properly" test the bottom out of the shock with no spring in. As the spring doesn't fit over the hardware, i had to put the spring in before going to LBS and mounting the hardware. i did a test before the hardware was mounted and it showed plenty of clearance, but this wasn't super accurate as the shock wasnt sitting in the "correct" eye/eye position with the hardware not in the shock.)
- Plenty of clearance between the spring and the seat tube
- In regards to TFtuned spring calculator and working out what spring to get. I have ended up with 28% sag on the 450-550lb cane creek spring (im 86kg as tested). To achieve this 450lb number on the calculator i actually need to NOT add the 5-7kg that they recommended you do when calculating for E-bike. My exact rider weight at 28% setting ends up at 450lb on the calculator, which is what i got in reality... so this is something to considering when buying a spring. I believe the extra weight of the E-bike will come into play more so when actually riding the bike. So this is where the progressive spring will come into play and avoid the bottom outs.
- from an aesthetic standpoint, i didnt plan to get the white spring. But unfortunately the Black spring from DVO wasnt available in the spring rate it appeared i needed. So rather than wait another 6 weeks for it, i just went for the cane creek spring for now. Will probably change to DVO when its available as the black spring will suit the bike alot better of course.
- I had to remove the water bottle cage. The cage itself wasnt an issue, but with a bottle in it the piggy back resevoir was definitely going to foul on the bottle. So water if off unless i can find another cage that might offset more and potentially avoid fouling.
- went for a little play on the street out the front, doing little jumps off of gutters and off the kerbs on sides of peoples driveway. Feels fantastic already, can definitely feel the difference from the air. So i'm looking forward to heading out for a proper test tomorrow. Which im sure is going to need some dialing in of the settings before getting the full effect of the upgrade. Initial feeling is great though.
- ** Only 2021 or 2022 DHX2 will work as they have the smaller resevoir than previous years.
- ** DHX shock wont work as its Piggy back resevoir hangs down much further and will foul on down tube
- ** If you wanted to go the 65mm Stroke and be certain of ZERO clearance issues, then from what im seeing the DVO Jade X and Ohlins TTX22 are your first ports of call due to thier different Piggyback design
Hope all this helps. cheers
Some things to note:
- Used the stock trek mounting hardware, but had to chuck some standard DU bushings in the Fox shock first
- To achieve 65mm stroke (169mm travel) i had to put rear frame Mono Link in HIGH setting (i tested with no shock in, measuring the eye/eye of shock mounts, rear frame hits seat post at 65mm stroke in LOW setting, Rear frame hits seat post at 69mm Stroke in HIGH setting which will give some clearance for the 65mm stroke. If i went back to 62.5 or 60mm stroke i could put back into LOW setting)
- Piggy back/Resevoir clearance to the down tube is TIGHT haha (possibly too tight lol). At best i could measure i have 1mm clearance at bottom out haha (didnt mount the top of shock, bottomed out frame to get the right line for the eye/eye. lined the shock up with this line, then measured from the resevoir down to the frame with a metal ruler). So i may end up changing shock back to 62.5mm stroke should it be needed. Im going to run the risk at this point and i think worse case scenario on a hard bottom out it may just "tap" the frame, but i dont think its going to be a shock/frame destroying issue if it happens. so if it does happen i'll reduce the stroke to avoid it happening again.
(** unfortunately due to not having the right tools to press the hardware in/out of the shock myself, i wasnt able to "properly" test the bottom out of the shock with no spring in. As the spring doesn't fit over the hardware, i had to put the spring in before going to LBS and mounting the hardware. i did a test before the hardware was mounted and it showed plenty of clearance, but this wasn't super accurate as the shock wasnt sitting in the "correct" eye/eye position with the hardware not in the shock.)
- Plenty of clearance between the spring and the seat tube
- In regards to TFtuned spring calculator and working out what spring to get. I have ended up with 28% sag on the 450-550lb cane creek spring (im 86kg as tested). To achieve this 450lb number on the calculator i actually need to NOT add the 5-7kg that they recommended you do when calculating for E-bike. My exact rider weight at 28% setting ends up at 450lb on the calculator, which is what i got in reality... so this is something to considering when buying a spring. I believe the extra weight of the E-bike will come into play more so when actually riding the bike. So this is where the progressive spring will come into play and avoid the bottom outs.
- from an aesthetic standpoint, i didnt plan to get the white spring. But unfortunately the Black spring from DVO wasnt available in the spring rate it appeared i needed. So rather than wait another 6 weeks for it, i just went for the cane creek spring for now. Will probably change to DVO when its available as the black spring will suit the bike alot better of course.
- I had to remove the water bottle cage. The cage itself wasnt an issue, but with a bottle in it the piggy back resevoir was definitely going to foul on the bottle. So water if off unless i can find another cage that might offset more and potentially avoid fouling.
- went for a little play on the street out the front, doing little jumps off of gutters and off the kerbs on sides of peoples driveway. Feels fantastic already, can definitely feel the difference from the air. So i'm looking forward to heading out for a proper test tomorrow. Which im sure is going to need some dialing in of the settings before getting the full effect of the upgrade. Initial feeling is great though.
- ** Only 2021 or 2022 DHX2 will work as they have the smaller resevoir than previous years.
- ** DHX shock wont work as its Piggy back resevoir hangs down much further and will foul on down tube
- ** If you wanted to go the 65mm Stroke and be certain of ZERO clearance issues, then from what im seeing the DVO Jade X and Ohlins TTX22 are your first ports of call due to thier different Piggyback design
Hope all this helps. cheers
Last edited:
ricko
Member
What hardware was required? I have already ordered the Trek Rail offset bushings. I gather I also need the non ReAktiv Upper and Lower shock axle and nut?
This is a large 7 with 65mm RS air shock, all my weight (95kg) on the bump stop, which feels like a hard plastic stop, not rubber. I cannot get it any closer than this bouncing on the bike.
I agree that 62.5 would certainly be a safe bet, but still don’t think it’d touch at 65 even on a decent bottom out.
I agree that 62.5 would certainly be a safe bet, but still don’t think it’d touch at 65 even on a decent bottom out.
Hi everyone! New to the forum, and new to e-bikes as well with a new 2022 Rail 7. I've owned a Slash for a few years now and when compared to the Rail, my only complaint is the shock on the Rail...so, before I pull the trigger, I just wanted to make sure my plan will work: replace the shock with a new 2021/2022 DHX2 230x60. I know this will add a few mms of travel (which is fine because I'm going with a Fox 38 170mm in the front), but just wanted to make sure it'll fit in the 2022 Rail as well? Should I perhaps go with a 230x62.5 even?
Many thanks in advance!
Many thanks in advance!
JP-NZ
E*POWAH Elite
They are all the same DHX2, They can be adjusted with travel spacers from 230x57.5 to 62.5. If 62.5 is too long then one more 2.5mm spacer and 60 would work fine.
Last edited:
Didn't know that, thanks! Just looked at fox's website and changing those spacers looks like a very simple job. Guess I'll go with 62.5 then, and reduce travel if needed.
So final confirmation: the DHX2 will fit on a 2022 Rail 7 (size Large)? I suppose geometry didn't change from the 2021 model, but wanted to double check.
JP-NZ
E*POWAH Elite
I wouldn't put my life on it but I would be pretty confident it should be fine with a 2021 or 2022 DHX2 with the small piggyback like the one pictured above.
