SRAM's new 2023 Drivetrain allows full power shifts

[Deleted member 7401]

Fitted mine today. Super easy to install.
Paddle shift is ugly but functional. Probably better when Magura make a match maker for it.

Quick ride around the car park and it feels identical to the old AXS.

Hopefully will get out tomorrow for a proper test ride.

Install App for chain length takes all the faff out of the install.

View attachment 110461 View attachment 110462 View attachment 110463 View attachment 110464 View attachment 110465

Do you think the longer crank arms will be a problem?? I have been hitting my stock 160s on rocks like mad lately.



[clivem25]

Done
I love it!!

I milled 2mm off the direct mount. Now it works perfectly for the Levo Gen 3.

The Chainline is now at 55 and perfect.

Super nice!



[Dave_B]

Do you think the longer crank arms will be a problem?? I have been hitting my stock 160s on rocks like mad lately.

I’ve got 155 cranks and had no problem so far. Check you are at the correct sag.



[Suns_PSD]

Done
I love it!!

View attachment 110515 View attachment 110516 View attachment 110517 View attachment 110518

I milled 2mm off the direct mount. Now it works perfectly for the Levo Gen 3.

View attachment 110519

The Chainline is now at 55 and perfect.

View attachment 110520

Gotta say, the looks have really grown on me. Generally, not a consideration for me, but damn, it looks great.



[Dave_B]

Its 4 bolt BCD I assume and a SRAM chainring....which is not threaded for the bolts so they are nuts and bolts. You need to use an allen key on the bolts with a slot type tool ( make your own) to hold the "nut" at the back of each bolt. Rotate the chainguard out of the way. Chainring will then come off the spider although you probably need to remove the pedal.

No need to remove the spider unless the T replacement is direct mount. If so you have to remove the crank then the undo the lockring....which on a Brose motor is normal thread so counter clockwise to undo. Tool required is Park Tool LRT-3 or similar.

Just as an fyi.
It’s a 10mm nut on the back side of the chain ring and not a slot type.

Also, the chain ring does not go over the spider when all 4 bolts are removed.
(I had to drill one out today cause I rounded one of the nuts)

Lesson learned. You need to remove the spider to change the chain ring. You need a BBT18 tool to remove the lock ring.

My ring is currently dangling on the crank as I wait for the lock ring tool to arrive from Amazon……..



[Zimmerframe]

Also, the chain ring does not go over the spider when all 4 bolts are removed.

Are you sure ?

I've not tried it on the gen3 Levo, but I know that often it seems impossible then turns into one of those little metal puzzles and eventually you work out some bizarre routine of jiggles and movements and it magically comes free.

It's Friday night .. let your hair down and play spider puzzle all evening ....



[Dave_B]

I’m too annoyed with it and myself at the moment so I’ve locked it away in the garage.



[irie]

Wonder what Shimano's response to this will be?

Now we have it.

"Shimano Release Derailleur Less E-bike Only Drivetrain/Motor "TransMotion" System".

Shimano Release Derailleur Less E-bike Only Drivetrain/Motor "TransMotion" System

Hot on the heels of the release of SRAM's new T-Type Transmission, Shimano release their new derailleur and cassette less "TransMotion" drive. Whilst everyone thought they'd been sitting back and taking it easy, Shimano were actually making...

www.emtbforums.com



[Mikerb]

Now we have it.

"Shimano Release Derailleur Less E-bike Only Drivetrain/Motor "TransMotion" System".

Shimano Release Derailleur Less E-bike Only Drivetrain/Motor "TransMotion" System

Hot on the heels of the release of SRAM's new T-Type Transmission, Shimano release their new derailleur and cassette less "TransMotion" drive. Whilst everyone thought they'd been sitting back and taking it easy, Shimano were actually making...

www.emtbforums.com

1st April



[iadmtb]

Are you sure ?

I've not tried it on the gen3 Levo, but I know that often it seems impossible then turns into one of those little metal puzzles and eventually you work out some bizarre routine of jiggles and movements and it magically comes free.

It's Friday night .. let your hair down and play spider puzzle all evening ....

I was able to remove the chainring without removing the spider on my gen 3 Levo. It did take a bit of trial and error but eventually I was able to remove the chainring.



[irie]

1st April

Posted on 31st March so the joke's on him.



[Mikerb]

I was able to remove the chainring without removing the spider on my gen 3 Levo. It did take a bit of trial and error but eventually I was able to remove the chainring.

its certainly possible on the Gen 2 Levo.



[Dave_B]

I needed the lock ring tool and a puller.
All done now. 36t chain ring installed.
I’ve not researched the chain line measurements? Read a comment somewhere that it’s 55mm? Presume the 104BCD 36t ring that comes with the XO version is correct for ? (Read somewhere about the direct mount needing milling?)



[Mikerb]

I needed the lock ring tool and a puller.
All done now. 36t chain ring installed.
I’ve not researched the chain line measurements? Read a comment somewhere that it’s 55mm? Presume the 104BCD 36t ring that comes with the XO version is correct for ? (Read somewhere about the direct mount needing milling?)

Not sure why 55mm............chainline is set by the hub..ie boost ( 148mm)...so chainline should be 51 to 53 ..........ie usually 3mm offset chainring.



[steve_sordy]

Posted on 31st March so the joke's on him.

It depends upon which time zone you are in. Zimmer is in France who are an hour ahead of us. Therefore, his post was made on 1st Apr after all.



[G-Sport]

Not sure why 55mm............chainline is set by the hub..ie boost ( 148mm)...so chainline should be 51 to 53 ..........ie usually 3mm offset chainring.

SRAM moved the whole cassette over a few mm closer to the dropout so the chain line is 55mm. This gives more tyre clearance which is cool, but I do worry that some frames will foul the chain in the smallest sprocket as a result.



[Sanzun]

Done
I love it!!

View attachment 110515 View attachment 110516 View attachment 110517 View attachment 110518

I milled 2mm off the direct mount. Now it works perfectly for the Levo Gen 3.

View attachment 110519

The Chainline is now at 55 and perfect.

View attachment 110520

Good job @timo_ !!!,
I have a doubt, to have to mill the chainring, the chairing T-Type Brose didn’t keep the 55 mm chainline ?.



[Rich-H]

Levo runs a 52mm chain line as standard.

Eagle transmission has moved to a 55mm chain line with Boost 148 spacing. If you have a frame with non Boost 142 spacing then you would use a 52mm chain line with Eagle transmission.

If you want to use a 104BCD chainring with a 55mm chain line then you would need a different spider to get the correct chain line. The new direct mount chainring will give you a 55mm chain line.



[Dave_B]

So why did someone mill down the direct mount spider to get the ‘correct’ chain line?



[Dave_B]

(Maybe his bike was not a Levo?)



[timo_]

So why did someone mill down the direct mount spider to get the ‘correct’ chain line?

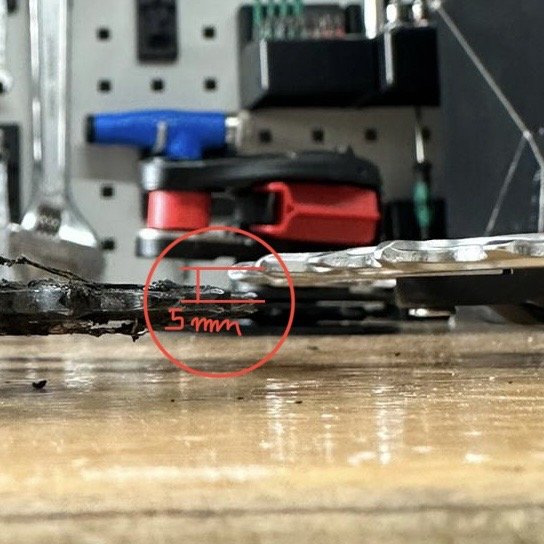

Because the Direct Mount vs. Spider or Hope Direct Mount chainring has 5mm more instead of 3. So 57 instead of 55mm.



[Rich-H]

Strange, there was 3mm difference between the standard chainring with spider and new direct mount when I did the same measurement, giving me a perfect 55mm chain line.



[Dave_B]

£17 for a power link !!!

SRAM Eagle T-Type 12-Speed Powerlock Black | Biketart

The SRAM Eagle T-Type 12-Speed Powerlock, Black, Pack of 4 is crafted for seamless use with T-Type chains, ensuring the same reliable performance as earlier models. This pack of four chain connectors is perfect for those who value ease and efficiency in their cycling setup. Features Compatible...

www.biketart.com



[Rich-H]

I think there are 4 Powerlocks links in the packet but still expensive, that's the "cheap" version as well!

SRAM Eagle T-Type 12-Speed Powerlock Black PVD

Designed for use with T-Type chains, the Eagle Transmission PowerLock provides the same rugged dependability as its predecessors.FEATURES For use with T-Type chains No tools required for installation SPECIFICATIONSCompat - Speed (CN): 12s T-TypeChain connector type: PowerLockColor - Chain...

www.biketart.com



[Dave_B]

yeah, just realised its for 4.



[brunsje]

Is 2mm that significant? I guess the chain would be 'straight line' slightly more toward the s smaller cassette rings? And it would add a bit more clearance away from the chain guide?

What am I missing?

Thanks from a Dummy !!



[Rich-H]

It'll work with a 52mm chain line but it might not shift quite as well and will probably wear quicker.

The other advantage of a 55mm chain line is that you can run a 38T chain ring on a Levo, a 38T chain ring on a 52mm chain line either didn't fit or was very tight.



[Ou812]

£17 for a power link !!!

SRAM Eagle T-Type 12-Speed Powerlock Black | Biketart

The SRAM Eagle T-Type 12-Speed Powerlock, Black, Pack of 4 is crafted for seamless use with T-Type chains, ensuring the same reliable performance as earlier models. This pack of four chain connectors is perfect for those who value ease and efficiency in their cycling setup. Features Compatible...

www.biketart.com

I haven’t even looked for the links yet but that’s just one more thing that makes it even more expensive. I’d need two chains and a ton of links since they can’t be reused. I remove my chain a good bit for cleaning too.



[Dave_B]

So I’ve put the 36t chain ring on my Levo that came with the drivetrain upgrade (minus cranks). What chain mine with I have now?



[Tankboy]

I take my chain off every week for cleaning in petrol and use the same Powerlink for the life of the chain, so must over 50+ times before I bin the chain? Don't believe all that nonsense about single use, as long as it snaps into place it's good to go as it's only under tension?
