Official Merida eOne-Sixty thread

[Re-Cycle]

I like a slice of pizza when having a break

No, I'll take it off when I switch the rear tire for a Rekon and set up the tires tubeless.



[Carlos Muralhas]

Mine was ordered on June 6, and It's planned to arive during next week can't wait.
It seems that the last production for this 2018 bikes will be available on the beginning of August so you will probably wait much less time than me.

The store just called me my Merida has arrived tomorrow I can pick it up!!!



[Cheater guy]

Picked mine up end of May
Loving every bit of it
What are people doing for wheel sets? I was playing round with tyre pressures and destroyed the rear wheel and needs replacing very soon
Also put the xt 4 pots on, made a massive difference



[drjarvis2003]

You want to get wheels built with Dr Swiss xm521 rims, but more importaintly you will need inserts. I have already damaged a rear hope 35w with a ratbite insert. Have now ordered vittoria air liners.



[Tmacca]

Heya Merida lads,
Ive had a Levo since 2015, a mate is considering selling his Merida(he also has a Levo, I'm definitely in the wrong line of work) and im keen for a spin on it as looks the buisness . He's selling for a few reasons though a major one for him is engine noise.
Is the motor loud, is it something you notice?
Cheers



[R120]

You can definitely hear the shim motor, especially if coming from a Brose, but you forget about it pretty quickly



[drjarvis2003]

Don't worry about the noise, you can only hear it when you go really slow.



[Tmacca]

Don't worry about the noise, you can only hear it when you go really slow.

Ha, I like that. My old Levo is kinda noisy these days anyways



[drjarvis2003]

Everything but forks and drivetrain.

New bars, grips, stem, brakes (funny story), rotors, seat, dropper, cranks, wheels, shock, mode selector/shifter, fork guard, 1.5 angle headset and.... Pedals. But pedals don't count as they don't really come with proper pedals anyway.

was thinking about an angle headset too, what make and size did you get?



[Basy]

was thinking about an angle headset too, what make and size did you get?

Works components.



[drjarvis2003]

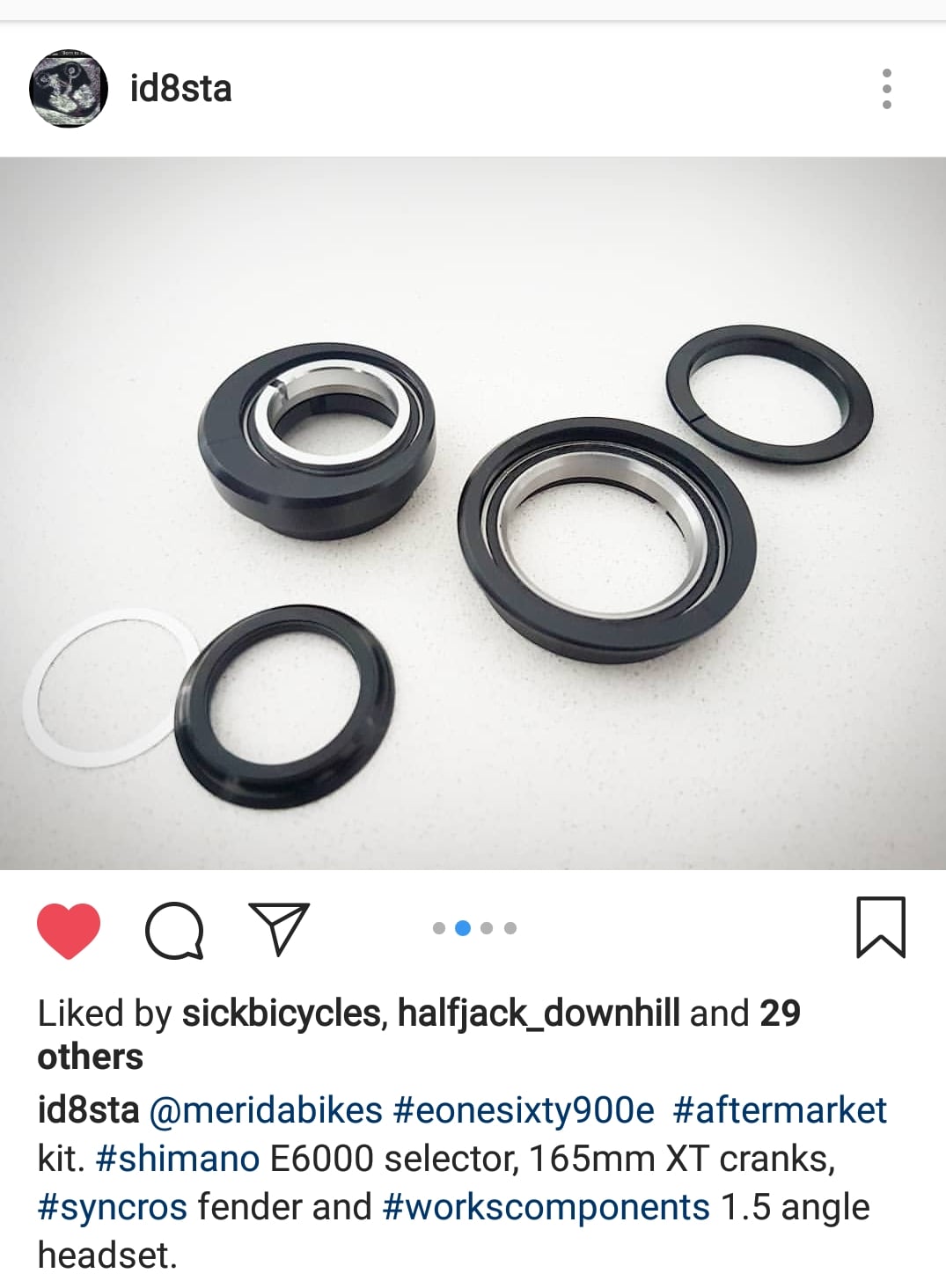

Works components.

View attachment 3662



[drjarvis2003]

Cheers, I have just mailed them to find out what size I need.



[Basy]

Cheers, I have just mailed them to find out what size I need.

Sorry, forgot the model details:


1.5 Degree EC44-ZS55 Angle Headset - To Suit Tapered Steerer Tube - Headtube Length:SET 6 137-142mm



[drjarvis2003]

Thanks for that, they still have not got back to me yet...



[Basy]

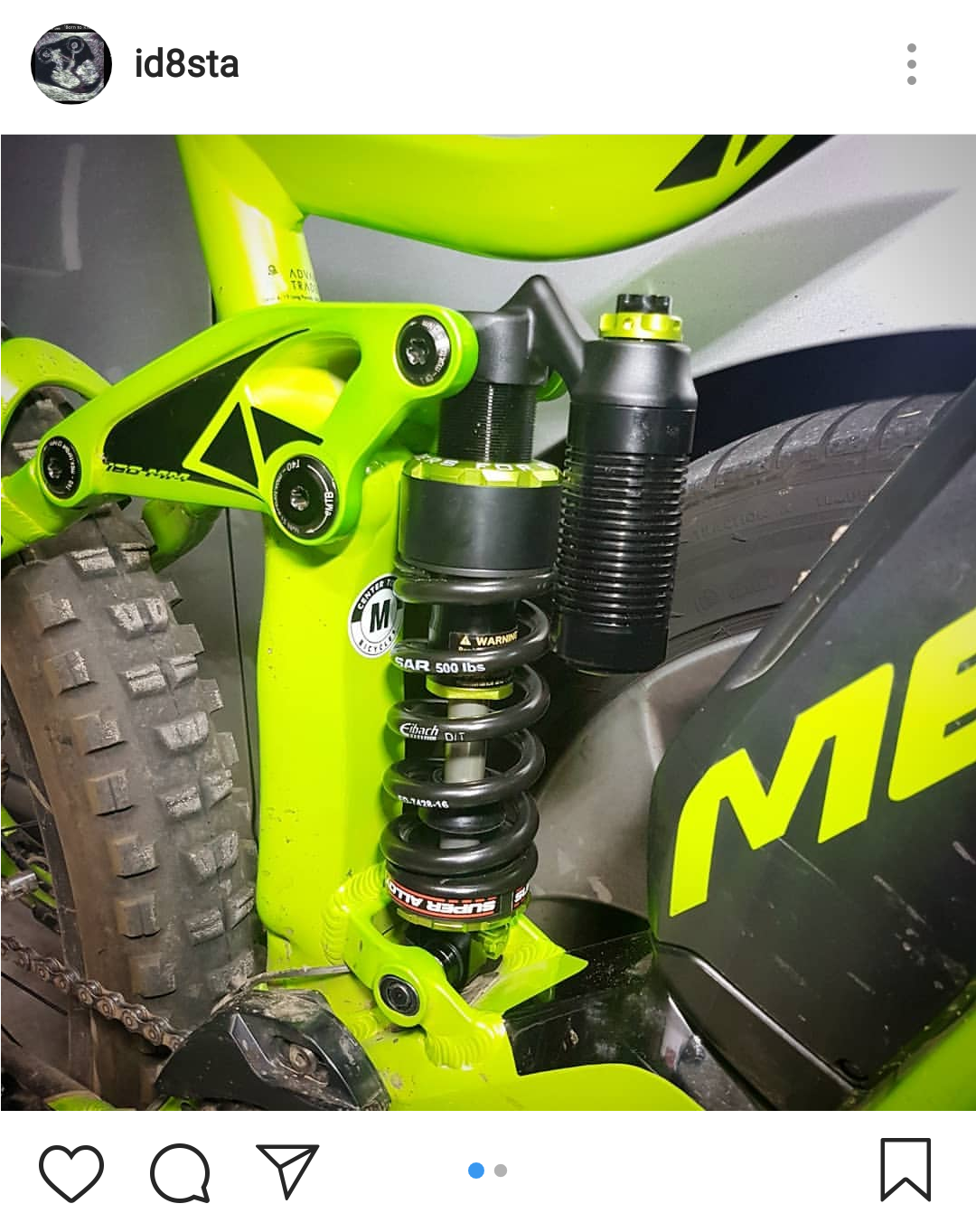

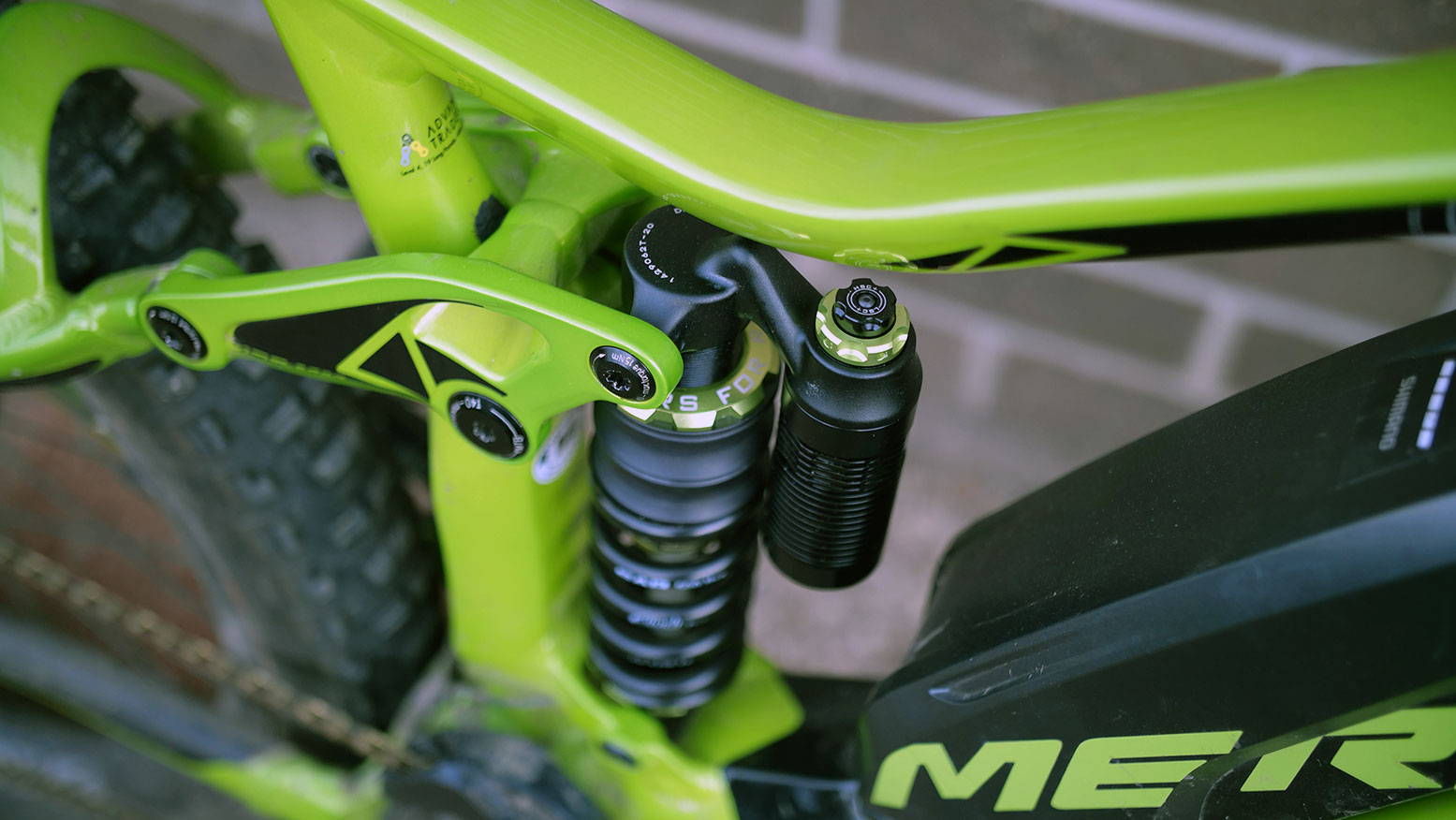

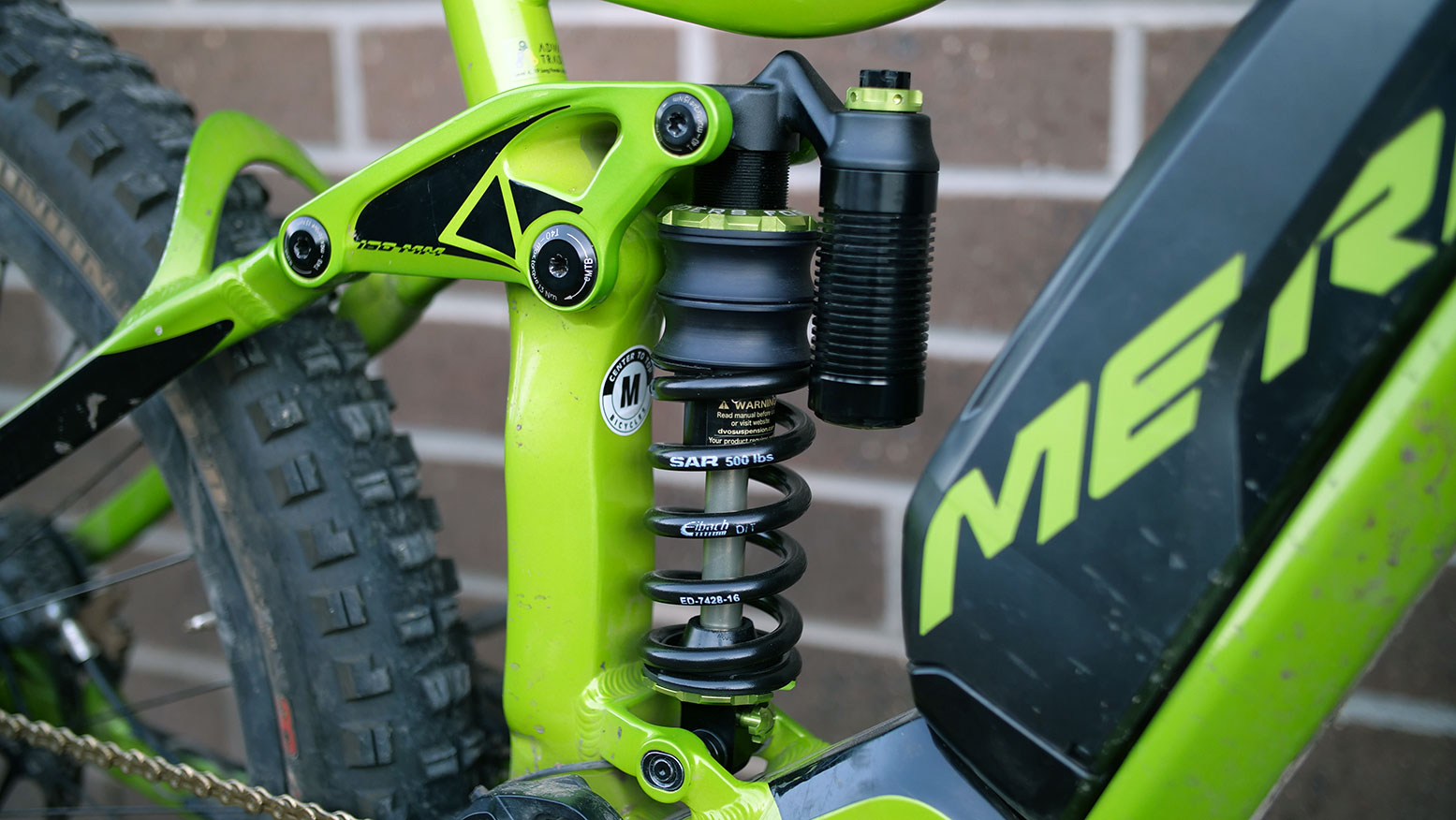

New shock day.



[drjarvis2003]

New shock day.

View attachment 3874

was thinking about getting one myself, what make is that?



[Basy]

was thinking about getting one myself, what make is that?

Been thinking of getting one but don't know what it is? ?

It's a DVO Jade ?



[drjarvis2003]

Cheers. Got the works headset and tried it out yesterday. Seems to help slightly but it's not a big difference. Running a 180mm lyrik on the front and measured head angle at 64 degrees now.



[Basy]

. Running a 180mm lyrik on the front...

lol Cool. Post some pictures? I'd try my 180 Metric if I knew the 2.8's wouldn't rub. Might have to go back to 26x2.8



[drjarvis2003]

has anybody tried a 29 inch from wheel on a Merida yet?
Im thinking about a 30mm internal rim with Magic mary at 2.6.



[Re-Cycle]

This weekend I took some time to work on the Merida.

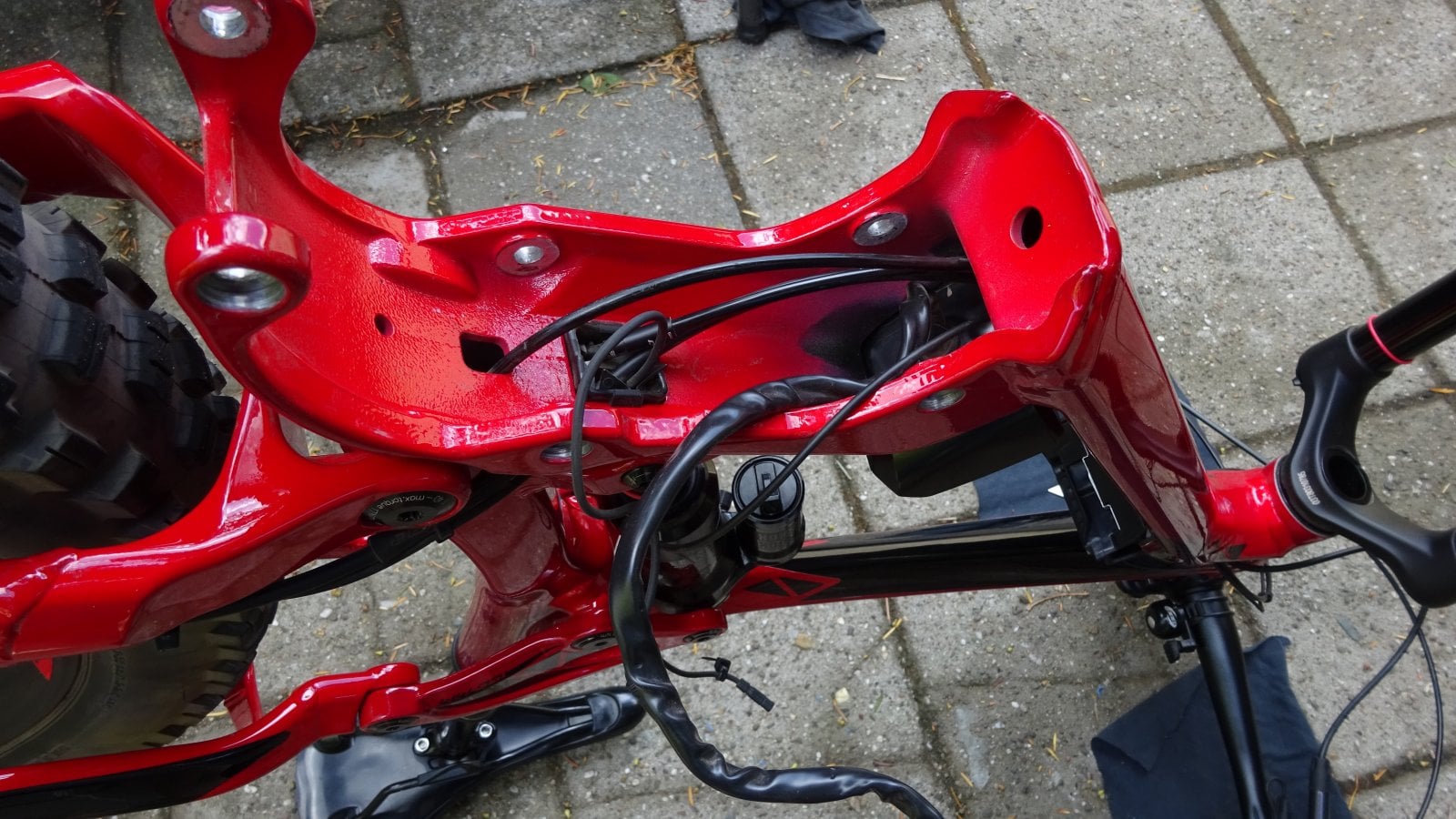

Since I changed the XT to a gripshifter the cable was a little too short. But to get to the internal cables you have to take the motor off... (I do like simple bikes, with simple solutions like external cables ).

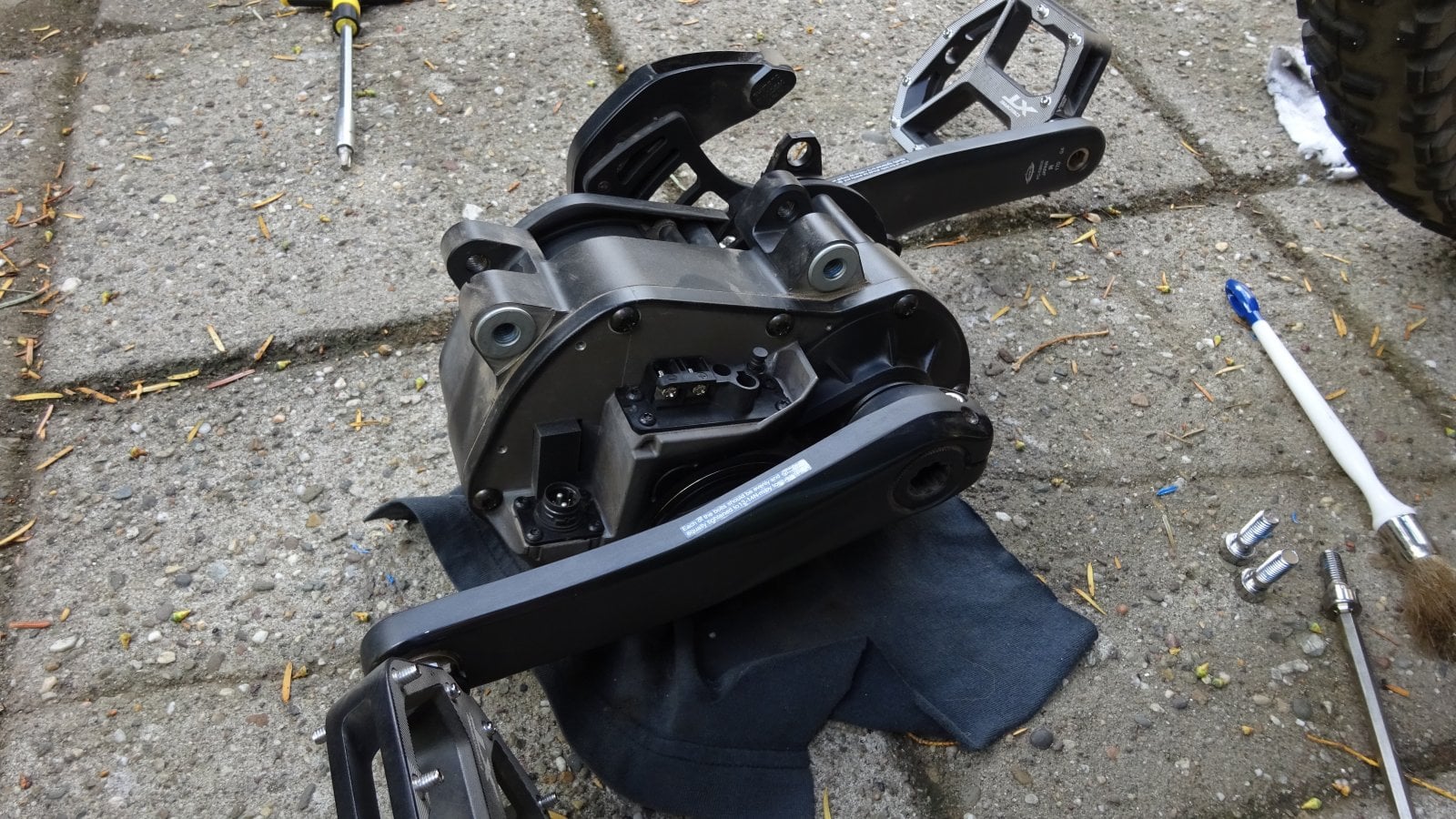

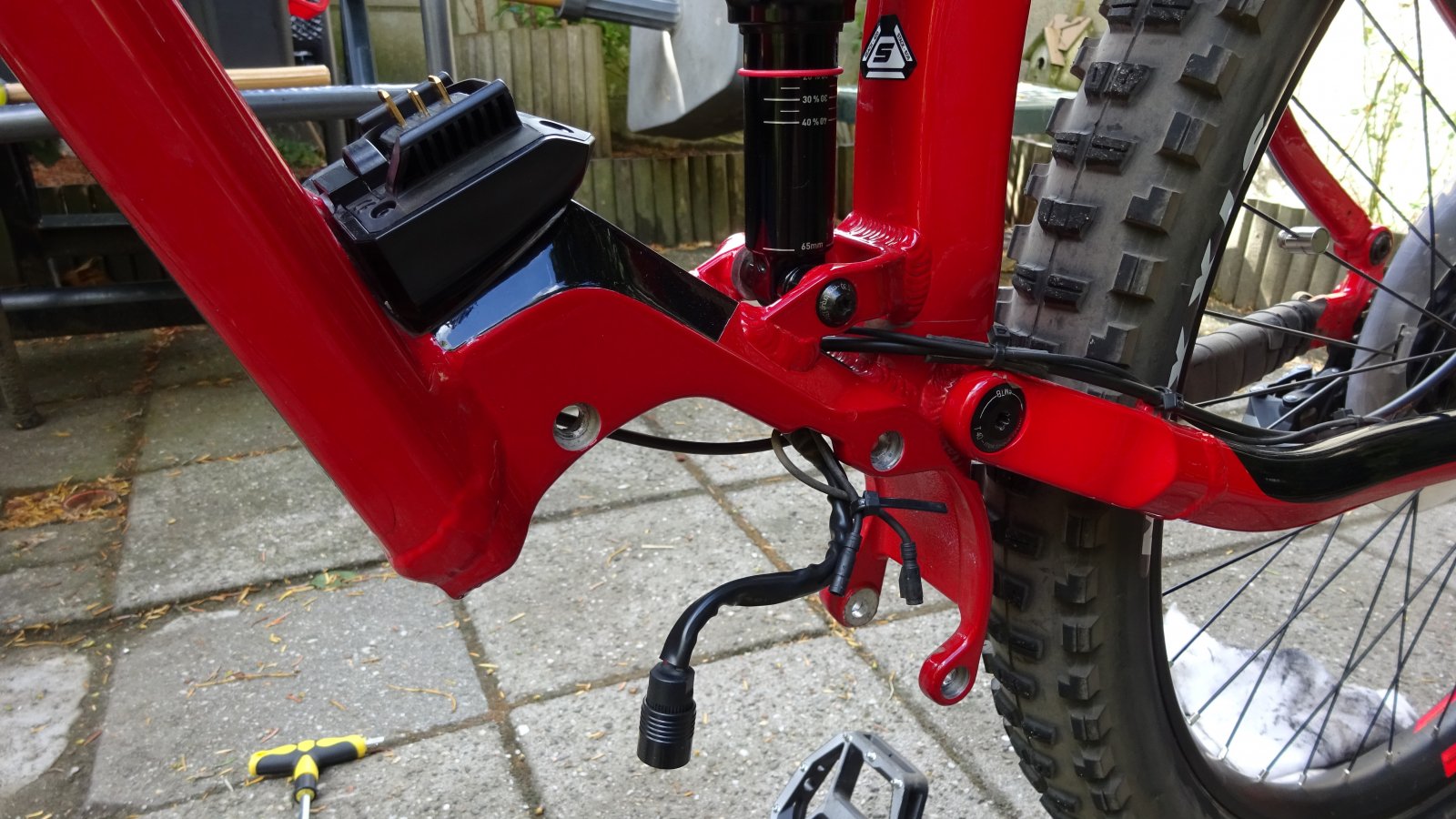

And the motor removed...

I was surprised to see how little protection there is against dust or mud. The little plastic cover doesn't do very much, after only three rides (all in dry & dusty conditions) there already was a lot of dust on the electric connections.

After changing the cable (and putting the motor back on...) I also swapped the Minion on the rear for a Rekon and set up the tires tubeless. Oh, and in the proces ofcourse removed the ugly plastic disc



[Carlos Muralhas]

has anybody tried a 29 inch from wheel on a Merida yet?
Im thinking about a 30mm internal rim with Magic mary at 2.6.

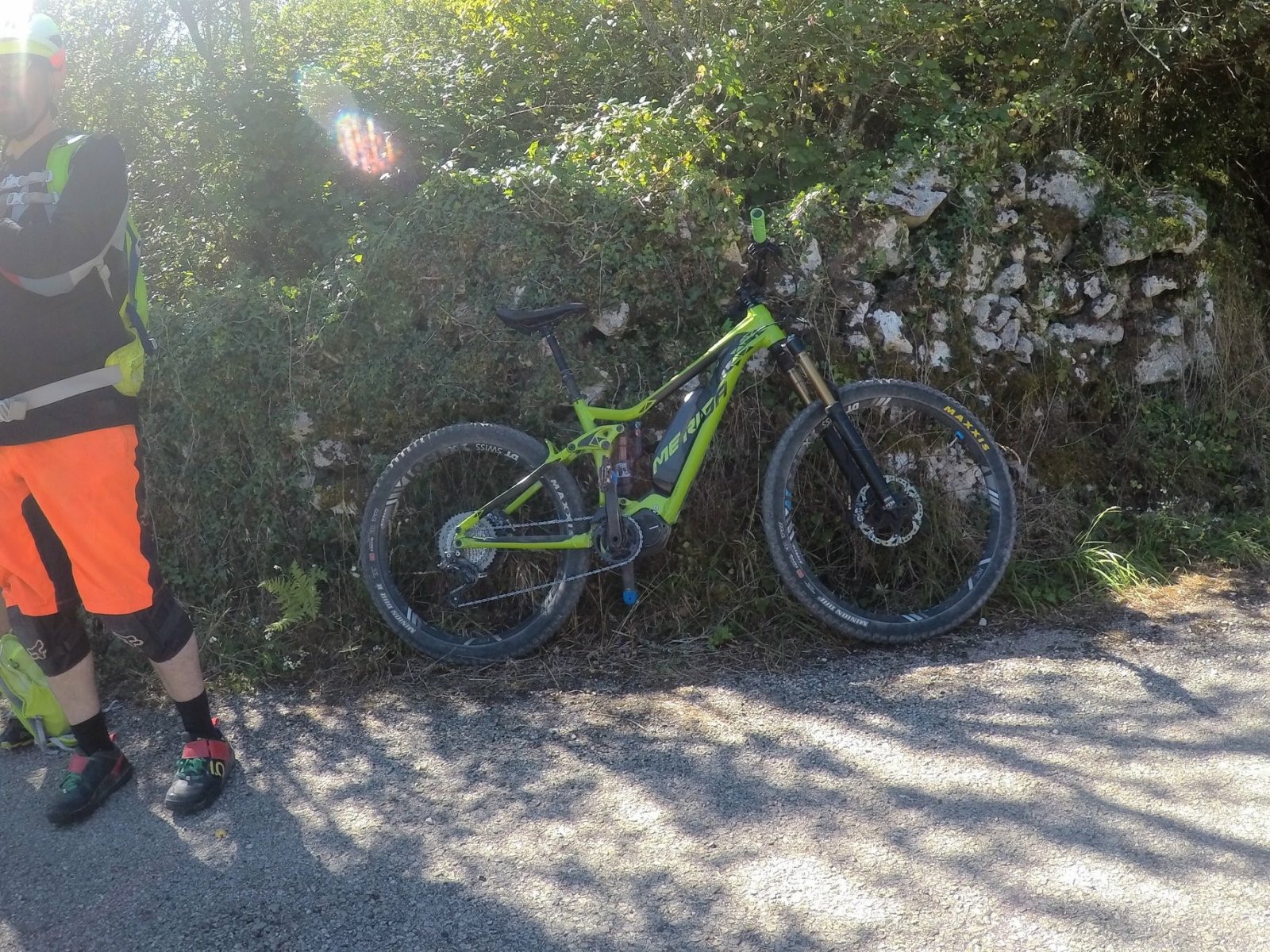

Hey, I put a 29er up front on my Merida eOne-Sixty 900e. Love it. Only used the original wheel 20Kms from the store to my home.

It was immediately changed at home to a DT Swiss HX1501 Hybrid 29er with 30mm internal width with a Maxxis Minnion DHF 2.5 3C. Have been using it for almost a month now and I really feel that the behaviour of the bike is perfect like this. All my friends that tried it like this thought the same, 29er up front is perfect and makes the bike really agile and faster descending.

I also put the Canyon eBike seat post, very confortable and good for climbing and also put on softer green fabric grips. Other than that it's stock.



[drjarvis2003]

Hey, I put a 29er up front on my Merida eOne-Sixty 900e. Love it. Only used the original wheel 20Kms from the store to my home.

It was immediately changed at home to a DT Swiss HX1501 Hybrid 29er with 30mm internal width with a Maxxis Minnion DHF 2.5 3C. Have been using it for almost a month now and I really feel that the behaviour of the bike is perfect like this. All my friends that tried it like this thought the same, 29er up front is perfect and makes the bike really agile and faster descending.

Thanks for that. I have now got a 29 dt Swiss 30mm internal, with a minion 2.5 wt and vittoria air liner and muc off sealant. I won't be able to test it until Sunday though.



[Carlos Muralhas]

Thanks for that. I have now got a 29 dt Swiss 30mm internal, with a minion 2.5 wt and vittoria air liner and muc off sealant. I won't be able to test it until Sunday though.

I was using MrWolf SmartMousse on my tires but didn't get along very well with them... I blew the small inner tube after only 22Kms of riding on the back wheel, probably because of bad assembly (it's very dificult to assemble them into new Maxxis tires)... I am now using the much simpler and cheaper Schwalbe procore and after more than 400kms am very happy with how bike feels with that.

I'm certain Sunday you'll love how the 29er feels on Merida.



[Bob lakin]

For all Merida eOne-Sixty related content!

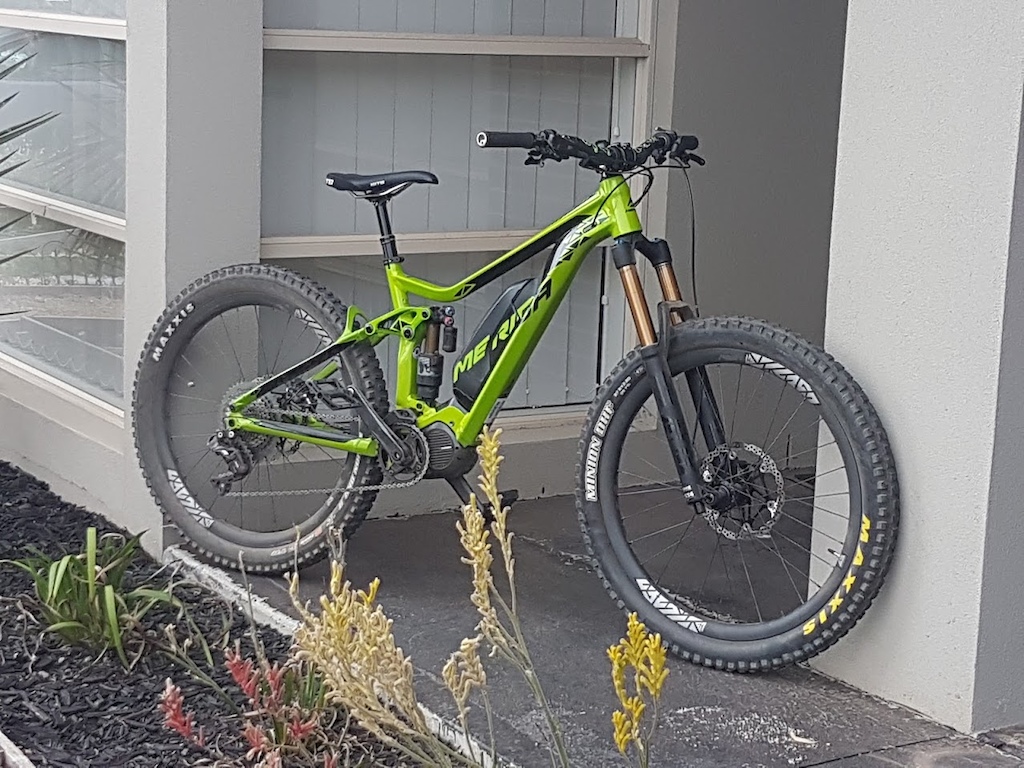

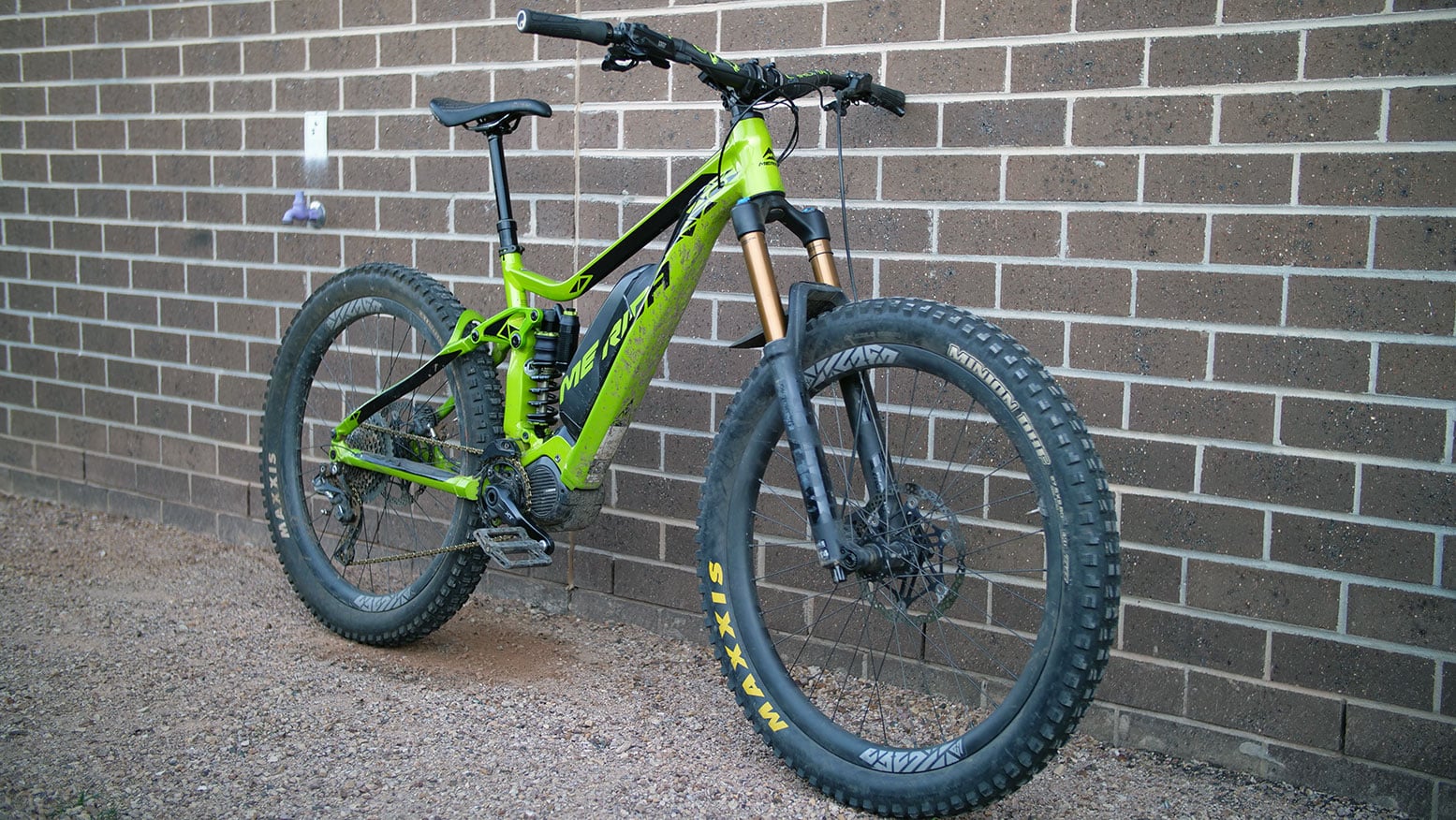

Here's mine.

View attachment 806

A few things have been replaced which I'll list later.

Super nice !



[Basy]

Here's the latest. I'm about to head into the garage to bleed a set of Shigura brakes so if that goes well, I'll slap them on this beast as well.



[drjarvis2003]

I have magura mt5 s on my haibike and they seem to have more power than just about anything else around.



[Basy]

I have magura mt5 s on my haibike and they seem to have more power than just about anything else around.

I don't like their levers.. first world problems really.



[Basy]

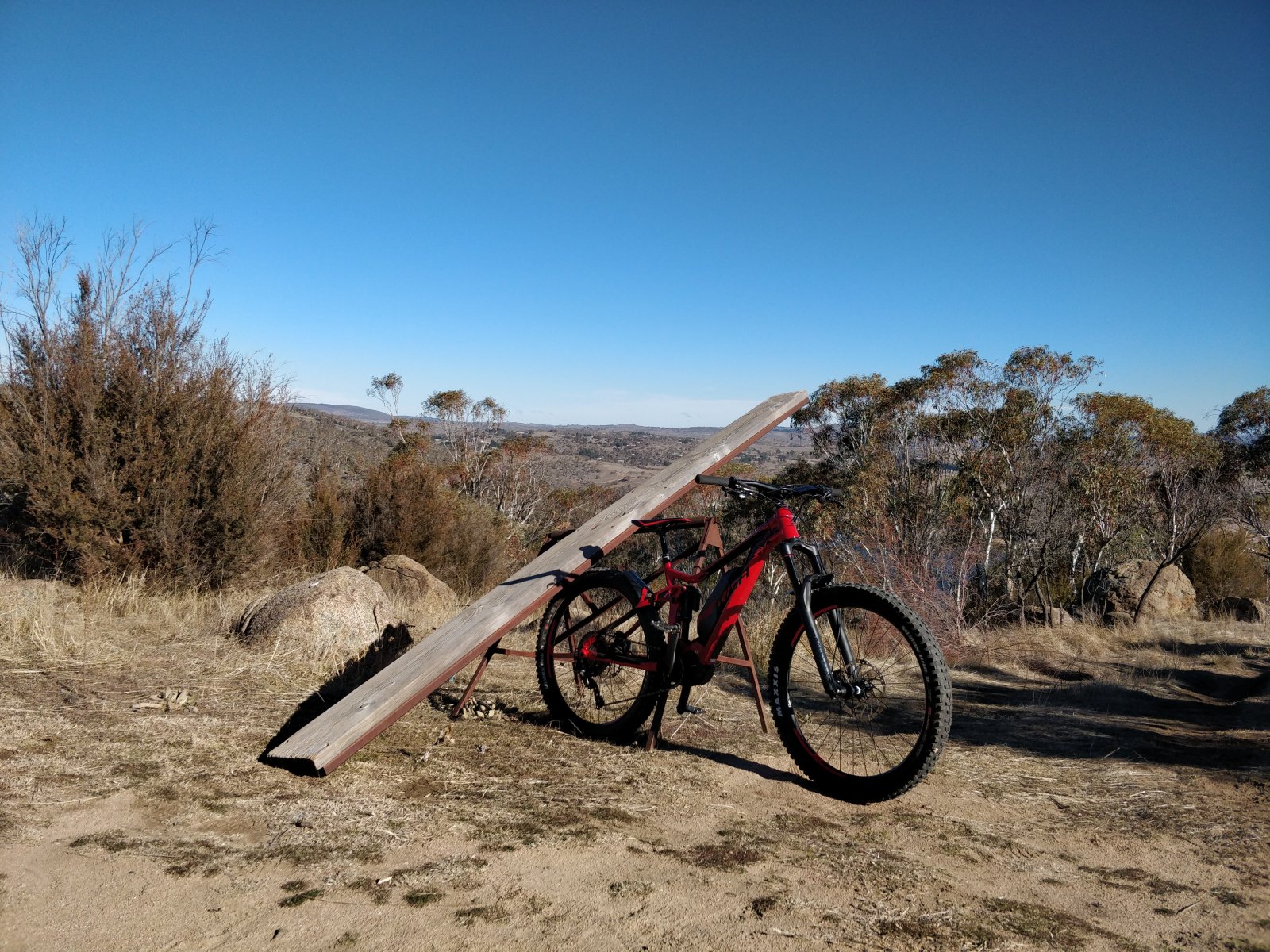

Setup today. Amazing.



[drjarvis2003]

brilliant! didn't even think about that...
