My Chinese frame and motor build. The CHEEB, V1.0 - Build Thread
- Thread starter Rob Rides EMTB
- Start date
My bad! You can't see voltage unfortunately.. I was getting muddled up with my BBSHD display.

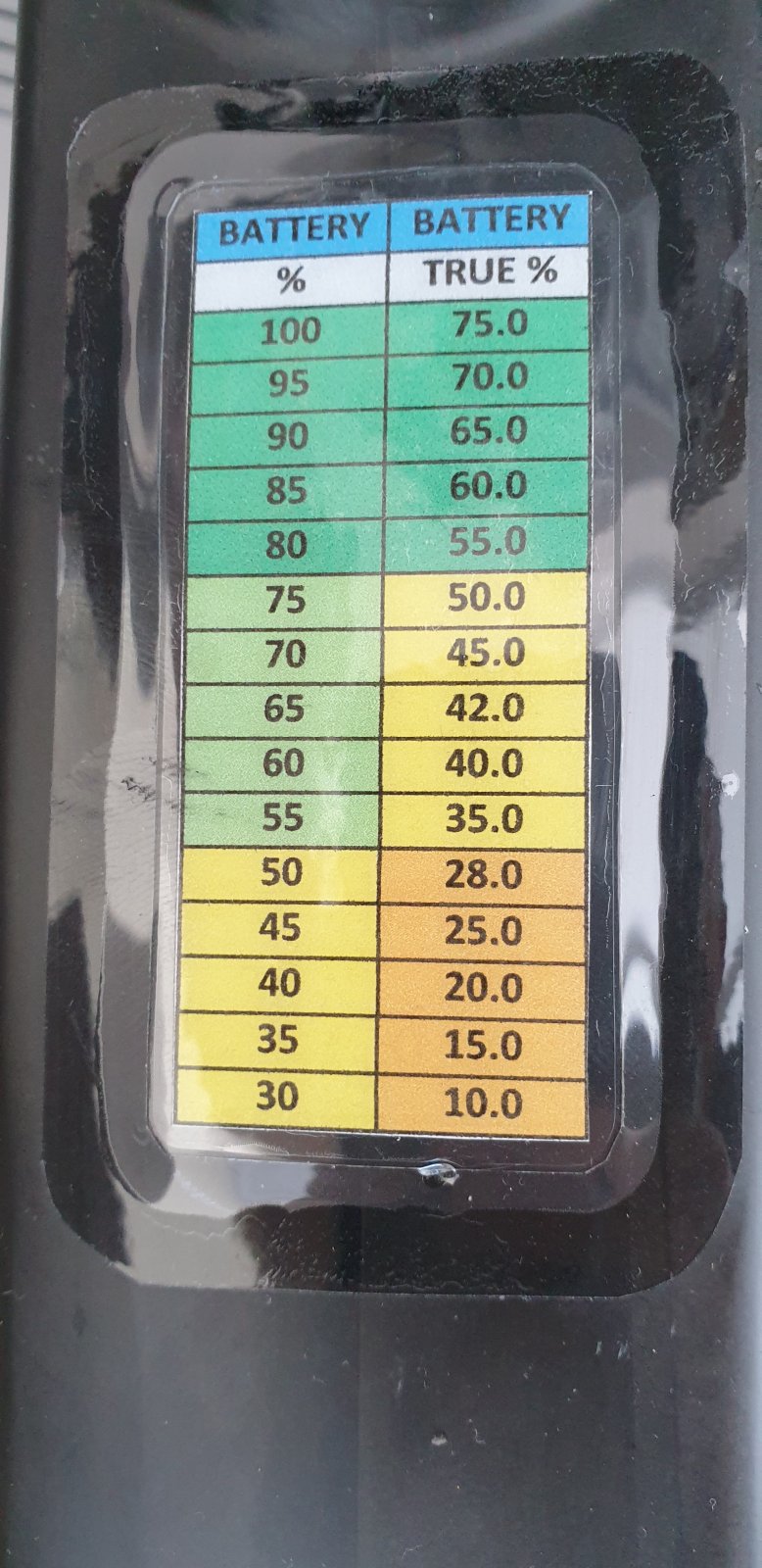

Voltage would be nice though, especially as my battery is 52V. The percentage shown on the display is not accurate, hence I have to convert the figure. For now I have a label stuck on the top tube with the conversion figures.
I ordered mine thru Melody at Dengfu, for $9, they will send it with my motor.
- Thread starter
- #454

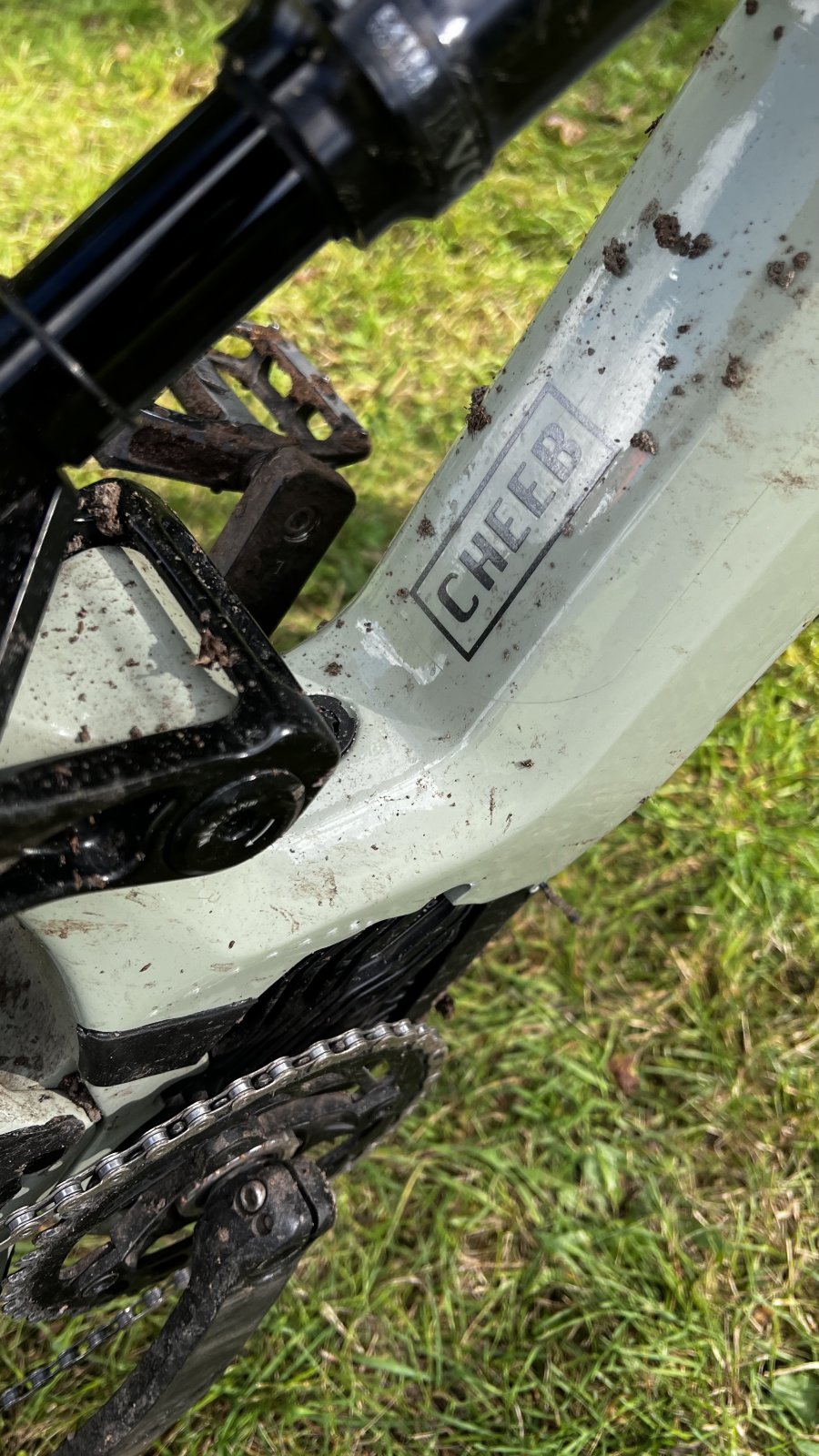

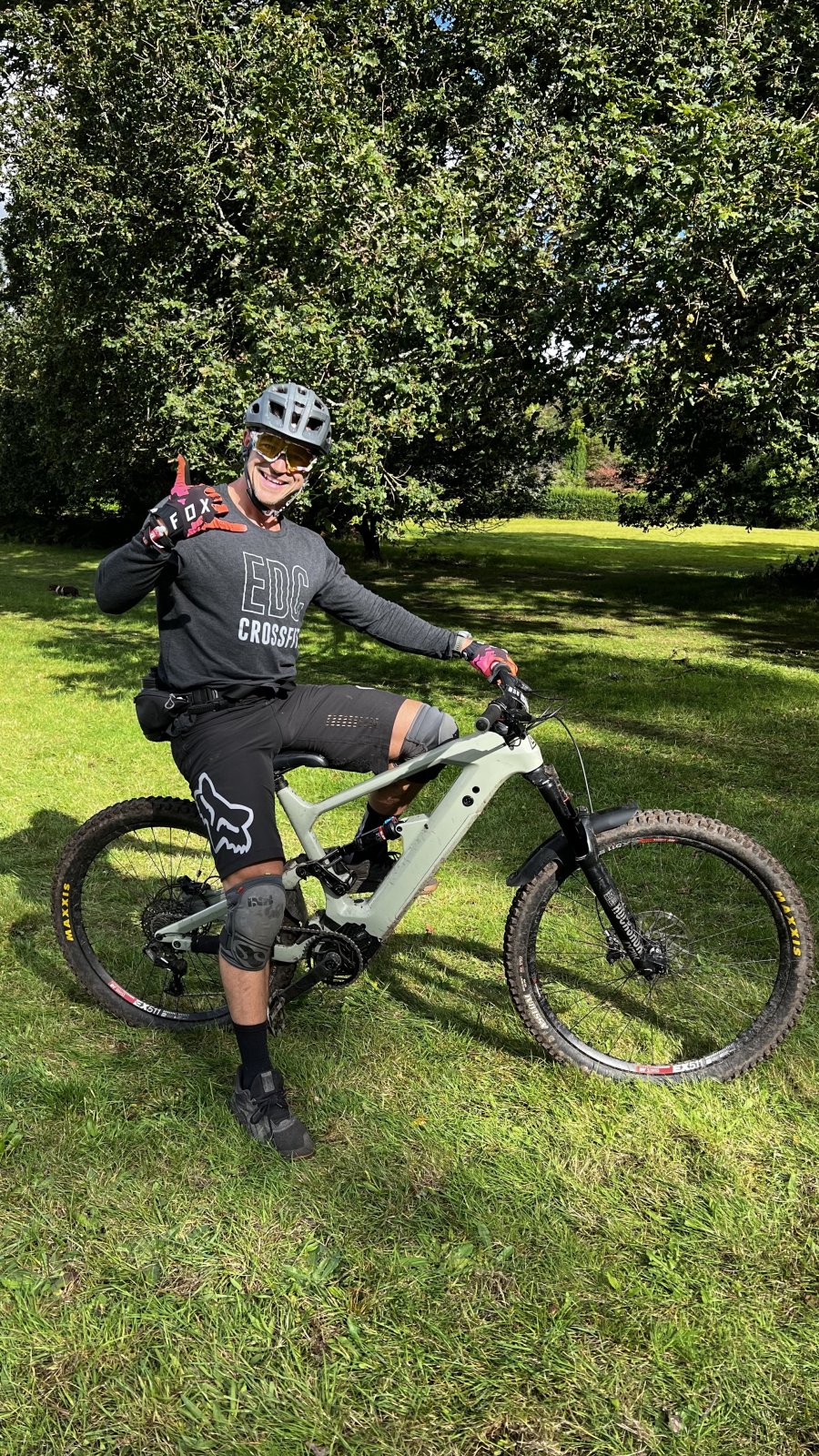

Saw a rider today on his CHEEB - he was racing at a local enduro. He won his age category (by over 1 minute) with the M500 in his bike. Looks great!
Hello, am currently working on my E10 build and haven't quite got to the motor install yet. Where is this card located? in the motor housing or in the frame? I want to check mine over and any seals, etc. Cheers, Mike
I’m going to mount the silent gear soon. But what if the gasket is gone…. Where do I find a new one
With a quick search, I find this one from LUNA but searching the internet I am sure the has to be some more local. I havent gotten this far yet. Luna M600 Silent GearI’m going to mount the silent gear soon. But what if the gasket is gone…. Where do I find a new one
I used to make oil sump gaskets out of cork but it may be too thick. As this is not a pressurized seal a little bit of silicone or mastic would fix any splits and like mentioned above spray a little AFC-50 to help keep any moisture out.I’m going to mount the silent gear soon. But what if the gasket is gone…. Where do I find a new one
range is great! I do about 45 km and 1700-1800 meters of altitude in 2 runs. somehow it's a small range compared to Rob's data. how it seems to me that it is up to the battery! i use m500 and 840wh battery
@Rob Rides EMTB what is the name or color code? thank you
PerseverantOne
Active member
DO I need to get Two Offset bushings or do I get just one and if I get just one which end does the OFfset bushing need to be on. Also what size do I need I know it's 8mm Fork Dengfu E10v2 Frame. I plan to shave 4mm minimum off my Yoke, should I buy a pair of offset bushings or stock bottom bushing and only get the offset on the top? Trying to order the Offset Bushings from OFFSET nowOK, sort of a fess up here.

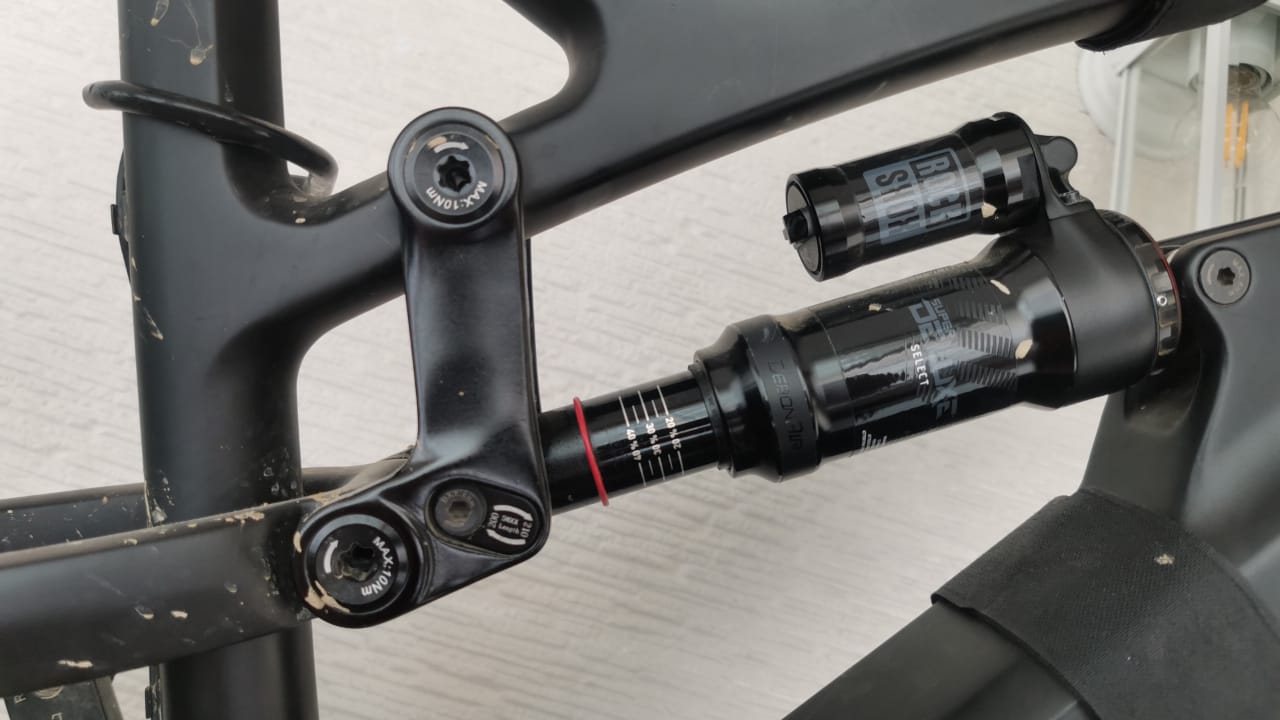

In true school boy error or in true theory not meeting reality, having measured out the 200mm shock in place in the frame and its clearance of 60mm between the seat tube and the cross bar between the top stays, one would think with a 57mm stroke you should have 3mm clearance. I thought having seen Patdams photos I had better check by letting all the air out ( I had only let 50% of the air out due to the piggy back arrangement on the DH5, where its not recommended by Fox to work the shock without pressure in it ) and seeing fully the suspension in operation. Previously with some air in, the cross piece missed by about 3mm, tick, but was that true full deflection ?
View attachment 50017
Allas its not quite true. With all the air fully out and total movement, its not so.The cross piece rotates by about 15 degrees as it goes through the 150mm range at the back, reducing as it does the theoretical clearance of 3mm to about 0.5mm. Is that enough ? Yes and no, get some mud on there and its going to be compressed.
OK how do we give it more clearance, an offset bush in the shock will give about 3mm at each end
View attachment 50020
So if you insist on using your 200mm shock as you have one sitting around as I did, then yes you can use a 200mm shock as long as its max 57mm travel, but to give yourself true mud clearance, then fit either a single offset bush or one either end to give you back an extra 3-6 mm of length and thus clearance.
Offsetbushings.com | The Finest MTB Shock Bushings
Offset and Standard Shock Bushings made for your bike. Recommended by MBR / MBUK / Pinkbike. Easy ordering, shipped worldwide. Produced for Fox, RockShox, Cane Creek & many more.www.offsetbushings.com
Which leads nicely on to why I like the BB to be lower to terrafirma. I ride Whytes, love em, as they feel unlike virtually every other bike I have ridden, you are riding in the bike and not on the bike. Look at any Whyte and the ground clearance is always less than normal, its just one of their characteristics and once you have ridden one, its tough to ride a taller bike. Thus a shorter overall shock with comparative stroke, will give you a lower BB.
PerseverantOne
Active member
In your experience with Dengfu E10v2 frames with someone trying to Mount a 8.5" x 2.5" Fox Factory Float X2 or Fox Factory Float DPX2. Do I need regular Bushing at the yoke and only 1 offset bushing at the top? If so how do I order the proper pair of bushings. I want to get this right the first time.
Waynemarlow
E*POWAH Master
Not sure why the need for such long travel at the rear, if you mullet the bike you get that nice head angle of about 64 degrees. Go the next step and fit a plush 170mm 29er fork set at about 30% sag with a relatively firm rear 55mm travel shock ( 25% sag % ), no offsets and you have a pretty nice bike to ride. How many motoX bikes do you see with equal travel front / rear, they have evolved over 50 years to that configuration as being the best.
The big question has to be asked, for all those with 170mm travel bikes, how often do you use the full travel ? I was always advised by suspension gurus far above my pay grade that you should use full travel at least twice on every ride, if you weren't then you are loosing rideability by having too high a COG.
Personally, the goal of longer rear shock is not increase travel. but firstly compensate wheel diameter difference with 27.5 rear and 29 front and secondly to have BB height at 350mm at less.
On my XL with 27.5 / 29, 216 and 170 front, my fork angle is 63.5. How you does to mesure 64° with 27.5/29, 210 and 170 ?
Waynemarlow
E*POWAH Master
29er front wheel on 170mm fork, exact degrees maybe a tad "approx" but as my and I suspect your inclinometer is +-0.1degrees then expect a bit of latitude. To be honest my lardy riding style would not be able to work out the difference between 1 degree let alone 0.5 degree head angle.
