Cube Deristricted

[Kernow]

The devices that halve the speed readings etc Badass box peartune etc only do so while they are connected ,
On shimano the peartune is activated by the lights function to switch on and off , switch it off and all your data is correct including the odometer . Nothing is effected Permanently and it’s use can’t be detected after removal so no worries that it could effect warranty



[Bis]

Hello, a quick question to Mad Mark. Did you change the number of sprocket teeth after installing the SpeedBox?



[Mad Mark]

No I didn't Bis - and everything seems great



[Darren Bacon]

does anyone know if these will work on the newer cube with the kiox display? tia.



[Frankieboy]

Hello, a quick question to Mad Mark. Did you change the number of sprocket teeth after installing the SpeedBox?

I recently fitted a 19 tooth sprocket, same bike and Speedbox as @Mad Mark, makes a huge difference and would recommend it. You’ll find you use more of the cassette and achieve a higher top end speed without pedalling like a lunatic.



[Frankieboy]

does anyone know if these will work on the newer cube with the kiox display? tia.

Not sure, but you’ll probably find something on their website. E Bike Tuning - Unlock the Speed Limit!



[Darren Bacon]

Not sure, but you’ll probably find something on their website. E Bike Tuning - Unlock the Speed Limit!

Just messaged speed box they confirm it will work with the kiox display



[Darren Bacon]

just fitted the unit and it does not work or i'm doing something wrong. anyone know how to activate it? pressed the walk button and nothing happens.....



[Frankieboy]

just fitted the unit and it does not work or i'm doing something wrong. anyone know how to activate it? pressed the walk button and nothing happens.....

Press the walk button, the display should show; 6.1 mph when it’s on, 1.5 mph when it’s off.



[Darren Bacon]

Press the walk button, the display should show; 6.1 mph when it’s on, 1.5 mph when it’s off.

managed to get it to activate by holding down light button then pressing walk button.



[Darren Bacon]

managed to get it to activate by holding down light button then pressing walk button.

Been out on bike this morning so much better tootling along at 20 mph in traffic



[Darren Bacon]

I recently fitted a 19 tooth sprocket, same bike and Speedbox as @Mad Mark, makes a huge difference and would recommend it. You’ll find you use more of the cassette and achieve a higher top end speed without pedalling like a lunatic.

can i ask where you got the 19 tooth sprocket from please. tia.



[Bis]

Bonjour Darren Bacon https://mirandabikeparts.com/fr/shop/e-bike/chainrings-for-bosch-motors/



[Bis]

https://mirandabikeparts.com/fr/shop/e-bike/?cat=30



[Bis]

Excuse me for his links
URL="Miranda Bike Parts"]Miranda Bike Parts[/URL]



[Frankieboy]

can i ask where you got the 19 tooth sprocket from please. tia.

eBay



[Simps]

@Mad Mark How is your speedbox doing. Any update would be great thanks as I want one for the same reasons you installed yours.
Cheers.



[Darren Bacon]

@Mad Mark How is your speedbox doing. Any update would be great thanks as I want one for the same reasons you installed yours.
Cheers.

No problem with it at all since fitting it. Well worth doing imo.



[Mad Mark]

@Mad Mark How is your speedbox doing. Any update would be great thanks as I want one for the same reasons you installed yours.
Cheers.

Everything is fantastic, no problems whatsoever Simps
Still the best thing I’ve done to the bike
Do it I guarantee you won’t regret it ?



[Simps]

Are the ones on ebay safe to order. Not going to be knock off versions or anything are they ?



[Mad Mark]

Not sure, that’s why I ordered mine from Amazon!



[Simps]

Just ordered one. Will follow your guide and let you know how it goes.
Got my 6 week bike check tomorrow so I will put it on after that



[Simps]

Just installed mine today and went for a nice 25 mile ride. Sooo nice not to feel that drag. And that's why I did it, not for the speed.
My legs still got a good workout but you're not battling the motor the odd time you go over the speed limiter.
Thanks Mark.
PS my wiring wasn't as neat as yours and I did check it worked before putting the covers back on as like you said they are a pain to get back on.



[Mad Mark]

The best upgrade you can do...soooooo nice ?



[Simps]

Mark, did you have any issues with the range showing incorrect or different after a full charge after installing the speedbox?
After my ride yesterday I fully charged my battery last night and popped it on the bike just now.... Normally after a full charge in Eco the range shows as about 78 miles (about) but today it's showing 39 miles which I have never seen before and is a lot lower than normal.
Cheers.



[Mad Mark]

No mate the range on eco is normally about 51 - 52 miles.....sometimes when you start riding the range can go up a bit...but it used to do that before I fitted the speed box
I think you will find it will still do the same sort of distance’s



[Simps]

Thanks you were right. Just went out and done 5 miles and it actually went up back to normal.
Yes, it did the same sort or range yesterday, I got back from 25 miles with 2 bars which was normal. Probably me just being a bit paranoid .
Cheers.



[alex_333]

Hey guys.
Has anyone had problems fitting speedbox2 to Bosch active line plus gen3?
It looks as 2-pin connector is a different shape and I couldn't fit it...
I've bought my Cube touring one 2020 e-bike this year if it makes any difference
Thanks,
Alex



[Welshman]

Hey guys.
Has anyone had problems fitting speedbox2 to Bosch active line plus gen3?
It looks as 2-pin connector is a different shape and I couldn't fit it...
I've bought my Cube touring one 2020 e-bike this year if it makes any difference
Thanks,
Alex

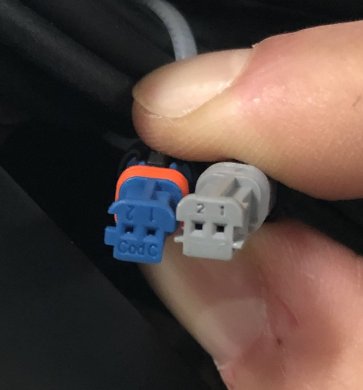

View attachment 22106 View attachment 22106

did you check that the gen3 motor was supported by speedbox????



[alex_333]

did you check that the gen3 motor was supported by speedbox????

Yes I did. gen2 and gen3 are supported. I've actually contacted them directly with the same photo as above and they confirmed that for some reason Bosch Active Line changed the shape and suggested to cut off the plastic bar from the right hand side on their connector manually.
They said that it's not gonna affect the warranty, but as I bought the item from ebay - I'm not sure if I'm going to modify it or return back to seller and buy again directly from speedbox website asking them to make that adjustment.
Alex
