Bafang m510
- Thread starter Puschtrale
- Start date
I will try to reinstall that firmware today to see if the controller is not blocked. how it happened @Puschtrale
Hallo Rob, the same for me today, wanted to install the 3.2 firmware and could only load it into the BESST box but not onto the controller. It only worked when I updated the BESST tool from 1.2.18 to 1.2.23 . Hope that helps
Last edited:
Short ride with the new Firmware. Very good improvements. The engine finally responds to the pedal pressure. In level 9 you can control the power between 200 watts and 840 watts. You can now drive off without a BAFANG minute of silence and it seems to me that the engine is also quieter. No problem with the voltage display because I use 52 V batteries. There will be a longer exit tomorrow for confirmation.
Thank‘s @Rob Rides EMTB you saved me the weekend
Thank‘s @Rob Rides EMTB you saved me the weekend
Last edited:
temon10
Well-known member
Short ride with the new Firmware. Very good improvements. The engine finally responds to the pedal pressure. In level 9 you can control the power between 200 watts and 840 watts. You can now drive off without a BAFANG minute of silence and it seems to me that the engine is also quieter. There will be a longer exit tomorrow for confirmation.
Thank‘s @Rob Rides EMTB you saved me the weekend
No problem with battery indicator in display?
no problem with the voltage display because I use 52 V batteries
temon10
Well-known member
ok noted. Mine error cause I use 48V battery. Hope @Rob Rides EMTB can ask Bafang this firmware for 48V battery.
When I get mine (finally) installed I’ll take pics and send to Bafang who will hopefully fix it asap.
temon10
Well-known member
I have BESST 1.2.26 - do you have a link to .23?
All good i think i found it
Dado
Active member
Yep, nothing to do, just to wait till we get firmware from Bafang, which will be usable.
Just I dont understand how could they start selling motor, with a firmware, which is not behaving good. (this is happening with every new bafang motor for years). Then also big ebike producers can not start to sell it.
I can not tell customer, yes it is not smooth and there are big power kicks, and maybe in the future it will be fixed, but we dont know when bafang will roll out such a firmware.
At least they listening to you Rob.
They know your videos have a power and it can help to Bafang reputation and selling.Anyway with v3.2 I have also feeling it has less noise and also mechanical vibrations are gone. I am comparing to 3.1 which was in my motor.
Dado
Active member
Hallo Rob, the same for me today, wanted to install the 3.2 firmware and could only load it into the BESST box but not onto the controller. It only worked when I updated the BESST tool from 1.2.18 to 1.2.23 . Hope that helps
Hmm, u were able to flash with different version of BESST? Interesting. Then our theories about different microcontroller can be wrong.
Could be like different flashing protocol then.
How old is that M510? Is it from first production batch?
one short review.
with ok firmware, it's a very good driving feeling, in my opinion.
OK firmware
CRX10NC4814i101003-1-cs-28-2230-boot3-0-20220517161110-48v-M510.bin
Bad firmware
CRX10NC4814i101003.0-28-2230-boot3.0-20220218085143----48v.bin - THAT ONE IS FOR DIFFERENT REVISION i suppose
today I was on the second drive with the new m510, it has OK FW. it is much better to drive, has a more linear power delivery and is somewhat stronger, but consumes a little more battery than the previous m510 with bad FW.
with bad firmware, it needs a lot more power for pedalling, but it is excellent in terms of battery consumption, it consumes approx. 10% less battery than OK FW on the new m510.
or maybe it's because of the controller, if the controller is bad or the FW, time will tell.
although the battery consumption is also questionable, it all depends on the driving conditions, the terrain, the wind... as we all already know.
I'll let you know about the engine and controller when I get the information. I filed a warranty complaint with the seller, so I'm waiting for an answer.
@Rob Rides EMTB don't install a bad FW, I don't know if me and @Puschtrale had a problem because of the FW or if the controller is like that.
with ok firmware, it's a very good driving feeling, in my opinion.
OK firmware
CRX10NC4814i101003-1-cs-28-2230-boot3-0-20220517161110-48v-M510.bin
Bad firmware
CRX10NC4814i101003.0-28-2230-boot3.0-20220218085143----48v.bin - THAT ONE IS FOR DIFFERENT REVISION i suppose
today I was on the second drive with the new m510, it has OK FW. it is much better to drive, has a more linear power delivery and is somewhat stronger, but consumes a little more battery than the previous m510 with bad FW.
with bad firmware, it needs a lot more power for pedalling, but it is excellent in terms of battery consumption, it consumes approx. 10% less battery than OK FW on the new m510.
or maybe it's because of the controller, if the controller is bad or the FW, time will tell.
although the battery consumption is also questionable, it all depends on the driving conditions, the terrain, the wind... as we all already know.
I'll let you know about the engine and controller when I get the information. I filed a warranty complaint with the seller, so I'm waiting for an answer.
@Rob Rides EMTB don't install a bad FW, I don't know if me and @Puschtrale had a problem because of the FW or if the controller is like that.
Hi gar, I am using besst version 1.2.26. According to you I have to downgrade to 1.2.23 so I can flash the m510 controller? Does it work for you @Rob Rides EMTB ?

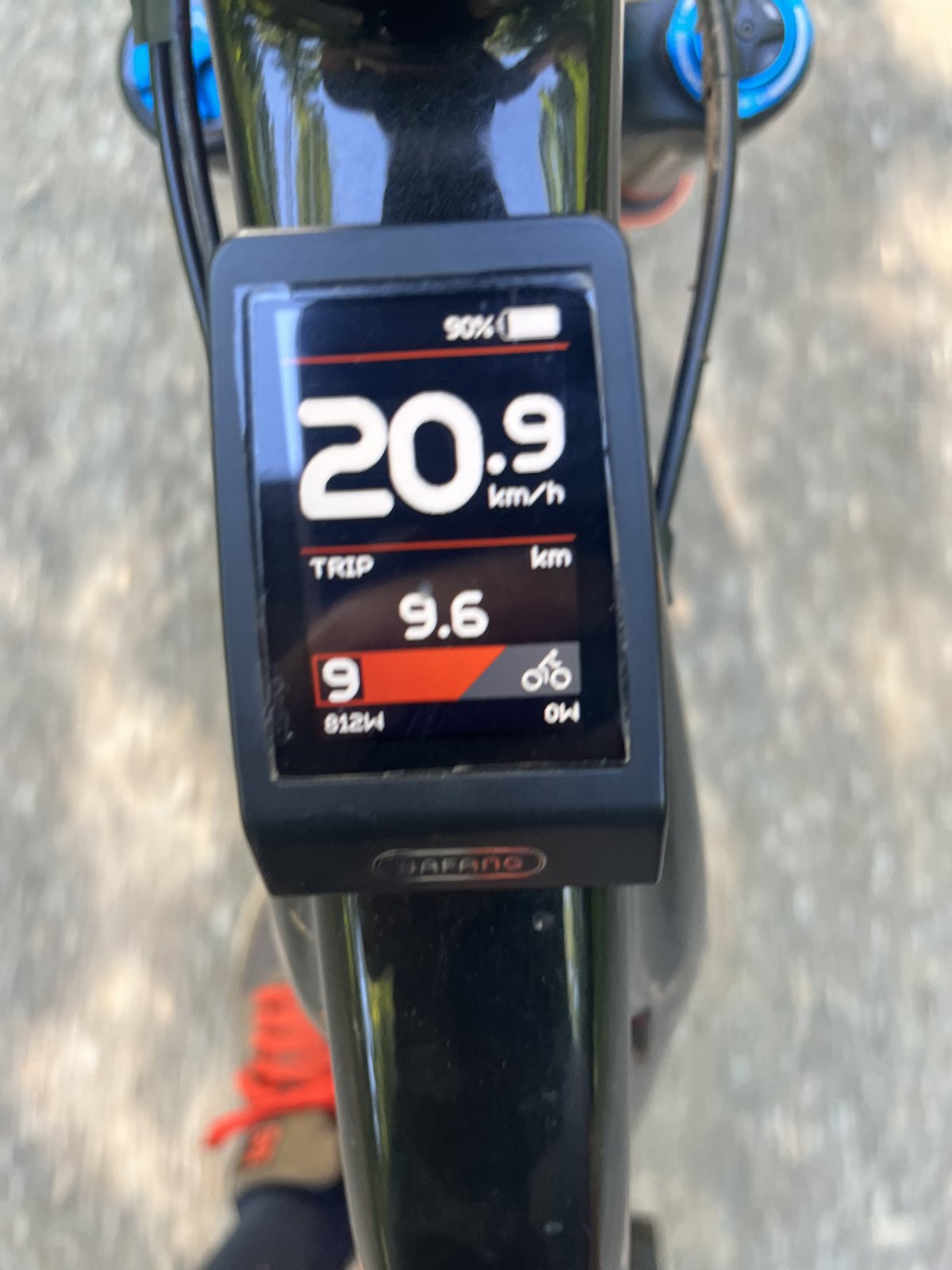

Made a longer ride with steep climbs today. The engine is definitely quieter and doesn't get as warm under load. The best improvement, however, is the now working torque sensor, which now works like the Bosch E-MTB mode. The speed is also displayed more precisely, with the 3.1 firmware it was always 3-4 km/h too much. The voltage display also seems to work, the only unusual thing is that it shows 100% every time it is switched on and only shows the correct value after a few minutes of driving The max power is over 800 watts
The max power is over 800 watts
OK now thouroughly confused! Which firmware is the best / safe one to use?
The 3.2 is the best
The 3.2 firmware is currently the best in terms of motor control. Unfortunately only useful for 52V batteries. Depends on the switch-off point whether you can also use them for 48 V batteries
The 3.2 firmware is currently the best in terms of motor control. Unfortunately only useful for 52V batteries. Depends on the switch-off point whether you can also use them for 48 V batteries
Dado
Active member
Yes 3.2, just with 48V battery you dont have correct % and wont drain battery till the end, due to higher cutt off voltage (controller setup to 52V battery)
@Karo, each firmware has its "default" speed and circumference, so just to update circumference after flashing when you see speed reading off - but I am sure u know about this.
thaeber
Well-known member
To sum it up: We would kindly ask You @Rob Rides EMTB to contact Bafang and ask for update of 3.2 firmware to fit to 48V Battery. That would be great! Thanks mate!
temon10
Well-known member
Totally agree.....We want 3.2 firmware for 48V battery.
Dado
Active member
M510 overheating test. Outside was like 32C, ascent 250m, full throttle, very light pedalling, 113Wh used Firmware 3.2
600W at motor temperature 100C degree is great, just dont put your leg on the motor. Sorry for not steady camera.
600W at motor temperature 100C degree is great, just dont put your leg on the motor.
Sorry for not steady camera.
Last edited:
Dado
Active member
Bratislava, Slovakia. It is our TV tower, hill "Kamzik" aka Chamois. And also Kellys Theos comes from this small country.
thaeber
Well-known member
Thanks mate! Very nice location! I know Kellys is a slowakian Brand, Theos is a great looking bike - but never saw one on the street until now - only on Robs review!Bratislava, Slovakia. It is our TV tower, hill "Kamzik" aka Chamois. And also Kellys Theos comes from this small country.
thaeber
Well-known member
@Rob Rides EMTB: If You contact Bafang and ask for the firmware update, please ask for optimized battery attenuation: Unlimited Amps until 42V, and cut off at 40V earliest. Thanks mate!
Dado
Active member
Thats right, rumors were here - Kellys produced 15 pcs so far due to bike market situation.
I would take hard cut off even at 37V
Where are the times, when we were able to set everything on HD motor...Does anyone have information, up to which voltage m510 can deliver the "nm" power that is specified?Thats right, rumors were here - Kellys produced 15 pcs so far due to bike market situation.
I would take hard cut off even at 37V
