Kenevo Gen1 29er Front and Rear Kenevo

jooles

Active member
Jan 23, 2020
158
126
South Wales
You can look online for various offset bushing Solutions.

the amount of difference comes from size of mounting bolt. You’ll need to give details of the shock, I.e bolt diameter (M8/6) outside diameter of the bushing and length of the bushing.

Try offsetbushings.com

Hope this helps


jooles

Active member
Jan 23, 2020
158
126
South Wales
I wonder if Spesh are looking at this thread thinking “…maybe a long travel full fat eMtb is in demand….”

I suspect such bike may emerge in 2023 …maybe even without Brose hence the delay in development/release ?

whatever they release I’m still utterly blown away by the flexibility and handling of the Kenevo Turbo…

Anyone else care to speculate?!


yorkshire89

E*POWAH Master
Sep 30, 2020
468
663
North Yorkshire
I wonder if Spesh are looking at this thread thinking “…maybe a long travel full fat eMtb is in demand….”

I suspect such bike may emerge in 2023 …maybe even without Brose hence the delay in development/release ?

whatever they release I’m still utterly blown away by the flexibility and handling of the Kenevo Turbo…

Anyone else care to speculate?!

Yeah this is something I'm looking for in my next bike. I have a Mondraker Level, 29" and 180/170mm travel. Great bike but it's 27.5kg. If a 29" Kenevo came out at around 23kg I'd buy it. There's not much to choose from currently....


Rob Rides EMTB

Administrator
Staff member
Subscriber
Jan 14, 2018
6,260
13,700
Surrey, UK

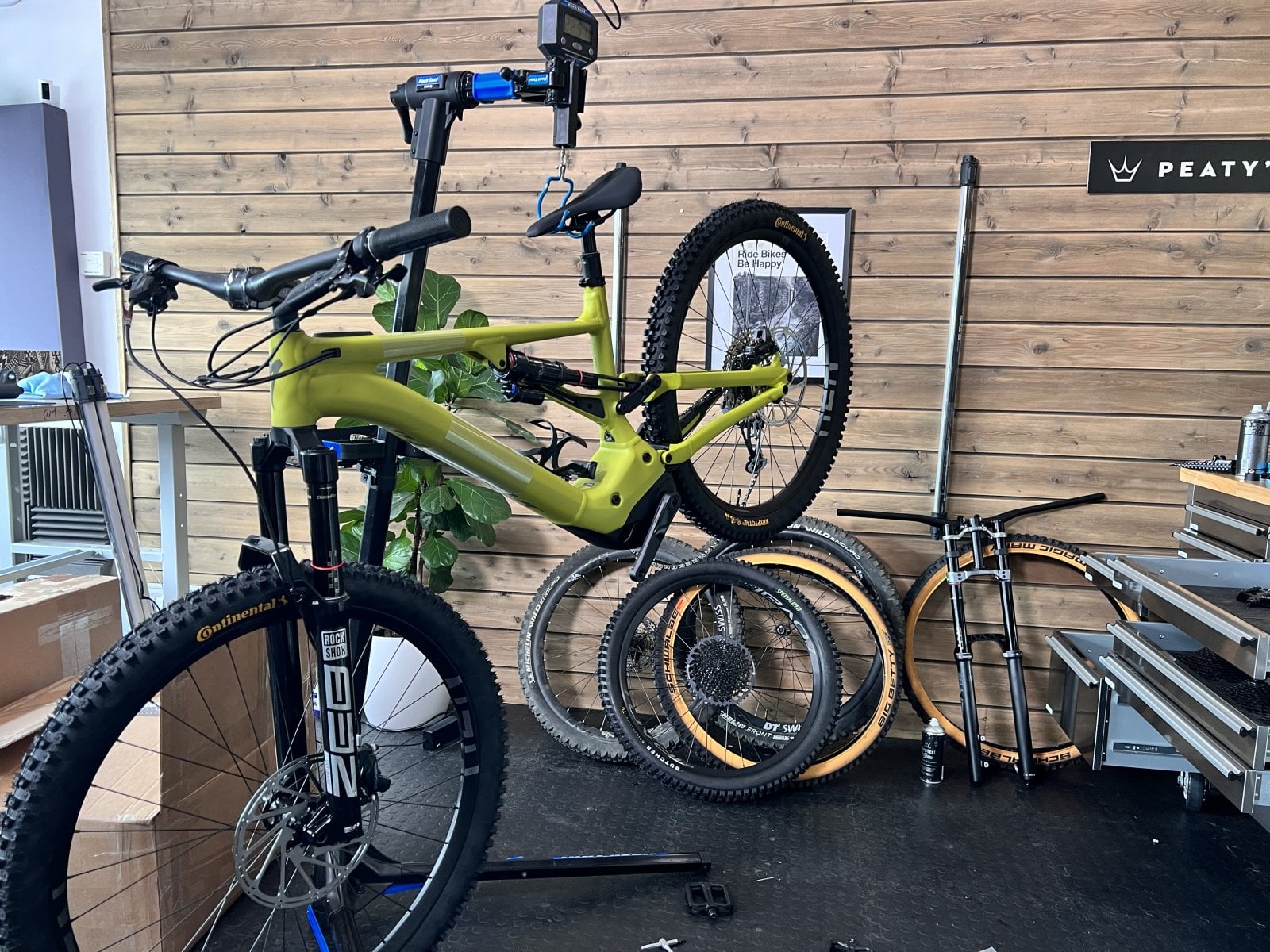

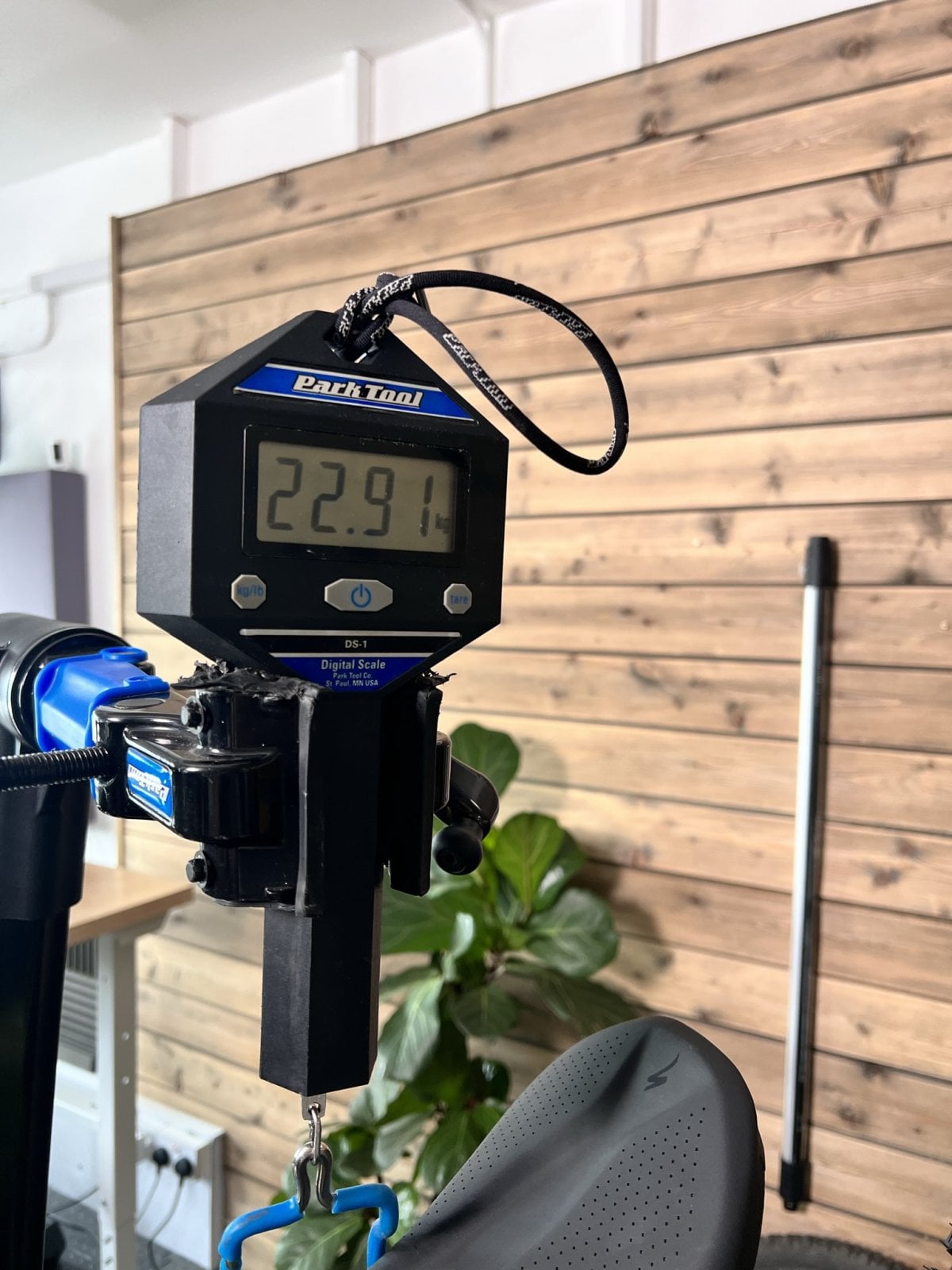

29er Kenevo and 22.91KG. Alloy wheels.

Easily possible for a 22KG Kenevo with carbon frame.
88DF8EE1-6B50-409A-956E-BEE700FB314E.jpeg BE9977B5-89A5-4931-8686-927848876609.jpeg


sp00n

Member
Jul 11, 2021
62
31
Germany
So I ordered a 29" front wheel and a used tire just to check the clearance on the default Marzocchi Z1 Bomber fork.
And... it's not much, I wouldn't want to ride like that.

The rim is a SunRingle Duroc 40 with 36mm inner width, the tire a used 29x2.5" Maxxis DHF with around 70% of the tread pattern left according to the seller. Tire pressure is just 1 Bar (~14.5 psi), a higher pressure would likely result in even less available space. Also, a narrower rim would likely cause the shape of the tire to be higher instead of wider.

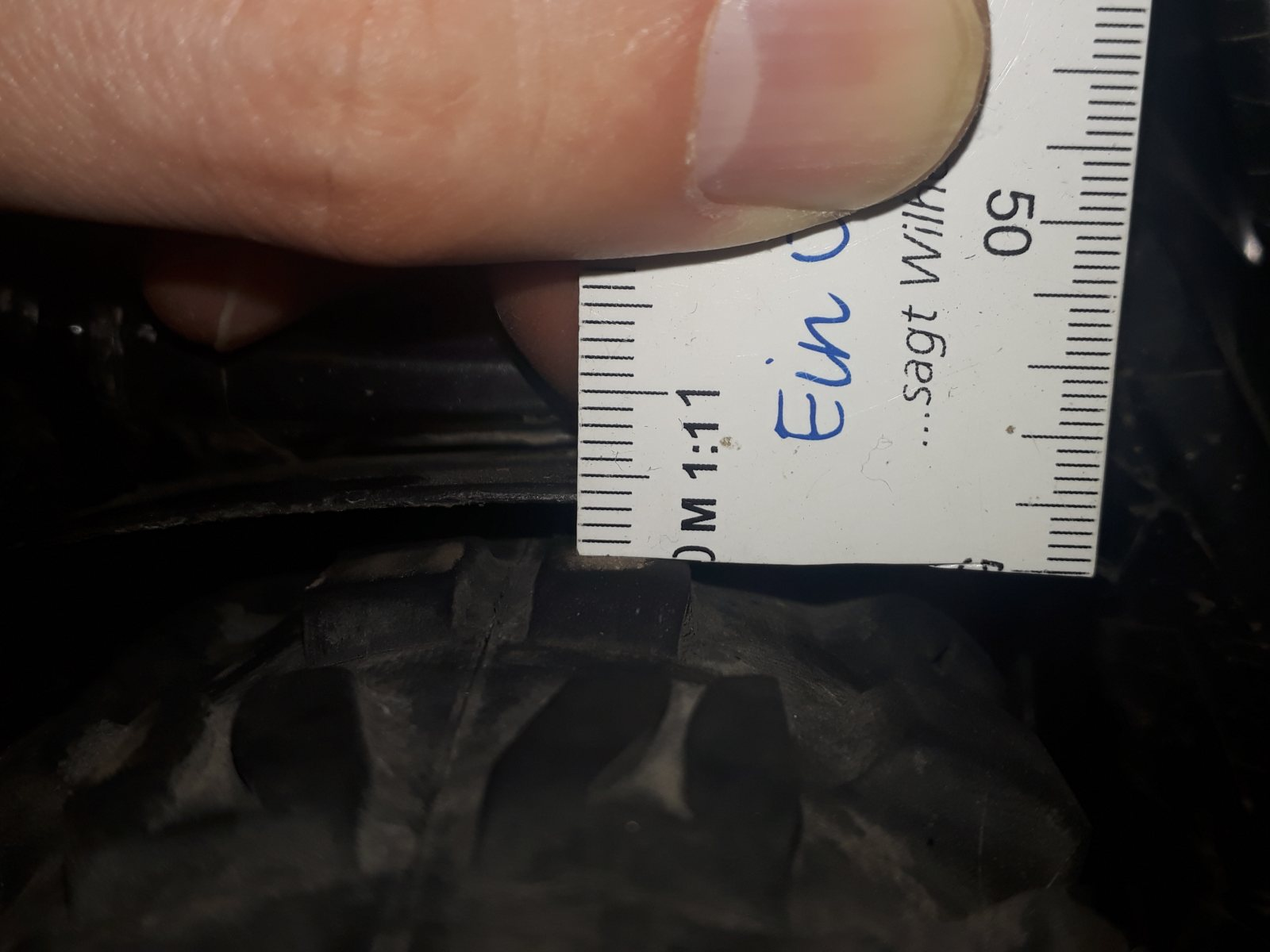

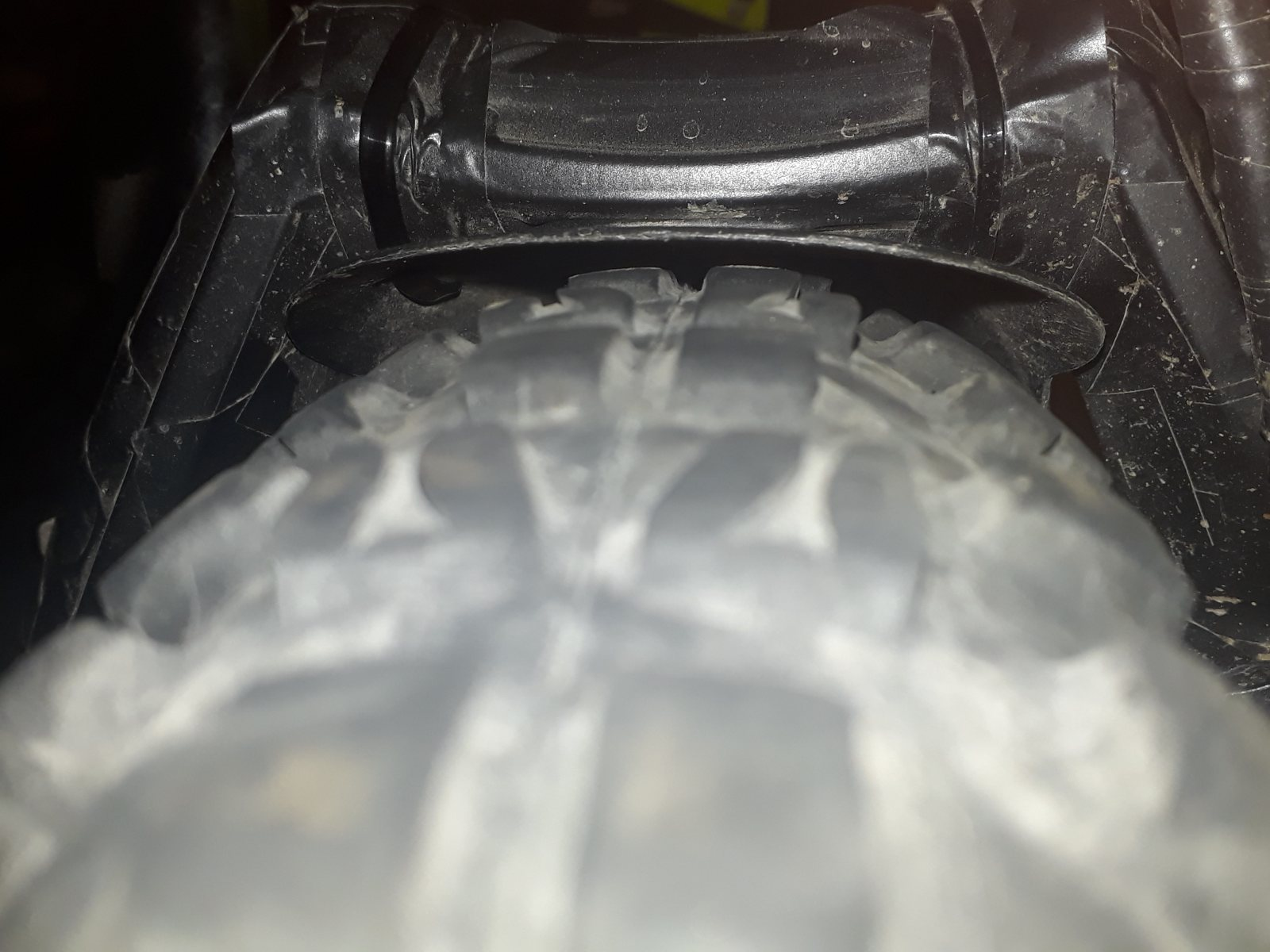

Tire clearance seems to be around 3mm to the Marsh Guard and maybe 5-6mm to the fork.




#lazy

E*POWAH BOSS
Oct 1, 2019
1,408
1,537
Surrey
That’s a bit tight , it’s not just there though . If you let the air out and full compress the fork you might find the crown will hit the tyre .


Aug 25, 2018
44
84
Randa, Switzerland
Hello to everyone.

I've pulled the trigger on a new Kenevo Expert, 25% of listed price. I want to try convert it to a full 29, is anything that I should look at when converting it to a full 29?

Cheers,
Bruno


sp00n

Member
Jul 11, 2021
62
31
Germany
The tyre will only go flat on the bottom..
The air out of the fork. 🙃
The fork crown (the part where the steerer tube and the stanchions are pressed in) might come deeper than the fork arch (the part connecting the lower legs), so it might hit the tire on full compression. Not a thing you want to experience during a ride.

Last edited:

#lazy

E*POWAH BOSS
Oct 1, 2019
1,408
1,537
Surrey
The air out of the fork. 🙃
The fork crown (the part where the steerer tube and the stanchions are pressed in) might come deeper than the fork arch (the part connecting the lower legs), so it might hit the tire on full compression. Not a thing you want to experience during a ride.
I said it 1st ☺️👍


ebikerider

Active member
Oct 1, 2019
706
484
Australia
The air out of the fork. 🙃
The fork crown (the part where the steerer tube and the stanchions are pressed in) might come deeper than the fork arch (the part connecting the lower legs), so it might hit the tire on full compression. Not a thing you want to experience during a ride.
Copy that. Hard for humour to filter thru text 🤪


Mcharza

E*POWAH BOSS
Aug 10, 2018
2,617
5,393
Helsinki, Finland
So I ordered a 29" front wheel and a used tire just to check the clearance on the default Marzocchi Z1 Bomber fork.
And... it's not much, I wouldn't want to ride like that.

The rim is a SunRingle Duroc 40 with 36mm inner width, the tire a used 29x2.5" Maxxis DHF with around 70% of the tread pattern left according to the seller. Tire pressure is just 1 Bar (~14.5 psi), a higher pressure would likely result in even less available space. Also, a narrower rim would likely cause the shape of the tire to be higher instead of wider.

Tire clearance seems to be around 3mm to the Marsh Guard and maybe 5-6mm to the fork.

View attachment 99639

View attachment 99640
I rode one summer mullet mode. 29" at front, but only max. 2.3 fit in front.


Topi

Active member
Aug 8, 2022
25
26
Sweden
That’s a bit tight , it’s not just there though . If you let the air out and full compress the fork you might find the crown will hit the tyre .
WTF? I thought it was only lowers what was difference between 27" and 29" forks.
