I recently bought the Cane Creek 40 series Top and Bottom sets mentioned by MrPeaski from dirtworks in Australia for my wife's Cube 140. Bottom Assy 40-Series ZeroStack 56mm 1.5" Crown Race ZS56/40 Black (BAA0090K) - Cane Creek Top Assy 40-Series ZeroStack 56mm 1-1/8" ZS56/28.6 Short Top Black (BAA0912K) - Cane Creek Total cost including freight was $170 AUD, although they may be slightly more expensive now as I purchased when they had a sale. Hope this helps.
Stereo hybrid 160 replacement headset
- Thread starter Ski-nut
- Start date
How'd you go with the install, they push out and in for you or tools were required?
Haven't installed them yet but I'm going to have a go tomorrow. I intend to proceed as MrPeaski did in post #12 in this thread. Only thing is the Cane Creek crown race doesn't have a split in it, so it will probably take some even careful tapping and some patience. For a home made headset press you can just use a long threaded bolt & nut with appropriate sized washers. This you tube vid will give you the idea You may not even need the press. I'll let you know how I go regardless if it's a success or disaster.
MrPeaski
Active member
The easiest way to set a non split crown race is to get a piece of plastic sink wastepipe like this
Many Thanks MrPeaski. I invested $8 AUD at the local hardware and made my life easier. For those using metric measurements the pipe size is 40mm.

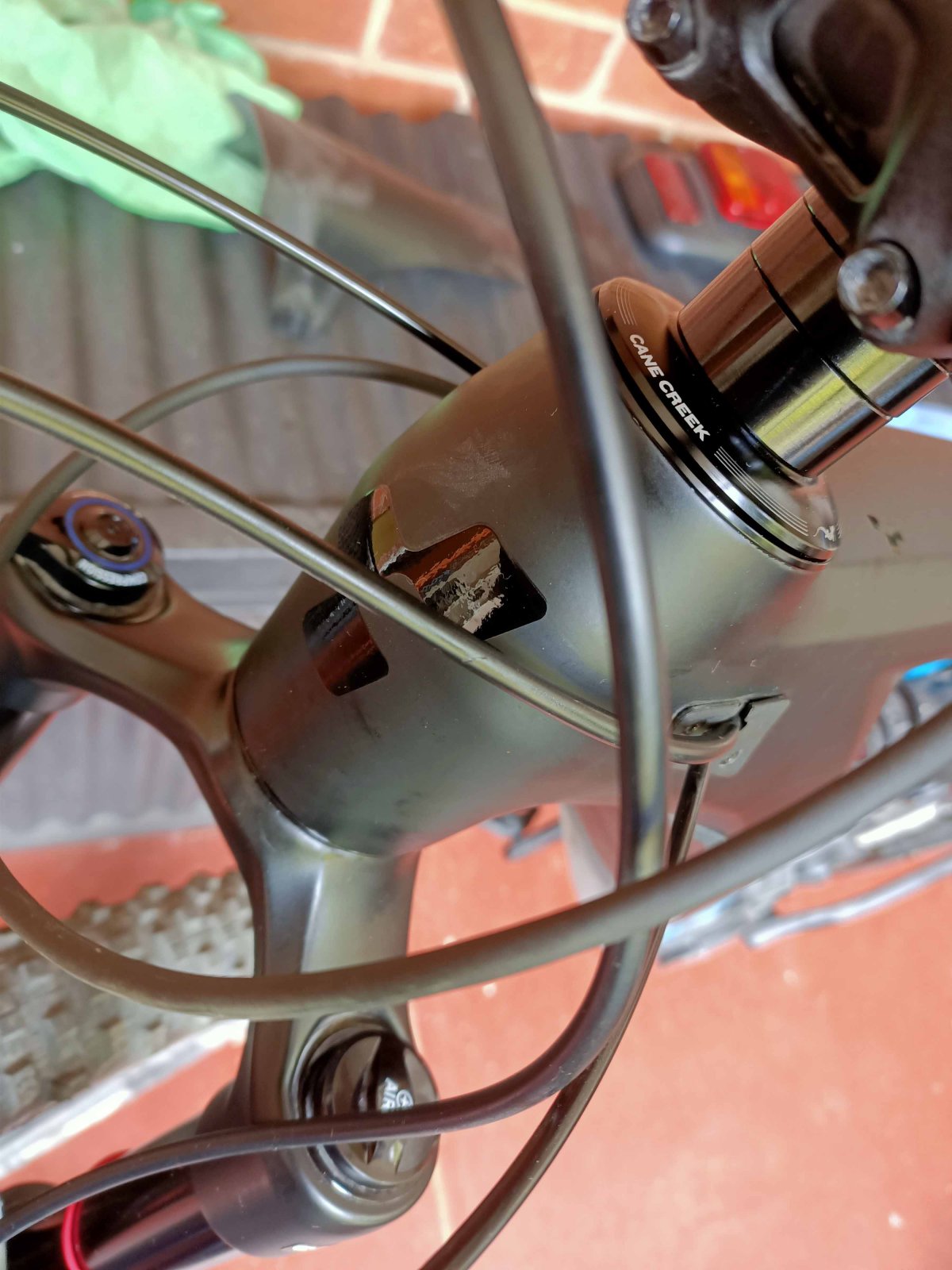

I've successfuly fitted the Cane Creek headset and it's a vast improvement on the stock FSA. FYI Daboss The old cups drifted out of the frame fairly easily and the new cups installed easily using my variation of Ozcycle's headset press. The new crown race installed relatively easily using MrPeaski's suggested home-made crown race setter. A bit more force was required than I imagined to get the crown race seated. The biggest challenge was removing the old crown race. This could be a problem for those with little or no mechanical experience or without the correct type of tool (a thin bearing remover). The crown race is steel but the fork crown is aluminium so it would be easy to damage the fork crown using a less sophisticated tool (for example the blade of a screwdriver) to remove it. Bottom line is without 50 years of mechanical background and the tools I've collected over the same time, it would have been a job for the lbs.
looks heaps better too, Took mine apart today and the top bearing seems to spin a little more free then the bottom bearing. so yeah I'll def be changing mine out for the one you've fitted. cheers again mate.
Which crown race did you go with from cane Creek? I'm assuming it comes with the bottom set correct?
Last edited:
MrPeaski
Active member
All complete bottom sets should come with a crown race and Oldrider's fitting post suggests that it does come with it
That is the case.
Also do they come with the compression ring, as the standard one is plastic and rubbish.
Yes they come with a nice alloy compression ring!
Will be placing an order Monday for the headset. Thanks again mate appreciate it.
You'll also need an extra 5mm head-stem spacer otherwise the top cap will bottom out on the steerer tube.
You still running the standard stem?You'll also need an extra 5mm head-stem spacer otherwise the top cap will bottom out on the steerer tube.
Yeah.
MrPeaski
Active member

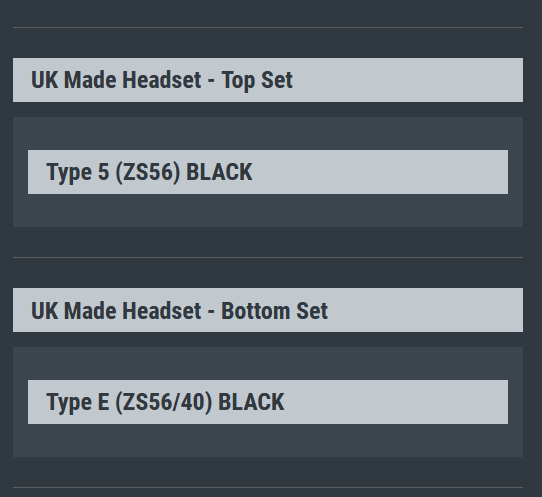

Top set Type 5, Bottom set type E
nasamorpheus
Member
Can someone confirm please that this headset is right for Cube stereo hybrid 140 race 2020 model?thx
MrPeaski
Active member
2020 and 2021 versions of the 120, 140 and 160 all share the same headset.
Here are the 2020 spec pages so you can verify
120 CUBE Stereo Hybrid 120 Pro 500 29 green´n´green 2020
140 CUBE Stereo Hybrid 140 HPC Race 625 29 black´n´blue 2020
160 CUBE Stereo Hybrid 160 HPC Actionteam 27.5 625 actionteam 2020
HTH
Here are the 2020 spec pages so you can verify
120 CUBE Stereo Hybrid 120 Pro 500 29 green´n´green 2020
140 CUBE Stereo Hybrid 140 HPC Race 625 29 black´n´blue 2020
160 CUBE Stereo Hybrid 160 HPC Actionteam 27.5 625 actionteam 2020
HTH
Last edited:
leix_toffee
Active member
thanks for this, taken a note for future use
They are the correct fitment
samfiesta
Member
Hi Guys
I have a 2021 Action Team 160 with the integrated cable routing through the headset. This in my opinion is crap as its made from plastic and on a heavy E-bike is a shambles, but I digress. I have seen talk of the Superstar components set up converting it to a standard frame routing option however they are out of stock for 4-8 weeks apparently.
Can you guys point me in the direction of an alternative, there are so many makes with their own abbreviations its sending me crazy even my LBS is at a loss!!!
Current set up : ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Any help much appreciated
Thanks
I have a 2021 Action Team 160 with the integrated cable routing through the headset. This in my opinion is crap as its made from plastic and on a heavy E-bike is a shambles, but I digress. I have seen talk of the Superstar components set up converting it to a standard frame routing option however they are out of stock for 4-8 weeks apparently.
Can you guys point me in the direction of an alternative, there are so many makes with their own abbreviations its sending me crazy even my LBS is at a loss!!!
Current set up : ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Any help much appreciated
Thanks
MrPeaski
Active member
Have a look at my earlier post #30 which lists the Cane Creek 40 series parts, but they will be expensive.
Biggest issue at the moment is availability.
If the bearings are ok, but its the cables going through the headset that are your issue, I'd just re route outside and through the frame like the 2020 version
There's a thread here for another AT owner wanting to do the same.
www.emtbforums.com
Biggest issue at the moment is availability.
If the bearings are ok, but its the cables going through the headset that are your issue, I'd just re route outside and through the frame like the 2020 version
There's a thread here for another AT owner wanting to do the same.
Rerouting cables after headset change
I have a 2021 Cube AT which came with the cables routed through the headset/spacers. I’m putting on a Superstars headset and need to re-route the cables like the 2020 model. Where can I get the side plates with the holes in and also the backing plates. I know ebikeprints do the outers but...
www.emtbforums.com
samfiesta
Member
Thanks for thatHave a look at my earlier post #30 which lists the Cane Creek 40 series parts, but they will be expensive.
Biggest issue at the moment is availability.
If the bearings are ok, but its the cables going through the headset that are your issue, I'd just re route outside and through the frame like the 2020 version
There's a thread here for another AT owner wanting to do the same.
Rerouting cables after headset change
I have a 2021 Cube AT which came with the cables routed through the headset/spacers. I’m putting on a Superstars headset and need to re-route the cables like the 2020 model. Where can I get the side plates with the holes in and also the backing plates. I know ebikeprints do the outers but...
like you say, availability is going to be the ball ache. Il just keep browsing the manufacturers and see what I come across. Will post link if I find any in stock.
thanks
cl0nd0n
New Member
For anyone that was after replacement headsets - the Superstar Components ones are now back available for pre-order for early August! Type 5 + Type E
Super Mario
New Member
Hi everyone, I'm reaching out to you after seeing many problems on Cube headsets and bearings. I got a Cube Stéréo 170 2020 (sorry not ebike), and I've broken my plastic headset on a jump. Therefore, i want to change it, and get an aluminium one if possible! The problem is, those headset are a very particular ones with 44.9 top diameter, and 55.9 bottom one (still the classic 1'1/2, 1'1/8 for the fork tube), plus they have 2 little "stops" each! I've search, but nobody seems to have the top part! But i can see here that some of you got an answer to those problems! Could you point me in the right direction to find these, i'm having hope now thanks to you!
Sorry if my english isn't perfect, and thank you!
Sorry if my english isn't perfect, and thank you!
MrPeaski
Active member
@Super Mario
Can't seem to find your bikes page on Cubes site at the moment, but having a dig around this seems to be the original as fitted
from the factory.
Although the original factory version says 0.6 adjustment where this is 0.4
acros-components.com
There are 3 sizes depending on the length of your head tube, 103mm, 113mm, 133mm so you'd need to pick the correct one from the drop down list.
Maybe useful
Can't seem to find your bikes page on Cubes site at the moment, but having a dig around this seems to be the original as fitted
from the factory.
Although the original factory version says 0.6 adjustment where this is 0.4
angle headset 0,4° 41/52
Do you want your Cube Stereo 170 2020-2021 to be even more downhill-oriented or to have more travel with almost the same bottom bracket height? With our acros angle headset you can change the steering angle of your bike in no time at...
acros-components.com
There are 3 sizes depending on the length of your head tube, 103mm, 113mm, 133mm so you'd need to pick the correct one from the drop down list.
Maybe useful
Super Mario
New Member
@MrPeaski
Yeah it is, thoses are the good ones i think, but the problem is they ran out of the size i need (103mm), and even though, they still sell those same plastic ones for 99€! I want to get aluminium headset if possible as I broke the plastic ones within 25 days of riding! I've seen few people talking about canecreek or superstar (or others??), but i would like to know if i can put some on my bike too, and if the stops are important or not! Also apparentlly the main difference between the lenght (103-113-133mm) are the angles. Could it be the difference 0.6 vs 0.4 that you mentionned? And what does it do?
Thanks
Yeah it is, thoses are the good ones i think, but the problem is they ran out of the size i need (103mm), and even though, they still sell those same plastic ones for 99€! I want to get aluminium headset if possible as I broke the plastic ones within 25 days of riding! I've seen few people talking about canecreek or superstar (or others??), but i would like to know if i can put some on my bike too, and if the stops are important or not! Also apparentlly the main difference between the lenght (103-113-133mm) are the angles. Could it be the difference 0.6 vs 0.4 that you mentionned? And what does it do?
Thanks
MrPeaski
Active member
@Super Mario
From looking at the pictures of the headset linked above, the frame looks like it needs a couple of holes/notches for the cups to line up properly.
The 0.6 or 0.4 of adjustment is to the head angle, giving you the choice of 2. one will be steeper/slacker than the other.
You could possibly fit a regular straight headset and in theory it would be in the middle of the possible adjustment range but to get the best advice as to sizes of the top/bottom cups and bearings, a visit to your local bike shop would be a good idea
From looking at the pictures of the headset linked above, the frame looks like it needs a couple of holes/notches for the cups to line up properly.
The 0.6 or 0.4 of adjustment is to the head angle, giving you the choice of 2. one will be steeper/slacker than the other.
You could possibly fit a regular straight headset and in theory it would be in the middle of the possible adjustment range but to get the best advice as to sizes of the top/bottom cups and bearings, a visit to your local bike shop would be a good idea
