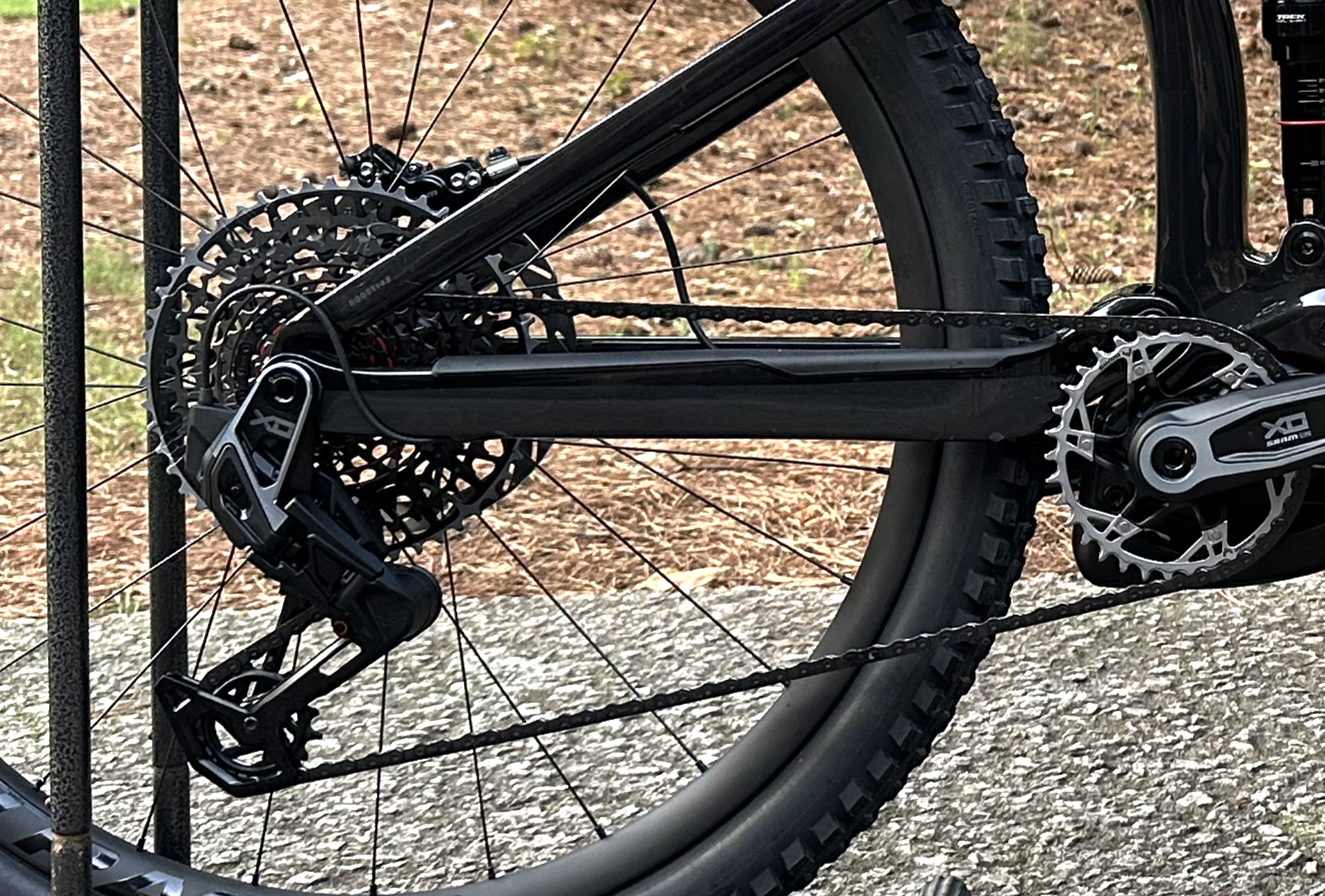

Although this is not a Bosch bike, Trek has wired the new GX T-type too....I have the X0 T-type on my Rail and it too is wired. That said, I wish the cable to the dummy battery didnt hang out as far as it does...I have tried shoving it back in but eventually it slides out...Im afraid it will become a snag-device at some point!
SRAM AXS derailleur connected to main ebike battery
- Thread starter Shandor
- Start date
tresorier21000
Member
Par sécurité, je partirais avec une batterie de secours dans le sac à dos !
Haha! For sure....since every single one of my bikes has both AXS droppers and derailleurs (as well as one with Flight Attendant), I have been keeping an AXS battery in my pack for quite some time!
JC-1
Member
Very interesting! I’m going to send that photo to SRAM and see what they say!
If there’s too much slack wire, you should be able to take the bash guard off and take up the excess from the motor end.
JC-1
Member

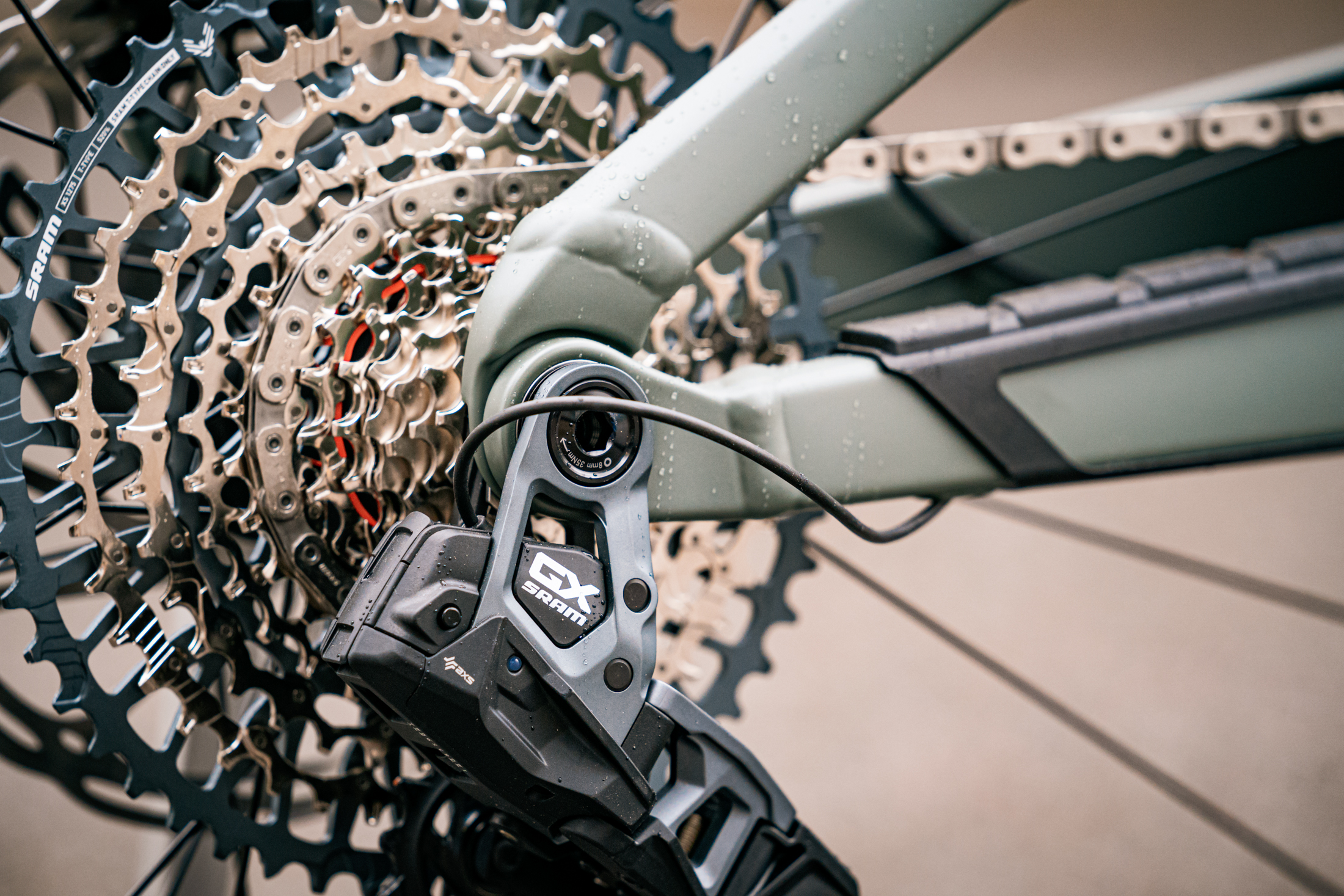

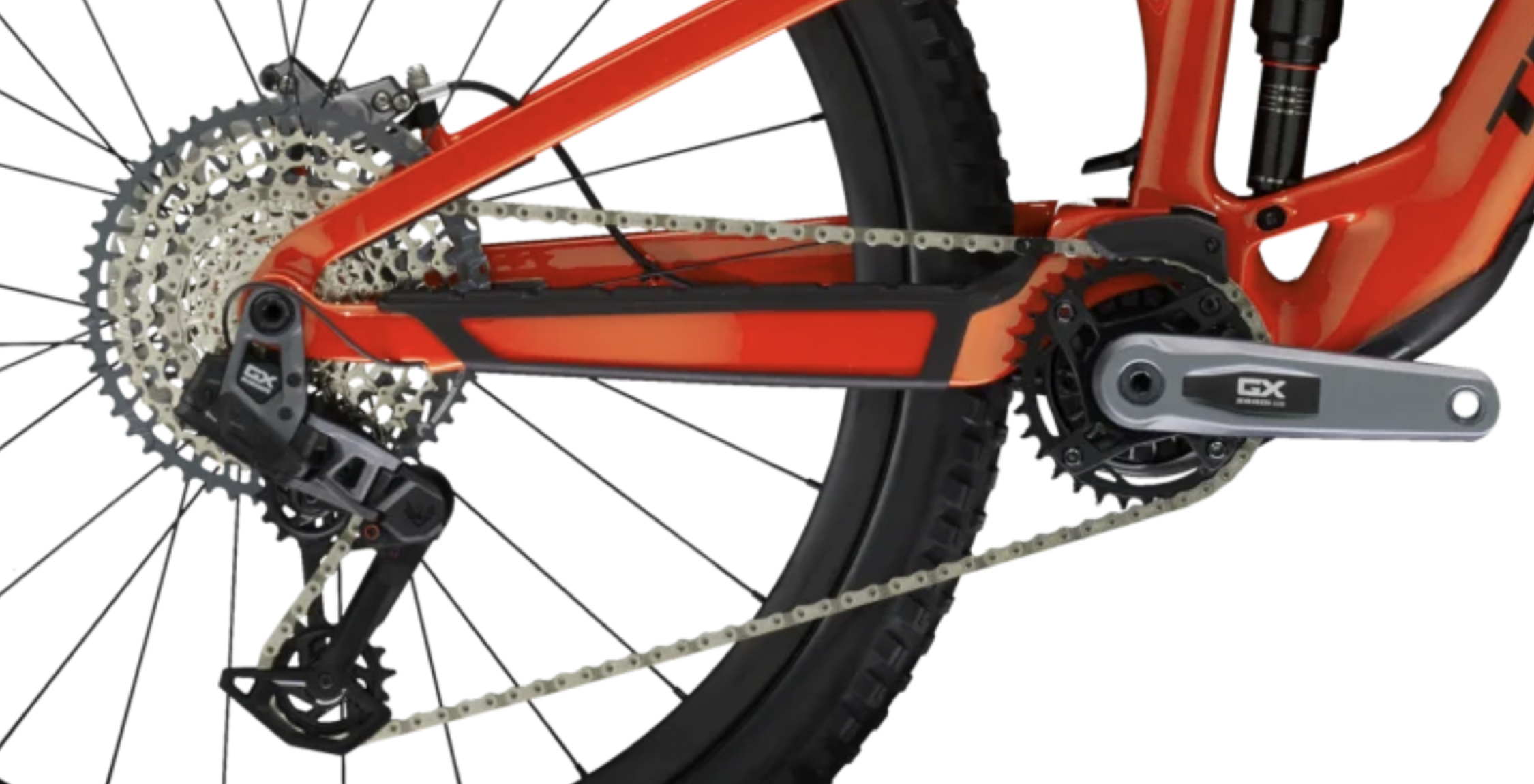

Better photo of the GX version here. I assume the wiring for Bosch and TQ are not the same.
Last edited:
Bradleybourbon
Member
Are you willing to sell it? I recently upgraded to the XO T-Type and I have been trying to purchase it for months. I got a call from the LBS today and basically told me Trek/SRAM are not willing to sell me one after I have purchased the Smartbox and AXS cable from Trek.
JC-1
Member
I would, but I'm in Australia, so the postage is probably excessive.
SRAM Power Cord AXS Extension Cord for BOSCH Motors | SRAM Eagle Powe, 206,22 €
SRAM charging cable AXS Extension Cord for BOSCH engines | SRAM Eagle Powertrain With the SRAM Extension Cord you can save yourself the trouble of charging
r2-bike.com
I can't decide if this is new, but there now seems to be a part that can be ordered! (although it's out of stock at R2, other retailers say it's available)
Colin46
New Member
My trek exe 9.9 came wired with Axs xx1. I’ve since swapped to xx t type and have been using the same battery connection cable to the main battery. Currently my bike is waiting for its third rear mech as 2 have failed to wake up after been left for a week. the first rear mech was replaced by the shop and I’ve sent the second one in for check up to sram.
im going to fit the third one this week when it arrives but I’m going to fit a standard battery and take the cable out. The cable connection is the only common denominator and I can’t believe that 2 xx rear mechs have been faulty. I’m wondering if the cable is,, for some reason, overloading the xx mech and destroying it. It’s my only explanation.
im going to fit the third one this week when it arrives but I’m going to fit a standard battery and take the cable out. The cable connection is the only common denominator and I can’t believe that 2 xx rear mechs have been faulty. I’m wondering if the cable is,, for some reason, overloading the xx mech and destroying it. It’s my only explanation.
randycpu
Member
Can you describe what "...failed to wake up..." means?
Are they dead and cannot be revived? Or did they not "wake up" with the vibration sensor that allows AXS devices go to sleep and then wake up when the bike is moved?
Did you try a standard AXS battery? Did you push the button on the side that "wakes" the derailleur?
I agree with you on the possibility that the battery replacement cable could be damaging the derailleur. Can you measure the voltage coming from the main battery? It should be between 3.0 and 4.2 volts...
I carry 2 batteries. In the last 4 years of using AXS, I have had to use my spare battery exactly 0 times. I do swap it out sometimes to keep the charge cycling on each of the batteries.
Colin46
New Member
Hi thanks for the reply
i turned the bike on and gave it a shake to wake the components like i normally do but the mech didn’t wake up, it’s greyed out in the app. The button doesn’t do anything, I can’t pair it, I’ve tried numerous batteries and I’ve tried a hard reset like sram support asked me but nothing the mech is completely dead, this is the second one.
im about to send the mech off to sram for warranty repair but I’ve bought another one to put on.
im going to remove the dummy battery and cable and just use the normal sram battery from now on, I can’t believe that 2 mechs have been faulty and I’m not willing to try it with a third mech
oripaamoni
Member

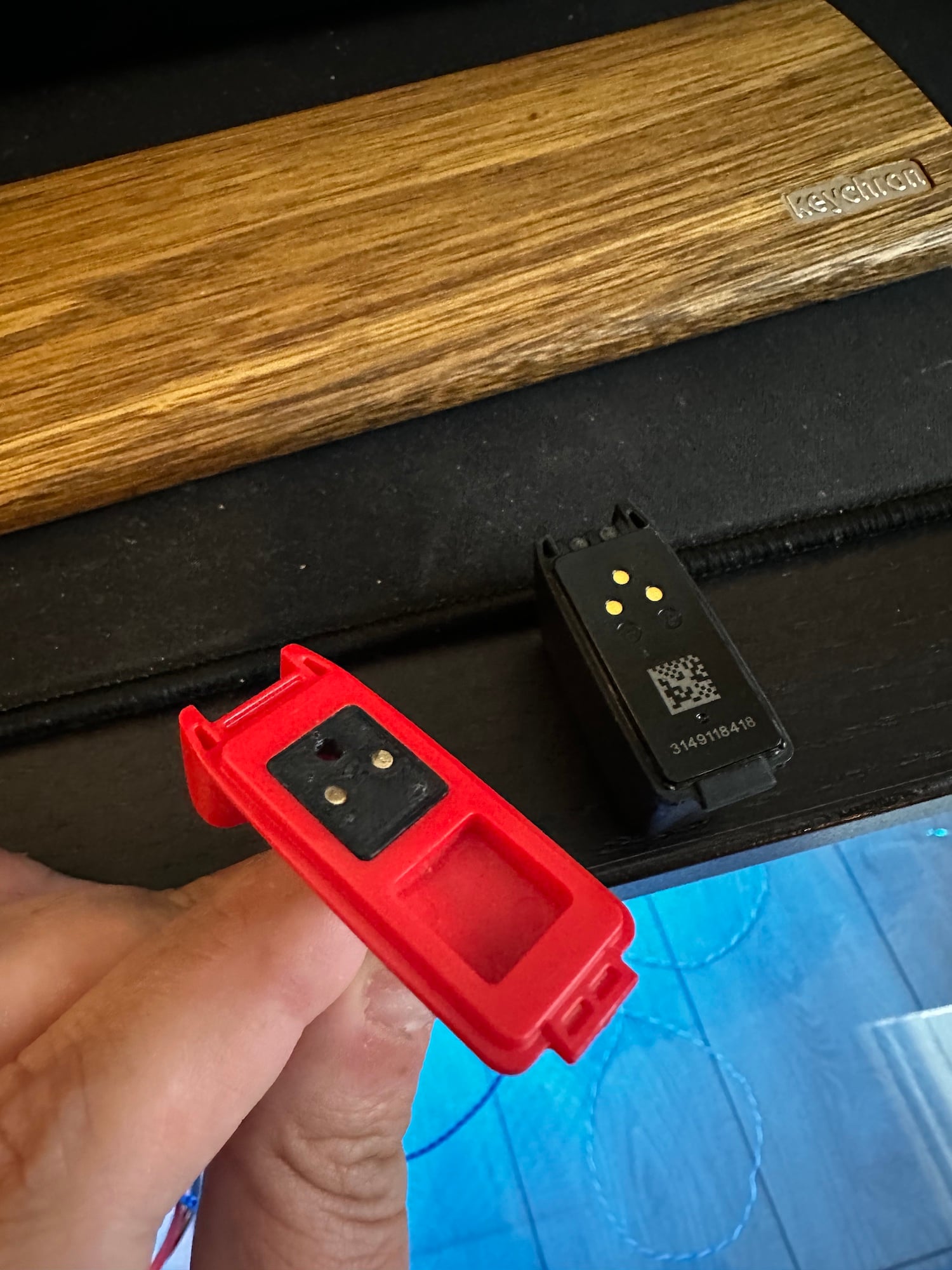

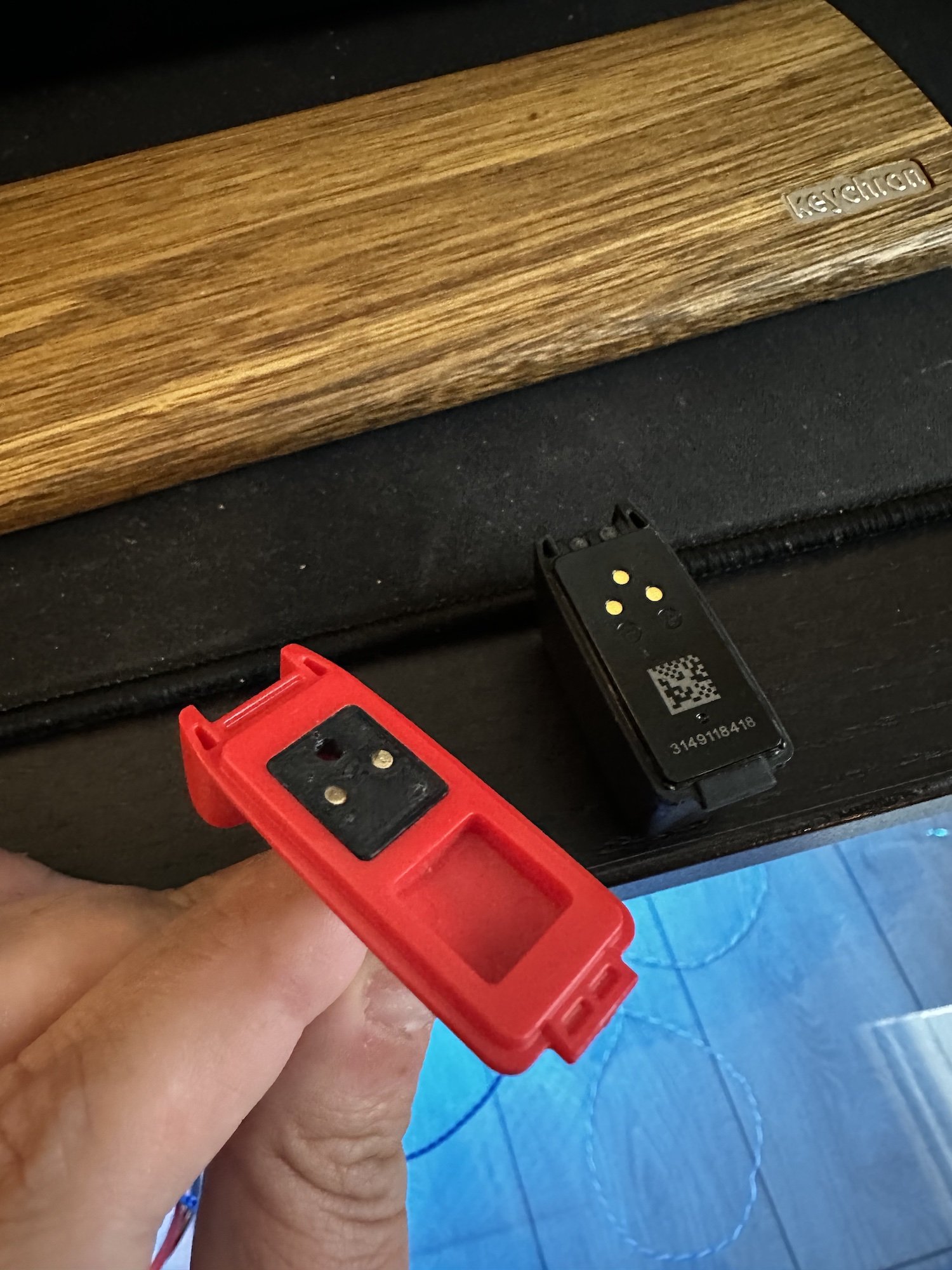

I checked the voltage on my AXS battery fully charged was 8.4v so it looks like it's a 2s battery. I have been trying to source the correct cable for months now from Trek and SRAM for my Ex-e but I keep getting the run around and nobody can tell me what the part number is. After seeing the cost of that extender linked in this thread I took matters into my own hands and made my own.... So far I have tested it with a bench power supply at 8v and it works great! I ordered a regulator to step down the 13v coming from the TQ smart box to 8v and will wire it in and go for a ride later this week. So far it looks promising. I have my garmin wired in to charge off the bike too from the pogo pins on the back of the device.
randycpu
Member
NICE!! Did you 3D print that?
oripaamoni
Member
yup yup! Both the battery block insert and the Garmin insert were printed.
oripaamoni
Member

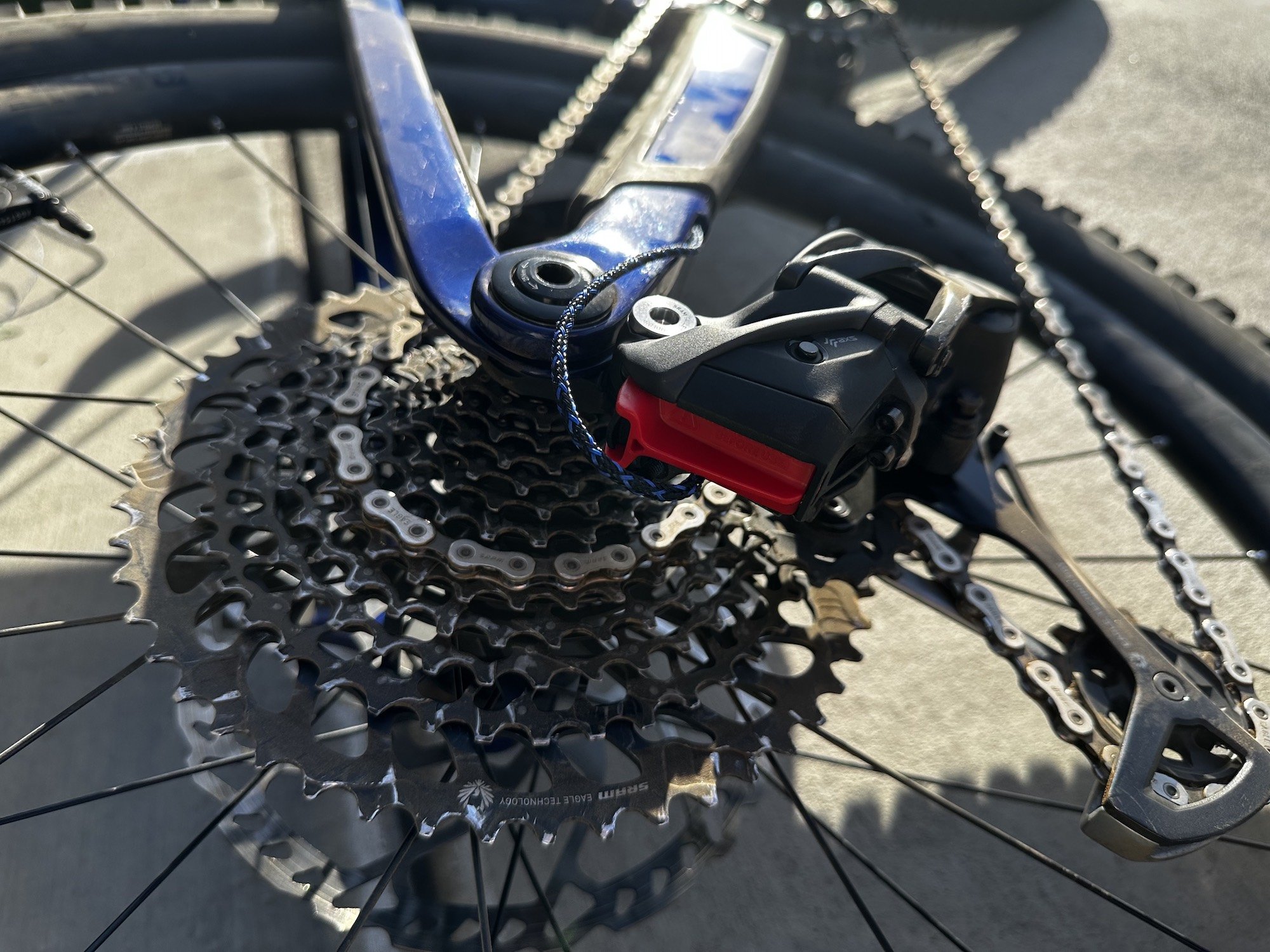

Got it all wired into the bike with a step down regulator and went on a ride, Happy to report everything seems to work well.
randycpu
Member
Colin46
New Member
I’ve pulled the cable out and gone to using a battery. Can’t see the point in having wires on a wireless system.
im still not convinced that it wasn’t a faulty cable that destroyed my first 2 t type xx rear mechs.
im still not convinced that it wasn’t a faulty cable that destroyed my first 2 t type xx rear mechs.
luna87824
E*POWAH Master
How would it be possible to ride a bike without a proper functioning dropper?
Snap! I have a spare in my pack, but I also have both dropper and derailleur - so could swap out if required.
Been running AXS since January 2020 and have never required to swap the battery out on the trail.
Can you please share the link to that charger? Doesn't looks like Garmin Power Mount. Or is it self-made? Thanks in advance.
oripaamoni
Member

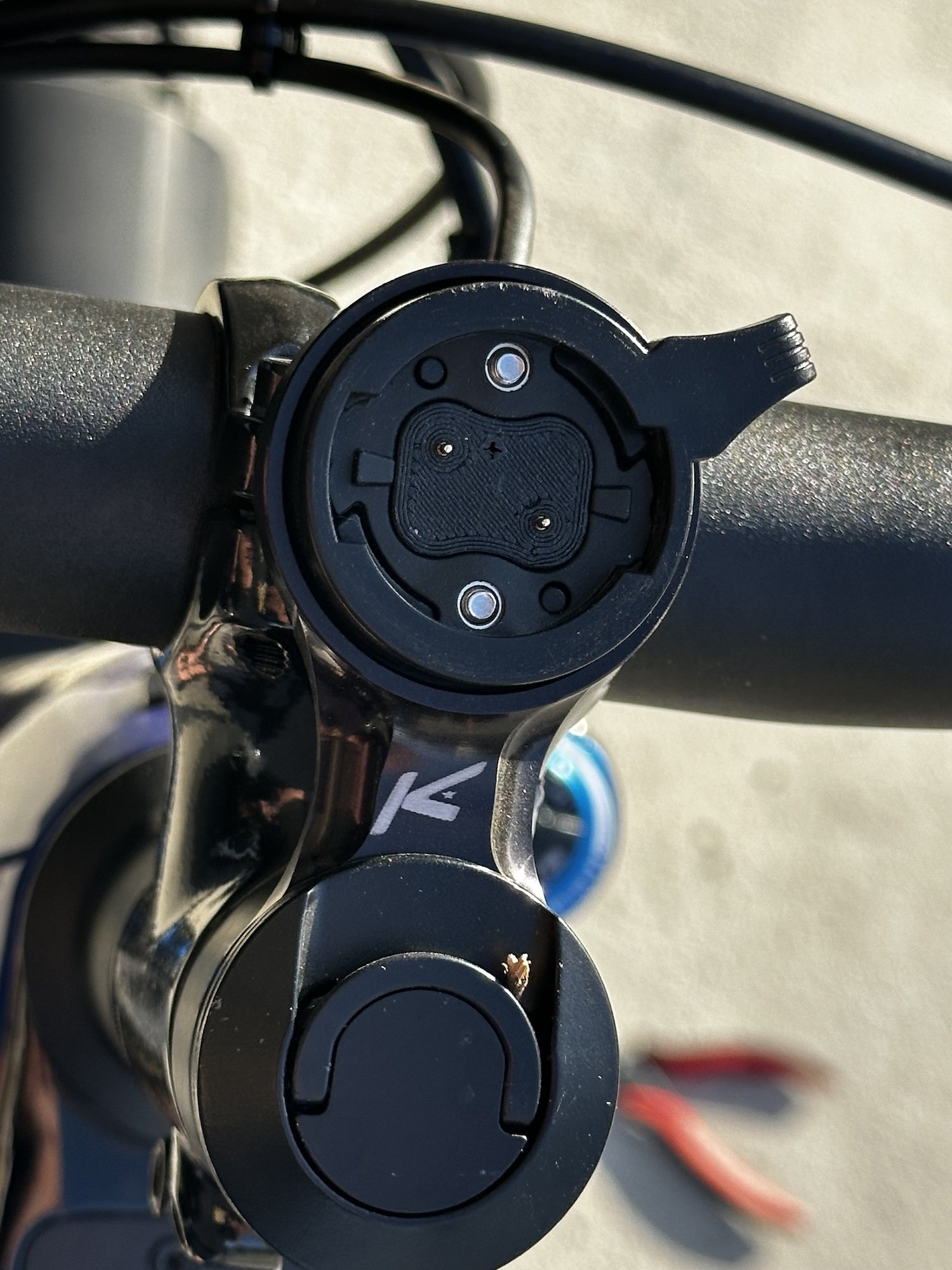

It's a bit of a custom hodgepodge. So I had to Dremel out the center of the K-edge mount to make room for the 3d printed pogo pin holder and then purchased the garmin power pack mount. Garmin does now sell an off the shelf solution for this part though.
Garmin Power mount
randycpu
Member
What voltage do you supply the Garmin?
Thank you for explanation. Great work.
oripaamoni
Member
The Garmin gets 5v and the AXS is fed with 8v
Any chance you’d be willing to share that print file?
Bradleybourbon
Member

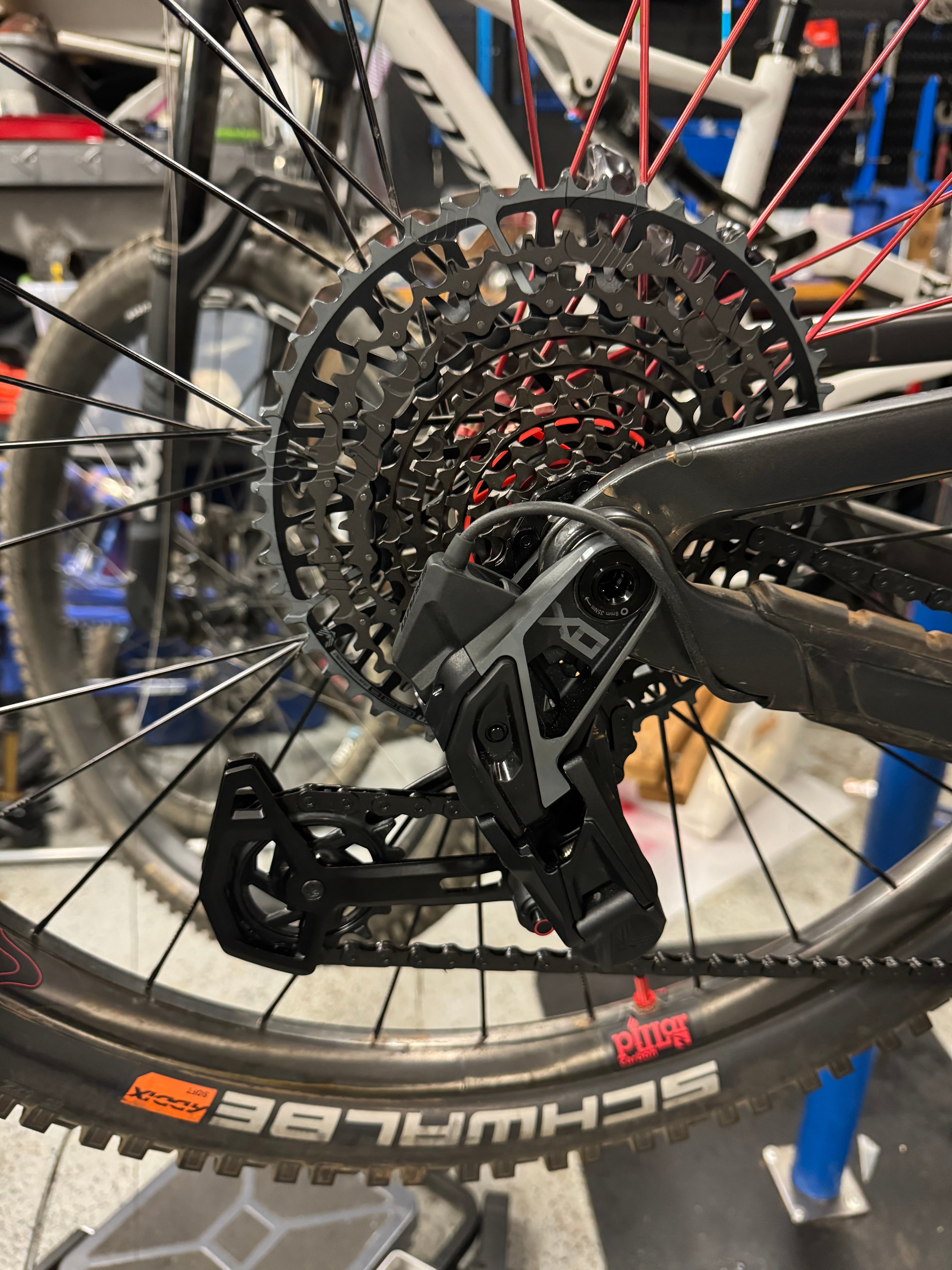

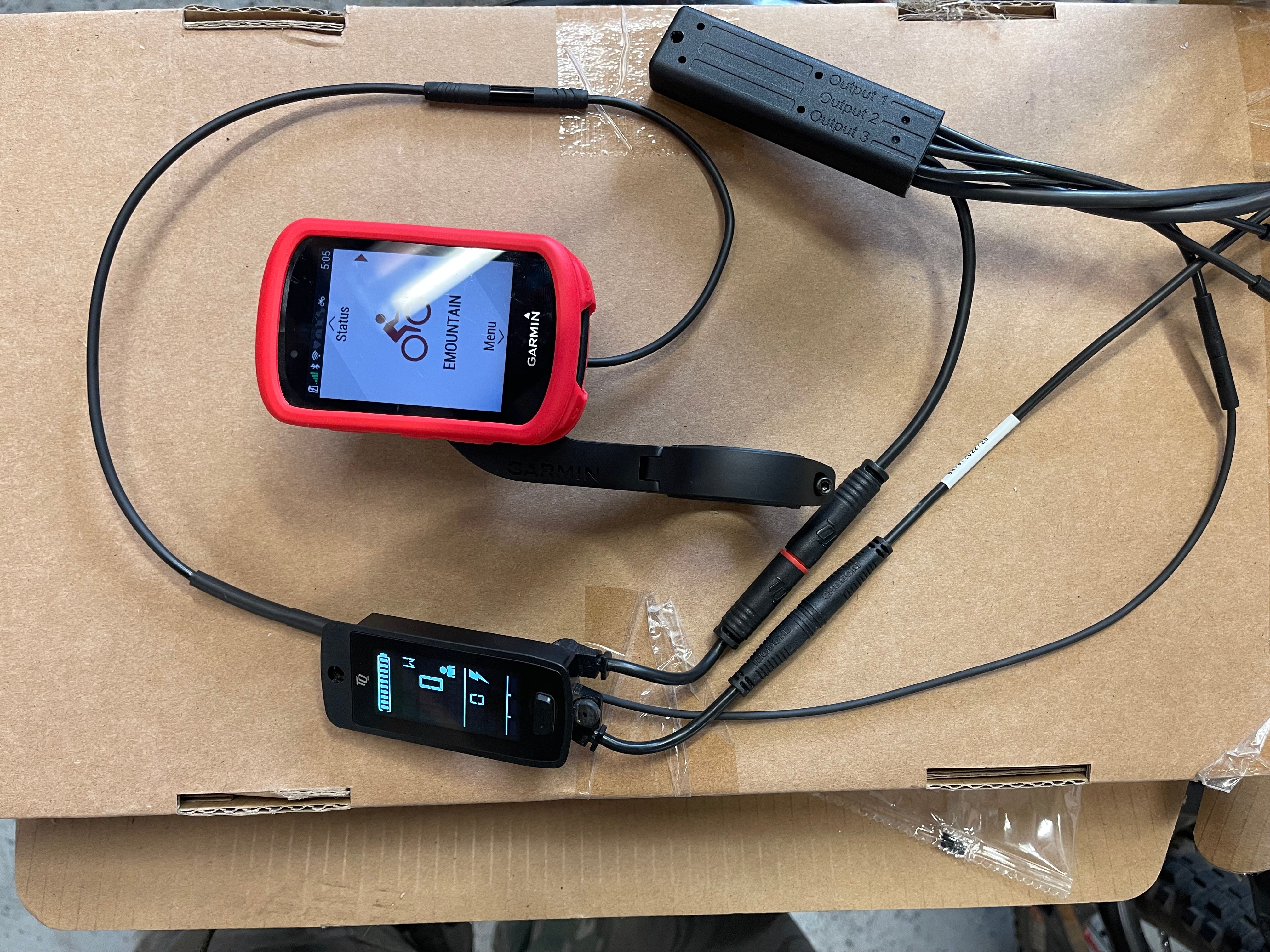

I forgot I was following this thread. I did some custom stuff with the TQ system in the Fuel EX-e last fall. Custom wired Power Edge mount to the TQ Smart Box Output 3. I also have the only modified 9.5 that powers the SRAM XO Transmission (hopefully someone can prove me wrong.) I sourced the battery adapter from an Australian Rail owner that upgraded to the GX Transmission which uses a different battery type. I tried for months talking to Trek and SRAM but could not source the part.
View attachment IMG_0201.jpeg
View attachment IMG_0201.jpegWhy did you changed 14 to 13T ? How do you know that it is better? (I have also such Sram and Shimano mix but with original 14T)
