Post your modded Levo’s!
- Thread starter Rob Rides EMTB
- Start date
Hi!
Can I ask you why you replaced the stock dropper post? (The stock dropper post doesn't go all the way down?)

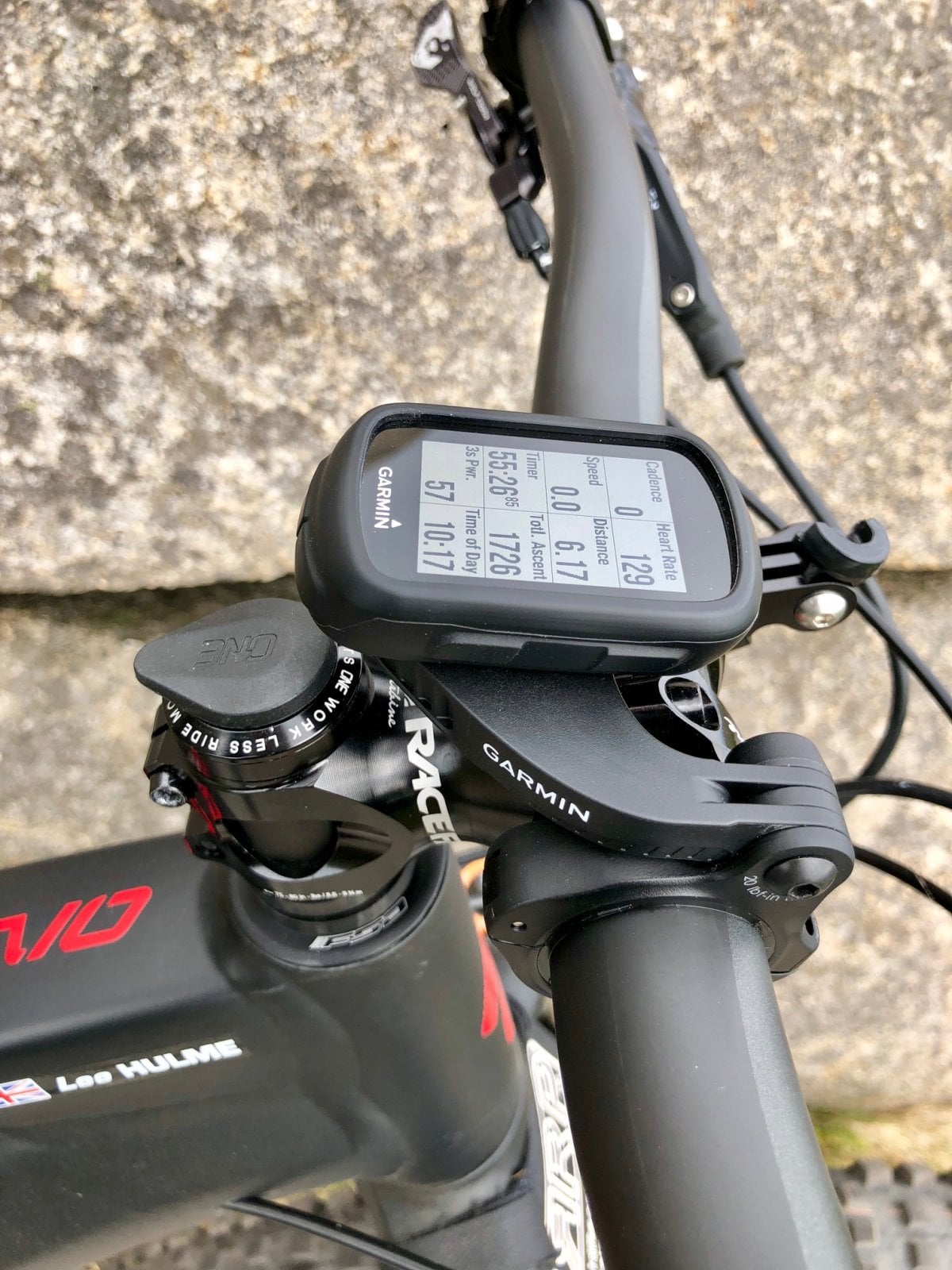

And can the Garmin 130 display the mode or assist level, and the amount of battery charge remaining?

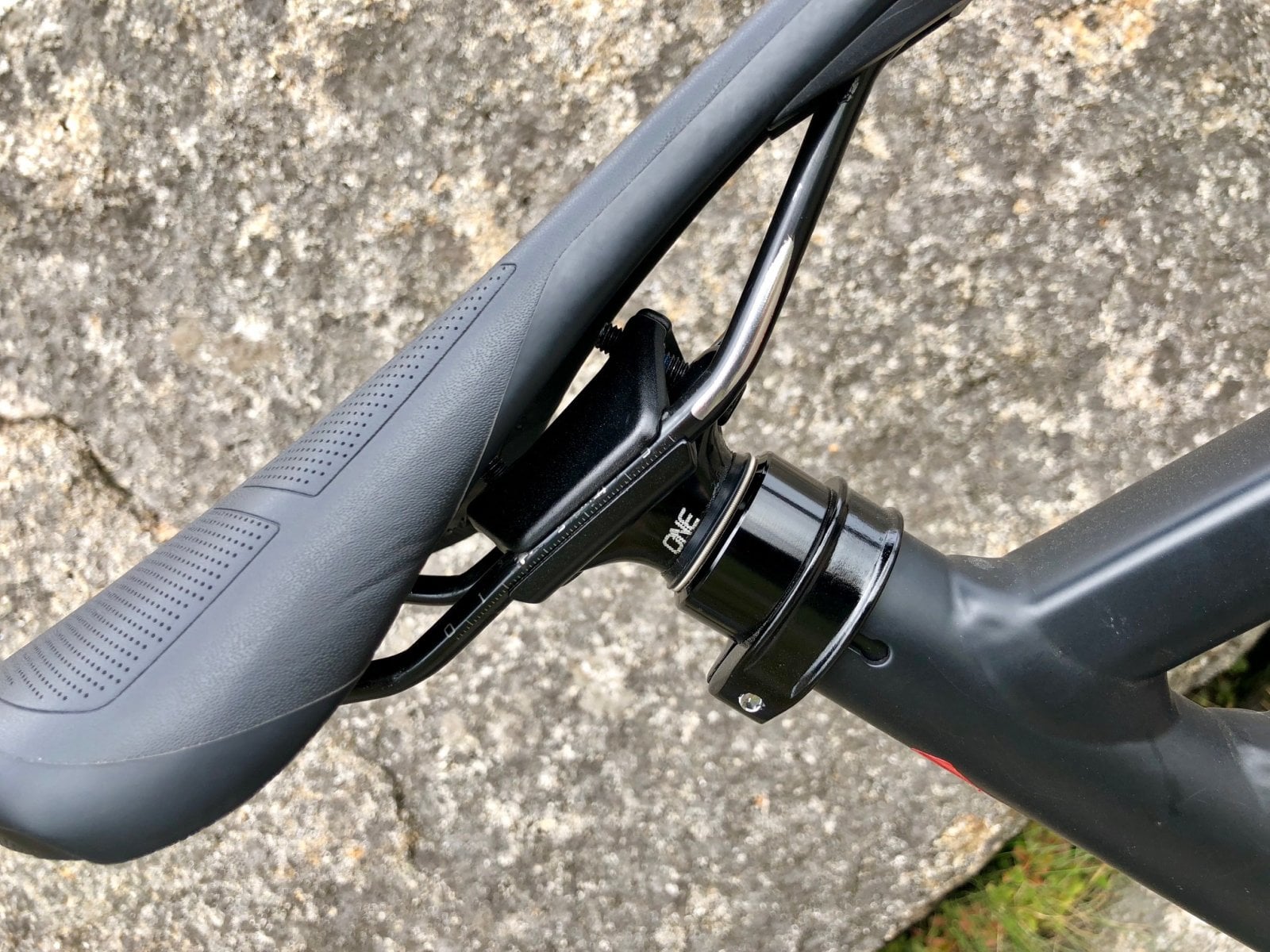

The standard post is 125mm. The One post is 170mm so it gives me the same saddle height but even greater drop. The Garmin does everything except assist mode at present. This is maybe something Garmin can address via software in the future.
Last edited:
That's helpful, thanks so much for your answer!

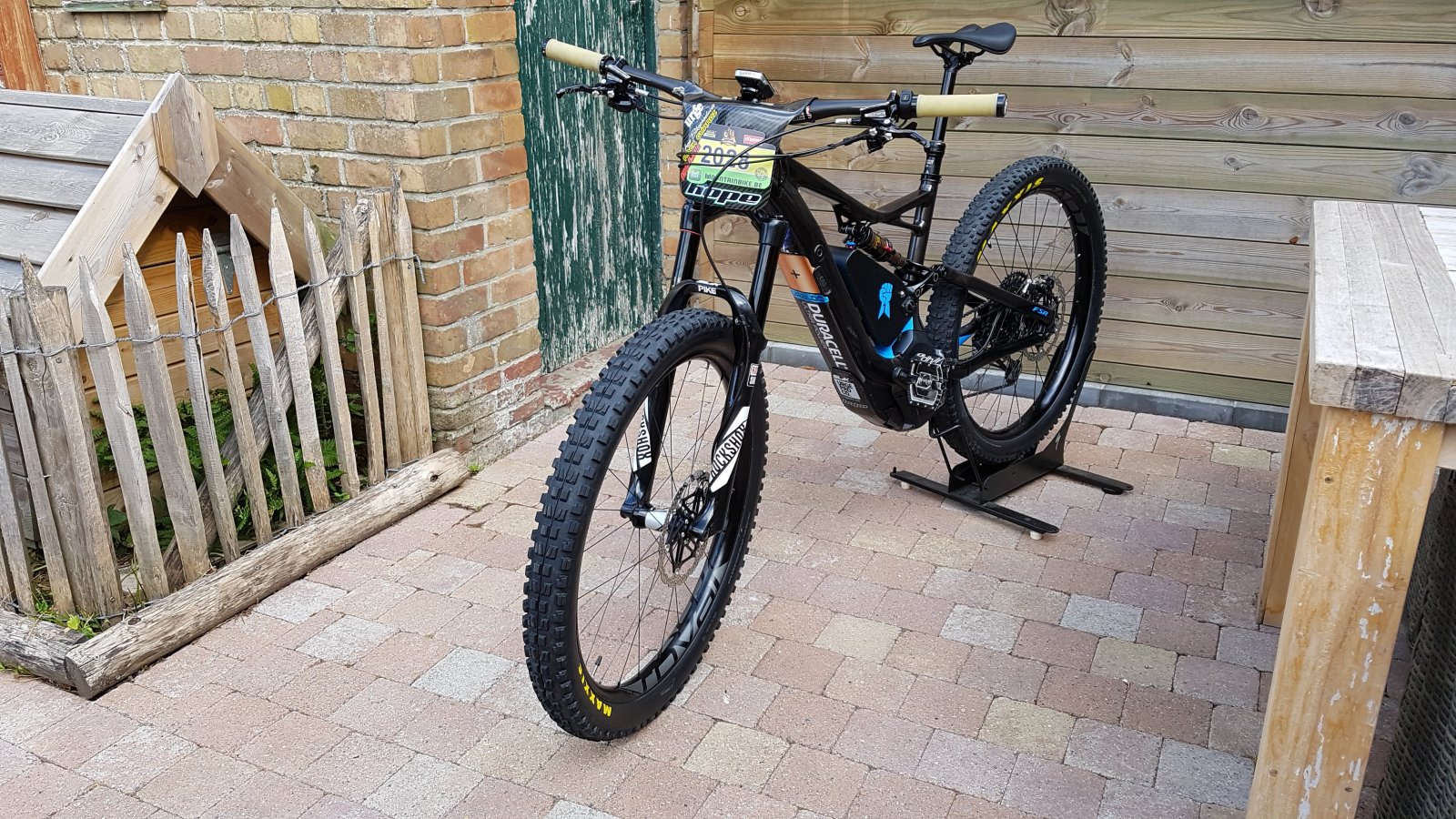

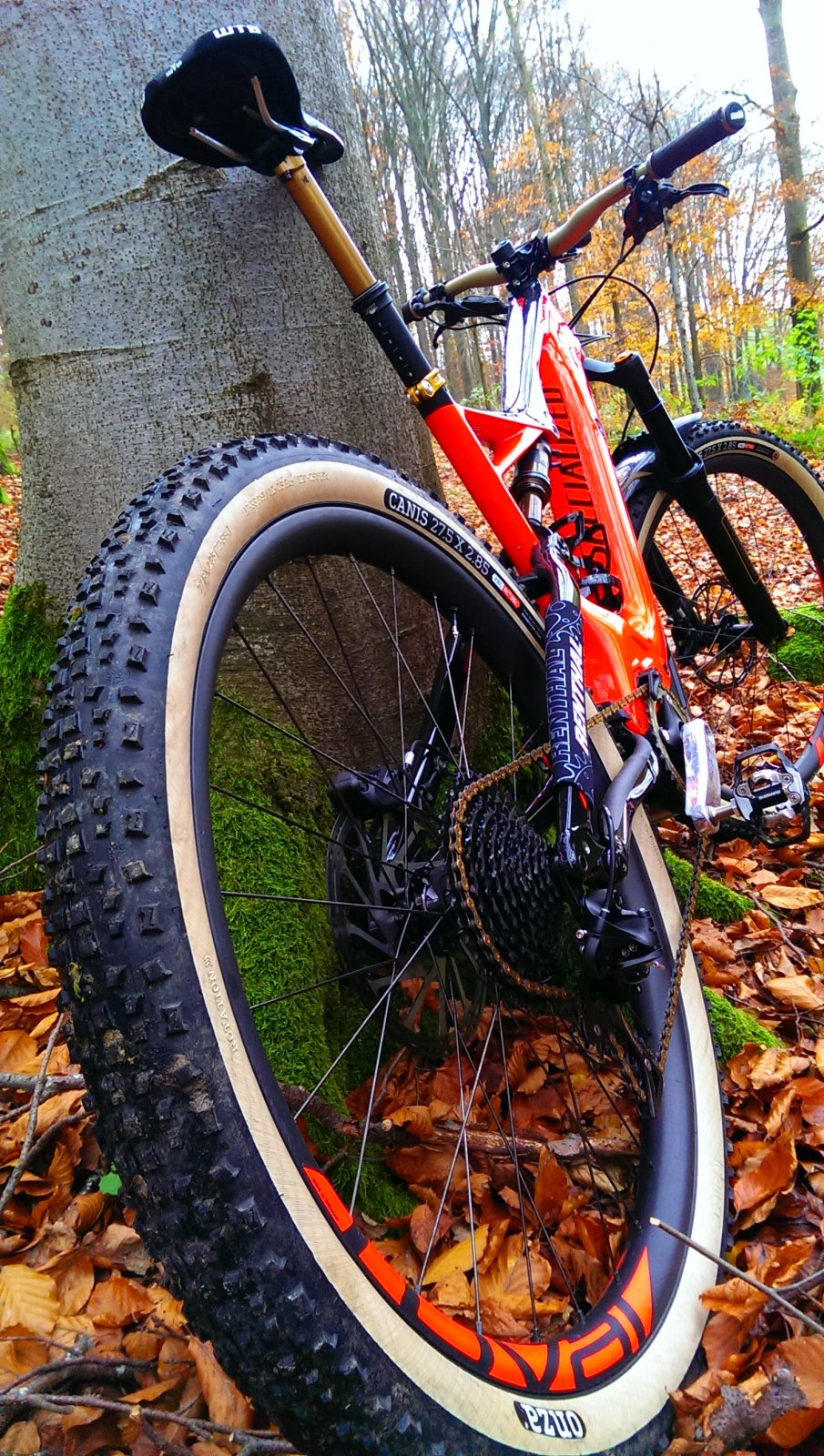

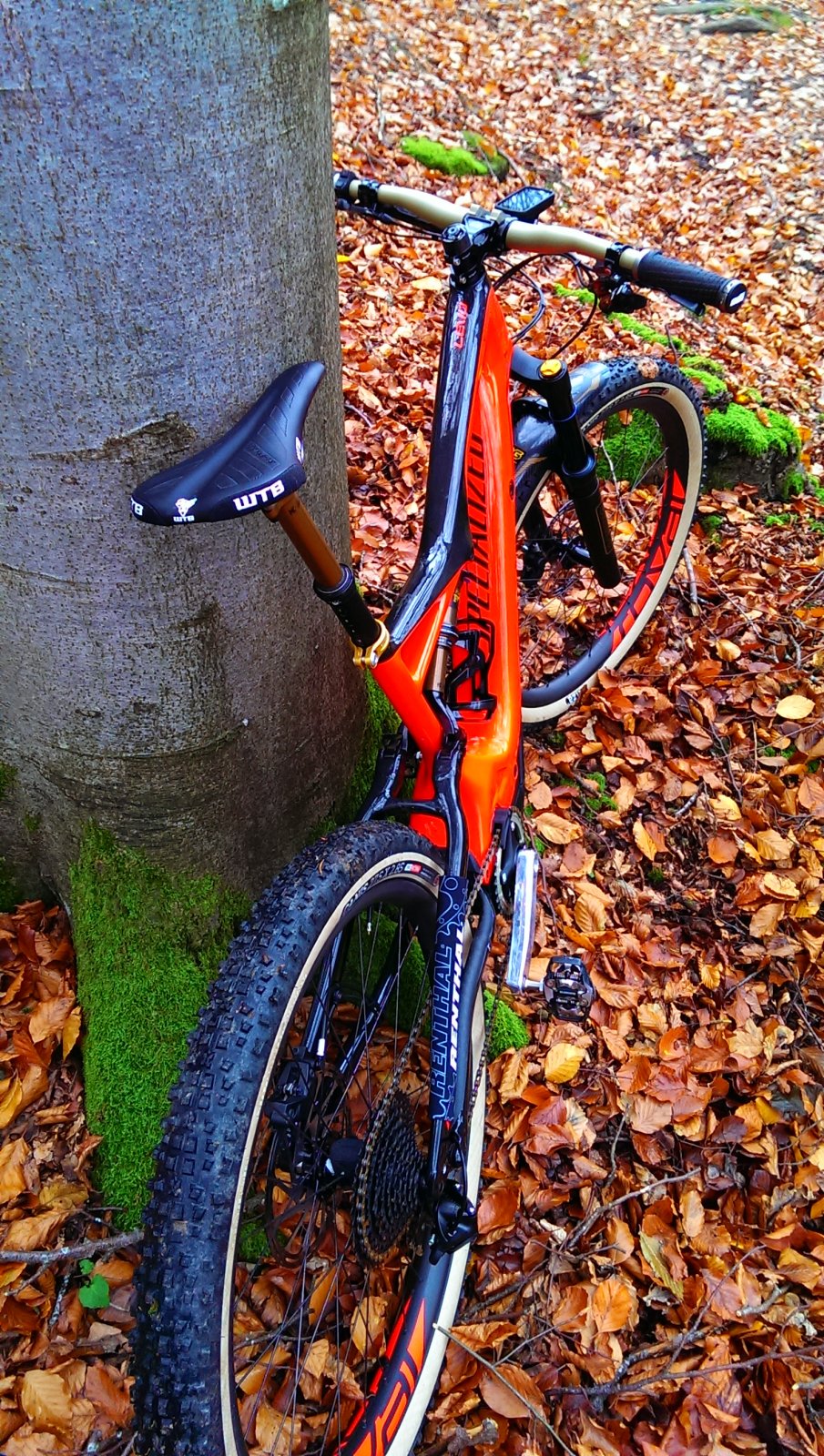

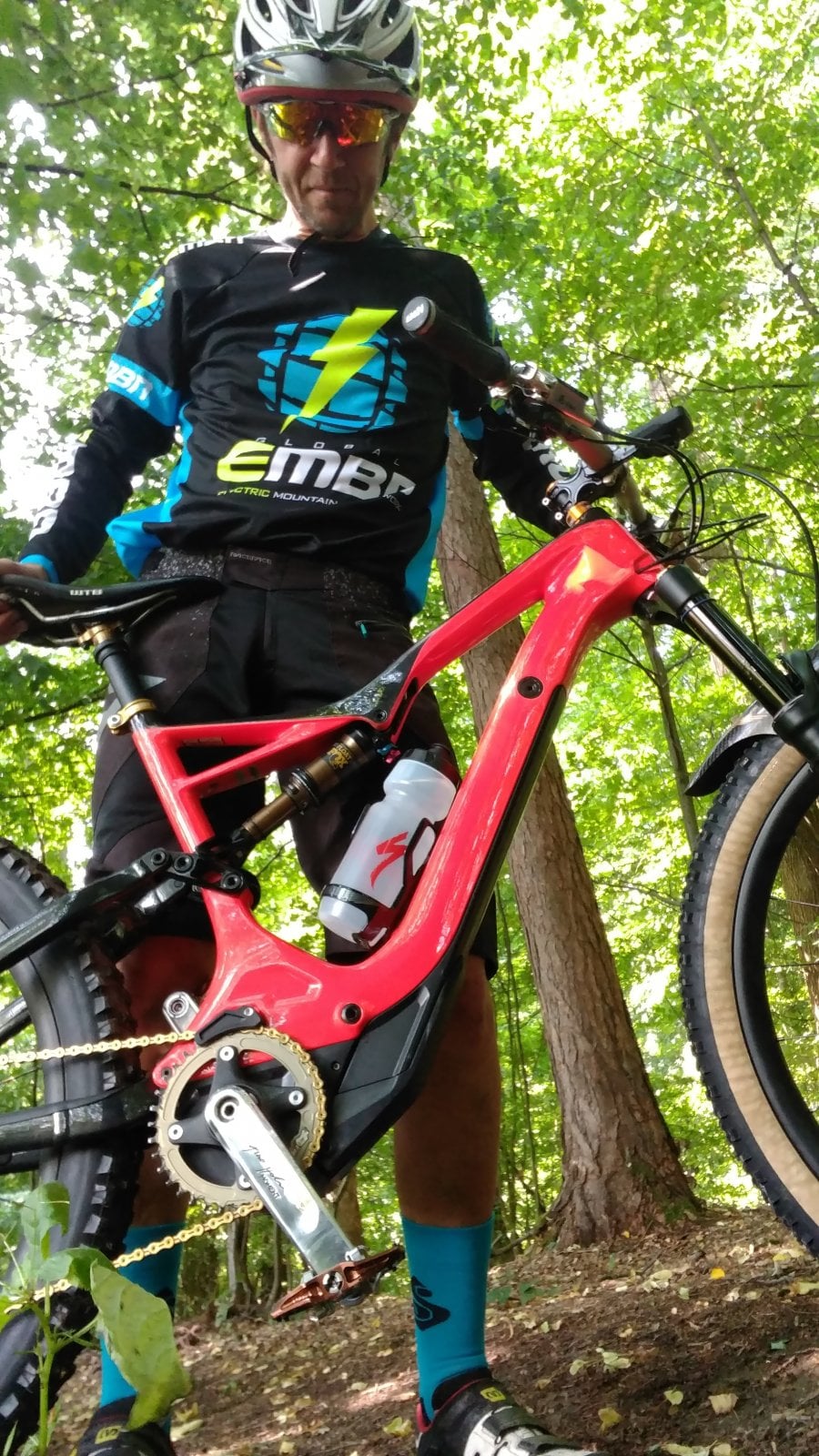

So here is mine for those who have not seen it yet!
Enjoy!

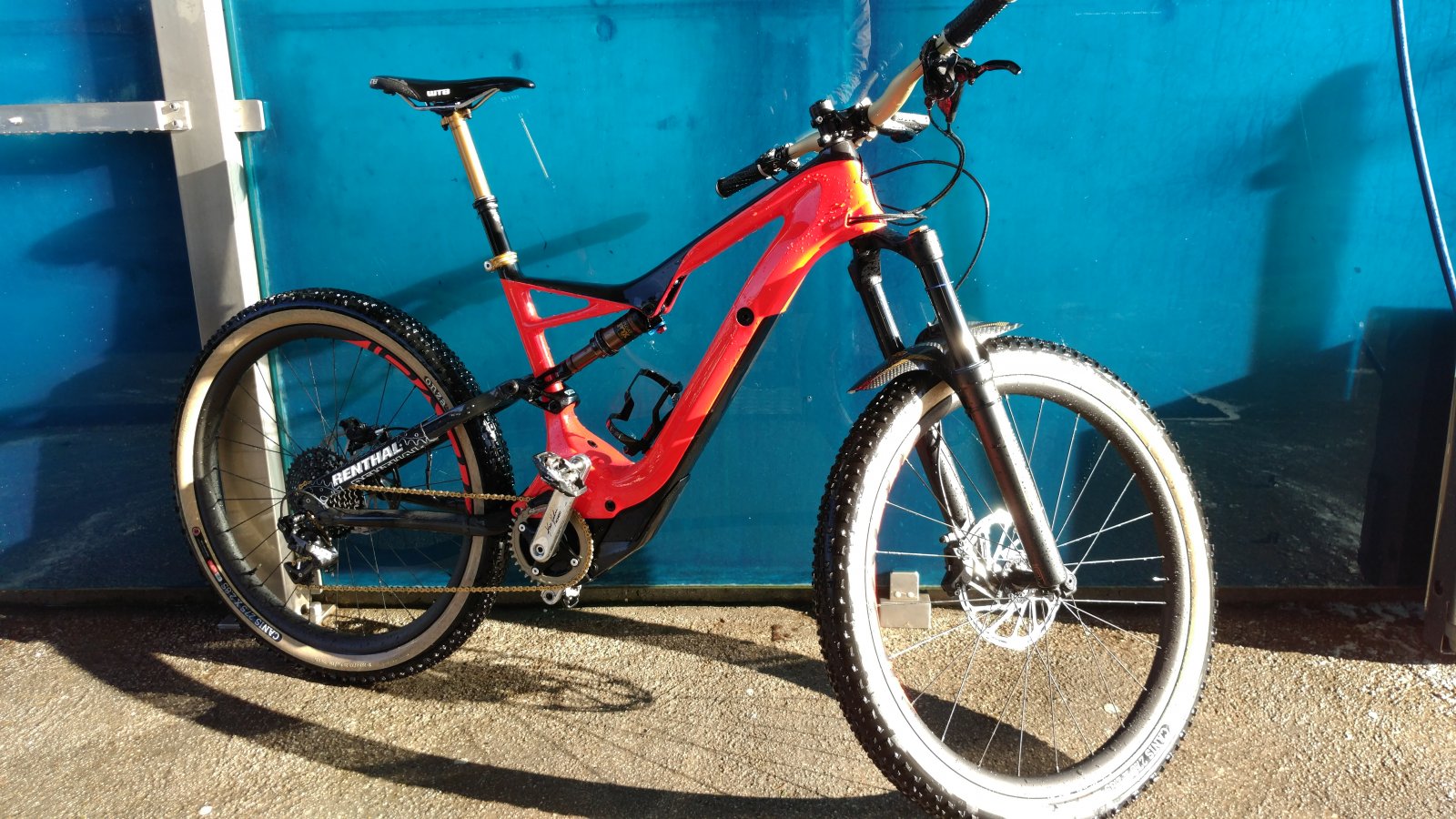

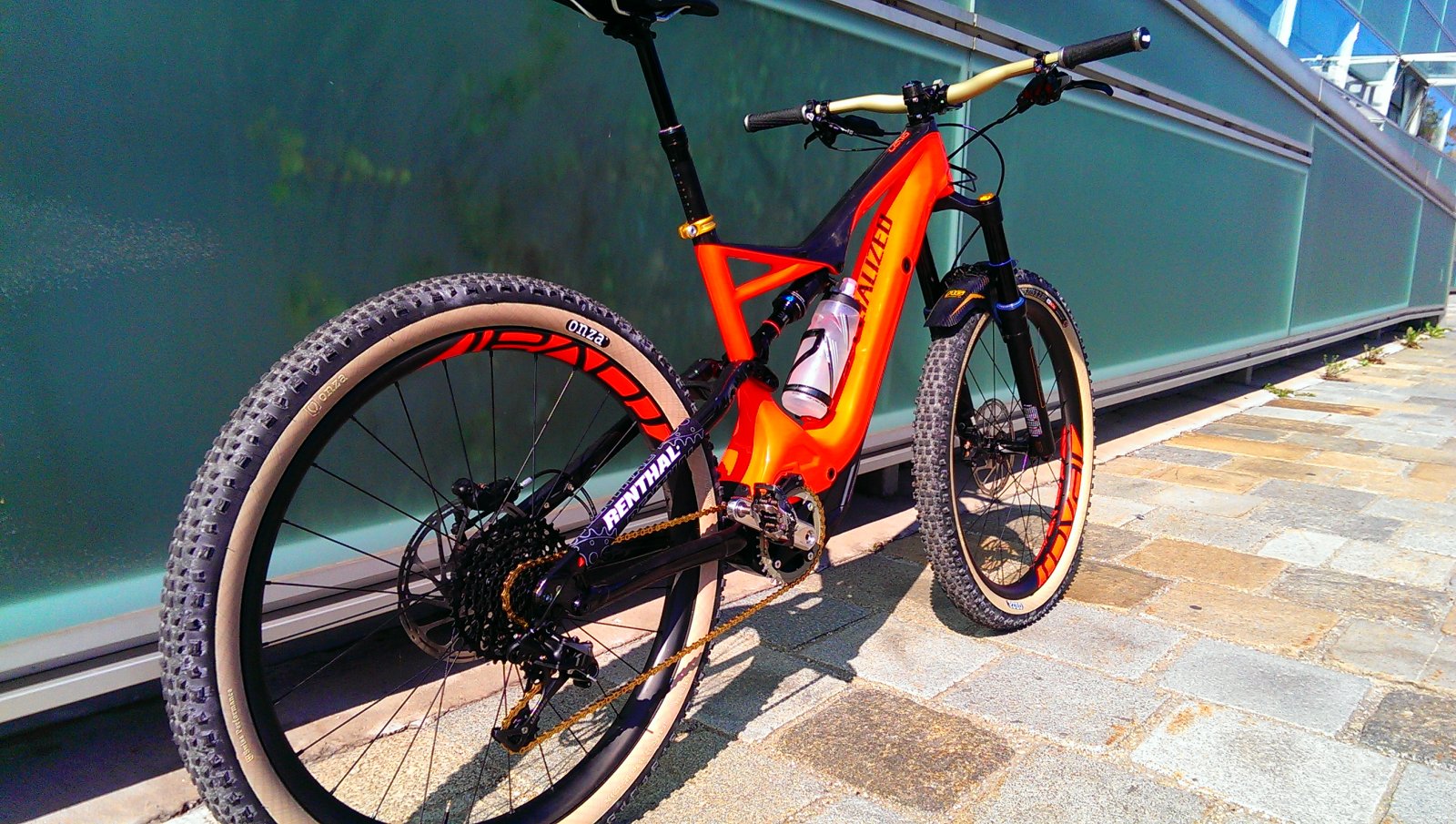

Lots of Upgrades.
Kris Holm Crank 160mm
Renthal Carbon Lite Bar
Renthal Apex Stem
Renthal Chainwheel 34T
Nukeproof Horizin SPD Pedals
TRP Quadiem Brakes and Discs
Onza Canis Skinwall 2.85 Tubeless
KCNC Derailleur Wheels
KCNC Spacer
KMC Chain, gold
Hope Seatclamp
FOX Transfer Kashima Seatpost
WTB Silverado Saddle
ODI Troy Lee Designs Grips
K Edge Garmin Holder
Rockguardz Carbon Mudguard
Enjoy!
Lots of Upgrades.
Kris Holm Crank 160mm
Renthal Carbon Lite Bar
Renthal Apex Stem
Renthal Chainwheel 34T
Nukeproof Horizin SPD Pedals
TRP Quadiem Brakes and Discs
Onza Canis Skinwall 2.85 Tubeless
KCNC Derailleur Wheels
KCNC Spacer
KMC Chain, gold
Hope Seatclamp
FOX Transfer Kashima Seatpost
WTB Silverado Saddle
ODI Troy Lee Designs Grips
K Edge Garmin Holder
Rockguardz Carbon Mudguard
Last edited:
HeatproofGenie
Active member
What's in the big triangular case? Big auxiliary battery?
that is an extender.second battrij with 504wh in so together 1008wh of capacity.
nice looking bike, where is that range extender from dude?
HeatproofGenie
Active member
1008 wh would be pretty awesome to have. How many meters climbing can you get in on a ride with that? How much does the extender weigh?

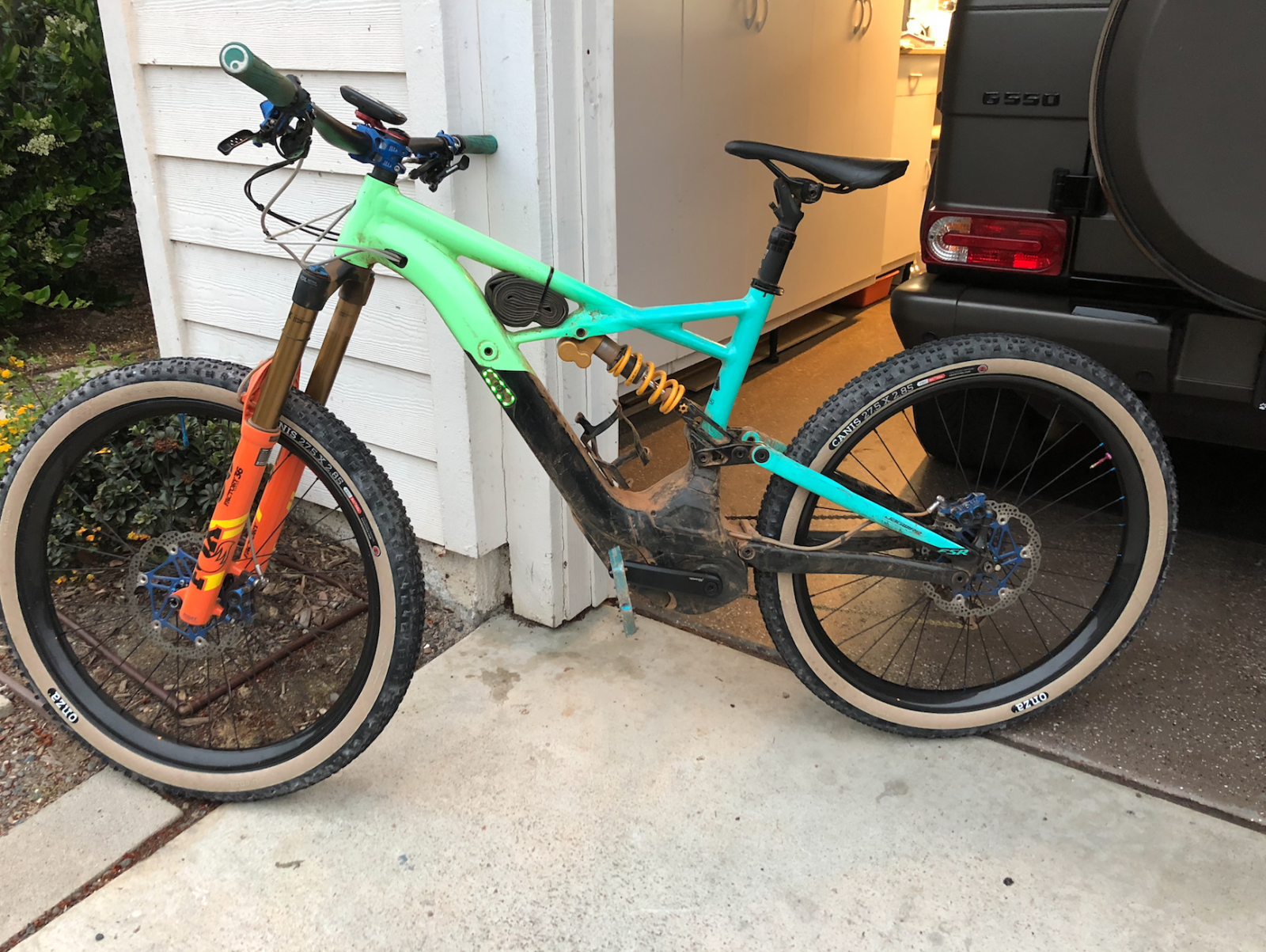

The skinwalls lasted about one hour LOL Not a good look for my bike.
Hey Botts, did you know there is just about enough room in the frame above the battery to store the inner tube?

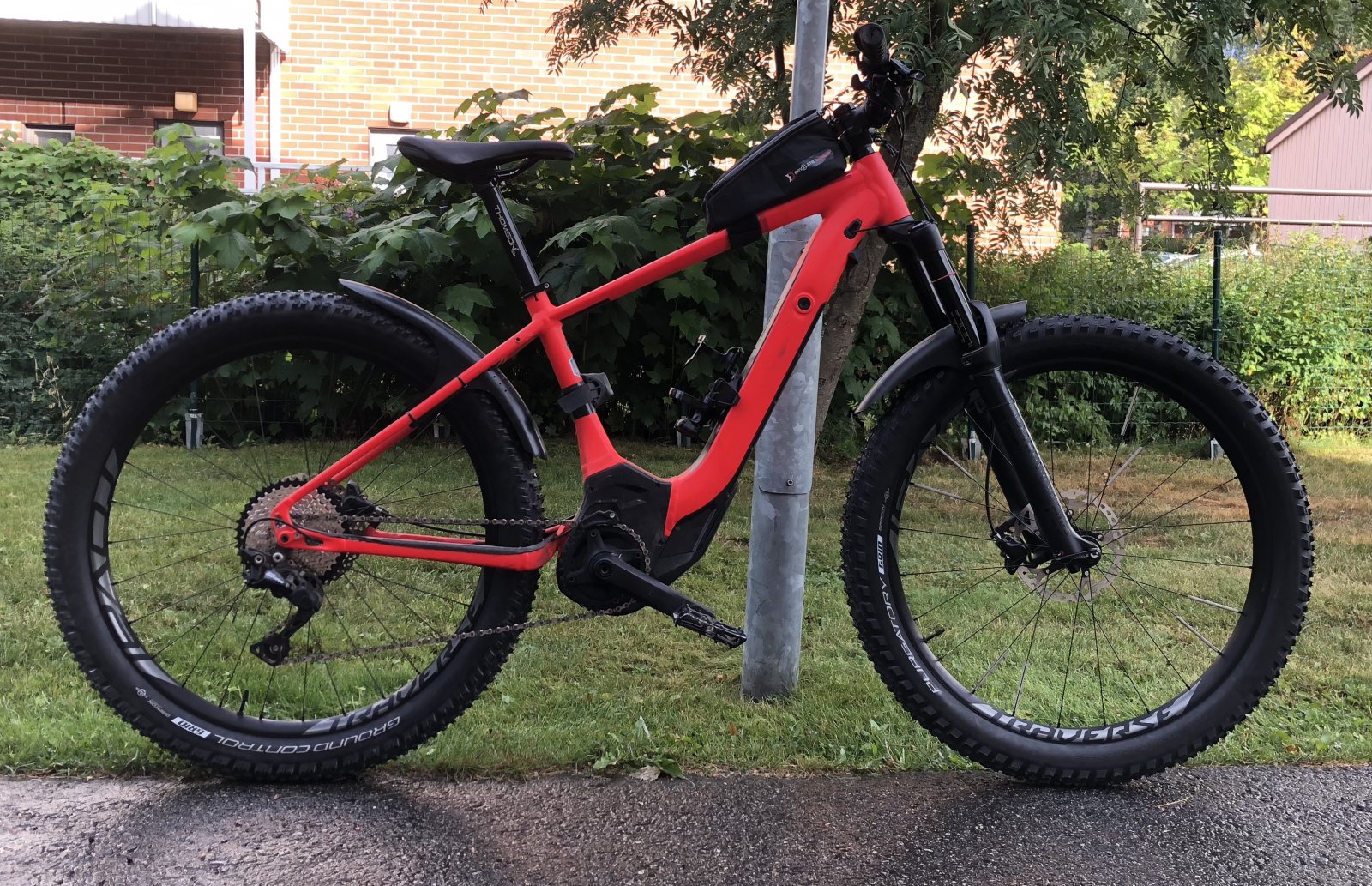

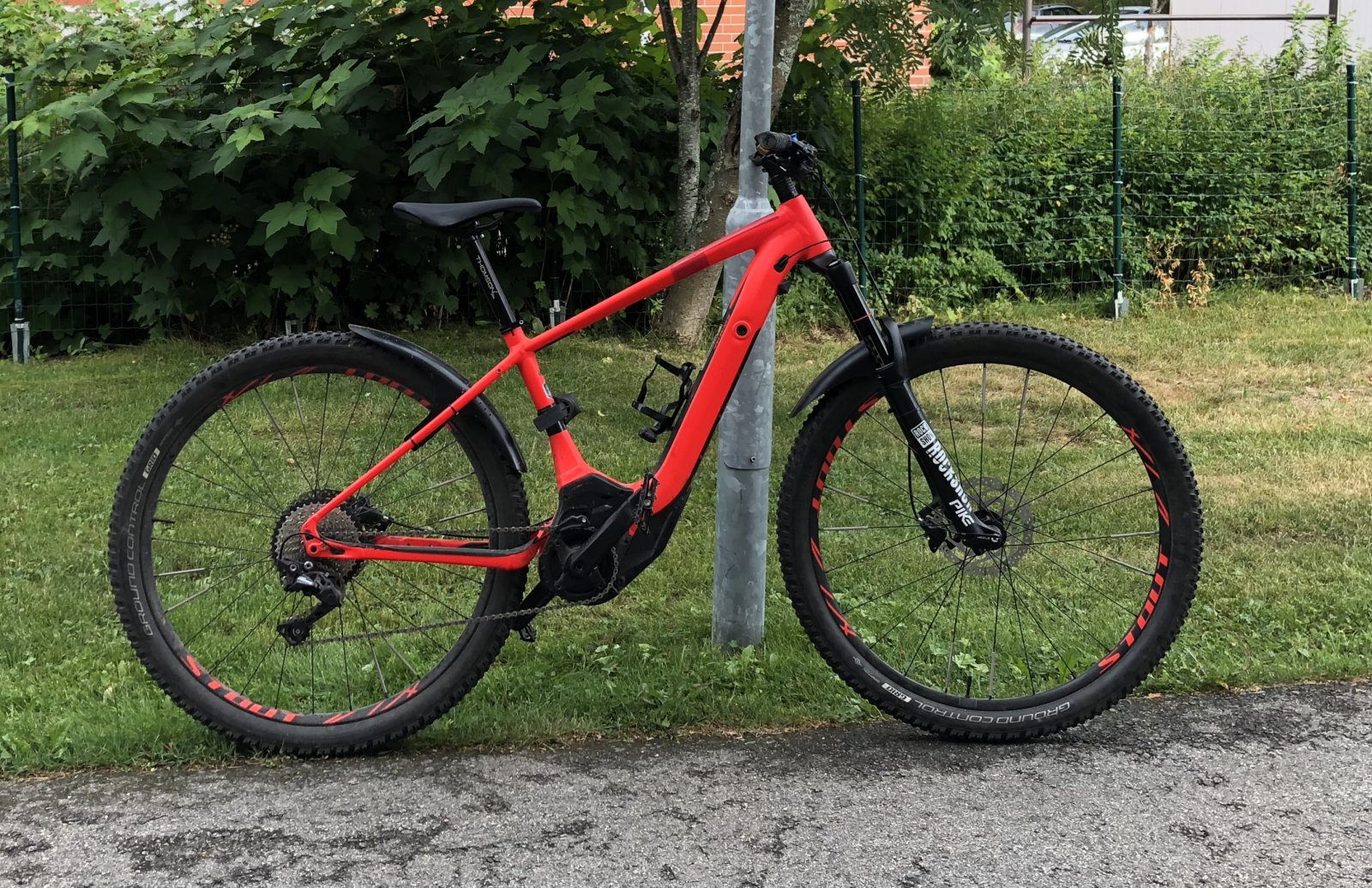

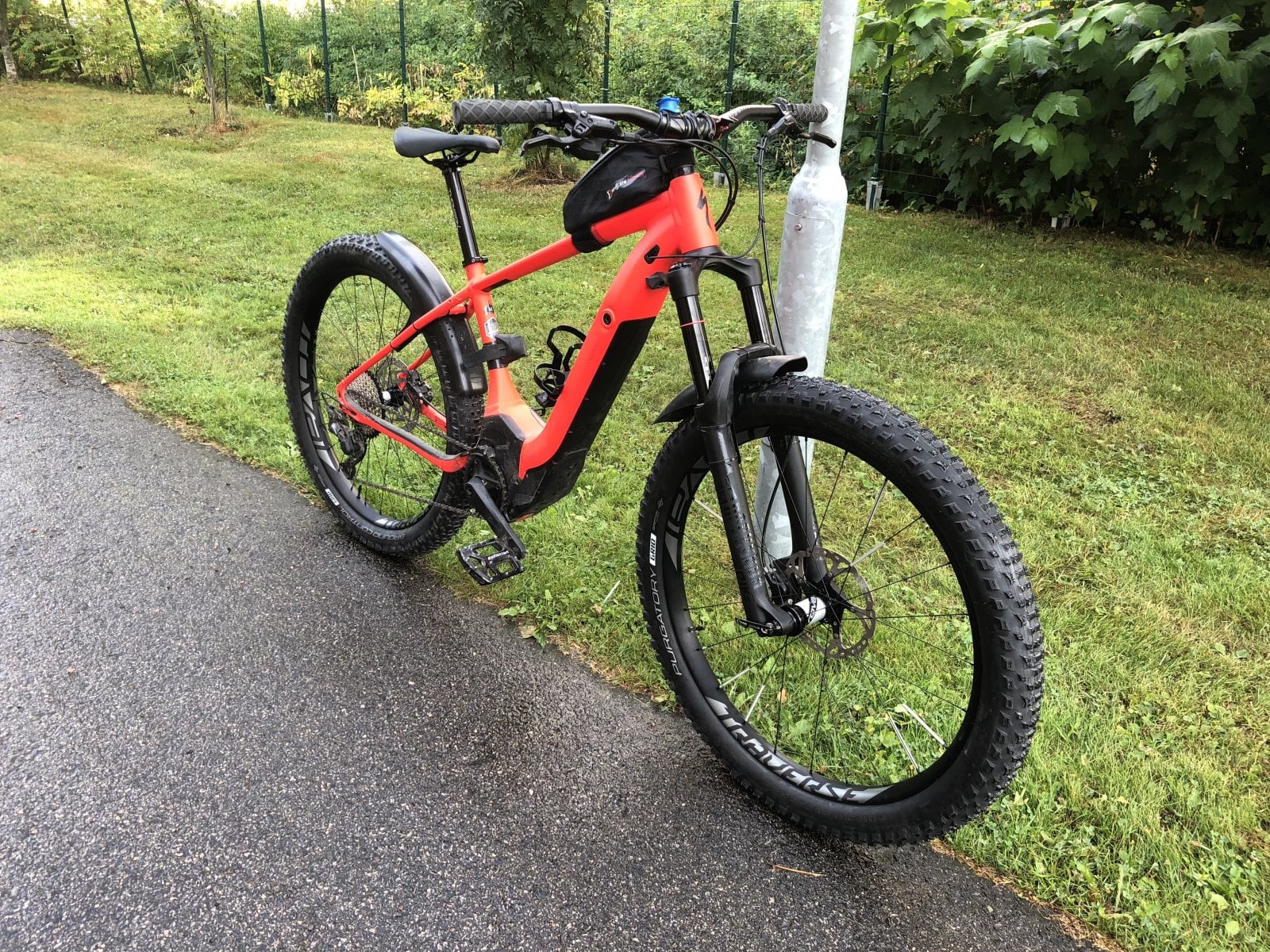

Levo HT got better fork. Sag is set 25-30% so the geometry does not change a lot in a real life.
And fork is very responsive at the beginning with that sag. My bad shoulder will feel better, i hope.
27.5 Roval Traverse wheels and 3” Purgatory and Ground Control tires are waiting shimano freewheel, then we are done.
And fork is very responsive at the beginning with that sag. My bad shoulder will feel better, i hope.
27.5 Roval Traverse wheels and 3” Purgatory and Ground Control tires are waiting shimano freewheel, then we are done.

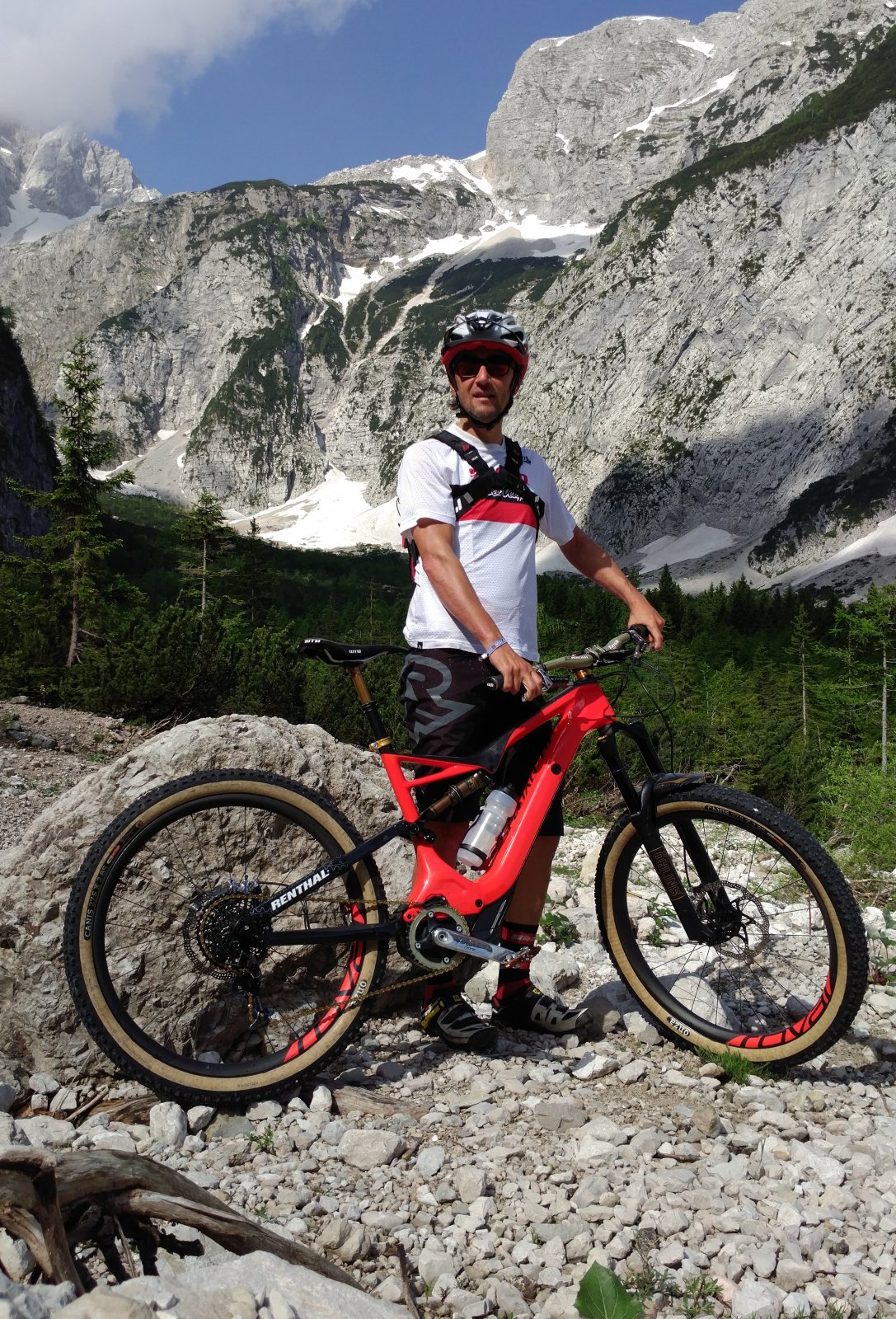

Love what people are doing to there Levos and Kenevos
For me its:
Renthal lite carbon bar (740mm)
Renthal 35mm stem (totally transformed the bike)
Hope tech 4 levers and e3 calipers - a must have over the SRAM Guides
Hope floating rotors
Hope 35w rims and hubs
Maxle stealth on front
Sunrace 11-46 cassette

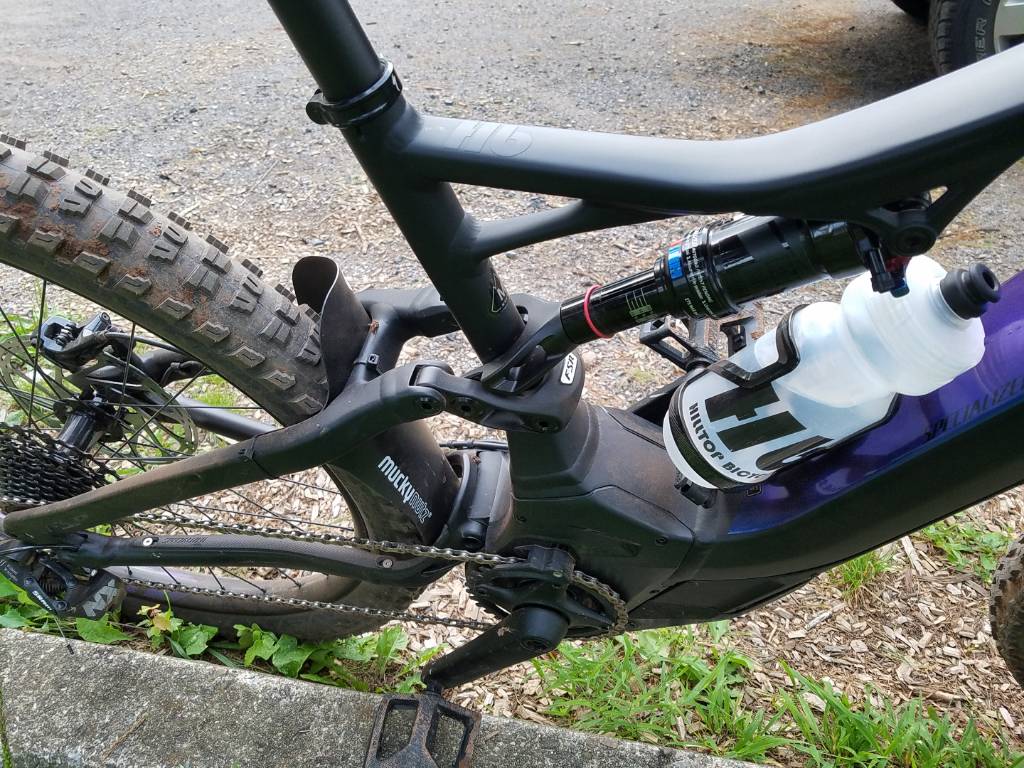

Front and rear mucky nutz fenders
Lizard skin lock on grips
Shimano M540 SPDs
For me its:
Renthal lite carbon bar (740mm)
Renthal 35mm stem (totally transformed the bike)
Hope tech 4 levers and e3 calipers - a must have over the SRAM Guides
Hope floating rotors
Hope 35w rims and hubs
Maxle stealth on front
Sunrace 11-46 cassette
Front and rear mucky nutz fenders
Lizard skin lock on grips
Shimano M540 SPDs

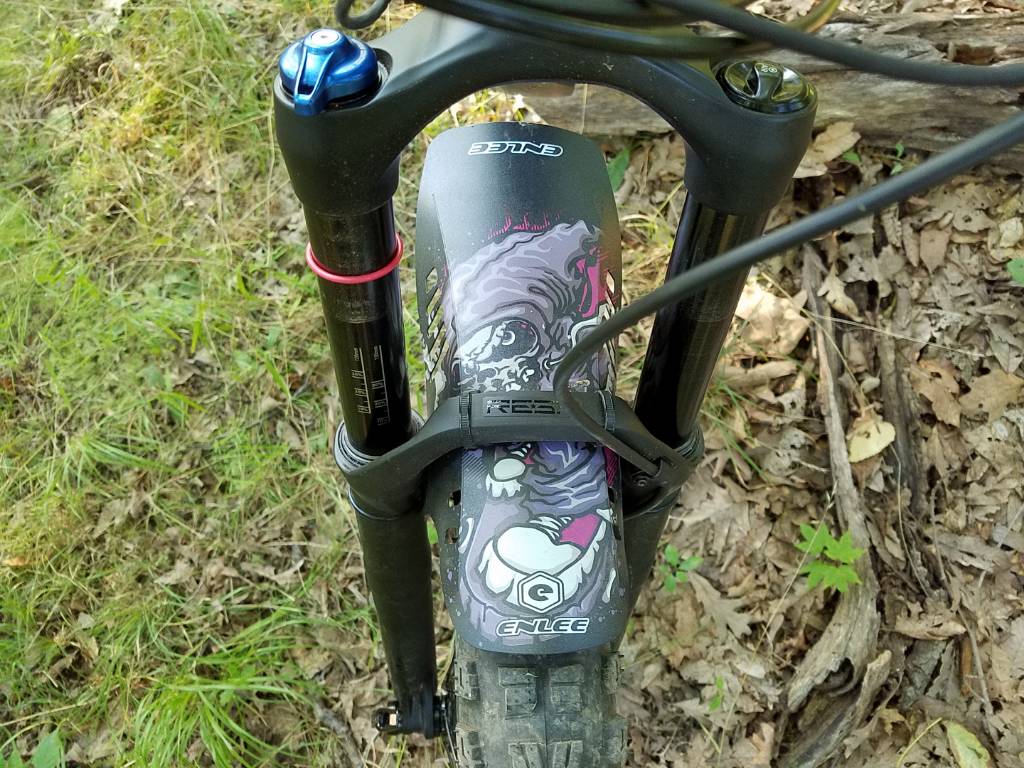

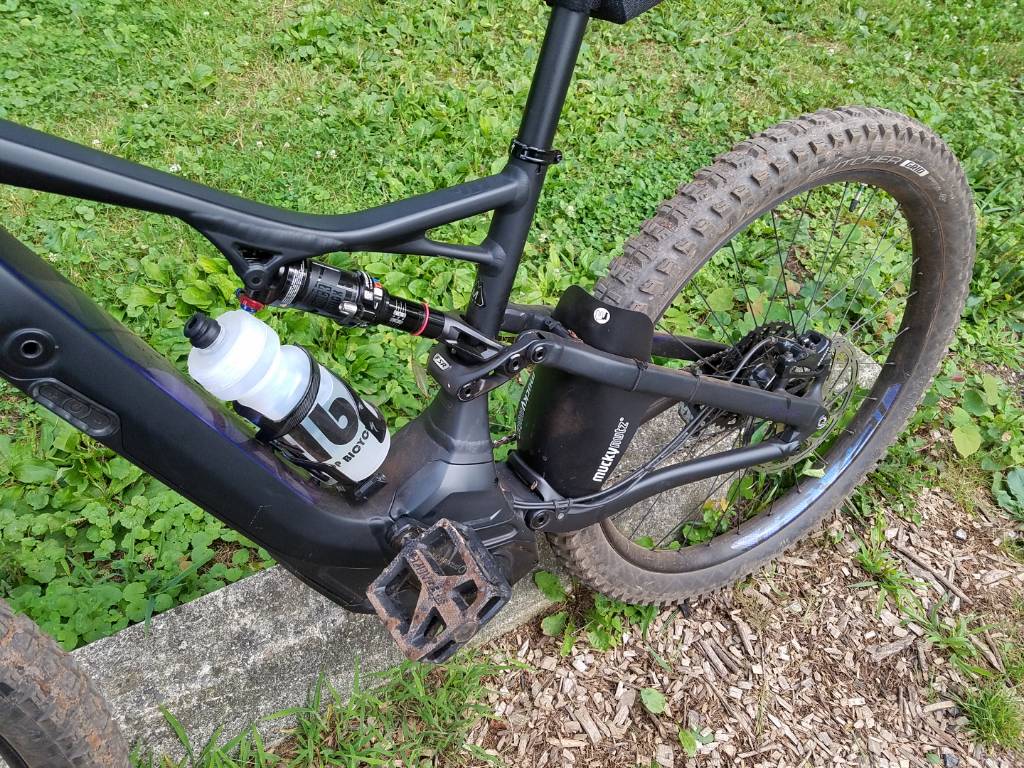

what brand is the rear mud flap? looks like nice fitView attachment 3777

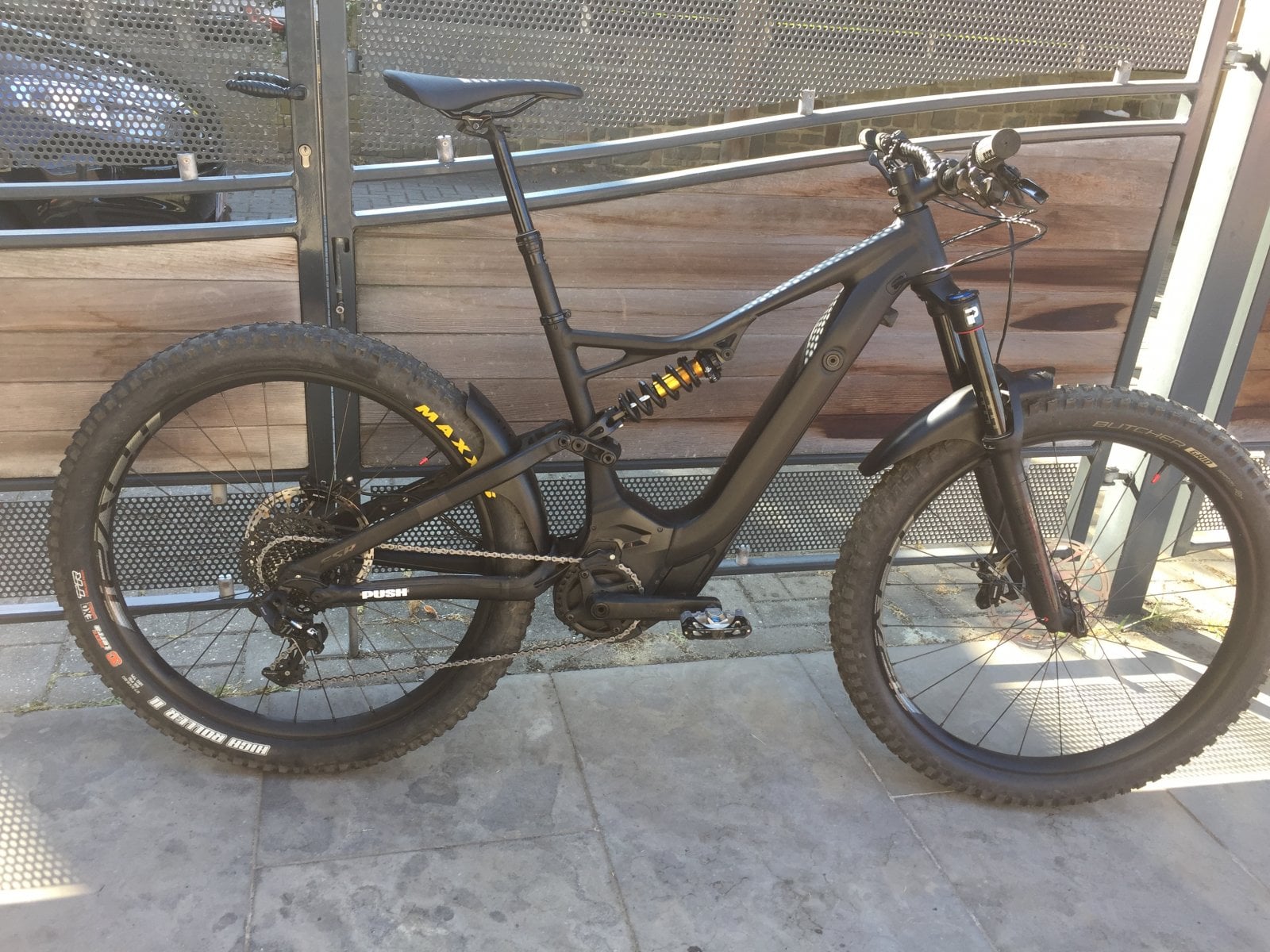

My Beast.
Upgrades so far:
Cain Creek db inline for the monarch

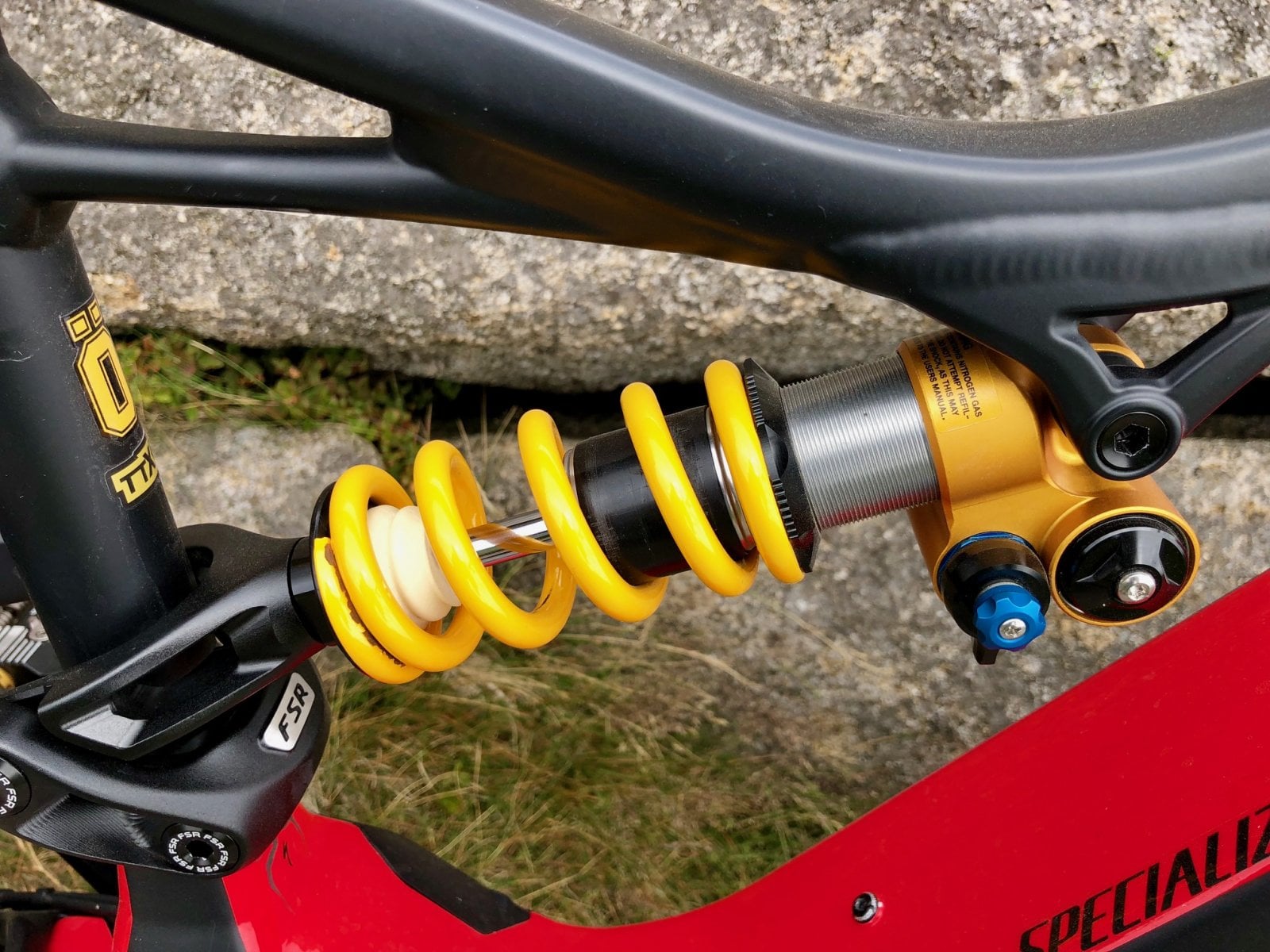

Push ACS coil conversion for the revelation

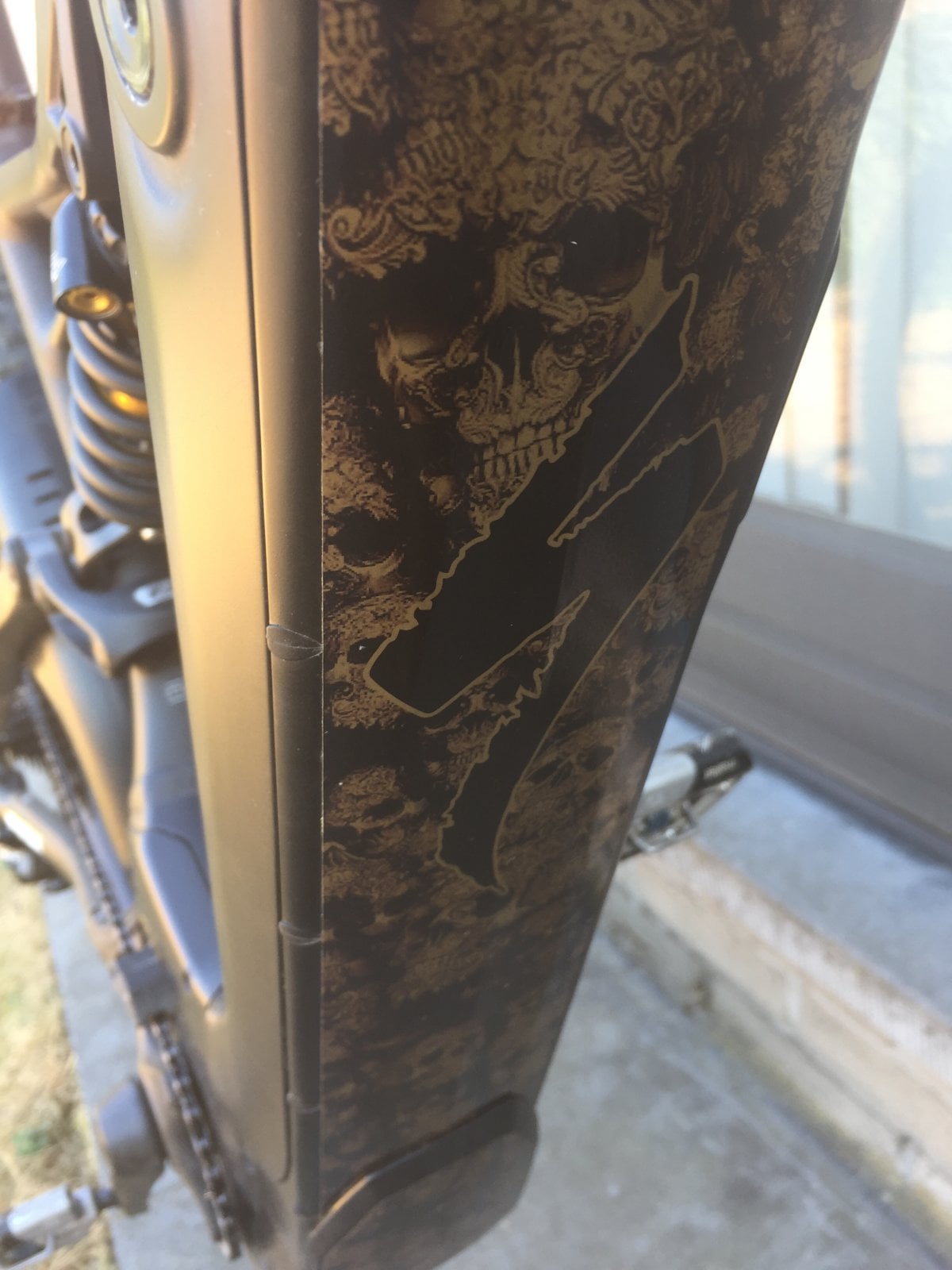

Awesome battery sticker
ToDo:
Cush Core inserts as soon as the plus gets available.
Shorter crank arms

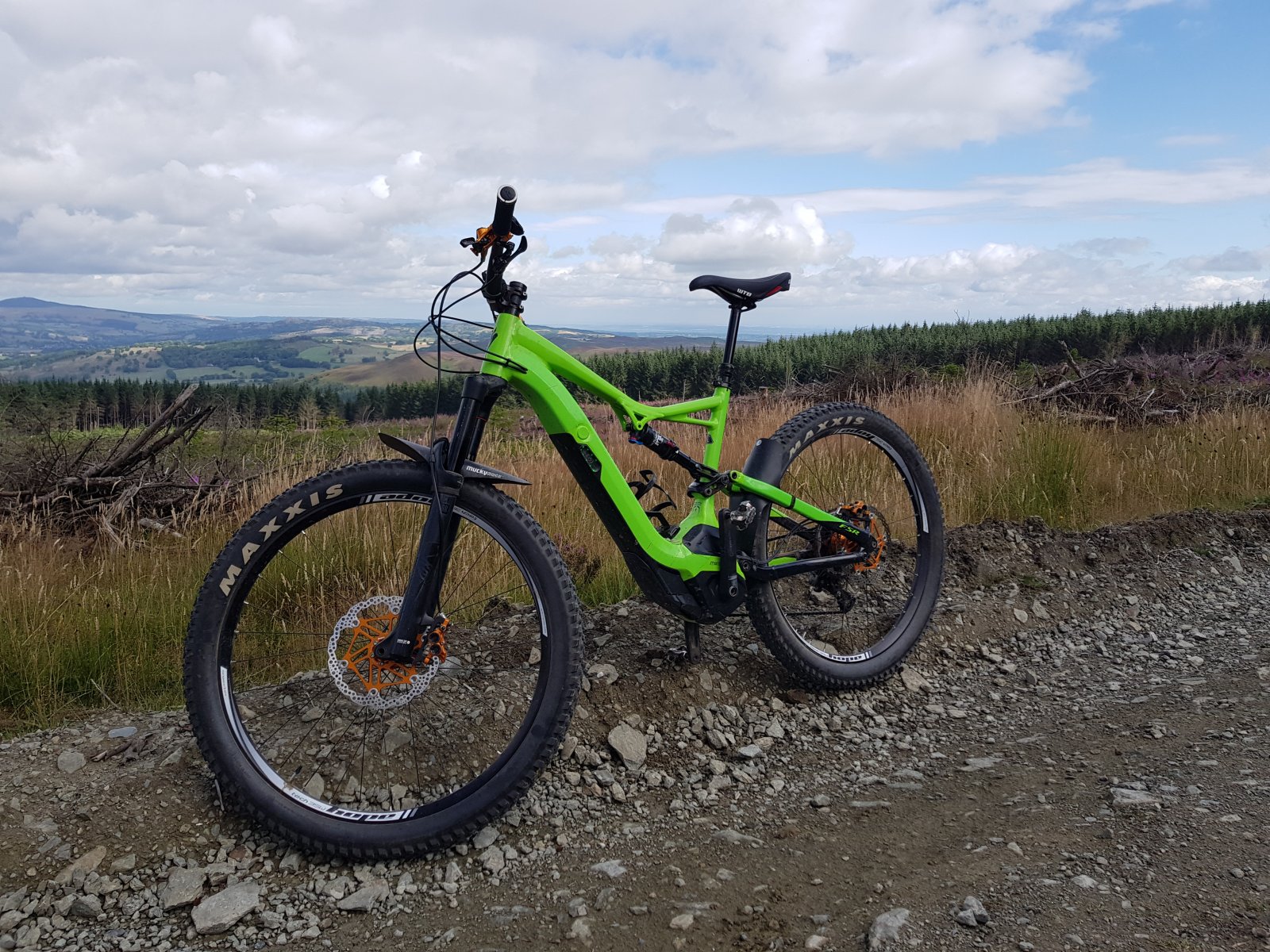

Added:
Carbon Renthals
Hope Rotors
Front and rear mudguards
Race face Chester flat pedals
Minions F&R
Grips
Carbon Rockguard
Slick grapixs fork stickers
Will be looking to change wheels at some point - leaning towards some Mavic E-XAs and changing fork to a 160 Lyrik.
Carbon Renthals
Hope Rotors
Front and rear mudguards
Race face Chester flat pedals
Minions F&R
Grips
Carbon Rockguard
Slick grapixs fork stickers
Will be looking to change wheels at some point - leaning towards some Mavic E-XAs and changing fork to a 160 Lyrik.
I'll have to check as I bought them ages ago and took them off my old Spicy.Bah, I thought when I spent 5k on a bike I could leave it alone

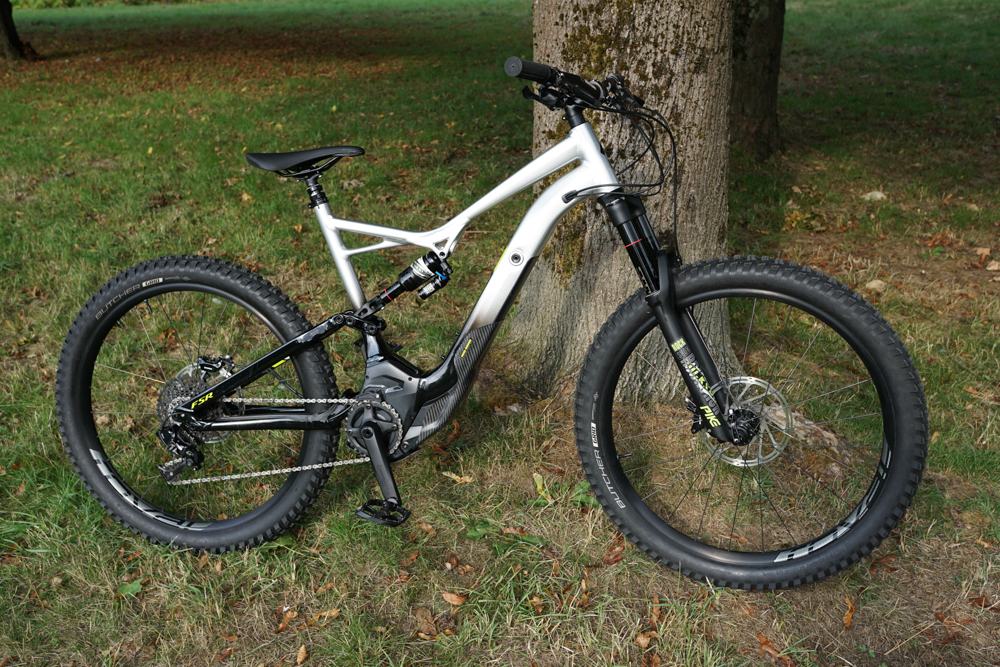

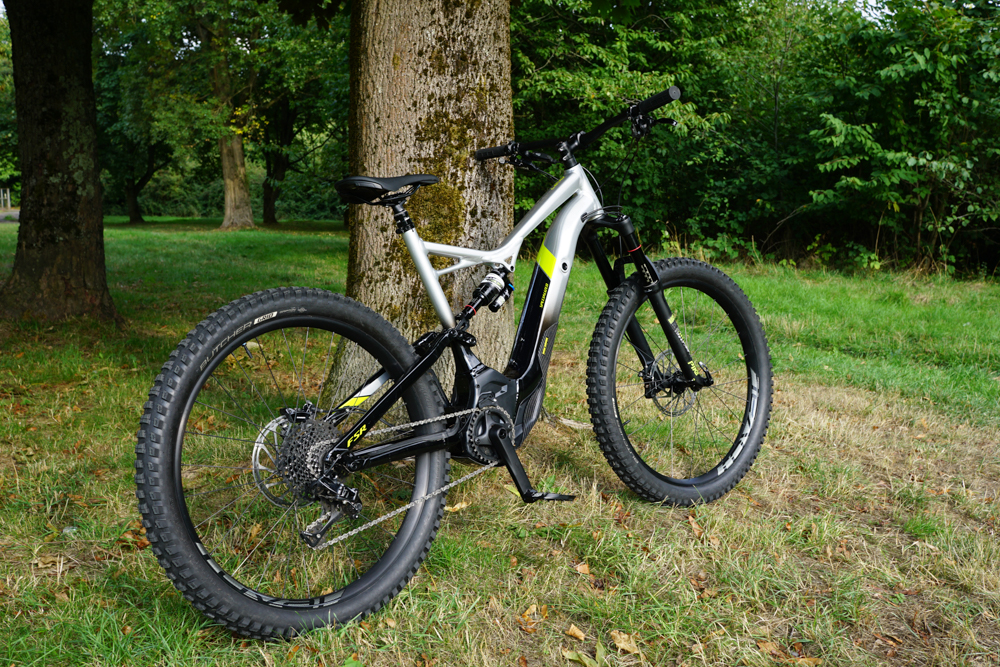

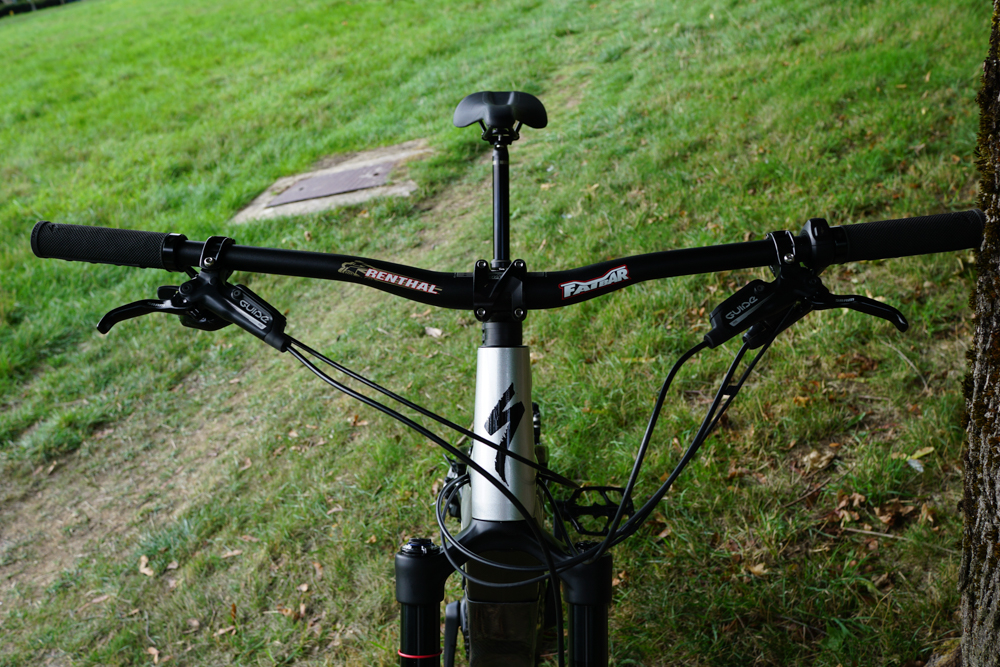

I have a 2018 Levo Comp in silver. I am between sizes and went for an XL for the extra reach.
I've made the following modifications:
I kept the suspension tweaks fairly straightforward, so that the geometry wasn't messed with too much. If needed, I can tweak it with some offset bushes. But I probably won't bother, as it's only one degree slacker.
These are great bikes.
I've made the following modifications:
- Renthal Fatbar V2, 800mm
- Rockshox Reverb 150mm dropper post

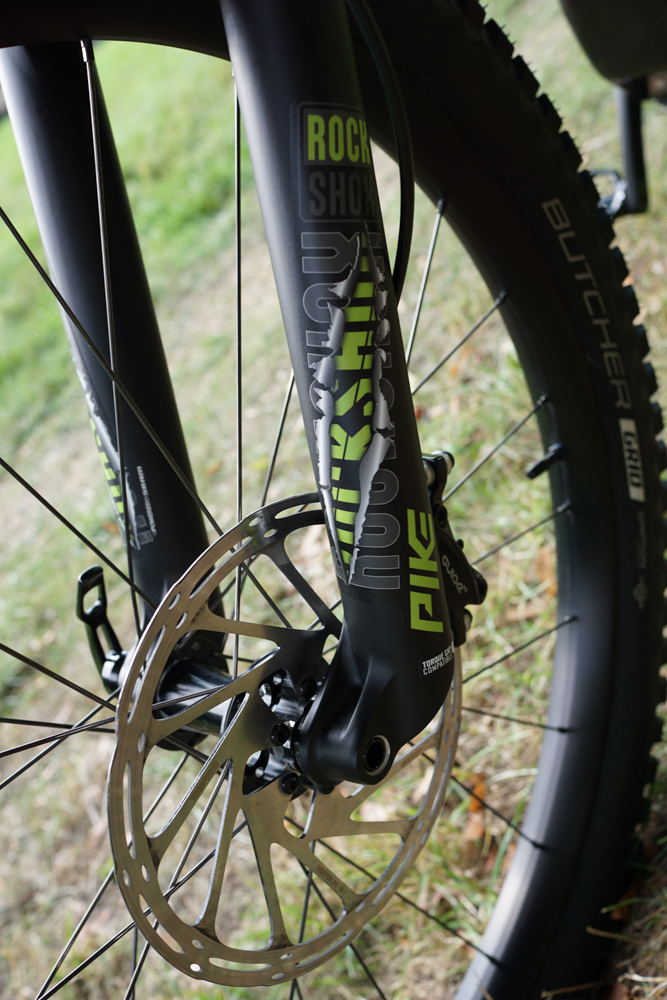

- Rockshox Revalation converted to Pike spec, and travel increased from 150 to 160mm (Motion Control damper replaced with a Charger 2 damper, and spring changed from stock 150mm to 160mm Debonair)

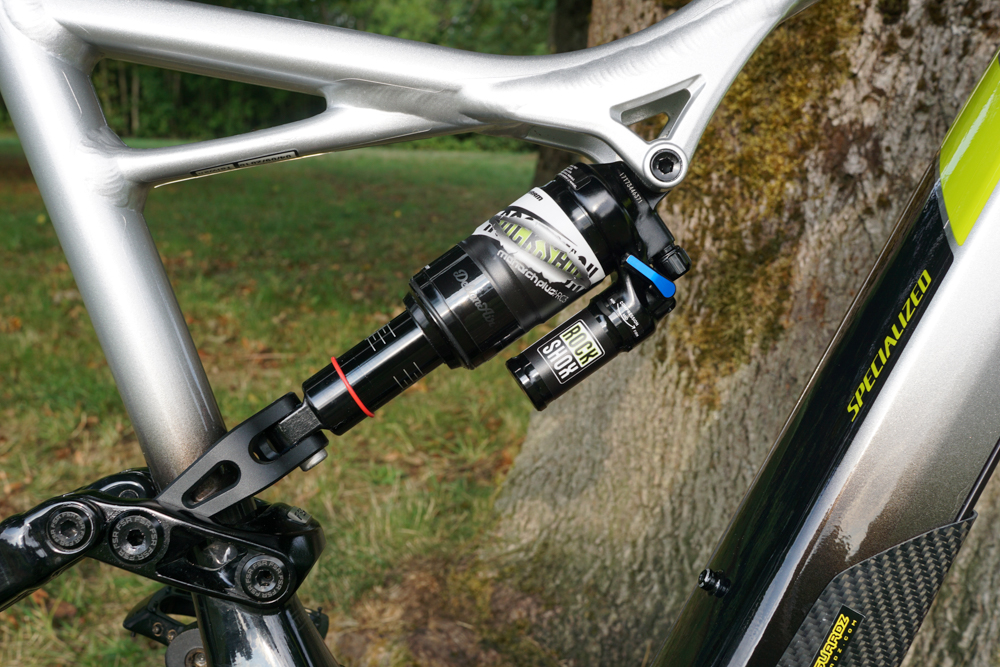

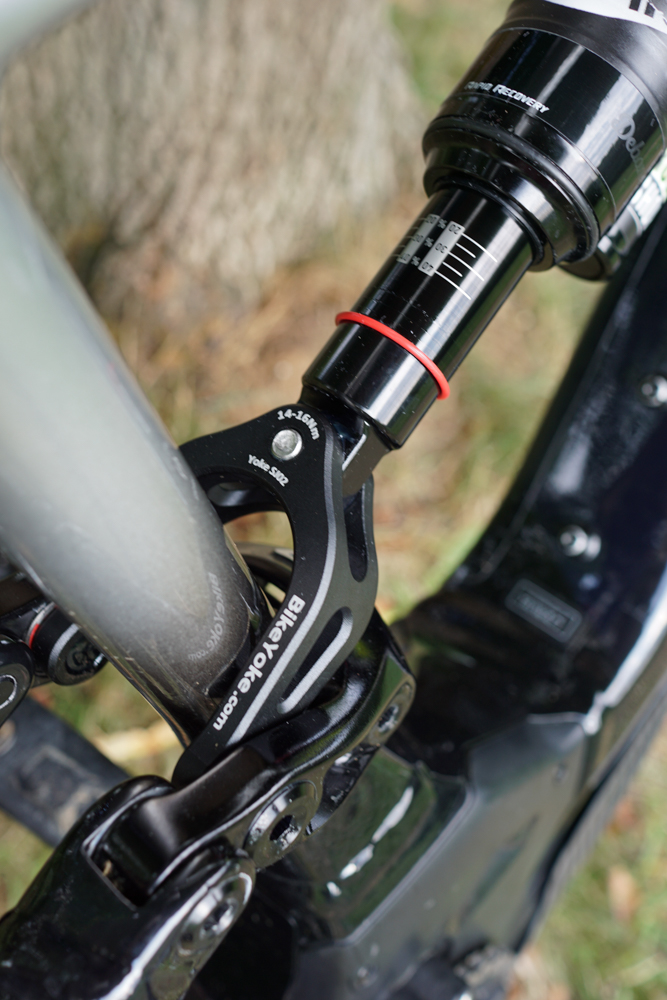

- Rockshox Monarch RL 197x48 giving 135mm travel removed, and changed to a 190x51 Rockshox Monarch Plus Debonair using a BikeYoke conversion, which should give approx. 143mm of rear travel

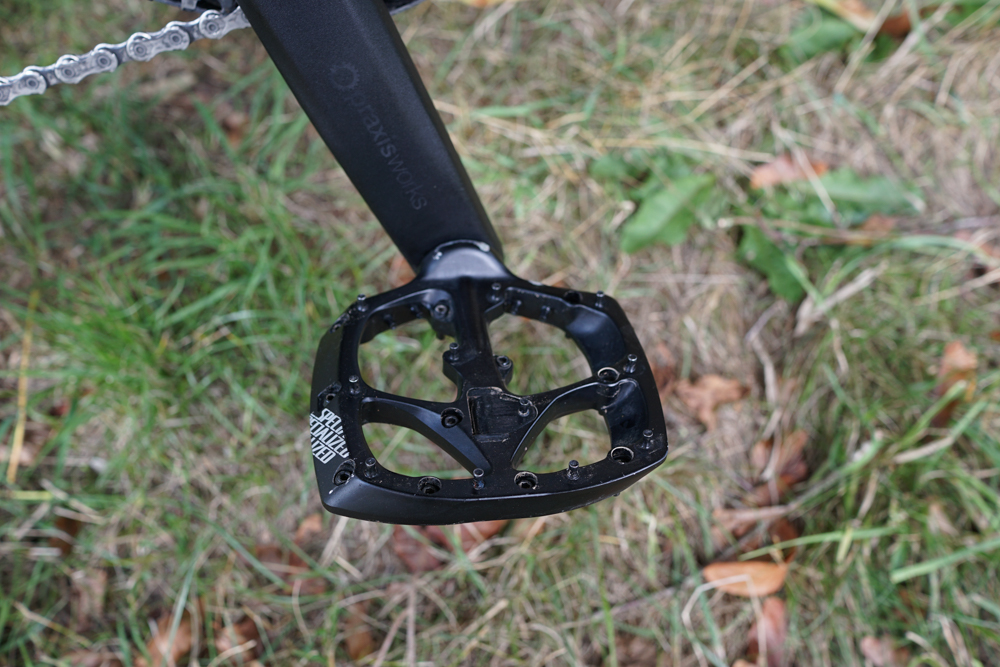

- Specialized Boomslang flat pedals

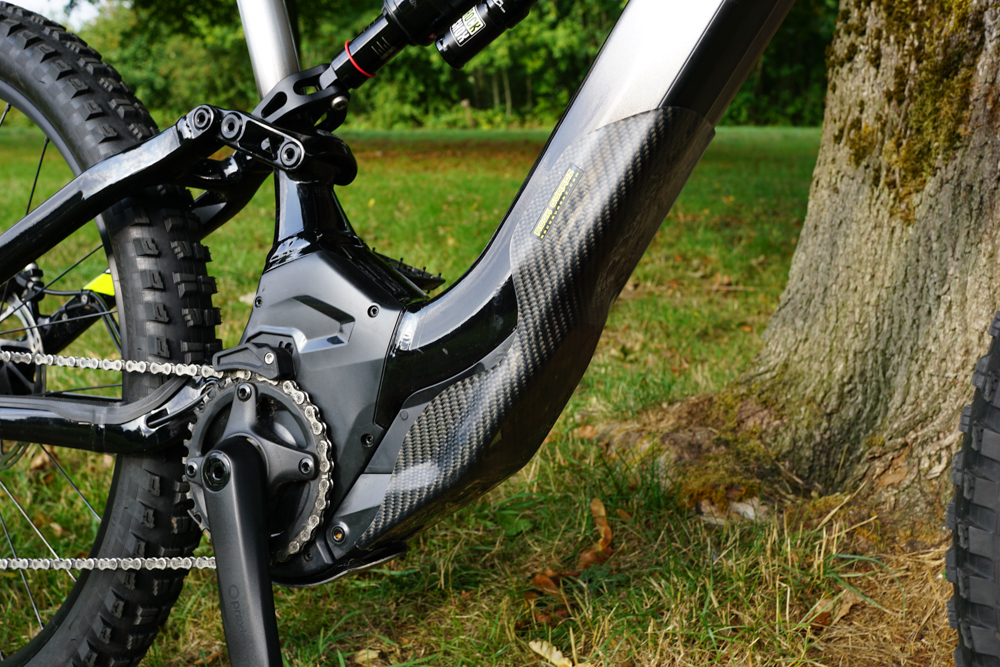

- RockGuardz Carbon Fibre bash plate and frame guard
- Custom fork and rear shock decals

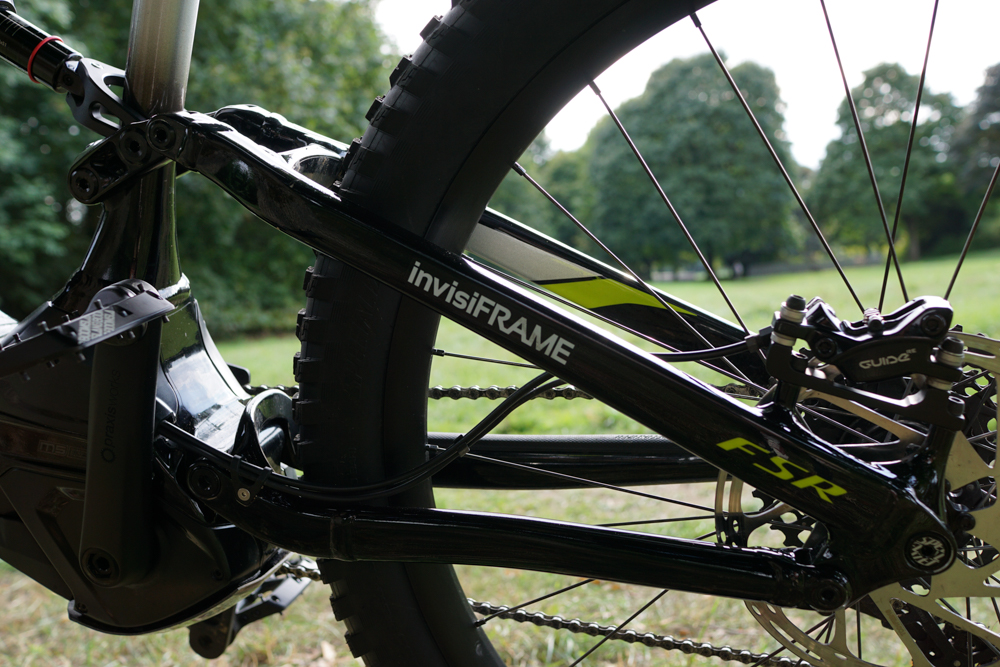

- Invisiframe wrapping
- BLevo app!
I kept the suspension tweaks fairly straightforward, so that the geometry wasn't messed with too much. If needed, I can tweak it with some offset bushes. But I probably won't bother, as it's only one degree slacker.
These are great bikes.
Last edited:
