Pole Voima 190mm Travel EMTB

[jbodnar]

I didn’t realize that my SDU’s reservoir was to the left because of the shock mount offsets, so the reservoir should be to the left (I don‘t want to reverse them).

The HBO adjustment will probably require taking the shock partially off, whichever way I mount it.

If I mount it with the reservoir near the lower shock mount, then the LSC dial is pointed up.

Thanks for all the info!

I would like to pair it with the new boxxer, but that is more money than I want to spend, more fork than I need,

I didn’t realize the a2c of the boxxer ultimate 200 is 602, so it’s slightly less than the Zeb Ultimate 190 at 606.



[tooFATtoRIDE]

I have a question for those who are riding Voima with the standard rear shock, any shock setup guide/setting and user experience you would like to share?



[jbodnar]

I ordered a Mezzer Pro 180 mm ($700).

I will try it later on my Vioma, and since it is internally travel adjustable (using spacers) to 140 mm, if the steerer is left long, I can transfer it to another bike.

Is anyone running a 180 mm fork on their Vioma? Or another bike with less travel in the front than the rear?

Would a shock size of 250 mm x 72.5 mm (instead of 75 mm) give me 183 mm of rear travel on the Vioma? Will a 70 mm stroke give me 177 mm?

If I decide to try another shock and can’t find a 75 mm stroke, I’d rather get a shorter stroke than getting the trail link.



[ebikerider]

I have run my fork at 180 travel with the 190 rear end. Works fine and the geo isn't compromised.



[Plummet]

I ordered a Mezzer Pro 180 mm ($700).

I will try it later on my Vioma, and since it is internally travel adjustable (using spacers) to 140 mm, if the steerer is left long, I can transfer it to another bike.

Is anyone running a 180 mm fork on their Vioma? Or another bike with less travel in the front than the rear?

Would a shock size of 250 mm x 72.5 mm (instead of 75 mm) give me 183 mm of rear travel on the Vioma? Will a 70 mm stroke give me 177 mm?

If I decide to try another shock and can’t find a 75 mm stroke, I’d rather get a shorter stroke than getting the trail link.

I'm running the 190mm front and rear.

Back in the day I ran a Santa Cruz v10, 250mm rear end 200 front.

I've ran my slayer 165 rear 180 front.

Personally i prefer a bit more at the front than the back.

What is important is to have matched performance front and rear. The v10 I had back in the day was undergunned at the front the rear could handle more than the front, meaning the bike was limited to what the front could handle.

The back end of the voima can handle a lot. If anything I'd upside the front to 200mm triples. The 190mm zeb ultimate I have is fantastic, but one day I'll throw a tripple on yhete to see what extra mayhem I can unlock.



[jbodnar]

The boxxer looks great (Pinkbike suspension product of the year; seems like it might be a good match for the new Vivid Ultimate; both are Vioma options now), but I think it is at least a pound heavier than the Zeb.

I’ve wanted to try a Mezzer…it may drop my Vioma front end by 12 mm (lower A2C - my mullet setup is a tad too slack now), so I might want to get a higher rise bar to compensate.



[Plummet]

The boxxer looks great (Pinkbike suspension product of the year; seems like it might be a good match for the new Vivid Ultimate; both are Vioma options now), but I think it is at least a pound heavier than the Zeb.

I’ve wanted to try a Mezzer…it may drop my Vioma front end by 12 mm (lower A2C - my mullet setup is a tad too slack now), so I might want to get a higher rise bar to compensate.

Yeah, i get it re weight. Putting a tripple on will take the voima to almost 26kg.

But you can get a slightly lower axle to crown height a tripple clamps than a big travel single crown



[Kenevieve]

I have Öhlins rxf 180 in my Voima. It works really well. I had 190 mm Zeb and the actual ride hight of the Öhlins is about same as the Zeb. Zeb sacked automatically about 10 mm. Bike feels quite balanced now with Ext e-storia shock.



[Blownoutrides]

Has anyone received a set of the newest swingarms Pole just announced?

Leo Kokkonen on Instagram: "The revised swingarm for both the Voima and Vikkelä models has now transitioned to production. We will be reaching out to those awaiting replacement swingarms shortly. #mtbtech #emtb #mountainbike"

992 likes, 36 comments - leo_kokkonen on March 6, 2024: "The revised swingarm for both the Voima and Vikkelä models has now transitioned to production. We will be reaching out to those awaiting replacement swingarms shortly. #mtbtech #emtb #mountainbike".

www.instagram.com



[Onetime]

Has anyone received a set of the newest swingarms Pole just announced?

Leo Kokkonen on Instagram: "The revised swingarm for both the Voima and Vikkelä models has now transitioned to production. We will be reaching out to those awaiting replacement swingarms shortly. #mtbtech #emtb #mountainbike"

992 likes, 36 comments - leo_kokkonen on March 6, 2024: "The revised swingarm for both the Voima and Vikkelä models has now transitioned to production. We will be reaching out to those awaiting replacement swingarms shortly. #mtbtech #emtb #mountainbike".

www.instagram.com

They’re only going on new Voima‘s and warrantied Voima’s with cracked swingarms. Are yours cracked?



[Zammo]

They’re only going on new Voima‘s and warrantied Voima’s with cracked swingarms. Are yours cracked?

Waiting for new bike should be soon so hopefully get new swing arms



[Blownoutrides]

They’re only going on new Voima‘s and warrantied Voima’s with cracked swingarms. Are yours cracked?

Waiting for new bike should be soon so hopefully get new swing arms

I’m sure you’ll get the new ones



[Darkyhs]

@Rob Rides EMTB , I've seen in your travel vid that you have a Pole Voima with you to Italy. Which bag do you use for this?



[tooFATtoRIDE]

@Rob Rides EMTB , I've seen in your travel vid that you have a Pole Voima with you to Italy. Which bag do you use for this?

Also interested to know how you travel with ebikes on planes. They are heavy, plus the bag (say 10kg) and the whole setup becomes very heavy indeed. And the battery? Do you need to remove it and put it into your hang luggage?



[Redders473]

Also interested to know how you travel with ebikes on planes. They are heavy, plus the bag (say 10kg) and the whole setup becomes very heavy indeed. And the battery? Do you need to remove it and put it into your hang luggage?

You will need to ship the battery. But you will get an ebike in a evoc xl bike bag easily.



[Rob Rides EMTB]

@Rob Rides EMTB , I've seen in your travel vid that you have a Pole Voima with you to Italy. Which bag do you use for this?

@Paul Mac did it in the smaller bike bag from Evoc. The Pro bike bag has plenty of space!



[tooFATtoRIDE]

You will need to ship the battery. But you will get an ebike in a evoc xl bike bag easily.

Need to ship the batter? This sucks. No air travel for me then. Good info re Evoc XL - thanks. Let's start hunting for the cheapest deal.



[Redders473]

Need to ship the batter? This sucks. No air travel for me then. Good info re Evoc XL - thanks. Let's start hunting for the cheapest deal.

Rob did a video on it check that out. Or see if you can rent a battery.



[Paul Mac]

@Paul Mac did it in the smaller bike bag from Evoc. The Pro bike bag has plenty of space!

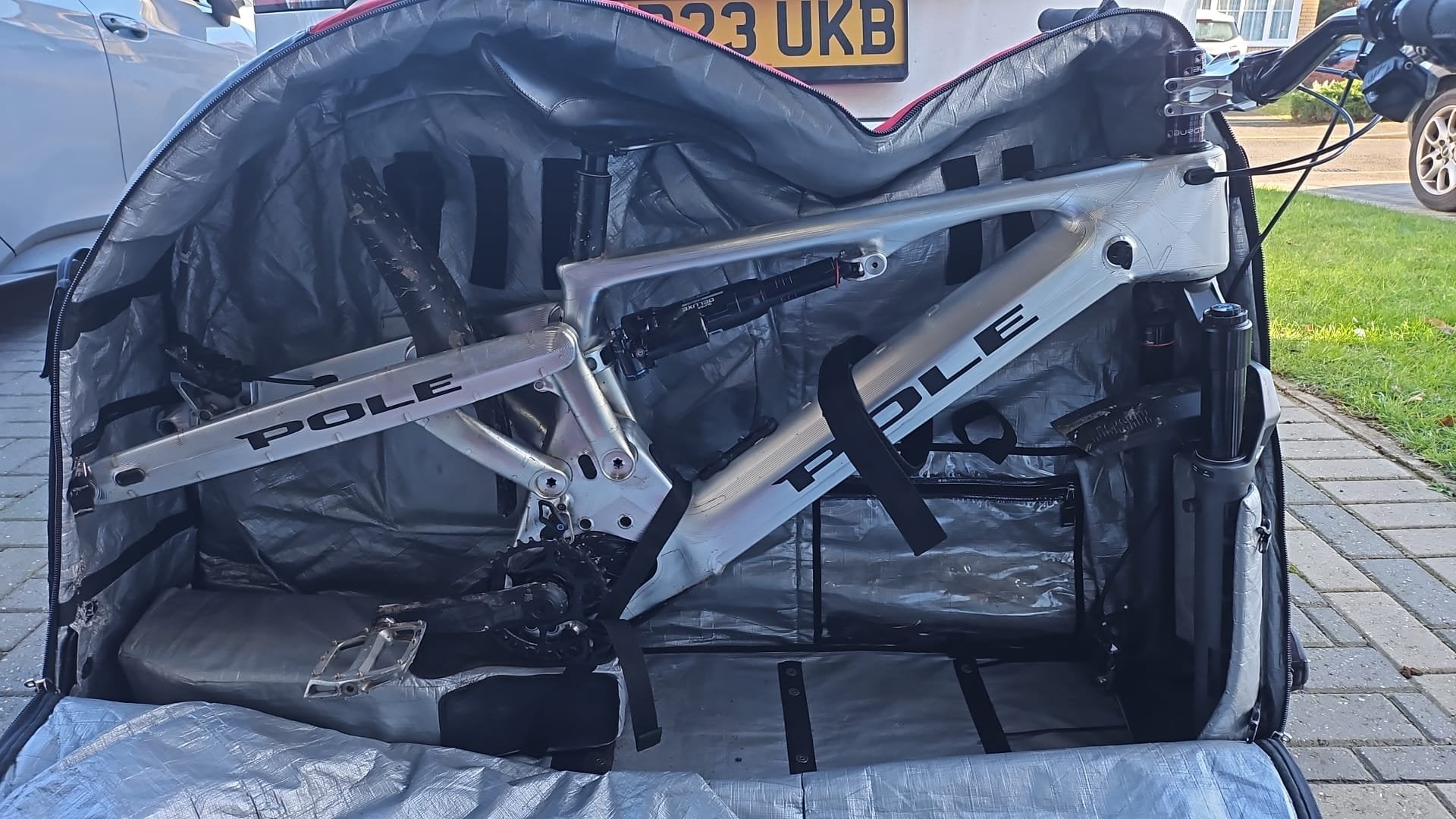

I've got a Voima K1 and a standard EVOC bike bag.
It's tight, but goes in if you let the air out of front and rear suspension.



[Paul Mac]

And total weight bag and bike w no battery ?

It was a balancing act keeping below the 32kg limit.
In the end I put the AXS derailleur and pedals in my carry on and put my riding boots, jacket and trousers with the bike.
Ended up weighing 31.4kg.
The bag on its own was nearly 9kg.



[Blownoutrides]

Smitten with the new LinkGlide setup so I’ve got a brand new XX cassette up for grabs if anyone is on the hunt:

2024 Sram XX Transmission T-type NEW For Sale

2024 Sram XX Transmission T-type NEW For sale on Pinkbike buysell

m.pinkbike.com



[Snowdude]

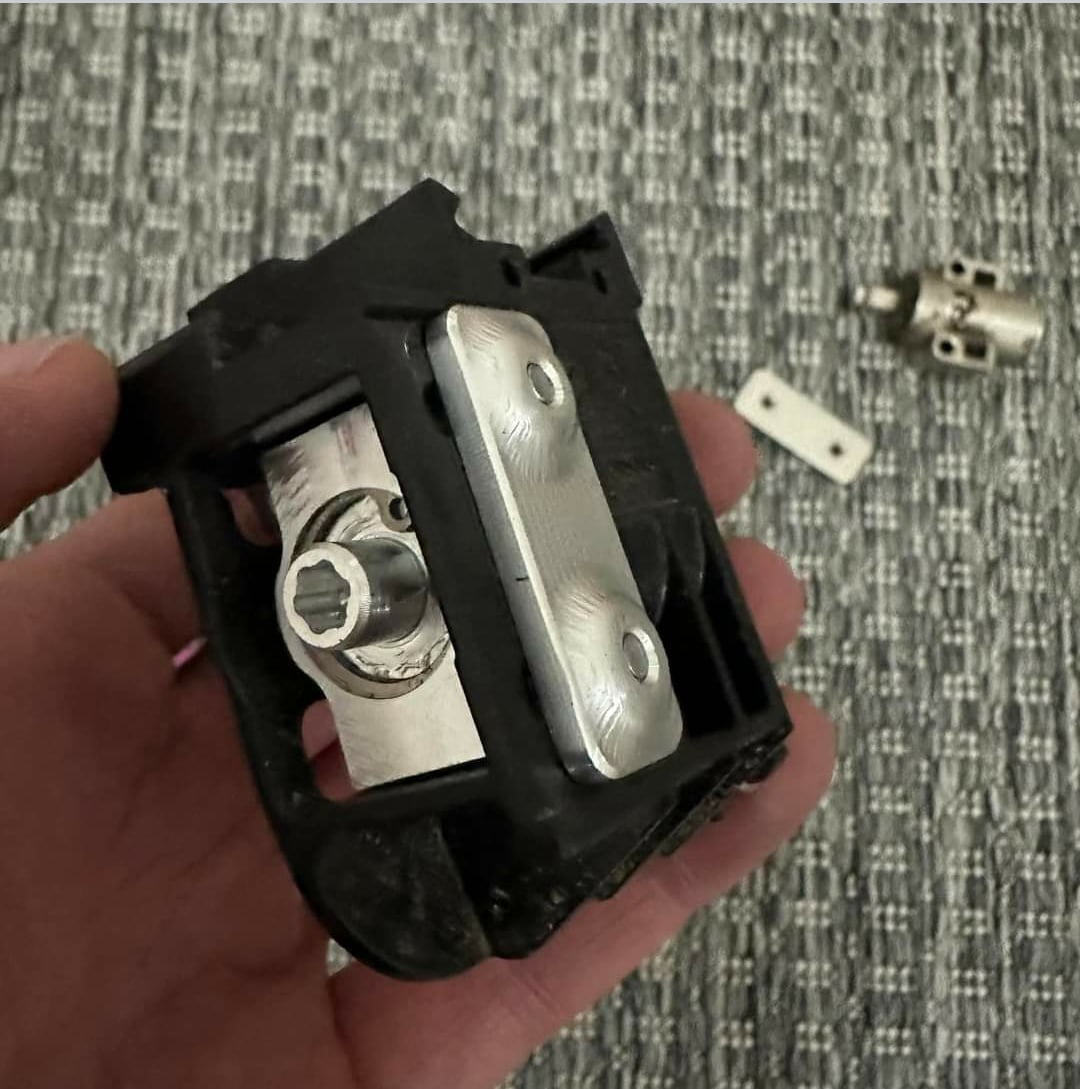

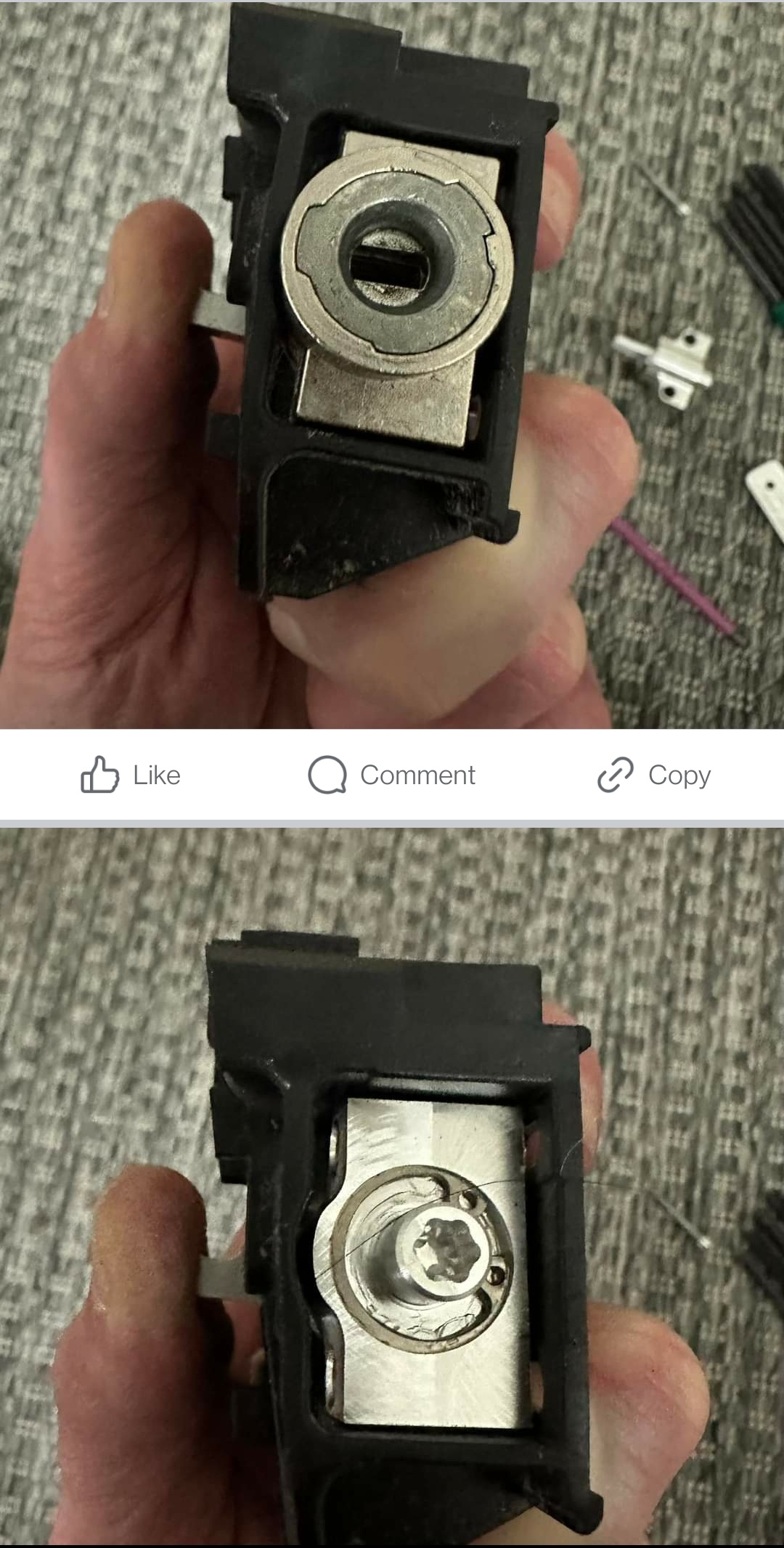

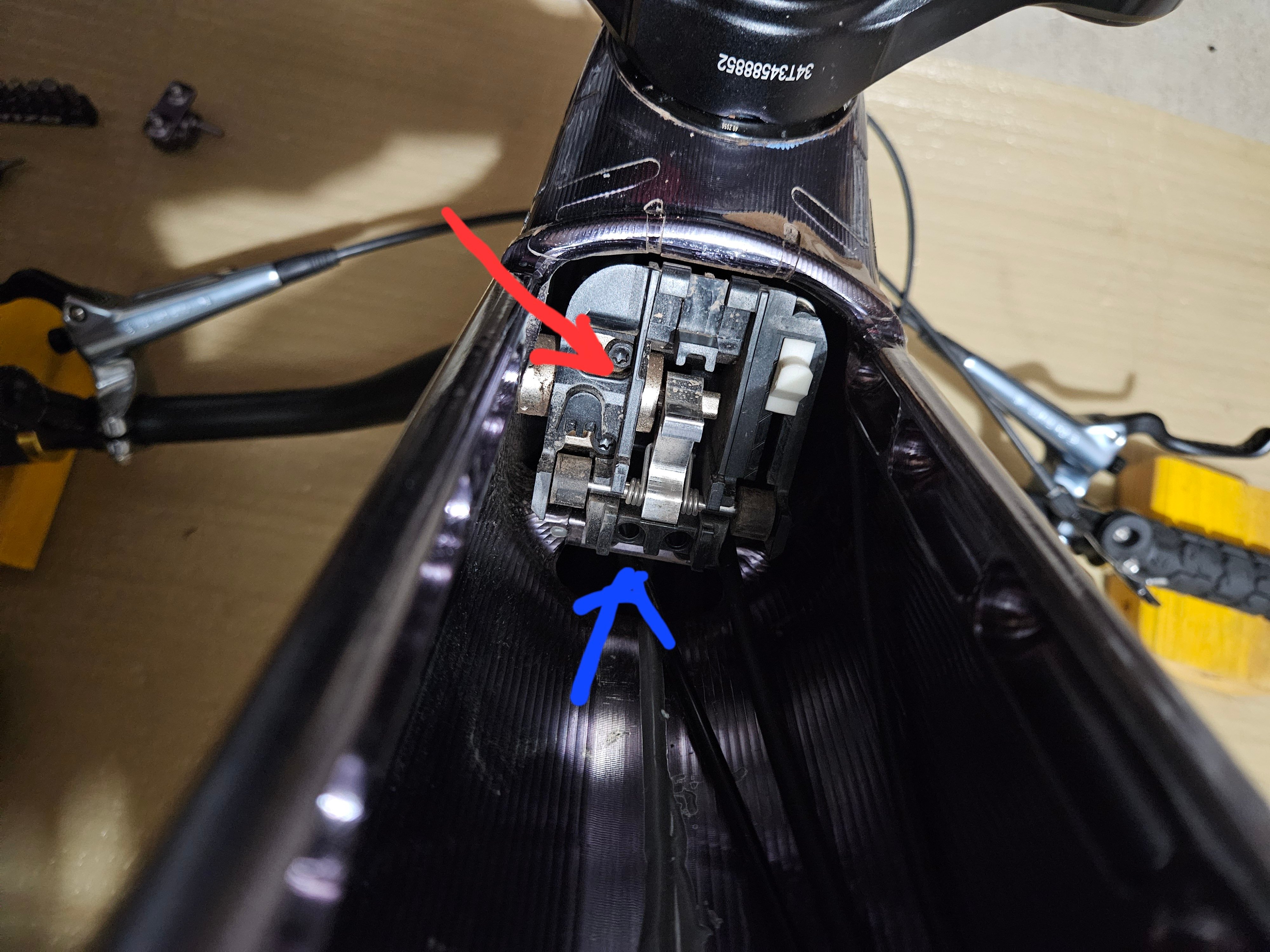

Anyone installed the keyless system on Voima LED frame? It looks like I need to take off the mounting bracket to change the lock with keyless system. I unscrewed the two bolts by the blue arrow in the picture but bracket won't come off. Anyone done it? Do we need to undo some bolts from the fork side?



[cozzy]

Anyone installed the keyless system on Voima LED frame? It looks like I need to take off the mounting bracket to change the lock with keyless system. I unscrewed the two bolts by the blue arrow in the picture but bracket won't come off. Anyone done it? Do we need to undo some bolts from the fork side?

View attachment 137461

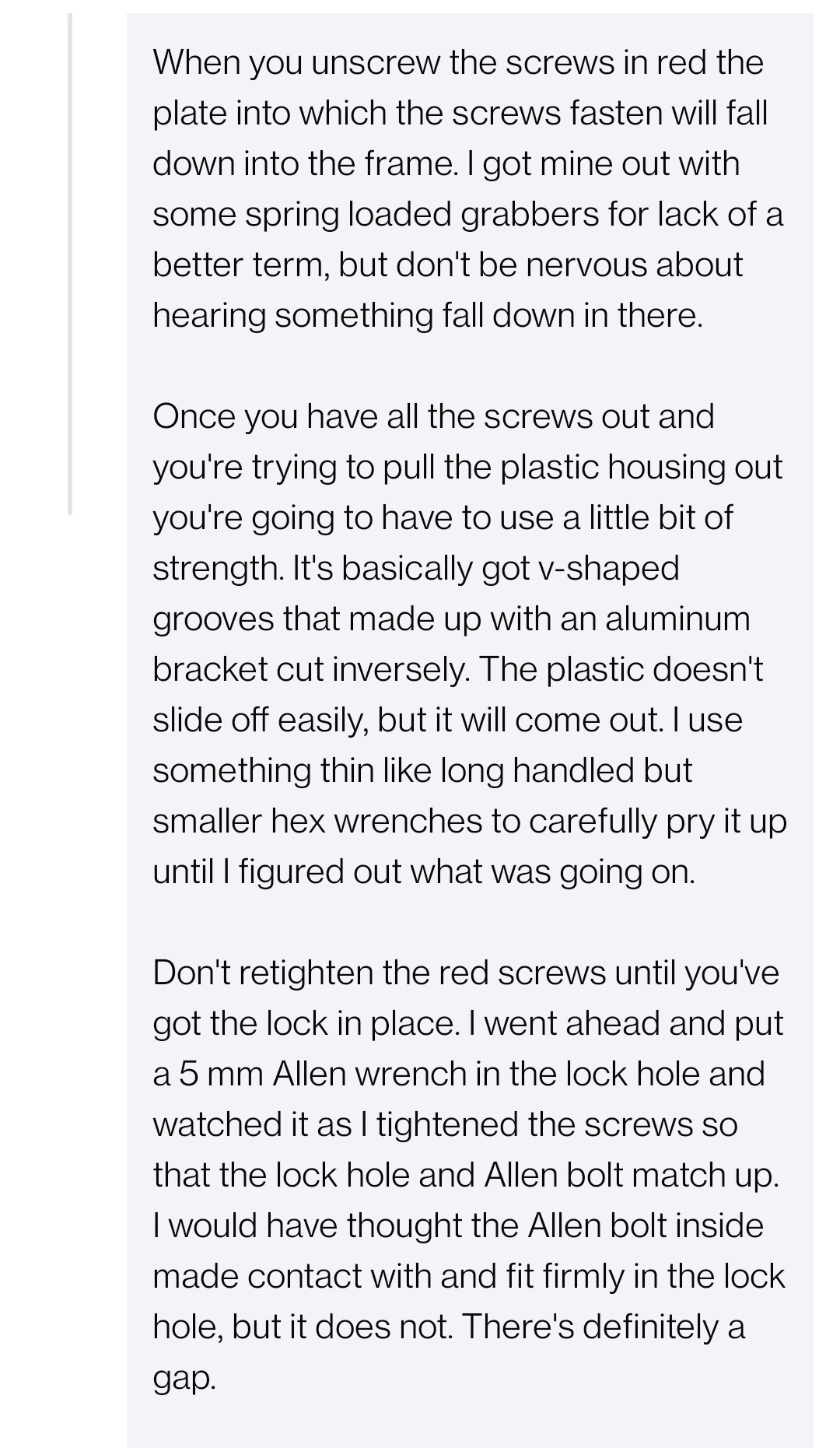

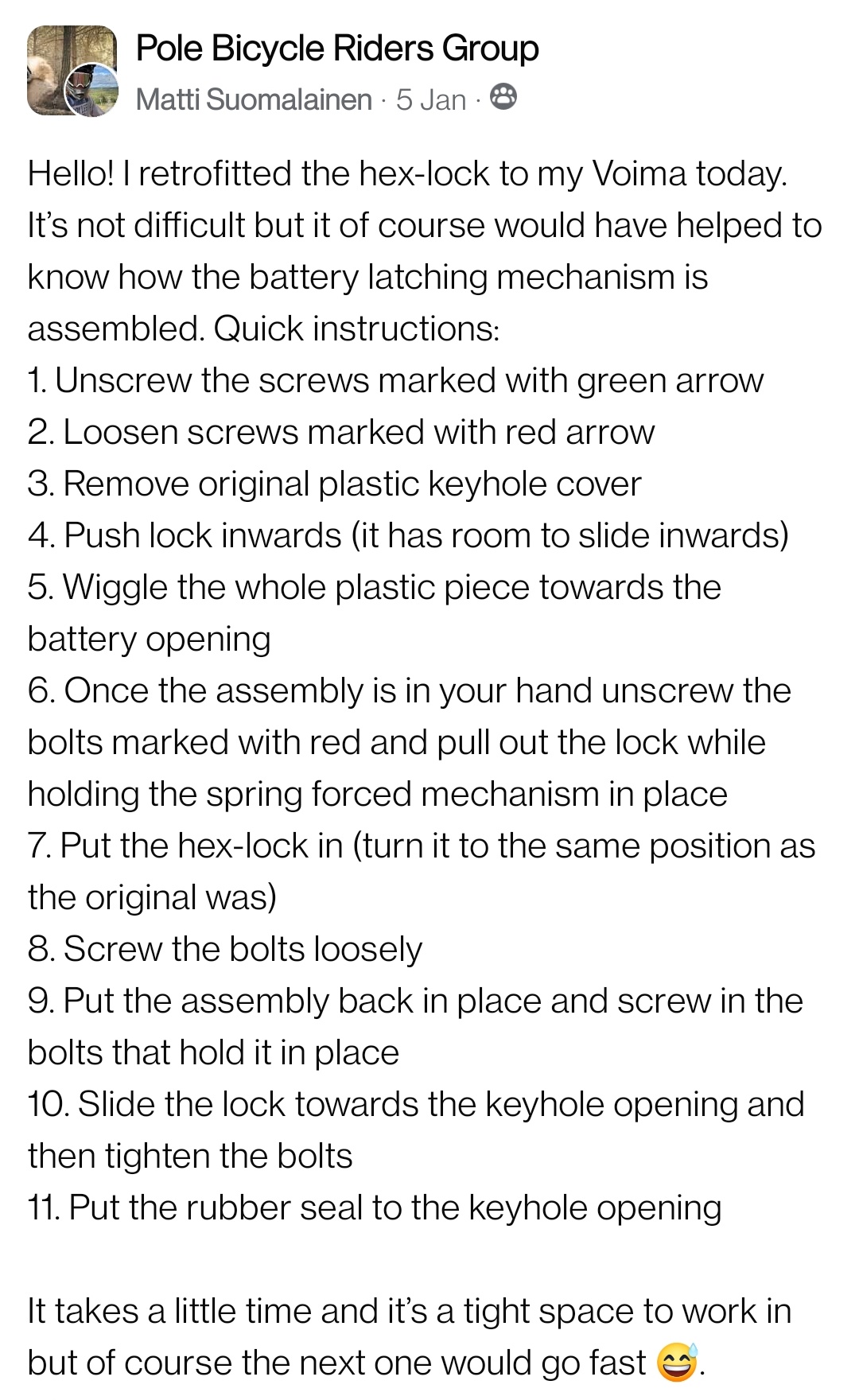

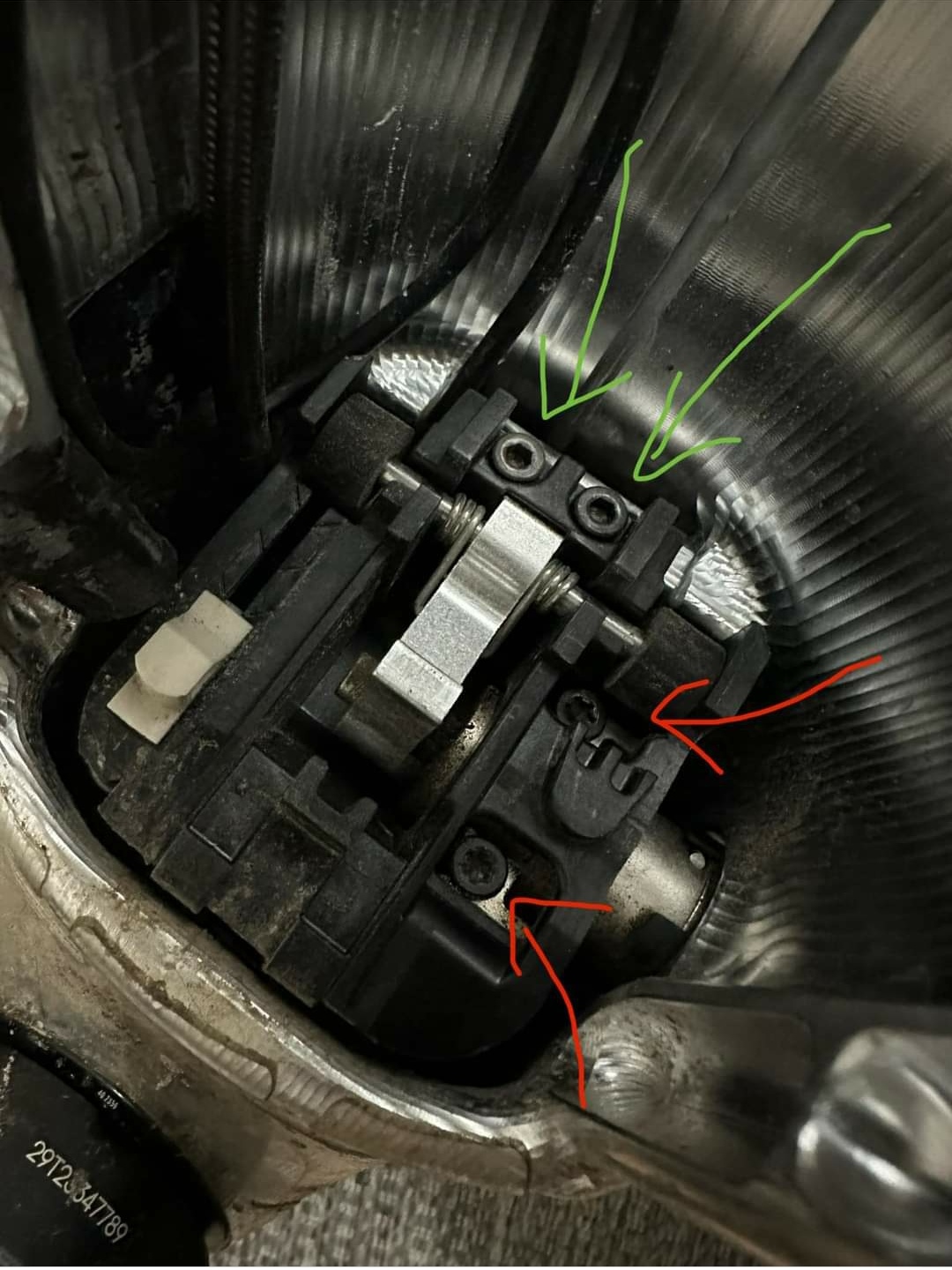

Stolen from the pole FB group if it's any help ?



[Onetime]

It is difficult to get off. The bracket slides on a zig-zag set of rails. I got mine off by gently prying it up and backwards while pulling on it. You need to wiggle and pull away, towards the bottom of the down tube. It will come off.



[Snowdude]

Thank you everyone for the tips on how to get the keyless system installed. I ended up dismantling the fork and stem and pushed the mounting bracket out from behind. It was annoying but got the job done. I feel silly personalizing the keyless system to storm gray color. Whole contraption is housed inside. I will take that as a donation to Pole. Afterall, it is a killer bike!



[Snowdude]

Hi everyone, I have another probem.
I have GX Transmission installed. It is shifting fine. On the last ride, I noticed my rear wheel wobbling side to side. Got home and noticed my transmission derailleur has a lateral play, this is with wheel off. It looks like it is almost missing a spacer, but I know transmission requires no spacers. When I put the wheel back on, I noticed the play is mostly gone. Is this normal?



[Paul Mac]

Hi everyone, I have another probem.
I have GX Transmission installed. It is shifting fine. On the last ride, I noticed my rear wheel wobbling side to side. Got home and noticed my transmission derailleur has a lateral play, this is with wheel off. It looks like it is almost missing a spacer, but I know transmission requires no spacers. When I put the wheel back on, I noticed the play is mostly gone. Is this normal?

Doesn't sound right, I have no play in mine.
You say there's play in the derailleur even with the wheel off.
Can you see where it's wobbling from?
If it's the whole derailleur and the derailleur hanger, it's loose in the frame. So you would need to tighten the hanger bolt on the outside of the swing arm.
Think it's an 8mm Allen key which is left hand thread.
If it's not the hanger and just the derailleur, sounds like it's not seated on the hanger properly or the derailleur pivot has worn.
You are right there are no washers or spacers, the derailleur mounts straight to the hanger.



[Ou812]

Hi everyone, I have another probem.
I have GX Transmission installed. It is shifting fine. On the last ride, I noticed my rear wheel wobbling side to side. Got home and noticed my transmission derailleur has a lateral play, this is with wheel off. It looks like it is almost missing a spacer, but I know transmission requires no spacers. When I put the wheel back on, I noticed the play is mostly gone. Is this normal?

Check the red sleeve thing that goes into the frame that the derailleur bolt goes through. I’ve seen a similar issue and that sleeve was cracked causing the derailleur to wobble.



[Paul Mac]

Also need to identify what AXS system you are using, I have the older AXS which uses a hanger, if you have the new T type they don't use a hanger.



[Snowdude]

Mine is Sram T-Type Transmission GX dereilleur. I have a friend who has the exact same thing on his Levo and reports the same issue. I asked SRAM. This is what they said.

"Without thru-axle secured, it's completely normal to see play at the derailleur. The rear axle and the wheel are part of the complete system, and as the thru-axle is tightened, it interfaces with the derailleur and removes any lateral play."

I think the wobble that I felt from the rear wheel was from it being under inflated from a puncture that I found later.
